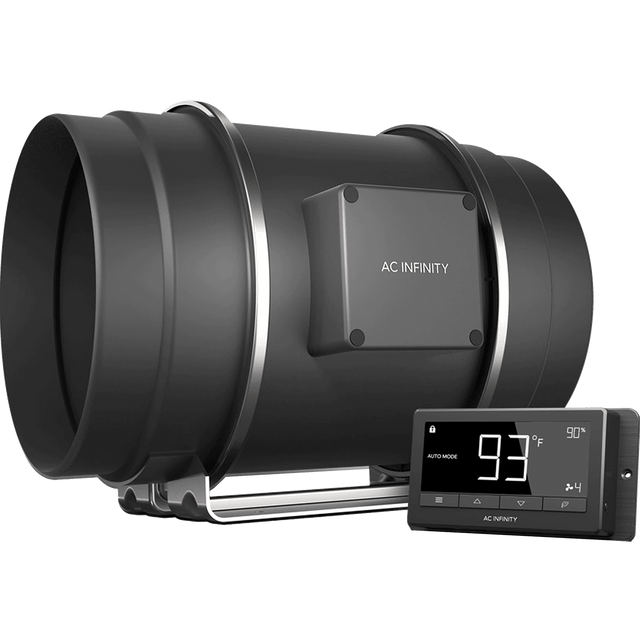

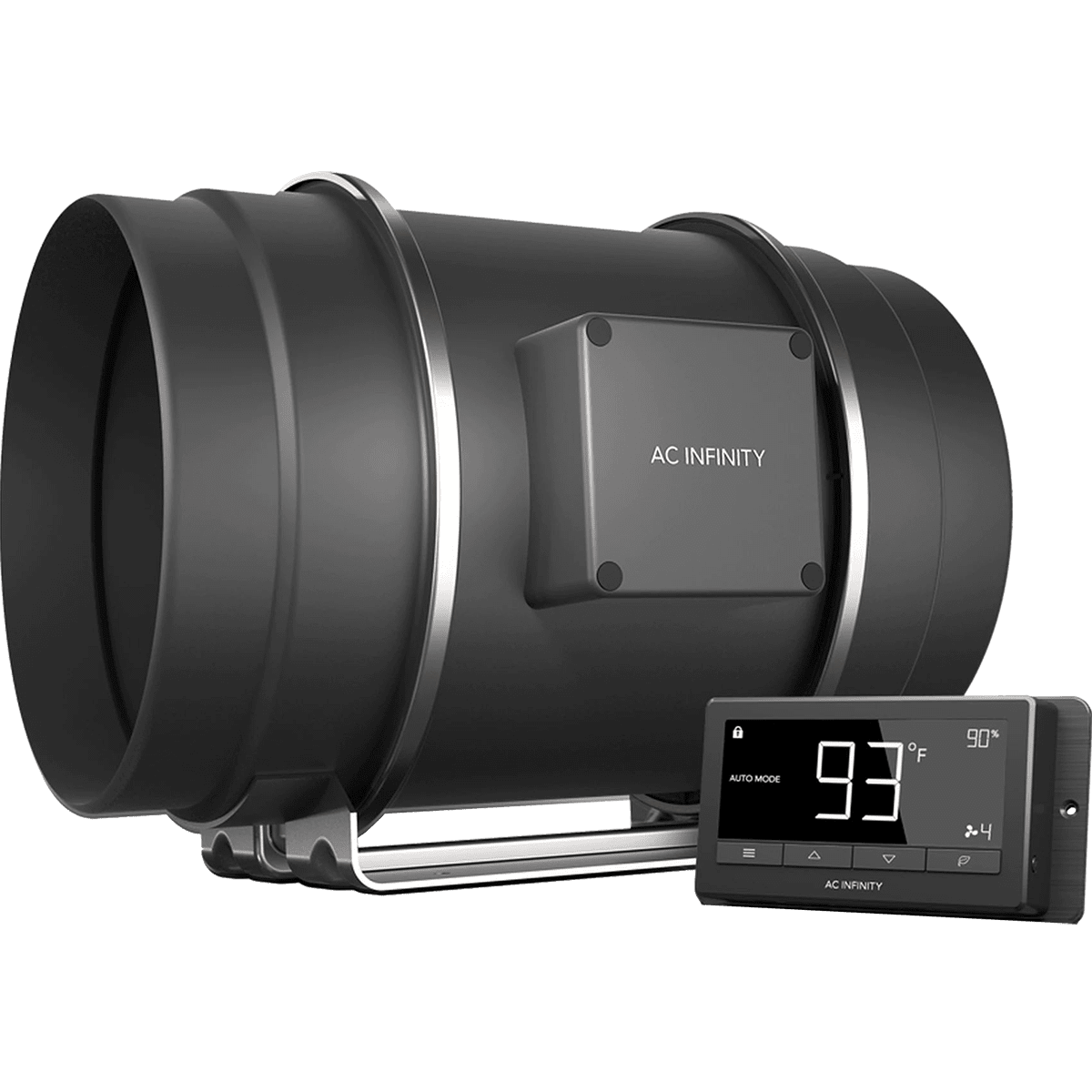

AC Infinity CLOUDLINE T10 10-In Inline Duct Fan w/ LCD Thermal Controller

Name: AC Infinity CLOUDLINE T10 10-In Inline Duct Fan w/ LCD Thermal Controller
Brand: AC Infinity
Price: 299.0 USD
Availability: InStock

SKU: ac11305 | Model: AI-CLT10

$299.00 $329.00

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

2-Year Limited Warranty

What's In The Box?

AC Infinity CLOUDLINE T10 10-In Inline Duct Fan w/ LCD Thermal Controller
Owner's Manual
LCD Smart Controller
Corded Sensor Probe
AC Power Plug
Duct Clamps (2)
Mounting Hardware

Info & Guides

Owner's Manual

Engineered to perform in the toughest of environments, the AC Infinity CLOUDLINE T10 10" Inline Duct Fan with LCD Thermal Controller features programmable functions for controlling the humidity and airflow in a variety of environments including industrial settings, the growing industry, and even residential applications. With an EC-motor, it's a more efficient and quieter ventilation option than traditional AC-motor duct fans.

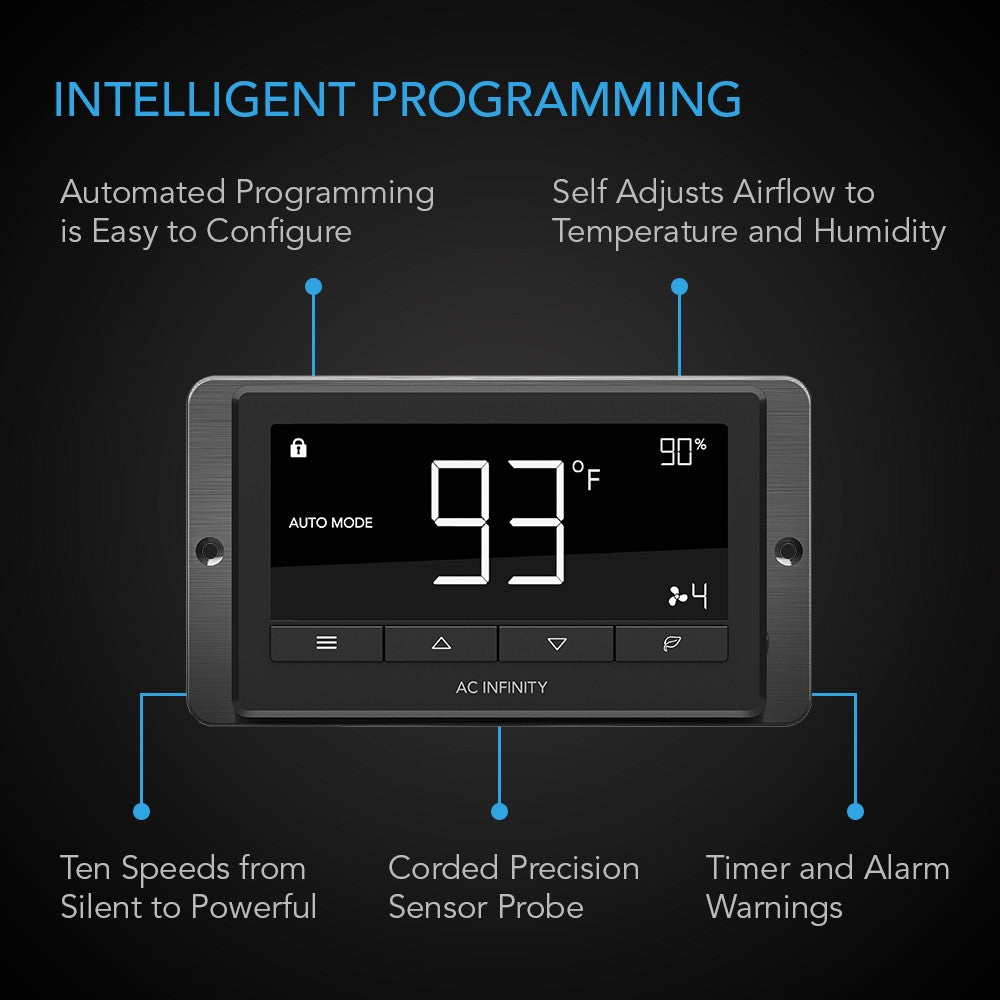

LCD Thermal Controller

Gone are the days of having to make adjustments to your airflow based on changing room conditions. Equipped with a smart controller, the AC Infinity AI-CLT10 can be programmed to automatically adjust the fan speed in response to changes in humidity levels. Equipped with backup memory, the unit can run continuously or run at specific speeds when powered.

Efficient Motor Design

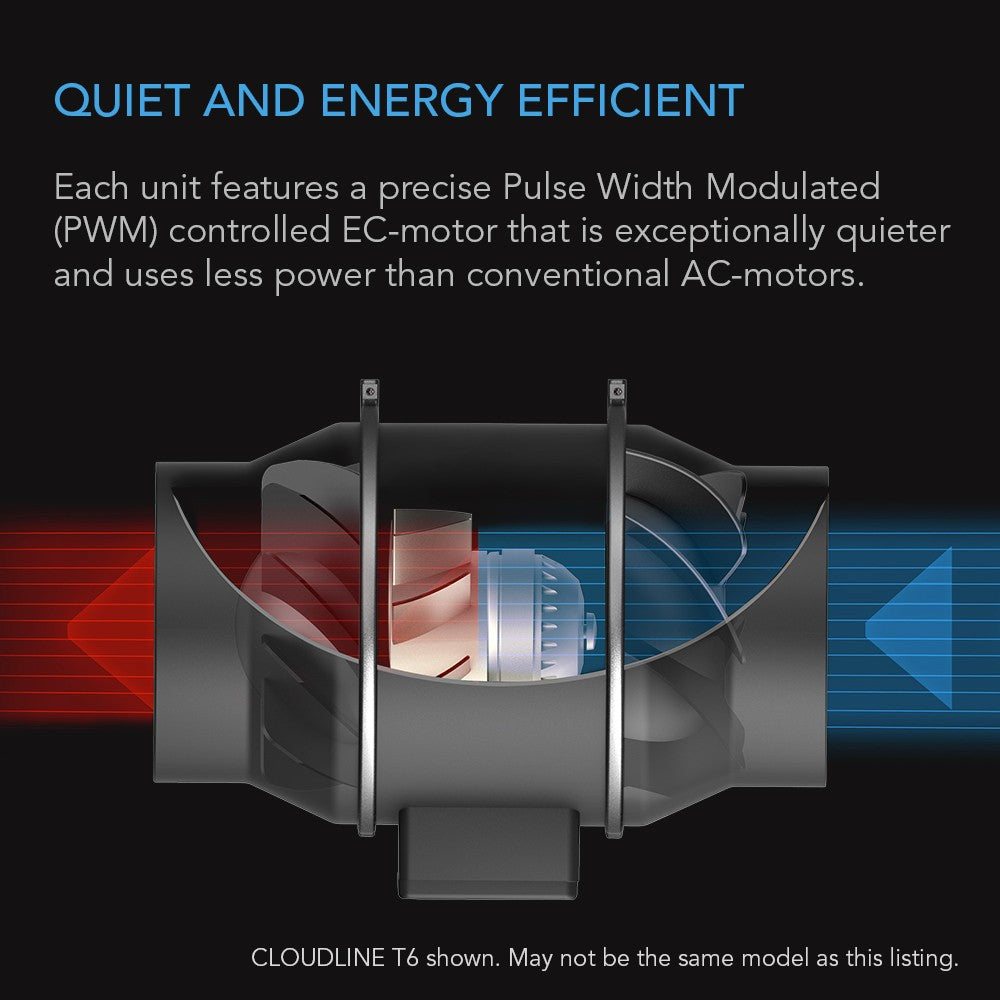

Traditional AC-motor duct fan control fan speed by suppressing voltage. Featuring an EC-motor, the AC Infinity CLOUDLINE uses pulse width modulation (PWM) to change speeds. This unique modulation allows the fan to run smoothly at lower RPM speeds without increasing heat or noise levels. Its noise level is an astonishingly quiet 48 decibels.

Mixed Airflow Design

Equipped with a stator blade and using hydrodynamic wind circles, the AC Infinity inline duct fan is high static pressure rated. It uses a mixed airflow design to allow it to remain effective in rooms where airflow is restricted.

Additional Features

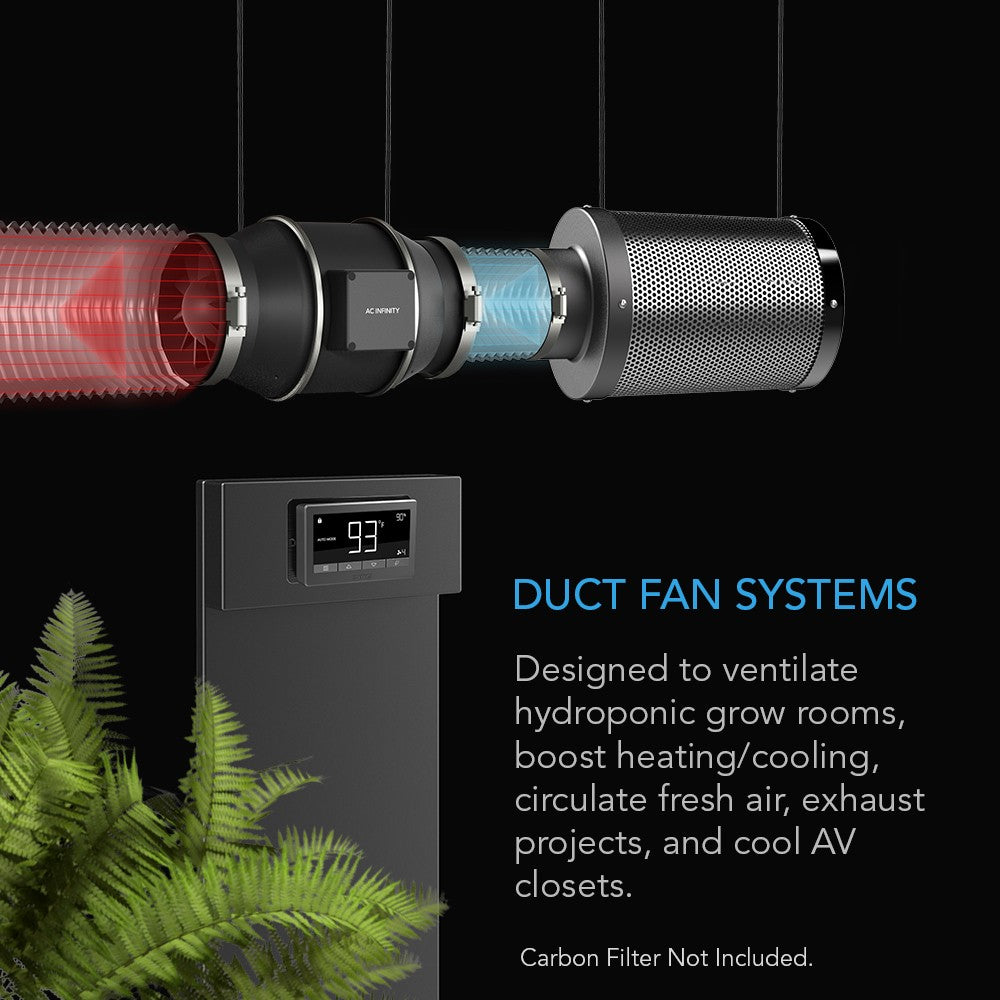

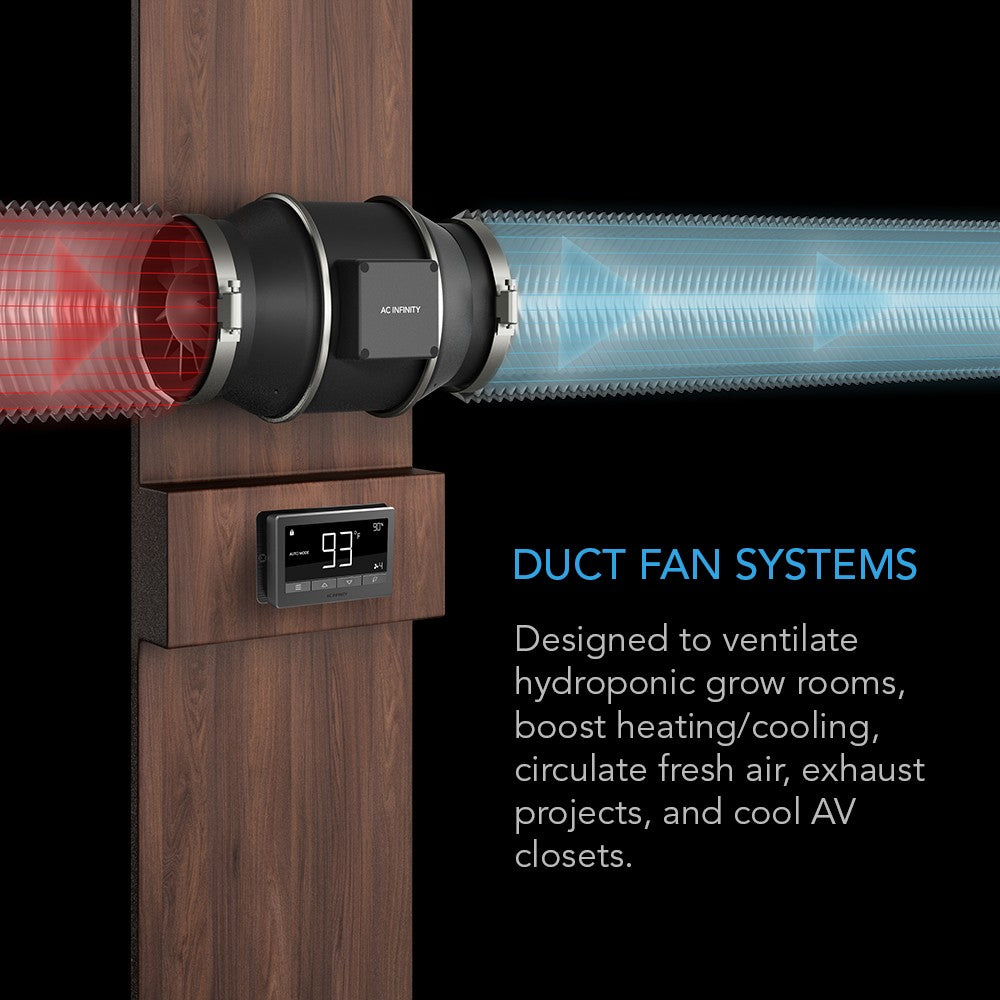

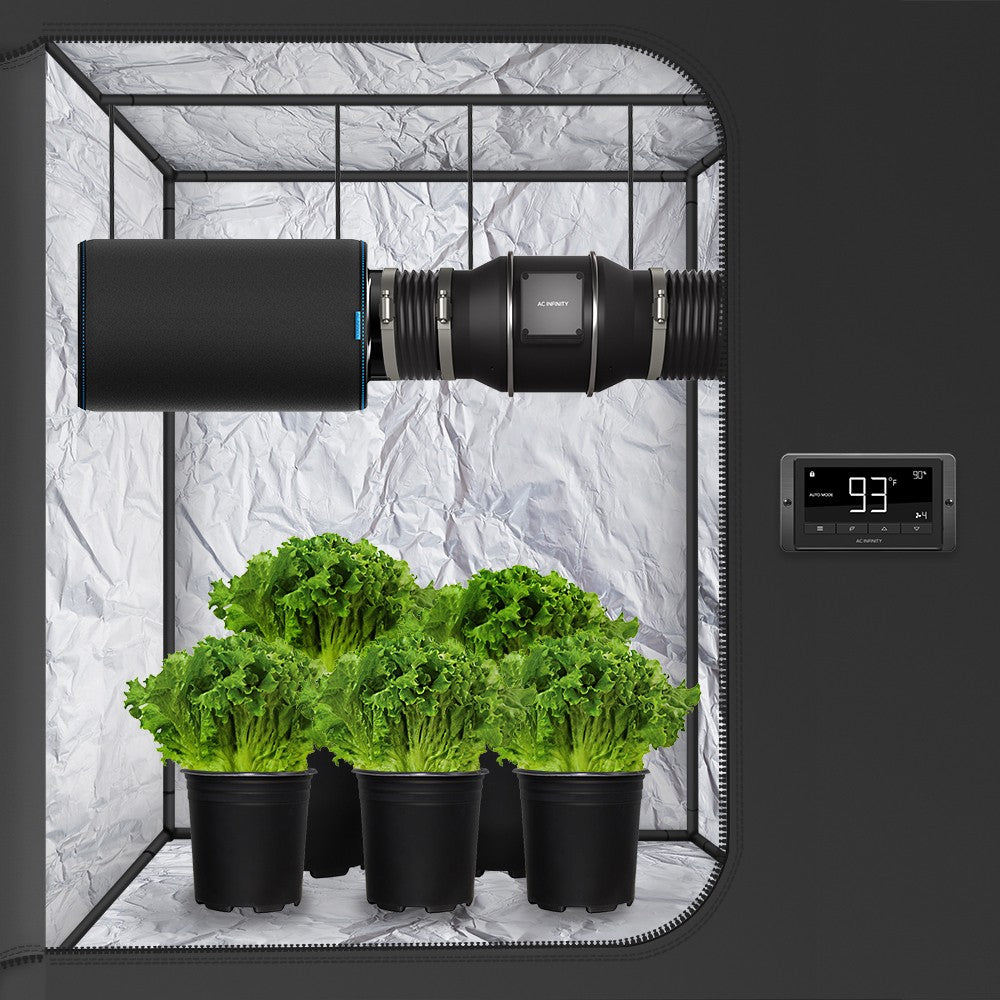

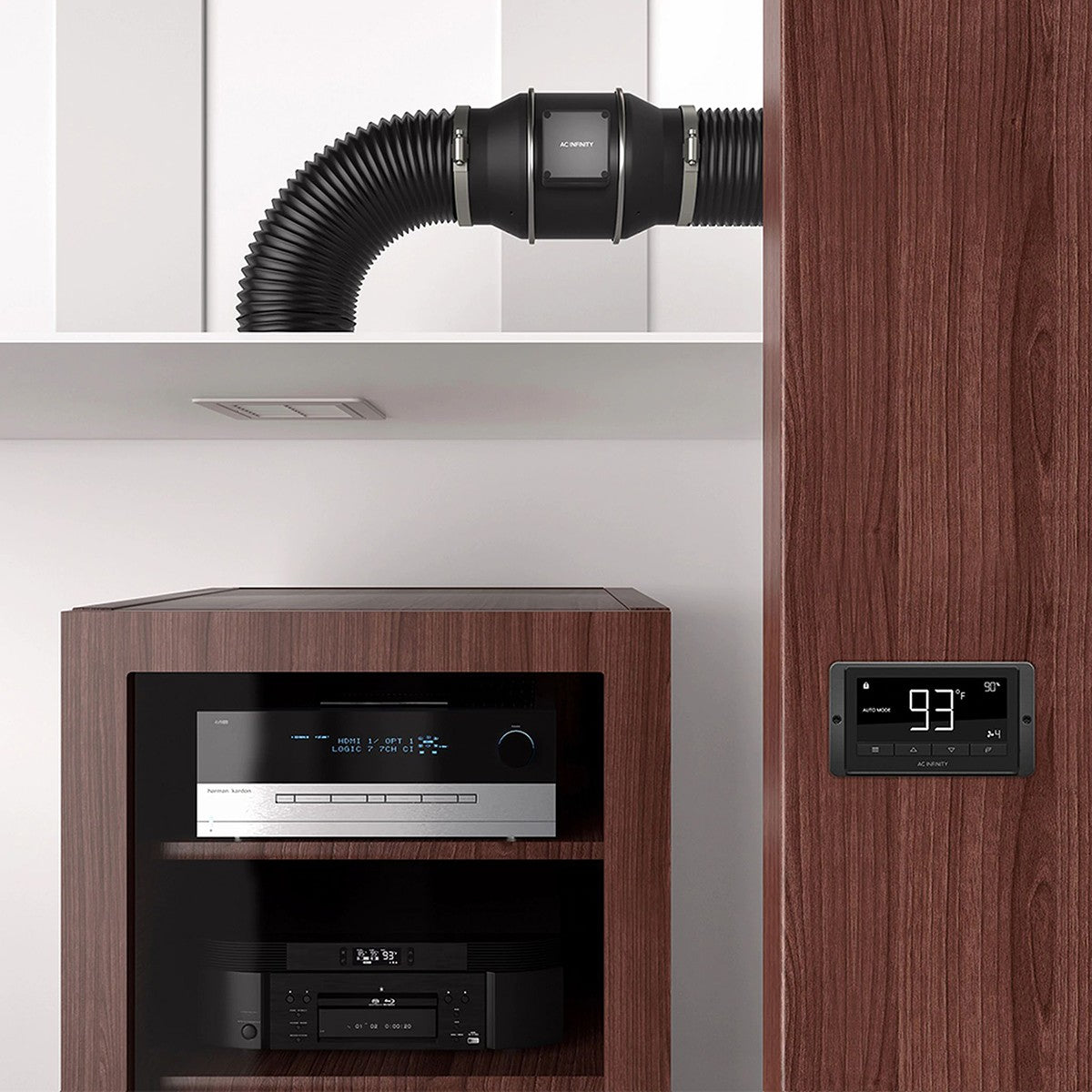

Suggested Applications: This fan works well for AV equipment cooling, grow house ventilation, room to room air transfers, and attic and bathroom exhausting.
Duct Size: 10-inches
Maximum Airflow: 1,201 cubic feet per minute (CFM)
Built-In Timer: Program when and for how long the fan runs before turning off.
Alarm System: Alerts you when there are issues with the system or the settings are outside of your set parameters.

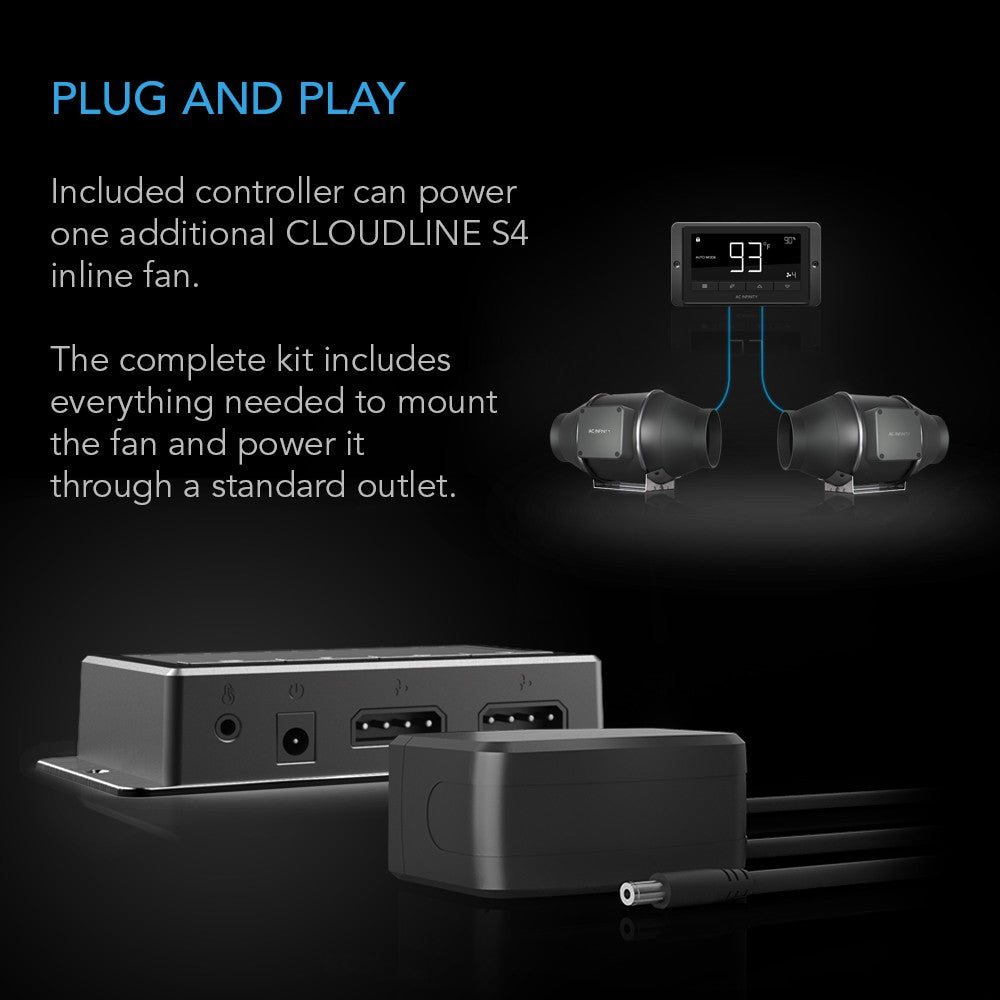

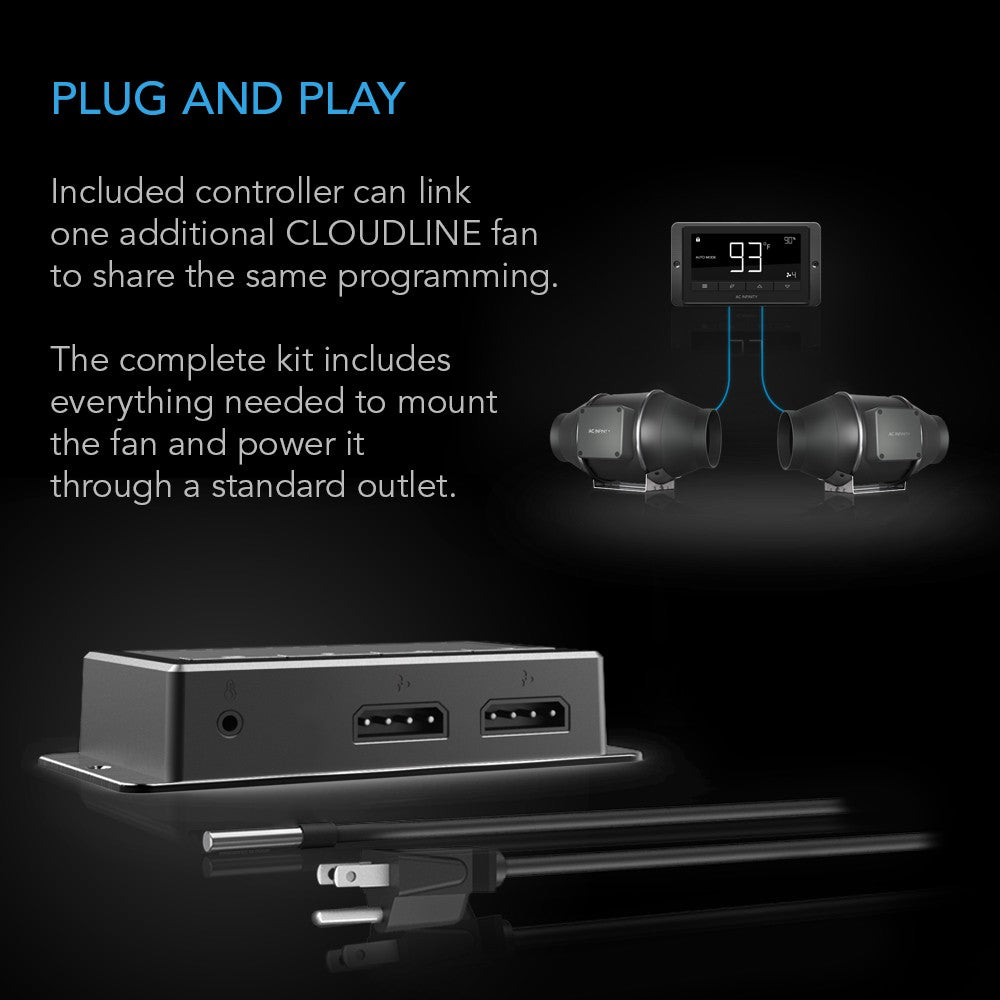

Installation Made Easy: Its included materials feature a corded sensor probe, AC power cord, duct clamps, and necessary mounting hardware.
IP44 Rated: This unit is rated to be highly resistant to dust and liquids.
Meant To Last: With a life expectancy of 67,000 hours, this unit has an impressive life expectancy.

Summary

For ventilation and airflow movement in the toughest commercial and residential settings, turn to the AC Infinity AI-CLT10 Duct Fan.

What Customers Love

LCD Controller: Programmed your preferred fan speeds at specific humidity levels, create schedules, and more with its LCD smart controller.
Efficient Performance: Its EC-motor allows this unit to run more smoothly and quietly than AC-motor fans.

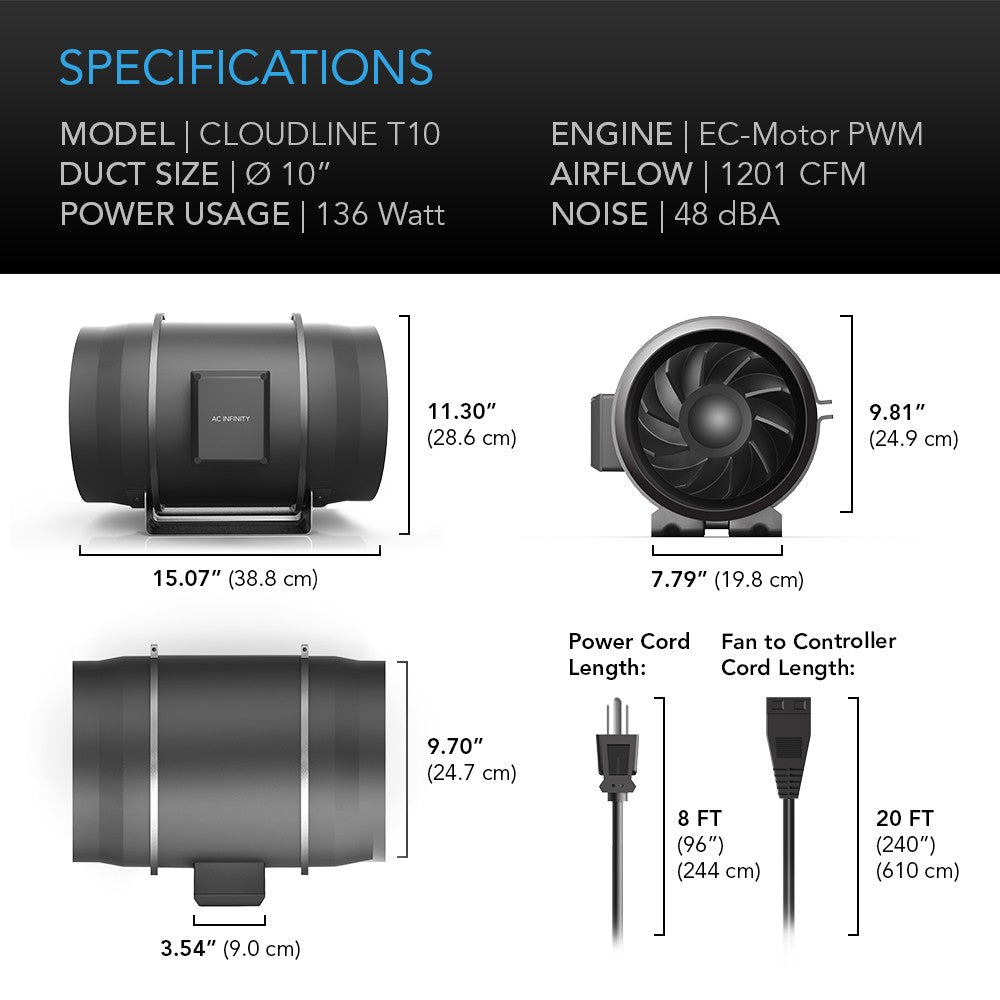

Key Specifications

Number of Speeds

8
Sound Level (Sones) (sones)

2.5
Type

Classic Inline Duct Booster Fan

General

Application

Ducting
California Residents

⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. See: www.P65Warnings.ca.gov
Certifications

CE
Color

Black
Controls

Electronic
Maximum Air Temperature (degrees F)

140
Maximum Cubic Feet per Minute (CFM) (CFM)

1201.0
