AC Infinity IONFRAME EVO Commercial LED Grow Light

SKU: ac14803  |  Model: AC-IF10K
$999.00

FREE shipping on orders over $45!

In Stock Usually ships in 1 business days.

Are you a commercial grower? Contact our business sales team for a volume discount quote at 770-224-7069 or business@sylvane.com.

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

2-Year Limited Warranty

What's In The Box?

  • AC Infinity IONFRAME EVO Commercial LED Grow Light
  • Schedule Controller
  • LED Driver and Cord
  • Daisy-Chain Adapter (EVO10 only)
  • Dual Driver Power Cord (EVO10 only)
  • UIS M-M Cord (2 ft)
  • UIS M-M Cord (10 ft)
  • UIS M-M Cord (1 ft) (EVO10 only)
  • Installation Materials
  • Owner’s Manual

Info & Guides

Description

Ensure stable and dynamic lighting for your plants with the AC Infinity IONFRAME EVO Commercial LED Grow Light. Each grow light features Samsung LM301H EVO LEDs, a bar-style fixture design, and a passive cooling LED driver to increase your plant’s growth and yields.

Best Fit for Your Space

Designed for large grow spaces and grow tents, these AC Infinity IONFRAME commercial grow lights are available in five different wattages and sizes:

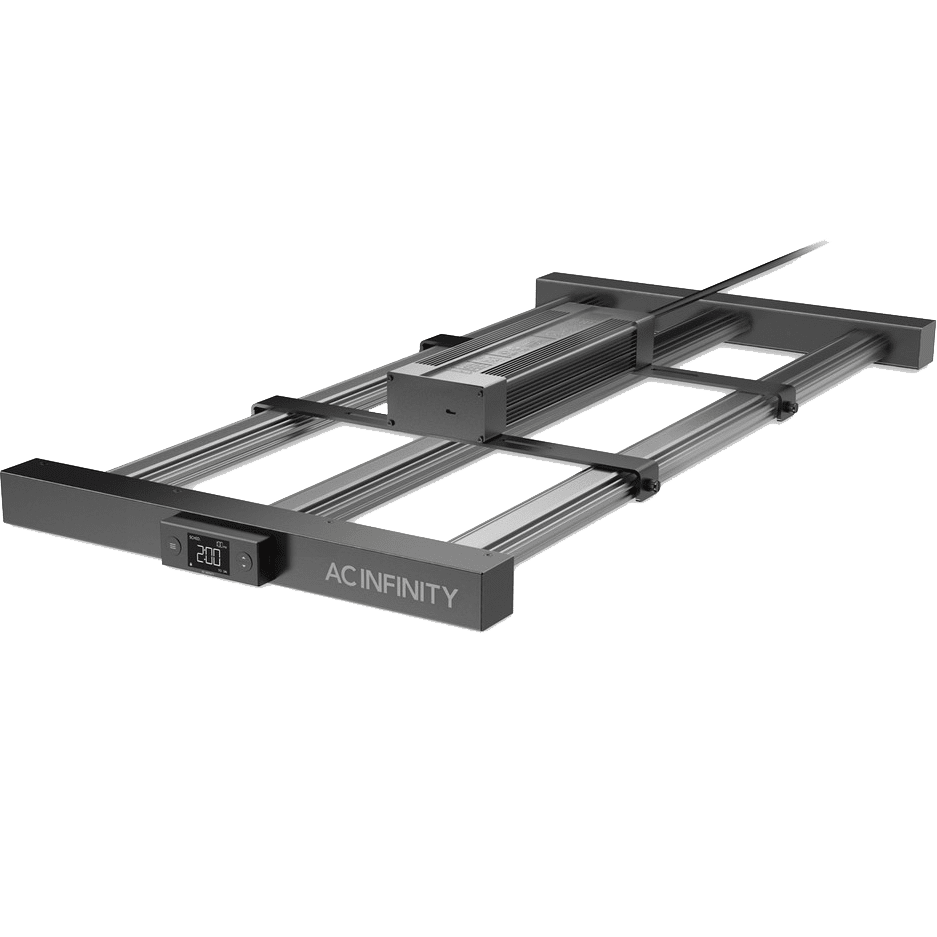

  • IONFRAME EVO3: 280W, 2 x 4 ft Flower Coverage, 3 x 5 ft Veg Coverage

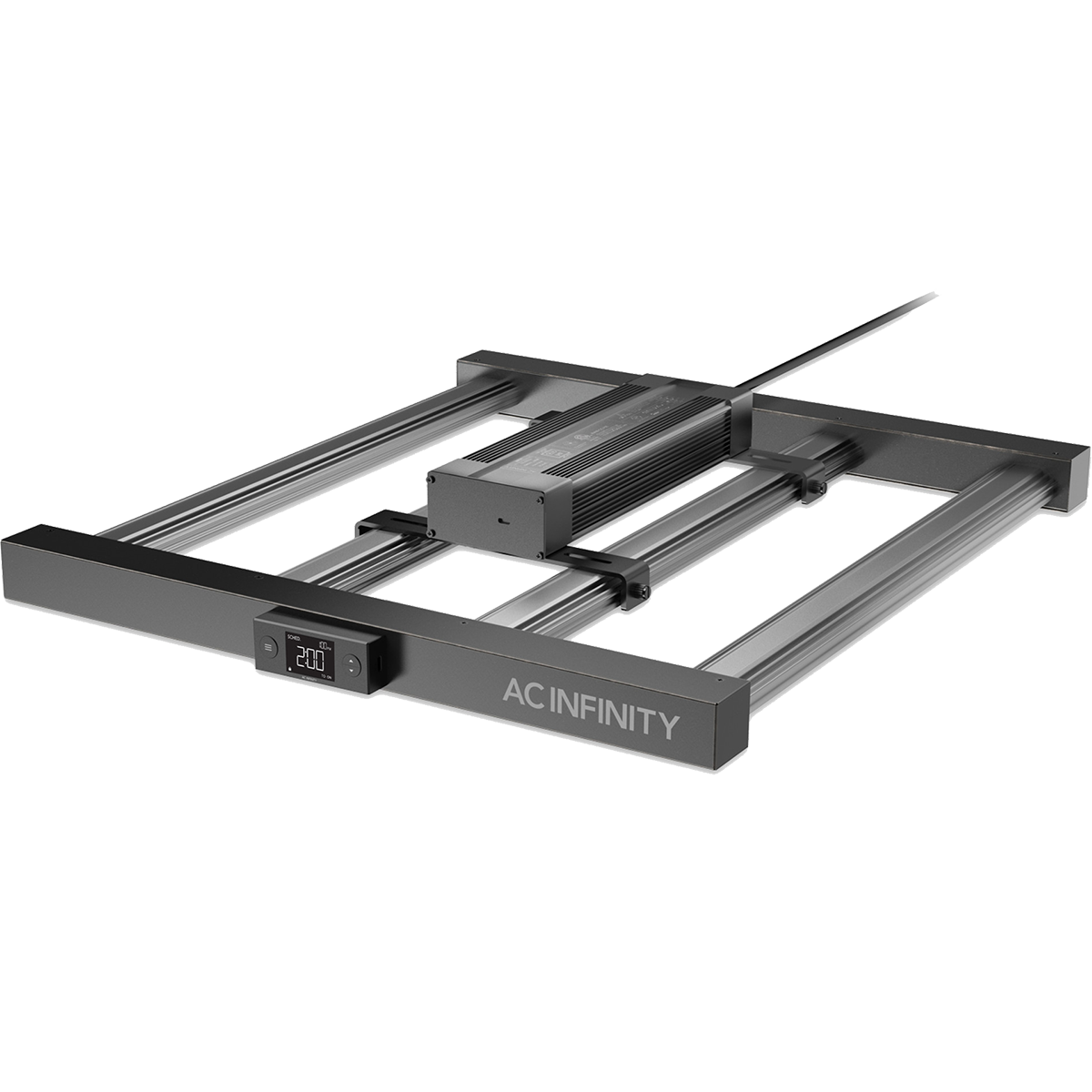

  • IONFRAME EVO4: 300W, 3 x 3 ft Flower Coverage, 4 x 4 ft Veg Coverage

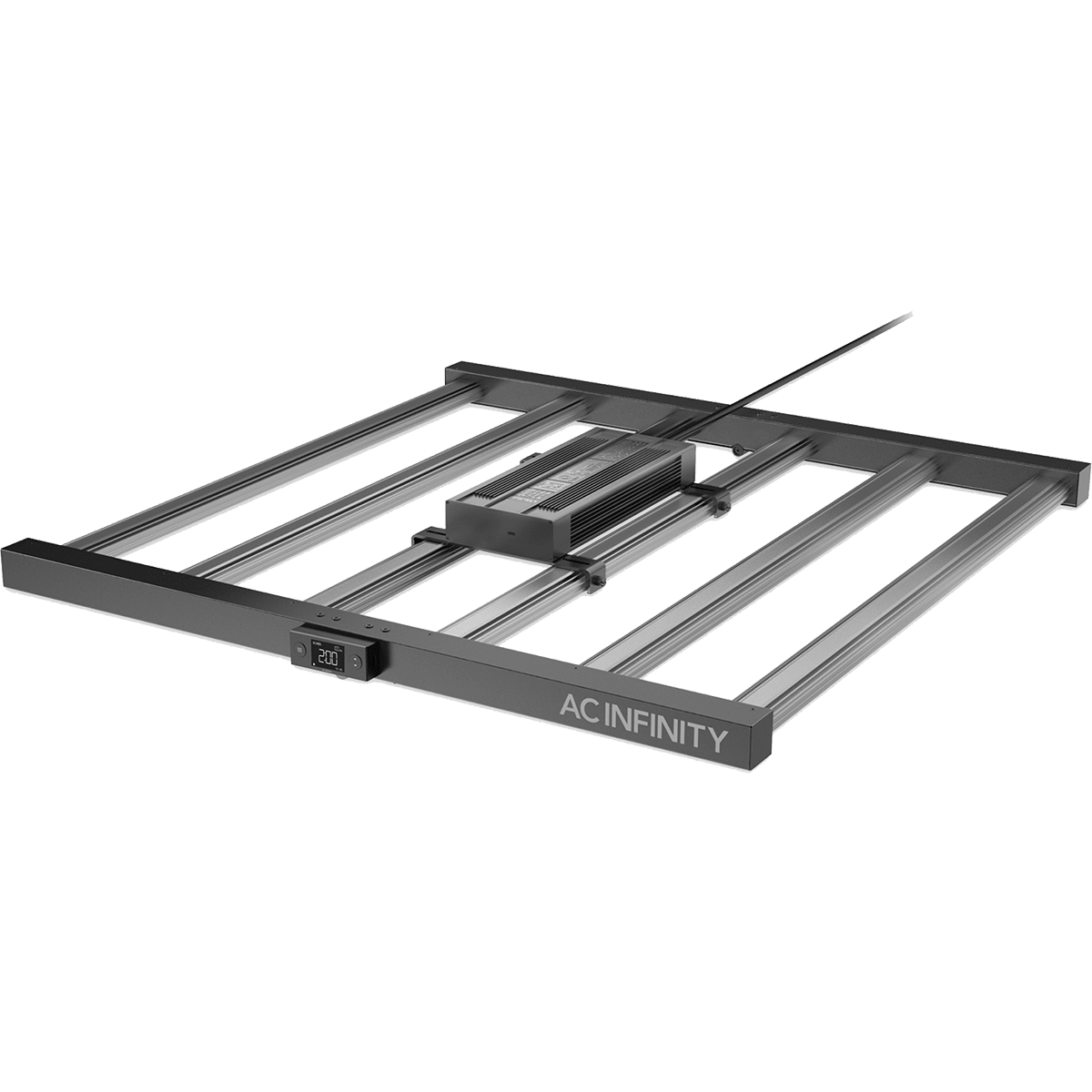

  • IONFRAME EVO6: 500W, 4 x 4 ft Flower Coverage, 5 x 5 ft Veg Coverage

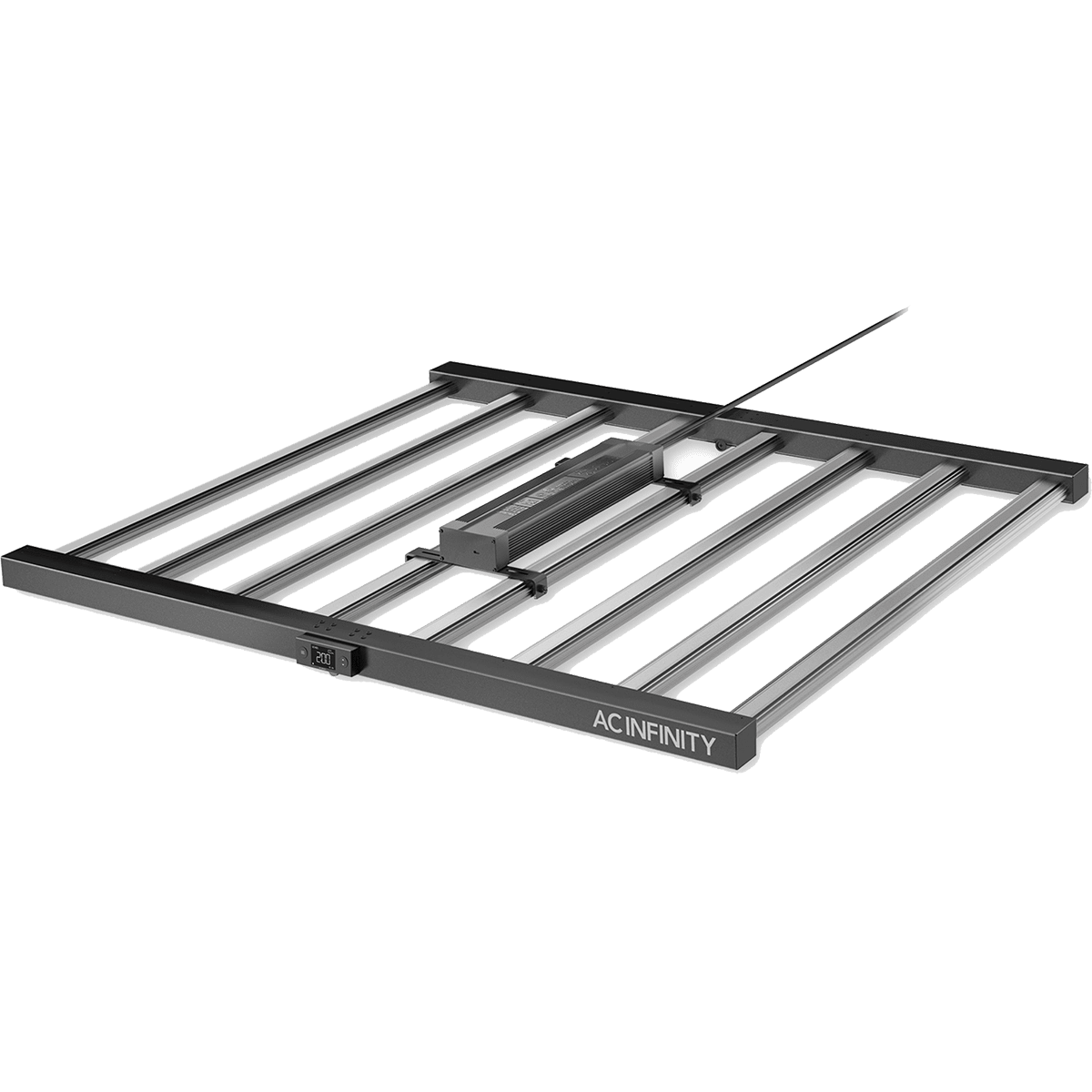

  • IONFRAME EVO8: 730W, 5 x 5 ft Flower Coverage, 6 x 6 ft Veg Coverage

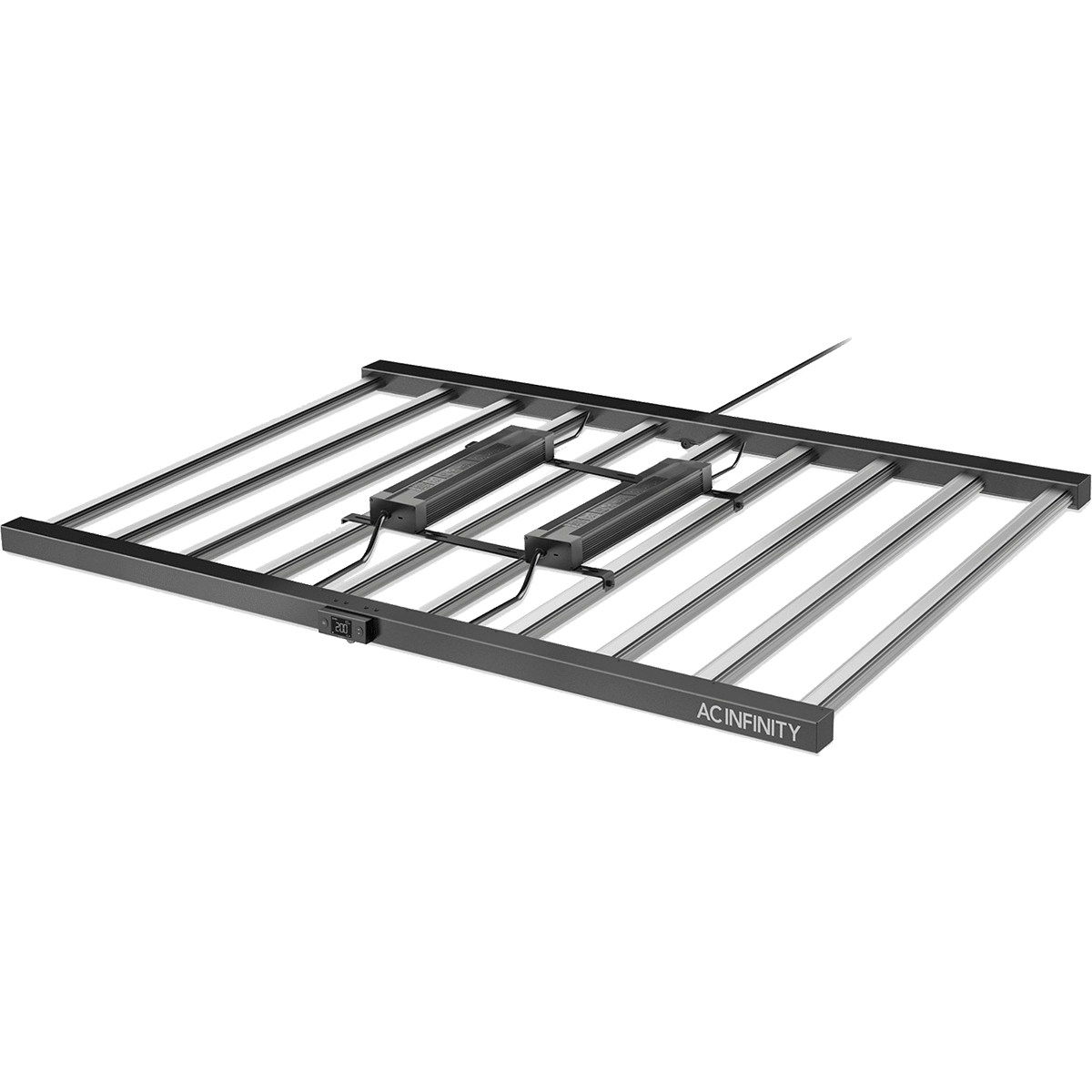

  • IONFRAME EVO10: 1000W, 6 x 6 ft Flower Coverage, 7 x 7 ft Veg Coverage

High-Efficiency LEDs

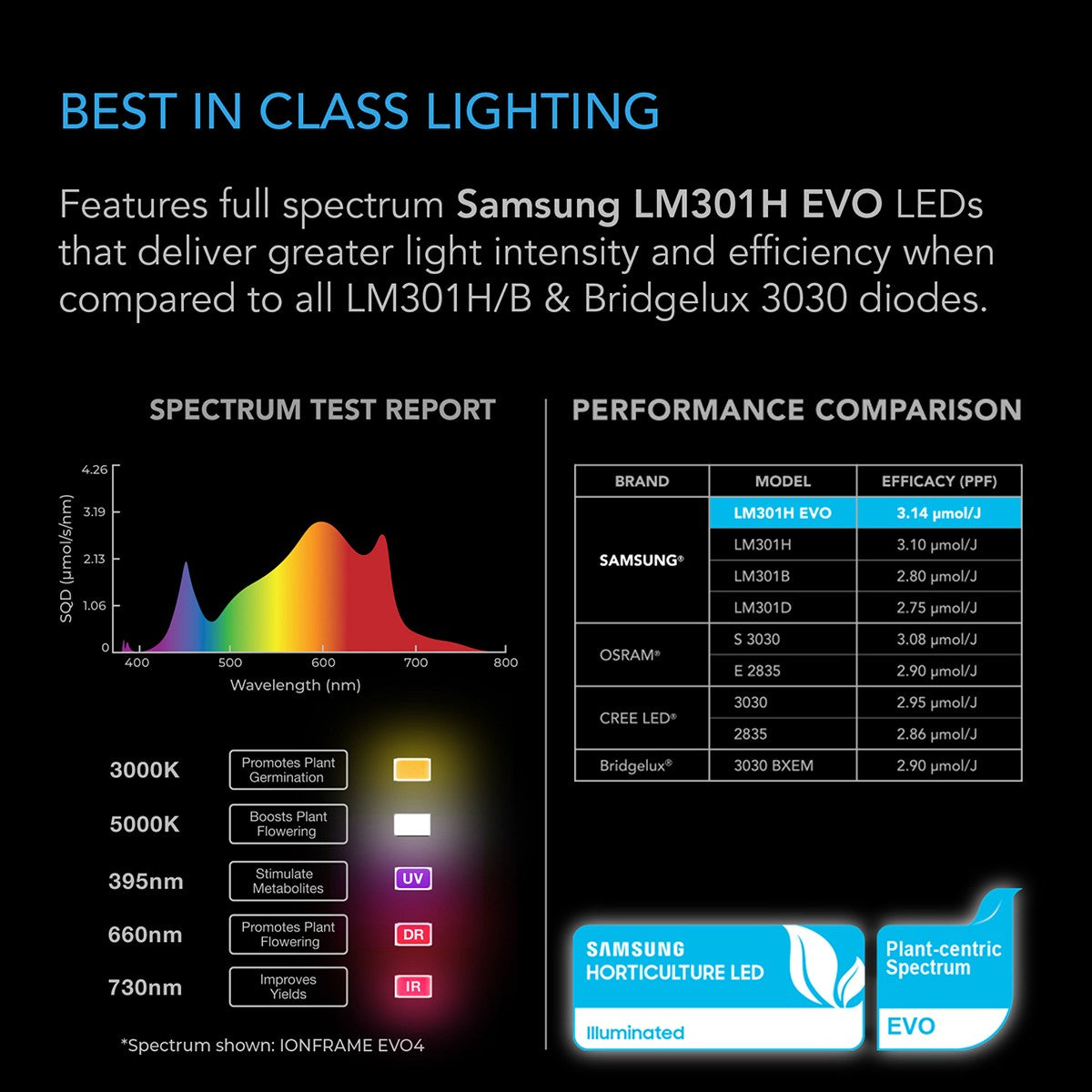

These AC Infinity grow lights are equipped with the latest and greatest in horticulture lighting technology to improve plant growth. Genuine Samsung LM301H EVO diodes line each bar to expend brightness with intensity and efficiency. A balanced, algorithmically-spaced design of 395 nm UV diodes, 660 nm diodes, and 730 nm OSRAM red diodes achieves a full-spectrum light output.

There is no need to worry about overheating, as the steel and aluminum modular build of these AC Infinity LED grow lights enables magnetic mounting and facilitates equal heat diffusion. Removing the passive cooling LED driver to mount away from the fixture also helps balance heat dissipation.

Additional Features

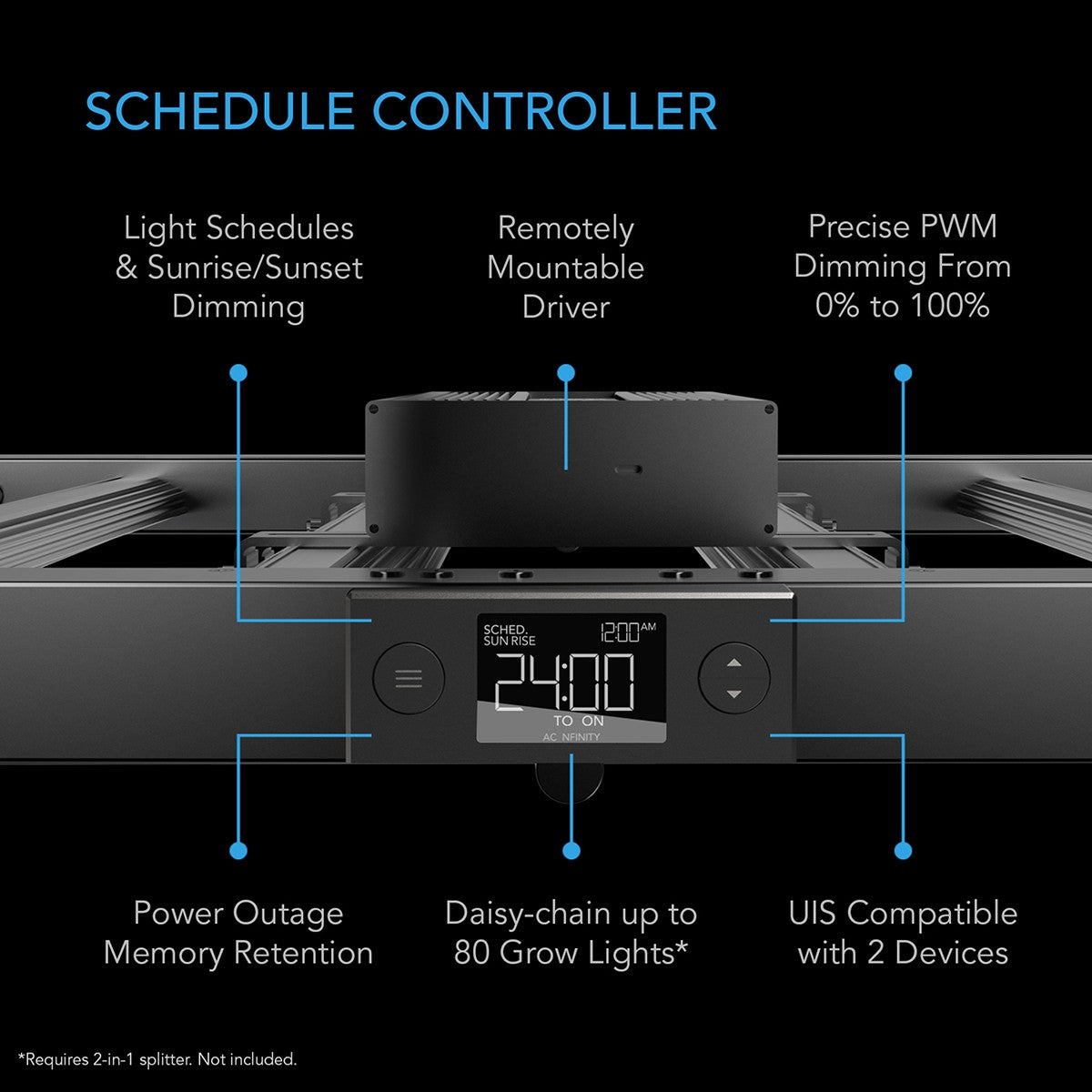

  • Schedule Controller: The included controller features 10 light intensity levels and automatically adjusts light based on the time of day to precisely mimic the sun’s cycle.
  • Electrical Safety: These grow light bars meet ETL standards for electrical appliance safety.
  • Built to Last: Each light bar is constructed with IP65-rated steel and aluminum to withstand humid environments.
  • UIS Platform-Compatible: Integrate this grow light into the advanced AC Infinity UIS interface with a UIS controller to increase access with WiFi and automation on the AC Infinity app.
  • Life Expectancy: These LED grow lights yield approximately 50,000 hours of consistent light coverage.
  • Daisy-Chain Capable: The included schedule controller enables daisy-chain support for up to 80 grow lights, working with a 2-in-1 splitter (sold separately).
  • Cord Length: At 12 feet, the power cord length offers excellent versatility for mounting the lights where most needed.

Summary

The AC Infinity IONFRAME EVO grow light offers reliable, high-efficiency light with genuine Samsung LM301H EVO diodes, algorithmically spaced to ensure full coverage for maximum plant growth.

Specifications

    Key Specifications

    • Heat Output (BTUs)
      EVO10 1000W: 3410
      EVO6 500W: 1705
      EVO4 300W: 1023
      EVO3 280W: 955

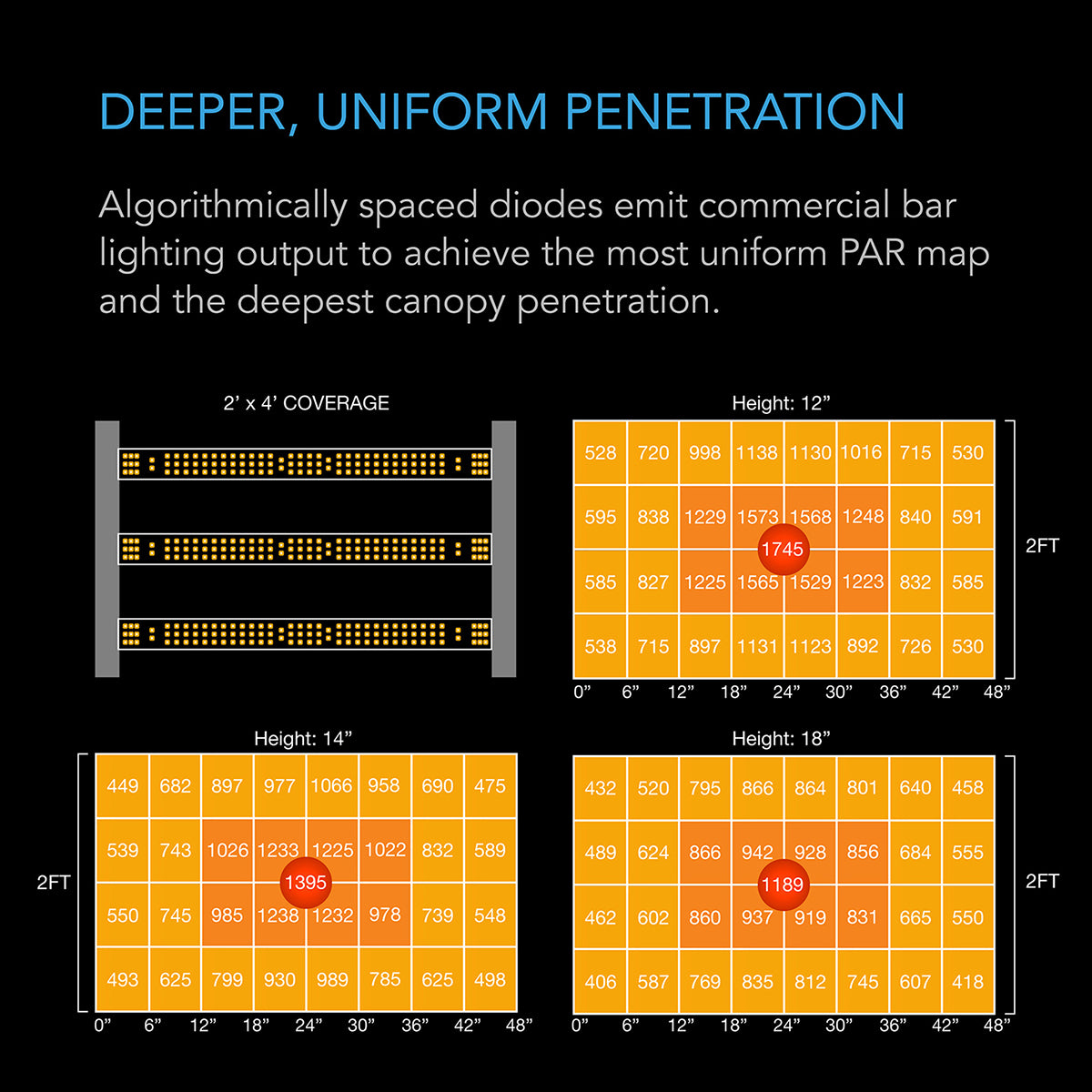

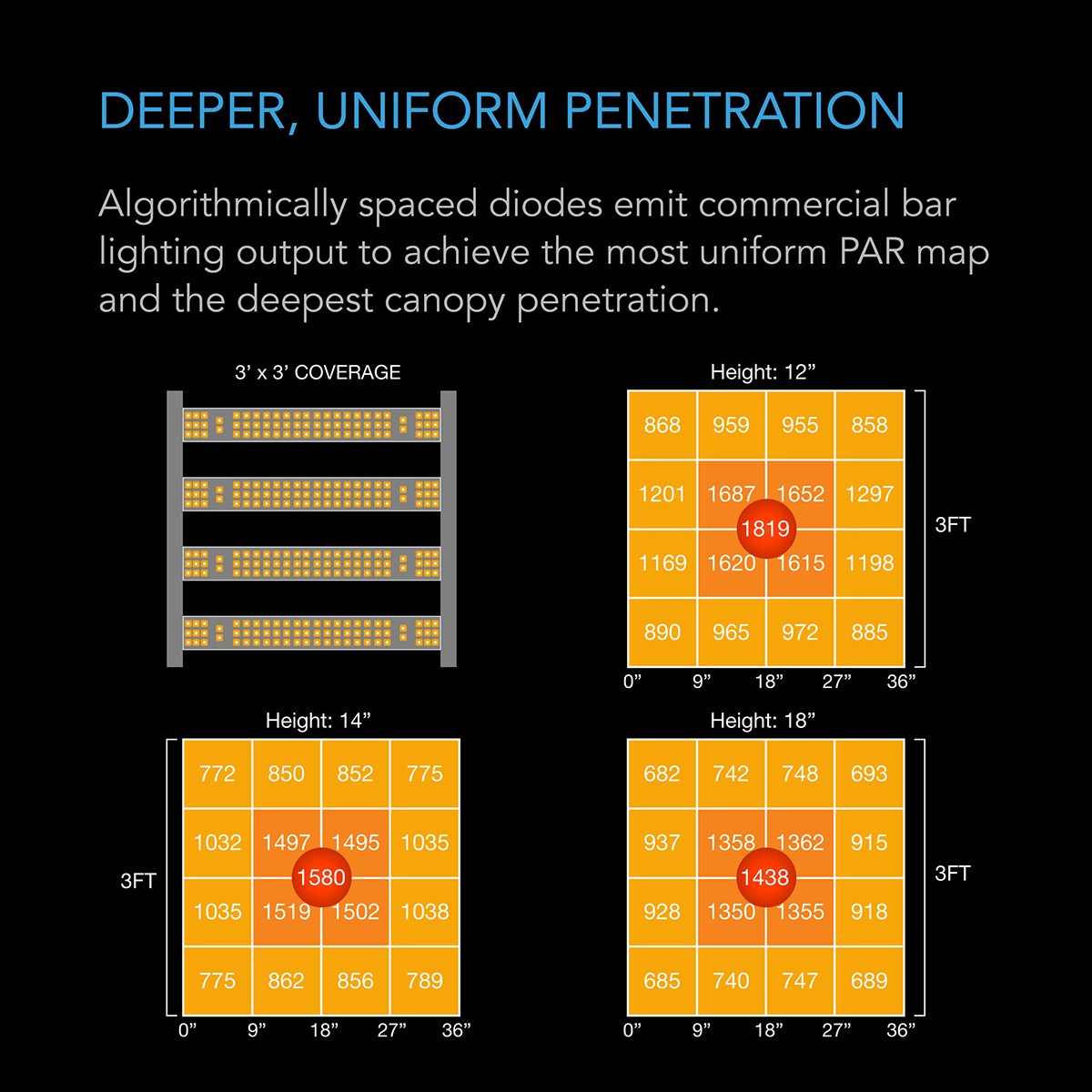

    • Total Output (PPF)
      EVO10 1000W: 2146
      EVO6 500W: 1991
      EVO4 300W: 1819
      EVO3 280W: 1745

    General

    • Certifications
      ETL
    • Flowering Footprint (ft.)
      EVO10 1000W: 7x7
      EVO6 500W: 4x4
      EVO4 300W: 3x3
      EVO3 280W: 2x4
    • Lighting Type
      LED
    • System PPF Efficacy (μmol/joule)
      3.14
    • Veg Footprint (ft.)
      EVO10 1000W: 6x6
      EVO6 500W: 5x5
      EVO4 300W: 4x4
      EVO3 280W: 3x5

    Power

    • Maximum Amperage (Amps)
      EVO10 1000W: 10
      EVO6 500W: 5.0
      EVO4 300W: 3.0
      EVO3 280W: 2.8
    • Plug Face Type
      1-15
    • Power Cord Length (ft.)
      12
    • Voltage (V)
      120-277
    • Watts (W)
      EVO10 1000W: 1000
      EVO6 500W: 500
      EVO4 300W: 300
      EVO3 280W: 280

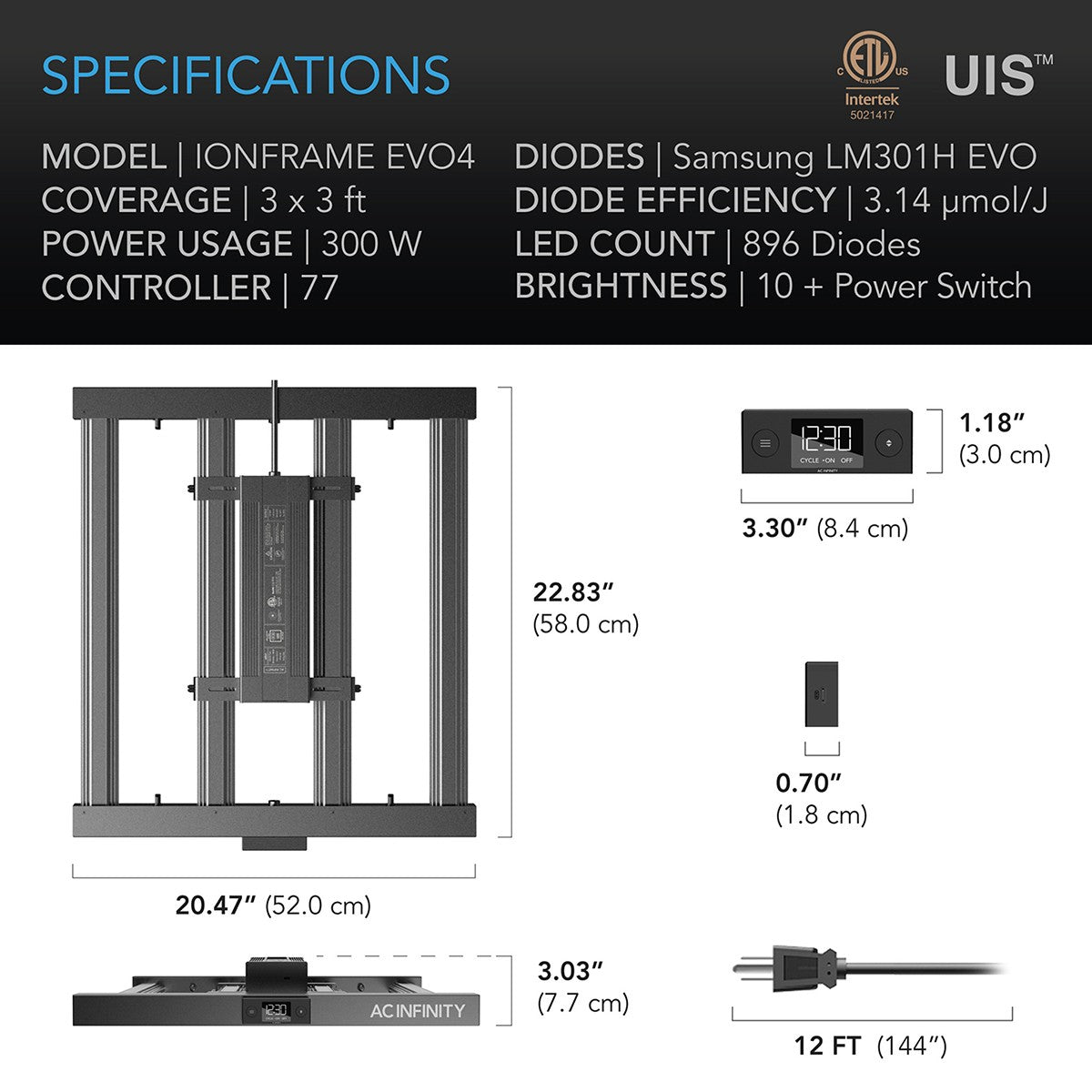

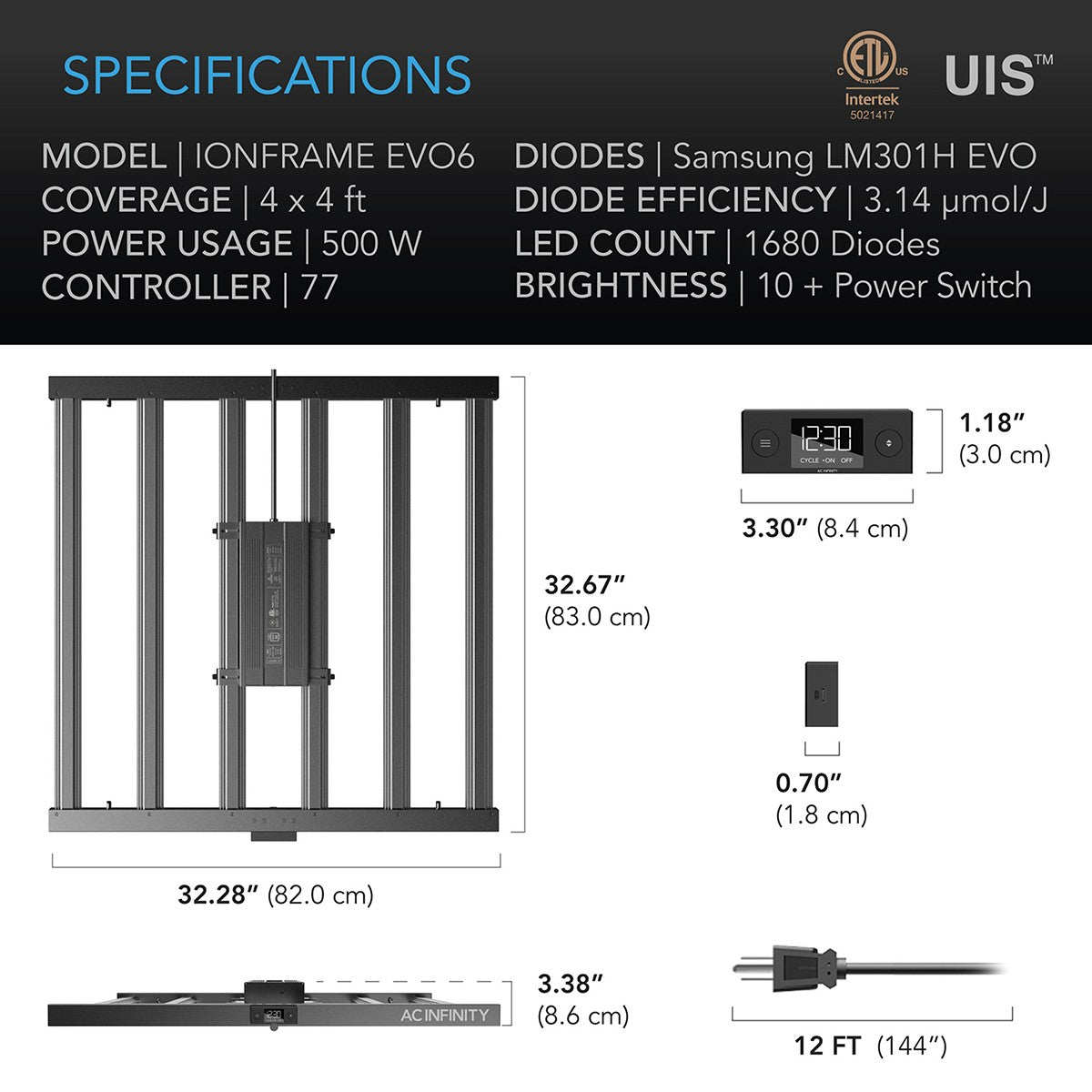

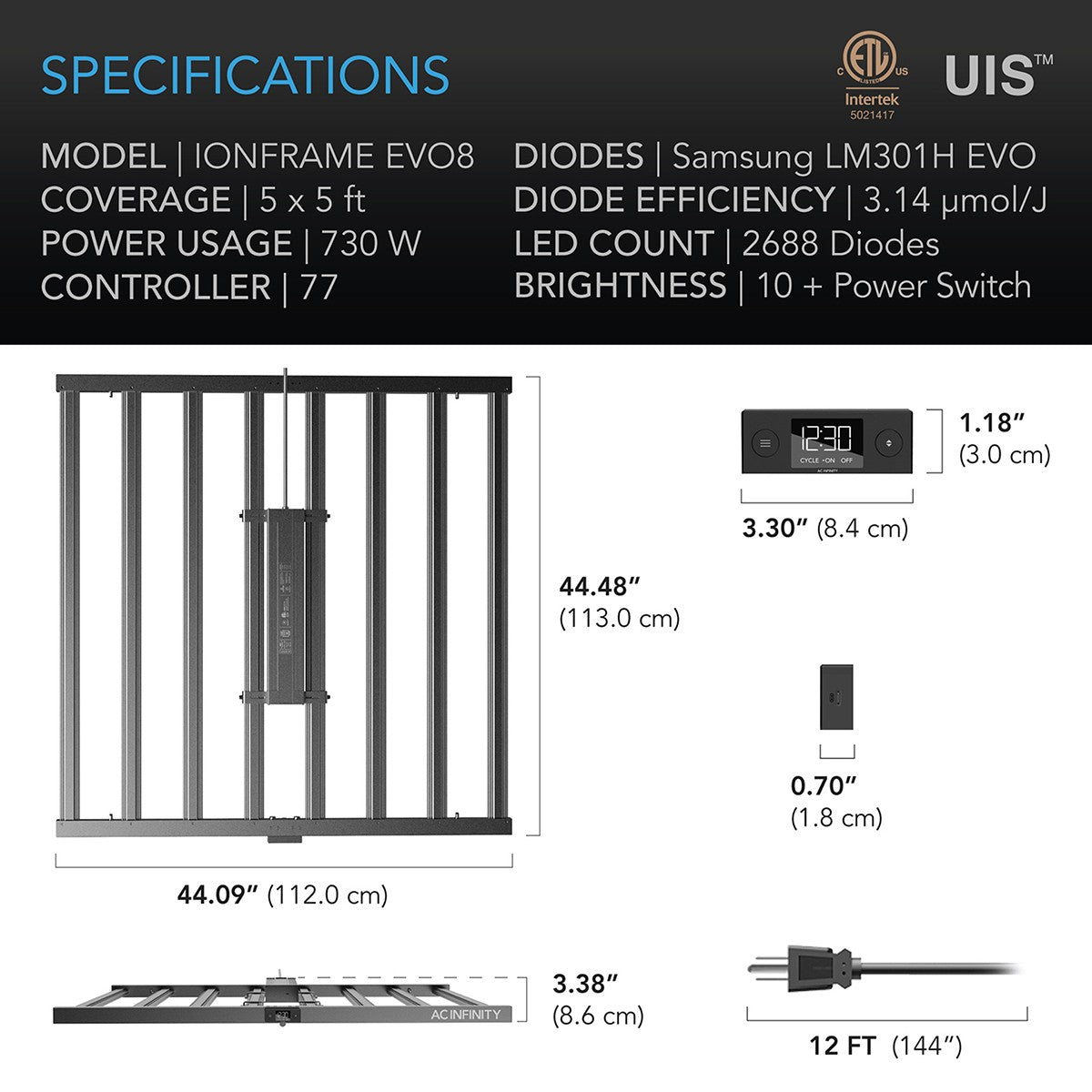

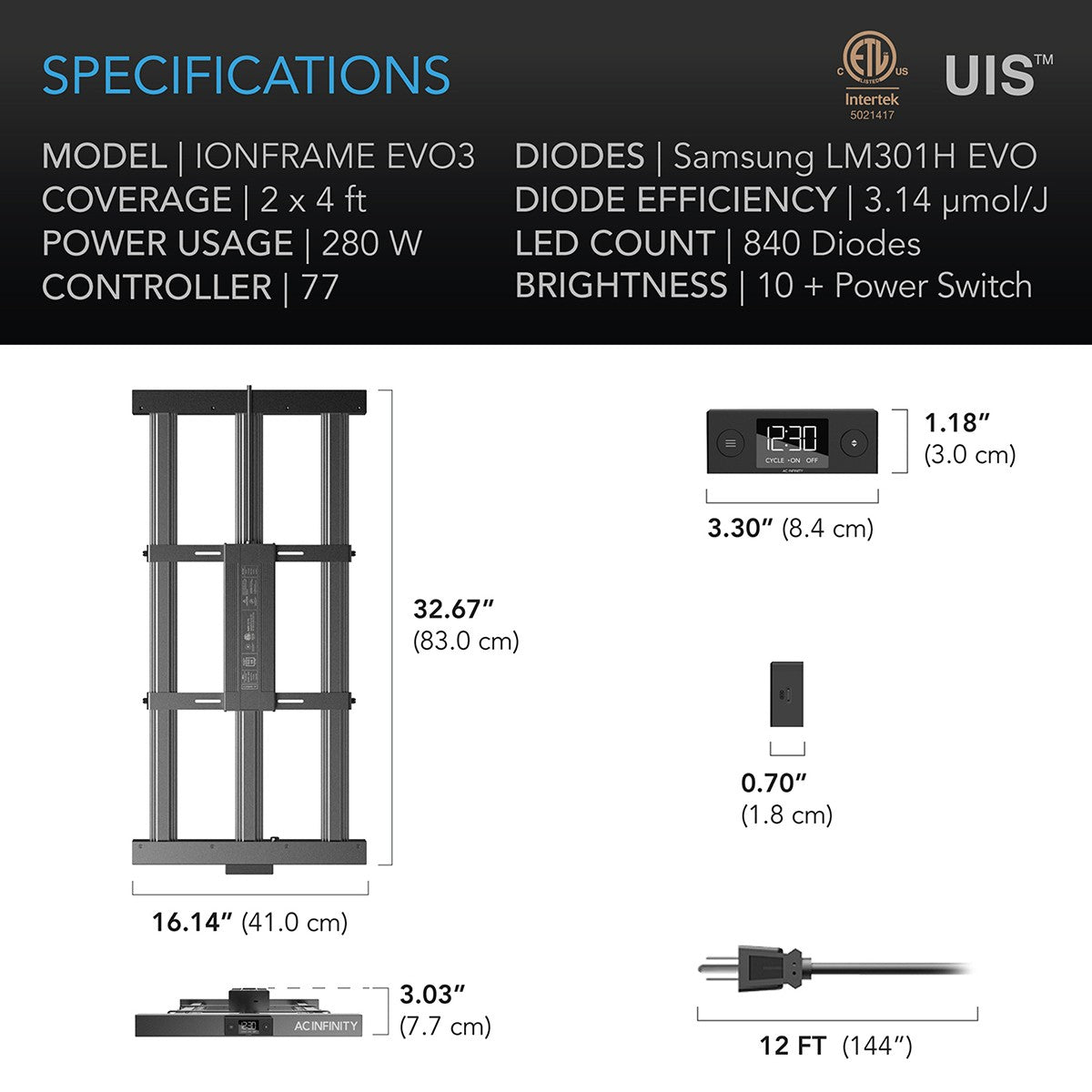

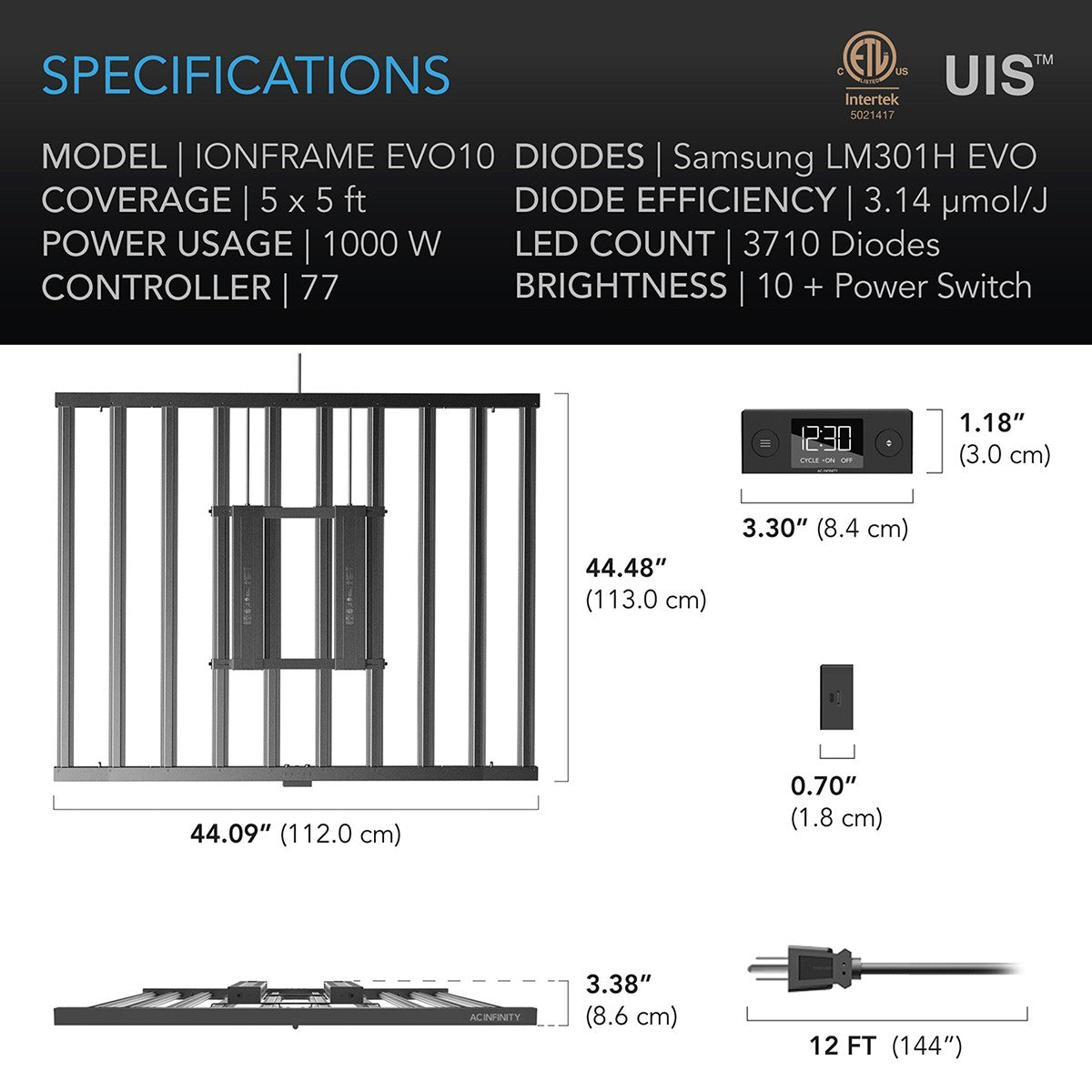

    Dimensions

    • Depth (in.)
      EVO10 1000W: 44.09
      EVO6 500W: 32.67
      EVO4 300W: 22.83
      EVO3 280W: 32.67
    • Depth (with front cover) (in.)
      EVO10 1000W: 44.09
      EVO6 500W: 32.67
      EVO4 300W: 22.83
      EVO3 280W: 32.67
    • Height (in.)
      EVO10 1000W: 3.38
      EVO6 500W: 3.38
      EVO4 300W: 3.03
      EVO3 280W: 3.03
    • Height (with front cover) (in.)
      EVO10 1000W: 3.38
      EVO6 500W: 3.38
      EVO4 300W: 3.03
      EVO3 280W: 3.03
    • Weight (lbs.)
      EVO10 1000W: 38
      EVO6 500W: 26.7
      EVO4 300W: 17.36
      EVO3 280W: 17.36
    • Width (in.)
      EVO10 1000W: 44.48
      EVO6 500W: 32.28
      EVO4 300W: 20.47
      EVO3 280W: 16.14
    • Width (with front cover) (in.)
      EVO10 1000W: 44.48
      EVO6 500W: 32.28
      EVO4 300W: 20.47
      EVO3 280W: 16.14

    Additional Features

    • Additional Features
      Full Spectrum, Dimmable, Applicable for Indoor Growing

    Warranty

    • Manufacturer's Warranty
      2-Year Limited Warranty
