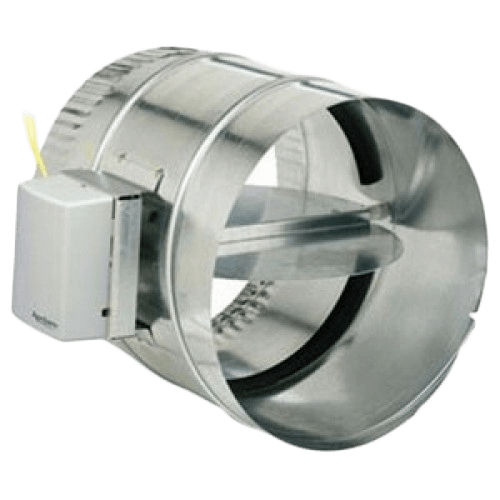

Aprilaire 6506 6-Inch Round Normally Closed Damper
Aprilaire 6506 6-Inch Round Normally Closed Damper is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Aprilaire 6506 6-Inch Round Normally Closed Damper
Description
Description
Aprilaire 6506 6-inch Round Normally Closed Damper is one of the required components used in a ventilation installation of the Aprilaire E070, E080, E100 Series, and E130 whole house dehumidifiers. This allows your Aprilaire dehumidifier to bring in outdoor air through a fresh air intake duct. This damper is compatible with either rigid metal or flex duct.
This damper is also compatible with Aprilaire 8192A Ventilator with Dehumidifier and the Ventilation Control Kit 8126A.
Features:
- Power Open/Spring-Close Operation
- Two wire installation
- 24 VAC, 6W, 10VA
- 60Hz Synchronous type motor
- Impedance protected for continuous stall
- Adjustable Stop (In Open Position)
NOTE: The ventilation feature can not be used when a Model 76 Digital Control has been installed in a Remote Control application, and is also not recommended for two-zone installations.
Specifications
Specifications
-
TypeDamper
-
ColorGray
-
ControlsElectronic
-
Housing MaterialGalvanized Steel
-
Amperage (Amps).04
-
Power SupplyHardwired
-
Voltage (V)24
-
Watts (W)6
-
Depth (in.)10.75
-
Depth (with front cover) (in.)10.75
-
Duct Diameter (in.)6.0
-
Height (in.)6.0
-
Height (with front cover) (in.)6.0
-
Weight (lbs.)5
-
Width (in.)9.28
-
Width (with front cover) (in.)9.28
