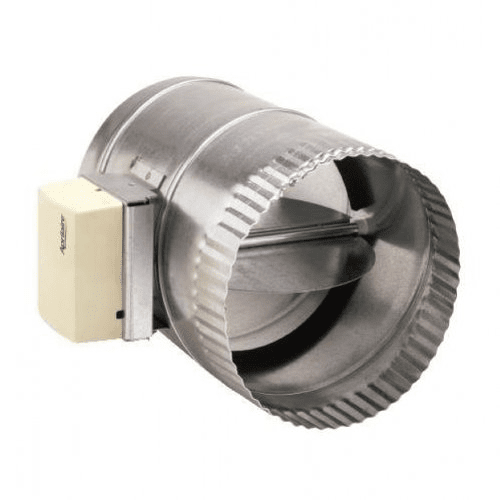

Aprilaire 6508 8-Inch Normally Closed Damper

SKU: ap4589  |  Model: 6508
$121.99

FREE shipping on orders over $45!

This item is currently Out of Stock.



Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Description

The Aprilaire 6508 8-Inch Normally Closed Damper measures 8 inches in diameter, features adjustable blade positioning and works well with rigid metal or flex duct.  Designed for use with low pressure systems (less than 1-in w.c.), and can be used with Aprilaire Model 1750 and 1770 whole-house dehumidifiers.

Features:

  • Power Open/Spring-Close Operation
  • Two wire installation
  • 24 VAC, 6W, 10VA
  • 60Hz Synchronous type motor
  • Impedance protected for continuous stall
  • Adjustable Stop (In Open Position)

Specifications

    Key Specifications

    • Type
      Damper

    General

    • Color
      Gray
    • Controls
      Electronic
    • Housing Material
      Galvanized Steel

    Power

    • Amperage (Amps)
      .04
    • Power Supply
      Hardwired
    • Voltage (V)
      24
    • Watts (W)
      8

    Dimensions

    • Depth (in.)
      10.75
    • Depth (with front cover) (in.)
      10.75
    • Duct Diameter (in.)
      8.0
    • Height (in.)
      8.0
    • Height (with front cover) (in.)
      8.0
    • Weight (lbs.)
      6
    • Width (in.)
      11.3
    • Width (with front cover) (in.)
      11.3
