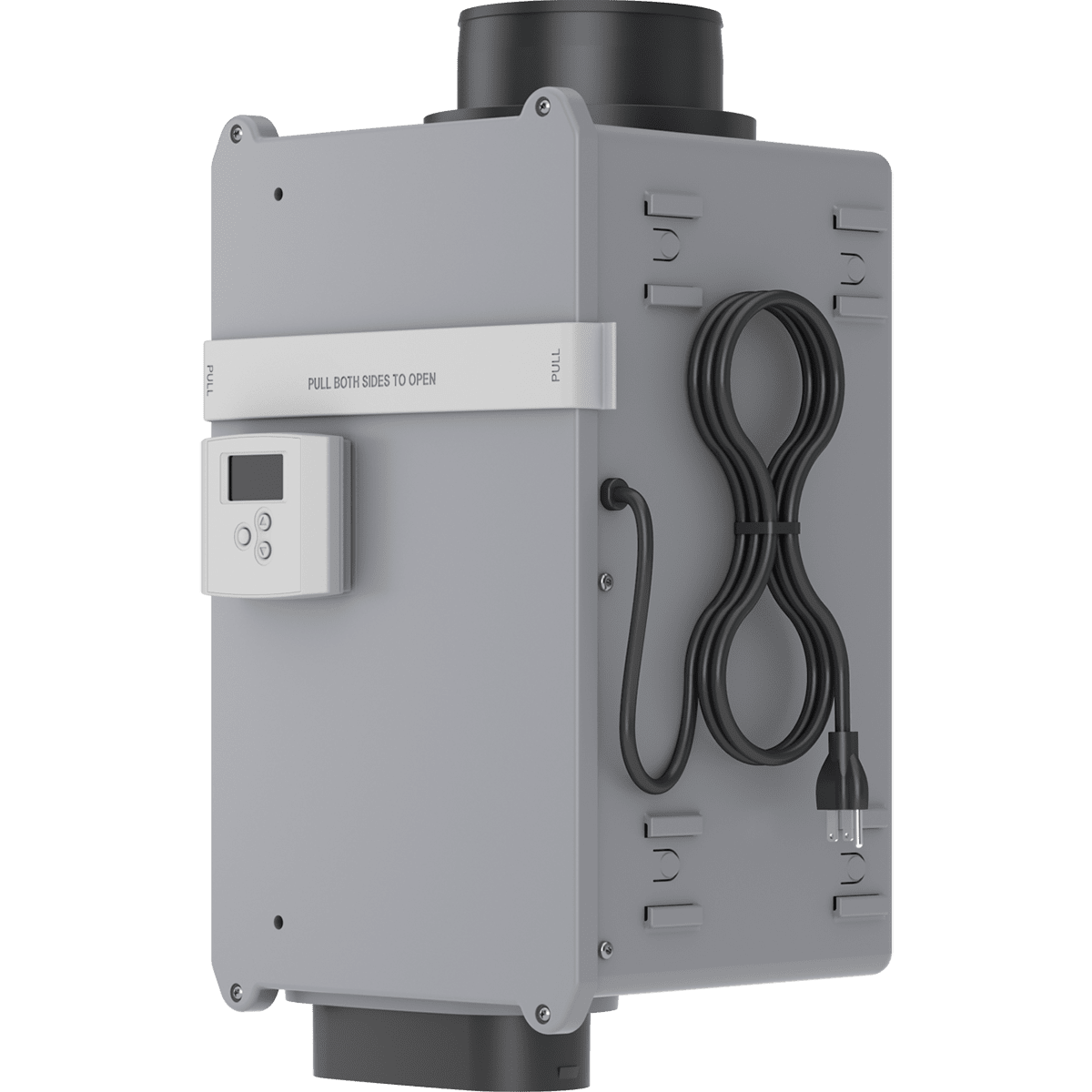

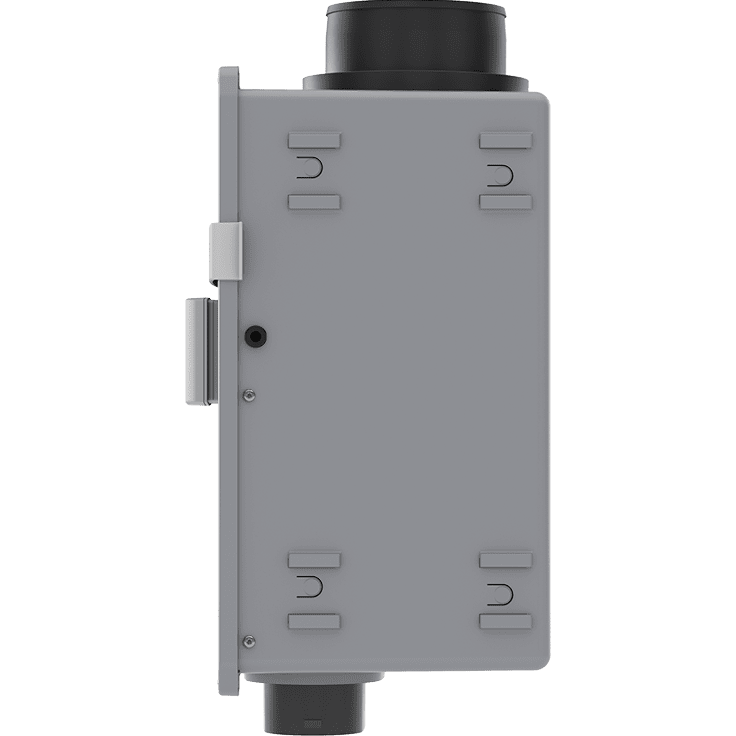

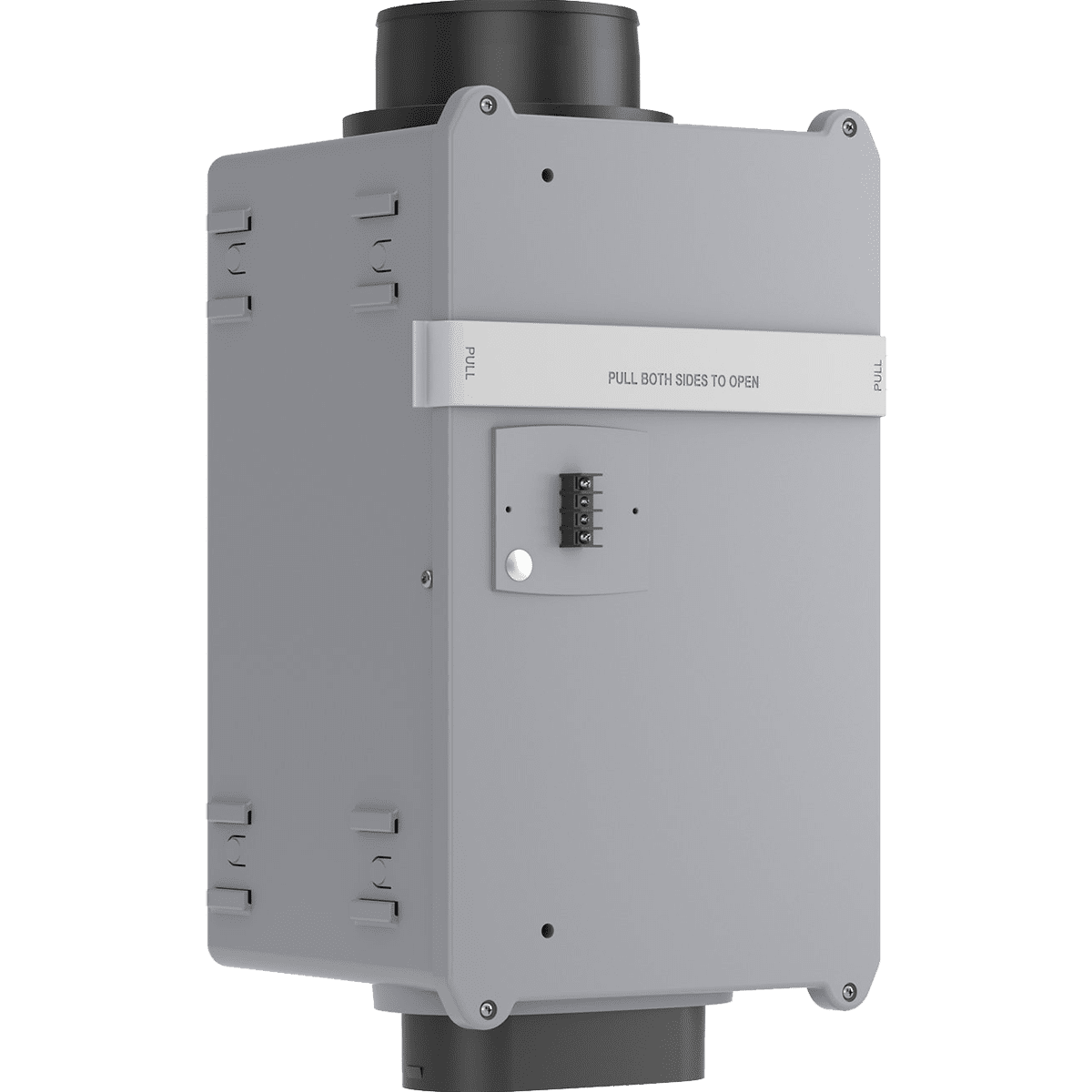

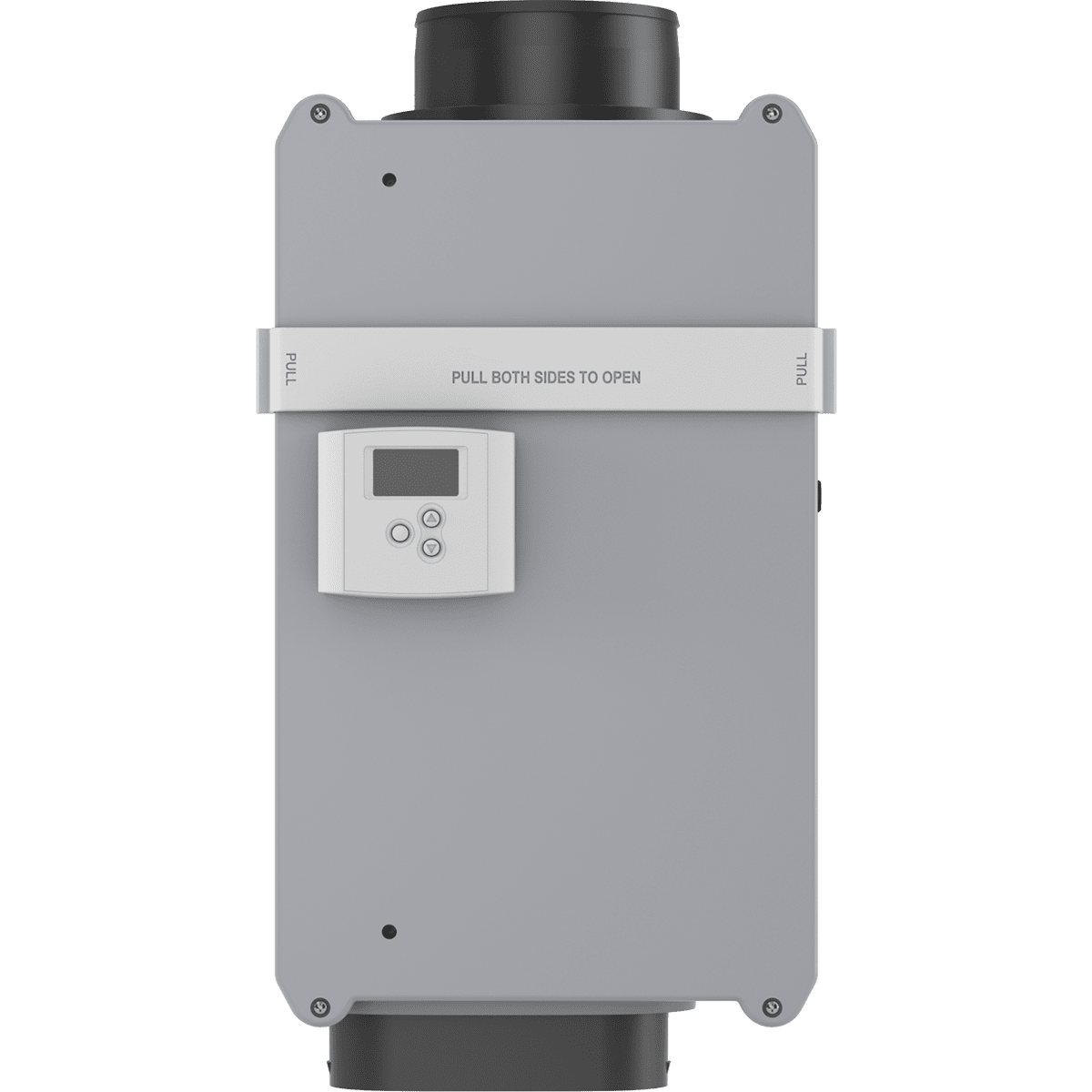

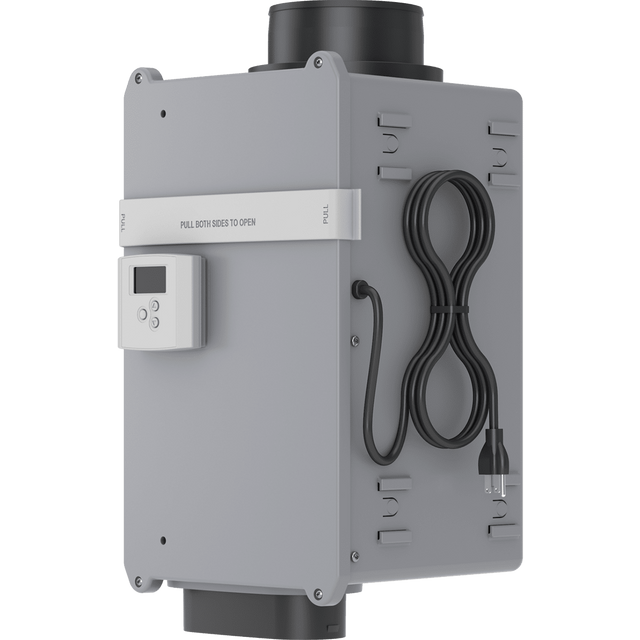

Aprilaire 8145 Fresh Air Intake Ventilator
Aprilaire 8145 Fresh Air Intake Ventilator is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Aprilaire 8145 Ventilator w/ Powered Damper & Washable MERV 6 Filter
- Remote Controller (8120A)
- Mounting Brackets (x 4)
- #8 x ½-inch Screws (x 4)
- #10 x ¾-inch Screws (x 4)
- Washable Filter
- Owner’s Manual
Info & Guides
Info & Guides
Aprilaire 8145 Fresh Air Intake Ventilator
Description
Description
Bring fresh air indoors while pushing out contaminants--allergens, odors, VOCs--and stale air with the Aprilaire 8145. Designed for energy-efficient homes up to 7,500-square feet, this fresh air ventilator is great for mild to humid climates.
Awarded the Energy Star Most Efficient rating for 2022, this system offers better air exchange control at 180 CFM. A powered blower and damper pull outside air into six-inch ducting of the HVAC return or supply plenum, mixing fresh air inside.
How Does It Work?
Great for LEED and passive-energy homes, the Aprilaire 8145 pulls in outside air and mixes with your home’s return air on the HVAC system. Up to 250 cubic feet of airflow (CFM) is whisked around the home, pushing stale air out through passive venting spots, such as kitchen vent hoods, fireplaces, and bathroom exhausts.
**Professional installation by a certified technician is recommended.
Powerful Internal Fan
This powered fresh air ventilator features a powerful internal fan that pulls in outside air. Flexible placement into return or supply ducts make for placement easier. Other features include:
- Remote Controller: Select from several Aprilaire controllers to program settings for humidity, temperature. Take a look at these models:
- Powered Damper: The powered damper opens and closes for fresh air intake.
- Temperature Sensor: An onboard temperature sensor gauges humidity and temperature for operation.

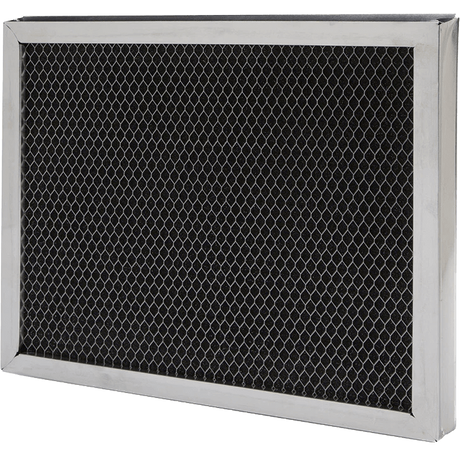

- Washable Filter: A removable filter comes out for maintenance and cleaning.
Benefits
- Energy-Efficient: Won’t ventilate unless humidity and temperature settings are met, reducing home temperature and heat rise.
- Reduced Humidity: Reduce humidity exposure to your home’s interior and foundation.
- Removes Pollutants: Positive air pressure pushes allergens, chemicals, radon, VOCs, and other dangerous compounds out of the home.
Additional Features
- Power Plug: Plug the five-foot, three-prong power cord into any standard NEMA 5-15 receptacle to power the air ventilator.
- Temperature Control: Set the low (-10- to 40-degrees F) and high temperature (85- to 105-degrees F) presets for lockout.
- Ducting Size: Use this ventilator with six-inch ducting.
- Code Setting: Program your own presets without relative humidity limits for ASHRAE 62.2 ventilation.
- Comfort Setting: Use pre-programmed low (10 - 30%) and high (45 - 70%) relative humidity ranges to limit ventilation.
- Blend Air: Kicks on fan when outside temperature is outside the high or low temperature range.
- Fresh Air LED: The fresh air LED illuminates when the ventilator is pumping fresh air.
- Weight: The whole house ventilator only weighs 15 pounds.
- UL-Certified: Designed for safety standards, this ventilator carries the UL-safety certification.
- Warranty: The Aprilaire 8145A is backed by a 5-year warranty.
- Dimensions: 12.25 W x 23.4 L x 11.75 H inches
Summary
Invigorate energy-efficient, tight homes with plentiful outside air using the powered Aprilaire 8145 fresh air ventilator, with Energy Star Most Efficient 2022 rating.
What Customer’s Love
- Powered Ventilator: A powered blower enables more air intake versus ventilators that rely on return intakes on HVACs.
- Mounting: Wall or ceiling mount with the included brackets and screws in any orientation.
Things to Consider
- Return or Supply: Vent this ventilator into either the return or supply-side plenum of the home’s HVAC system.
Specifications
Specifications
-
Number of Speeds1
-
Sound Level (Sones) (sones)2.0
-
California Residents⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. See: www.P65Warnings.ca.gov
-
CertificationsUL
-
ColorGray
-
ControlsElectronic
-
Maximum Cubic Feet per Minute (CFM) (CFM)250.0
-
Power SupplyPlug
-
Voltage (V)110-120
-
Watts (W)50 - 53
-
Depth (in.)23.4
-
Depth (with front cover) (in.)23.4
-
Duct Diameter (in.)6.0
-
Height (in.)11.75
-
Height (with front cover) (in.)11.75
-
Weight (lbs.)15
-
Width (in.)12.25
-
Width (with front cover) (in.)12.25
-
Additional FeaturesHumidity Sensor
-
Manufacturer's Warranty5-Year Warranty
Key Specifications
General
Power
Dimensions
Additional Features
Warranty
Recommended Accessories
-
-
-
-
Aprilaire

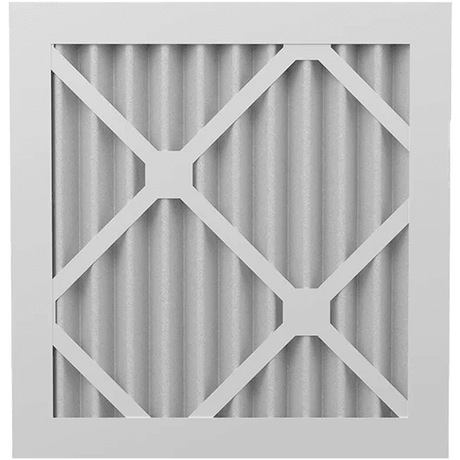

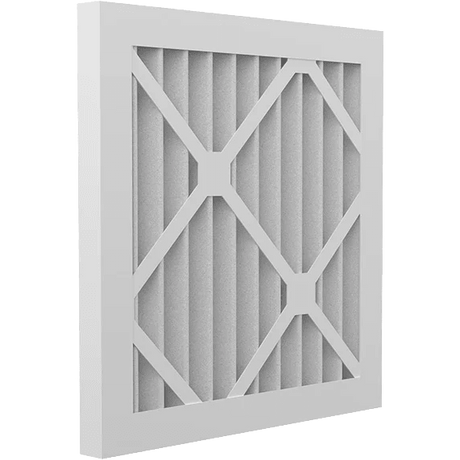

5839 High Efficiency MERV 13 Filter for 8145 Ventilation System
$57.99Unit price /Unavailable -
Aprilaire

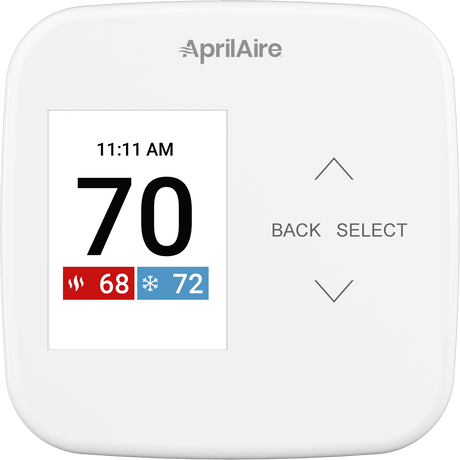

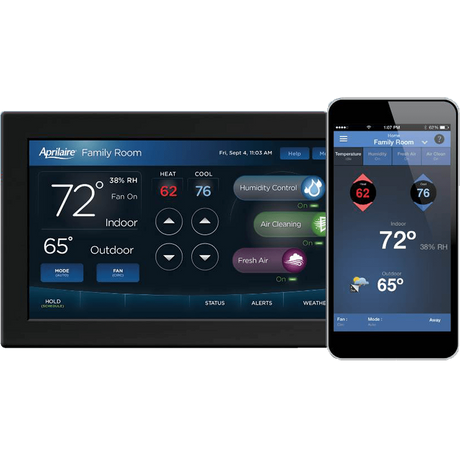

Programmable Multi-Stage Universal Thermostat w/ IAQ Control
