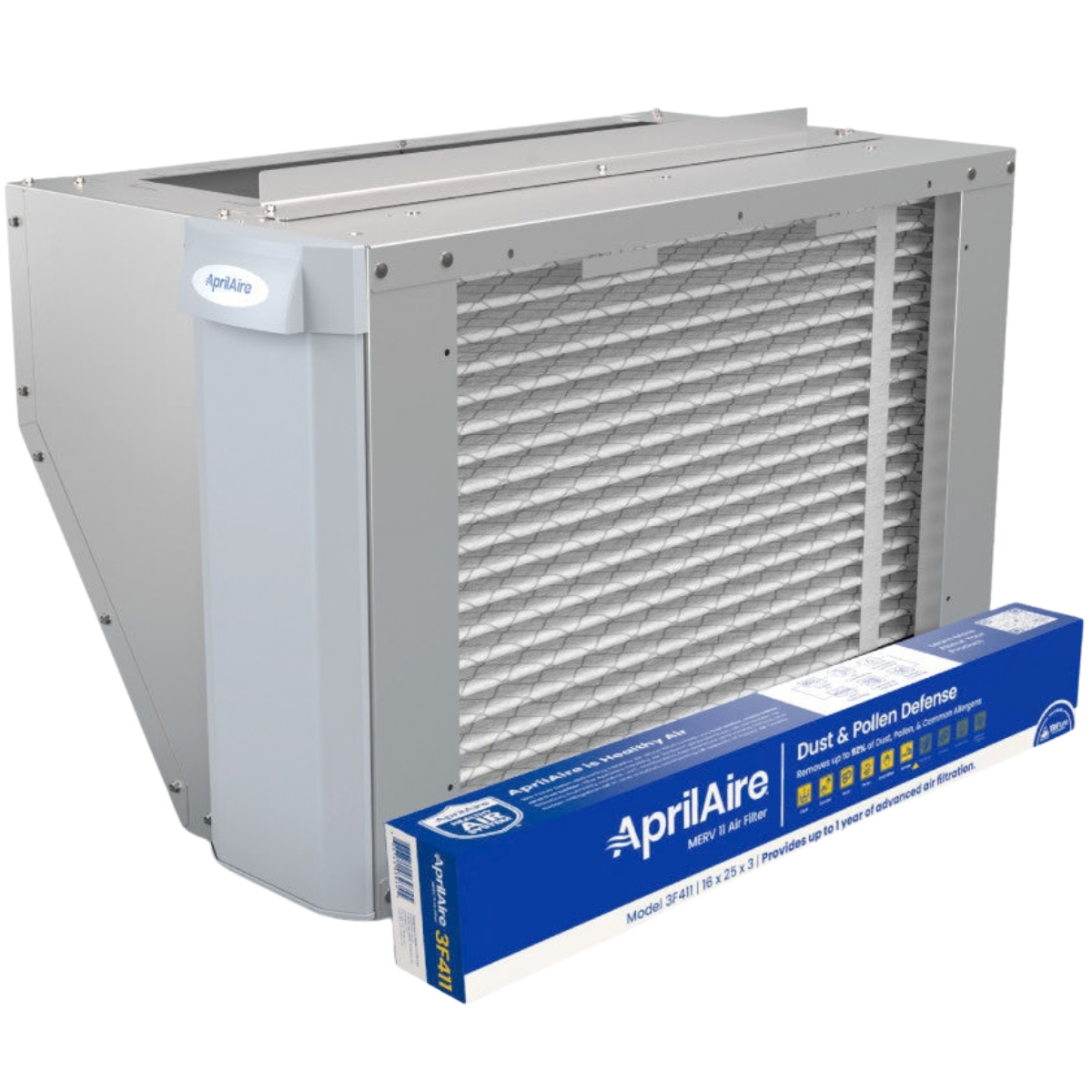

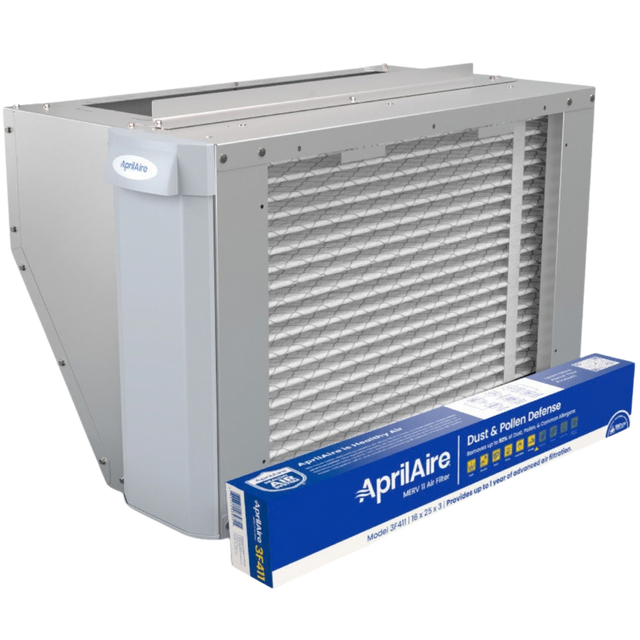

Aprilaire U161/U171 16x25-Inch MERV 11 TriPure 3-Inch Filtration Easy Install Return Drop Air Cleaner

SKU: ap19358  |  Model: U161
$22999
Return

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Email

Manufacturer's Warranty

10-Year Limited Warranty; 10-Year Clean-Coil Commitment (New HVAC Systems Only)

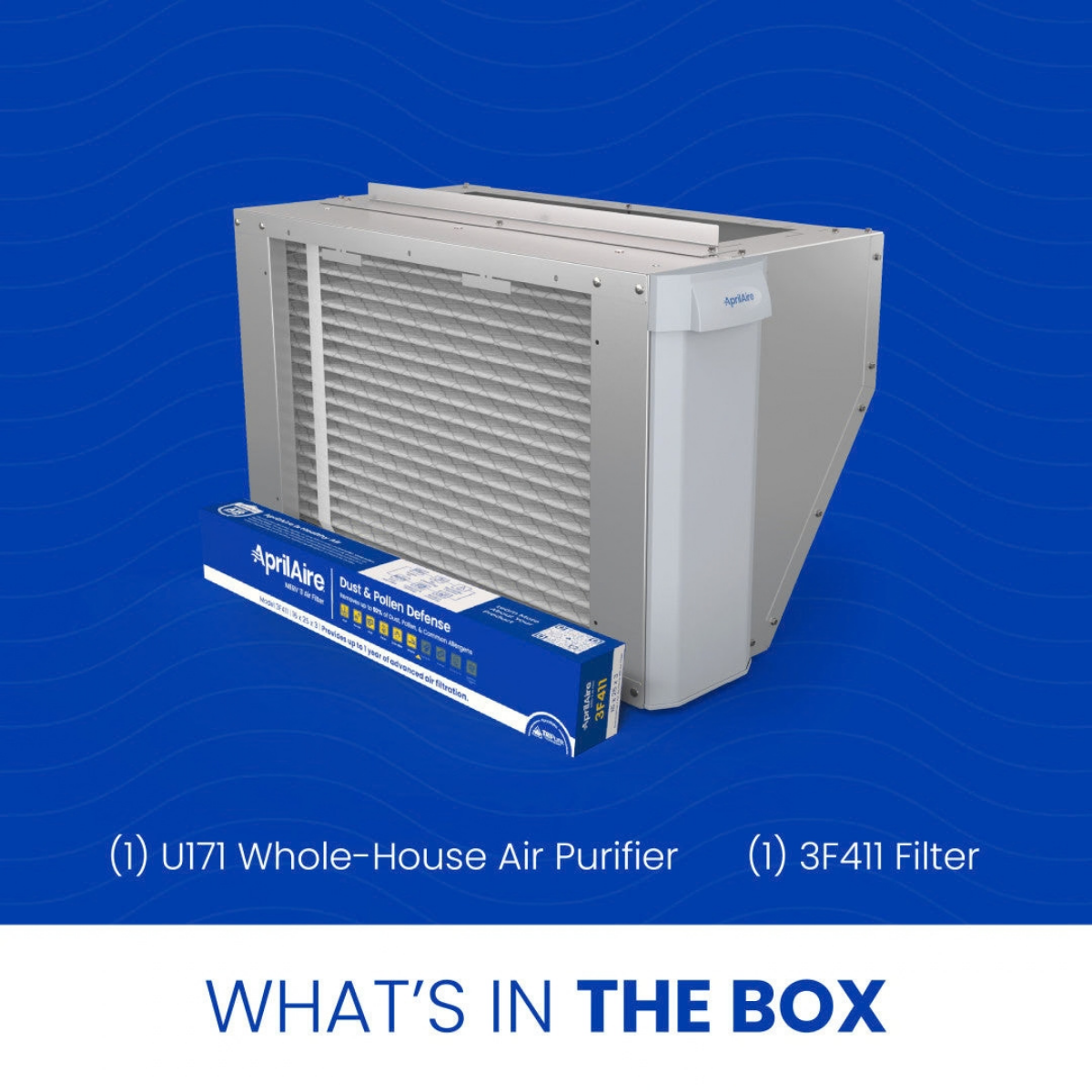

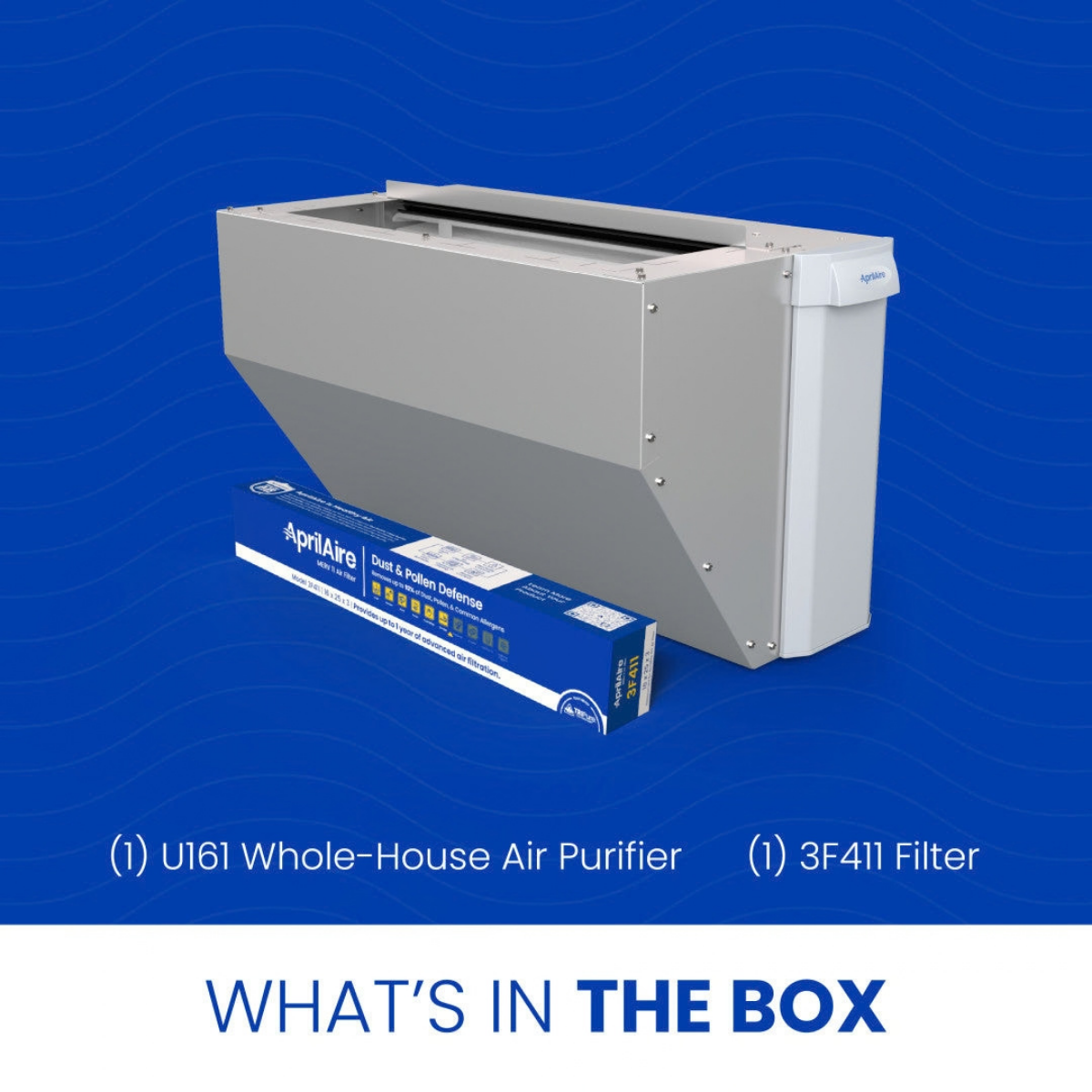

What's In The Box?
  • Aprilaire U161/U171 16x25 in. MERV 11 TriPure 3 in. Filtration Easy Install Return Drop Air Cleaner
  • 16 x 25 x 3-Inch MERV 11 Air Filter
  • Owner's Manual, Guides, and Other Documents

Info & Guides

A portable air purifier only cleans the room it sits in. The AprilAire U161/U171 TriPure Easy Install Return Drop Air Cleaner works through your heating and cooling system instead. As air circulates through your ductwork, it passes through a 3-inch media filter first, so you get filtered air throughout your home, including bedrooms and basements.

This air cleaner is designed for professional installation alongside your HVAC equipment. A built-in angled cabinet extension simplifies fitting it to your return, which can mean less custom sheet-metal work for your installer. Once it is in place, your ongoing job comes down to a single filter change on a schedule you can plan for.

Key Features and Benefits of the AprilAire 16x25 MERV 11 TriPure 3-Inch Filtration Easy Install Return Drop Air Cleaner

  • MERV 11 Filtration: The included 3F411 MERV 11 filter removes up to 92 percent of household dust and pollen, as well as common allergens from your air.
  • Lower Airflow Resistance: TriPure Technology gives up to 30 percent lower airflow resistance than leading brands in ASHRAE 52.2 testing, so your system moves air with less strain.
  • 12-Month Filter Life: One filter lasts up to 12 months, up to two times longer than leading brands in ASHRAE 52.2 testing, so you change it about once a year.
  • Easy-Glide Rails: The redesigned easy-glide rail system guides each new filter into the correct position, so it seats properly on the first try.
  • Replaces Model 1610: This air cleaner replaces the AprilAire 1610 Whole-House Air Purifier, offering the newer 3F411 filter and rail design.
  • Warranty: The purifier warranty and Clean-Coil Commitment each last 10 years; the commitment includes $250 toward professional coil cleaning when installed within 6 months of a new HVAC system.
  • Healthy Air App: The Healthy Air App on the App Store and Google Play schedules filter replacement reminders, so you never miss a change.

Left vs. Right Return Drop: Choosing Your Configuration

You can choose a left return drop or a right return drop configuration, depending on which side of your equipment the return comes in.

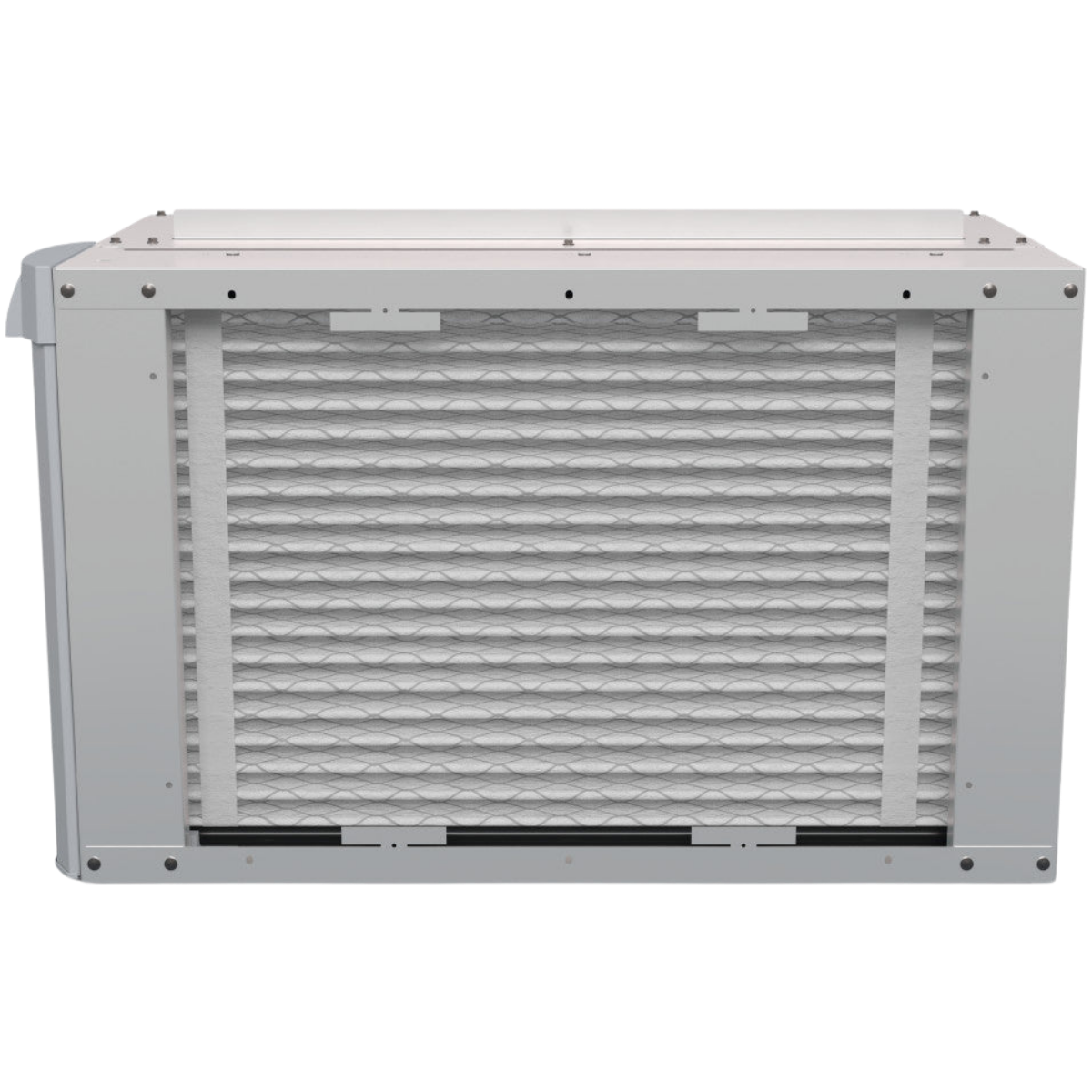

  • Left Return Drop: The AprilAire U161 connects to a return duct on the left side. At 17.813 x 15.688 x 30.118 inches (H x W x D), its lower, longer cabinet fits well where vertical space above the return is limited.

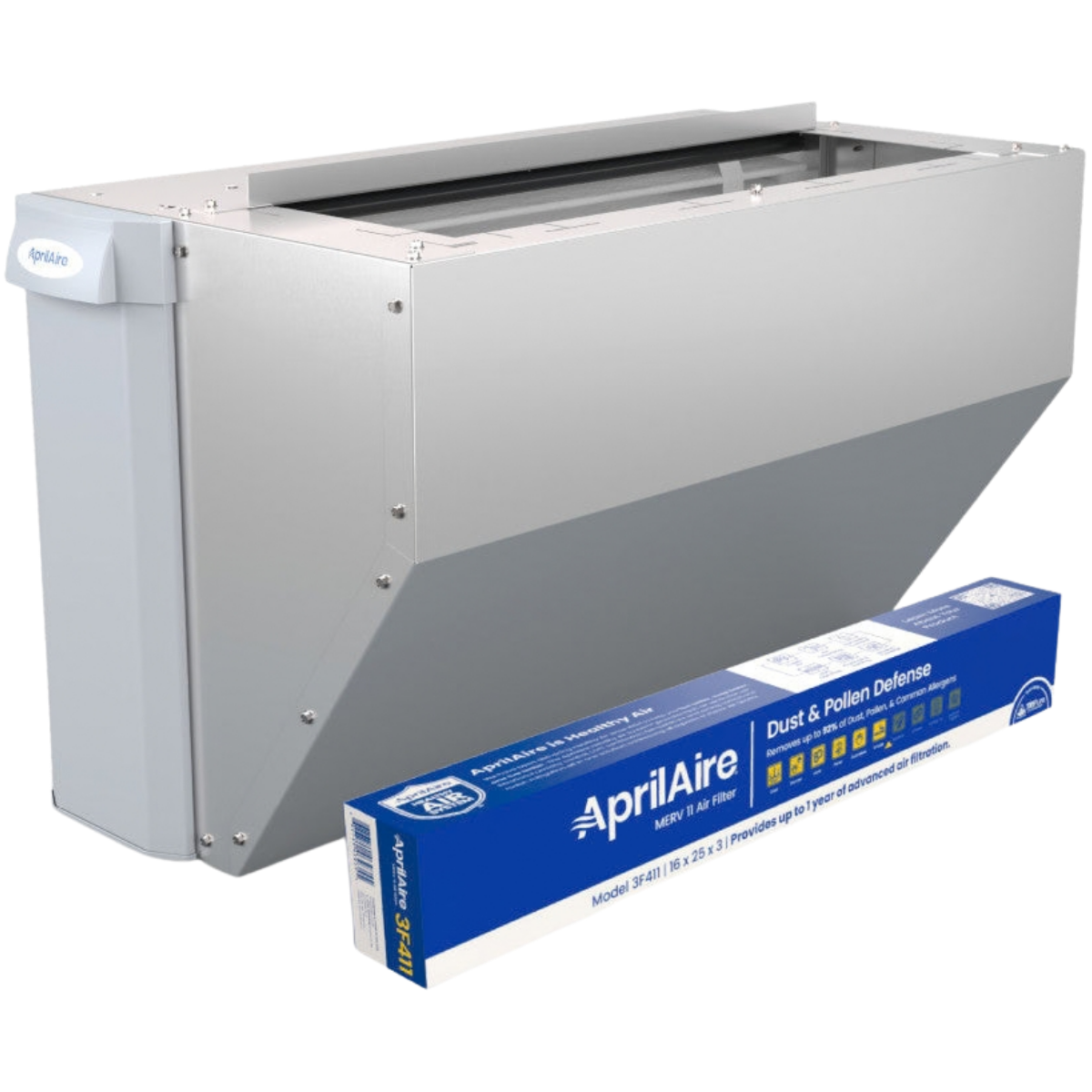

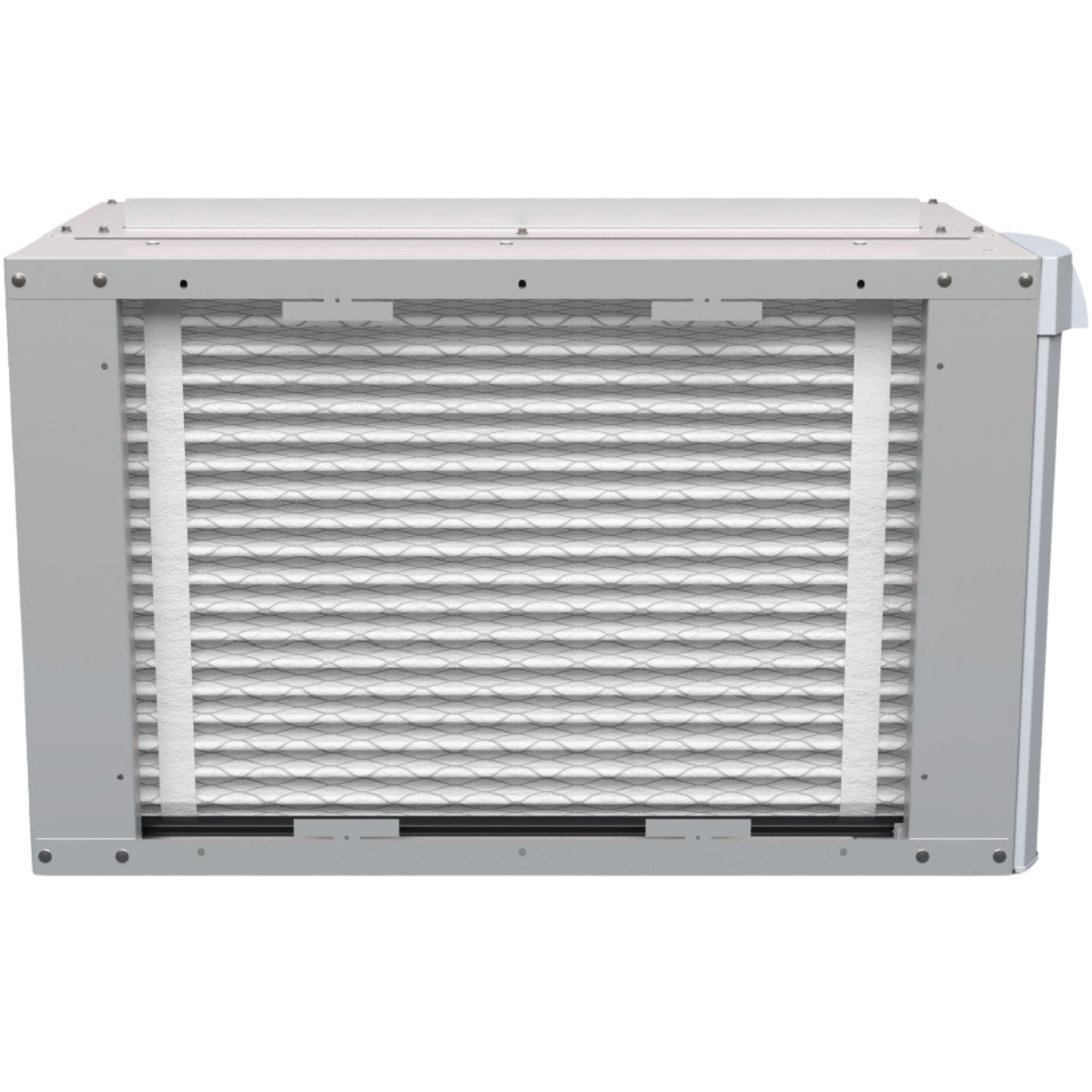

  • Right Return Drop: The AprilAire U171 connects to a return duct on the right side. At 22.125 x 15.688 x 27.375 inches (H x W x D), its taller, shallower cabinet suits installations where front-to-back clearance is tight.

Sylvane's Expert Take

This air cleaner is a good fit if you have allergies or pets and want filtered air in every room without a portable purifier in each one. It works best on a forced-air system that runs often, because air is only filtered while it is moving. Have your installer check which side your return drops are on and measure the space before you order, since the two configurations differ by more than 4 inches in height.

Recommended Accessories

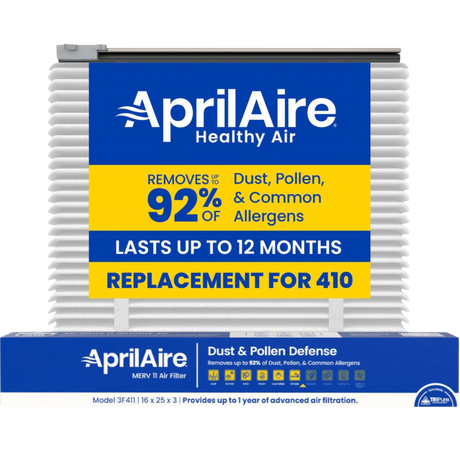

Shop All Aprilaire Replacement Filters & Accessories
