Broan AE110 110 CFM Bathroom Exhaust Fan w/ CleanCover Grille
Broan AE110 110 CFM Bathroom Exhaust Fan w/ CleanCover Grille - CleanCover Grille w/ LED Light is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Broan 110 CFM Bathroom Exhaust Fan w/ CleanCover Grille, with or without LED Light
- Installation Hardware
- Installation Guide & Owner's Manual
Info & Guides
Info & Guides

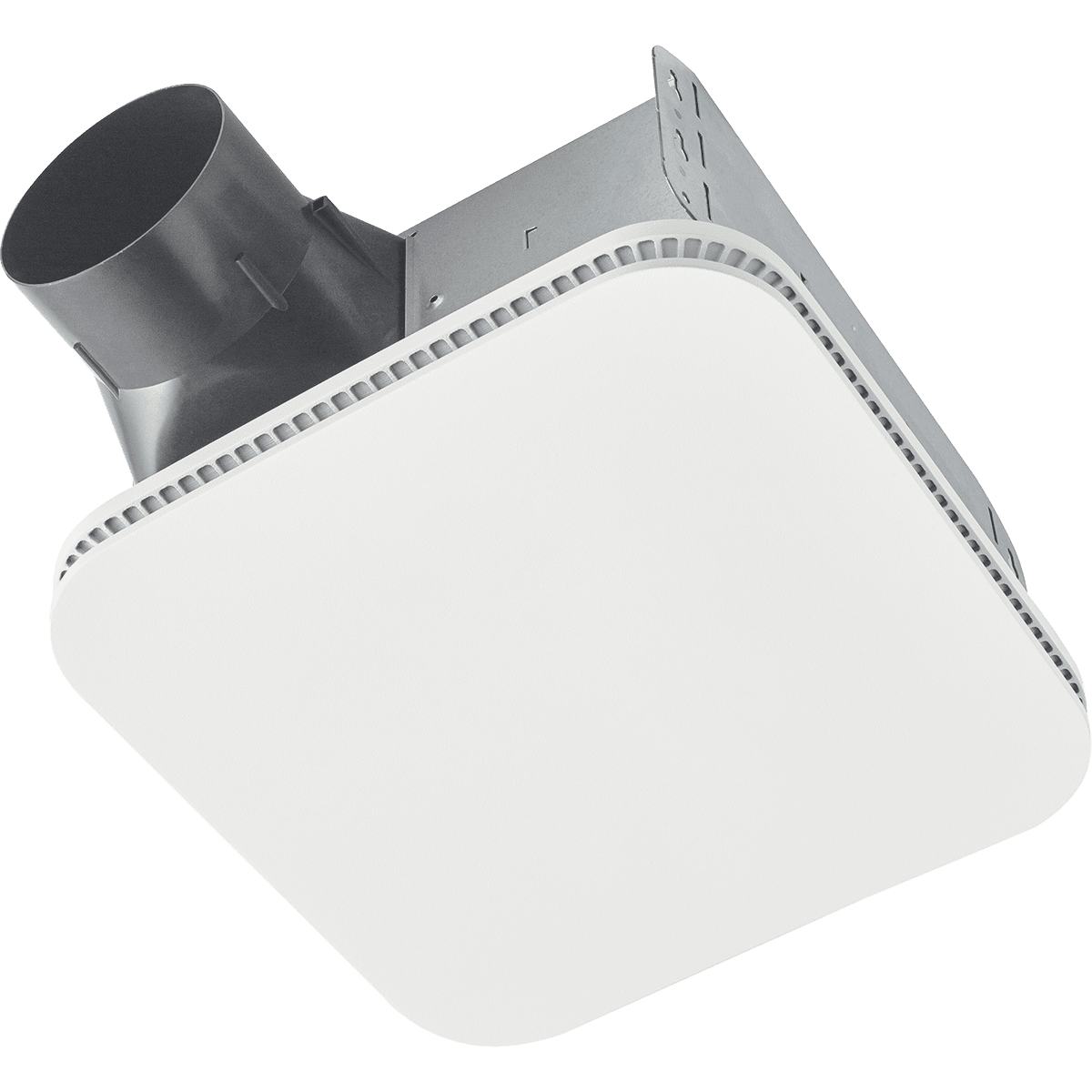

Broan AE110 110 CFM Bathroom Exhaust Fan w/ CleanCover Grille
Description
Description

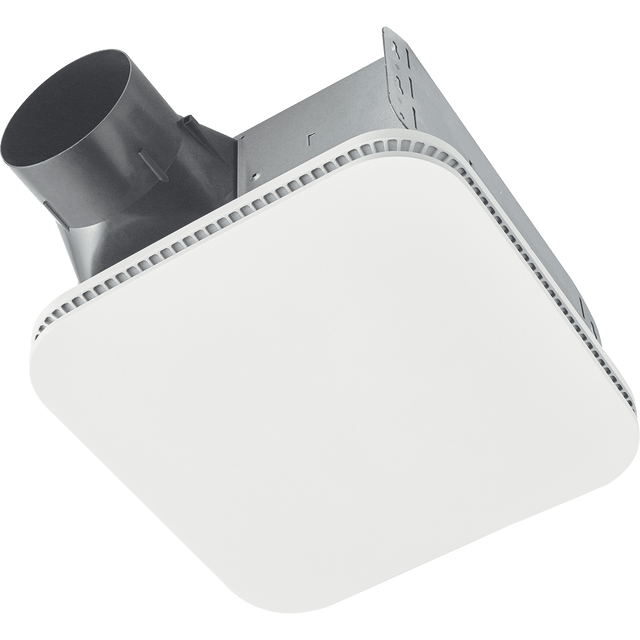

Broan’s AE110 Series of 110 CFM Bathroom Exhaust Fans feature their CleanCover™ Grille in a brighter white finish which blends well with most ceiling white paints. Energy Star certified, these fans feature ceiling or room side installation, ideal for new construction or retro-fit in existing homes.

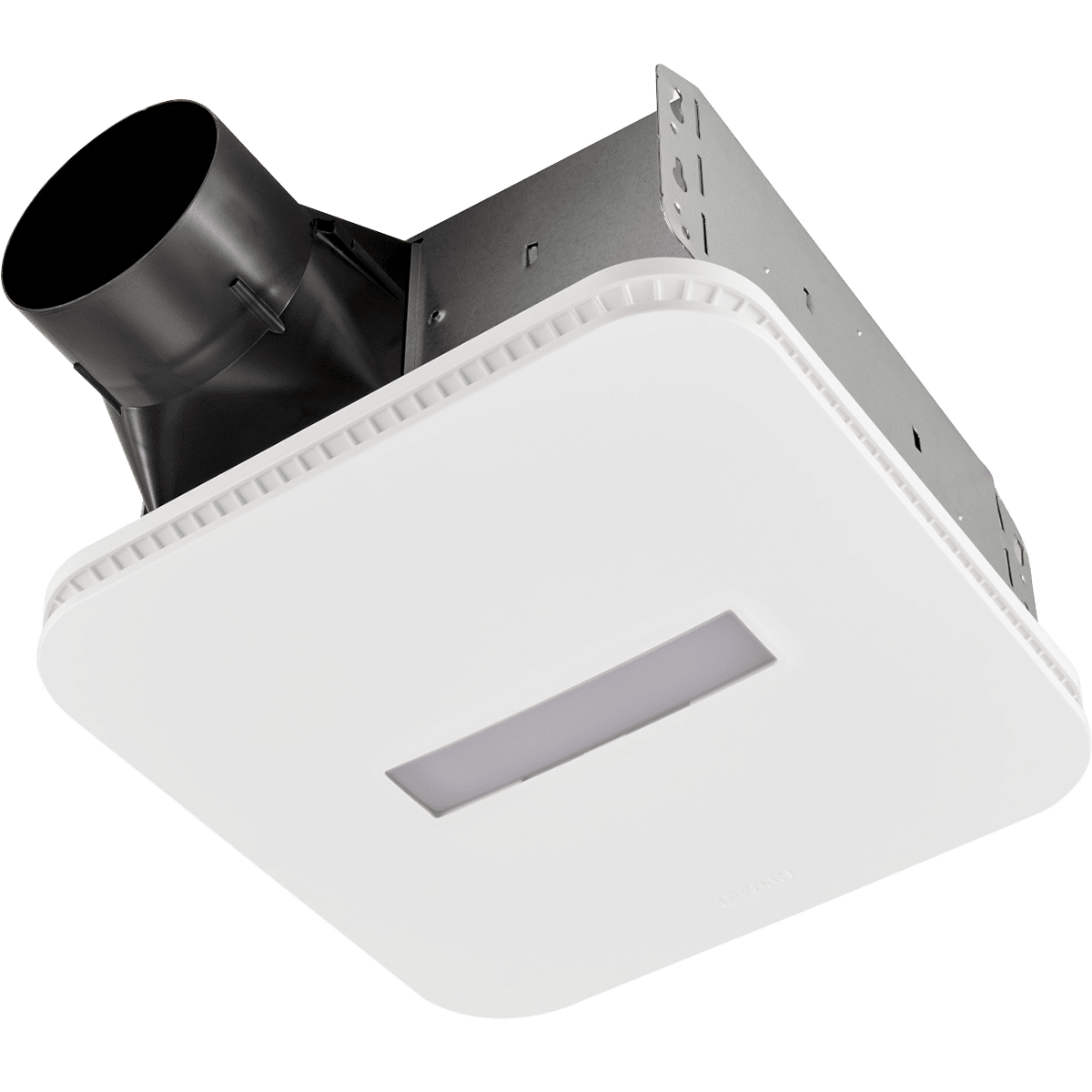

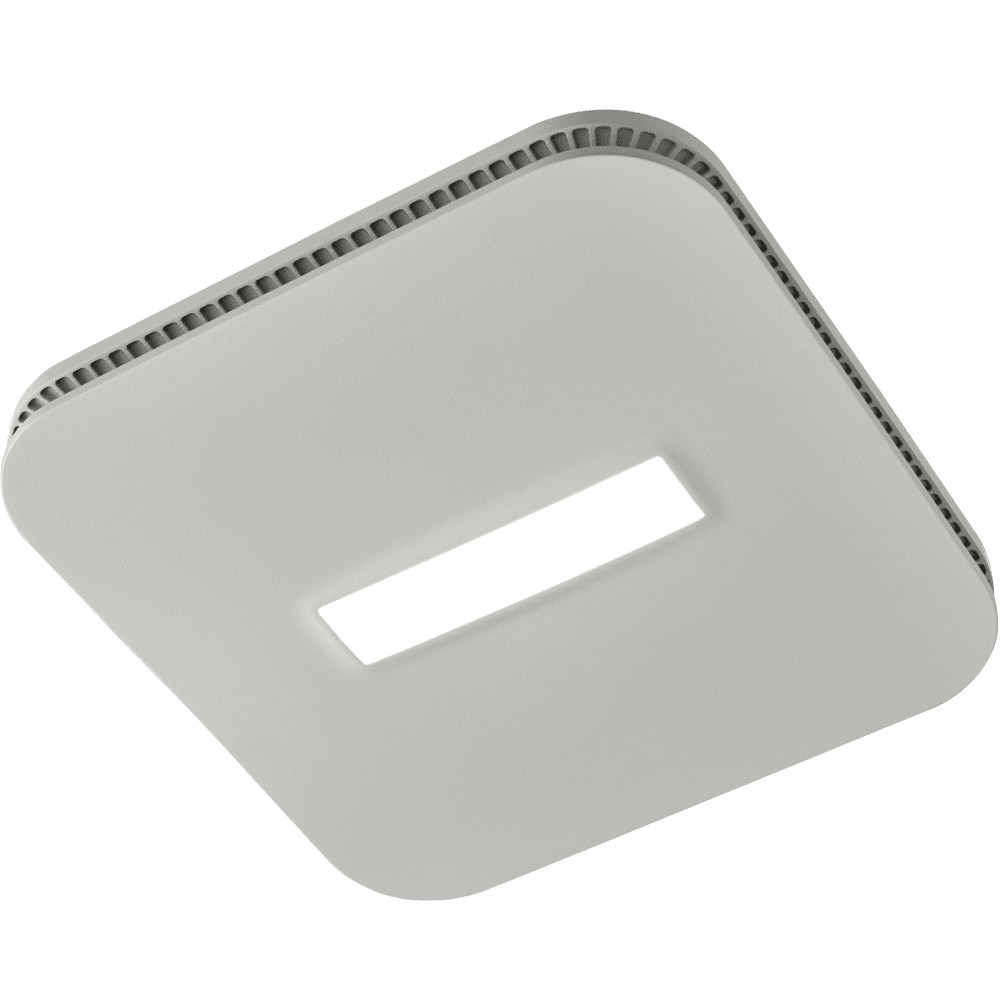

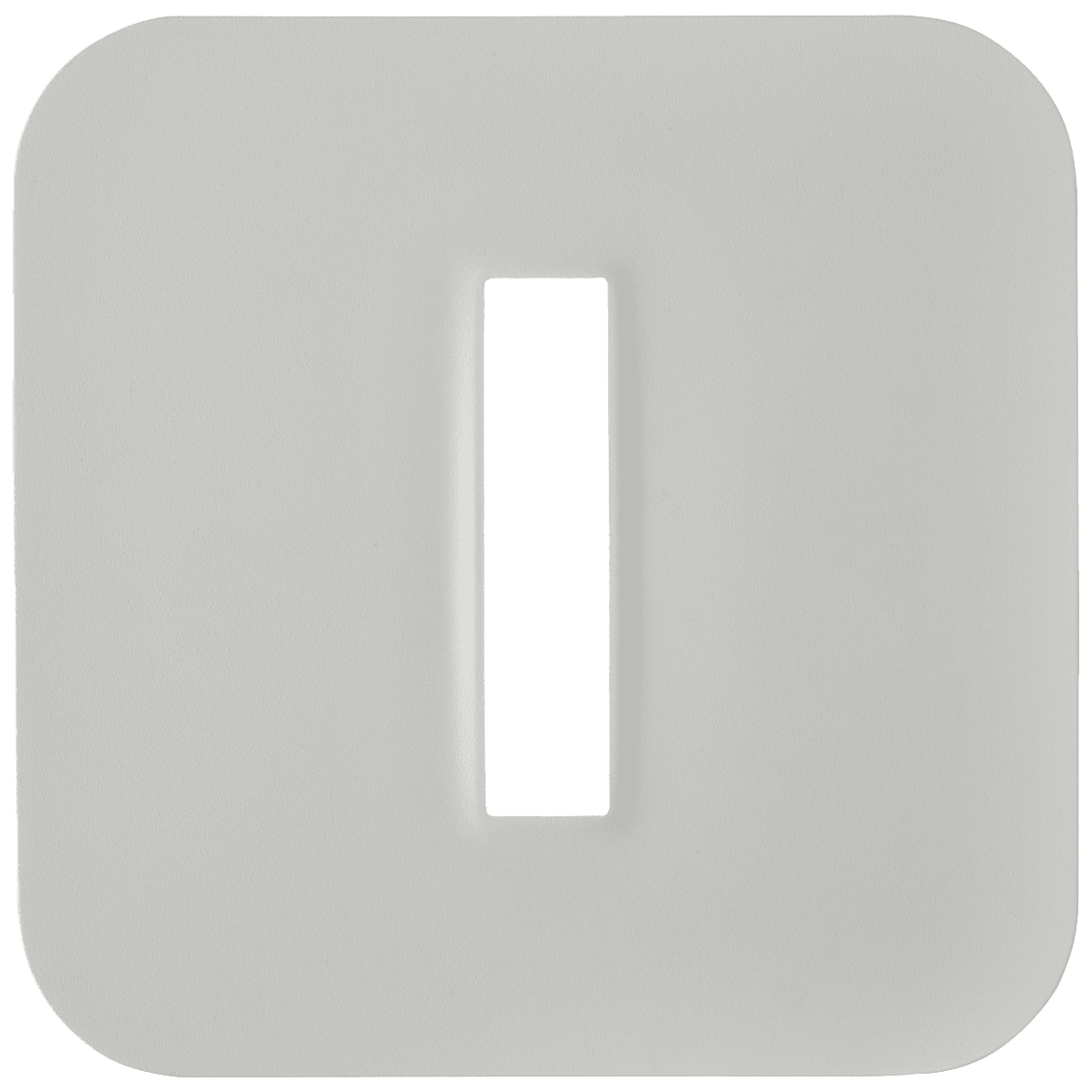

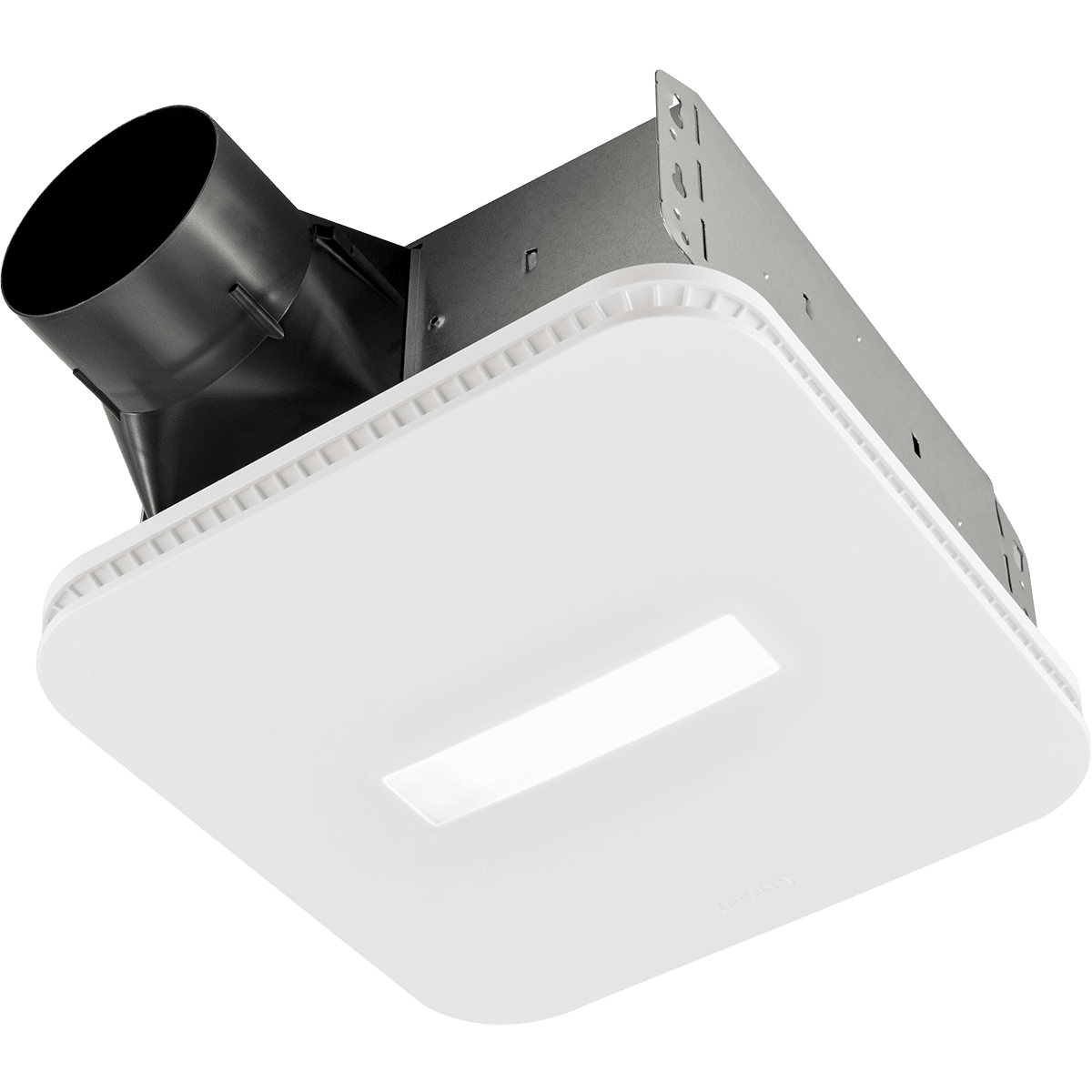

Select from two models, one without and one featuring a built-in LED center light for additional illumination when needed.

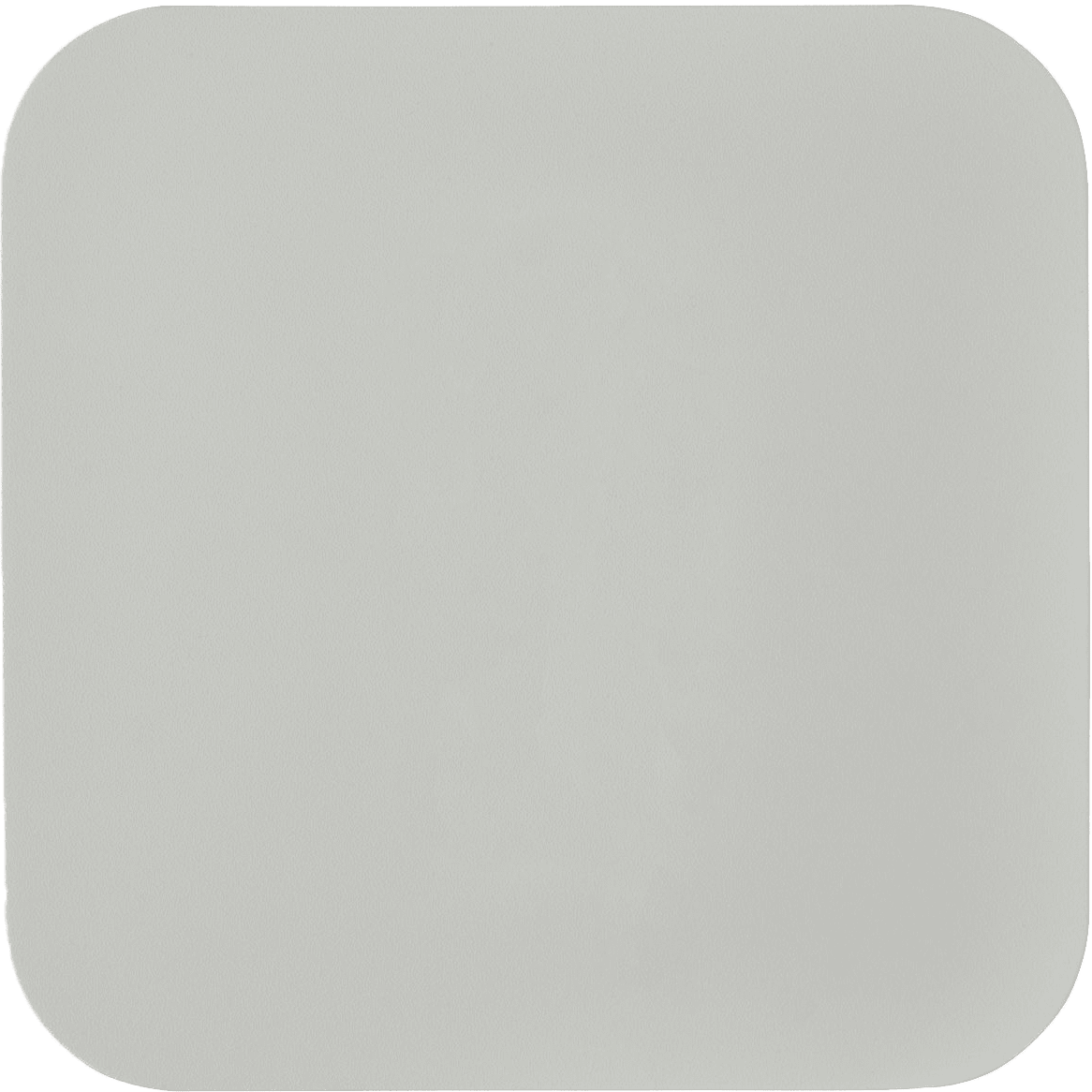

Less Dust with CleanCover™
This unique bathroom exhaust fan grille clears moisture-laden air with a low-profile, streamline design with fewer vent slots. Small vents around the sides of the cover don’t catch dust and dirt the way standard grilles do so it stays cleaner longer.
In addition, the low-profile design makes for hassle-free installation without requiring attic access, ideal for first-floor rooms and basements. Each comes with a precise template for an accurate housing opening ceiling cut, and features a snap-fit flange kit for a self-trimming finish.
Featured Specifications
- Energy Star Certified: Both fans are equipped with a DC motor for efficiency well beyond Energy Star requirements.
- HVI Certified: This fixture complies with new testing technologies and procedures with static pressure of 0.1 in.
- UL Listed: Meets UL and cUL standards for safe use over bathtubs and showers with GFCI circuit.
- Rugged Housing: Constructed from 26-gauge galvanized steel with 4-inch round polymeric duct connector with 2-inch tapered sleeve.

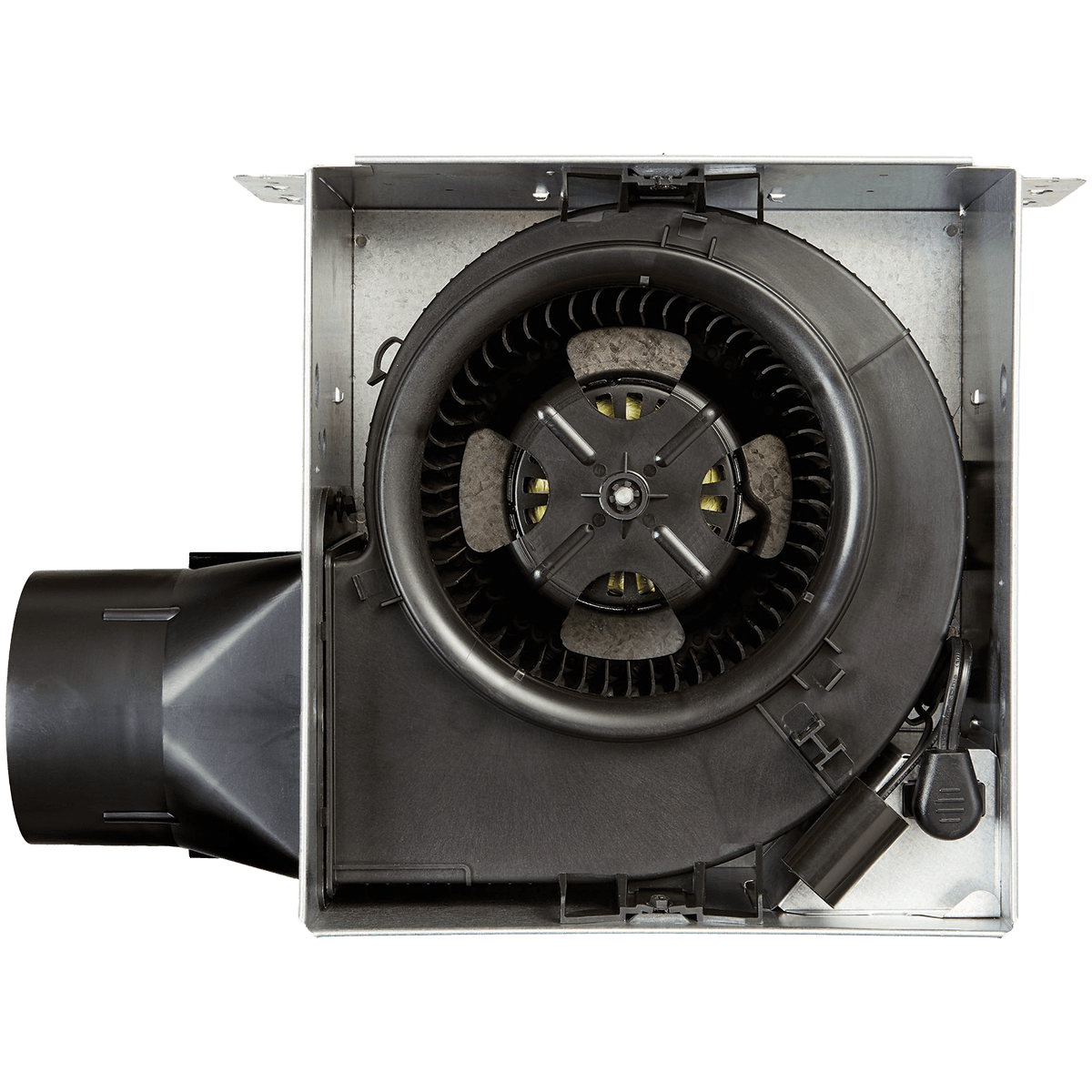

- Whisper Quiet Operation: Permanently lubricated motor with balanced centrifugal blower wheel for quiet and efficient operation at 1 Sone.
- Simple Installation: 5-3/4” height allows for 2” x 6” ceiling installations. They can be mounted in sloped ceilings or in a wall at 8-feet or more above the floor.
Summary
Broan 110 CFM Bathroom Exhaust Fans feature their CleanCover™ Grille for a sleek, low-profile look without dust-catching vent slots. Select the model with or without the centered LED light.
Specifications
Specifications
-
Manufacturer-Suggested Room Size (sq. ft.)105
-
Number of Speeds1
-
Sound Level (Sones) (sones)1.0
-
CertificationscUL
-
ColorWhite
-
ControlsElectronic
-
Maximum Cubic Feet per Minute (CFM) (CFM)110.0
-
Maximum Amperage (Amps)0.3
-
Maximum Wattage (W)23.4
-
Voltage (V)110-120
-

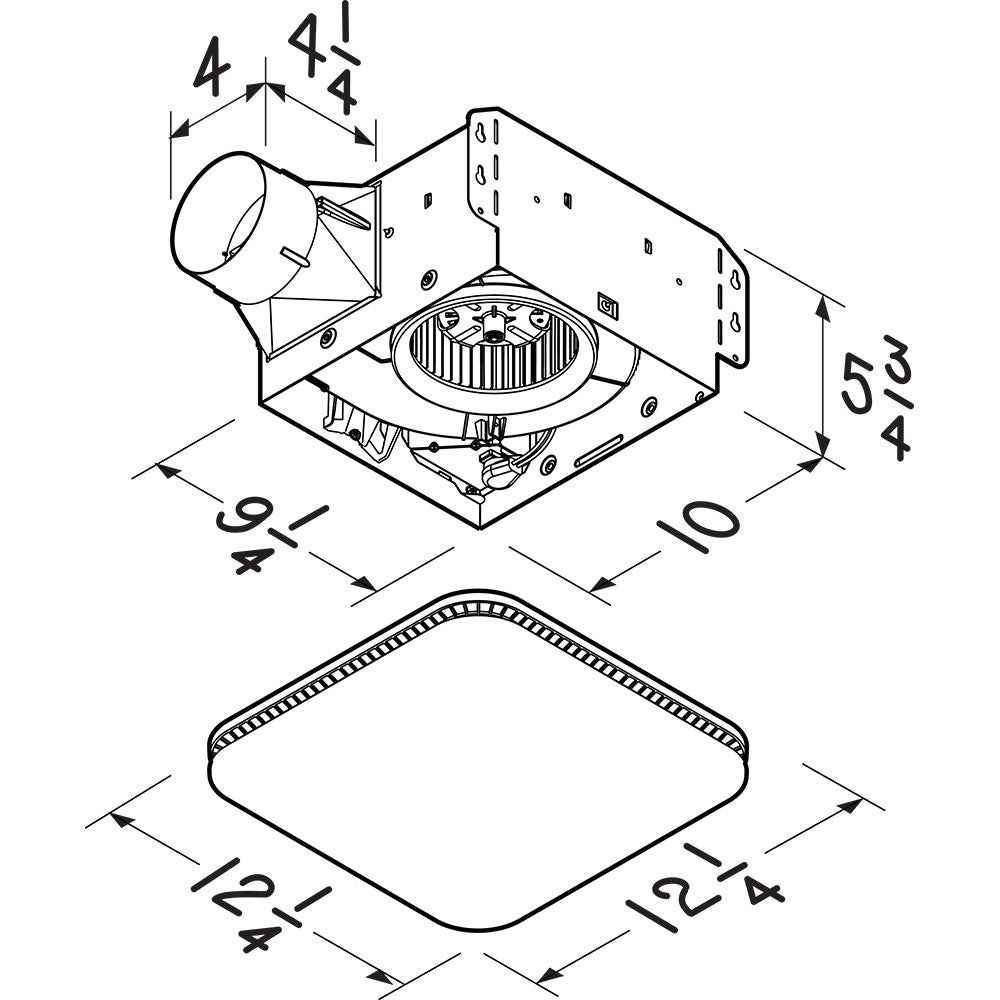

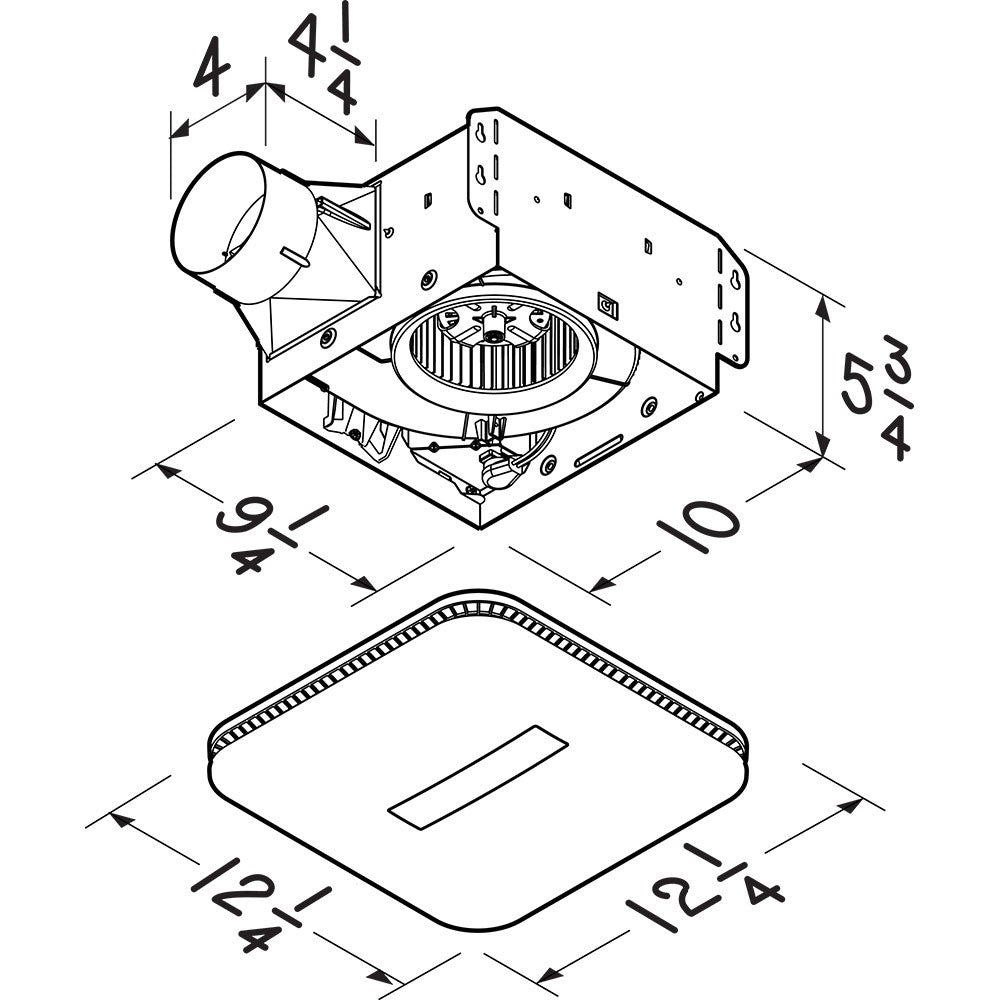

Ceiling or Wall Cutout Length (in.)9.75
-
Ceiling or Wall Cutout Width (in.)10.5
-
Depth (in.)12.25
-
Depth (with front cover) (in.)12.25
-
Duct Diameter (in.)4.0
-
Height (in.)5.75
-
Height (with front cover) (in.)5.75
-
Weight (lbs.)9.39.1
-
Width (in.)12.25
-
Width (with front cover) (in.)12.25
-
Additional FeaturesEnergy Star, Built-In LightEnergy Star
-
Manufacturer's Warranty3-Year Warranty
