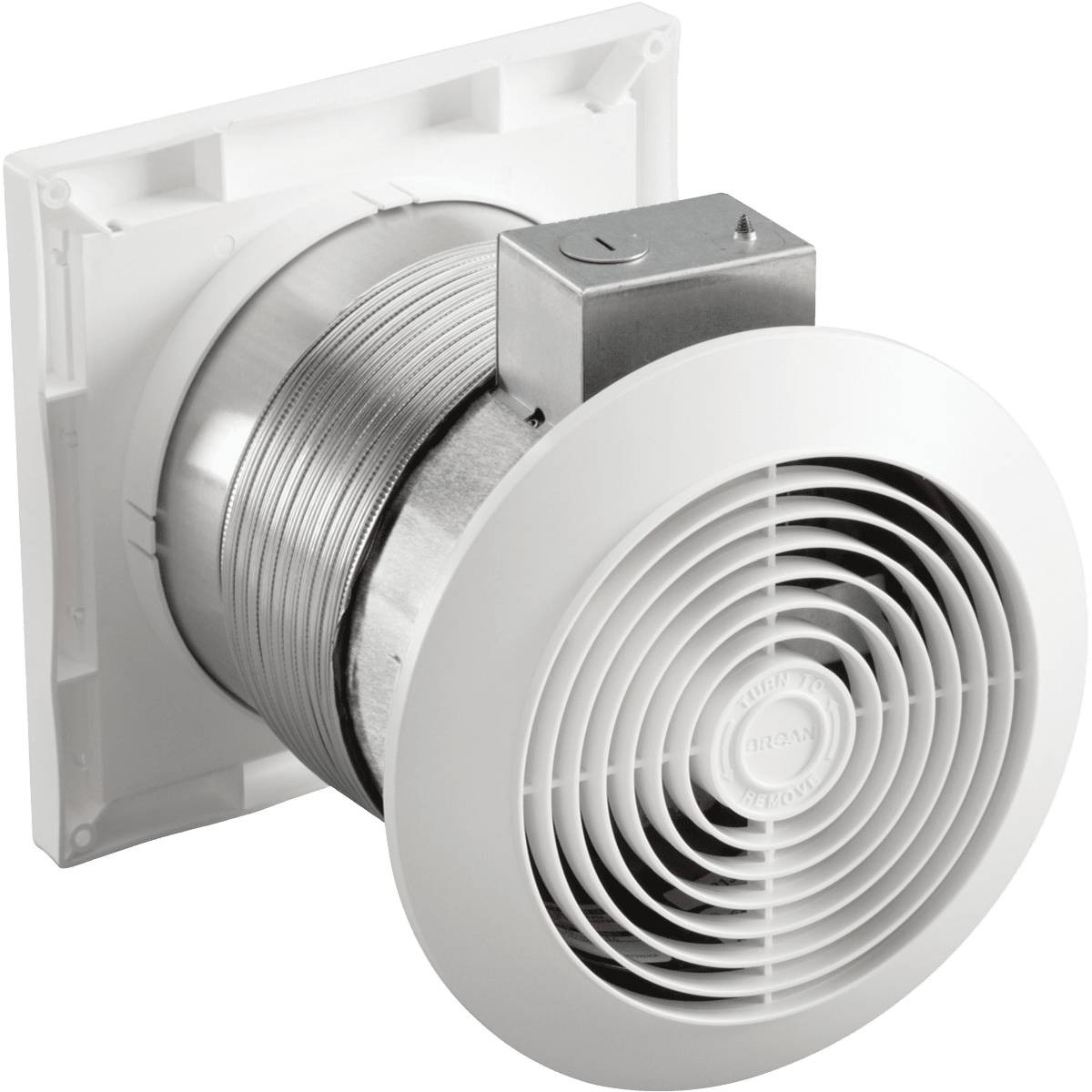

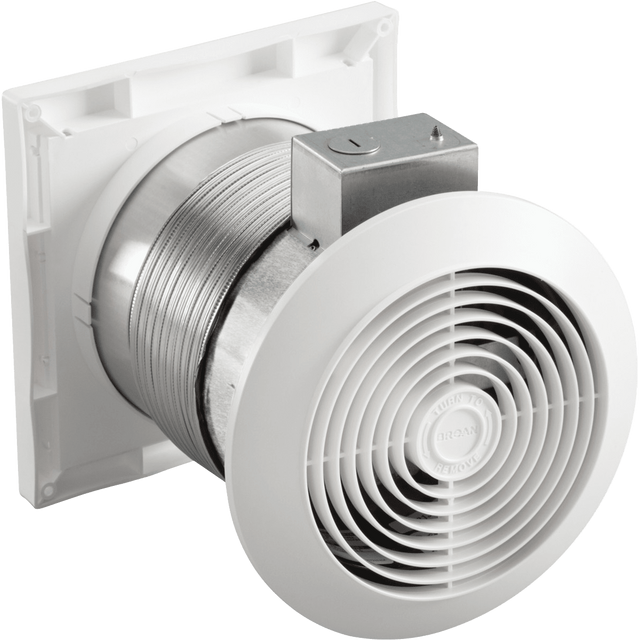

Broan 512M 70 CFM Through-the-Wall Ventilation Fan
Broan 512M 70 CFM Through-the-Wall Ventilation Fan is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Broan 512M 70 CFM Through-the-Wall Ventilation Fan
- Owner's Manual
Info & Guides
Info & Guides
Description
Description
The Broan 512M 70 CFM Through-the-Wall Ventilation Fan is the ideal solution for eliminating heat, humidity, odors, and spot ventilation in rooms up to 65 square feet. This durable fan is constructed from galvanized steel, providing superior protection from the elements and wear and tear. Additionally, it includes a built-in exterior wall cap/vent with a bird screen, making installation quick and easy – no ductwork required.
Key Features Of The Broan 512M
- Small Space Coverage: Its 70 CFM airflow makes this unit ideal for ventilating spaces up to 65 square feet.

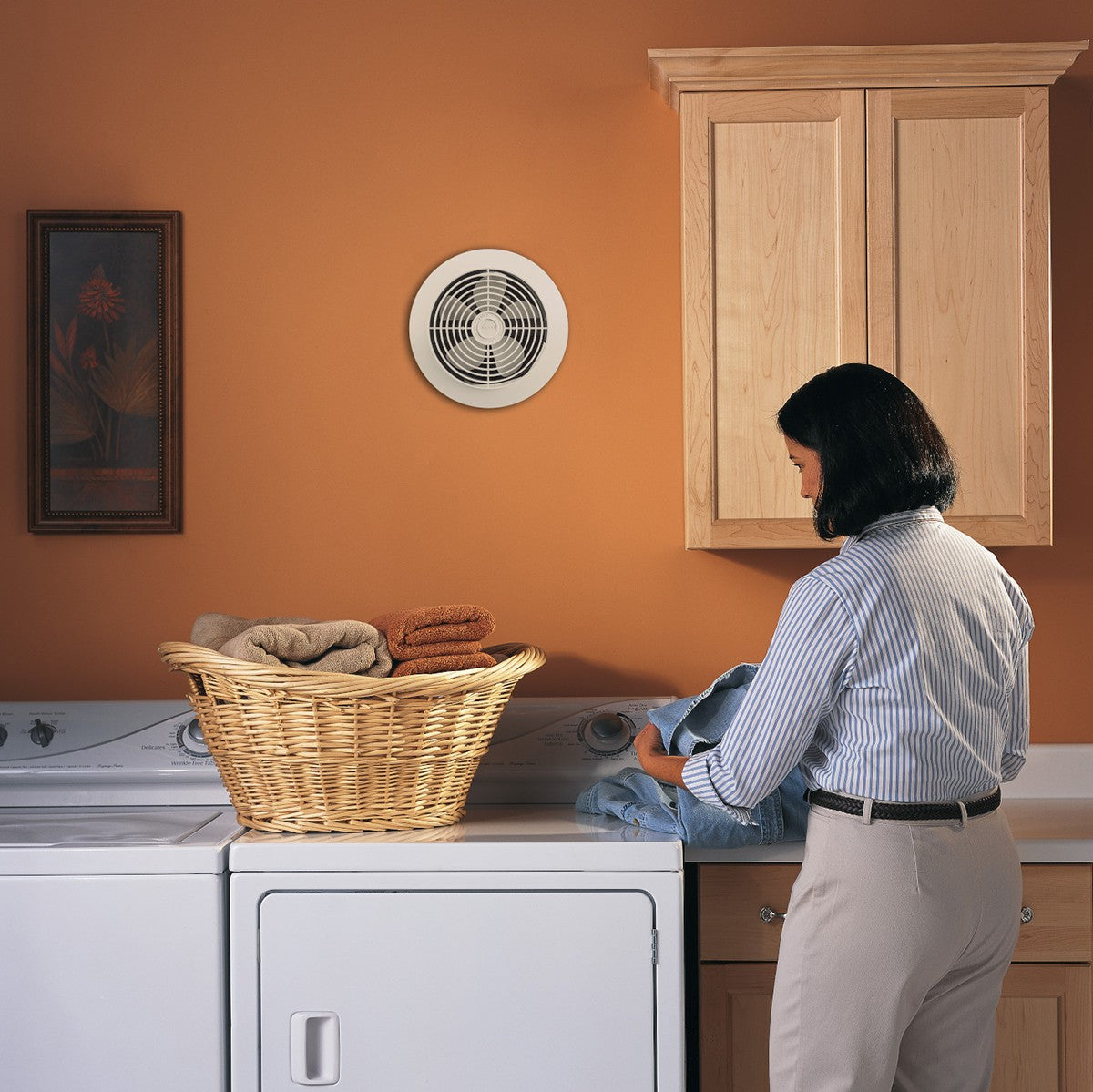

- Common Uses: The Broan 512M Through-The-Wall Fan is commonly used to eliminate heat, humidity buildup, and unwanted odors in kitchens, garages, laundry rooms, and more.

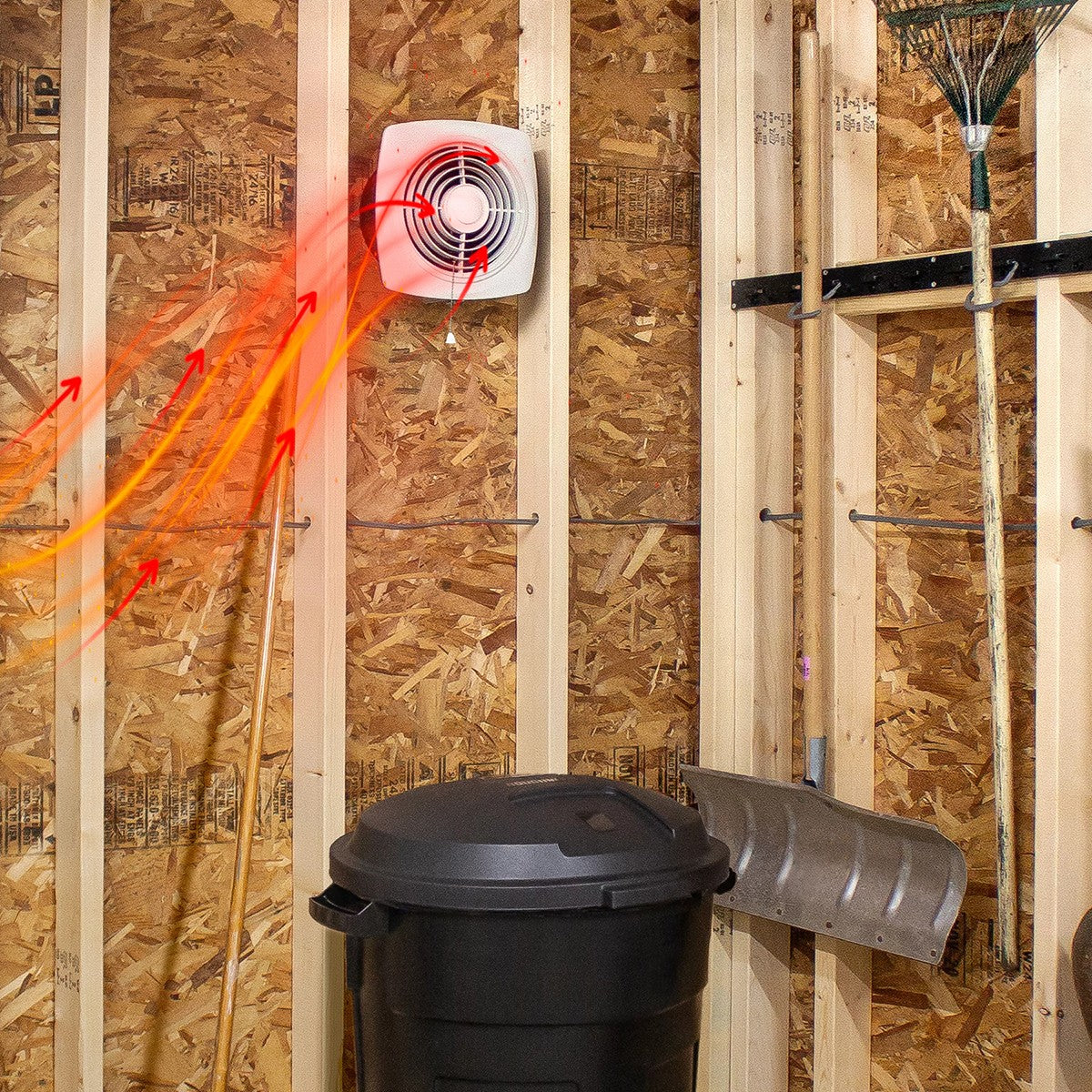

- Spot Ventilation: Use this Broan fan to ventilate near a work bench, car, garbage can, lawn mower, or other spaces within garages.
- Installs On Outside Walls: Can be installed in outside walls from 5¼" to 10" thick.
- UL Listed: This fan has been tested and approved for use in extreme hot and cold weather.
- Durable Construction: The unit's housing is constructed of galvanized steel.

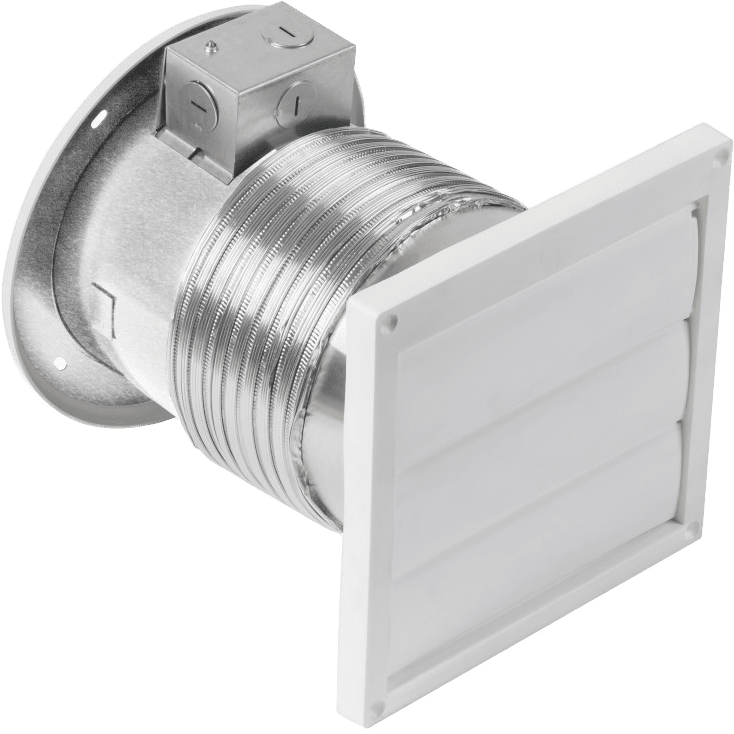

- Wall Cap: Features a built-in exterior wall cap/vent, so no ducting is needed for installation
Summary
The Broan 512M 70 CFM Through-the-Wall Ventilation Fan is the perfect choice for eliminating heat, humidity, odors, and spot ventilation in rooms up to 65 square feet.
Specifications
Specifications
-
Number of Speeds1
-
Sound Level (Sones) (sones)6.0
-
ApplicationBathroom, Garage/Workshop, Residential
-
CertificationsETL, UL, HVI
-
ColorWhite
-
ControlsToggle Switch
-
Maximum Cubic Feet per Minute (CFM) (CFM)70.0
-
Recommended Coverage Area (sq. ft.)65
-
Amperage (Amps)0.7
-
Power SupplyHardwired
-
Voltage (V)110-120
-
Watts (W)0
-

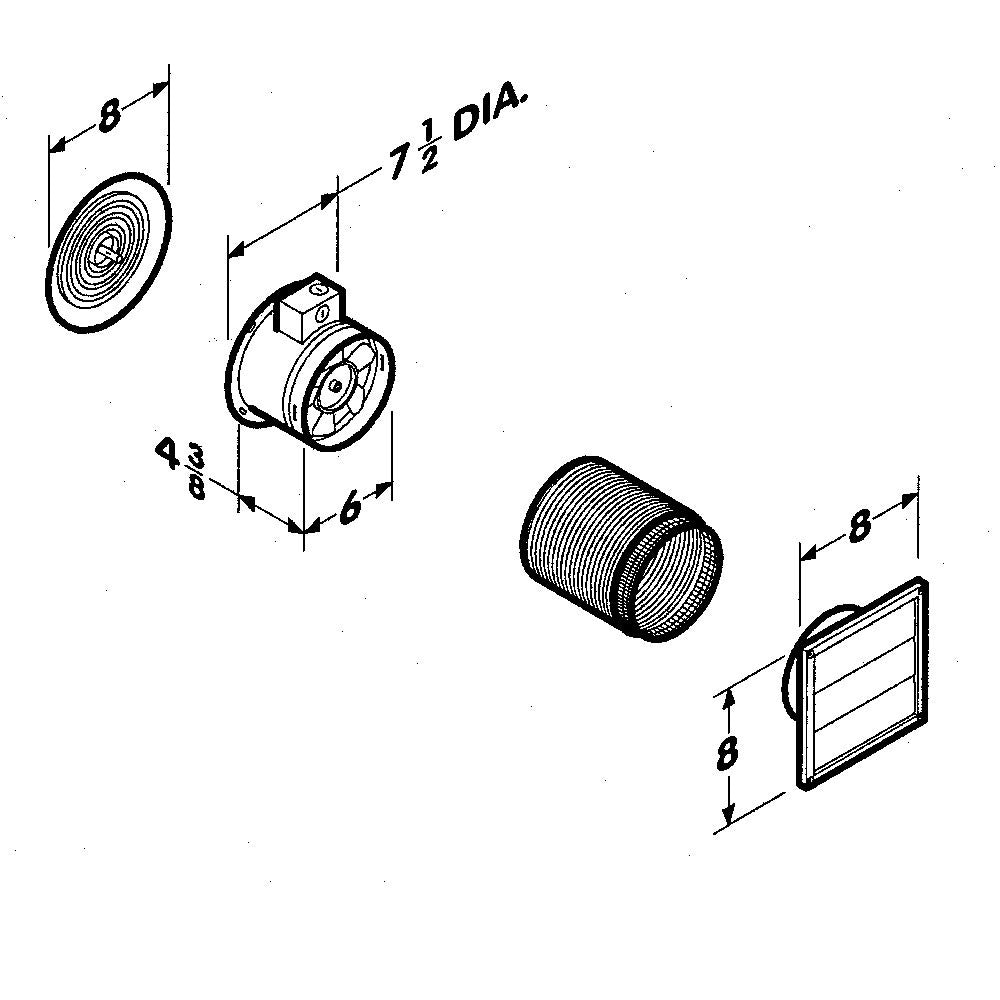

Depth (in.)8.0
-
Depth (with front cover) (in.)8.0
-
Duct Diameter (in.)6.0
-
Height (in.)8.0
-
Height (with front cover) (in.)8.0
-
Width (in.)10.0
-
Width (with front cover) (in.)10.0
-
Manufacturer's Warranty1-Year Limited Warranty
