Broan AE80 Flex Series 80 CFM Single-Speed Bathroom Exhaust Fan
Broan AE80 Flex Series 80 CFM Single-Speed Bathroom Exhaust Fan - Fan + LED Light + Humidity Sensor is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Broan AE80K Flex Series 80 CFM Bathroom Exhaust Fan with CleanCover Grille OR
- Broan AE80BL Flex Series 80 CFM Bathroom Exhaust Fan with LED Light OR
- Broan AE80SL Flex Series 80 CFM Bathroom Exhaust Fan with LED Light & Humidity Sensor
- Installation Hardware
- Installation Guide & Owner's Manual
Info & Guides
Info & Guides
Broan AE80 Flex Series 80 CFM Single-Speed Bathroom Exhaust Fan
Description
Description
The Broan AE80 Flex Series Bathroom Exhaust Fans feature ceiling or room side installation options and carry the Energy Star rating for efficient operation in rooms up to 75 sq. ft. Ultra-quiet, these fans all operate at a mere 0.7 sones.
You can select from three different 80 CFM single-speed fans, depending on your specific ventilation requirements. All three fans feature new duct damper technology which provides a tighter seal with reduced cold and warm air backdrafts.
Single Speed Fan Options

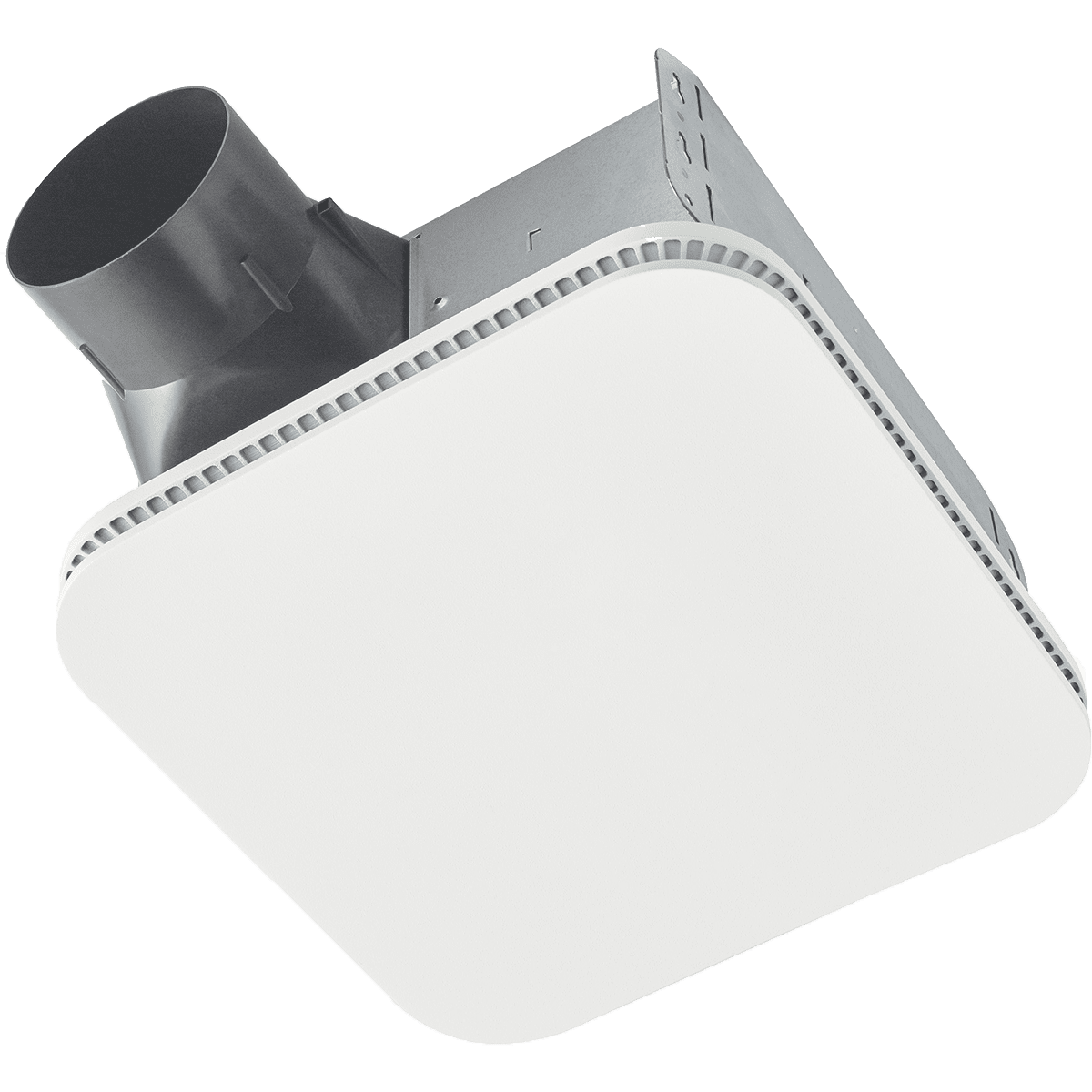

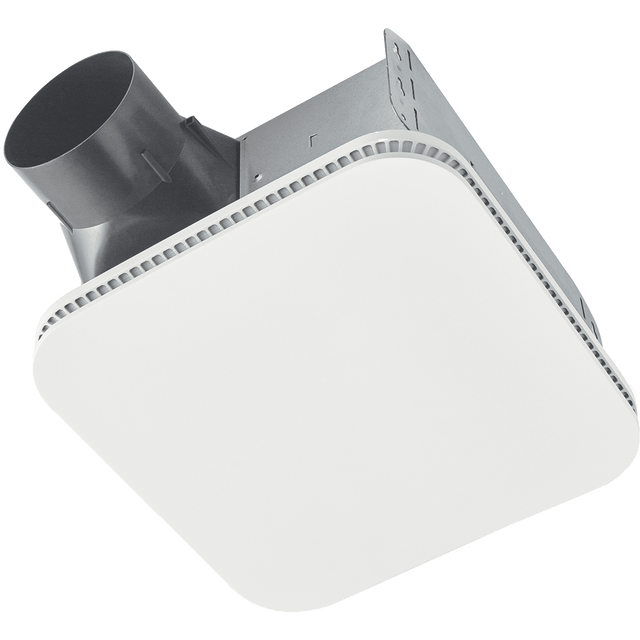

- Broan AE80K: This model features Broan’s CLEANCOVER™ Grille with a low profile, streamline design with fewer vent slots to collect dust and dirt.

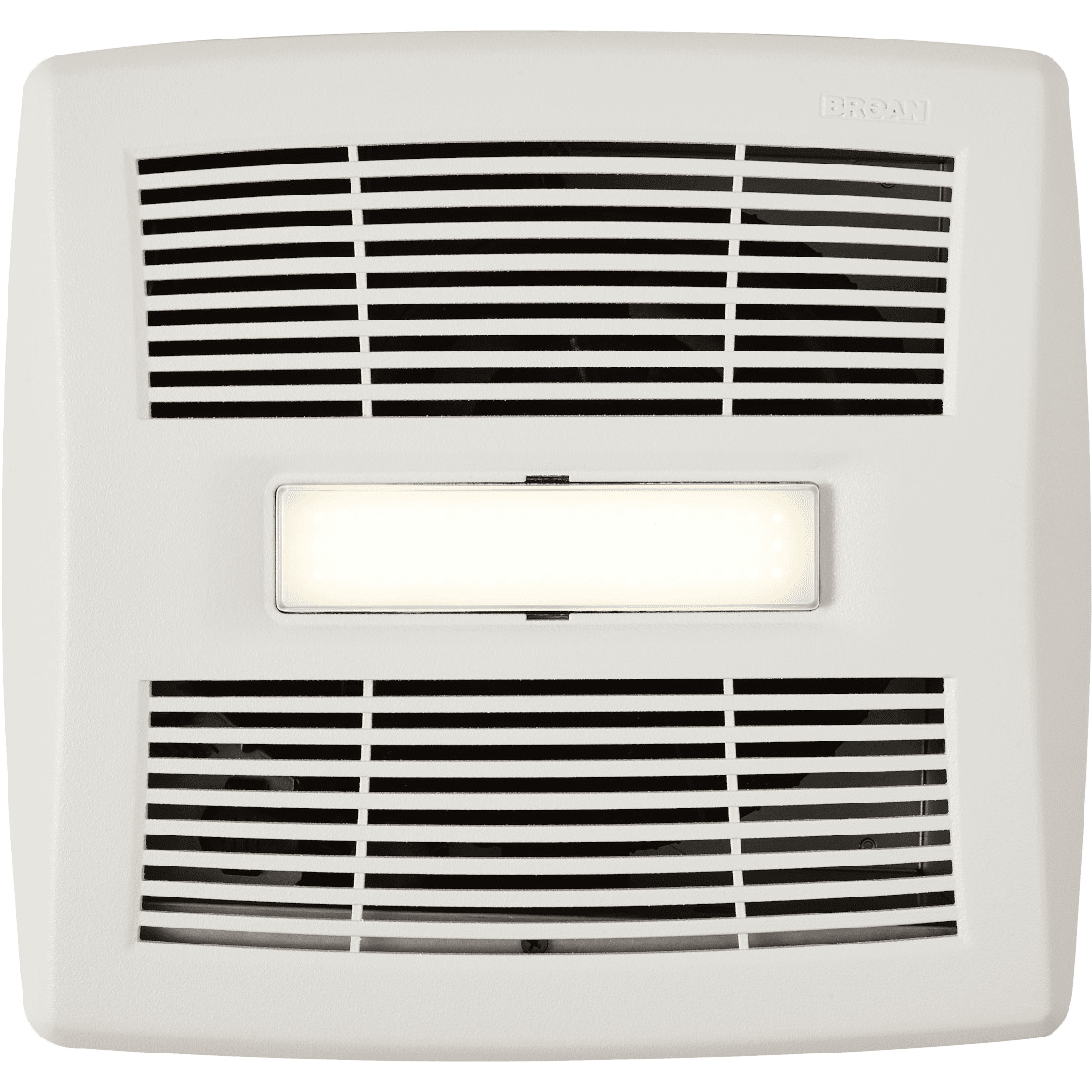

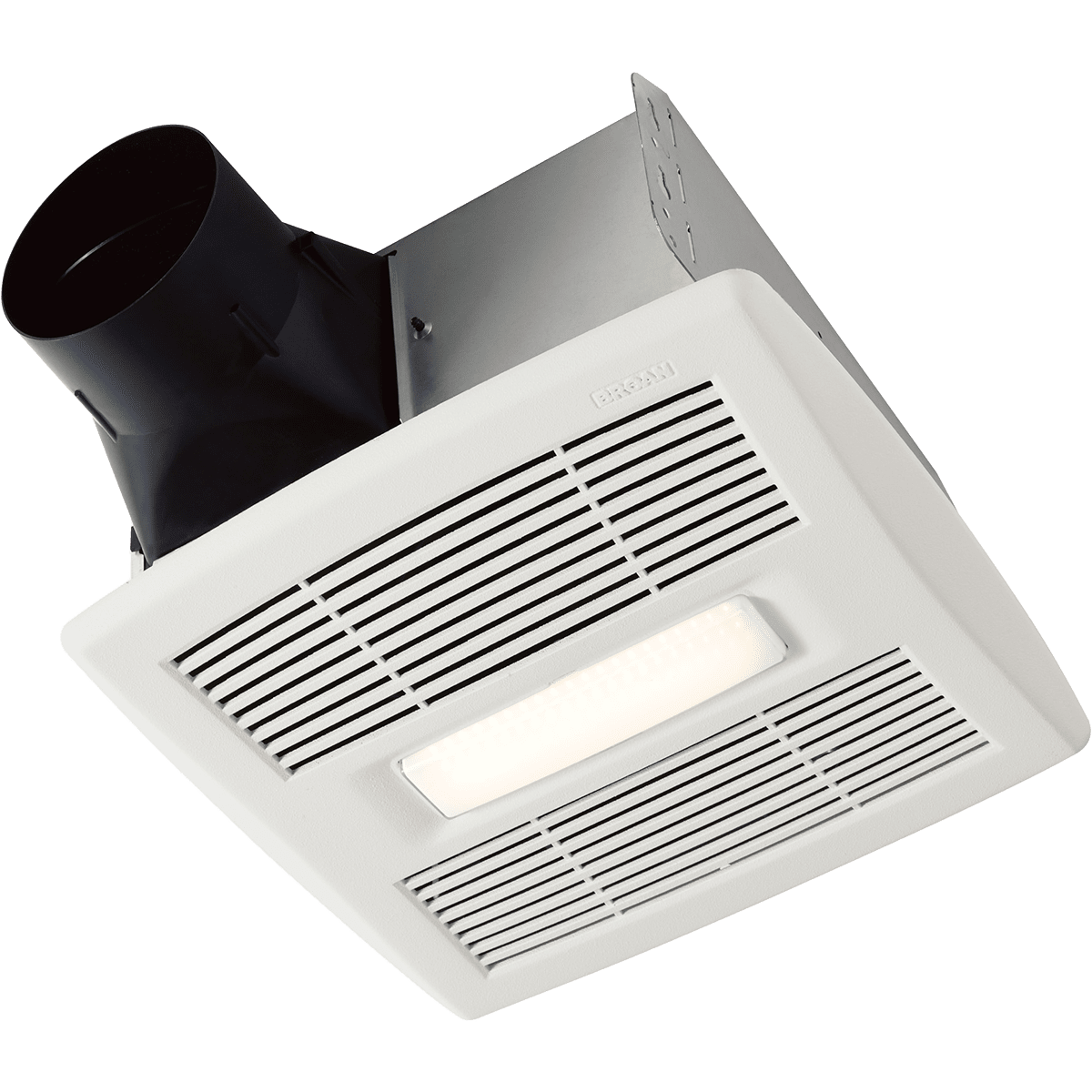

- Broan AE80BL: If you need additional light, this model includes a built-in LED light for illuminating, as well as ventilating your bathroom.

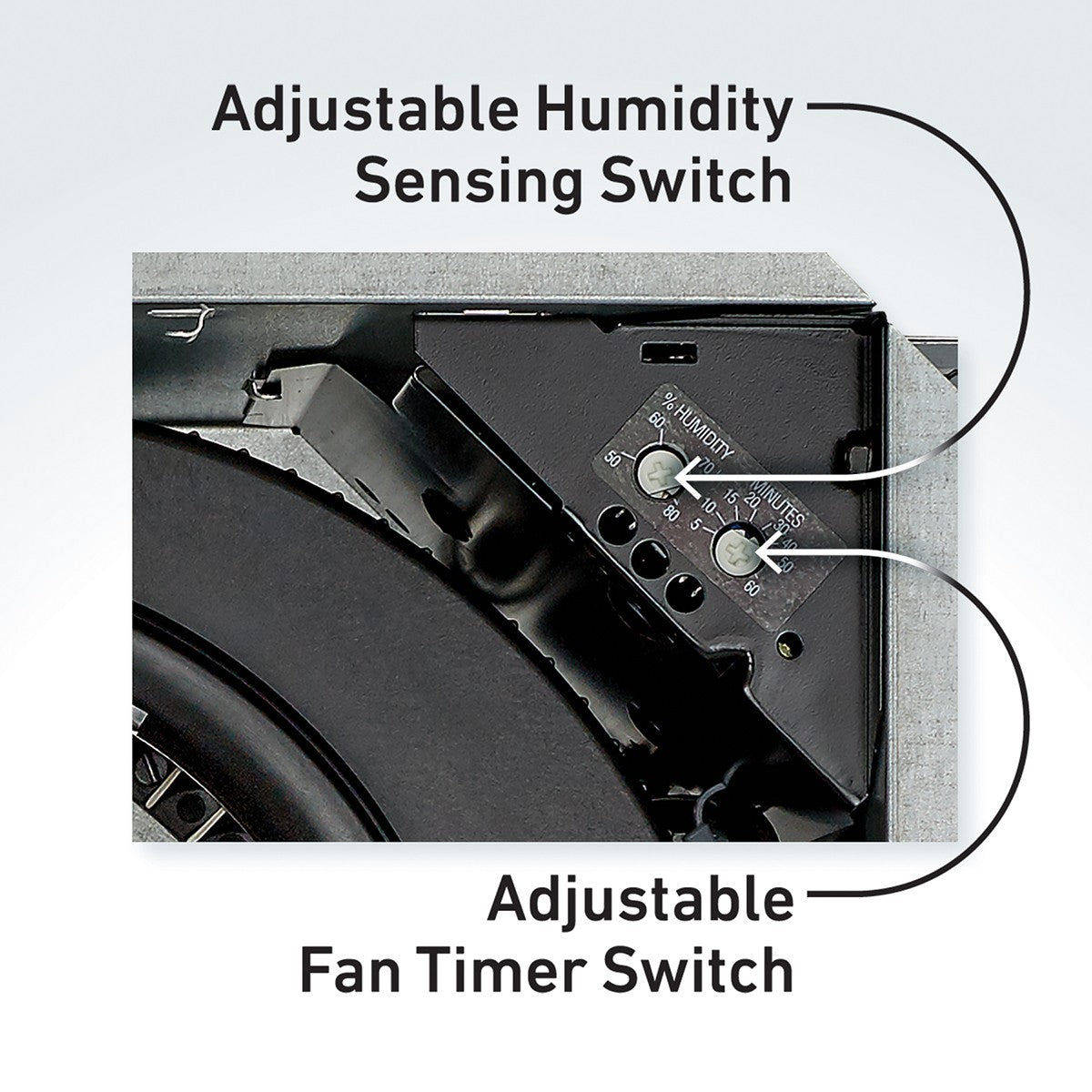

- Broan AE80SL: For additional light plus humidity-sensing technology, this model includes the LED light plus Broan’s Sensaire humidity sensor for automatic fan operation.
Featured Specifications
- Energy Star Certified: All three fans are equipped with a DC motor for efficiency well beyond Energy Star requirements.
- HVI Certified: This fixture complies with new testing technologies and procedures with static pressure of 0.1 in.
- UL Listed: Meets UL and cUL standards for safe use over bathtubs and showers with GFCI circuit.
- Simple Installation: A unique telescoping mounting frame fits through retrofit opening for easy room-side installation without attic access. Features mounting frame tabs for vertical positioning in new construction.
- Controls: These fans can use on/off switch, mechanical timer switch, or relay-switched controls. This includes the Broan Sensaire Humidity Sensing Wall Control (82W). Also compatible with Broan Overture Connected IAQ System.
- Rugged Housing: Constructed from 26-gauge galvanized steel with 4-inch round polymeric duct connector with 2-inch tapered sleeve.

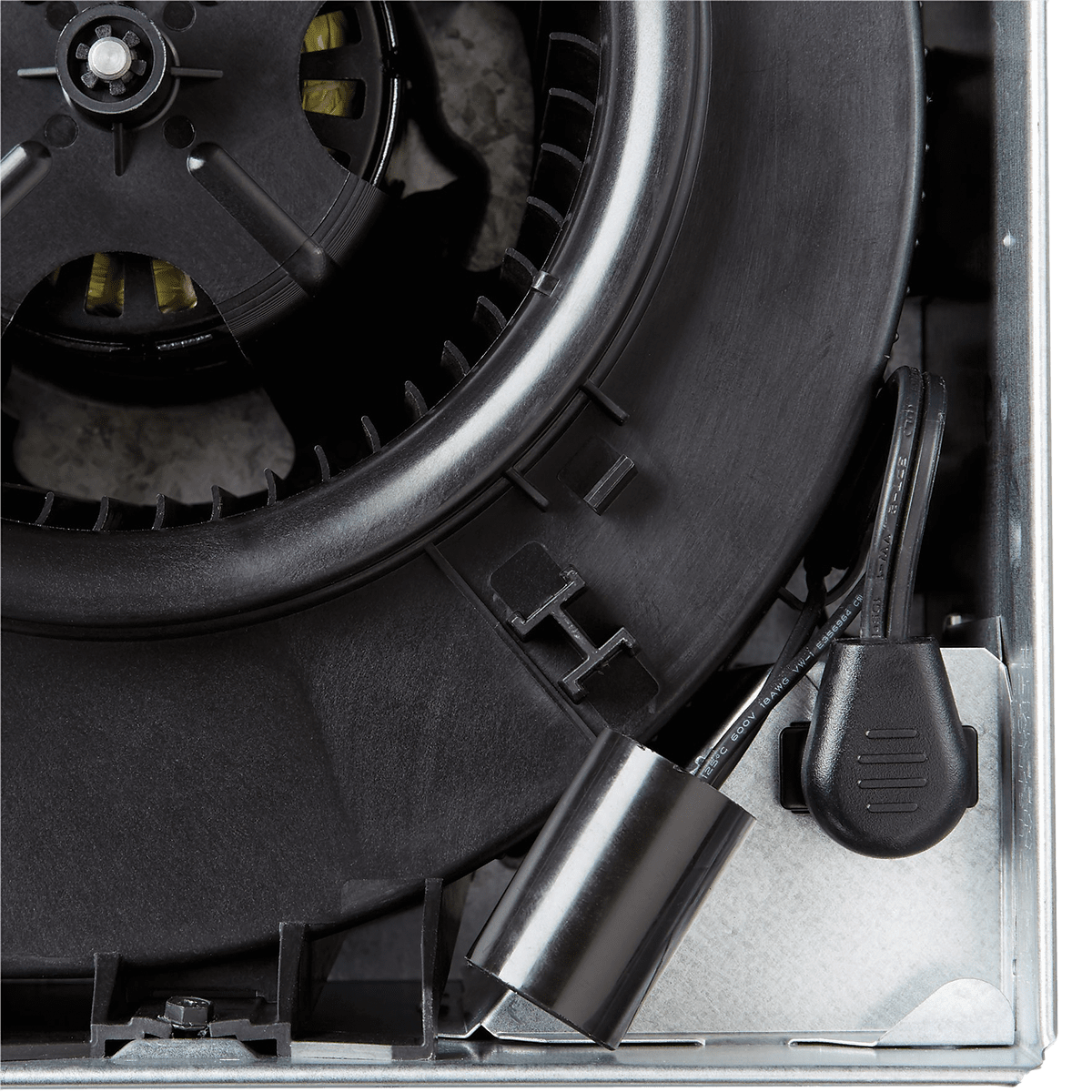

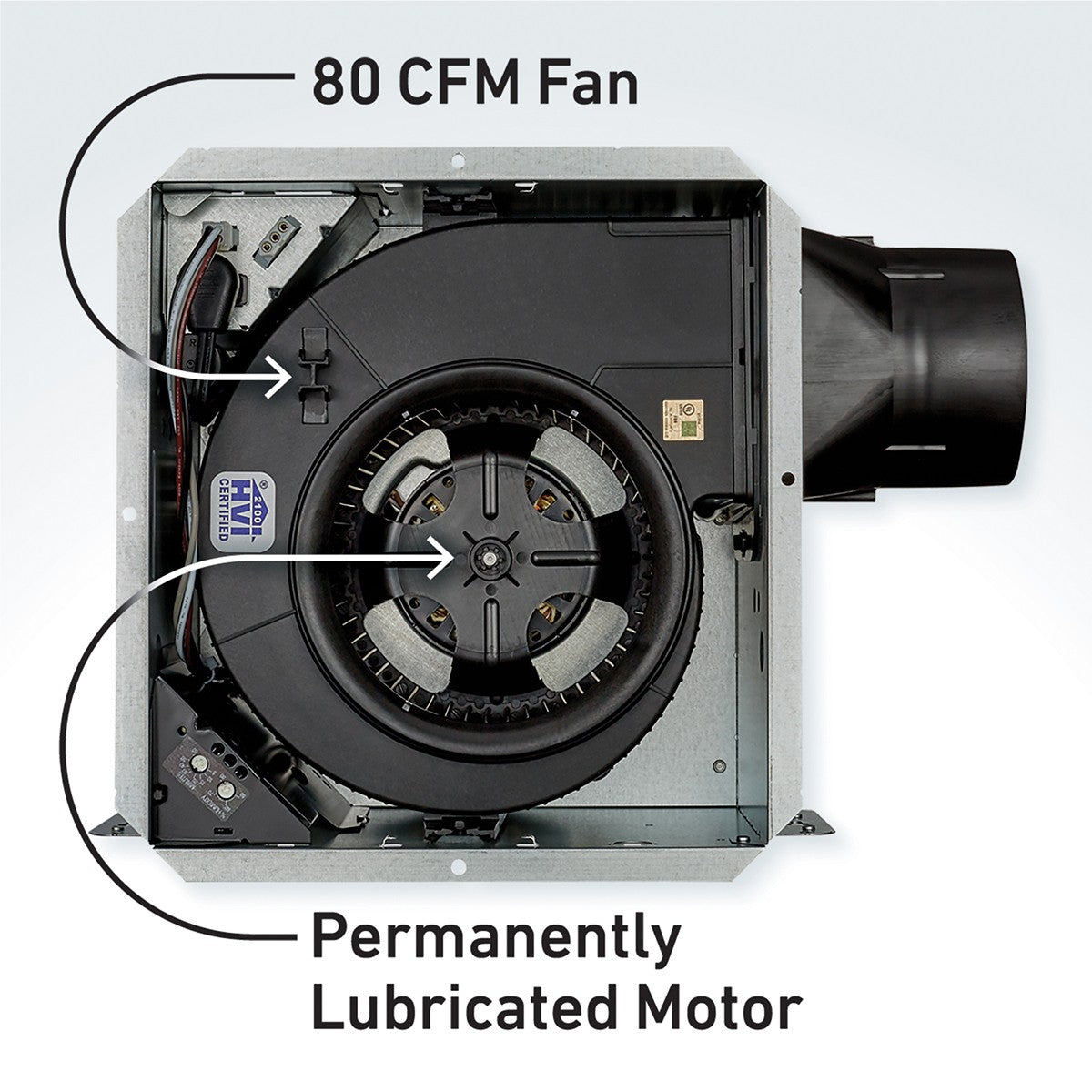

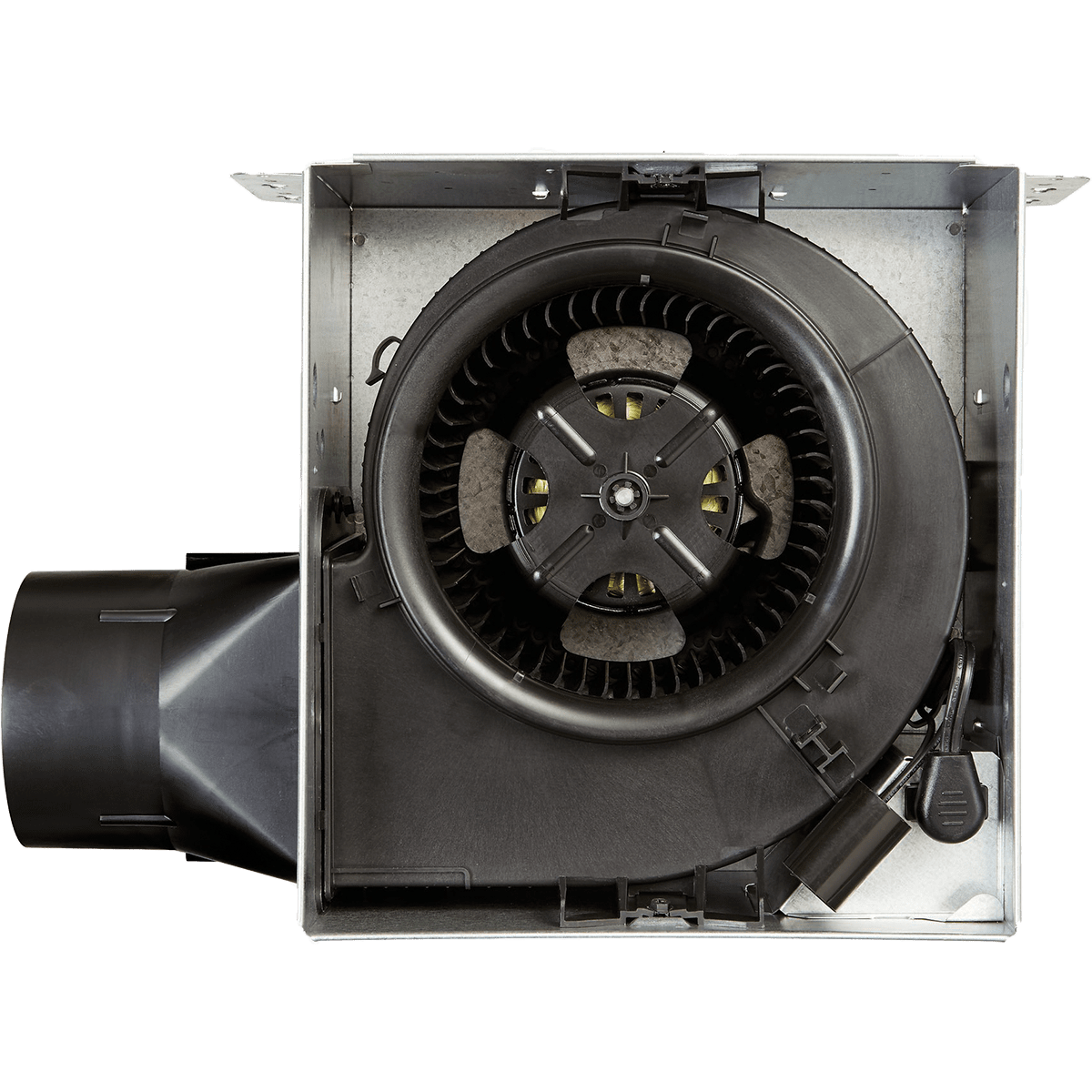

- Quiet Operation: Permanently lubricated motor with balanced centrifugal blower wheel for quiet and efficient operation.
Summary
Choose from one of three Broan AE80 Flex Series 80 CFM Single-Speed Bathroom Exhaust Fans. Energy Star rated and ultra-quiet during operation, select the model with a CleanCover grille, or one with an LED light, or the model with both LED light and humidity sensor built-in.
Specifications
Specifications
-
Manufacturer-Suggested Room Size (sq. ft.)75
-
Number of Speeds1
-
Sound Level (Sones) (sones)7.01.57.0
-
CertificationsUL
-
ColorWhite
-
ControlsElectronic
-
Maximum Cubic Feet per Minute (CFM) (CFM)80.0
-
Maximum Amperage (Amps).3
-
Maximum Wattage (W)26.926.924.5
-
Voltage (V)110-120
-

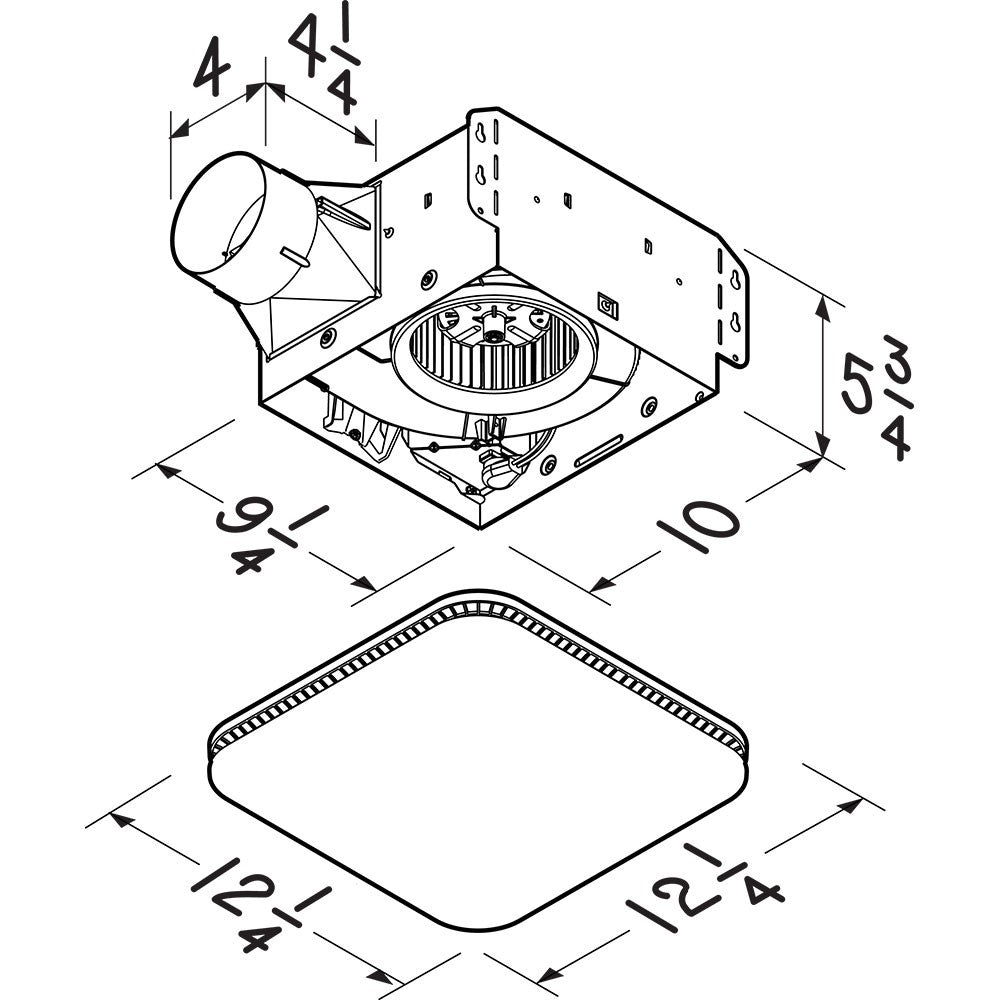

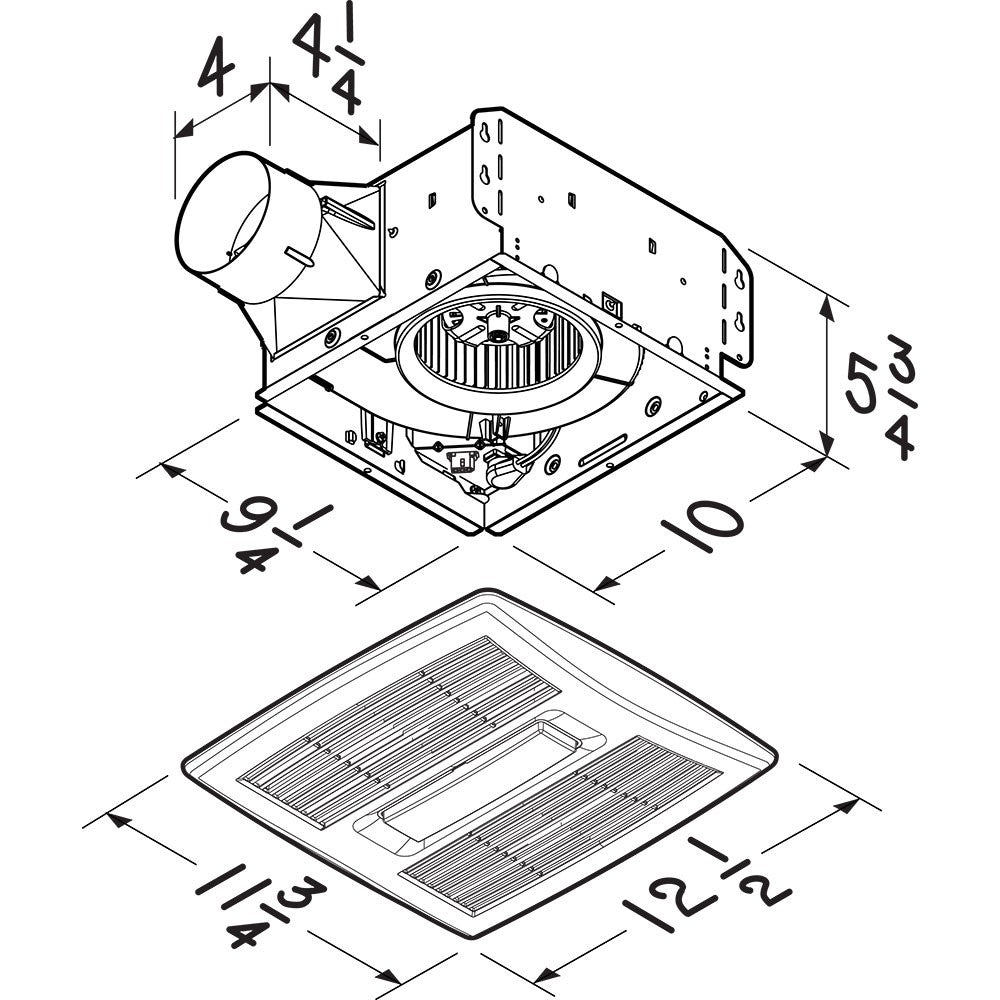

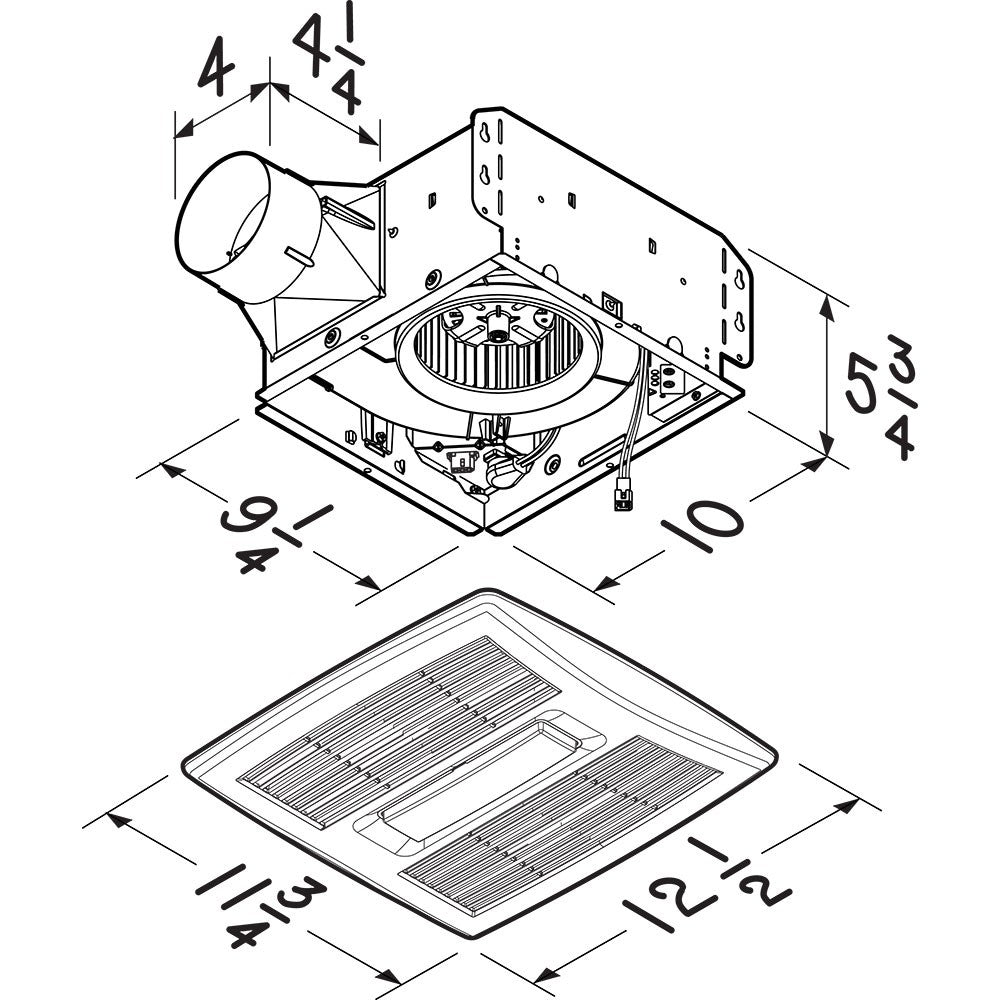

Depth (in.)11.75
-
Depth (with front cover) (in.)11.75
-
Duct Diameter (in.)4.0
-
Height (in.)5.75
-
Height (with front cover) (in.)5.75
-
Weight (lbs.)9.29.29
-
Width (in.)12.5
-
Width (with front cover) (in.)12.5
-
Additional FeaturesEnergy Star, Built-In Light, Humidity SensorEnergy Star, Built-In LightEnergy Star
-
Manufacturer's Warranty3-Year Warranty
