Broan B160H65R AI Series 160 CFM Heat Recovery Ventilator
Broan B160H65R AI Series 160 CFM Heat Recovery Ventilator - Top Ports is backordered and will ship as soon as it is back in stock.
Save! Shop this product Open-Box & Used
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Broan B160H65R AI Series 160 CFM Heat Recovery Ventilator
- Owner's Manual
- MERV-8 Filter
- Suspension Chains
- Wall-Mount Brackets
- Drain Hose
Info & Guides
Info & Guides
Broan B160H65R AI Series 160 CFM Heat Recovery Ventilator
Description
Description
One of the most advanced residential fresh air systems available, the Broan AI Series 160 CFM Heat Recovery Ventilator is specially designed to provide fresh air every day of the year. Easy to install and use, this unit provides filtered, fresh air without the need for specialized tools. It features washable MERV-8 filtration.
Choose the right model for you from side and top port options.
Two Port Options
Choose the right Broan B160H65R for your home and situation with multiple port options to choose from.

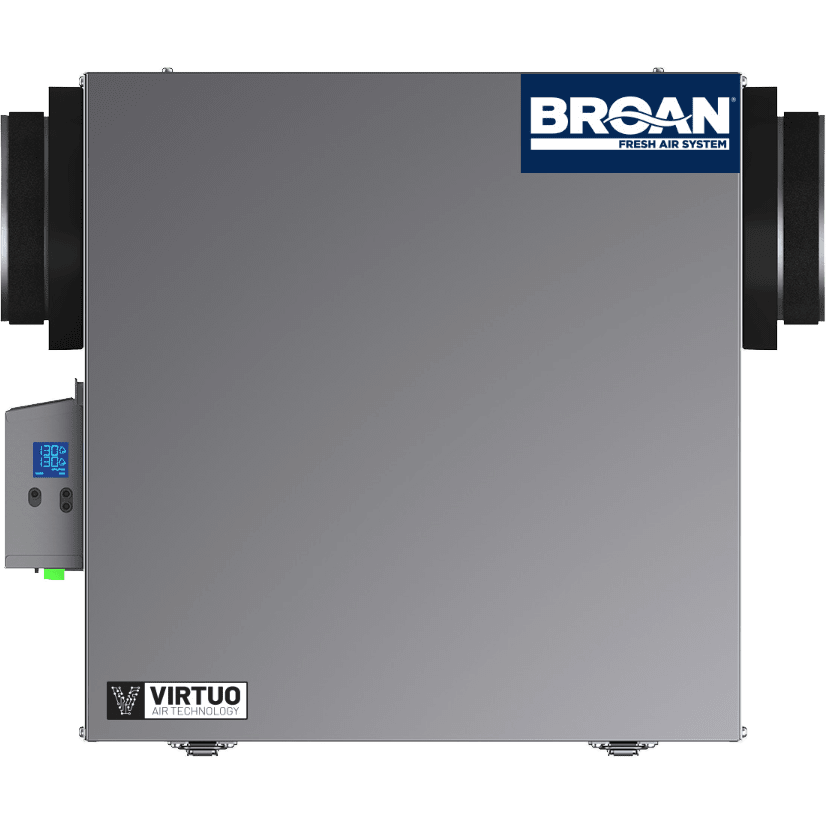

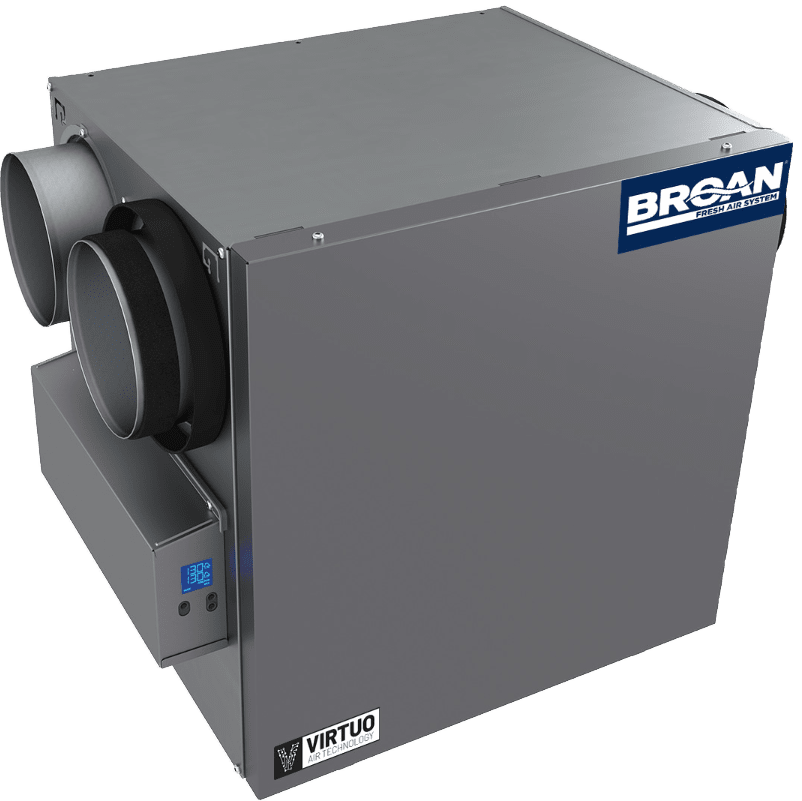

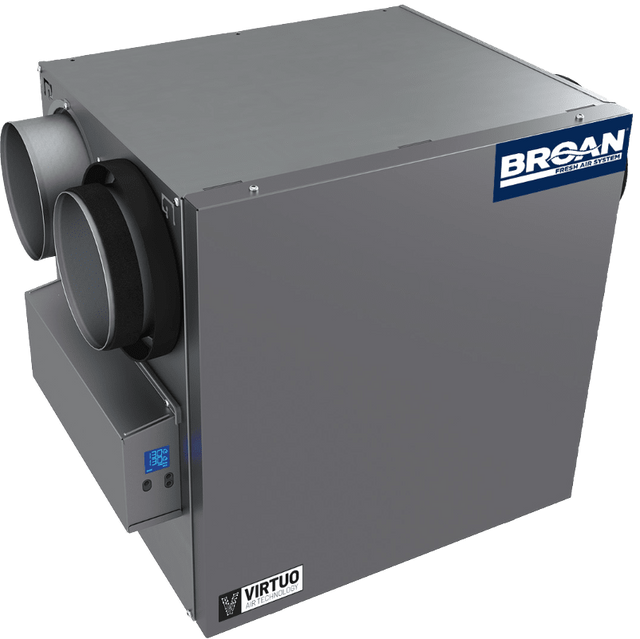

- Broan B160H65RS: Side Ports

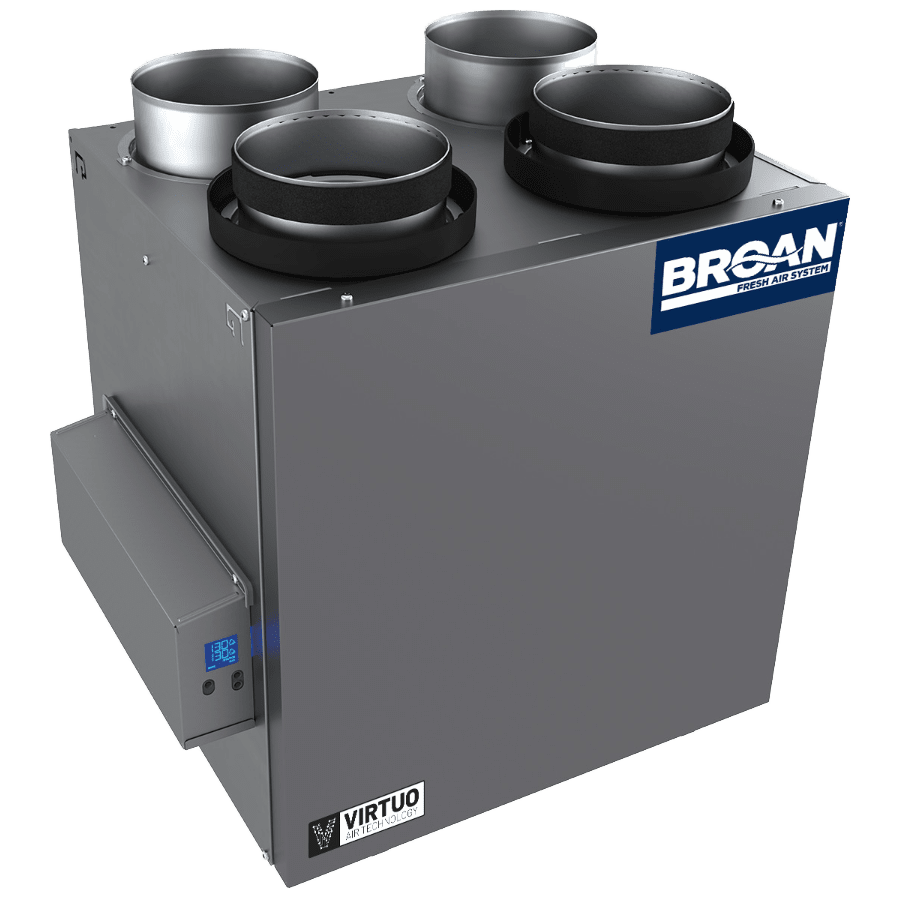

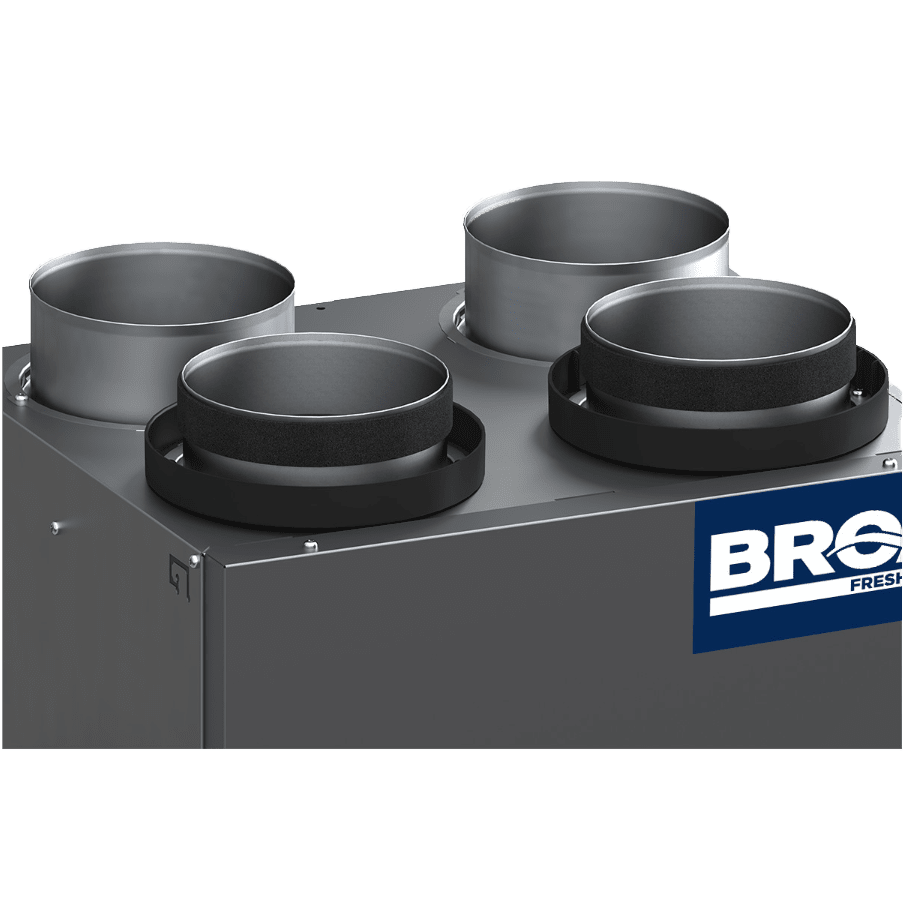

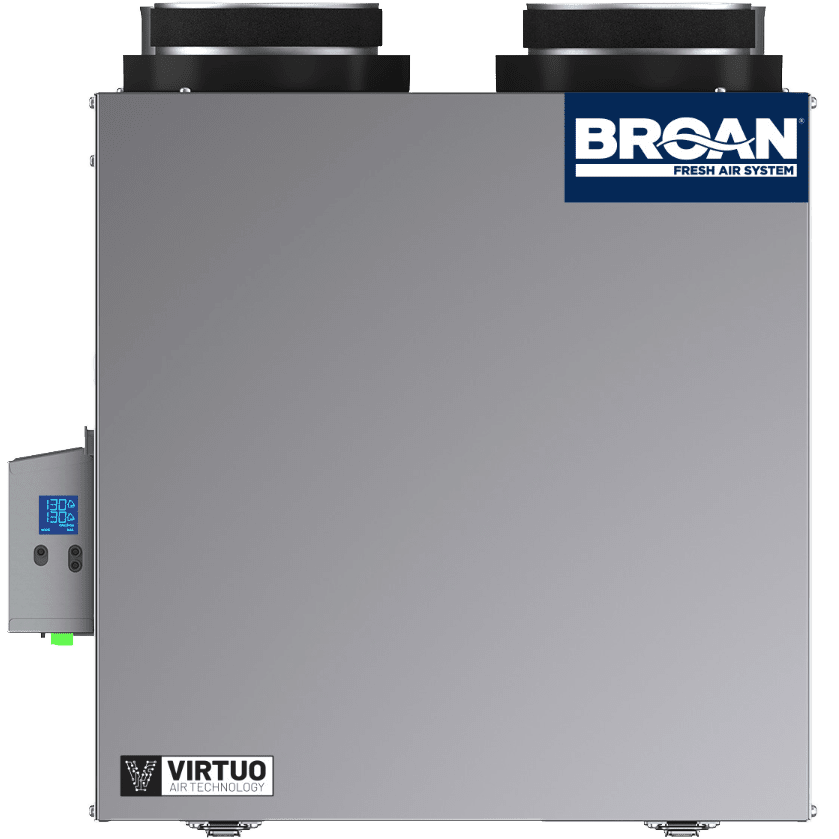

- Broan B160H65RT: Top Ports
Fresh, Healthy Air Every Day
With features not found on other heat recovery ventilators, this Broan AI Series model is designed to deliver heathly and comfortable air in any season.
- VIRTUO™ Air Technology: Quickly calibrates and auto-balances the airflow for the perfect level of residential fresh air ventilation.
- Washable MERV-8 Filter: An included MERV-8 filter removes pollen, dust, lint, and other airborne allergens.
- Automatic Airflow Set Up: Choose your desired airflow, from 35 - 160 CFM, using the unit's integrated LCD screen.
Set Up Made Easy
Designed to make contractors and homeowner's lives easier, the Broan Heat Recovery Ventilator offers a univeral platform and multiple installation options.

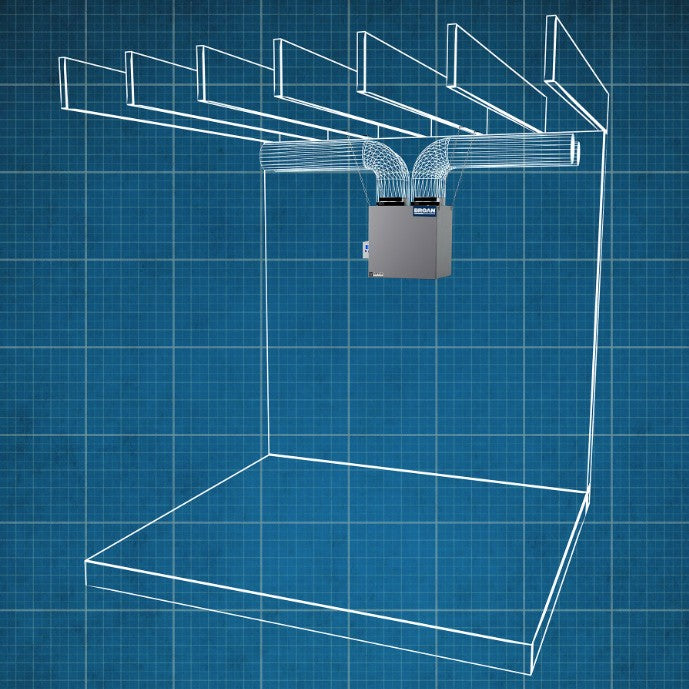

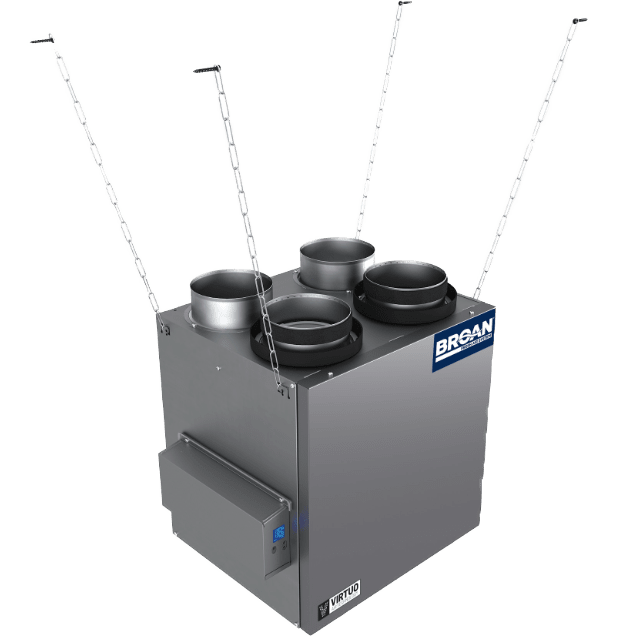

- Suspended Installation: Use the included chains to suspend the unit.
- Wall-Mount Installation: Provided universal brackets allow for installation with two or four brackets.
Additional Features

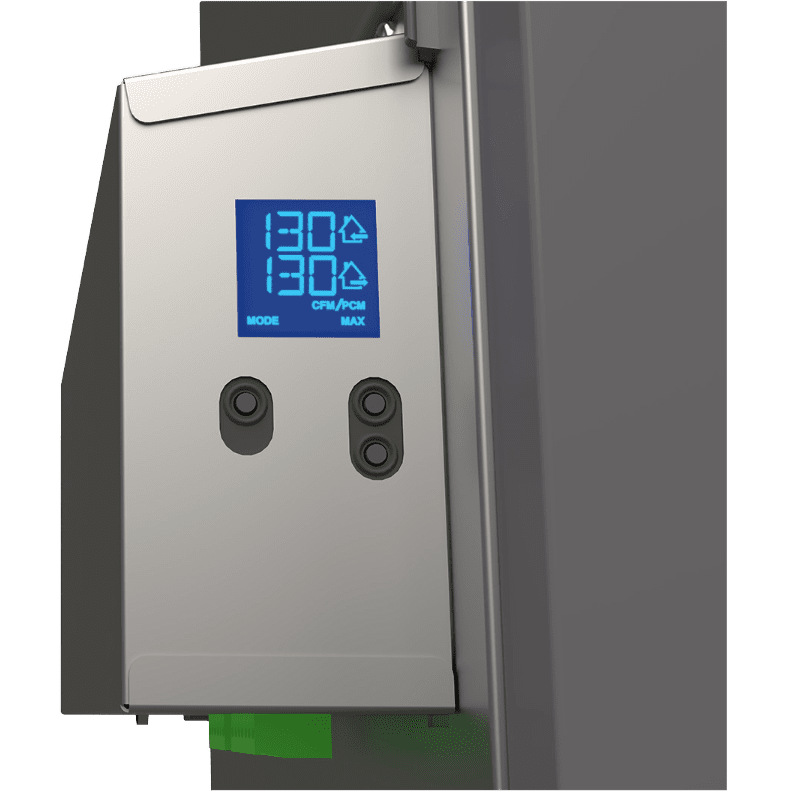

- Integrated LCD Screen: Provides real-time airflow measurements, automatic system balancing and simple diagnostic codes.
- Drain System: Integrated "snap-in" drain system installed in seconds with the included drain hose.
- Efficient Design: Equipped with PMSM ECM motors for a very low power consumption.

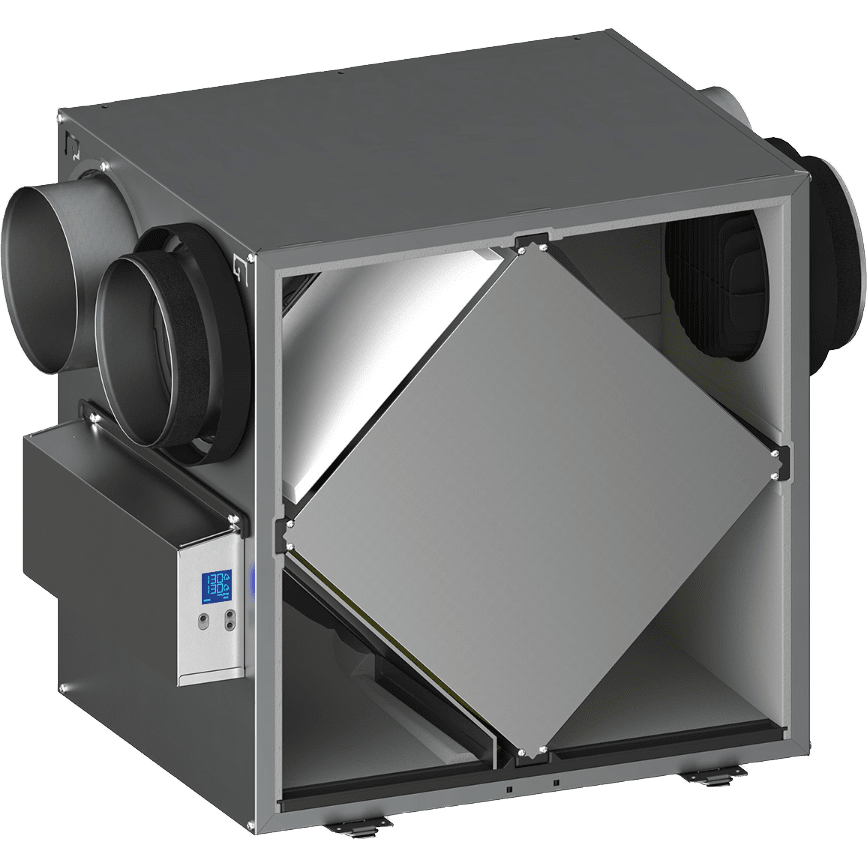

- No Air Leakage: Doesn't leak air thanks to a one-piece molded insulation shell.
- Motorized Dampers: No backdraft dampers are required.
- Long Warranty: Features a 5-year limited parts and labor warranty.
- Cabinet and Door: are manufactured of a corrosion resistant galvanized steel for durability
Summary
Provide clean, fresh air to residential spaces with the Broan B160H65R Heat Recovery Ventilator.
Specifications
Specifications
-
Minimum Cubic Feet per Minute (CFM) (CFM)35.0
-
Mounting TypeSuspended, Wall
-
Number of SpeedsVariable
-
Port LocationTopSide
-
TypeHRV-Air Supply Fan
-
ApplicationResidential
-
California Residents⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. See: www.P65Warnings.ca.gov
-
CertificationsUL, cUL, HVI-Certified, California Title 24
-
ColorGray
-
ControlsElectronic
-
Maximum Cubic Feet per Minute (CFM) (CFM)160.0
-
Amperage (Amps)2.5
-
Power SupplyPlug
-
Voltage (V)110-120
-
Watts (W)163
-
Depth (in.)16.14
-
Depth (with front cover) (in.)16.14
-
Duct Diameter (in.)6.0
-
Height (in.)21.5819.12
-
Height (with front cover) (in.)21.5819.12
-
Weight (lbs.)35
-
Width (in.)21.0723.78
-
Width (with front cover) (in.)21.0723.78
-
Additional FeaturesEnergy Star
-
Manufacturer's Warranty5-Year Limited Parts and Labor Warranty, Lifetime Limited HRV Core Warranty
Key Specifications
General
Power
Dimensions
Additional Features
Warranty
