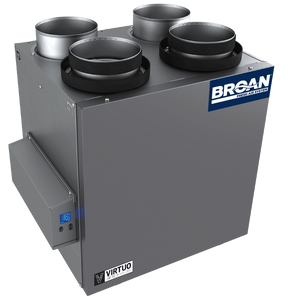

Broan B130E65R AI Series 130 CFM Energy Recovery Ventilator
Broan B130E65R AI Series 130 CFM Energy Recovery Ventilator - Top Ports is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Broan B130E65R AI Series 130 CFM Energy Recovery Ventilator
- Owner's Manual
- MERV-8 Filter
- Suspension Chain
- Wall-Mount Brackets
Info & Guides
Info & Guides
Broan B130E65R AI Series 130 CFM Energy Recovery Ventilator
Description
Description
With an ultra-efficient ERV core that recovers up to 67% of energy, the Broan AI Series 130 CFM Energy Recovery Ventilator is the perfect fresh air system for any residential space. With an airflow of 35 - 130 CFM, it can effectively ventilate homes of any size. Featuring models with top and side ports, select the right one for you whether you need vertical or horizontal ventilation.
Advanced Residential Fresh Air System
Create a healthier home with the fresh air delivered by the Broan Energy Recovery Ventilator and its impressive features.
- VIRTUO™ Air Technology: Quickly calibrates and auto-balances the airflow for the perfect level of residential fresh air ventilation.
- Washable MERV-8 Filter: An included MERV-8 filter removes pollen, dust, lint, and other airborne allergens.
- Automatic Airflow Set Up: Choose your desired airflow, from 35 - 130 CFM, using the unit's integrated LCD screen.
Set Up Made Easy
Designed to make contractor's and homeowners' lives easier, the Broan Energy Recovery Ventilator offers a universal platform and multiple installation options.
- Suspended Installation: Use the included chains to suspend the unit.
- Wall-Mount Installation: Provided universal brackets allow for installation with two or four brackets.
Reduced Set Up Time
The Broan AI Series is designed to reduce install time since it uses a compact universal platform and is available in two port options:
- Broan B130E65RS: Side Ports
- Broan B130E65RT: Top Ports
Additional Features
- Integrated LCD Screen: Provides real-time airflow measurements, automatic system balancing and simple diagnostic codes.
- Efficient Design: Equipped with PMSM ECM motors for a very low power consumption.
- No Air Leakage: Doesn't leak air thanks to a one-piece molded insulation shell.
- Motorized Dampers: No backdraft dampers are required.
- Long Warranty: Features a 5-year limited parts and labor warranty.
- Cabinet and Door: are manufactured of a corrosion resistant galvanized steel for durability
Summary
With an ultra-efficient ERV core that recovers up to 67% of energy, the Broan B130E65R is the perfect fresh air system for any residential space.
Specifications
Specifications
-
Minimum Cubic Feet per Minute (CFM) (CFM)35.0
-
Mounting TypeSuspended, Wall
-
Number of SpeedsVariable
-
Port LocationTopSide
-
TypeERV-Air Supply Fan
-
ApplicationResidential
-
California Residents⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. See: www.P65Warnings.ca.gov
-
CertificationsUL, HVI-Certified, California Title 24
-
ColorGray
-
ControlsElectronic
-
Maximum Cubic Feet per Minute (CFM) (CFM)130.0
-
Amperage (Amps)2.5
-
Power SupplyPlug
-
Voltage (V)110-120
-
Watts (W)110
-
Depth (in.)16.14
-
Depth (with front cover) (in.)16.14
-
Duct Diameter (in.)5.0
-
Height (in.)21.5819.12
-
Height (with front cover) (in.)21.5819.12
-
Weight (lbs.)37
-
Width (in.)21.0723.78
-
Width (with front cover) (in.)21.0723.78
-
Manufacturer's Warranty5-Year Limited Parts, Motor, and ERV Core Warranty
Key Specifications
General
Power
Dimensions
Warranty
Recommended Accessories
-
-
-
-
Broan
V24285 MERV 13 Replacement Filter for B110 -B160 AI Fresh Air Systems
$69.00Unit price /Unavailable -
Broan
MERV 8 Replacement Filter for B110-B160 AI Fresh Air Systems (SV66133)
$81.00Unit price /Unavailable -
-
- DDarenVerified BuyerReviewingBroan B130E65R AI Series 130 CFM Energy Recovery VentilatorI recommend this productRated 5 out of 5 stars1 year agoGreat Product. Great Seller.
Super easy to install, does exactly what it's supposed to do. Very quiet, does not draw a lot of power. As for the purchase, Sylvane is a very easy site to work with. I've needed their customer service in the past and they were very helpful and reasonable in pricing.
- KKatieReviewingBroan B130E65R AI Series 130 CFM Energy Recovery VentilatorI recommend this productRated 5 out of 5 stars3 years agoReliable and excellent performance.
When building my new home, my contractor suggested and installed this unit. It's touch-screen control panel seemed to make installation and set up easy. It has been a reliable unit for effective fresh air circulation and temperature exchange.
- MmechReviewingBroan B130E65R AI Series 130 CFM Energy Recovery VentilatorI recommend this productRated 5 out of 5 stars4 months agoI am very impressed with the customer service at Sylvane.
the Broan ERV is very awesome. great quality and easy to set up.
