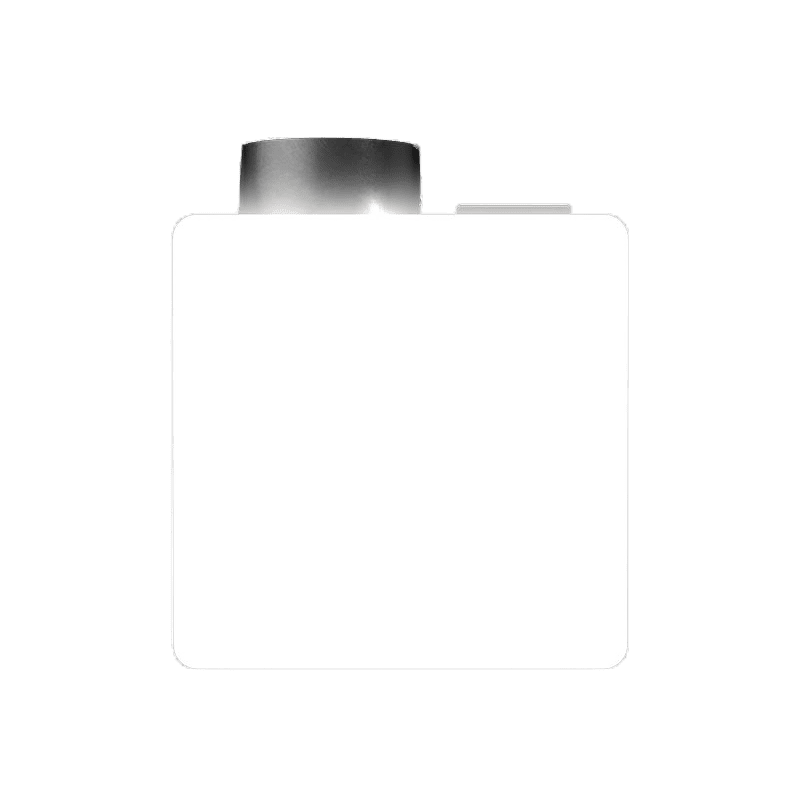

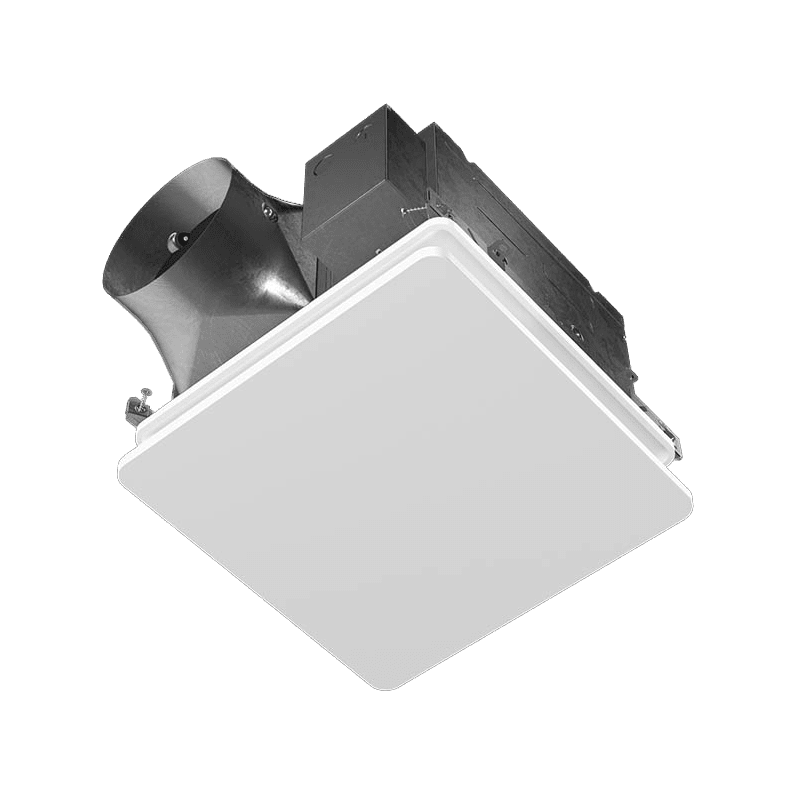

Broan EVOLVE Premium 50-80-110 CFM Bathroom Exhaust Fan
Broan EVOLVE Premium 50-80-110 CFM Bathroom Exhaust Fan - Fan w/ Light is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Broan EVOLVE PTE511RK or PTEL511RK Ventilation Fan
- 6-inch Metal Duct Connector
- 4-inch Plastic Reducer
- Mounting Frame and Hardware
- Owner’s Manual
Info & Guides
Info & Guides
Broan EVOLVE Premium 50-80-110 CFM Bathroom Exhaust Fan
Description
Description

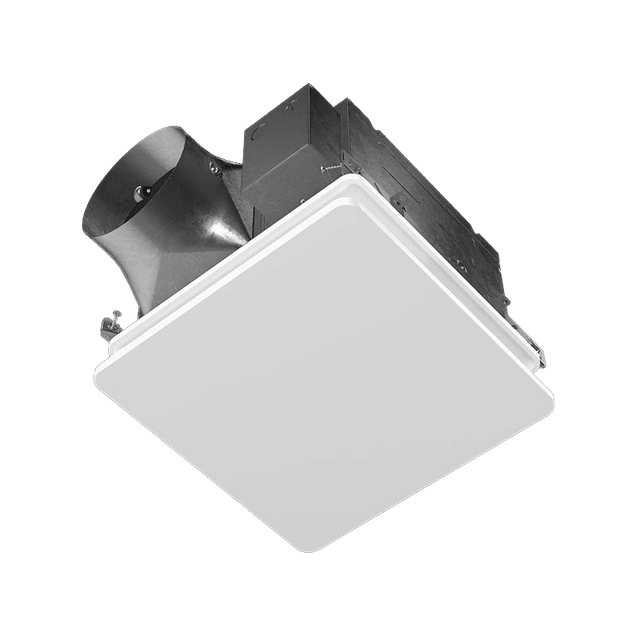

The Broan EVOLVE Premium Ventilation Fan offers optimal performance for maintaining fresh air in your living spaces. With selectable airflow settings of 50, 80, and 110 CFM, this fan adapts to various room sizes and ventilation needs.
It is engineered for efficiency and complies with ASHRAE 62.2 standards and Energy Star 4.1 certifications. Its user-friendly installation and sleek design make it an essential addition to modern homes and commercial spaces.
Top Features
- TrueCFM Technology: Maintains a consistent airflow even with complex duct layouts up to 0.4 inches static pressure, enhancing reliability and efficiency.

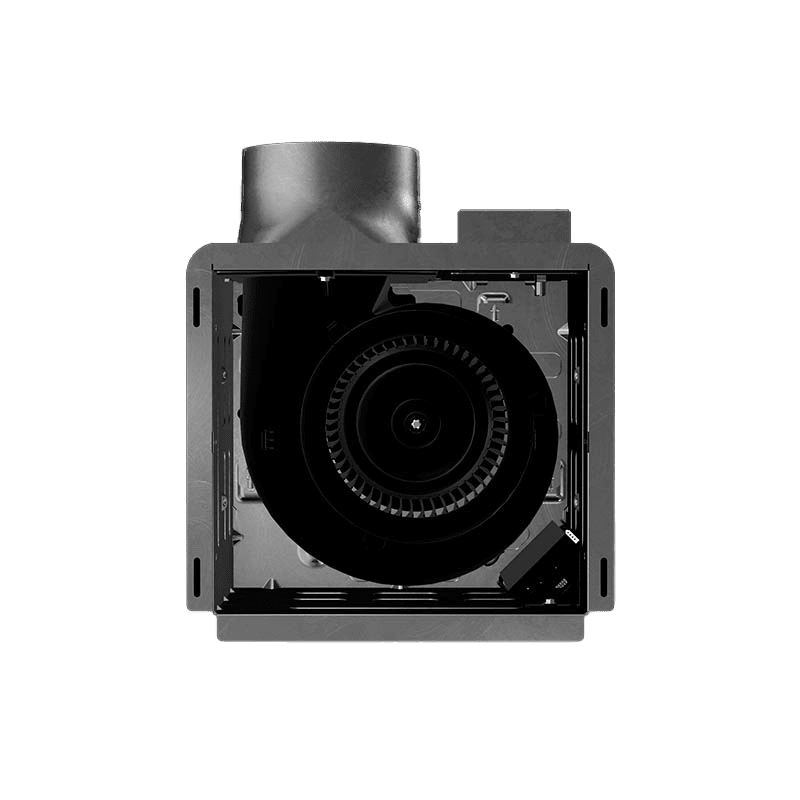

- Durable Housing: The galvanized steel construction resists rust and ensures longevity.
- Quiet Operation: Operates at near-silent levels, with sound ratings as low as 0.3 sones.
- LED Lighting Option: Models with integrated lighting feature 800 lumens at 3500K color temperature, with a lifespan of up to 50,000 hours.
Additional Features
- Compact Design: The 7-1/8-inch height allows for 2 x 8-inch ceiling installations, and the unique mounting frame allows for positioning anywhere on center joists.

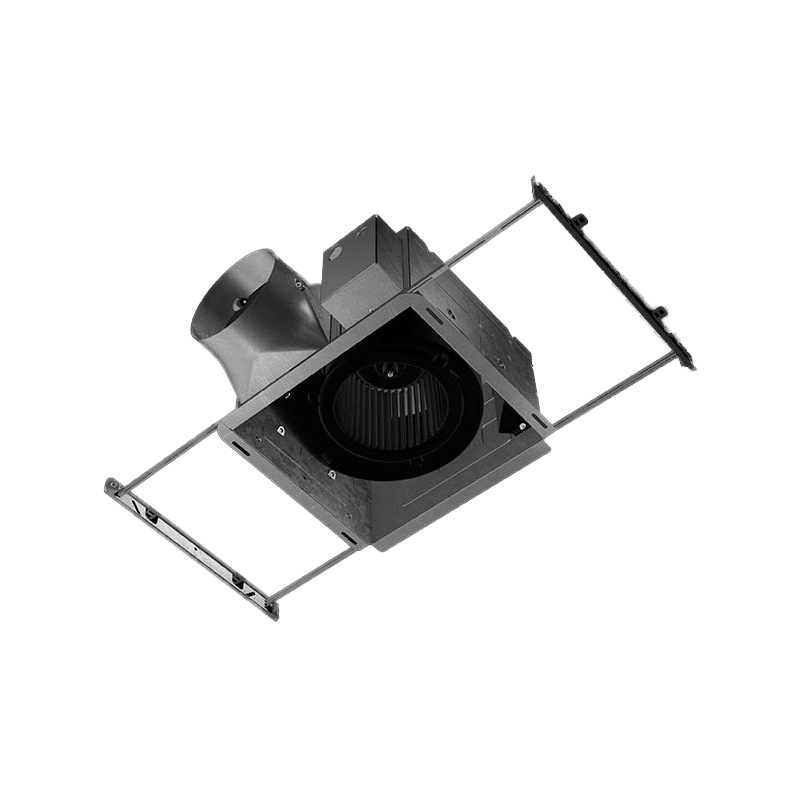

- Easy Installation: This bathroom fan features a telescoping mounting frame that adjusts between 14 and 24 inches. The slide-and-lock design reduces installation time by more than 30 percent.

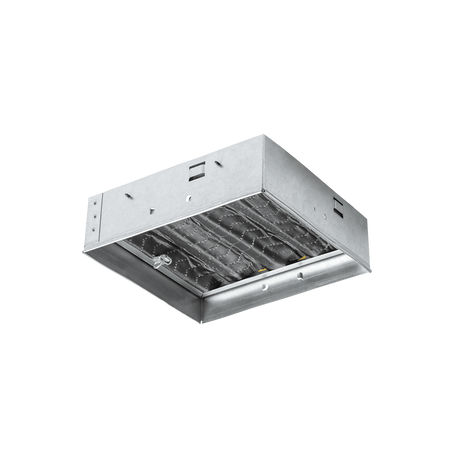

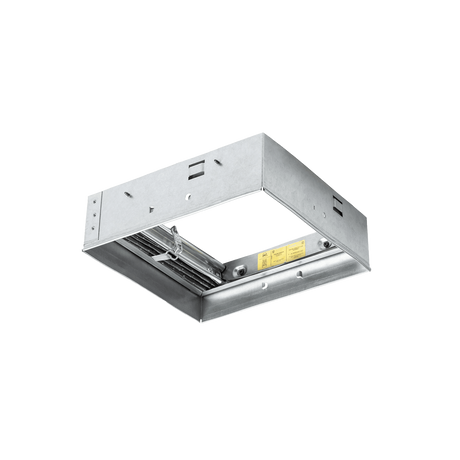

- Optional Radiation Damper: Users can add a Broan UL-rated damper accessory to enhance fire-rated constructions' safety.

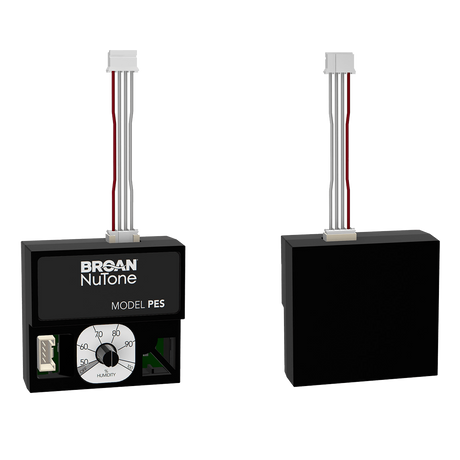

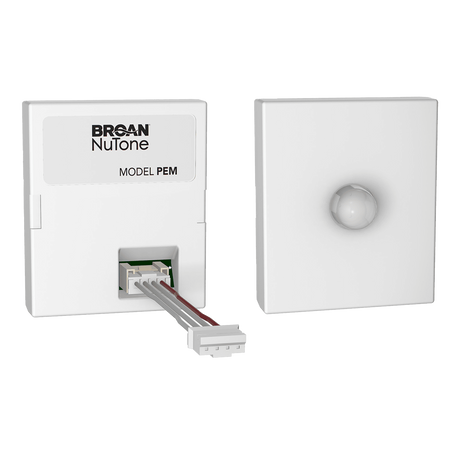

- Customizable Accessories: Add Broan motion or humidity sensing modules for enhanced automation and convenience.
Sylvane's Expert Take
The Broan EVOLVE Premium Ventilation Fan ensures a consistently fresh and comfortable environment for any room, thanks to its advanced TrueCFM technology. Its selectable airflow settings seamlessly adapt to various sizes and conditions, making it a versatile, energy-efficient choice.

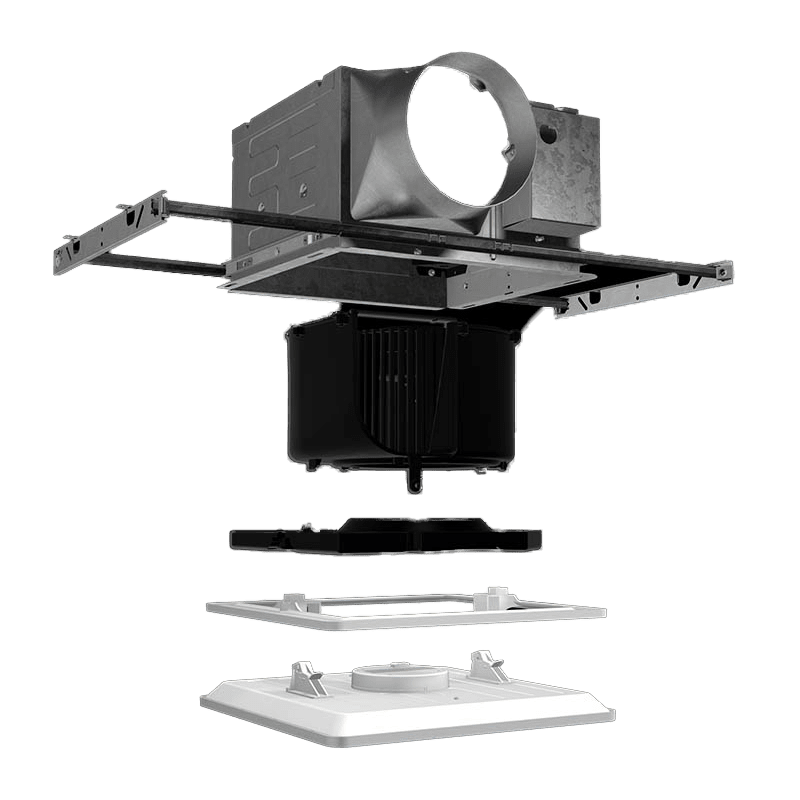

- Easy Installation: Modular installation hardware reduces retrofitting time and effort, allowing seamless integration into various ceiling layouts.
- Optional Upgrades: A range of optional upgrades, from specialized sensors to enhanced safety measures, ensures the unit remains adaptable as needs and standards change.
Specifications
Specifications
-
Manufacturer-Suggested Room Size (sq. ft.)105
-
Number of Speeds3
-
Sound Level (Sones) (sones)0.3
-
CertificationsUL, cULus, HVI
-
ColorWhite
-
ControlsElectronic
-
Maximum Cubic Feet per Minute (CFM) (CFM)110.0
-
Maximum Amperage (Amps)0.580.45
-
Maximum Wattage (W)16.3
-
Voltage (V)110-120
-
Ceiling or Wall Cutout Length (in.)12
-
Ceiling or Wall Cutout Width (in.)11
-
Depth (in.)14.0
-
Depth (with front cover) (in.)14.0
-
Duct Diameter (in.)6.0
-
Height (in.)7.125
-
Height (with front cover) (in.)7.125
-
Weight (lbs.)13
-
Width (in.)13.125
-
Width (with front cover) (in.)13.125
-
Additional FeaturesEnergy Star, Built-In LightEnergy Star
-
Manufacturer's Warranty5-Year Parts Warranty
