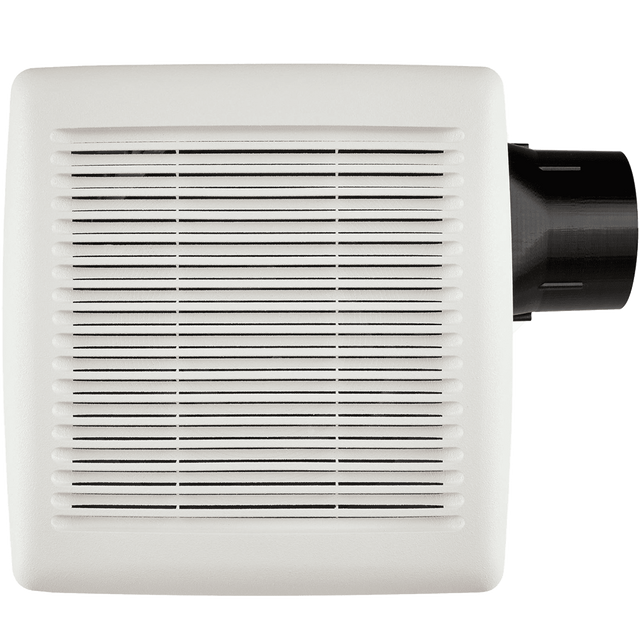

Broan Flex DC Series 50-100 CFM Bathroom Exhaust Fan
Broan Flex DC Series 50-100 CFM Bathroom Exhaust Fan - Fan + LED Light is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty

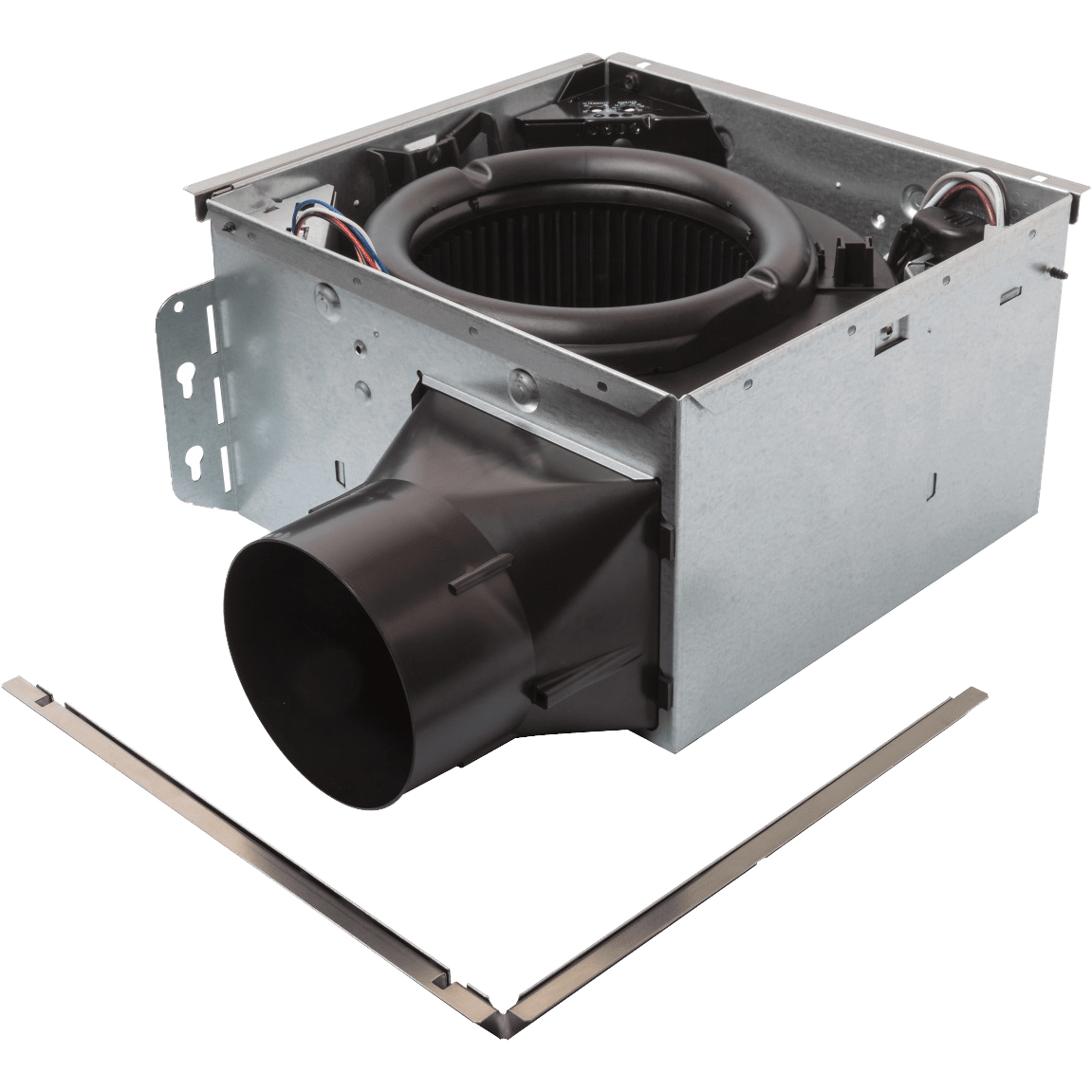

What's In The Box?
What's In The Box?
- Broan Flex DC Bathroom Exhaust Fan or Broan Flex DC Bathroom Exhaust Fan w/ LED
- Installation Hardware
- Installation Guide & Owner's Manual
Info & Guides
Info & Guides
Broan Flex DC Series 50-100 CFM Bathroom Exhaust Fan
Description
Description
With FlexFlow technology, the Broan Flex DC Series Bathroom Exhaust Fans allow you to operate the fan at one of three speeds for more customized airflow. These fans have received the prestigious Energy Star Most Efficient 2022 rating for preventing greenhouse gas emissions.
Ceiling mounted fans are easy to install, or you can retrofit an existing bathroom using simple room side installation with no attic access required. Thanks to new duct damper technology, you have a tighter seal with reduced warm and cold air backdrafts.

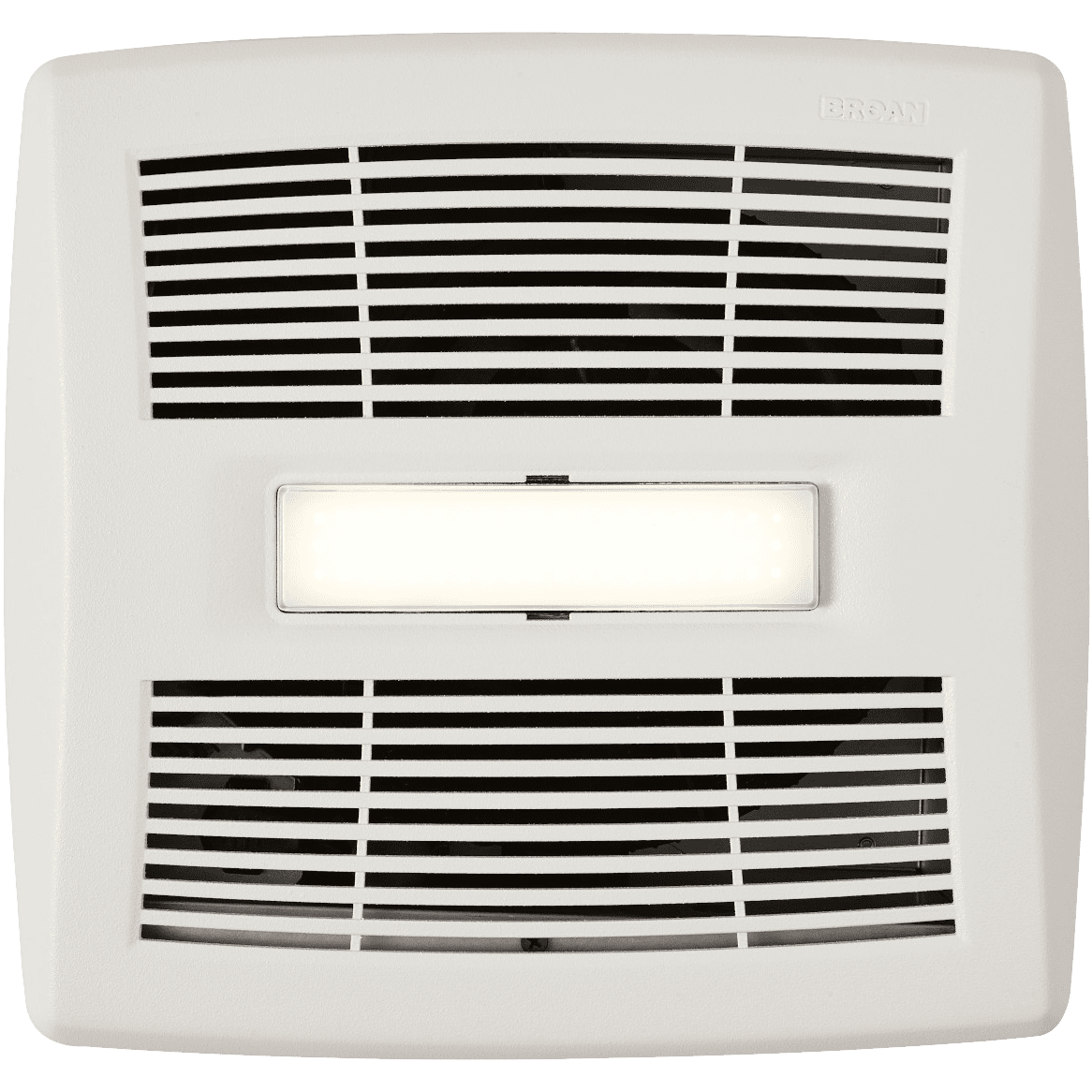

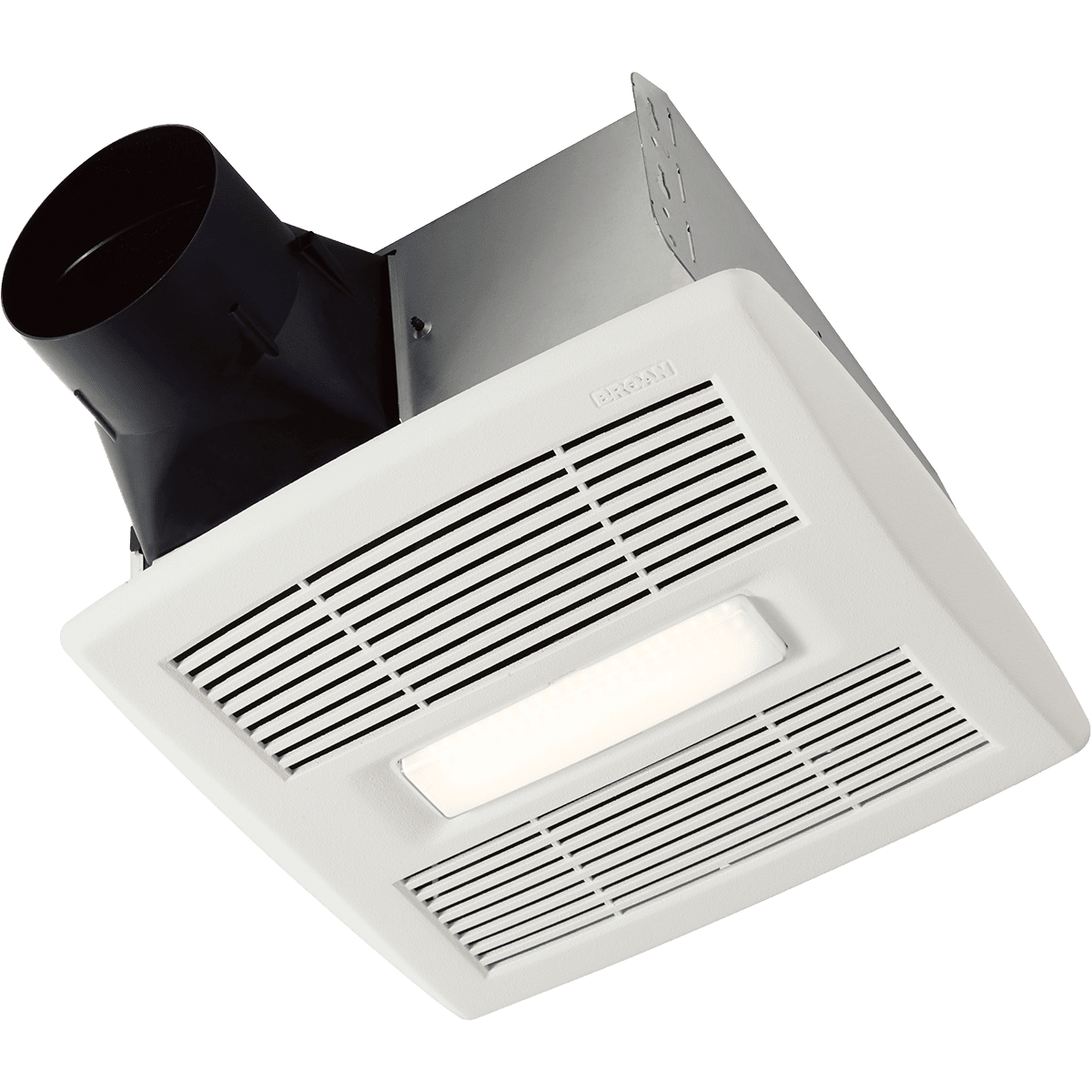

With or Without LED Light
The Broan Flex bathroom fan comes either with an LED light or without one. The centrally located light provides soft illumination for dim spaces. Quickly defog mirrors and rid high-humidity rooms of damaging excess moisture.
For automatic detection of high humidity and operation of the exhaust fan, use the Broan Sensaire Humidity Sensing Wall Control.
Featured Specifications
- Energy Star 2022 Most Efficient: This certification indicates that the Broan Flex DC bathroom fan prevents greenhouse gas emissions by meeting rigorous energy efficiency performance levels set by the US EPA.
- HVI Certified: All models comply with new testing technologies and procedures with static pressure of 0.1 in.
- UL Listed: Meets UL and cUL standards for safe use over bathtubs and showers with a GFCI circuit.
- Broan Overture Compatible: This Broan ventilation fan is compatible the Broan Overture IAQ System.
- Reduce Air Leakage: Broan Flex DC fans reduce air leakage by up to 50% compared to competitive models. This reduces cold and warm air backdrafts.

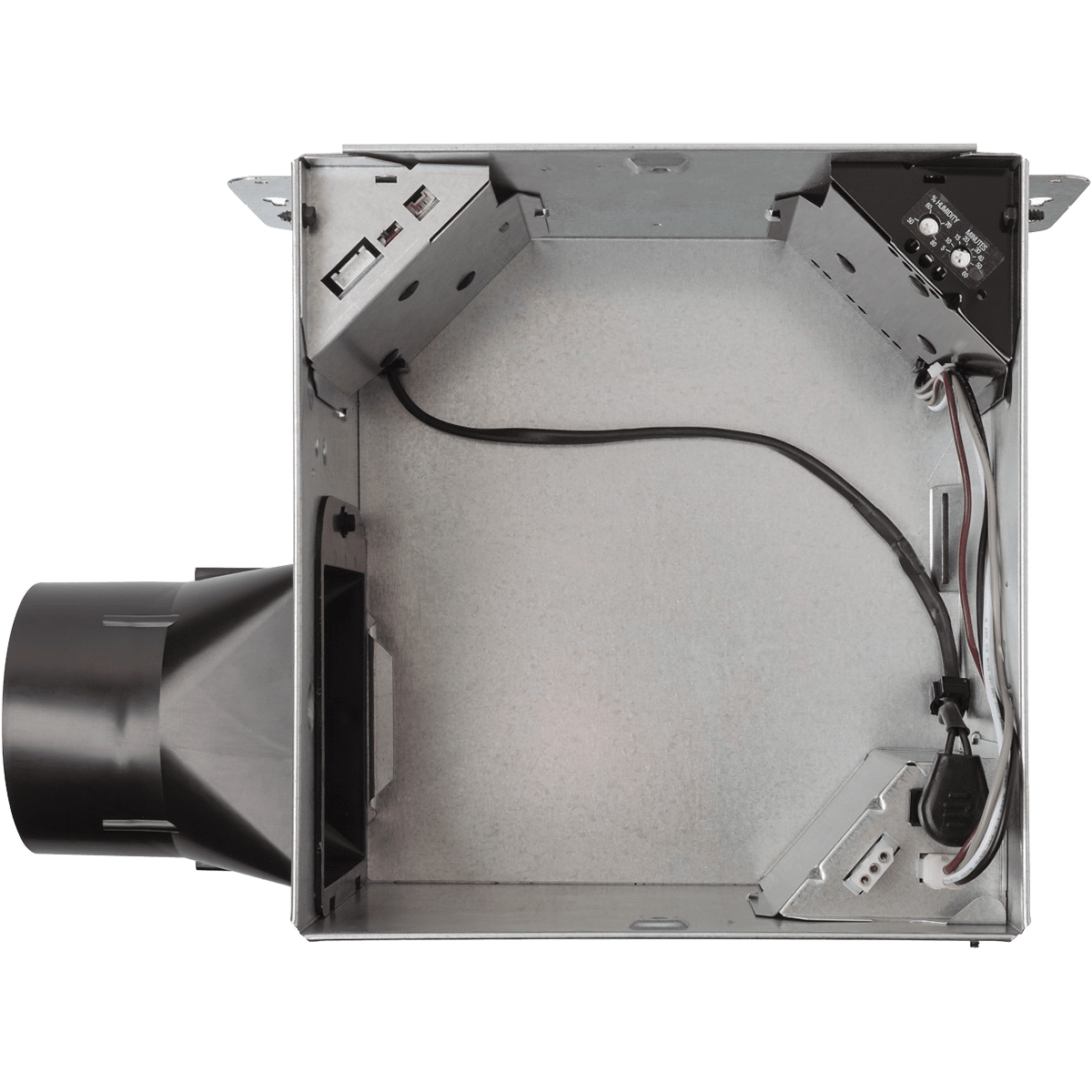

- Rugged Housing: Constructed from 26-gauge galvanized steel with 4-inch round polymeric duct connector with 2-inch tapered sleeve.
- Quiet Operation: Permanently lubricated motor with balanced centrifugal blower wheel for quiet and efficient operation. These fans run at an ultra-quiet <0.3-0.4-0.9 sones sound levels for low-medium-high fan speeds.
- Simple Installation: 5-3/4” height allows for 2” x 6” ceiling installations. They can be mounted in sloped ceilings or in a wall at 8-feet or more above the floor.
- Broan Overture Compatible: This Broan ventilation fan is compatible the Broan Overture IAQ System.
Summary
The Broan Flex DC Series 50-100 CFM Bathroom Exhaust fans are rated Energy Star Most Efficient 2022, are quiet-running multi-speed fans which are easy to install. This versatile fan is available with or without and LED light.
Specifications
Specifications
-
Manufacturer-Suggested Room Size (sq. ft.)105
-
Number of Speeds3
-
Sound Level (Sones) (sones)9.0
-
CertificationsUL
-
ColorWhite
-
ControlsElectronic
-
Maximum Cubic Feet per Minute (CFM) (CFM)110.0
-
Maximum Amperage (Amps).4.3
-
Maximum Wattage (W)14.9
-
Voltage (V)110-120
-

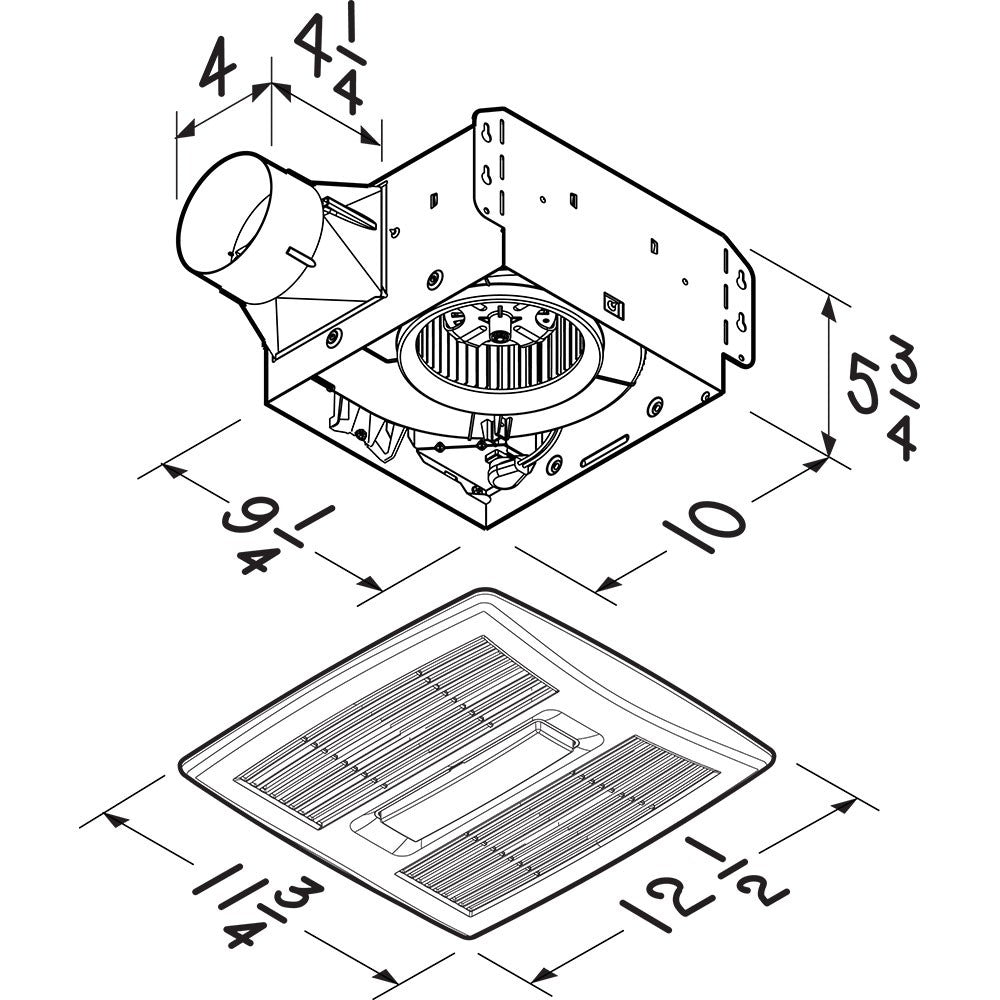

Depth (in.)11.75
-
Depth (with front cover) (in.)11.75
-
Duct Diameter (in.)4.0
-
Height (in.)5.75
-
Height (with front cover) (in.)5.75
-
Weight (lbs.)7.477.29
-
Width (in.)12.512.0
-
Width (with front cover) (in.)12.512.0
-
Additional FeaturesEnergy Star, Built-In LightEnergy Star
-
Manufacturer's Warranty3-Year Warranty
