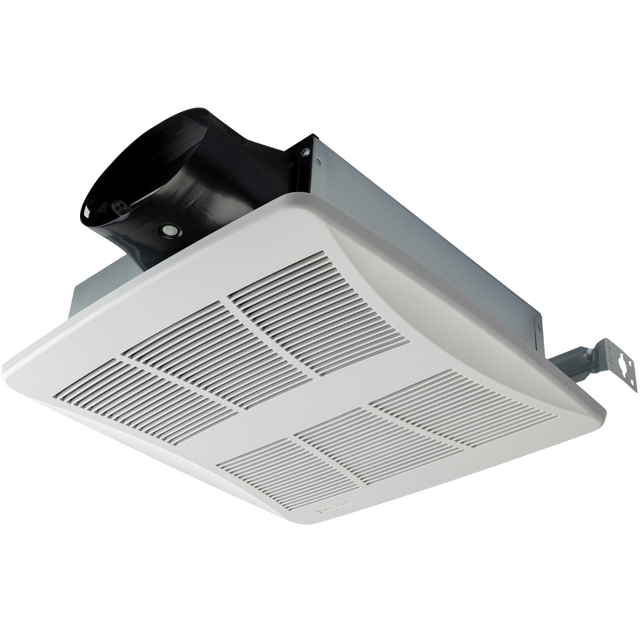

Broan LP510R2 Lo-Profile Gen 2 50-80-110 CFM Energy Star Bathroom Exhaust Fan
Broan LP510R2 Lo-Profile Gen 2 50-80-110 CFM Energy Star Bathroom Exhaust Fan - Fan Only is backordered and will ship as soon as it is back in stock.
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
Professional installation recommended.
Find a local installer
Broan LP510R2 Lo-Profile Gen 2 50-80-110 CFM Energy Star Bathroom Exhaust Fan - Fan Only is backordered and will ship as soon as it is back in stock.
Description
Description
The Broan Lo-Profile Gen 2 Bathroom Exhaust Fan is designed for demanding multifamily construction projects to install easily between 2x4 studs, to deliver code-compliant ventilation bathrooms and high-humidity spaces where traditional exhaust fans cannot fit. It comes in fan-only and humidity-sensing configurations.
Apartments, condominiums, and dense multifamily housing are where this DC-motor ventilation fan earns its keep, with three selectable airflow settings to provide greater jobsite flexibility, reducing what you have to stock.
Key Features and Benefits of the Broan Lo-Profile Gen 2 Bathroom Exhaust Fan
- Selectable Airflow: Settings of 50, 80, and 100 CFM plus continuous run let you cover spot or whole-home ventilation with one fan.

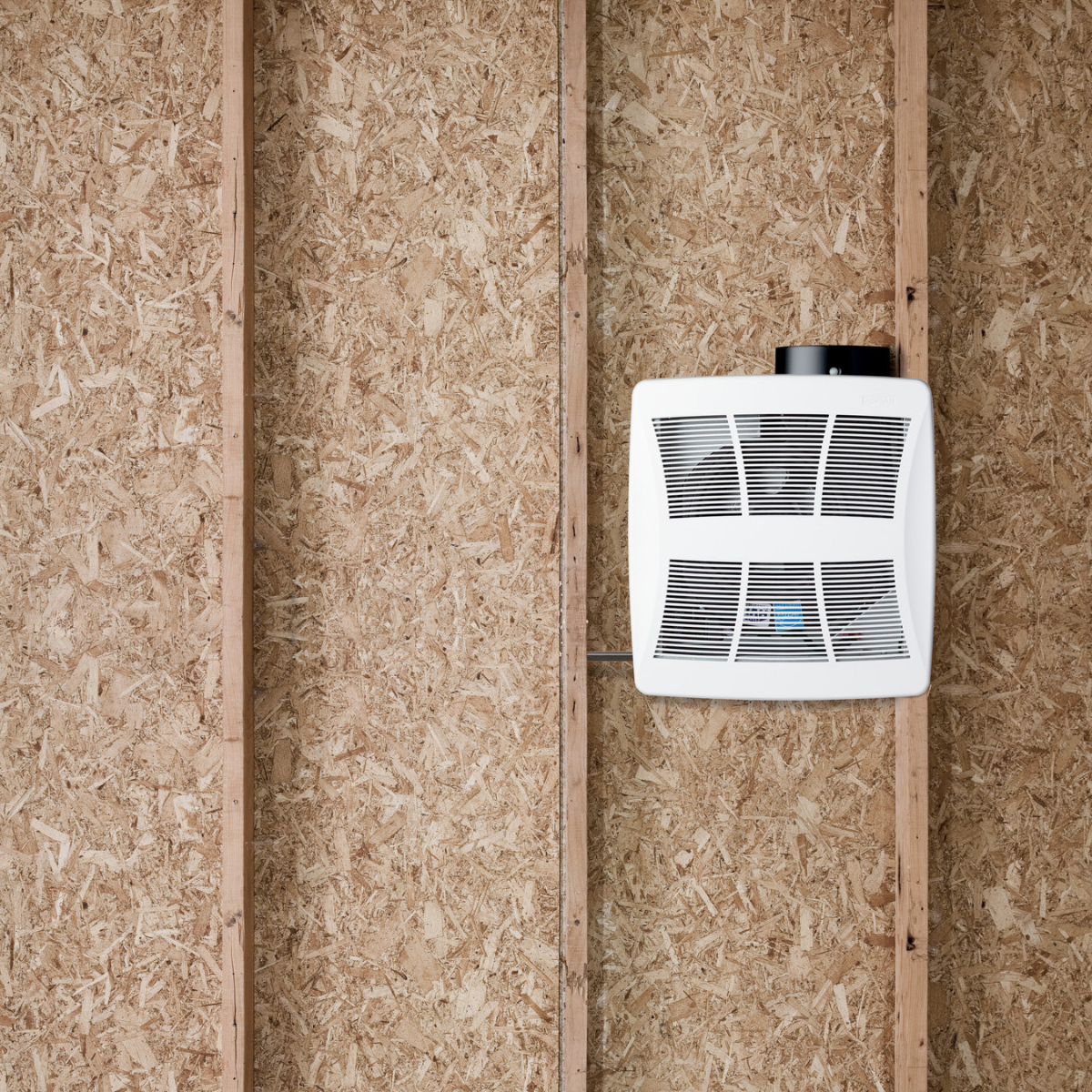

- Slim Housing: At 13.75 x 13 x 3.38 inches and 7 pounds, it fits between 2x4 studs and needs a square cutout of 10.25 inches.

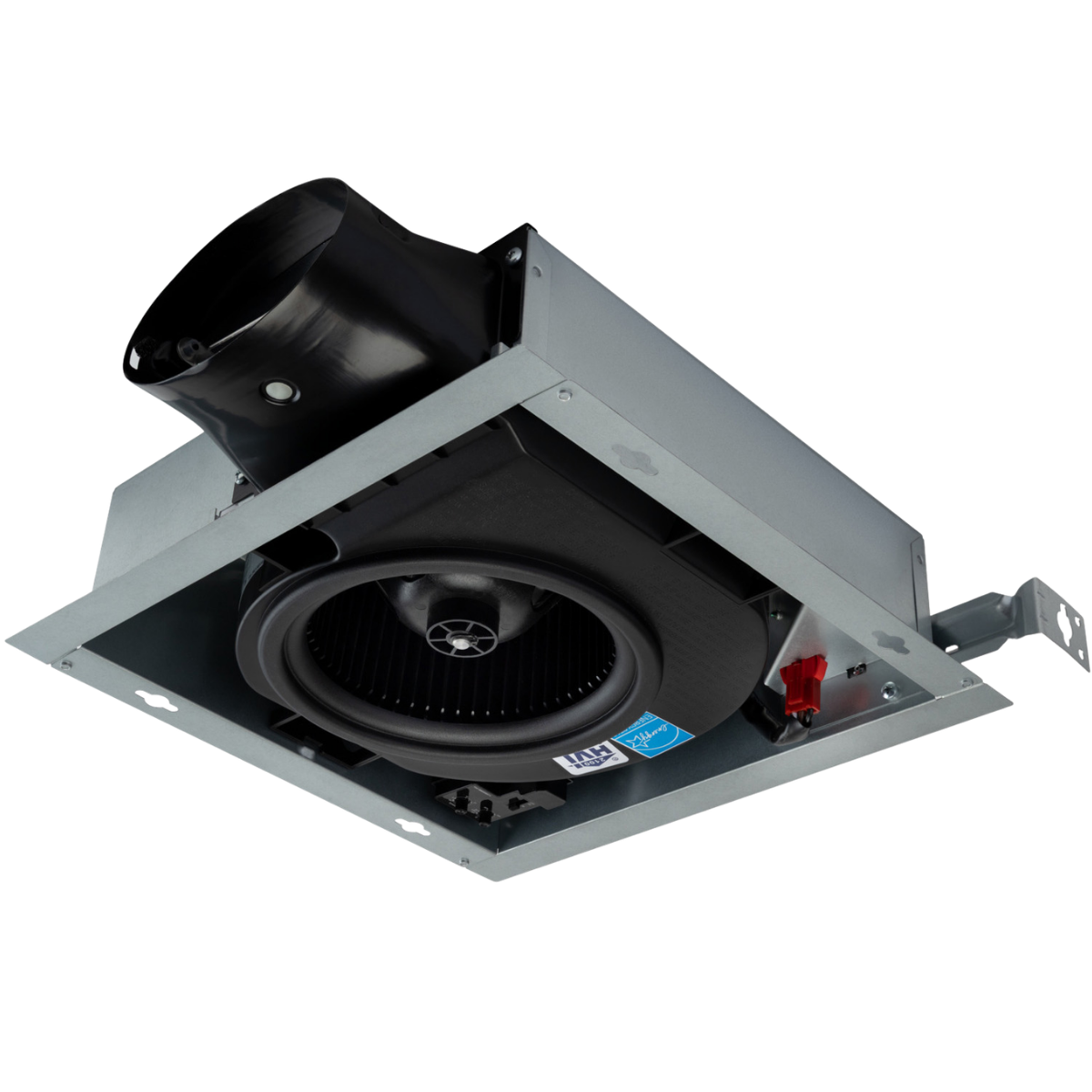

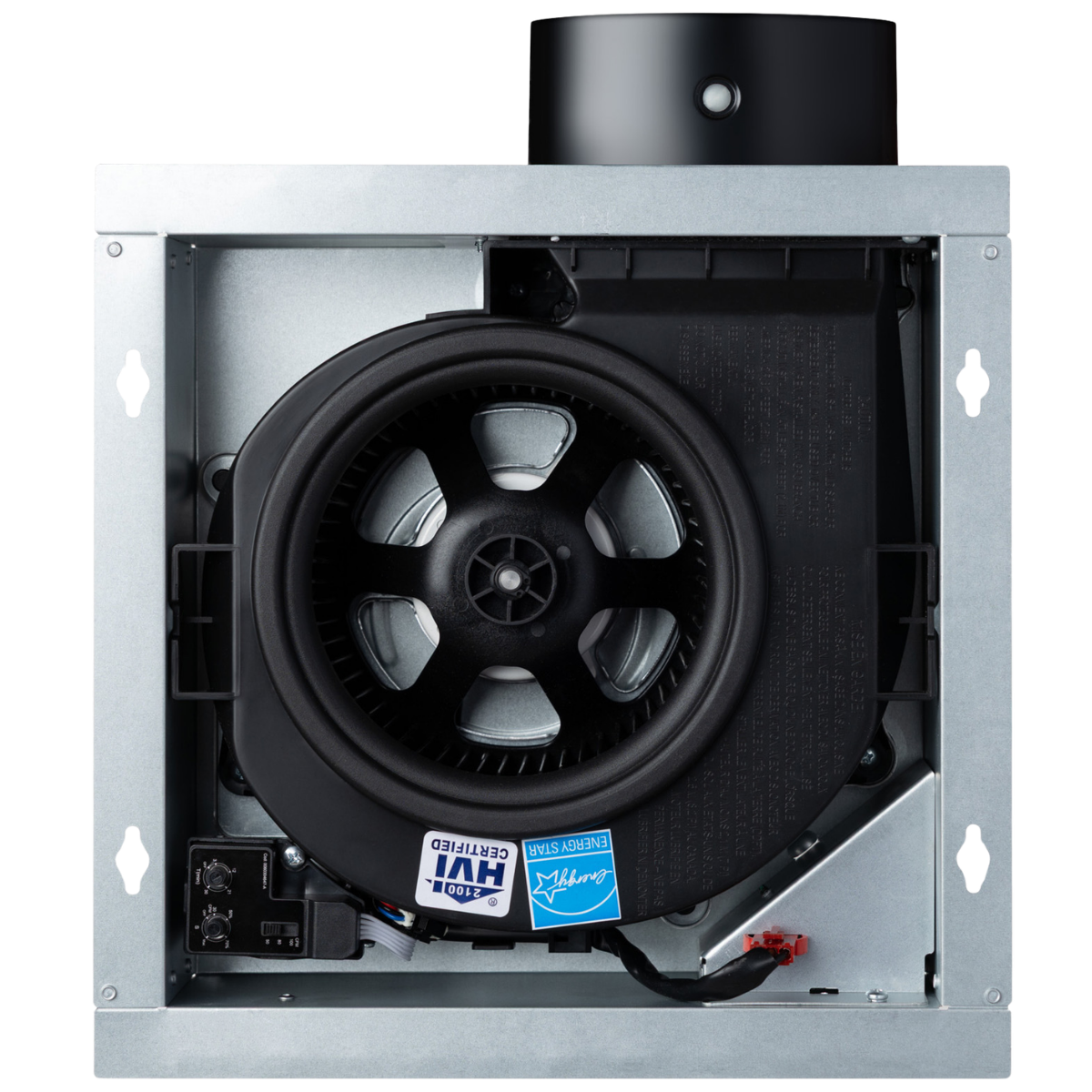

- Quiet Operation: Rated at 1.0 sone or less, the upgraded motor and blower assembly stay unobtrusive enough to run continuously next to a bedroom.
- Energy Star Certified: Drawing 11 watts and 0.23 amps at full speed, this model is Energy Star certified, so continuous ventilation costs little to run.
- Code Compliance: Meets ASHRAE 62.2 and complies with California Title 24 FID requirements, so your ventilation plan addresses documented code requirements.
- Third-Party Certified: These Broan fans are ETL listed and HVI certified, giving you independently verified airflow and safety ratings.

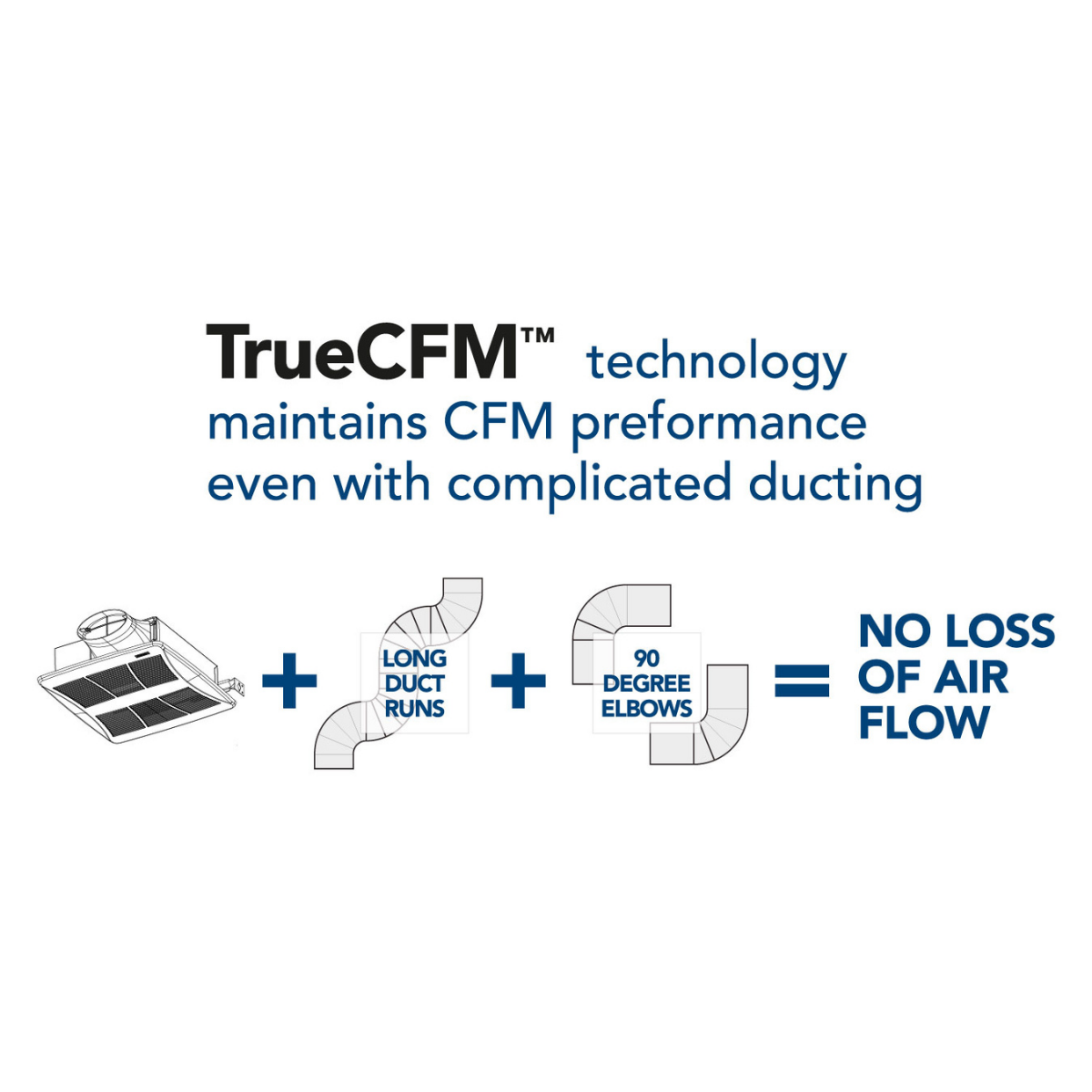

- Static Pressure: Rated airflow holds at 0.4 inches water gauge, so elbows and longer duct runs do not cut ventilation short.
- Standard Ducting: The 4-inch round duct collar connects to residential ductwork without modifications.
- Standard Voltage: Wire to a household circuit rated for 120 volt power, so no new electrical work needs to happen with the installation.
Fan Only or Humidity Sensing: Choose Your Configuration
The two configurations differ in how the fan responds to humidity: fan-only operation or automatic humidity sensing.
- Fan Only Model LP510R2: This fan-only model uses manual controls and doesn't feature automatic humidity sensing, making it the direct choice when you control run time yourself.
- Humidity Sensing Fan Model LP510RS2: This model has a built-in humidity sensor that detects rapid moisture increases with a humidity setpoint (30 to 80 percent RH) and boosts the fan speed as required.
Sylvane's Expert Take
Use the Broan Lo-Profile Energy Star Bathroom Exhaust Fan series for multifamily bathrooms and condo projects where the ceiling or wall cavity is too shallow for a conventional fan housing. The humidity-sensing configuration fits windowless bathrooms where steam lingers, while the fan-only model fits spaces where humidity can be controlled manually. The slim housing and quiet motor are ideal for both retrofit projects and new construction.
Specifications
Specifications
-
Manufacturer-Suggested Room Size (sq. ft.)90
-
Number of Speeds3
-
Sound Level (Sones) (sones)1.2
-
CertificationsETL, HVI
-
ColorWhite
-
ControlsManual
-
Maximum Cubic Feet per Minute (CFM) (CFM)100.0
-
Maximum Amperage (Amps)0.23
-
Maximum Wattage (W)11.0
-
Voltage (V)110-120
-
Ceiling or Wall Cutout Length (in.)10.25
-
Ceiling or Wall Cutout Width (in.)10.25
-
Depth (in.)13.75
-
Duct Diameter (in.)4.0
-
Height (in.)3.38
-
Weight (lbs.)7
-
Width (in.)13.0
-
Additional FeaturesEnergy StarEnergy Star, Humidity Sensor
-
Manufacturer's Warranty5-Year Limited Warranty
