Broan ONE BLP150E75 Energy Recovery Ventilator
Broan ONE BLP150E75 Energy Recovery Ventilator - Hardwired Interior Ready is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Broan ONE BLP150E75 Low Profile ERV (Hardwired or Power Cord model)
- MERV 8 Washable Filter
- Owner’s Manual
Broan ONE BLP150E75 Energy Recovery Ventilator
Description
Description

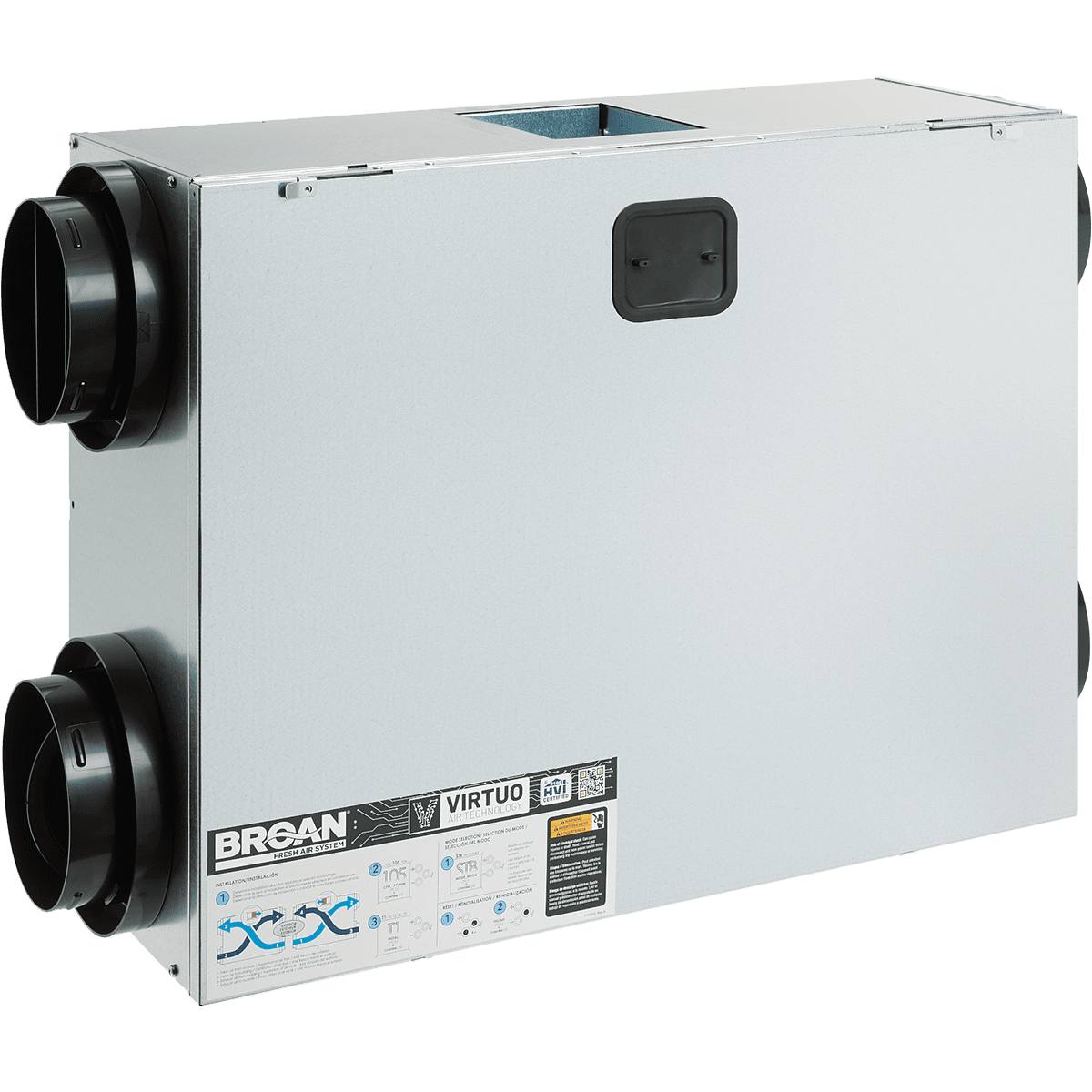

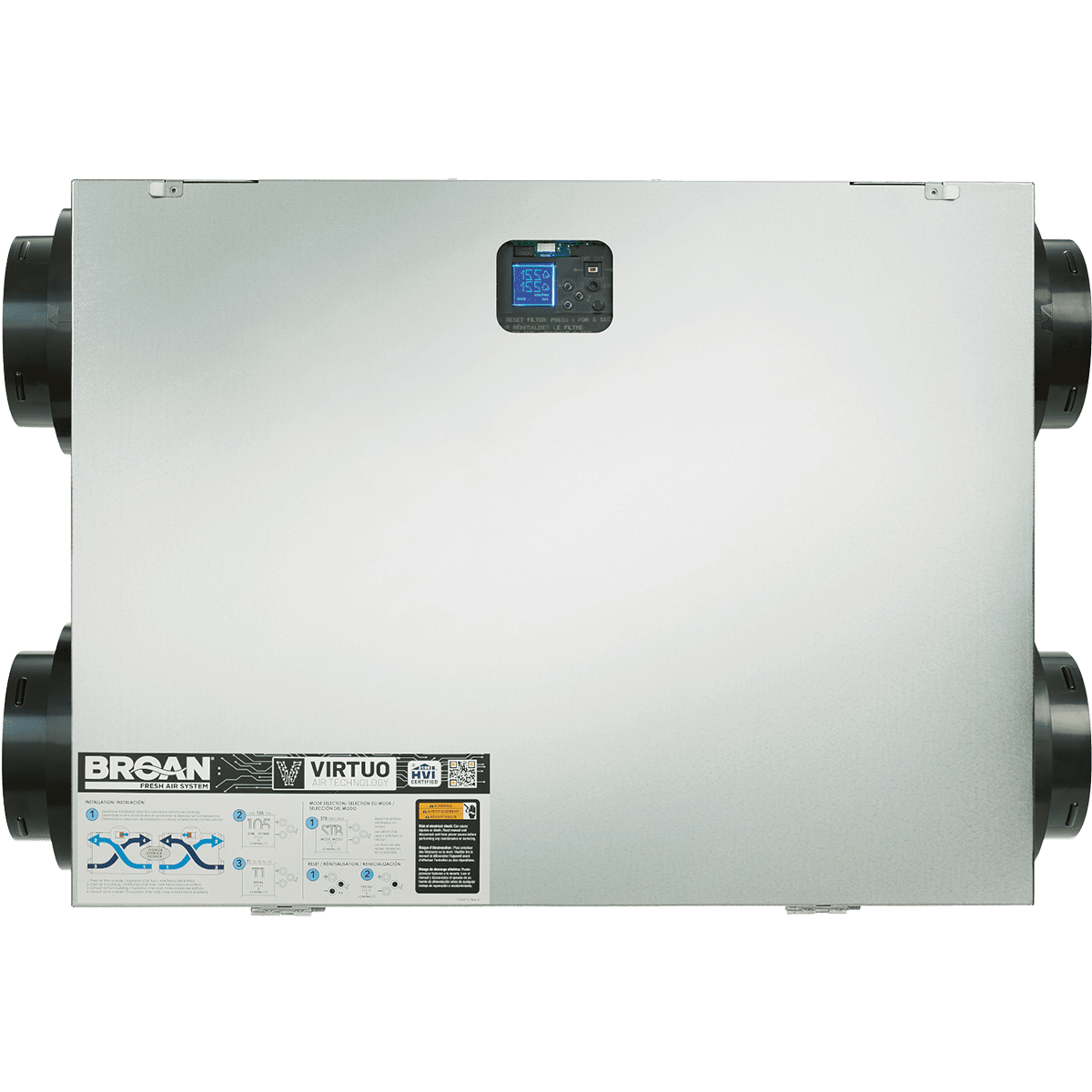

The Broan ONE BLP150E75 Energy Recovery Ventilator is a one-size-fits-all residential ventilation system designed to effectively and efficiently deliver fresh air to single-family homes, townhomes, and multi-family developments.
This model is rated to provide fresh air exchanges with a sensible recovery efficiency of 84 percent at 32 degrees F and a fan efficacy of 2.1 CFM/Watt used at 64 CFM. It features flexible mounting and positioning options, intuitive technology powered by Broan’s AI that can save technicians up to 20 minutes per unit on installations, and a reliable crossflow recovery core.
Flexible Field Installation
- Airflow Configuration: With the flip of one integrated switch, a technician can instantly change the airflow direction, eliminating the need for contractors to buy different models to accommodate mirrored floorplans.
- Mounting Options: Horizontal or wall mount options provide location flexibility.

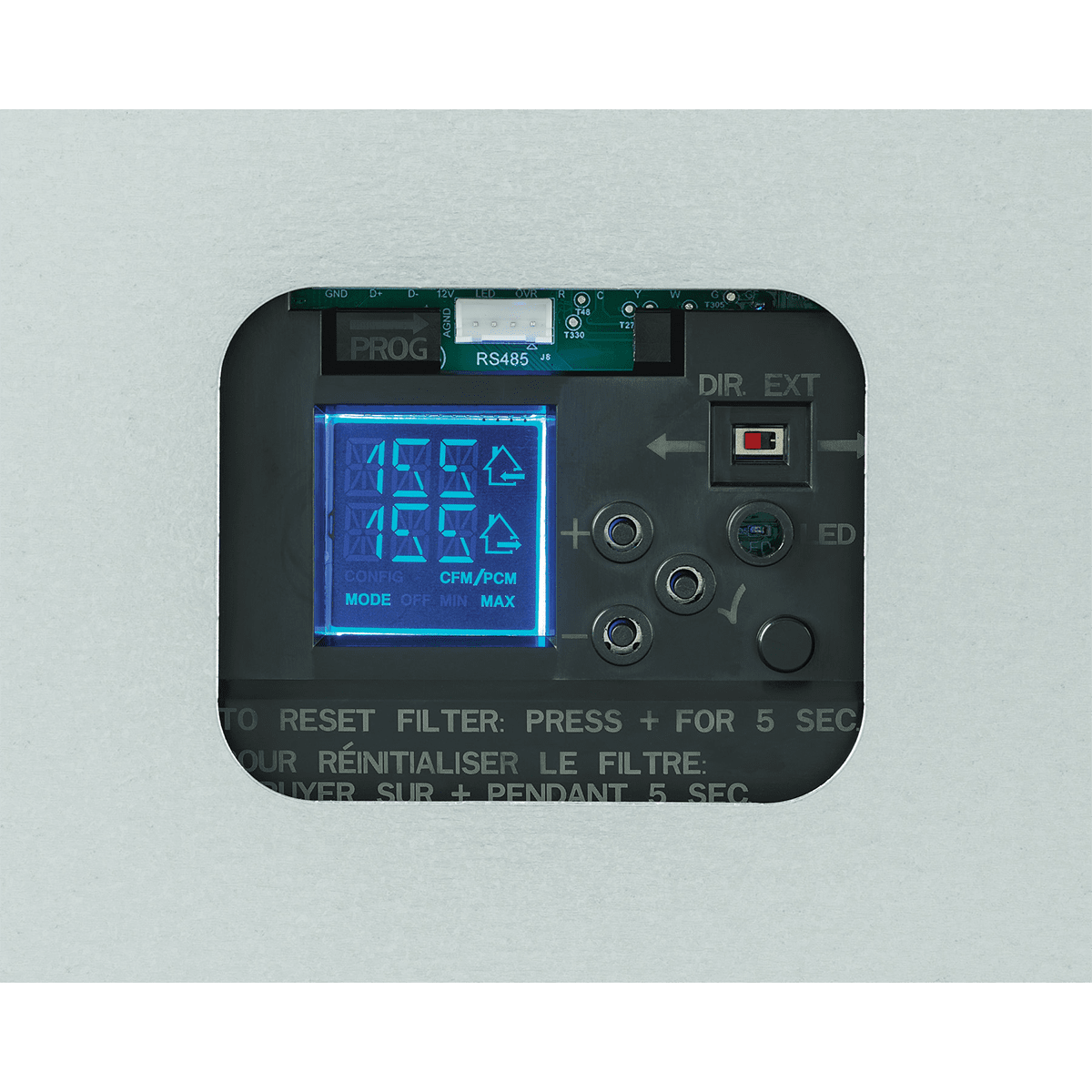

- Integrated LCD Screen: A small, integrated LCD screen lets users see real-time CFM and watt usage values. When not in use, a locking lid covers the screen.
- Low-Profile Design: This model measures less than 10 inches high for versatile installation.
Virtuo Technology
- Auto-Balancing: Once the ERV is installed, a technician can easily balance the system using Broan’s auto-balancing Virtuo Technology, which automatically detects a space's maximum and minimum airflow needs.
- Self-Adjusting: The ERV automatically detects pressure changes in real time and alters its operations accordingly to keep the system running smoothly.
- Automatic Alerts: If the system detects a serious issue, like a blockage, it will send increasingly urgent alerts to the user’s connected devices and controls.
Premium Core and Motor

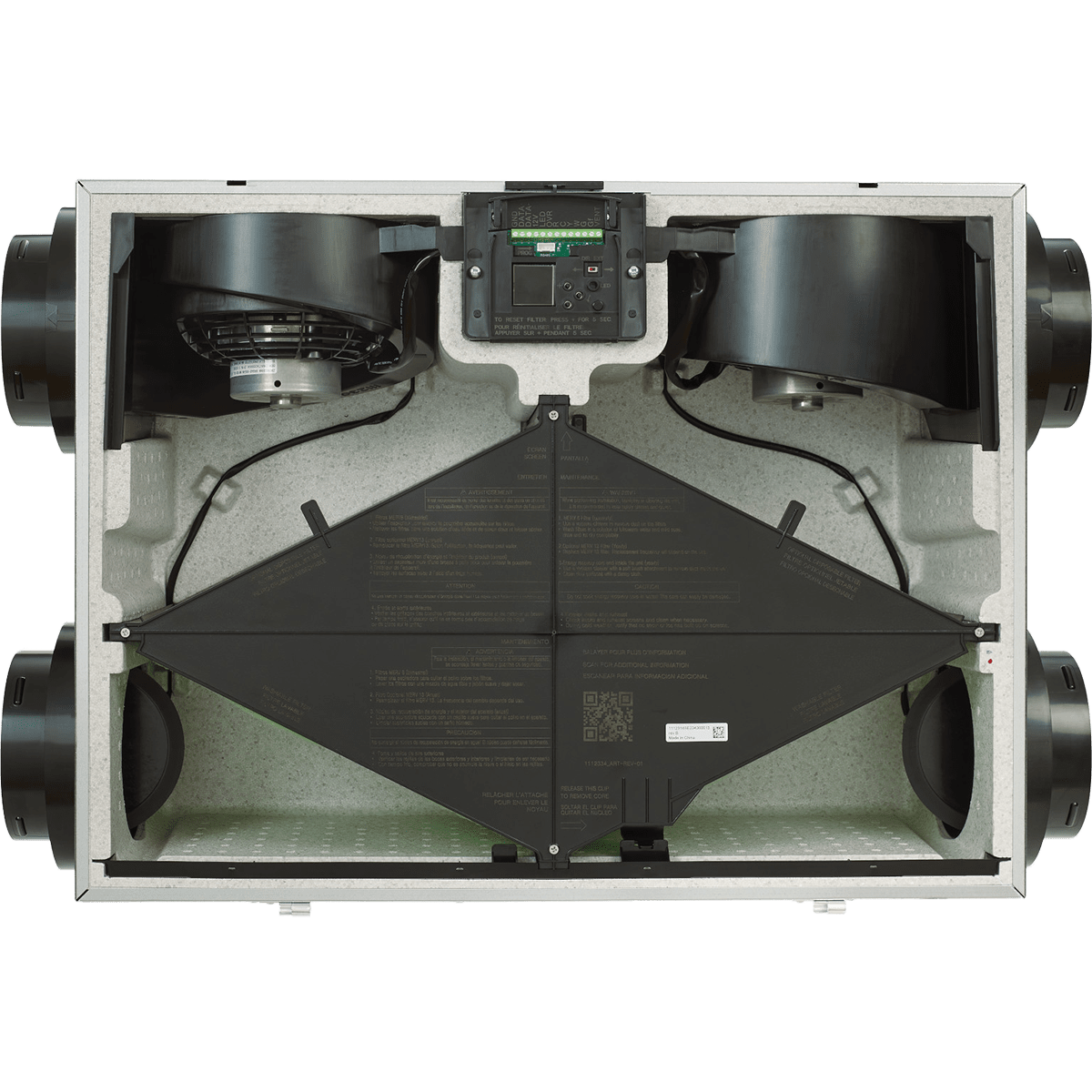

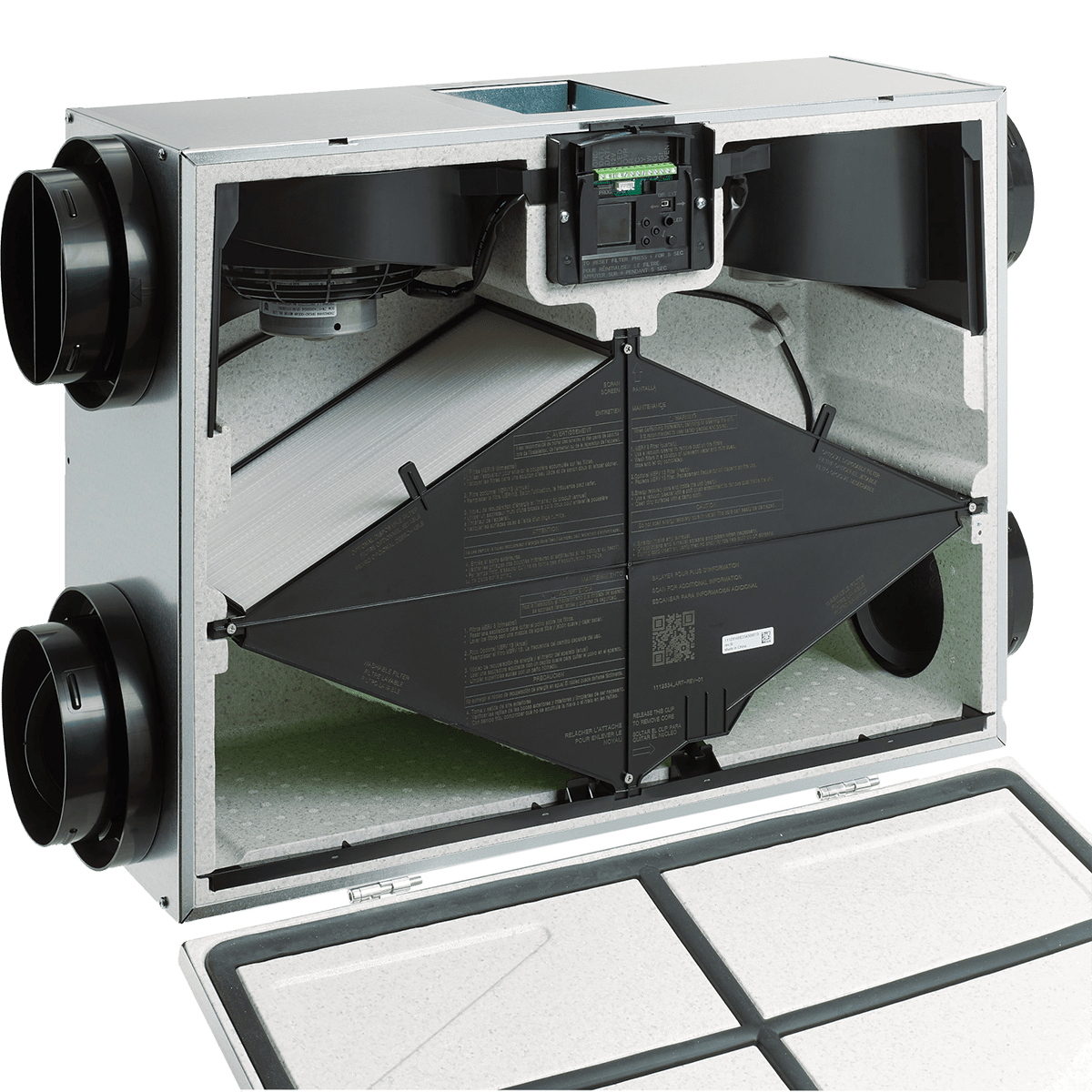

- Diamond Crossflow Core: Broan gave this machine a full polypropylene diamond-shaped crossflow core that is highly durable and effective.
- ECM PMSM Motor: This ERV uses the same electronically commutated motor found in Broan’s AI series ERVs.
- Precise CFM Selection: Users can manually adjust the ERV’s airflow from 35 to 155 cubic feet per meter in 1 CFM increments.
Interior Ready Model Option

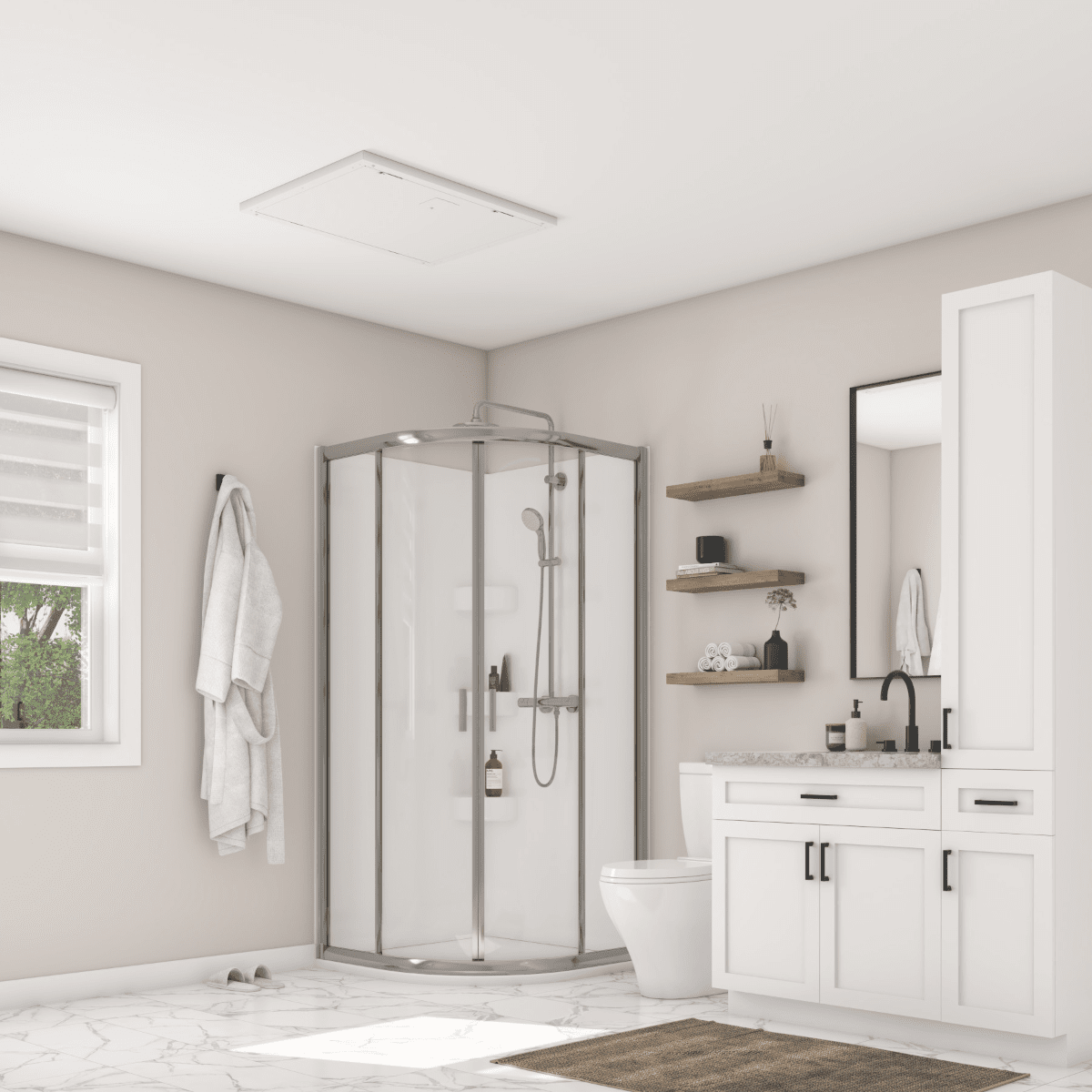

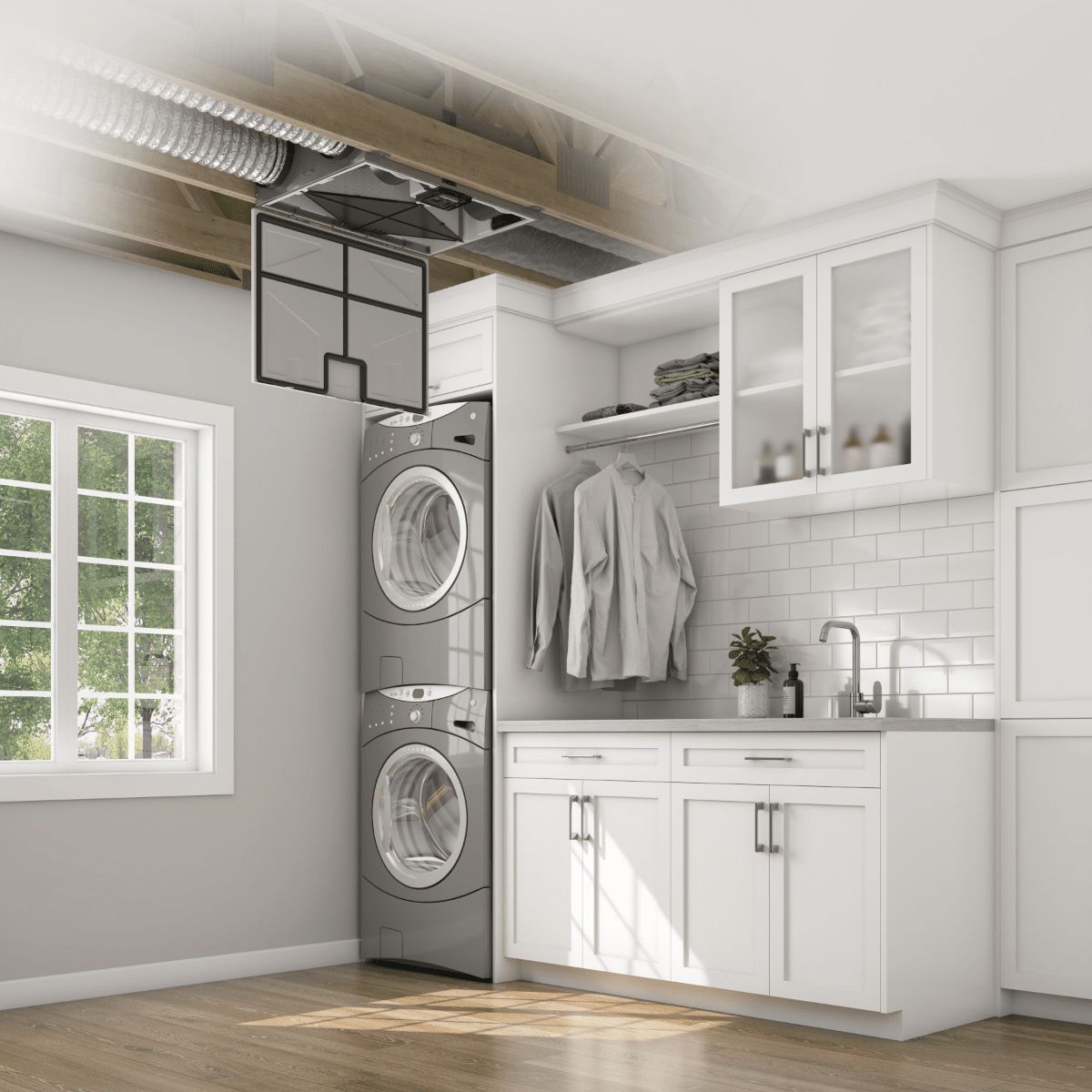

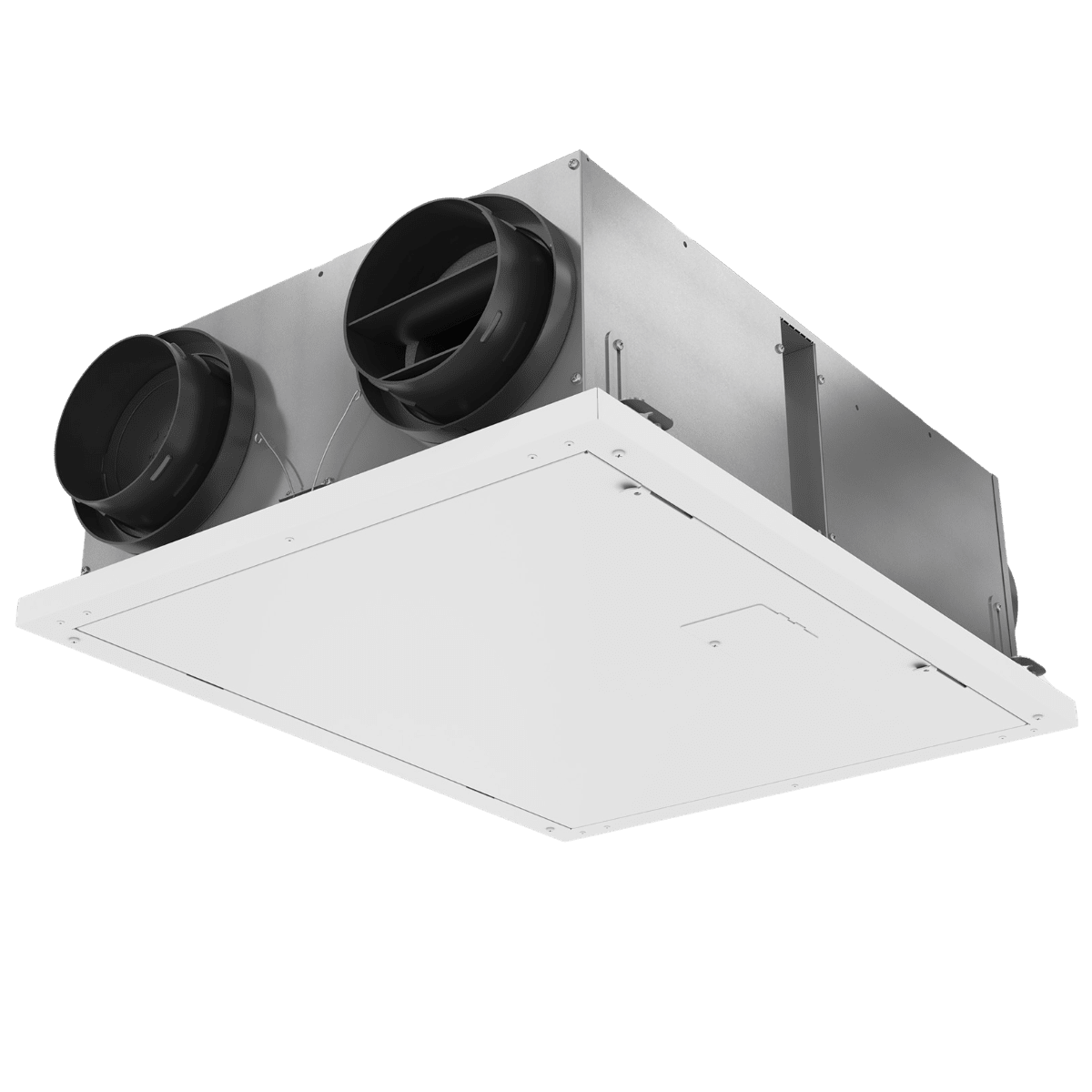

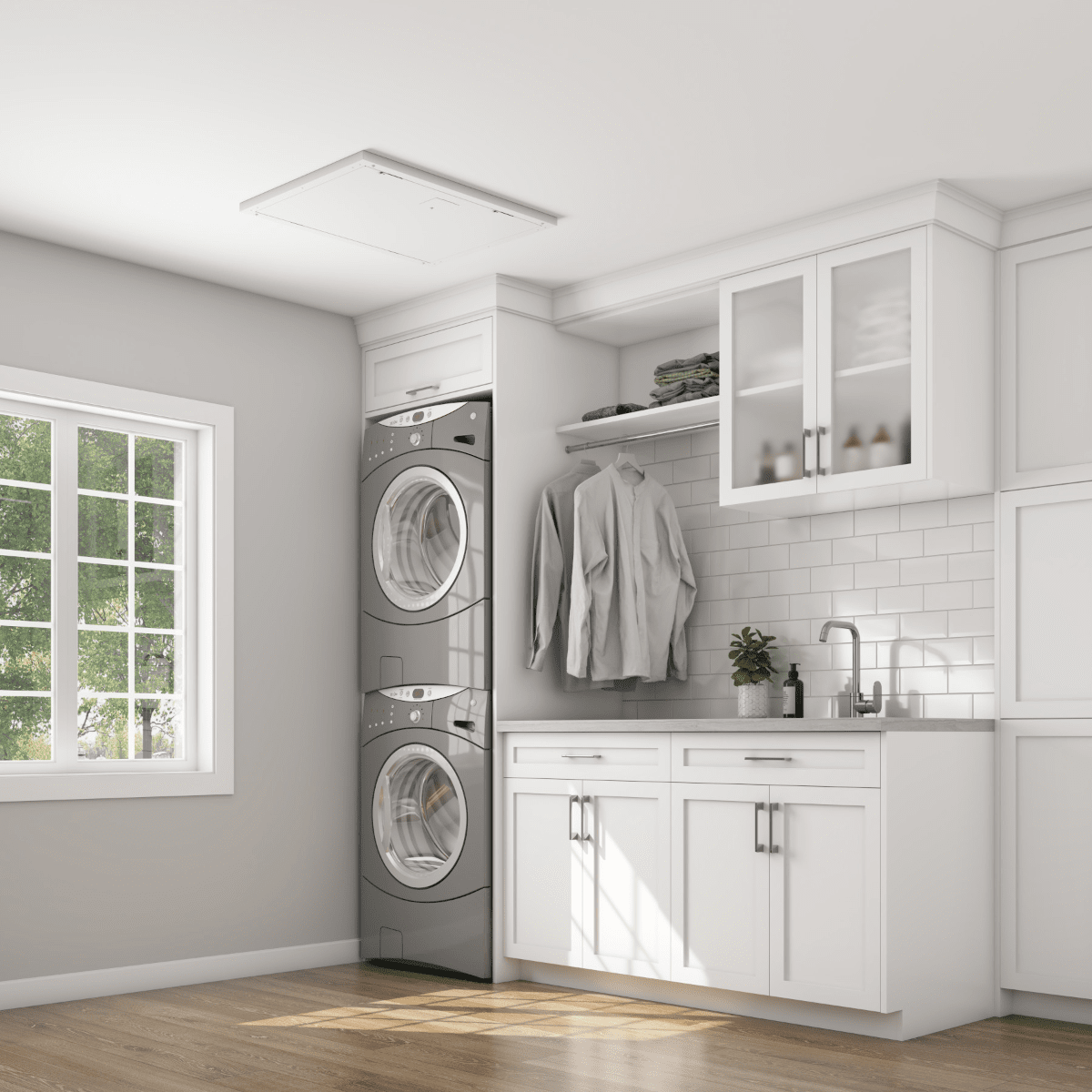

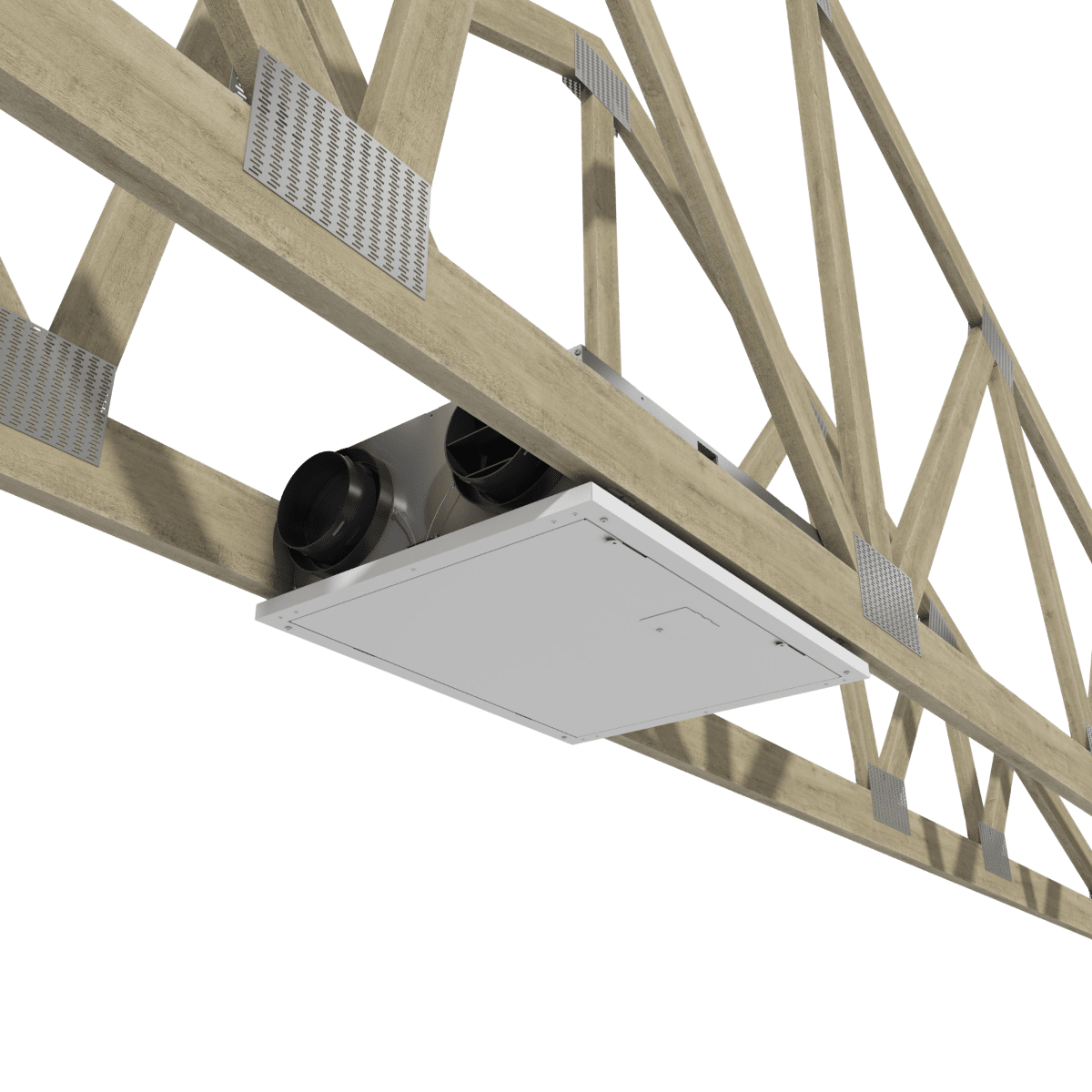

You can select the Broan One Energy Recovery Ventilator as an “Interior Ready” version (BLP150E75NS-HWF) with a prefinished white access door and trim kit that can be mounted easily in a ceiling or wall cavity. This model allows greater installation flexibility, a cohesive look, and easy maintenance access. The pre-finished white access door securely hides the ERV's internal components and can be painted to match a space's interior.
Additional Features

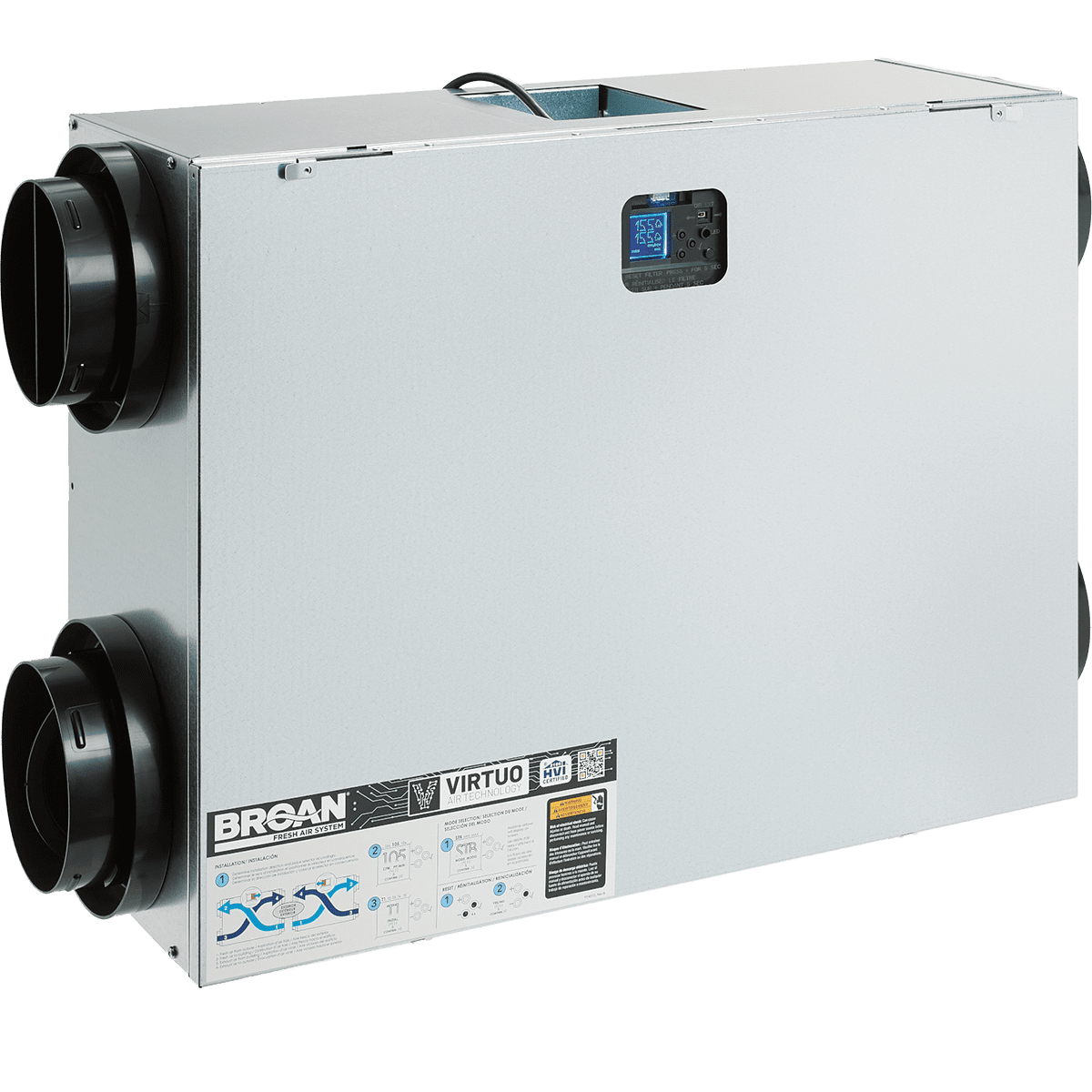

- Hardwired or Power Cord Options: This model is available as a hardwired unit or with a connected 3-foot power cord.
- Washable MERV 8 Filter: A washable MERV 8 filter comes standard with the ERV.
- Optional Upgraded Filter: An optional upgraded MERV 13 filter can be used alongside the standard MERV 8 filter for additional filtration capability.

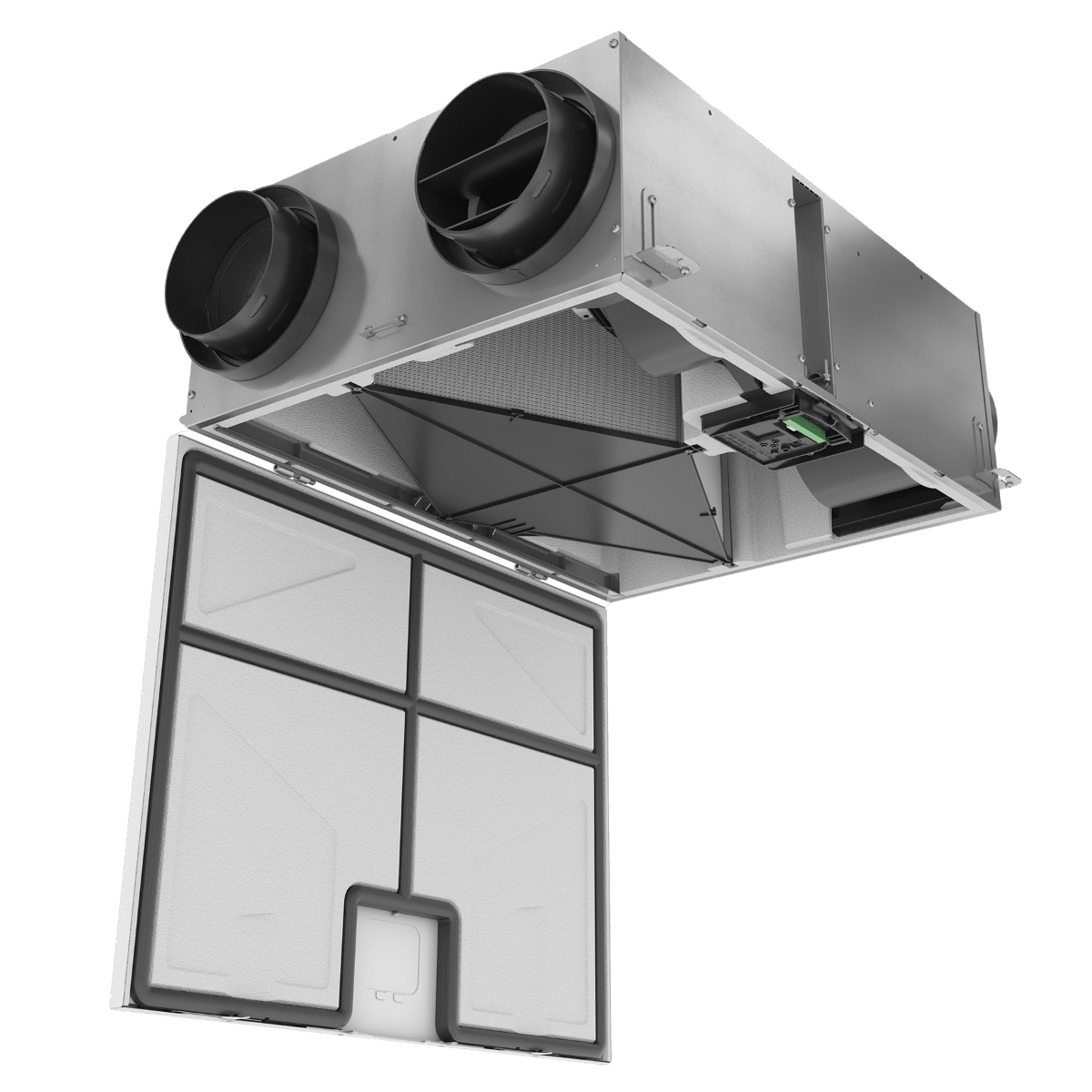

- Removable Maintenance Door: If space is limited, an HVAC professional can easily remove the BLP150E75’s access door to access or service the recovery core and other parts.
- Wall Control Compatibility: Optional main wall controls can be used with this fresh air system.
Sylvane's Expert Take
Builders and contractors will love the one-size-fits-all, high-performance, and code-compliant Broan One BLP150E75 Low Profile Energy Recovery Ventilator. Gone are the days when mirrored floorplans and real-world home designs sent plans back to the drawing board, thanks to this model’s infield selectable airflow configuration.
- One Solution: Broan’s innovative design for this ERV will help professional customers worry less about juggling multiple models on job sites.
- Easy Maintenance: Scheduled annual maintenance is easy to complete, thanks to the easy access doors, removable recovery core, and washable MERV 8 filters.
Specifications
Specifications
-
Minimum Cubic Feet per Minute (CFM) (CFM)35.0
-
Mounting TypeCeiling, Wall
-
Number of SpeedsVariable
-
Port LocationSide
-
TypeERV-Air Supply Fan
-
ApplicationResidential
-
CertificationsUL, HVI
-
ColorWhiteGrayGray
-
ControlsElectronic
-
Maximum Cubic Feet per Minute (CFM) (CFM)155.0
-
Power SupplyHardwiredPlugHardwired
-
Voltage (V)110-120
-
Watts (W)170
-
Depth (in.)32.0
-
Depth (with front cover) (in.)32.0
-
Duct Diameter (in.)6.0
-
Height (in.)9.97
-
Height (with front cover) (in.)9.97
-
Weight (lbs.)39
-
Width (in.)20.94
-
Width (with front cover) (in.)20.94
-
Manufacturer's Warranty5-Year Core Warranty, 5-Year Parts Warranty
Key Specifications
General
Power
Dimensions
Warranty
Recommended Accessories
-
-
Broan

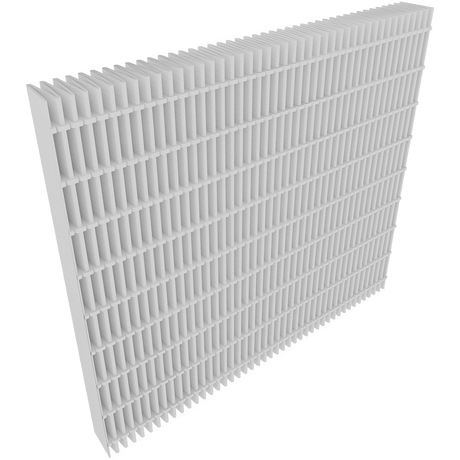

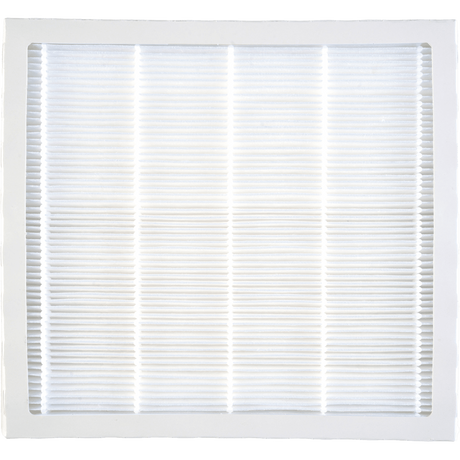

V26000 Optional MERV 13 Replacement Filter for Broan ONE BLP150E75 ERV
