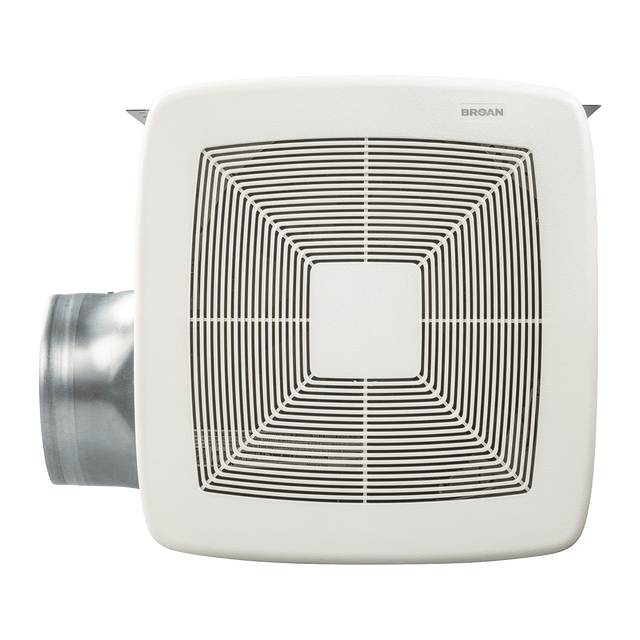

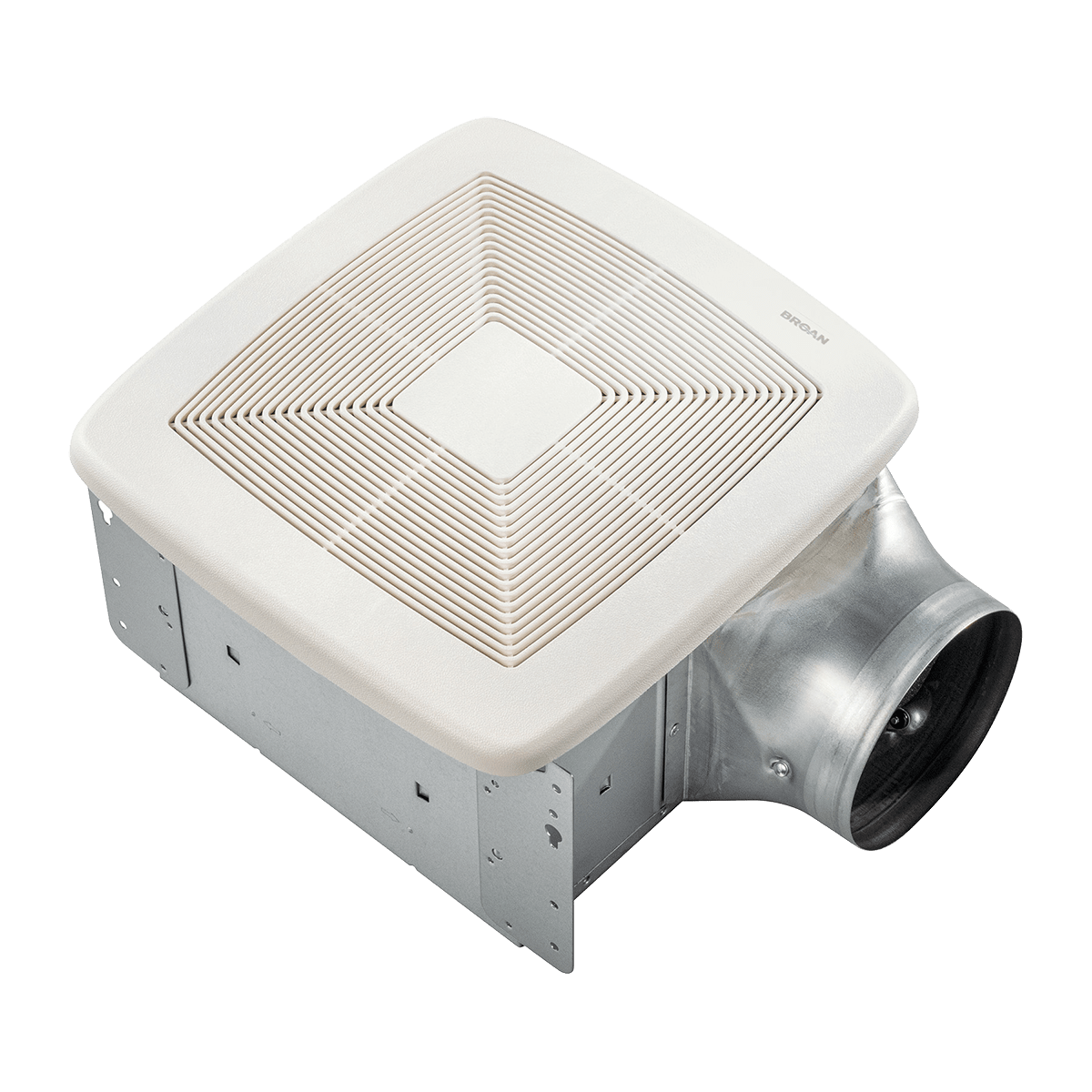

Broan QTXEG110 Bathroom Exhaust Fan
Broan QTXEG110 Bathroom Exhaust Fan - Humidity Sensing Fan is backordered and will ship as soon as it is back in stock.
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Broan QTXEG110X or QTXEG110S Ventilation Fan Unit

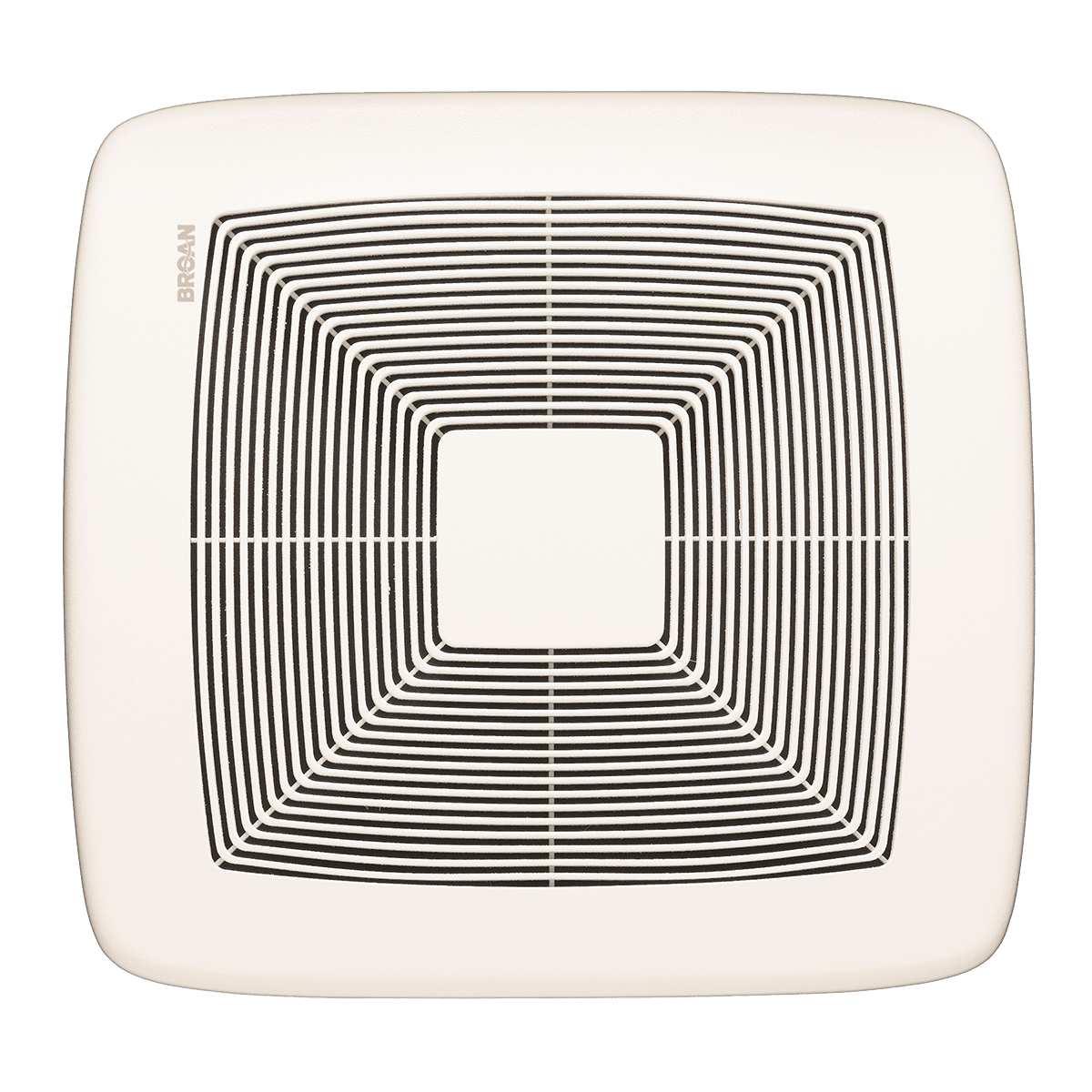

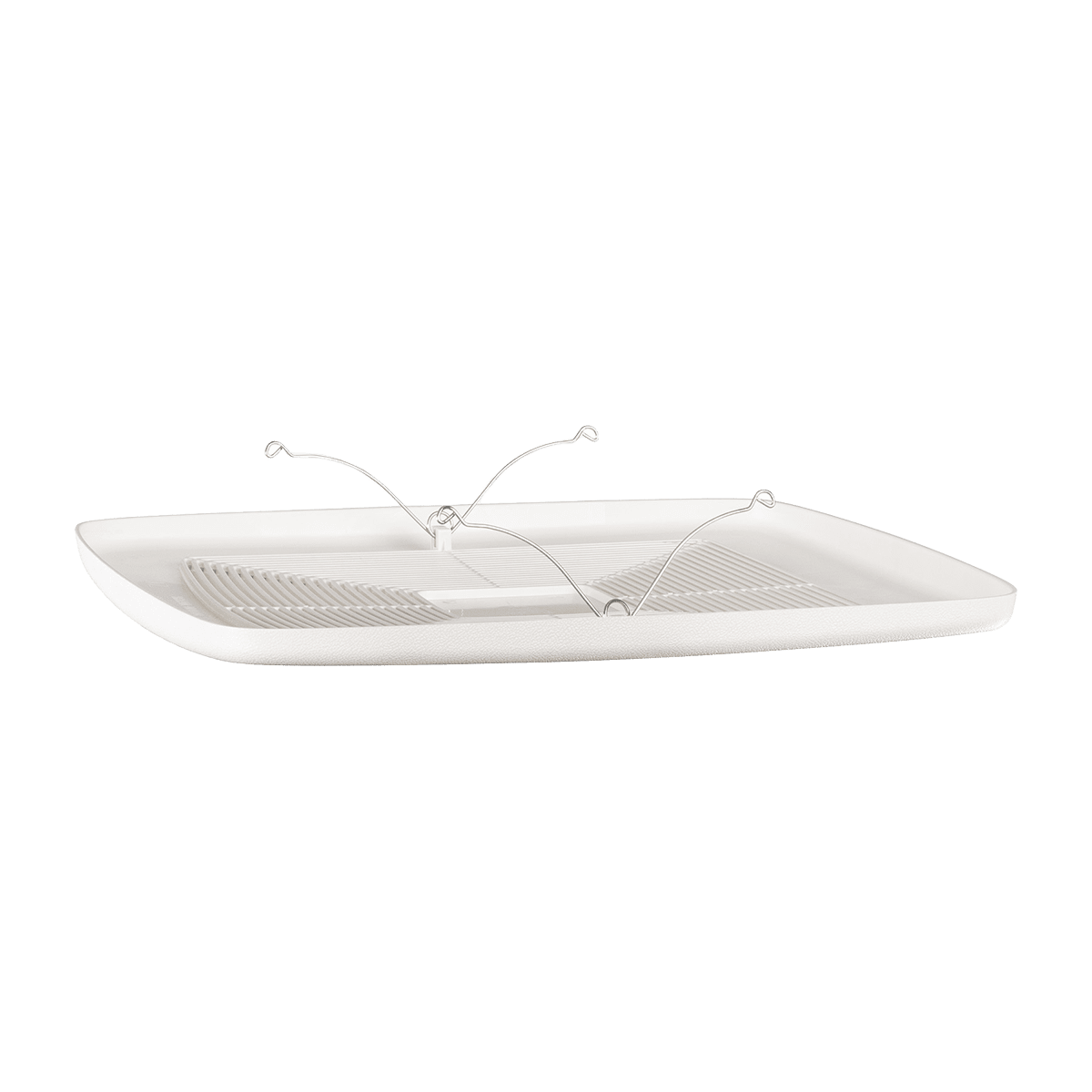

- White Grille Cover
- Hanging Bracket
- Owner’s Manual

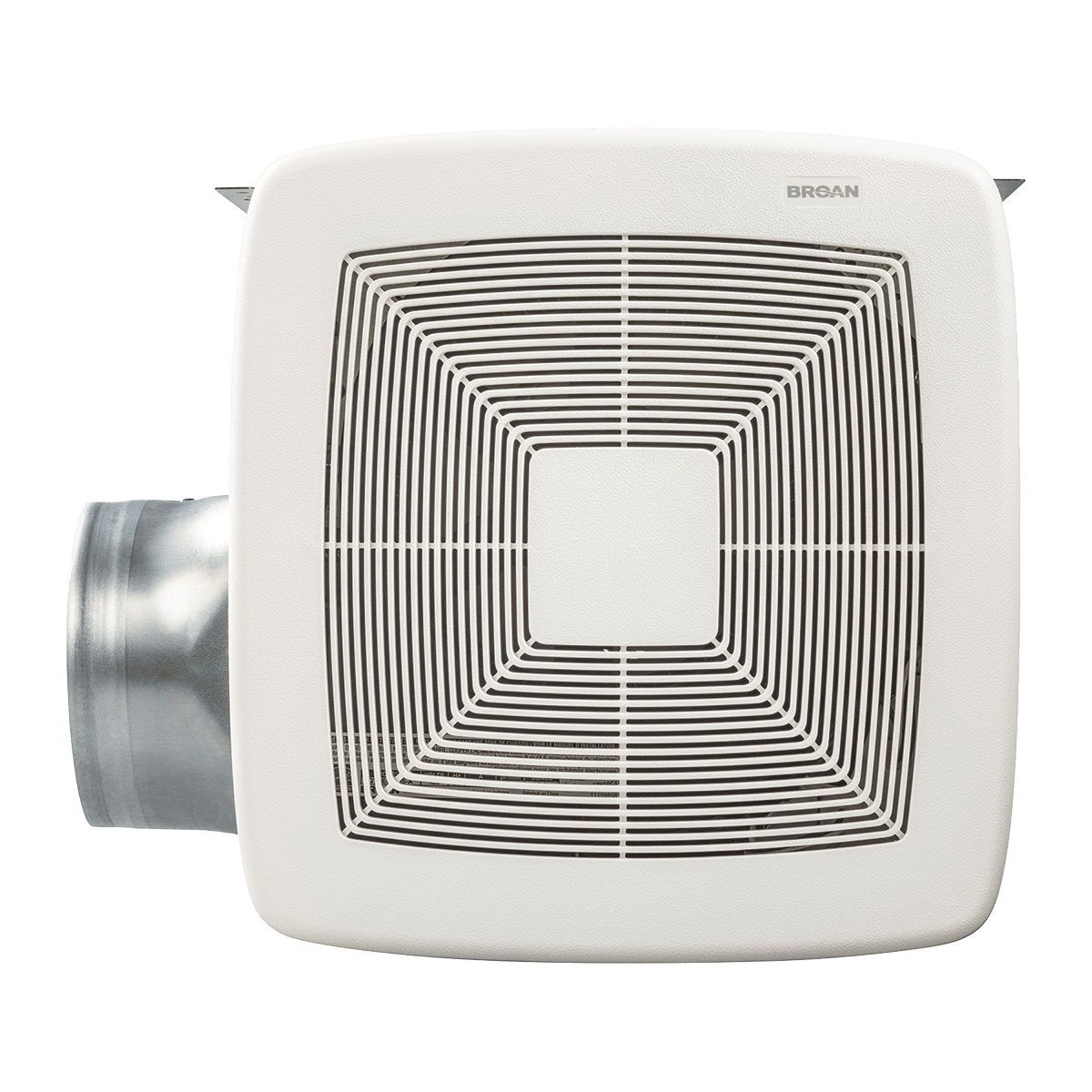

Broan QTXEG110 Bathroom Exhaust Fan
The Broan QTXEG110 Bathroom Exhaust Fan is designed to provide effective and silent ventilation for bathrooms up to 105 square feet.
Operating at a mere 0.4 sones, this bathroom exhaust fan ensures a peaceful atmosphere while efficiently removing excess moisture to prevent mold and mildew growth. It is Energy Star-rated, emphasizing energy efficiency without compromising performance. This fan is available with or without humidity-sensing capabilities.
Top Features
- High Airflow Capacity: This fan swiftly eliminates humidity and odors in bathrooms as large as 105 square feet by delivering up to 110 CFM.
- Humidity Sensing Technology: Model QTXEG110S features Sensaire technology that detects rapid increases in moisture and automatically activates the fan to control humidity levels.
- Easy Installation: The hanger bar system allows for quick and flexible installation in various construction types.

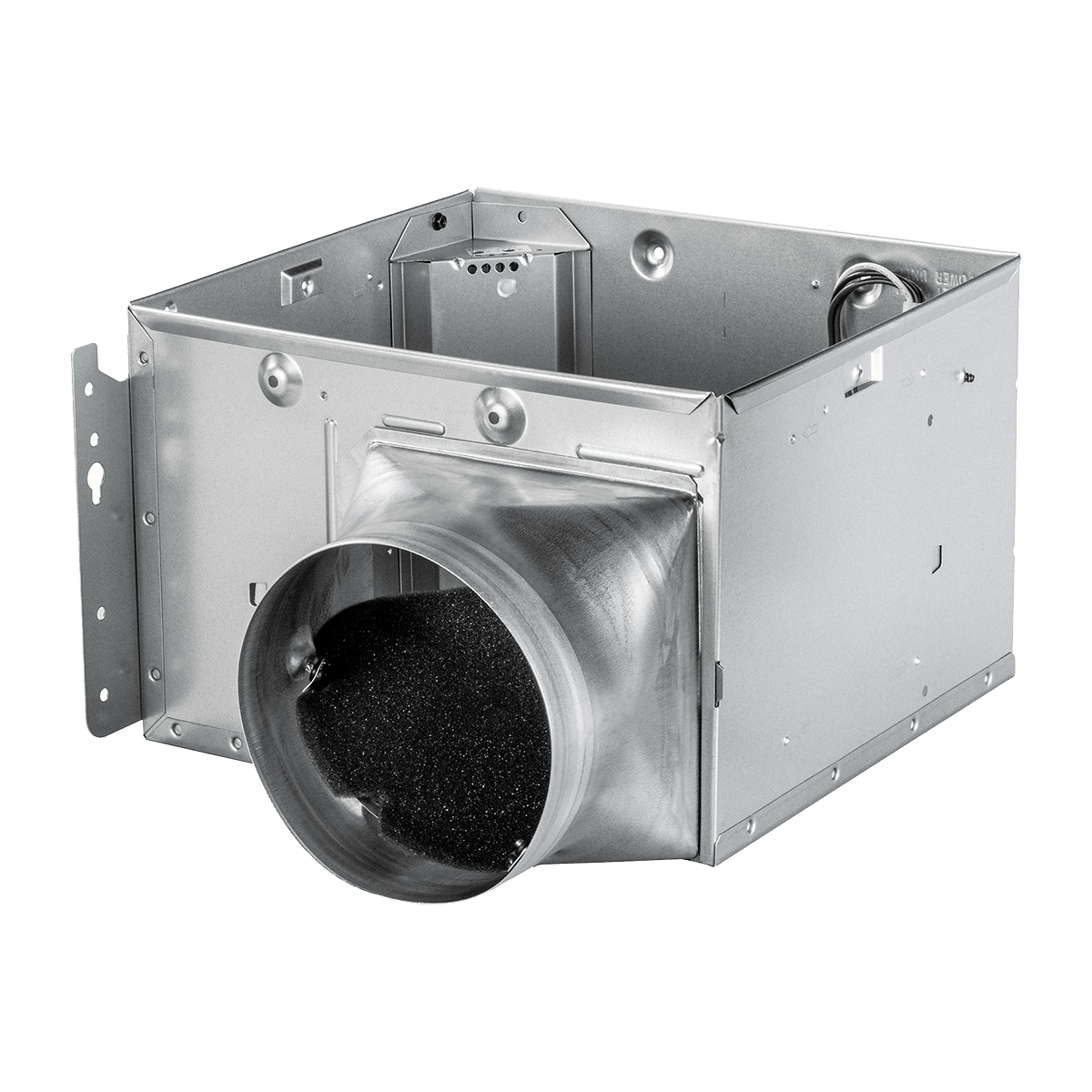

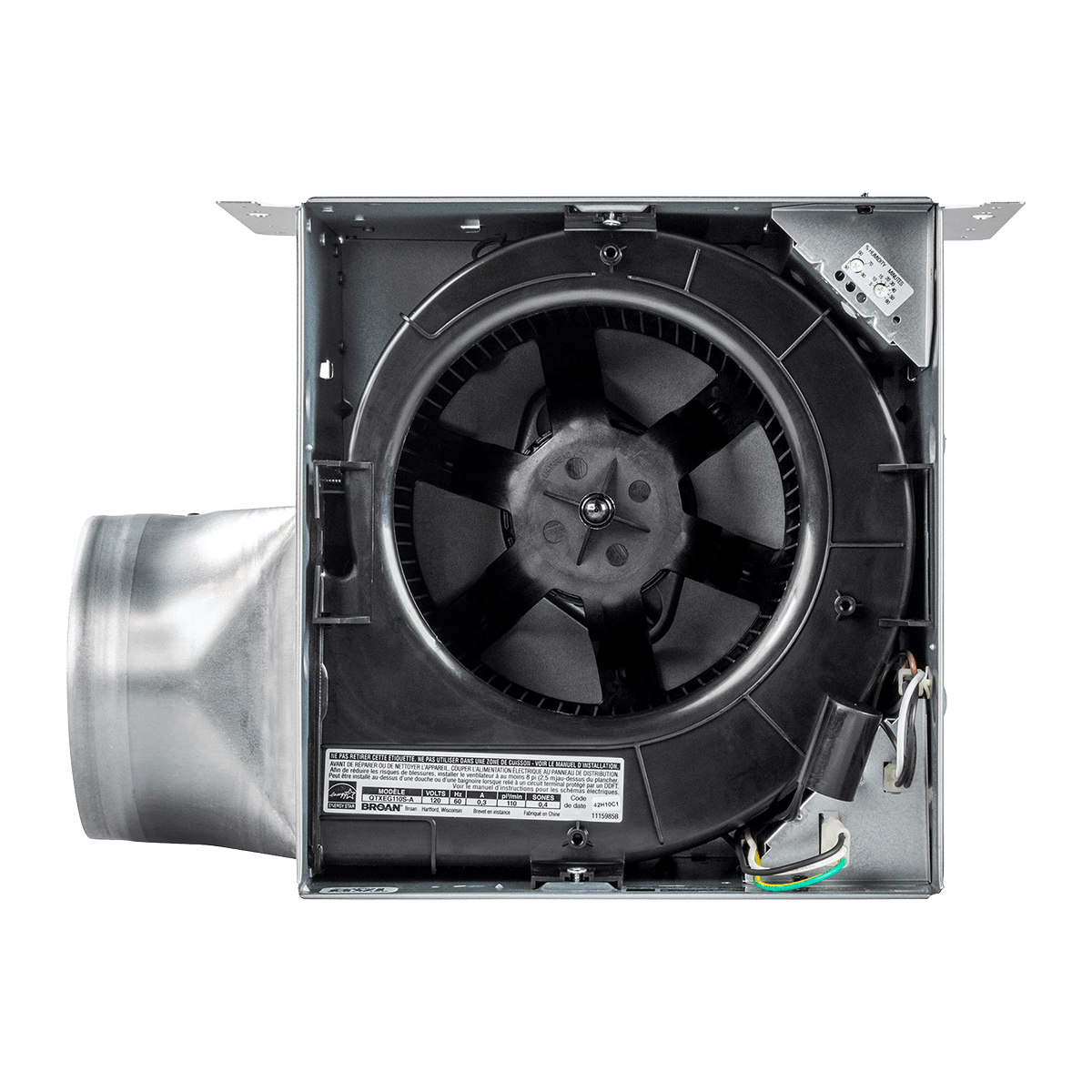

- Durable Construction: This fan's corrosion-resistant galvanized steel housing ensures lasting performance in high-moisture environments.
- Continuous Operation: The QTXEG110’s permanently lubricated AC motor is engineered for nonstop use.
- Safety Certified: Both QTXEG110 models are UL-listed and safe to use over bathtubs or showers when connected to a GFCI-protected branch circuit.
- Broan Overture Compatible: This fan is compatible with Broan’s Overture automated fresh air sensor system, which monitors and controls ventilation systems and tests for air quality.
Sylvane's Expert Take
Enjoy a spa-like bathroom atmosphere with this whisper-quiet 110 CFM exhaust fan that efficiently clears excess moisture. The optional humidity-sensing model provides automatic adjustments, ensuring a consistently comfortable space.
- Prevents Moisture Damage: This fan helps maintain paint and wallpaper integrity by preventing moisture-related peeling and damage.
- Continuous Run Safe: Engineered for reliable, continuous operation, this model can run constantly or as needed to maintain a fresher, more inviting bathroom.
-
Manufacturer-Suggested Room Size (sq. ft.)105
-
Number of Speeds1
-

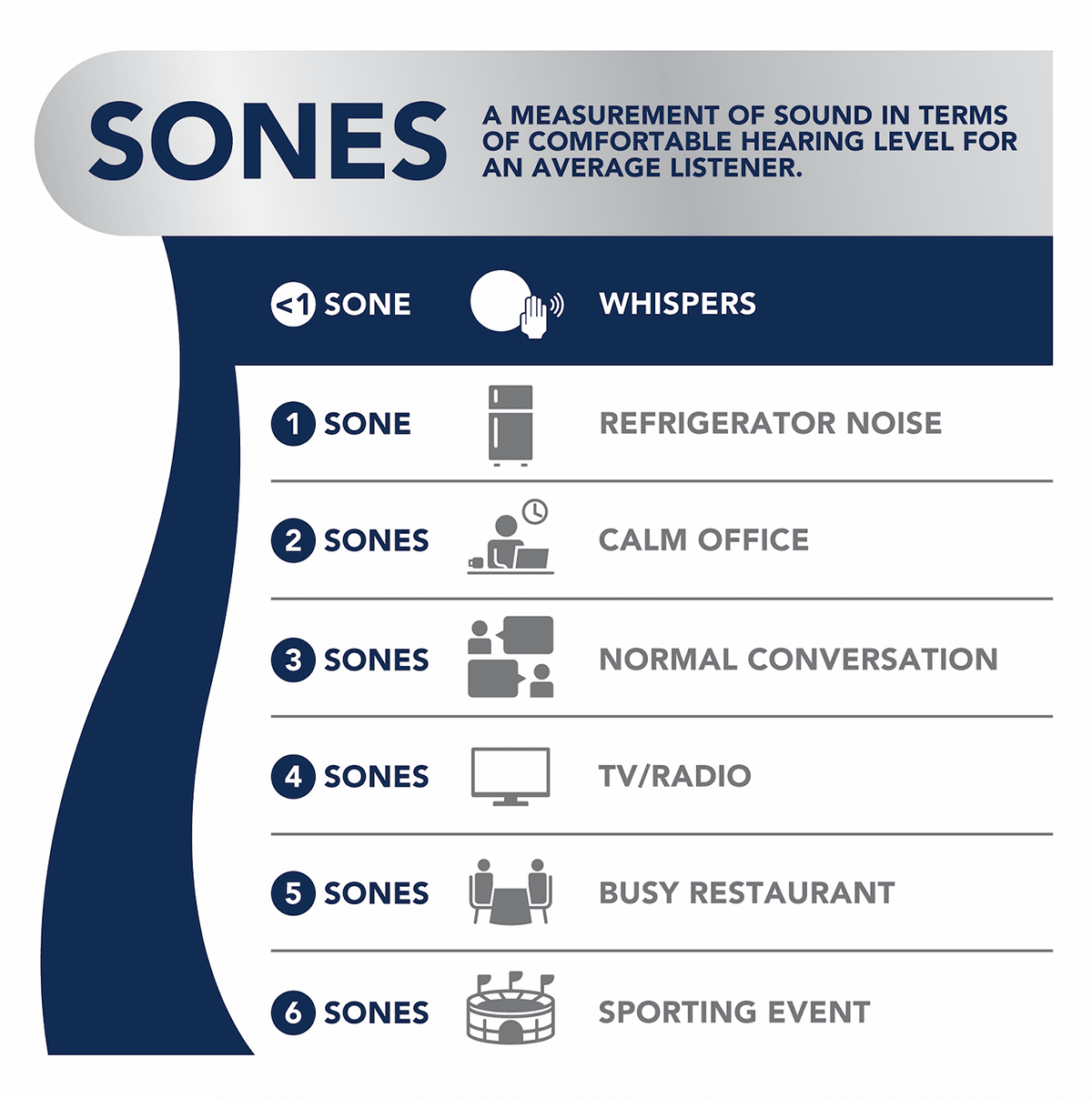

Sound Level (Sones) (sones)0.4
-
CertificationscULus, HVI
-
ColorWhite
-
ControlsManual
-
Maximum Cubic Feet per Minute (CFM) (CFM)110.0
-
Maximum Amperage (Amps)0.3
-
Maximum Wattage (W)31.4
-
Voltage (V)110-120
-

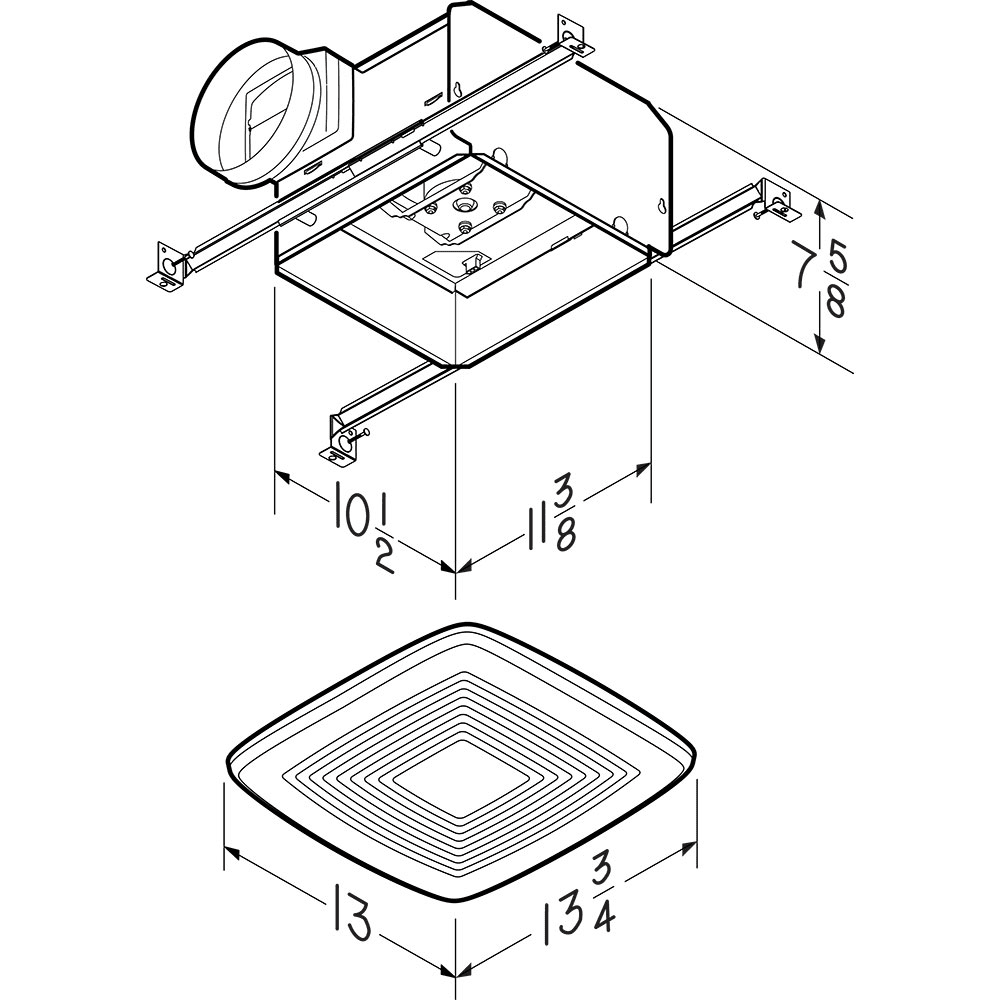

Ceiling or Wall Cutout Length (in.)10.5
-
Ceiling or Wall Cutout Width (in.)11.411.375
-
Depth (in.)12.913.0
-
Depth (with front cover) (in.)12.913.0
-
Duct Diameter (in.)6.0
-
Height (in.)7.67.625
-
Height (with front cover) (in.)7.67.625
-
Weight (lbs.)12
-
Width (in.)13.75
-
Width (with front cover) (in.)13.75
-
Additional FeaturesEnergy Star, Humidity SensorEnergy Star
-
Manufacturer's Warranty3-Year Limited Warranty
