Broan RB Ultra Pro Series Energy Star Bathroom Exhaust Fan
Description
Description
Broan's RB Ultra Pro Series of Energy Star Bathroom Exhaust Fans comes in an assortment of three models with various features to suit your ventilation requirements.
With consistent power, quiet operation, and fast, easy installation, these fans are ideal for both spot ventilation in bathrooms and work-out rooms up to 100 sq. ft., as well as continuous ventilation to meet building codes and Green Building Standards.
Select Your Model

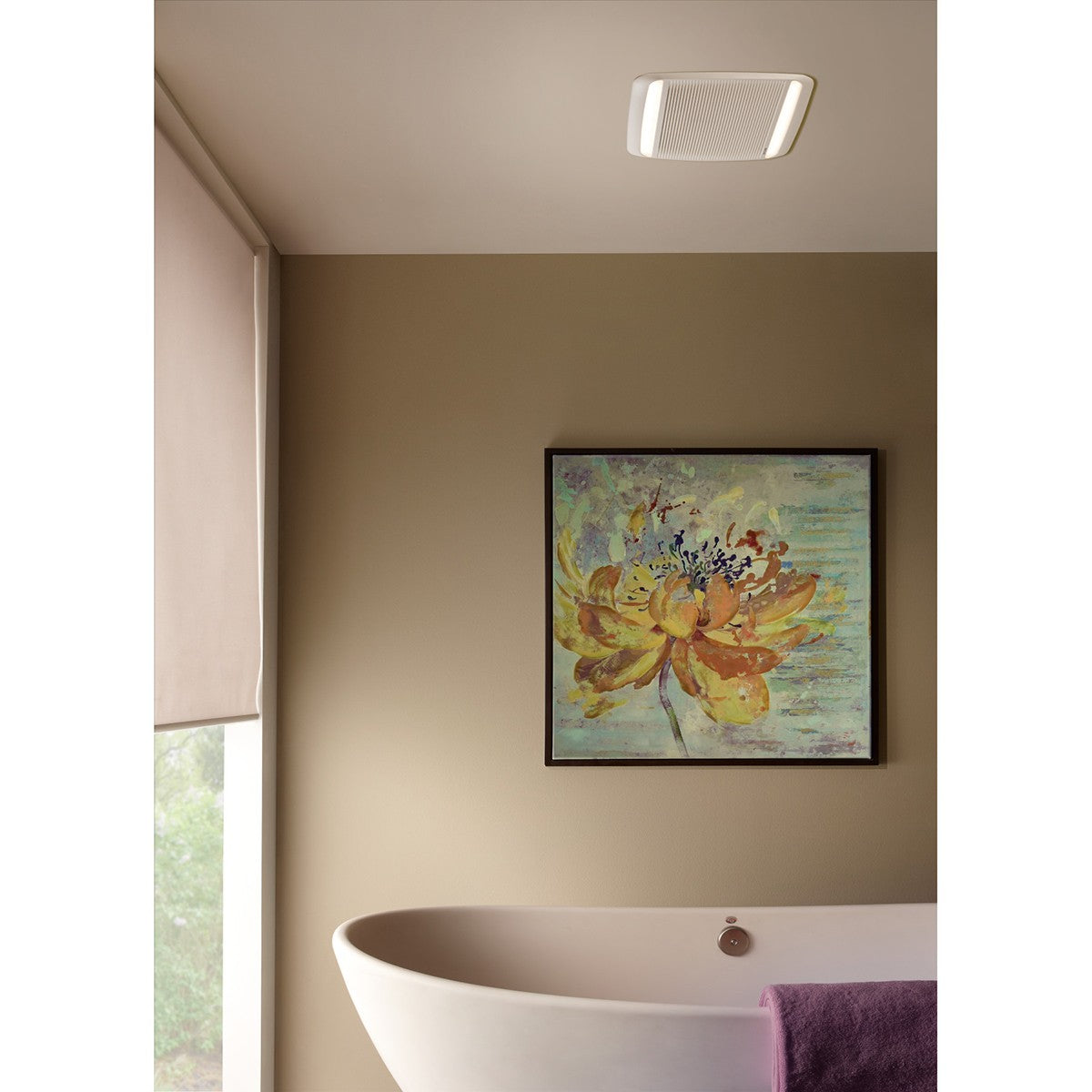

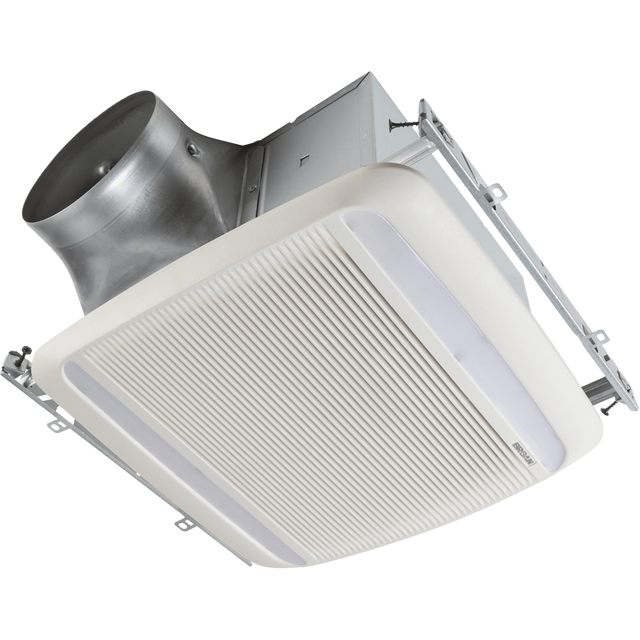

- Broan Ultra Pro RB80L1: This model delivers quiet operation at 80 CFM and includes an LED light on two sides of the grille.

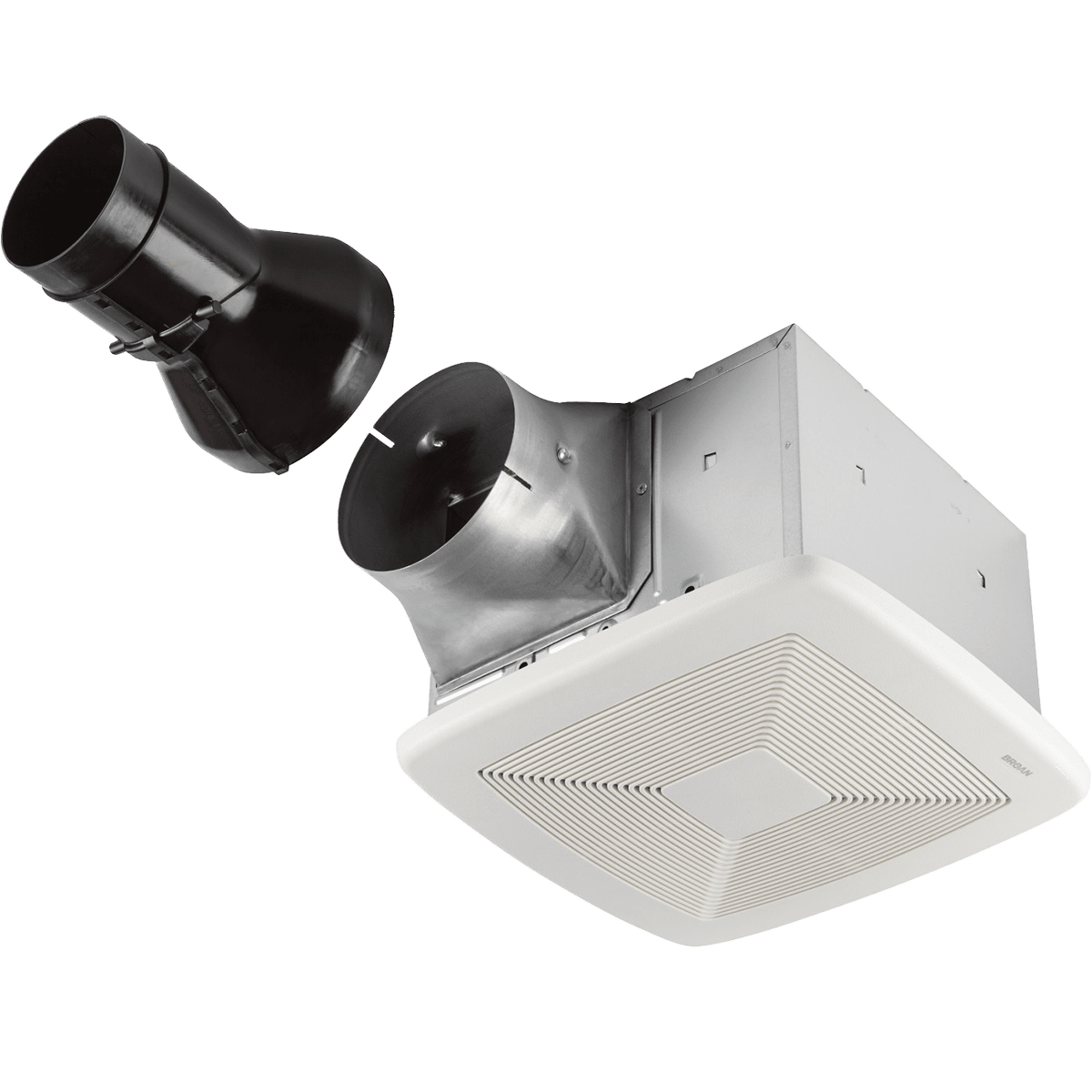

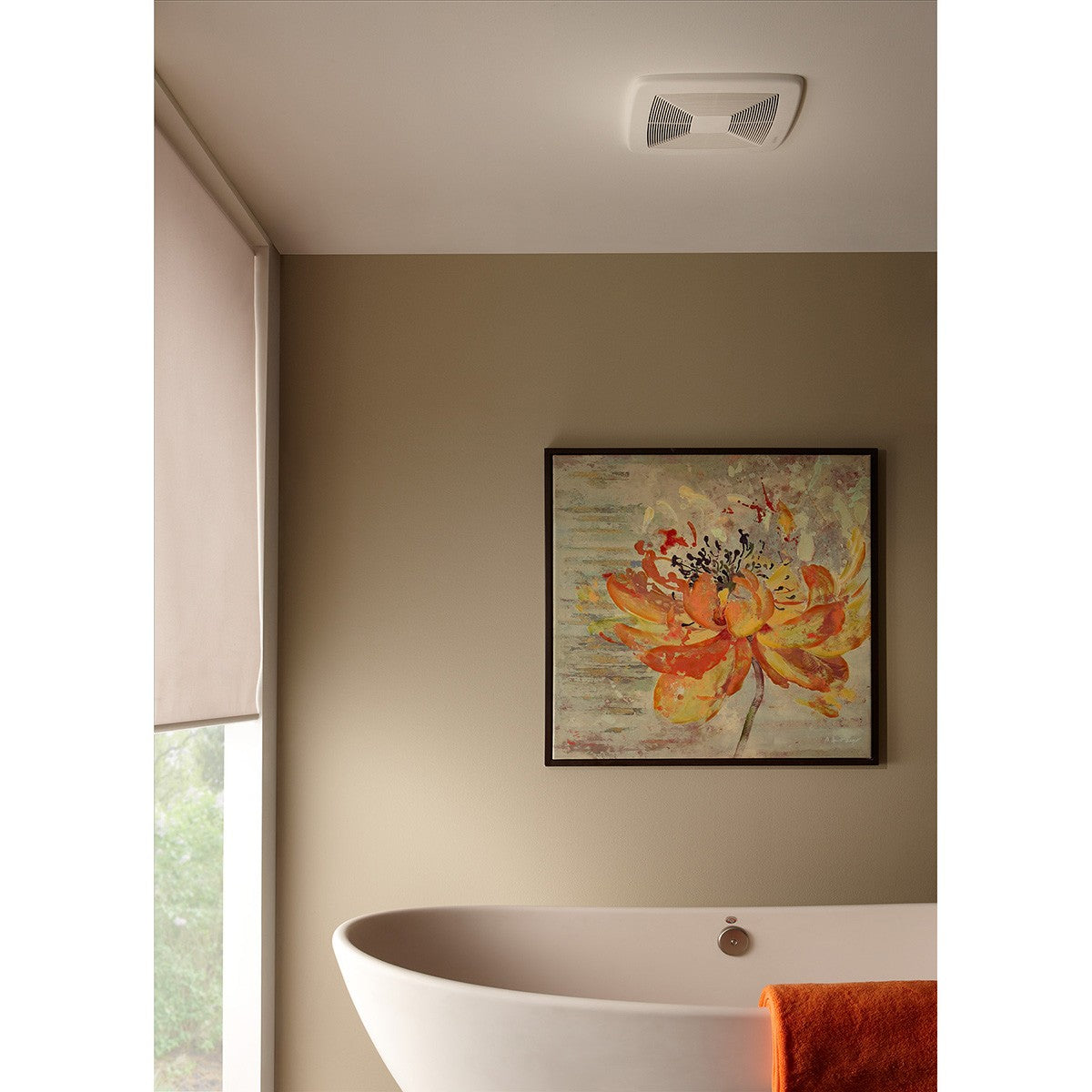

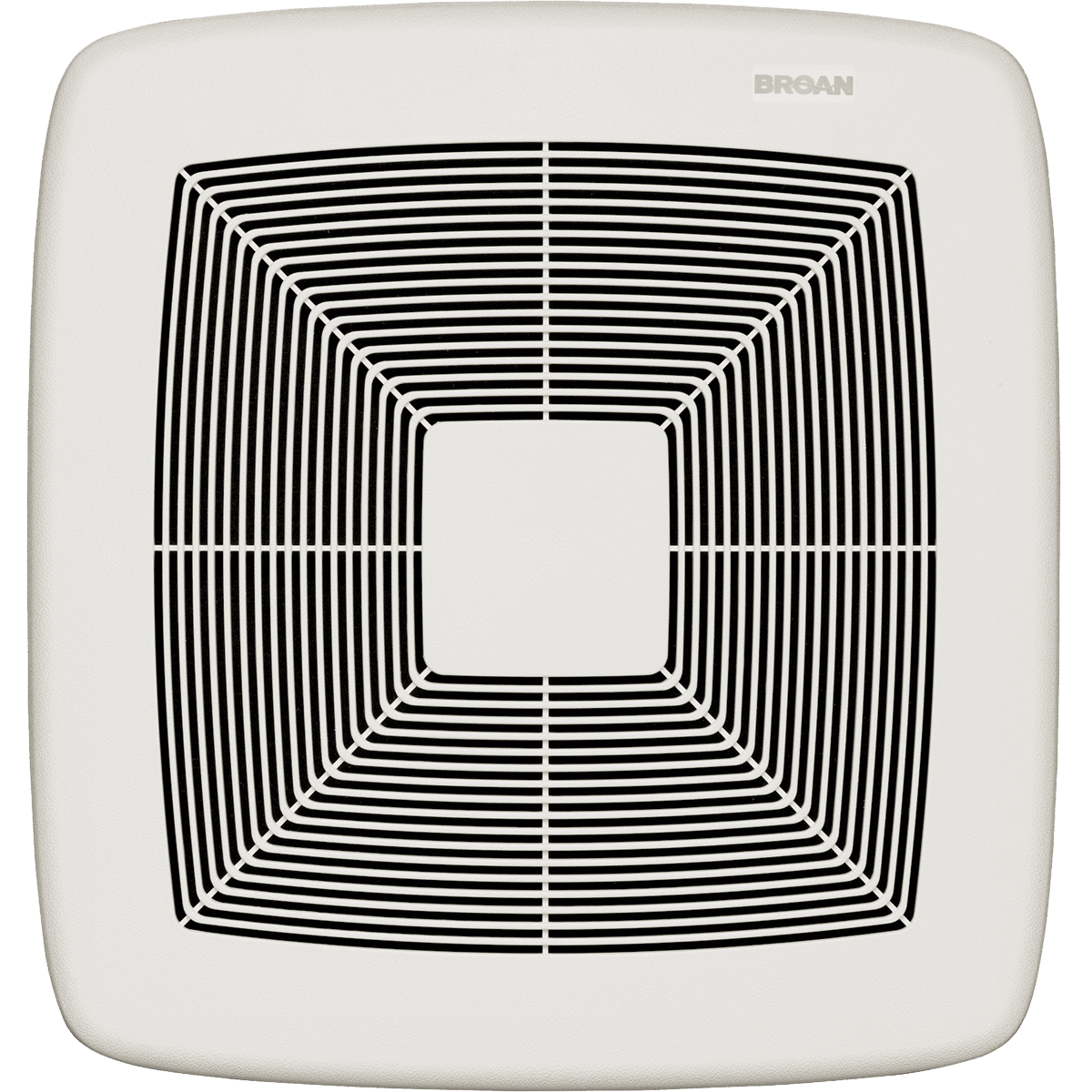

- Broan Ultra Pro RB110: For higher airflow, select this model with 110 CFM. While it doesn’t include a light, this exhaust fan operates quietly at only 0.6 Sones.

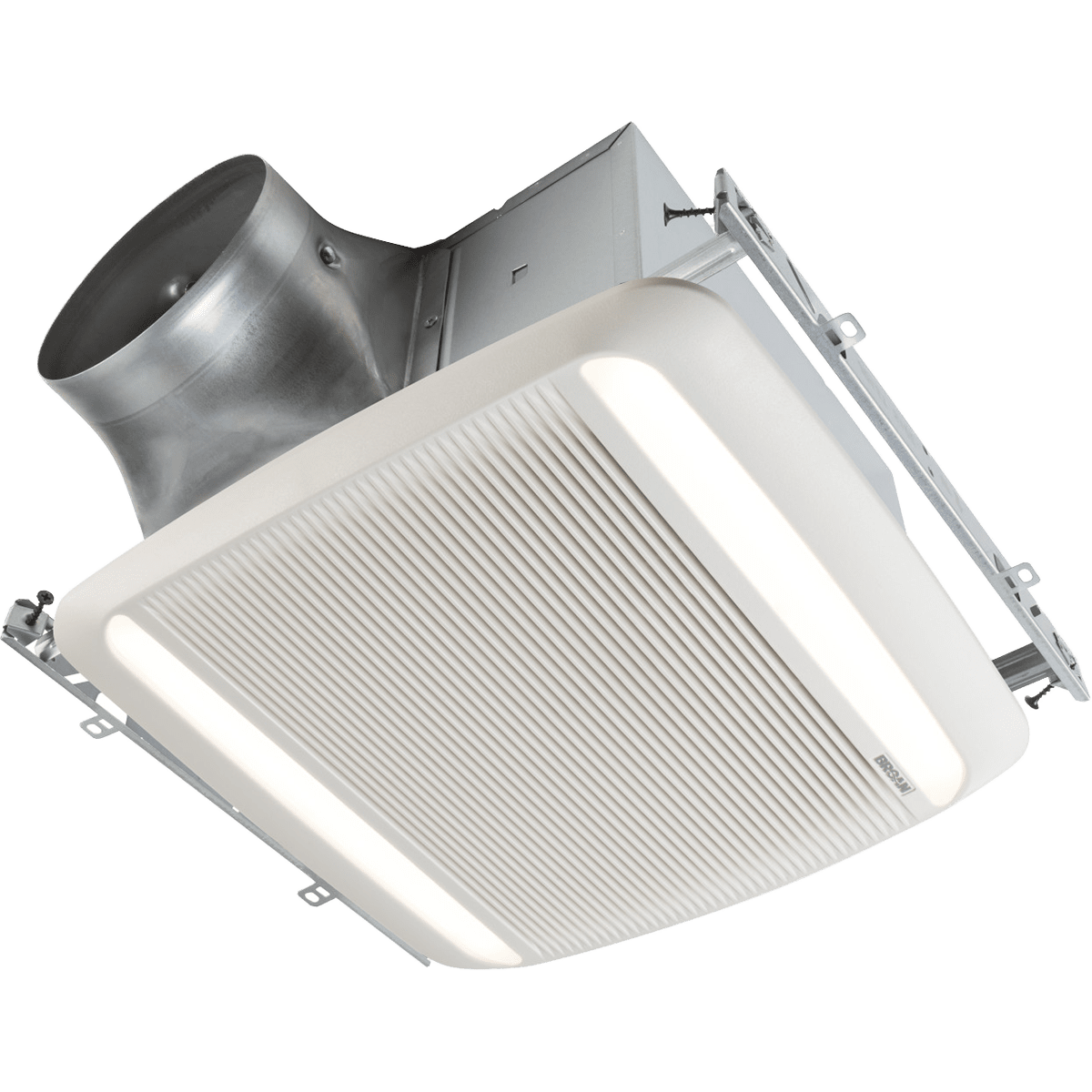

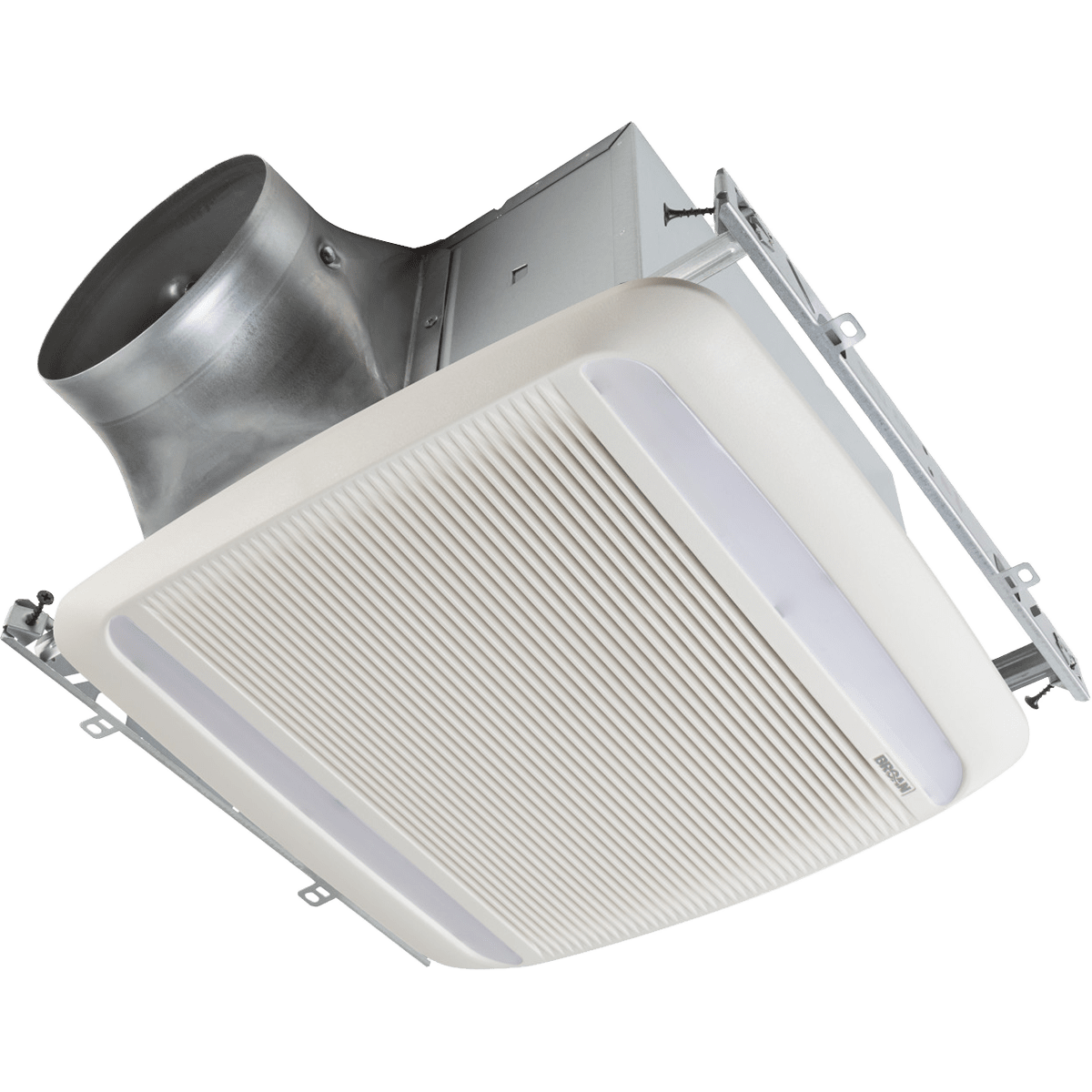

- Broan Ultra Pro RB110L: Higher CFM plus LED light make this a versatile choice.
Featured Specifications
- Energy Star Certified: All three fans are equipped with a DC motor for efficiency well beyond Energy Star requirements.
- HVI Certified: These fixtures comply with new testing technologies and procedures with a static pressure of 0.1 in.
- UL Listed: Meets UL and cUL standards for safe use over bathtubs and showers with GFCI circuits.
- Simple Installation: A unique telescoping mounting frame fits through a retrofit opening for easy room-side installation without attic access. Features mounting frame tabs for vertical positioning in new construction.
- Controls: These fans can use an on/off switch, a mechanical timer switch, or relay-switched controls. This includes the Broan Sensaire Humidity Sensing Wall Control (82W). Also compatible with the Broan Overture Connected IAQ System.
- Efficient LED: Fan models including an integrated LED light operate the light at only 18 watts. The light is dimmable and lasts up to 25,000 hours. Even lens diffusion prevents LED hot spots. The fan and light can be operated together or separately.
Summary
Broan’s Ultra Pro Series of Bathroom Exhaust Fans comes in two CFM options, with or without LED light. Choose the model that best suits your needs. All are Energy Star-rated and operate very quietly. They can be used to meet various building codes and Green Building Standards.
Specifications
Specifications
-
Manufacturer-Suggested Room Size (sq. ft.)75105105
-
Number of Speeds11Variable
-
Sound Level (Sones) (sones)0.30.60.8
-
CertificationscULULcULus
-
ColorWhite
-
ControlsElectronic
-
Maximum Cubic Feet per Minute (CFM) (CFM)80.0110.0110.0
-
Maximum Amperage (Amps)0.50.30.5
-
Maximum Wattage (W)2829.832.4
-
Voltage (V)110-120
-

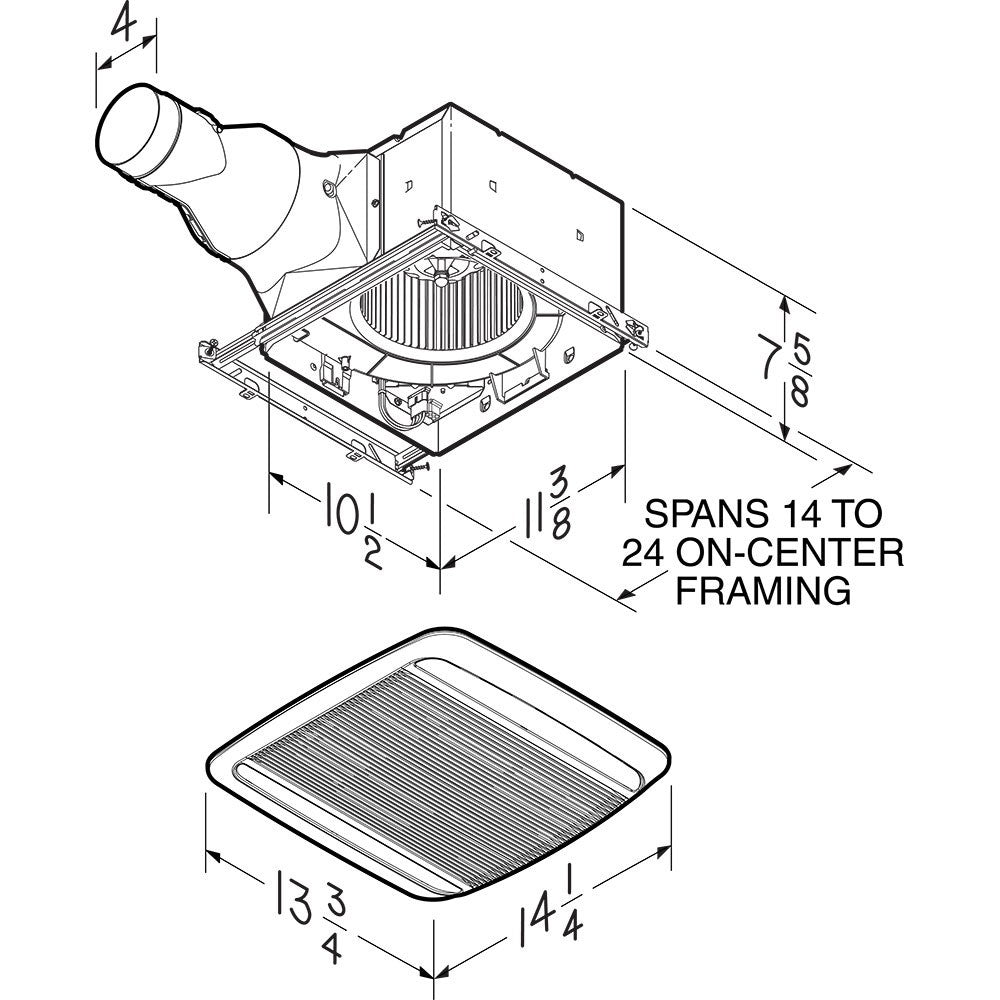

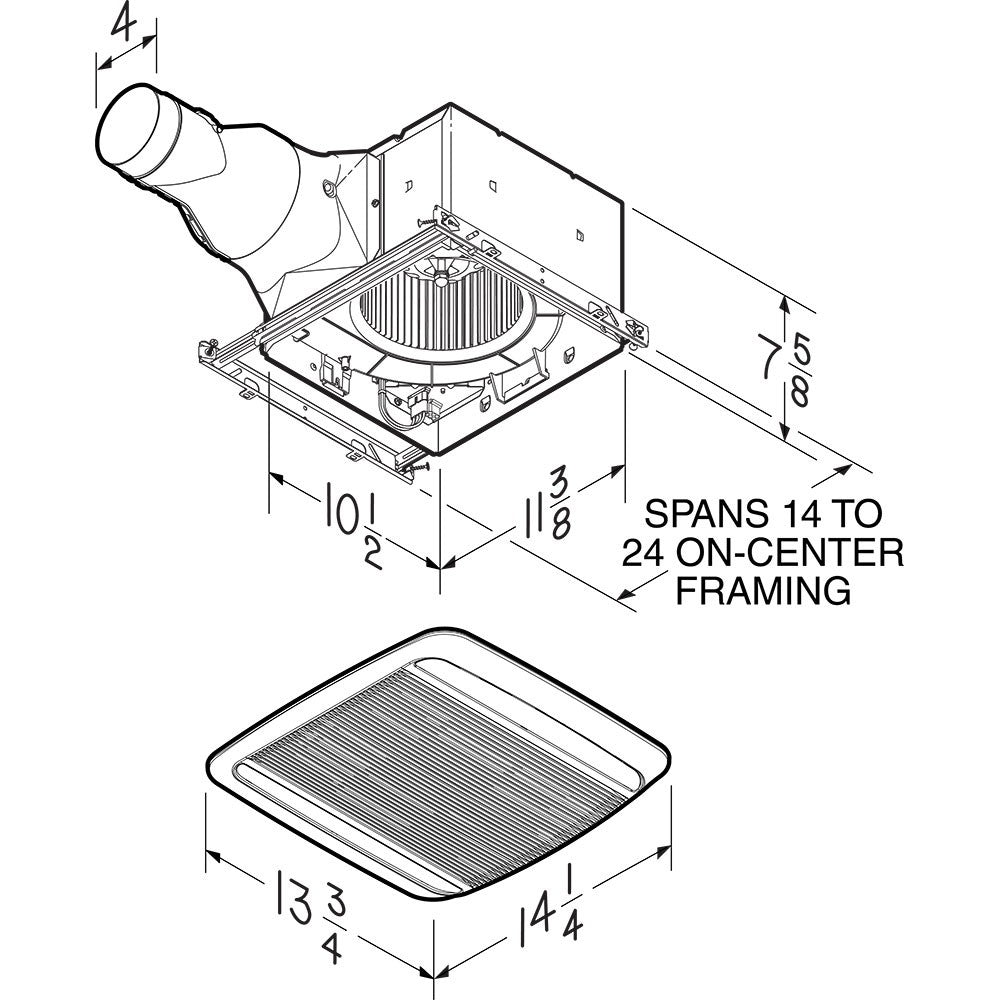

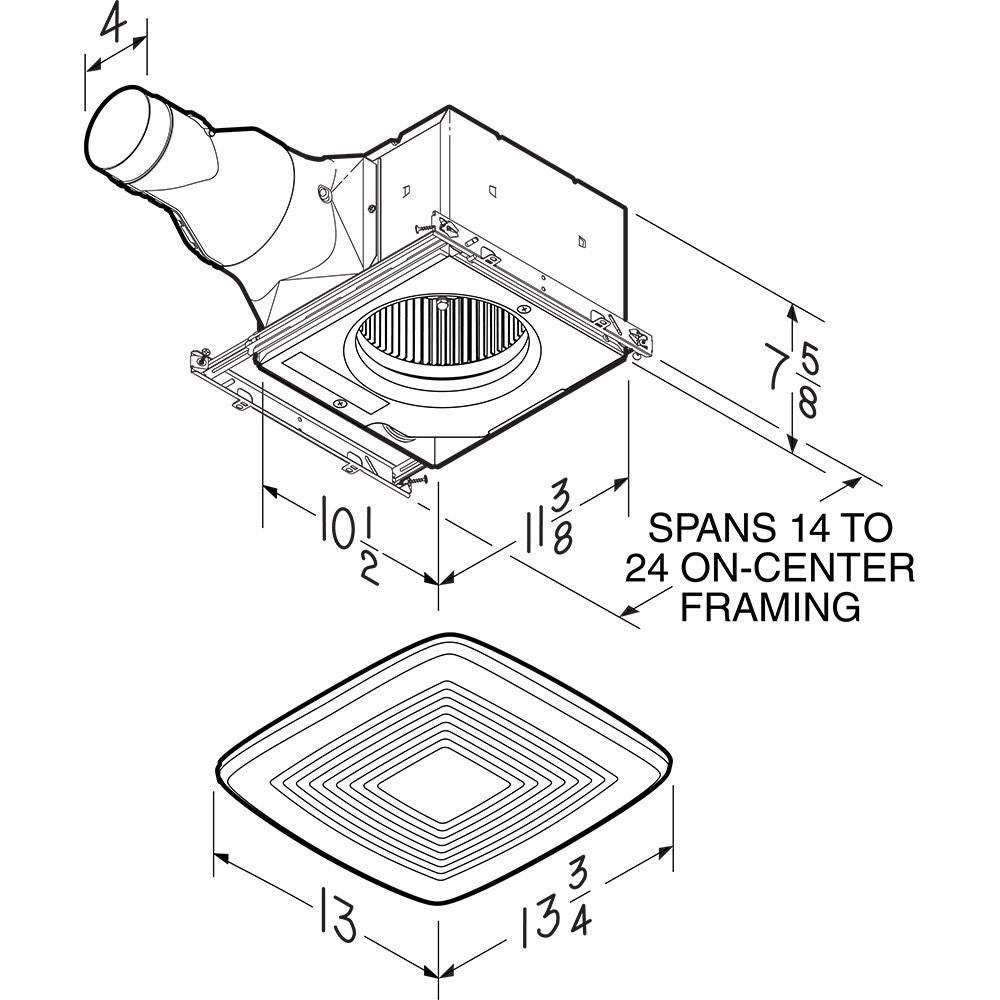

Ceiling or Wall Cutout Length (in.)12
-
Ceiling or Wall Cutout Width (in.)11
-
Depth (in.)13.7513.014.25
-
Depth (with front cover) (in.)13.7513.014.25
-
Duct Diameter (in.)4.0
-
Height (in.)7.625
-
Height (with front cover) (in.)7.625
-
Weight (lbs.)12.9413.514.46
-
Width (in.)14.2513.7513.75
-
Width (with front cover) (in.)14.2513.7513.75
-
Additional FeaturesEnergy Star, Built-In LightEnergy StarEnergy Star, Built-In Light
-
Manufacturer's Warranty3-Year Warranty
