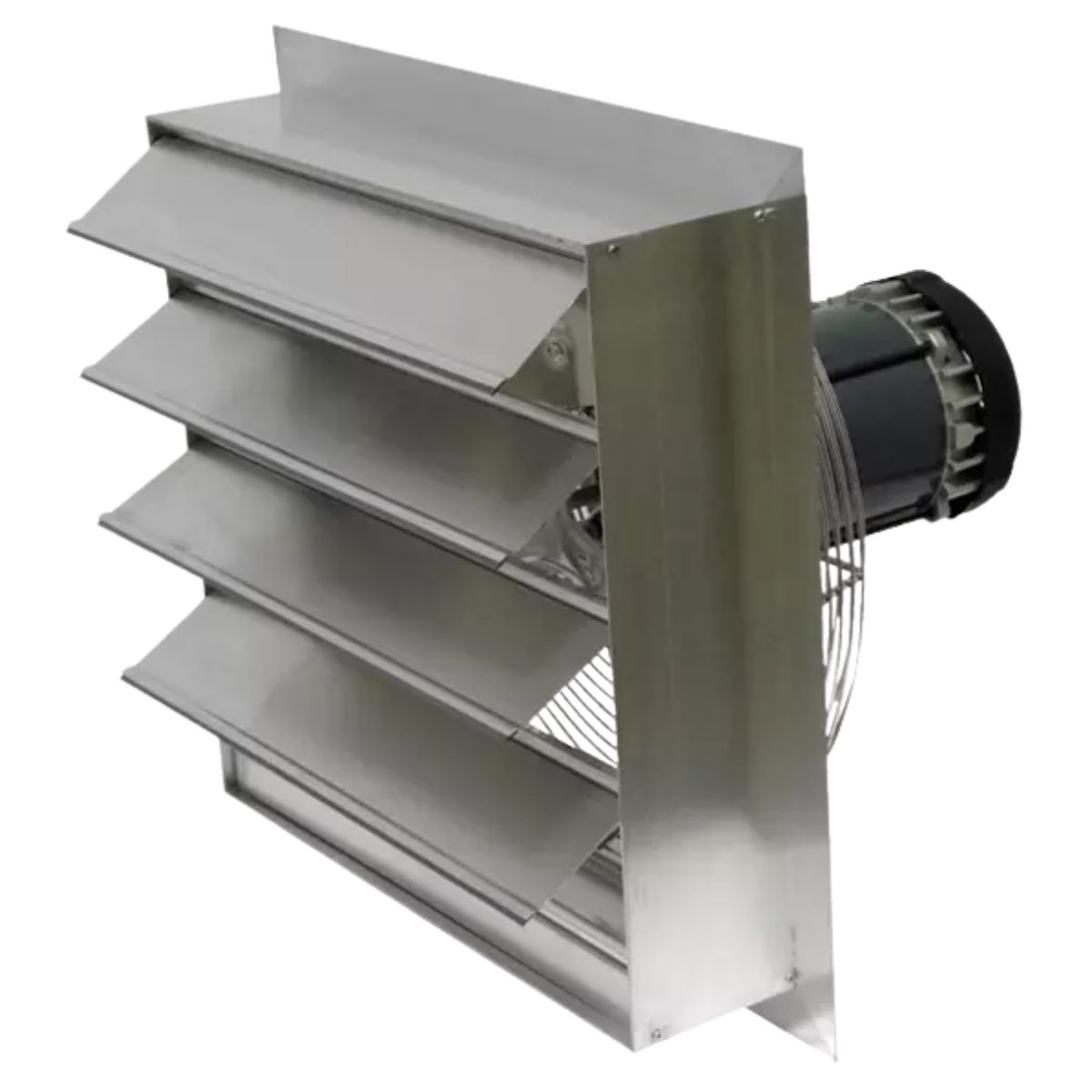

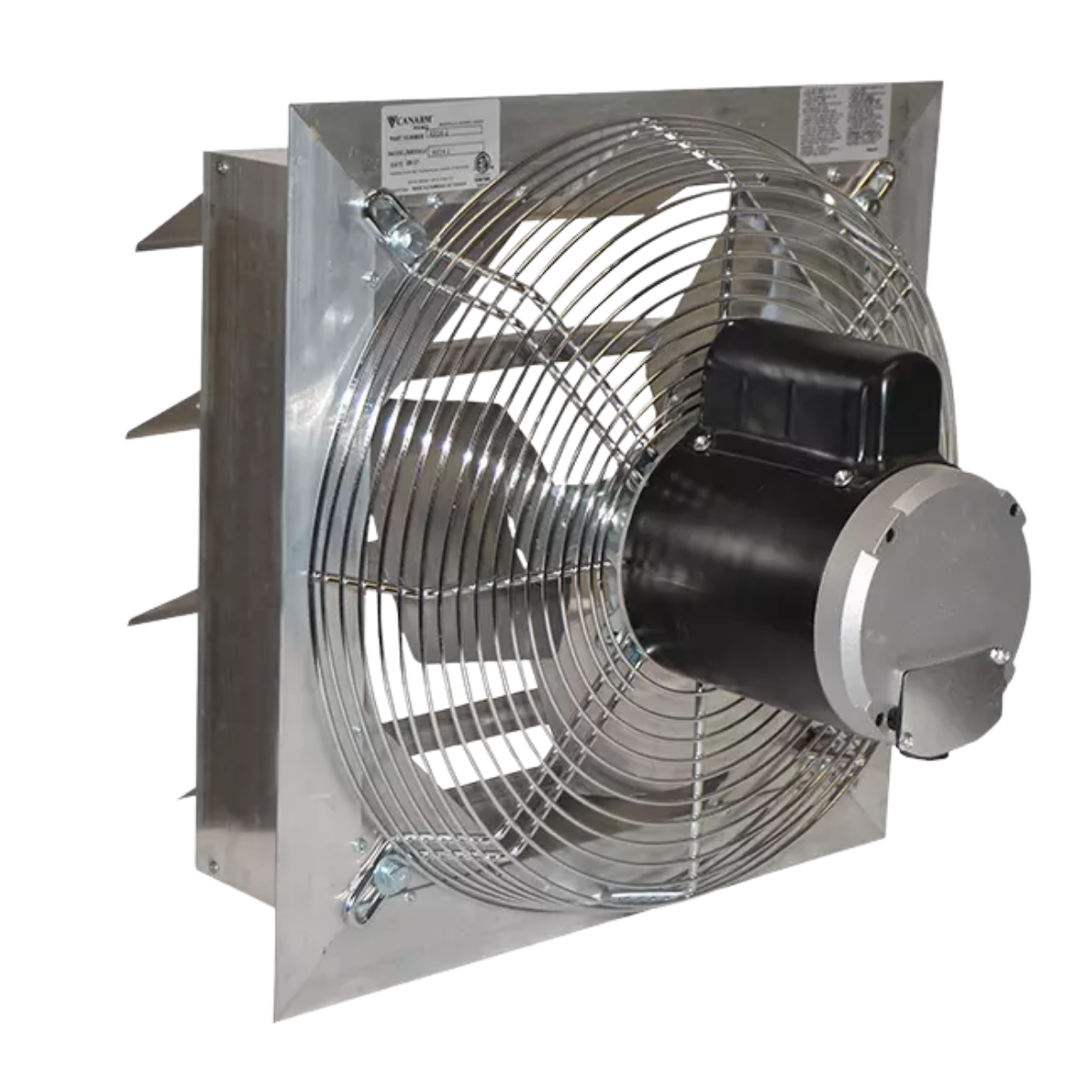

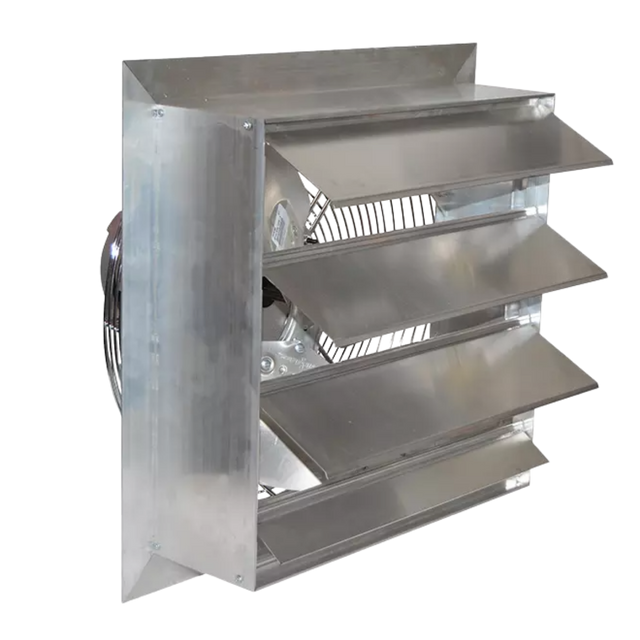

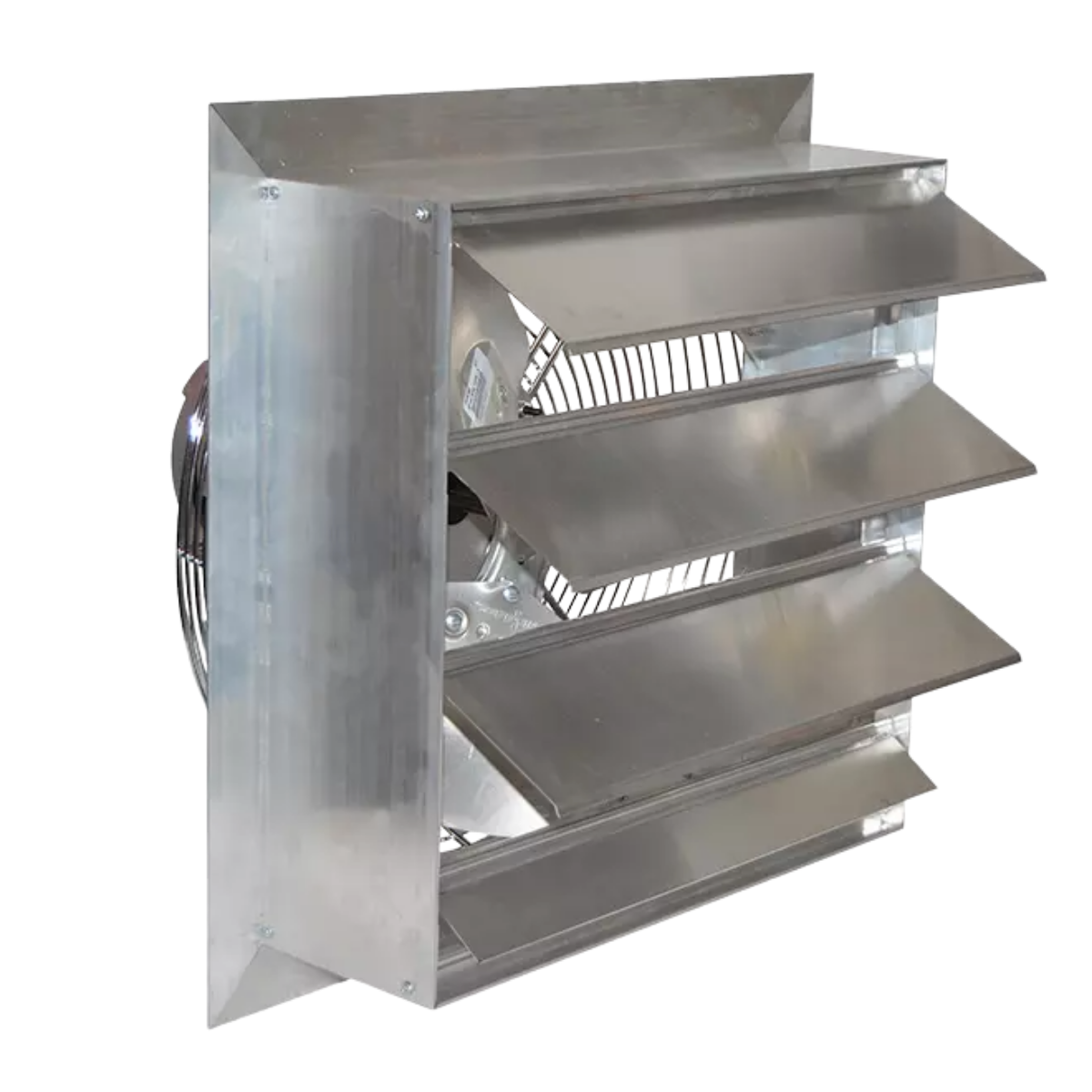

Canarm 36-in. AX Series Single Speed Shutter Mounted Aluminum Exhaust Fan
Canarm 36-in. AX Series Single Speed Shutter Mounted Aluminum Exhaust Fan is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Canarm 36-in. AX Series Single Speed Shutter-Mounted Aluminum Exhaust Fan
- Owner's Manual
Info & Guides
Info & Guides
Canarm 36-in. AX Series Single Speed Shutter Mounted Aluminum Exhau...
Description
Description
Managing airflow in demanding environments calls for a solution that is both sturdy and straightforward. The Canarm 36-inch AX Series Single Speed Shutter Mounted Aluminum Exhaust Fan offers dependable ventilation for factories, garages, warehouses, and other commercial spaces, helping you keep temperatures, odors, and airborne contaminants under control.
This direct-drive exhaust fan installs into a wall opening and operates at a fixed speed, pushing stale air outside while the passive inlets allow fresh air entry. Its purpose-built design keeps your ventilation strategy simple, reliable, and cost-effective.
Key Features and Benefits of Canarm 36-inch AX Series Shutter Fan
- Durable Housing: The heavy-duty aluminum housing resists rust and corrosion, giving you long-lasting performance in humid or dusty areas.
- Automatic Shutters: Automatic gravity shutters open when the fan starts and close when it stops, preventing backdrafts, pests, and weather intrusion without extra controls.
- Premium Airflow: A 36-inch balanced blade set delivers an airflow of up to 10,000 CFM, quickly removing excess heat, fumes, and moisture from large interiors.
- Protected Intake Guard: The powder-coated safety grille shields personnel from moving parts, supporting workplace safety standards.
- Total Motor Protection: The fan's 0.5-horsepower, totally enclosed motor is protected from dust and debris, reducing maintenance and extending service life.
- Voltage Flexibility: Dual-voltage wiring at 120 or 240 volts provides flexibility during installation across different facilities.
- Factory Tested: Factory testing and preassembly mean the fan ships ready to mount, saving time and labor on the job site.
Industry-Ready Build
Designed and built for commercial applications, this Canarm shutter fan meets the daily challenges of production floors, agricultural buildings, and automotive bays.
The rigid aluminum 39 x 39-inch frame withstands temperature swings and chemical exposure, while the powder-coated guard maintains its finish even under frequent wash-downs. Because the motor sits directly in the airstream, it benefits from continuous cooling, allowing the fan to maintain its rated speed of 850 RPM during extended shifts. When downtime isn't an option, the preassembled design and straightforward wiring help you replace or add ventilation capacity with minimal disruption.
Sylvane’s Expert Take
If you need a rugged exhaust solution that installs quickly and runs dependably, the Canarm 36-inch AX Series is a practical choice. Its high airflow, corrosion-resistant build, and gravity shutters tackle the core concerns of industrial ventilation without added complexity. The direct-drive motor cuts maintenance, and dual-voltage compatibility fits a range of electrical setups. Overall, it is a cost-effective way to achieve reliable air exchange in large commercial spaces.
Specifications
Specifications
-
Number of Speeds1
-
Sound Level (Sones) (sones)22.0
-
TypeShutter Exhaust Fan
-
ApplicationGarage/Workshop, Commercial/Industrial, Residential
-
CertificationscETLus
-
ColorGray
-
ControlsManual
-
Maximum Cubic Feet per Minute (CFM) (CFM)10000.0
-
Power SupplyHardwired
-
Voltage (V)110-120, 220-240
-
Depth (in.)17.0
-
Depth (with front cover) (in.)17.0
-
Height (in.)41.25
-
Height (with front cover) (in.)41.25
-
Shutter Fan Size (in.)36
-
Width (in.)41.25
-
Width (with front cover) (in.)41.25
-
Additional FeaturesThermal Cutoff Protection, Applicable for Indoor Growing
-
Manufacturer's Warranty1-Year Limited Warranty
