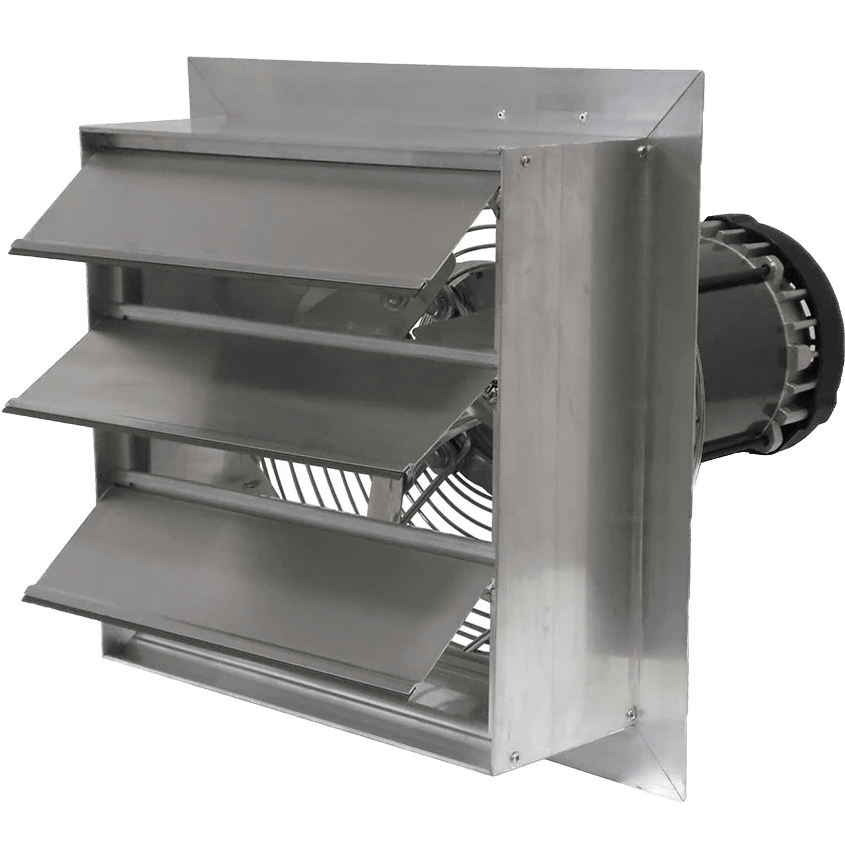

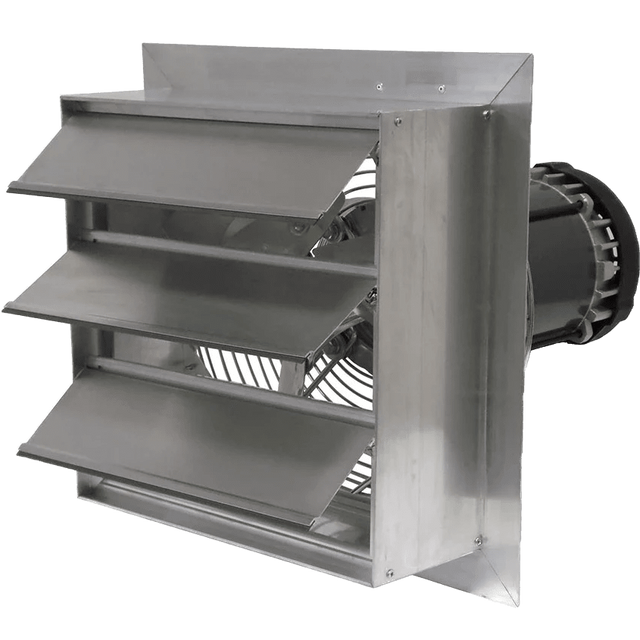

Canarm AX 12-In. Explosion Proof Aluminum Wall Mount Shutter Exhaust Fan
Canarm AX 12-In. Explosion Proof Aluminum Wall Mount Shutter Exhaust Fan - Single Phase is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Canarm AX 12-In. Explosion Proof Aluminum Wall Mount Shutter Exhaust Fan
- Owner's Manual
Info & Guides
Info & Guides
Canarm AX 12-In. Explosion Proof Aluminum Wall Mount Shutter Exhaus...
Description
Description
Designed for use in industrial, commercial, and farming applications, the Canarm AX 12-In. Explosion Proof Aluminum Wall Mount Shutter Exhaust Fan provides a safe and reliable performance. Ideal for general ventilation, this single-speed fan provides an airflow of up to 1,670 CFM. It's available in single-phase and three-phase options.
Explosion Proof Shutter Exhaust Fan
This is an explosion proof fan that meets and conforms to the following standards:
- Class I, Group C: Atmospheres containing ethyl ether, ethylene, gases or vapors of equivalent hazard.
- Class I, Group D: Atmospheres such as acetone, ammonia, benzene, butane, cyclopropane, ethanol, gasoline, hexane, methane, natural gas, naphtha, propane, or gasses or vapors of equivalent hazard.
- Class II, Group F: Atmospheres containing carbonaceous dust, including carbon black, charcoal, coal, or coke dusts that have more than 8% total entrapped volatiles, or dusts that have been sensitized by other materials so that they present an explosion hazard.
- Class II, Group G: G Atmospheres containing combustible dusts not included in group E or F, including flour, grain, wood, plastic and chemicals.
Canarm AX Series Specification Highlights
- Two Models To Choose From: Select from single-phase and three-phase models.
- Powerful Airflow: This direct-drive, horizontal discharge fan provides an airflow of up 1,670 CFM.
- Durable Design: Its housing is constructed of heavy-duty aluminum.

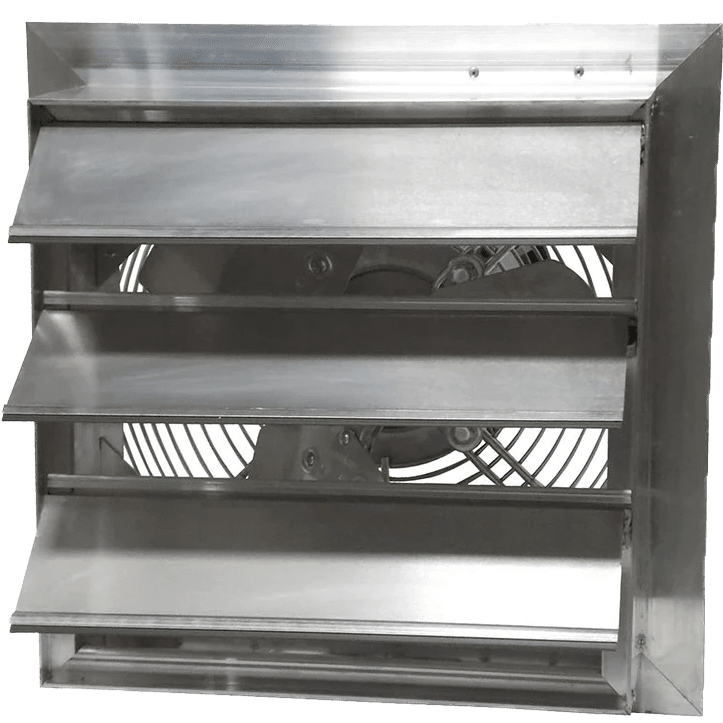

- Automatic Shutters: The fan's shutters automatically open when the fan starts and gravity closes when the fan stops.

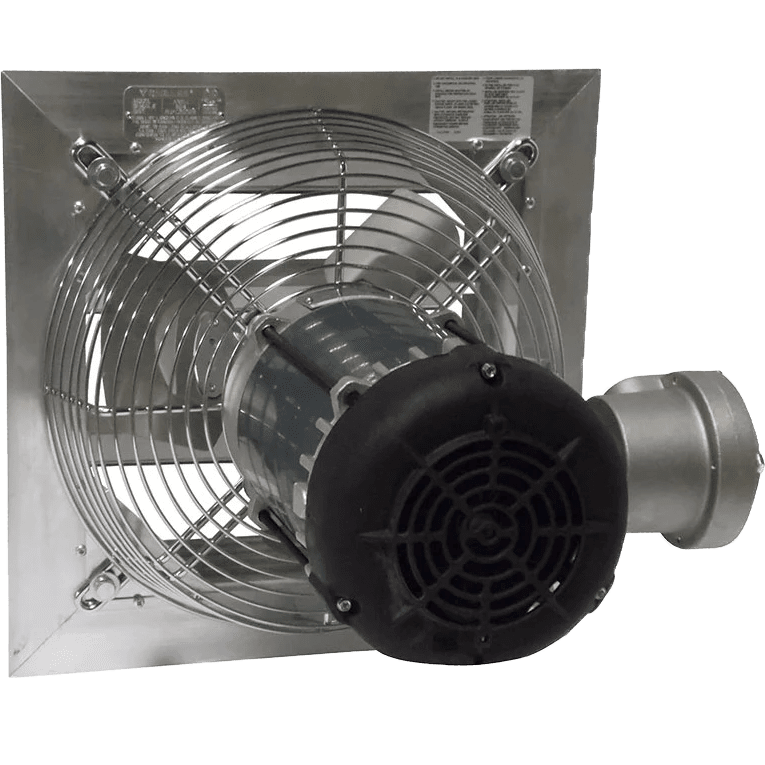

- OSHA Guards: Has heavy wire chrome plated OSHA guards on the intake side of fan.
- Added Safety: Features overload protection for an extra layer of safety.
- Ships Fully Assembled: This fan is ready for use right out of the box.
- Framing Dimensions: 14" x 14"
Summary
An explosion-proof fan, this Canarm AX Series is a safe and effective ventilator for farming, commercial, and industrial applications.
Specifications
Specifications
-
Number of Speeds1
-
Sound Level (Sones) (sones)25.012.0
-
TypeShutter Exhaust Fan
-
ApplicationCommercial/Industrial
-
California Residents⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.www.p65warnings.ca.gov.
-
CertificationscETLus
-
ColorGray
-
ControlsToggle Switch
-
Housing MaterialAluminum
-
Maximum Cubic Feet per Minute (CFM) (CFM)1670.0
-
Maximum RPM1725
-
Amperage (Amps)3.1 to 6.6
-
Power SupplyHardwired
-
Voltage (V)110-120220-240
-
Ceiling or Wall Cutout Length (in.)13.75
-
Ceiling or Wall Cutout Width (in.)13.75
-
Depth (in.)18.75
-
Depth (with front cover) (in.)18.75
-
Height (in.)16.75
-
Height (with front cover) (in.)16.75
-
Shutter Fan Size (in.)12
-
Weight (lbs.)49
-
Width (in.)16.75
-
Width (with front cover) (in.)16.75
-
Additional FeaturesMeets OSHA Standards, Explosion Proof
-
Manufacturer's Warranty1-Year Limited Warranty
