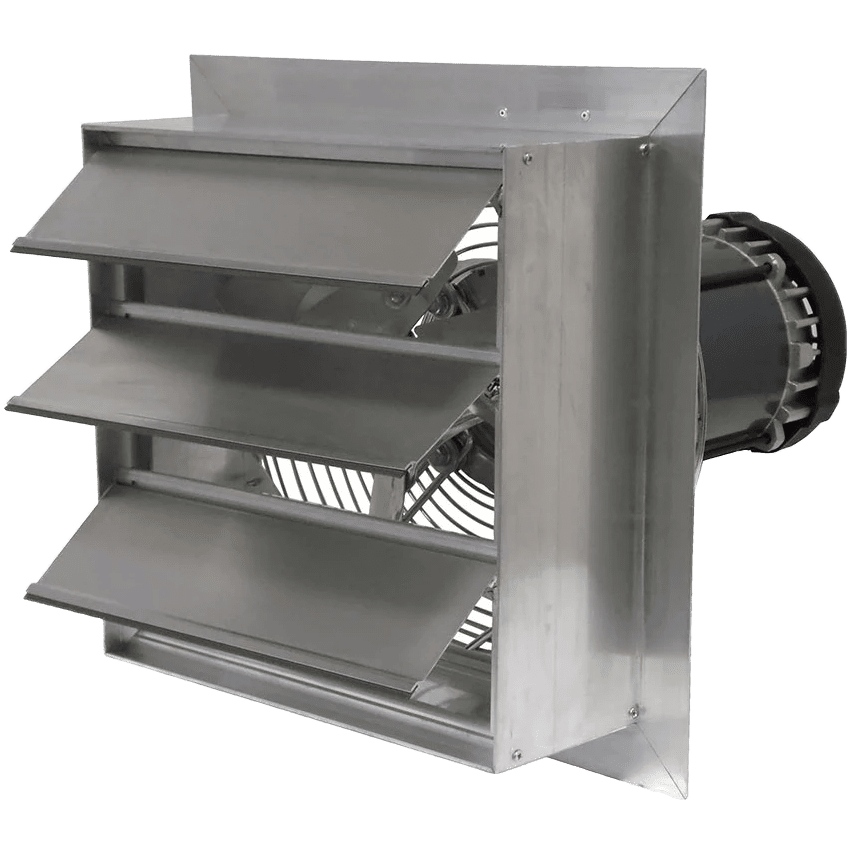

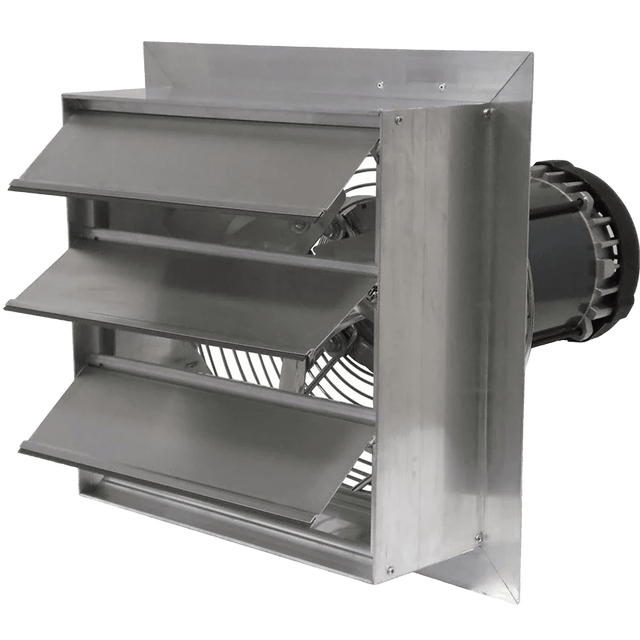

Canarm AX 18-In. Explosion Proof Aluminum Wall Mount Shutter Exhaust Fan

Name: Canarm AX 18-In. Explosion Proof Aluminum Wall Mount Shutter Exhaust Fan
Brand: Canarm
Price: 1126.0 USD
Availability: InStock

SKU: ca13553 | Model: AX18-4M

$1,126.00

FREE shipping on orders over $45!

In Stock Usually ships in 10 business days.

Option

Product variants

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

1-Year Limited Warranty

What's In The Box?

Canarm AX 18-In. Explosion Proof Aluminum Wall Mount Shutter Exhaust Fan
Owner's Manual

Info & Guides

Description

Ventilate commercial, industrial, and farming applications with the Canarm AX 18-In. Explosion Proof Aluminum Wall Mount Shutter Exhaust Fan. This sturdily constructed, direct drive, horizontal discharge fan is typically used for general ventilation. Its explosion-proof design makes it perfect for use in areas with combustible materials. This model is available in single-phase and three-phase options.

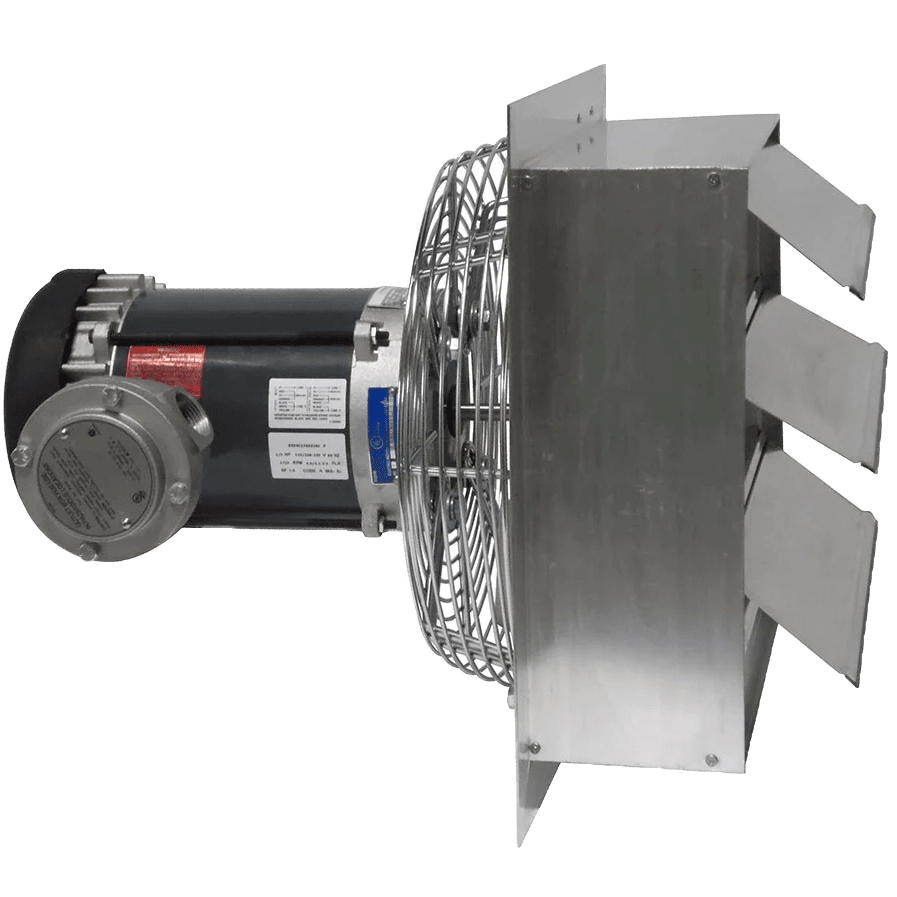

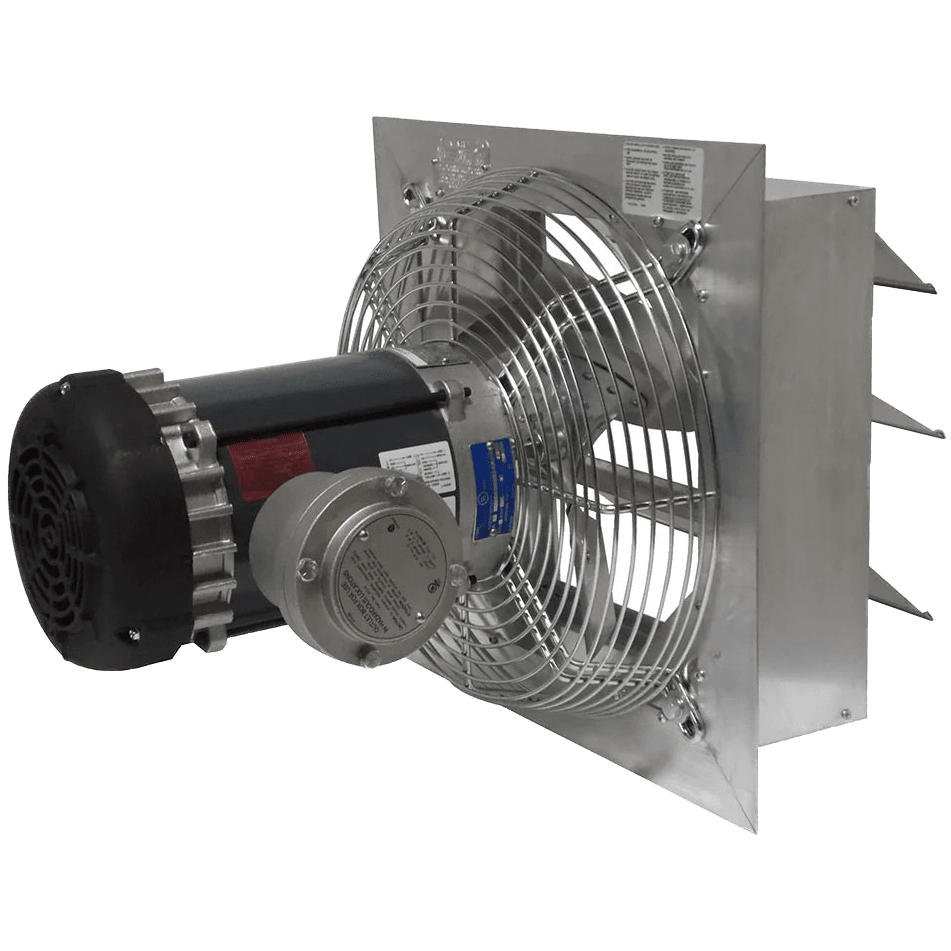

Explosion Proof Motor

This is an explosion-proof fan that meets and conforms to the following standards:

Class I, Group C: Atmospheres containing ethyl ether, ethylene, gases or vapors of equivalent hazard.
Class I, Group D: Atmospheres such as acetone, ammonia, benzene, butane, cyclopropane, ethanol, gasoline, hexane, methane, natural gas, naphtha, propane, or gasses or vapors of equivalent hazard.
Class II, Group F: Atmospheres containing carbonaceous dust, including carbon black, charcoal, coal, or coke dusts that have more than 8% total entrapped volatiles, or dusts that have been sensitized by other materials so that they present an explosion hazard.
Class II, Group G: G Atmospheres containing combustible dusts not included in group E or F, including flour, grain, wood, plastic and chemicals.

Canarm AX Series Specification Highlights

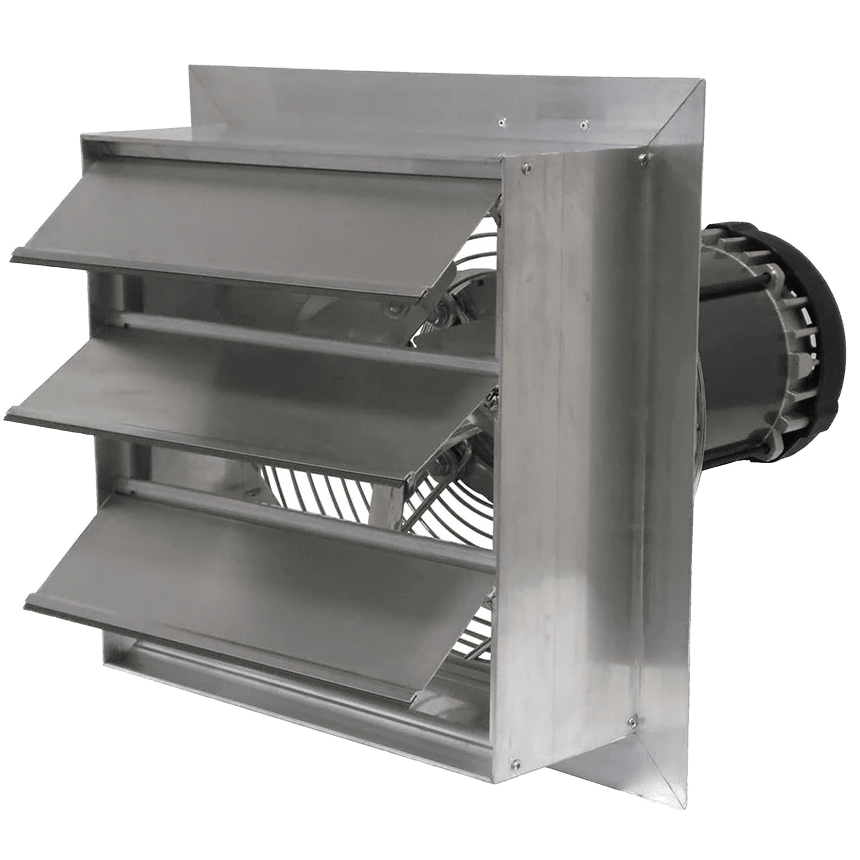

Multiple Options: Select from single-phase or three-phase options.
Powerful Airflow: This direct-drive, horizontal discharge fan provides an airflow of up 3,200 CFM.
Built to Last: With durable heavy-duty aluminum housing, this fan withstands the rigors of daily use.

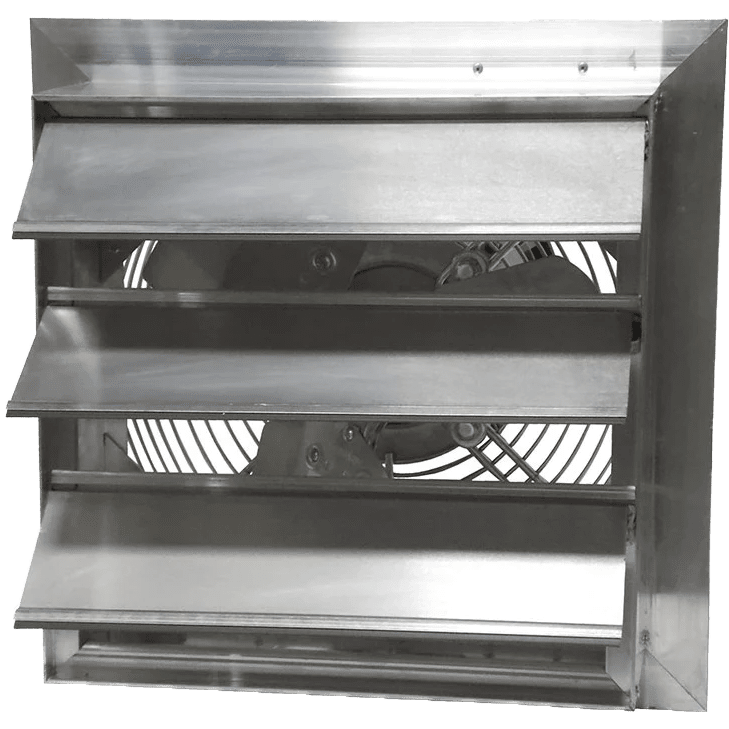

Automatic Shutters: The fan's shutters automatically open when the fan starts and gravity closes when the fan stops.

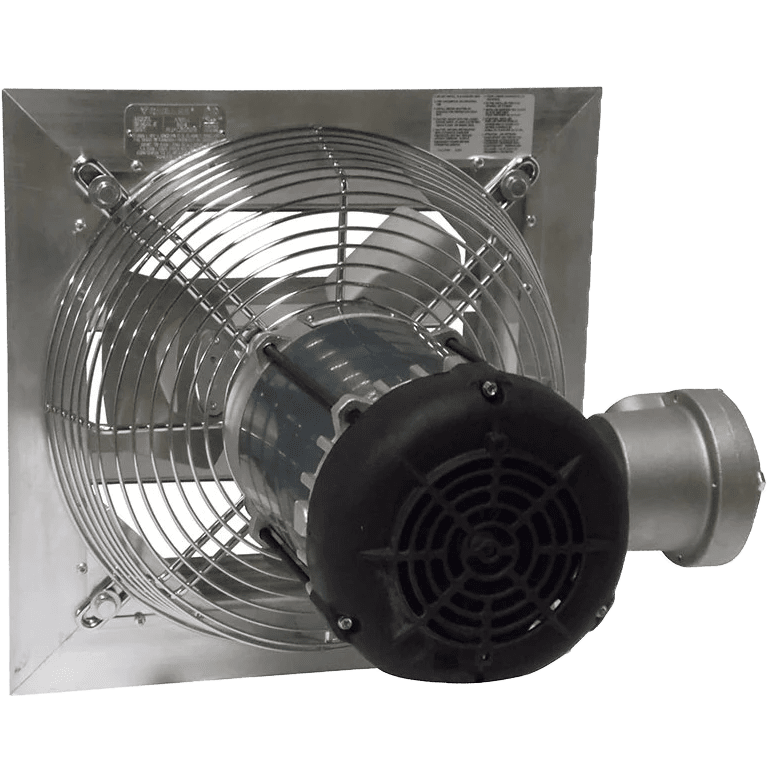

Intake Guards: Features heavy wire chrome plated OSHA guards on the intake side of fan.
Added Safety: Features overload protection for an extra layer of safety.
Ships Fully Assembled: This fan is ready for use right out of the box.
Framing Dimensions: 20" x 20"

Summary

Safely and effectively ventilate in areas with combustible materials with the Canarm AX Series Fan.

Specifications

Key Specifications

Number of Speeds

1
Sound Level (Sones) (sones)

37.0
Type

Shutter Exhaust Fan

General

Application

Commercial/Industrial
California Residents

⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.www.p65warnings.ca.gov.
Certifications

cETLus
Color

Gray
Controls

Toggle Switch
Housing Material

Aluminum
Maximum Cubic Feet per Minute (CFM) (CFM)

3200.0
Maximum RPM

1725

Power

Amperage (Amps)

Three Phase: 1.4

Single Phase: 3.1 to 6.6
Power Supply

Hardwired
Voltage (V)

Three Phase: 220-240

Single Phase: 110-120

Dimensions

Ceiling or Wall Cutout Length (in.)

19.75
Ceiling or Wall Cutout Width (in.)

19.75
Depth (in.)

19.0
Depth (with front cover) (in.)

19.0
Height (in.)

22.75
Height (with front cover) (in.)

22.75
Shutter Fan Size (in.)

18
Weight (lbs.)

56
Width (in.)

22.75
Width (with front cover) (in.)

22.75
