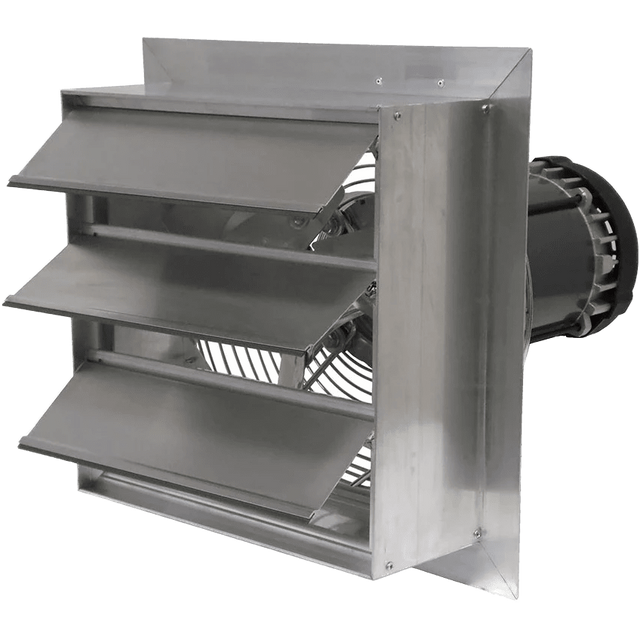

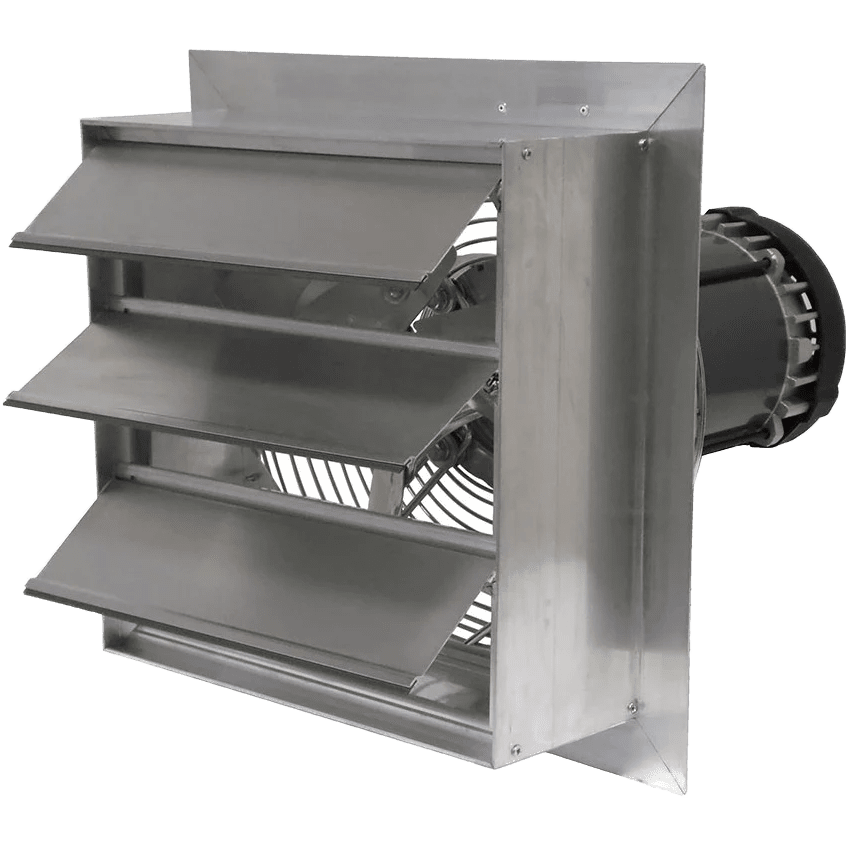

Canarm AX 20-In. Explosion Proof Aluminum Wall Mount Shutter Exhaust Fan

Name: Canarm AX 20-In. Explosion Proof Aluminum Wall Mount Shutter Exhaust Fan
Brand: Canarm
Price: 1189.0 USD
Availability: InStock

SKU: ca13555 | Model: AX20-4M

$1,189.00

FREE shipping on orders over $45!

In Stock Usually ships in 10 business days.

Option

Product variants

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

1-Year Limited Warranty

What's In The Box?

Canarm AX 20-In. Explosion Proof Aluminum Wall Mount Shutter Exhaust Fan
Owner's Manual

Info & Guides

Description

Ventilate factories, garages, farming facilities, warehouses, and more with the Canarm AX 20-In. Explosion Proof Aluminum Wall Mount Shutter Exhaust Fan. Designed for use in buildings with combustible materials, its maximum 3,640 CFM airflow is perfect for general ventilation. It's available in single-phase and three-phase options.

Explosion Proof Shutter Exhaust Fan

This is an explosion proof fan that meets and conforms to the following standards:

Class I, Group C: Atmospheres containing ethyl ether, ethylene, gases or vapors of equivalent hazard.
Class I, Group D: Atmospheres such as acetone, ammonia, benzene, butane, cyclopropane, ethanol, gasoline, hexane, methane, natural gas, naphtha, propane, or gasses or vapors of equivalent hazard.
Class II, Group F: Atmospheres containing carbonaceous dust, including carbon black, charcoal, coal, or coke dusts that have more than 8% total entrapped volatiles, or dusts that have been sensitized by other materials so that they present an explosion hazard.
Class II, Group G: G Atmospheres containing combustible dusts not included in group E or F, including flour, grain, wood, plastic and chemicals.

Top Features Of The Canarm AX-Series 20-Inch Fan

Two Models To Choose From: Select from single-phase and three-phase models.

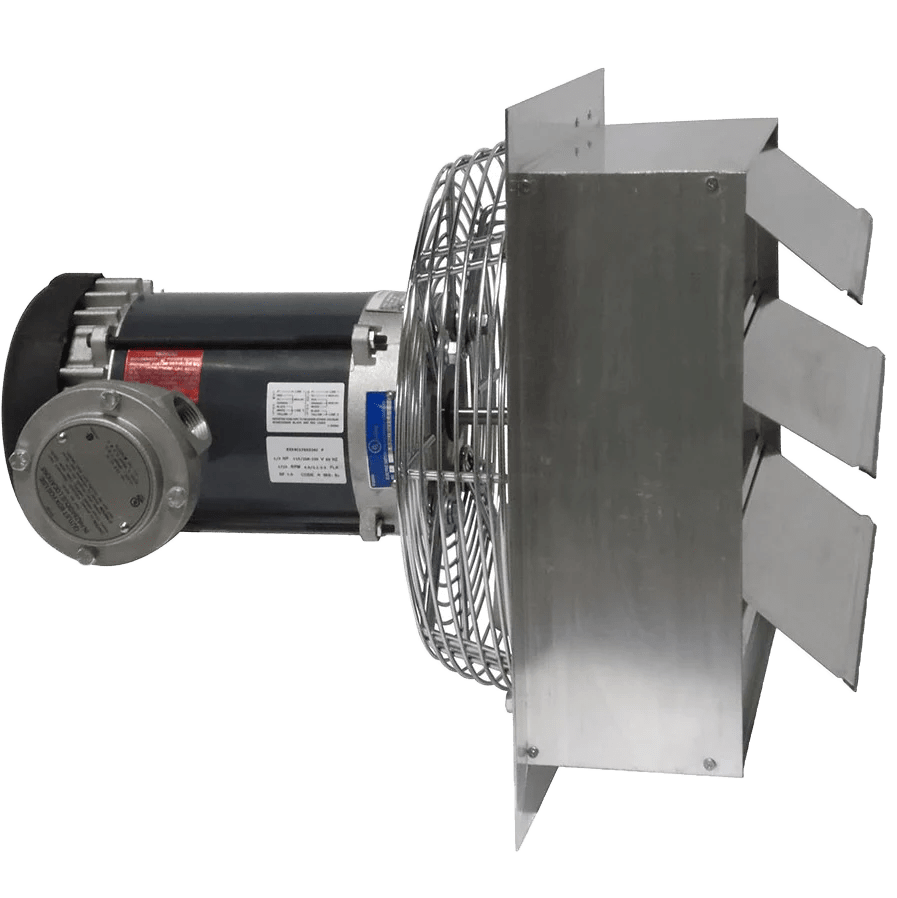

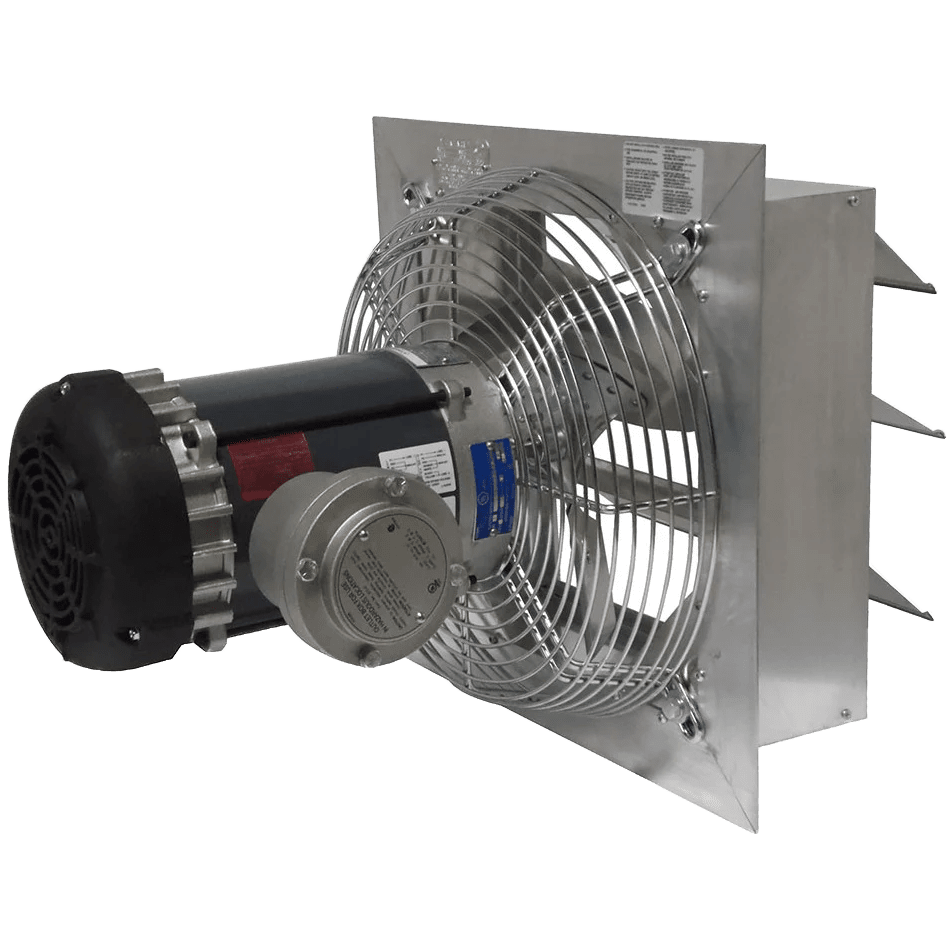

Direct-Drive Fan: This direct-drive, horizontal discharge fan has a maximum airflow of 3,640 CFM.
Built to Last: With durable heavy-duty aluminum housing, this fan withstands the rigors of daily use.

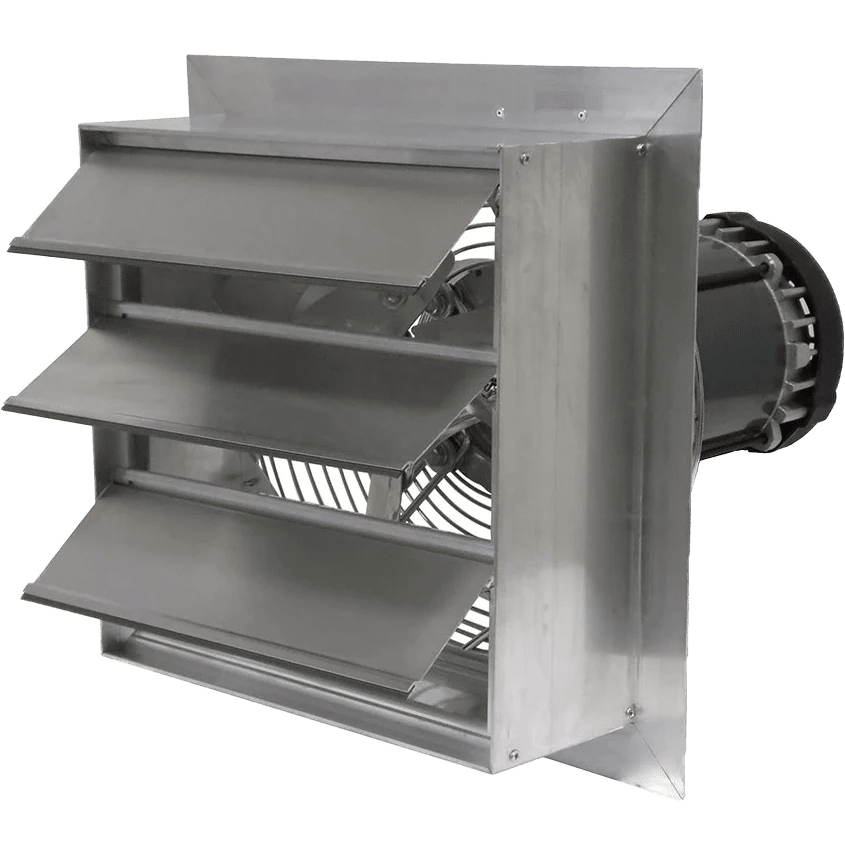

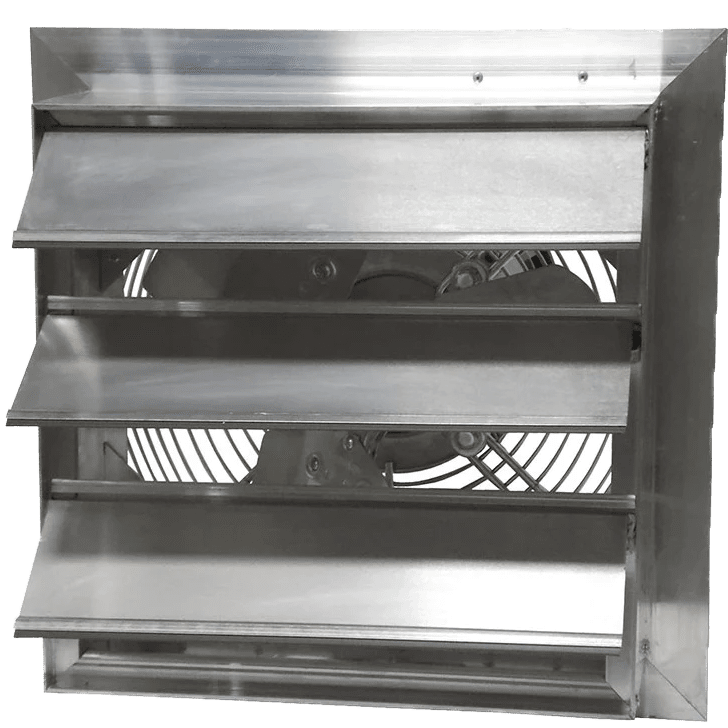

Automatic Shutters: The fan's shutters automatically open when the fan starts and gravity closes when the fan stops.

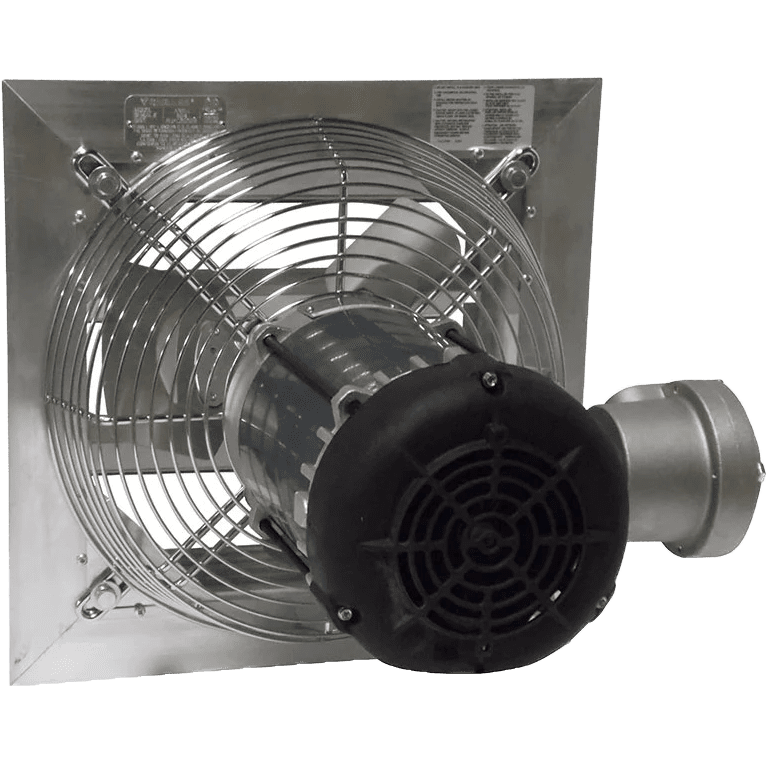

OSHA Guards: Has heavy wire chrome-plated OSHA guards on the intake side of the fan.
Overload Protection: Provides an extra layer of safety.
Ships Fully Assembled: This fan is ready for use right out of the box.
Framing Dimensions: 22" x 22"

Summary

Provide general ventilation to commercial and industrial applications with the 20-inch Canarm AX Series fan.

Specifications

Key Specifications

Number of Speeds

1
Sound Level (Sones) (sones)

44.0
Type

Shutter Exhaust Fan

General

Application

Commercial/Industrial
California Residents

⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.www.p65warnings.ca.gov.
Certifications

cETLus
Color

Gray
Controls

Toggle Switch
Housing Material

Aluminum
Maximum Cubic Feet per Minute (CFM) (CFM)

3640.0
Maximum RPM

1725

Power

Amperage (Amps)

Three Phase: 1.4

Single Phase: 3.1 to 6.6
Power Supply

Hardwired
Voltage (V)

Three Phase: 220-240

Single Phase: 110-120

Dimensions

Ceiling or Wall Cutout Length (in.)

21.75
Ceiling or Wall Cutout Width (in.)

21.75
Depth (in.)

17.0
Depth (with front cover) (in.)

17.0
Height (in.)

24.75
Height (with front cover) (in.)

24.75
Shutter Fan Size (in.)

20
Weight (lbs.)

57
Width (in.)

24.75
Width (with front cover) (in.)

24.75
