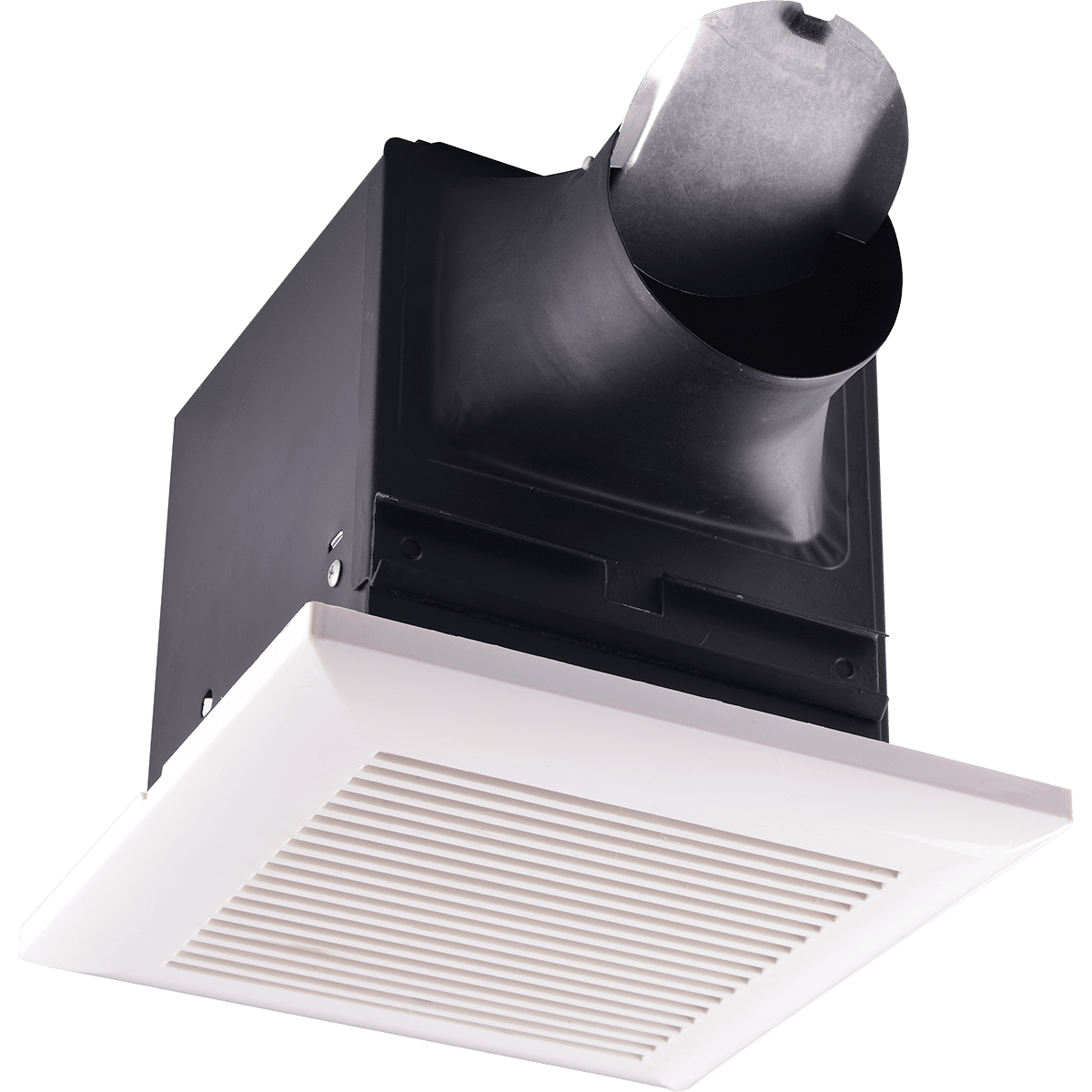

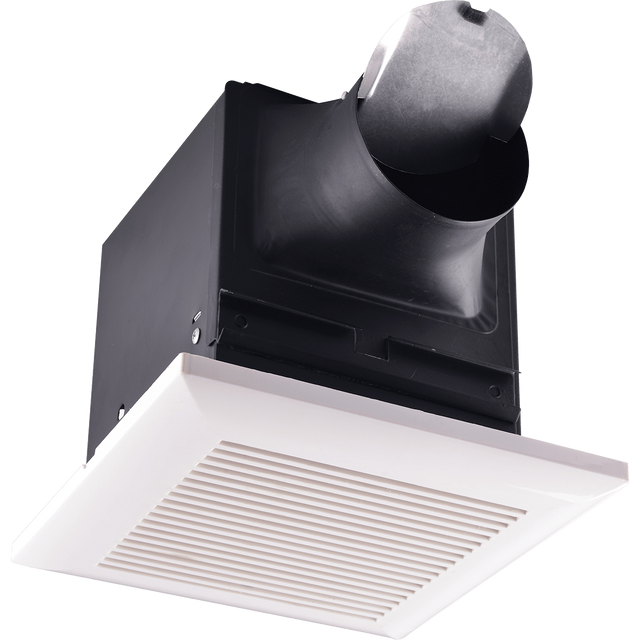

Canarm 70 CFM Bathroom Exhaust Fan

Key Specifications

• Manufacturer-Suggested Room Size (sq. ft.)
  75
• Mounting Type
  Ceiling
• Number of Speeds
  1
• Sound Level (Sones) (sones)
  1.0

General

• Certifications
  UL
• Color
  White
• Controls
  Manual
• Maximum Cubic Feet per Minute (CFM) (CFM)
  70.0

Power

• Maximum Amperage (Amps)
  0.14
• Maximum Wattage (W)
  17
• Voltage (V)
  110-120
• Watts (W)
  17

Dimensions

• Ceiling or Wall Cutout Length (in.)
  7.6
• Ceiling or Wall Cutout Width (in.)
  6.8
• Cut Out Dimensions (H x W) (in.)
  6.7 x 6.7
• Depth (in.)
  7.6
• Depth (with front cover) (in.)
  7.6
• Duct Diameter (in.)
  4.0
• Fan Diameter (in.)
  9.4
• Height (in.)
  9.4
• Height (with front cover) (in.)
  9.4
• Weight (lbs.)
  8
• Width (in.)
  9.4
• Width (with front cover) (in.)
  9.4

Additional Features

• Additional Features
  Ductable
