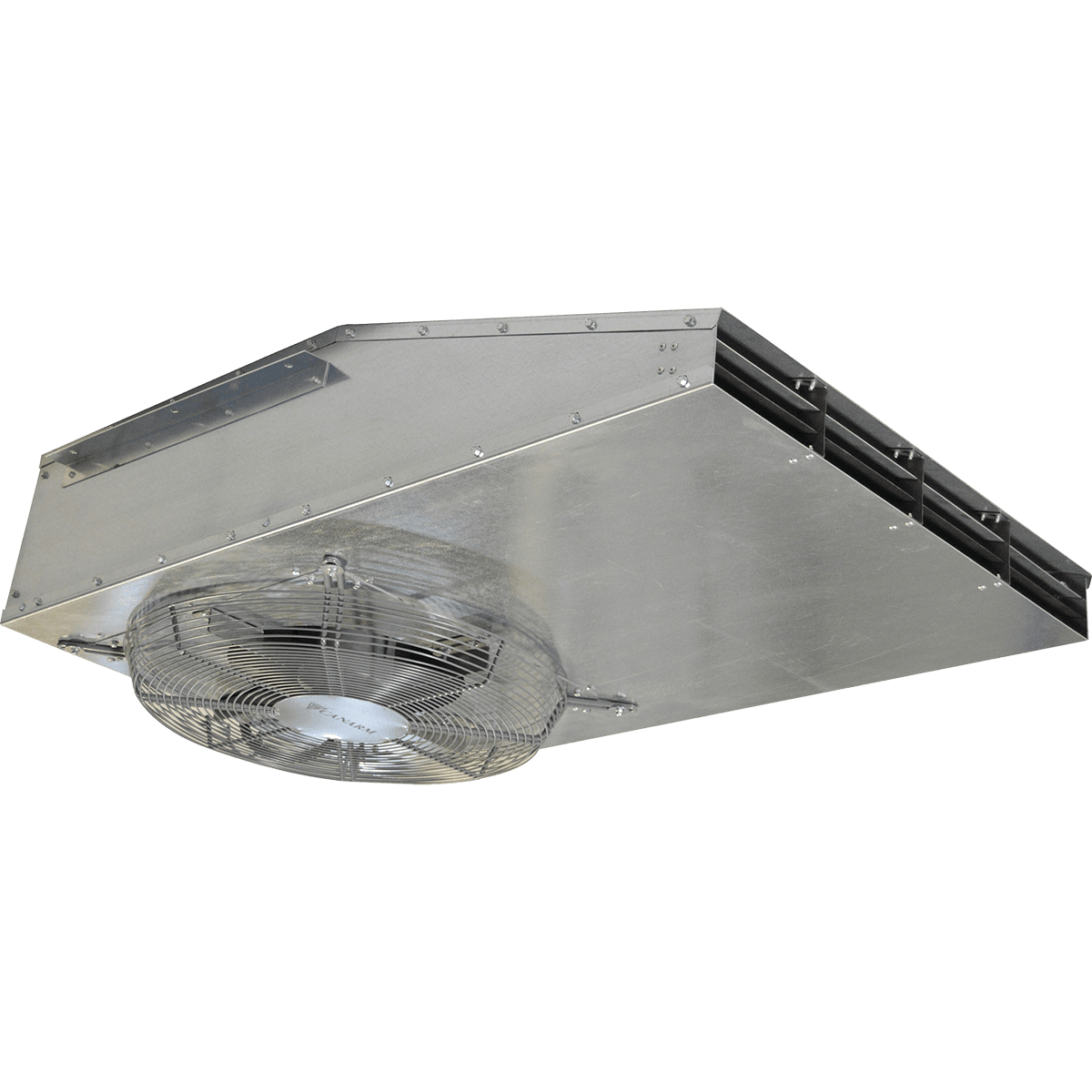

Canarm CJF Centrifugal Jet Fan w/ 45N Thrust
Description
Description
Deliver effective ventilation to low ceiling applications such as parking garages and more with the Canarm CJF Centrifugal Jet Fan with 45N Thrust. This single-speed fan delivers a 3,649 CFM maximum airflow for high-speed and high-pressure directed air.
With its galvanized sheet steel casing and OSHA protective intake grille, this is a reliable ventilation solution.
Perfect For Low Ceiling Heights
Less than 12 inches tall and just 32 inches wide, the Canarm CJF-50N-1M is the perfect choice for low ceiling applications. Use it in parking garages and other similar industrial settings for effective ventilation.
High-Speed Directed Air
A single-speed fan, the Canarm CJF Jet Fan is the premier choice for delivering directed air to industrial applications. Capable of airflow of 3,649 CFM and with a thrust of 45N, this unit features a high-pressure directed air jet.
Additional Features
- Durable Design: Features a CJF casing constructed for galvanized stainless steel.
- OSHA Compliant: Equipped with an OSHA protective intake grille.
- Steel Blades: The impeller has backward curved steel blades.
- Easy to Install: Mount this fan to the ceiling using the supplied brackets.
- Hardwired Design: Power is supplied through an external terminal box.
- Operating Temperature: Works in temperatures ranging from -13 - 104 degrees Fahrenheit.
Summary
Deliver effective ventilation to low ceiling applications such as parking garages and more with the Canarm CJF-50N-1M.
Specifications
Specifications
-
Number of Speeds2
-
Sound Level (Sones) (sones)8.0
-
TypeJet Exhaust Fan
-
ApplicationCommercial/Industrial
-
California Residents⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. See: www.P65Warnings.ca.gov
-
CertificationsETL, cETLus
-
ColorGray
-
ControlsManual
-
Housing MaterialGalvanized Steel
-
Maximum Cubic Feet per Minute (CFM) (CFM)3649.0
-
Maximum RPM1750
-
Amperage (Amps)12.4
-
Power SupplyPlug
-
Voltage (V)110-120
-
Watts (W)1491
-
Depth (in.)53.75
-
Depth (with front cover) (in.)53.75
-
Height (in.)11.5625
-
Height (with front cover) (in.)11.5625
-
Weight (lbs.)215
-
Width (in.)32.0
-
Width (with front cover) (in.)32.0
-
Additional FeaturesMeets OSHA Standards
-
Manufacturer's Warranty1-Year Limited Warranty
