Canarm GSF Series 18-In. Galvanized Shutter Exhaust Fan

Name: Canarm GSF Series 18-In. Galvanized Shutter Exhaust Fan
Brand: Canarm
Price: 238.0 USD
Availability: InStock

SKU: ca13537 | Model: GSF3-18A

$238.00

Add extended protection plan. (Select one)

1-Year Replacement Extended Warranty - $24.99

learn more

A 1-year replacement warranty plan for commercial or residential use items under $250.

2-Year Replacement Extended Warranty - $29.99

learn more

A 2-year replacement warranty plan for commercial or residential use items under $250.

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

1-Year Limited Warranty

What's In The Box?

Canarm GSF Series 18-In. Galvanized Shutter Exhaust Fan
Owner's Manual

Info & Guides

Owner's Manual

Description

Featuring three speeds creating an airflow of up to 1,736 CFM, the Canarm GSF Series 18-In. Galvanized Shutter Exhaust Fan delivers safe and reliable ventilation to light-commercial applications. With its galvanized frame and aluminum shutters, this unit is designed to provide years of reliable use.

Top Features Of The Canarm GSF3-18A

Fan Diameter: Features an 18-inch propeller for creating the airflow you need.
Powerful Airflow: This unit is capable of an airflow of up to 1,736 CFM.
Built for Safety: It's designed with a a totally enclosed, class B insulation, thermally protected 120V motor.
Multiple Fan Speeds: Find the right comfort level with its three fan speeds.
Durable Design: Its aluminum shutters and galvanized frame help this unit to deliver years of reliable use.

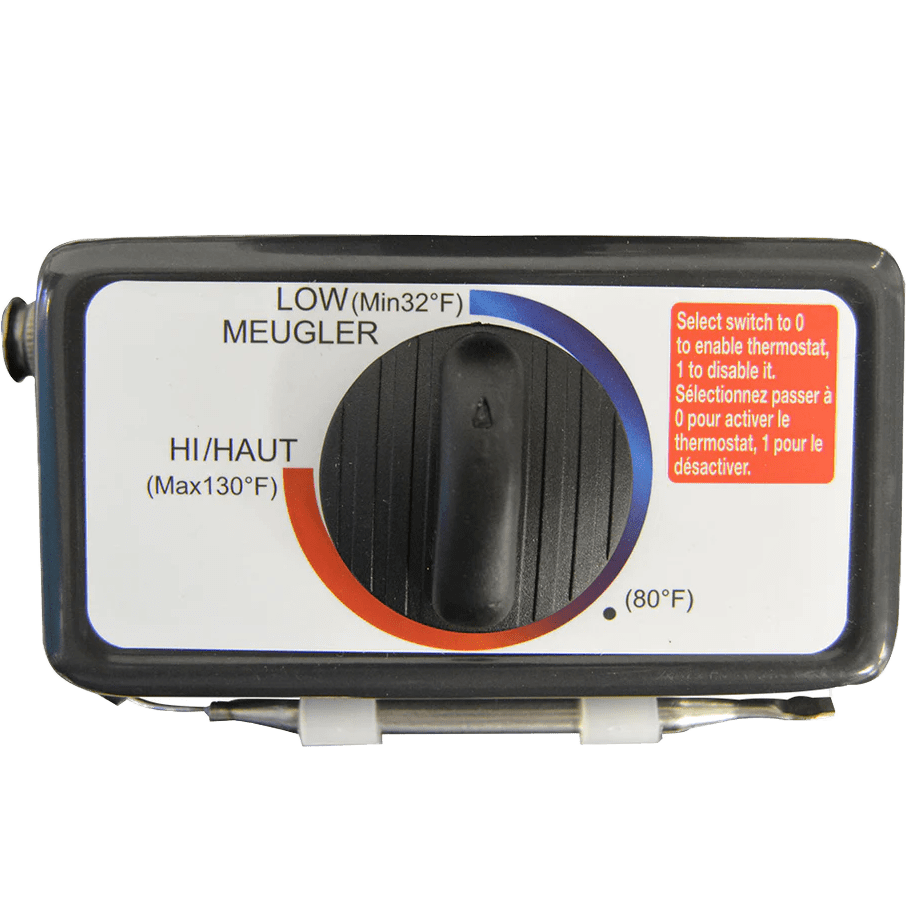

Easy to Operate: Controlling this shutter fan is simple thanks to a 25-inch pull chain and adjustable thermostat with a temperature range of 32 - 130 degrees Fahrenheit.
Power Cord: Features a six foot long power cord.

Summary

The Canarm GSF Series 18-In. Galvanized Shutter Exhaust Fan delivers safe and reliable ventilation to light-commercial applications.

Specifications

Key Specifications

Number of Speeds

3
Type

Shutter Exhaust Fan

General

Application

Garage/Workshop, Commercial/Industrial
California Residents

⚠ WARNING: Cancer - www.P65Warnings.ca.gov.www.p65warnings.ca.gov.
Certifications

cULus
Color

Gray
Controls

Toggle Switch
Housing Material

Galvanized Steel
Maximum Cubic Feet per Minute (CFM) (CFM)

1736.0
Maximum RPM

1070

Power

Amperage (Amps)

0.9
Power Supply

Hardwired
Voltage (V)

110-120

Dimensions

Ceiling or Wall Cutout Length (in.)

19
Ceiling or Wall Cutout Width (in.)

19
Depth (in.)

14.625
Depth (with front cover) (in.)

14.625
Height (in.)

21.0
Height (with front cover) (in.)

21.0
Shutter Fan Size (in.)

18
Width (in.)

21.0
Width (with front cover) (in.)

21.0

Warranty

Manufacturer's Warranty

1-Year Limited Warranty
