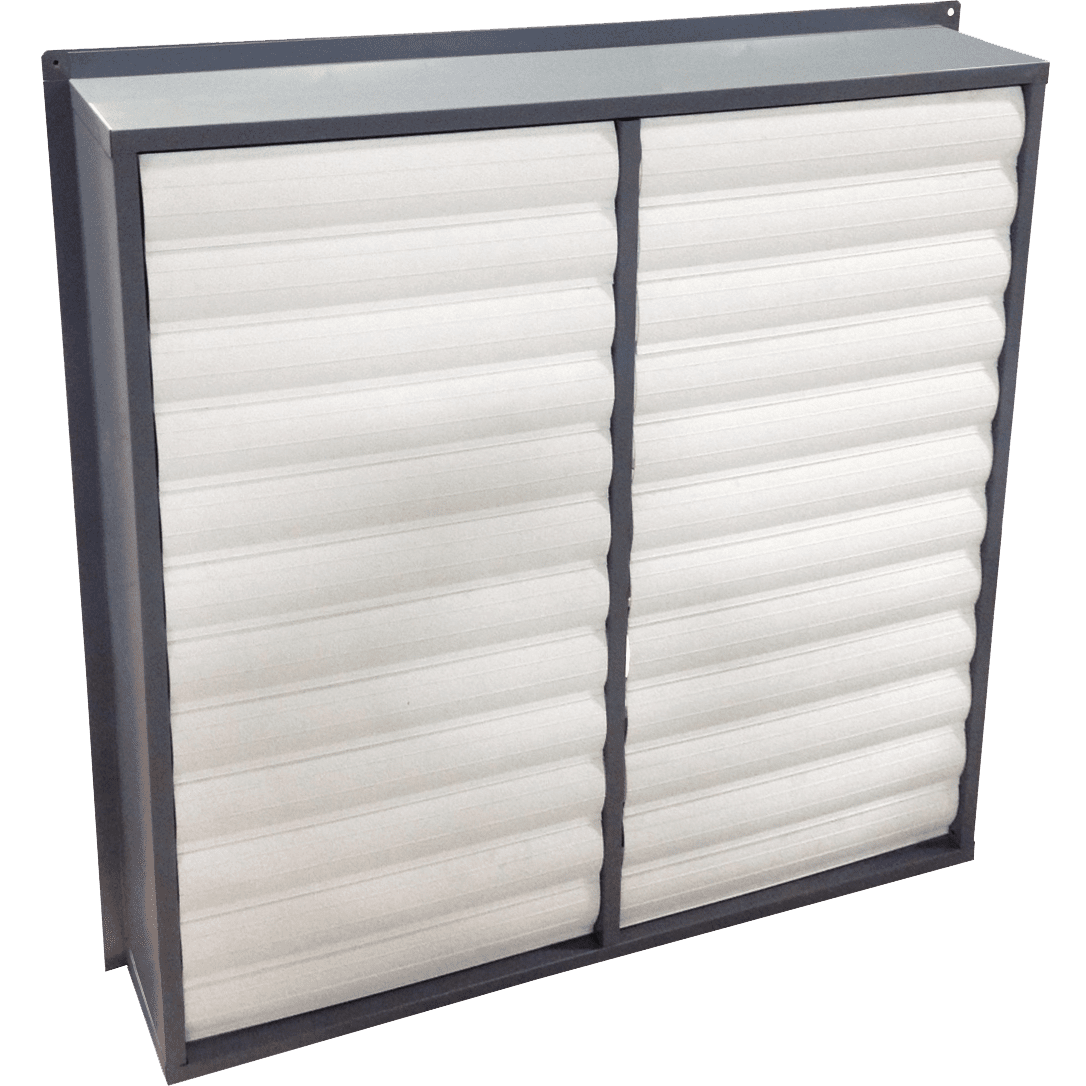

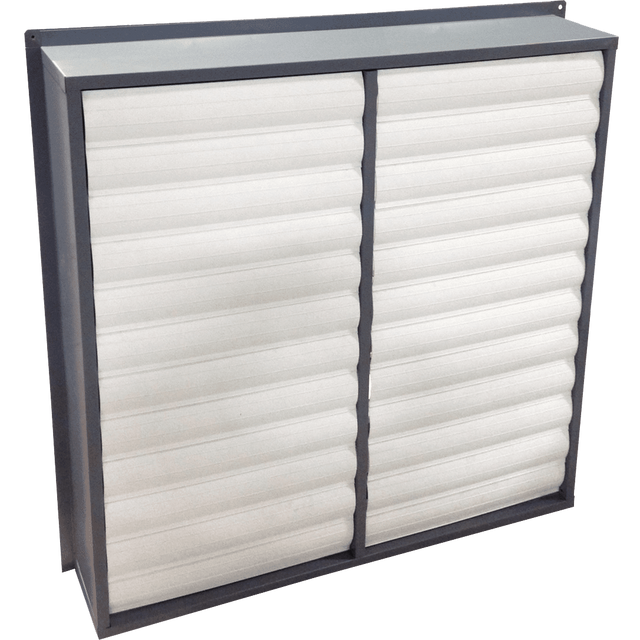

Canarm 42-in. Single Speed Shutter Mounted Exhaust Fan

Name: Canarm 42-in. Single Speed Shutter Mounted Exhaust Fan
Brand: Canarm
Price: 1210.0 USD
Availability: InStock

SKU: ca10145 | Model: SD42-H1D

$1,210.00

FREE shipping on orders over $45!

In Stock Usually ships in 5 business days.

Add extended protection plan. (Select one)

2-Year Warranty - $74.99

learn more

A 2-year major appliance warranty for products less than $1,500.

4-Year Warranty - $119.99

learn more

A 4-year major appliance warranty for products less than $1,500.

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

<p>1-Year Warranty</p>

What's In The Box?

Canarm 42-inch Shutter Exhaust Fan
Owner's Manual and Installation Guide

Info & Guides

Description

The Canarm SD42-H1D is a smooth, reliable and durable exhaust fan for simple ventilation. This single-speed shutter exhaust fan comes with a 9-foot power cord for quick and simple installation.

Durable and Reliable Ventilation

This powerful Canarm 42-inch exhaust fan is built-to-last:

Totally enclosed, thermally protected motor
Rugged steel housing with powder coated finish
Aluminum louver shutters are supported with PVC louvers
Gray powder coated guards

Important Specifications

83 dB noise level
1 HP
230 V
Framing Dimensions: 45 x 45 inches
Depth with Motor: 18 inches

Additional Canarm Exhaust Fan Features

Fully Assembled: All Canarm shutter exhaust fans are shipped completely assembled.
Powerful: This single speed exhaust fan uses 850 RPMs.
CFMs: Depending on pressure, it offers 13,210-14,900 CFMs of power.

Specifications

Key Specifications

Number of Speeds

1
Sound Level (Sones) (sones)

4.0
Type

Shutter Exhaust Fan

General

Application

Commercial/Industrial
California Residents

⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. See: www.P65Warnings.ca.gov
Certifications

ETL
Color

Gray
Controls

Manual
Housing Material

Powder-Coated Steel
Maximum Cubic Feet per Minute (CFM) (CFM)

14900.0
Maximum RPM

850

Power

Amperage (Amps)

5
Power Supply

Plug
Voltage (V)

220-240
Watts (W)

745

Dimensions

Ceiling or Wall Cutout Length (in.)

44.75
Ceiling or Wall Cutout Width (in.)

44.75
Depth (in.)

6.75
Depth (with front cover) (in.)

6.75
Height (in.)

47.25
Height (with front cover) (in.)

47.25
Shutter Fan Size (in.)

42
Weight (lbs.)

122
Width (in.)

47.25
Width (with front cover) (in.)

47.25
