Open-Box: Arizona Air KoolKube 5,300 CFM Mobile Evaporative Cooler

The Arizona Air KoolKube 5300 CFM Evaporative Cooler provides welcome relief for those hot, scorching days. Effective for spaces up to 1,600 square feet, this sturdy air cooler features locking casters for easy transport, set-up, and operation.

With simple dial controls, the KoolKube portable swamp cooler is easy to use and gives you the option of filling the 14.3-gallon water tank, or using the continuous fill.

Easy Set-Up & Operation

The Arizona Air Evaporative Cooler features an easy-access front fill door which can accommodate either a hose or a bucket for filling. When finished filling the cooler, the door can be locked.

For continuous operation, attach the included hose adapter to the float valve nipple on the cooler. Connect a standard garden hose and you’re ready to go.

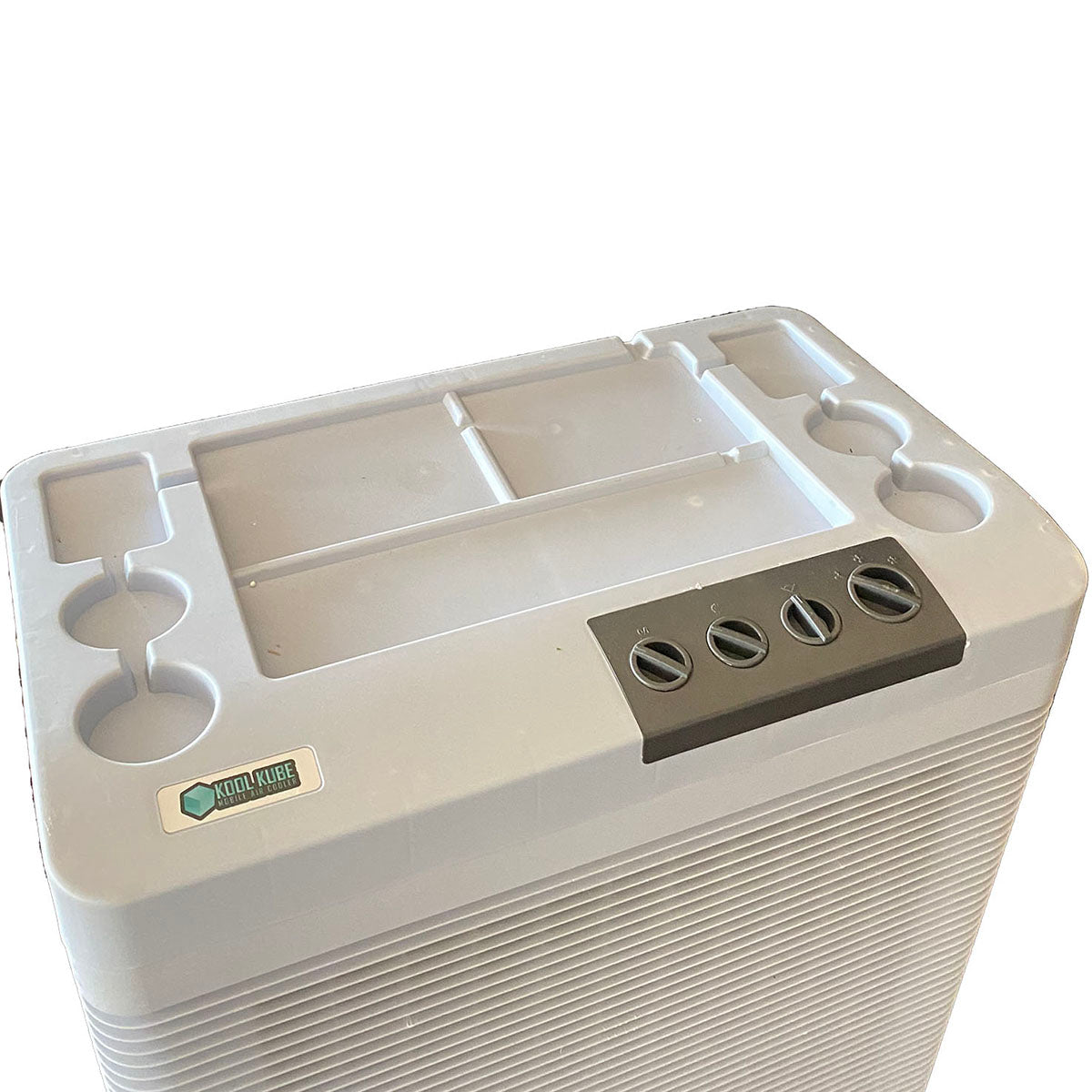

The control panel has 4 simple-to-use dials:

• Left rotary switch turns the unit on or off.
• Middle rotary switch controls the water pump, turning it on or off.
• Small right rotary switch controls the swing oscillating louver.
• Large rotary dial controls the three fan speeds: Low, Medium, or High

Evaporative Cooler Technology

Unlike air conditioners which use a compressor, evaporative coolers use water-soaked rigid media pads plus a powerful fan to create cooling airflow. This makes them the ideal choice for dry, hot climates such as the Southwest US.

Also called swamp coolers, these efficient machines add humidity to the air, as well as providing high CFM airflow. For this reason, they do require a fresh air source like an open window or door during operation.

Fan Only & Oscillation Features

When you only need simple air circulation, you can operate the KoolKube without running the water pump. Create up to 5,300 CFM of airflow to enjoy fresh air indoors our outside. This option is great for more humid conditions when working in your garage, workshop, or enjoying time on a patio or deck.

For more even cool air distribution, use the automatic oscillation dial to turn on the swing function for the vertical louvers.

Easy Maintenance

The Arizona Air KoolKube Evaporative Cooler doesn’t have complicated maintenance requirements. When finished using at the end of the day, run the fan only for 30 minutes to dry out the media pads—this keeps down mildew growth. If there is water in the tank, remove the drain cap to drain out remaining water. Media pads can be inspected and cleaned of calcium deposits if necessary.

Additional Features

• Auto Pump Shut-Off: Should your air cooler run out of water during operation, the water pump will automatically shut off and the unit will run on fan-only.
• Long Run Time: The KoolKube 5,300 CFM evaporative cooler can run for up to 4 hours on high fan with a full tank of water.
• Continuous Operation: Using a garden hose, this unit can produce cool air continuously. Includes hose adapter.
• 4 Smooth-Rolling Casters: This makes the KoolKube easy to maneuver or move to storage at the end of the season. Two of the casters are locking for added stability during use.

Summary

The Arizona Air KoolKube 5,300 CFM Evaporative Cooler brings cooling air or fan-only circulation for spaces up to 1,600 square feet indoors, or outside areas like decks, patios, and poolside.
