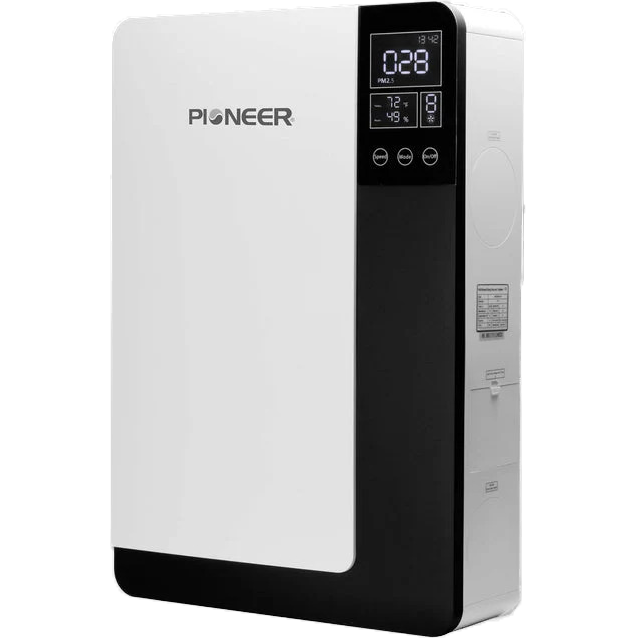

Open-Box: Pioneer ECOasis 150 Ductless Energy Recovery Ventilator

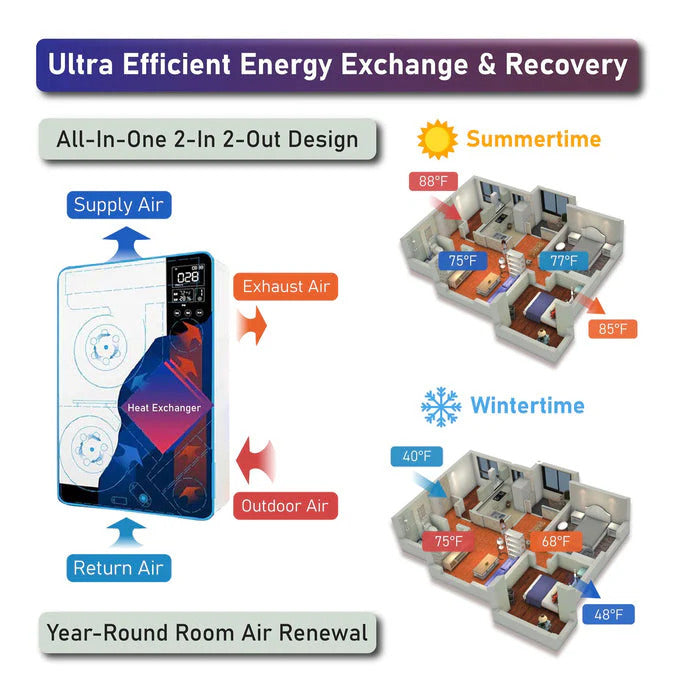

Add the Pioneer ECOasis 150 Ductless Energy Recovery Ventilator to your home and trade stale indoor air for fresh outside air. This super-quiet, Energy Star-rated ERV delivers up to 100 CFM (cubic feet per minute) of airflow and maintains a healthy and comfortable indoor atmosphere. It is equipped with indoor air quality monitoring, a four-layer filtration system, and a Wi-Fi connection to meet indoor air quality needs for rooms up to 500 square feet. This device is perfect for living rooms, bedrooms, home offices, and studio apartments.

• Air Quality Monitoring: An onboard PM2.5 sensor analyzes indoor air for fine particles from the outside, such as smoke and gas emissions, and works simultaneously with humidity and temperature sensors to regulate indoor air quality levels.
• Highly Efficient: This residential ERV has an 82 percent efficient heat exchanger, which supplies 99 percent air purification efficiency.
• Mini-Split Support: This ductless ERV complements ductless mini-split air conditioners, as fresh air is difficult to insert and incorporate with a mini-split systems, such as these available Pioneer mini-splits.
• Compact Design: This ventilator's slim, contemporary design makes it a seamless addition to any home and features easy upkeep.

Note: Installation and connection operations must be performed by properly qualified personnel.

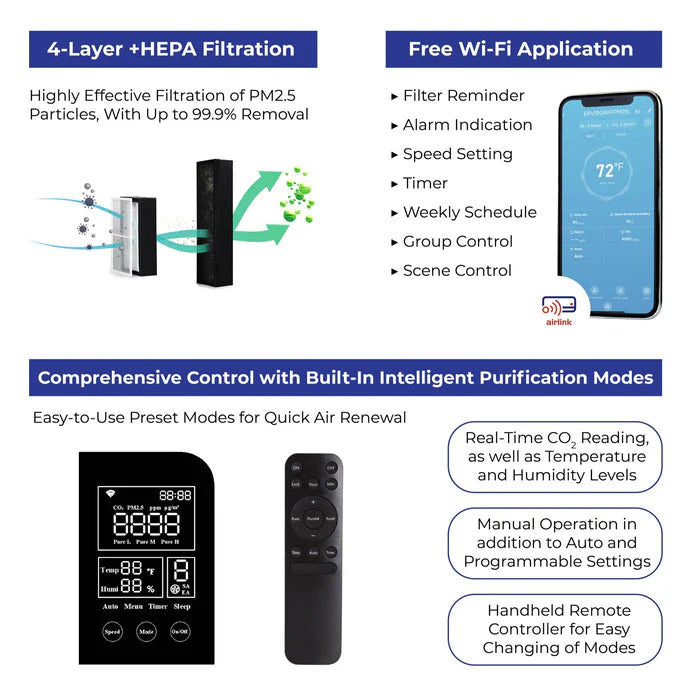

Filtration System

A four-layer enhanced filtration system removes pollutants and harmful particles from the air as it cycles from outside to inside and back out again.

• OA (Outside Air) Primary Filter: This outside air pre-filter layer captures larger particles such as pollen, dust, and debris as air travels through the ventilator from outside.
• RA (Return Air) Primary Filter: The return air primary filter removes larger particles like pollen, pet dander, and dust from the indoor air as it flows through to the outside. This step helps protect the internal components of the ERV or HVAC system from becoming clogged or damaged and leaves less impact on the outside environment.
• OA (Outside Air) Medium Filter: This additional layer for incoming outside air is designed to capture smaller particles in the air as it passes through, trapping mold spores, finer dust, and other smaller airborne contaminants.
• HEPA and Charcoal Filter: As the final layer, this HEPA filter traps smaller particles less than PM2.5 before they enter your home. The activated charcoal combination helps remove odors, gases, and volatile organic compounds (VOCs).

Simple Operation

This compact ERV boasts user-friendly controls and various operating modes, ensuring you always have control over this energy-efficient system.

• Auto Mode: This mode customizes the supply air volume according to the indoor CO2 and PM2.5 sensor data.
• Manual Mode: Select from eight fan speeds for a controlled supply or exhaust airflow configuration.
• Sleep Mode: This nighttime mode dims the screen brightness and keeps the ERV system running at the lowest speed.
• Timer: The remote control allows you to set a timer in minutes or hours for what best suits your schedule.
• Speed Boost Mode: To improve indoor air quality quickly, select PURE L, PURE M, or PURE H for three levels of boosted fan speed.
• Main Interface: This Pioneer ERV's display screen features adjustable touch interface buttons and shows current data for purification status, indoor temperature and humidity level, clock, timer, and more for effortless operation.
• Wi-Fi Control: You can control and monitor the ERV from anywhere by downloading the Pioneer Airlink app from the Google Play Store or the App Store. The app shows multiple features, including the current operating mode, a filter indicator, a CO2 sensor reading, timers, fan speed, and fan boost functions.

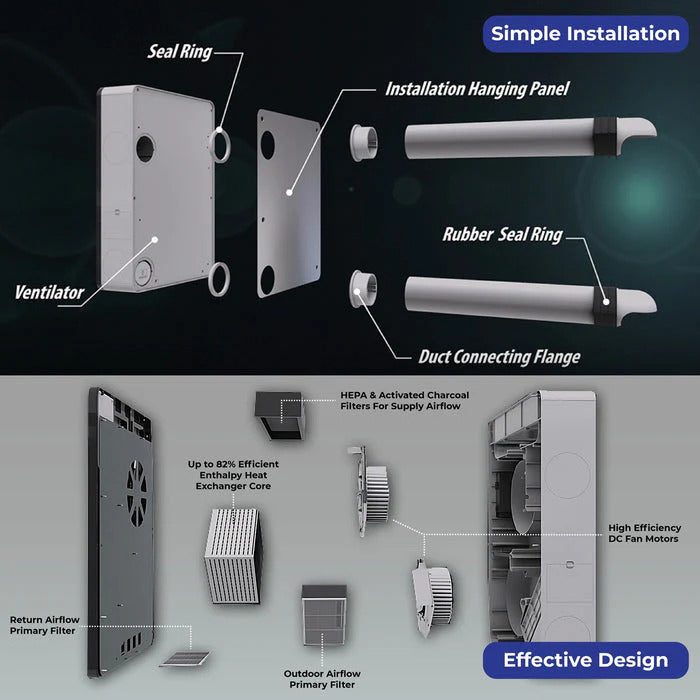

Installation and Maintenance

A qualified professional is required to install this Pioneer ERV. Afterward, maintenance is minimal and easy with the step-by-step instructions to ensure you breathe clean, fresh air.

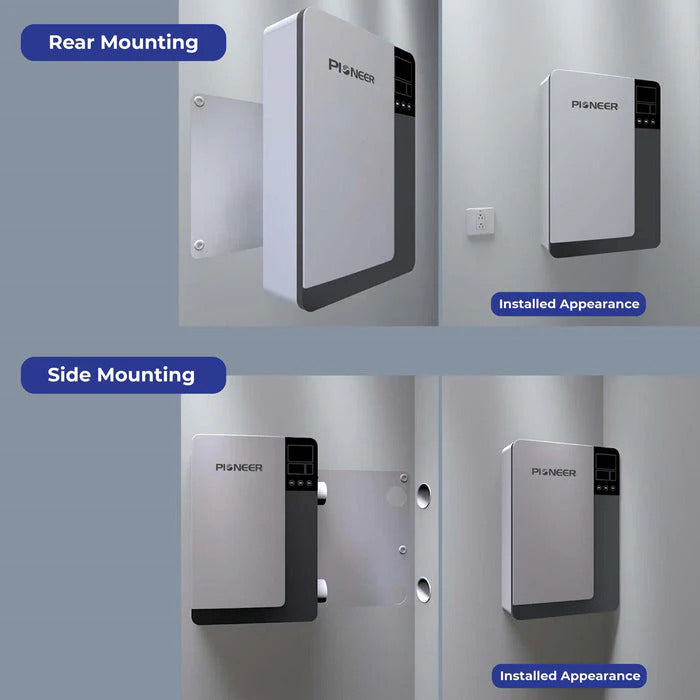

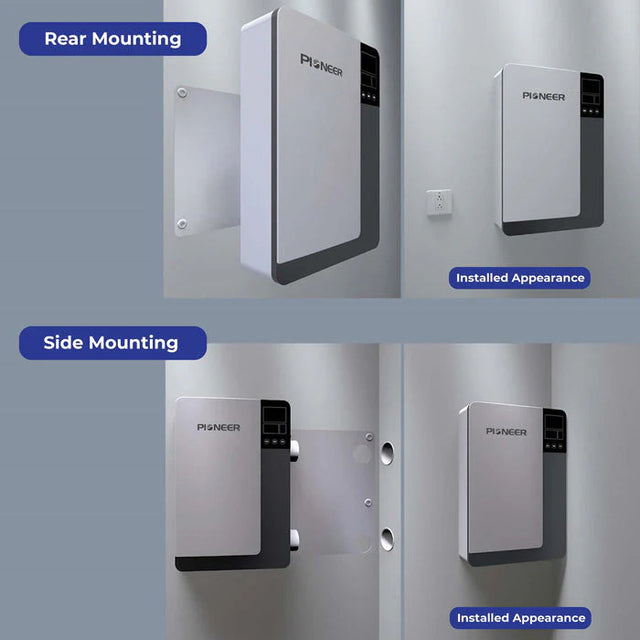

• Flexible Positioning: With side or rear connection options, this ERV is wall mountable and accommodates various room designs and layouts.
• Filters: A reminder will appear on the display screen and app when it is time to replace a filter. The OA and RA Primary filters are washable and reusable, and it is recommended that they be replaced every three to four months. The OA Medium Filter is not reusable and should be replaced every one to two months.
• Heat Exchanger Cleaning: For optimal performance, dirt and dust buildup should be removed from the heat exchanger every three years.
• PM2.5 and CO2 Sensor: The sensor should be cleaned regularly with a gentle fan to remove particles and prevent buildup and blockage.

Additional Features

• Ultra-Quiet Operation: The sound level reaches a maximum noise level of 37.9 dB, similar to a quiet stream of water.
• Minimal Energy Consumption: This ventilator is an eco-friendly choice for your modern home, as it only draws 35 watts of input power.
• Rainproof Design: A curved rainproof cover sits outside the ventilator to prevent falling rain from entering the system.
• Display Screen Lock: This feature turns off the screen and maintains the current settings until pressed again.

Sylvane’s Expert Take

Maintain clean air ventilation in your home with this Pioneer Energy Recovery Ventilator. This system prioritizes energy efficiency and exchanges stale indoor air for fresh outdoor air. It runs through a multi-layer filtration system to ensure you and your family remain healthy and comfortable.

• Standout Feature: Integrated sensors for PM2.5 particles and CO2 levels make this ERV valuable in maintaining a safe home.
• Maintenance: The various filter layers within this Pioneer ventilation system need regular cleaning and replacement.
