Open-Box: S&P PV-100X Powervent 4-in Inline Centrifugal Duct Fan
Open-Box: S&P PV-100X Powervent 4-in Inline Centrifugal Duct Fan - Very Good is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
What's In The Box?
What's In The Box?
- S&P PV 100X Powervent 4-in. Inline Centrifugal Duct Fan
- Pre-wired Junction Box
- Mounting Bracket
- Owner’s Manual
Used - Like New: This product has been opened and may have been lightly used. The product is in perfect working condition but may have slight cosmetic blemishes. All product accessories and manuals are included. It is in its original manufacturer packaging that will show signs of previous shipping.
Used - Very Good: This product has been opened and lightly used. It is in very good working condition but may have cosmetic blemishes. All product accessories and manuals are included. The product is in its original manufacturer packaging but the packaging will have damage from previous shipping.
Used - Good: This product has been opened and used. It is in good working condition but may have cosmetic blemishes. There may be missing accessories or manuals. The product is in its original manufacturer packaging but the packaging will have damage from previous shipping. The original packaging may be over-boxed, if needed.
Used - Acceptable: This product has been opened and used. It is in good working condition but may have cosmetic blemishes. There may be missing accessories or manuals. The product is in its original manufacturer packaging but the packaging will have damage from previous shipping. It may be over-boxed, if needed.
Open-Box: S&P PV-100X Powervent 4-in Inline Centrifugal Duct Fan - Very Good is backordered and will ship as soon as it is back in stock.
This Open-Box: S&P PV-100X Powervent 4-in Inline Centrifugal Duct Fan has been fully inspected and tested to ensure proper functionality. You can buy confidently knowing every open-box comes with our 30-day money back guarantee. A great option if you're looking for quality and savings.

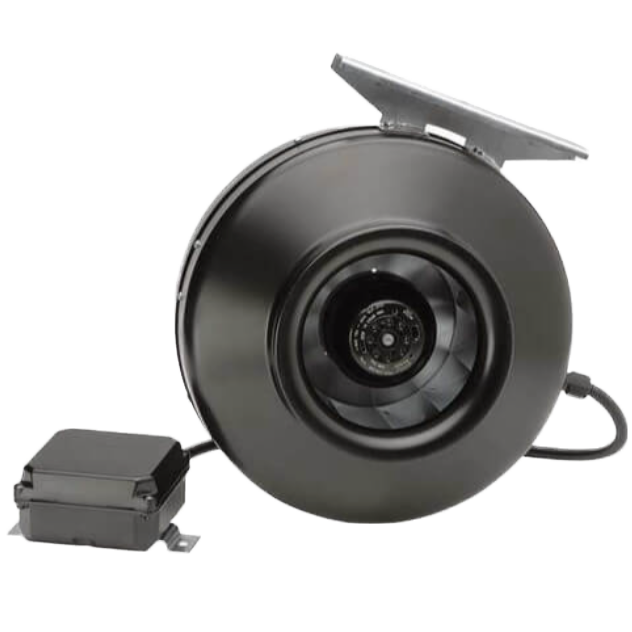

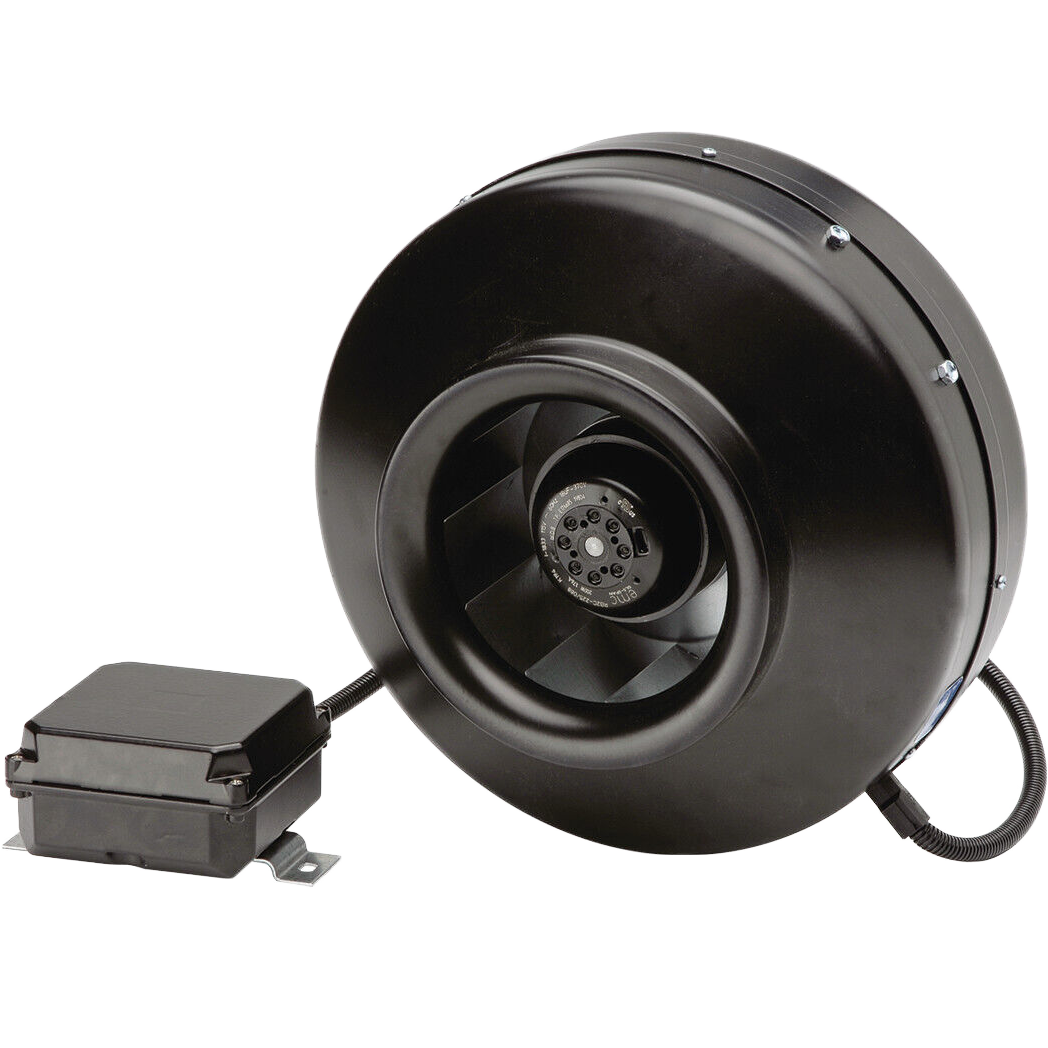

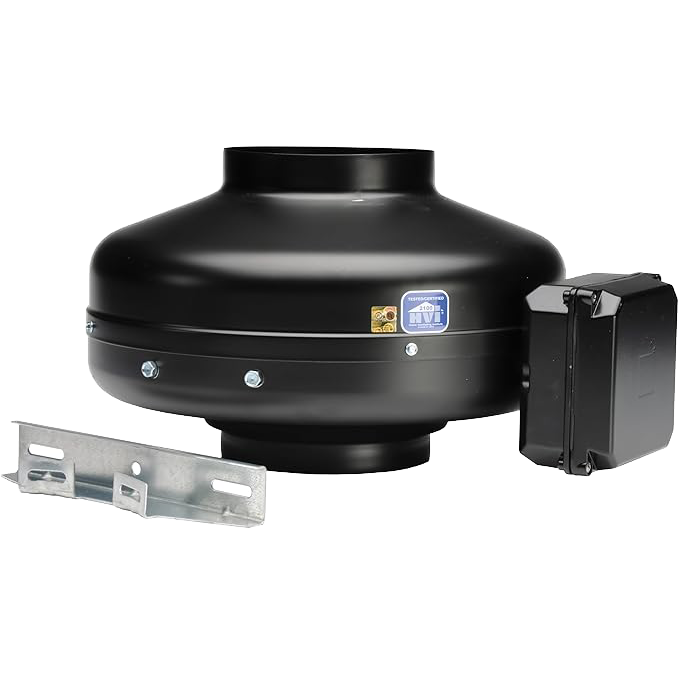

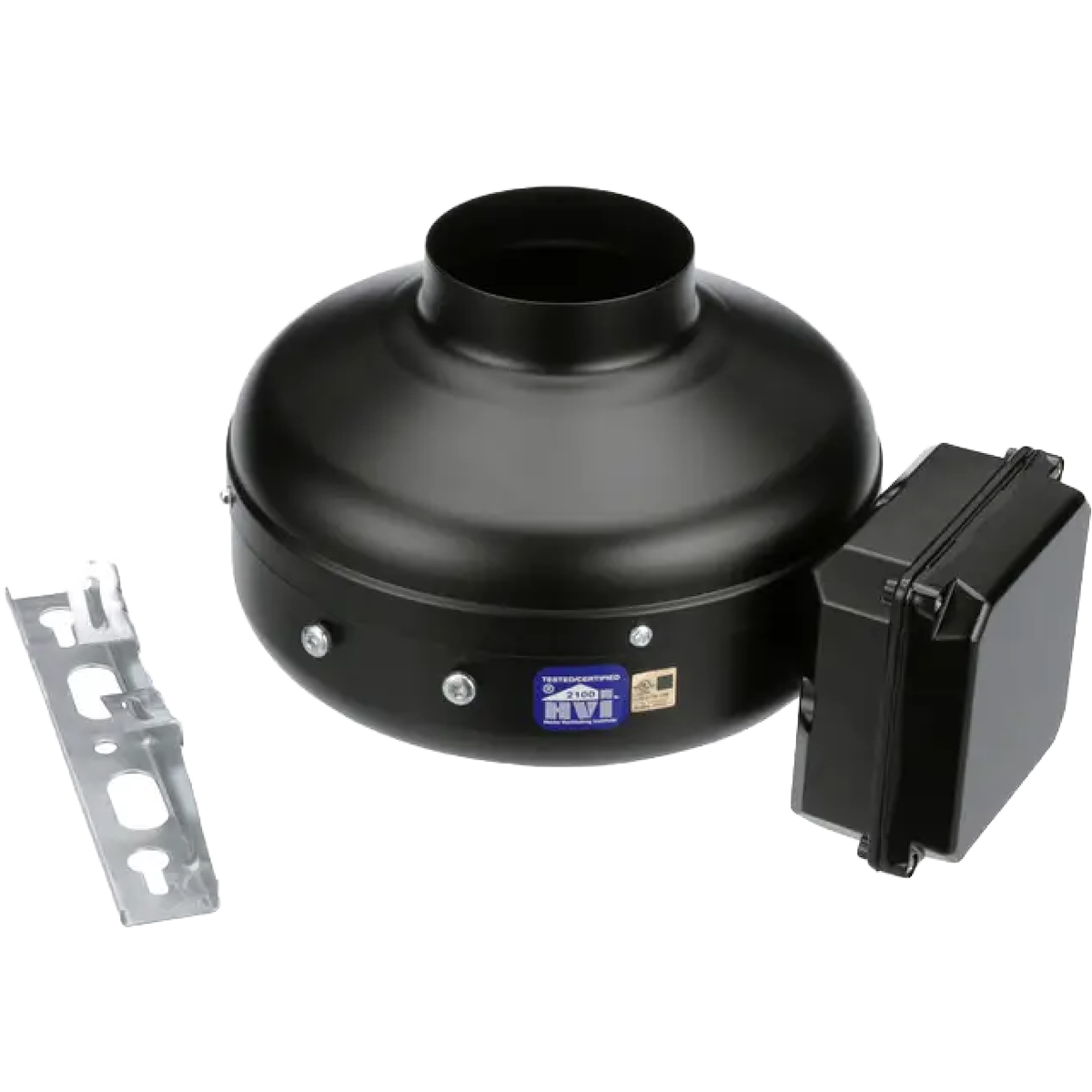

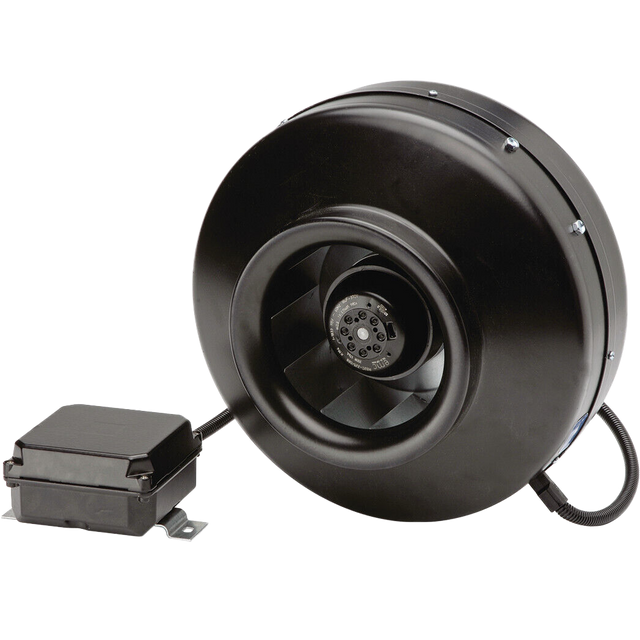

The S&P PV-100X Powervent 4-inch Inline Centrifugal Duct Fan is designed for use with standard 4-inch diameter round ducting. It provides 153 CFM of airflow and is ideal for helping to cool spaces passively or for use with a more complex ventilation and cooling system.
- Durability: The galvanized steel casing with a baked enamel coating is designed to last.
- Versatile: The PV-100X can be mounted at any angle and at any point along the duct.
- Simple Installation: Pre-wired junction box and the extra-long inlet and discharge collars make installing this duct fan easy. A steel mounting bracket is included.
Powerful Operation
This S&P inline duct fan incorporates a powerful external rotor motor that has been factory-matched to a non-overloading backward curved centrifugal fan wheel. The motor is dynamically balanced to eliminate vibration and features safety thermal overload protection with automatic cut-out.
This completely enclosed permanent split capacitor start and run external rotor motor combination provides several benefits.
- Airflow: Outstanding performance against the typically high static pressure in ducted ventilation systems.
- Long Life: The Powervent inline duct fan has sealed-for-life bearings and will never require lubrication. It is designed for trouble-free continuous operation up to 40,000 hours.
- Protection: A fully enclosed motor is protected from moisture, lint, and high-particulate air.
- Full Speed Control: Control fan speed using voltage or frequency control regulators.
Additional Features
- Fast Installation: A strong galvanized steel mounting bracket and pre-wired junction box are included for fast installation.
- Working Temperature: The S&P inline duct fan can operate up to 158 degrees F in working airstreams.
- Additional Insulation: The PV100X features Class F motor insulation
- Standard Electrical: Inline duct fan operates on a 115 volt/60Hz single phase standard electrical connection.
- Safety Listed: UL and cUL listed, ETL listed.
- Airflow Tested: Bears the AMCA seal and is certified by the HVI (Home Ventilating Institute) for air performance.
Sylvane’s Expert Take
This S&P inline duct fan, with its permanently sealed rotor motor and backward curved centrifugal fan wheel, can deliver impressive airflow for cooling or ventilation in 4-inch ducting applications.
- Outstanding Performance and Dependability: S&P’s durable motor design creates impressive airflow with maintenance-free convenience and dependable service.
- Simple to Install and Maintain: Totally enclosed motor with permanent ball bearings never needs lubrication and is protected from external damage. The duct fan design, the pre-wired junction box, and the included mounting bracket make it easy to install.
-
Number of SpeedsVariable
-
TypeClassic Inline Duct Booster Fan
-
ApplicationDucting
-
CertificationscULus, cETLus, HVI, UL, cUL, ETL, AMCA
-
ColorBlack
-
ControlsElectronic
-
Maximum Air Temperature (degrees F)158
-
Maximum Cubic Feet per Minute (CFM) (CFM)153.0
-
Maximum Amperage (Amps)0.8
-
Power SupplyElectric
-
Voltage (V)110-120
-
Watts (W)84
-
Wiring StyleHardwired
-
Depth (in.)7.69
-
Duct Diameter (in.)4.0
-
Height (in.)9.56
-
Weight (lbs.)7
-
Width (in.)9.56
-
Additional FeaturesThermal Cutoff Protection, Applicable for Indoor Growing
-
Manufacturer's Warranty5-Year Limited Warranty
