This Open Box: Fantech prioAIR Inline Duct Fan w/ EC Motor has been fully inspected and tested to ensure proper functionality. You can buy confidently knowing every open-box comes with our 30-day money back guarantee. A great option if you're looking for quality and savings.

Learn more about condition types.

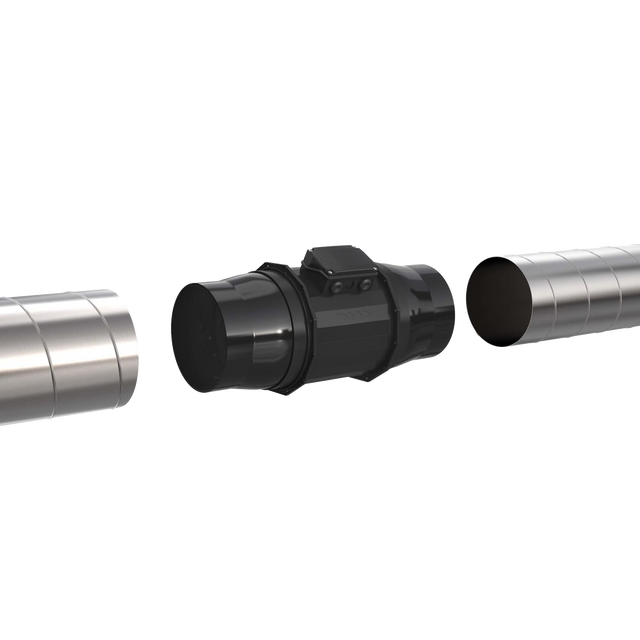

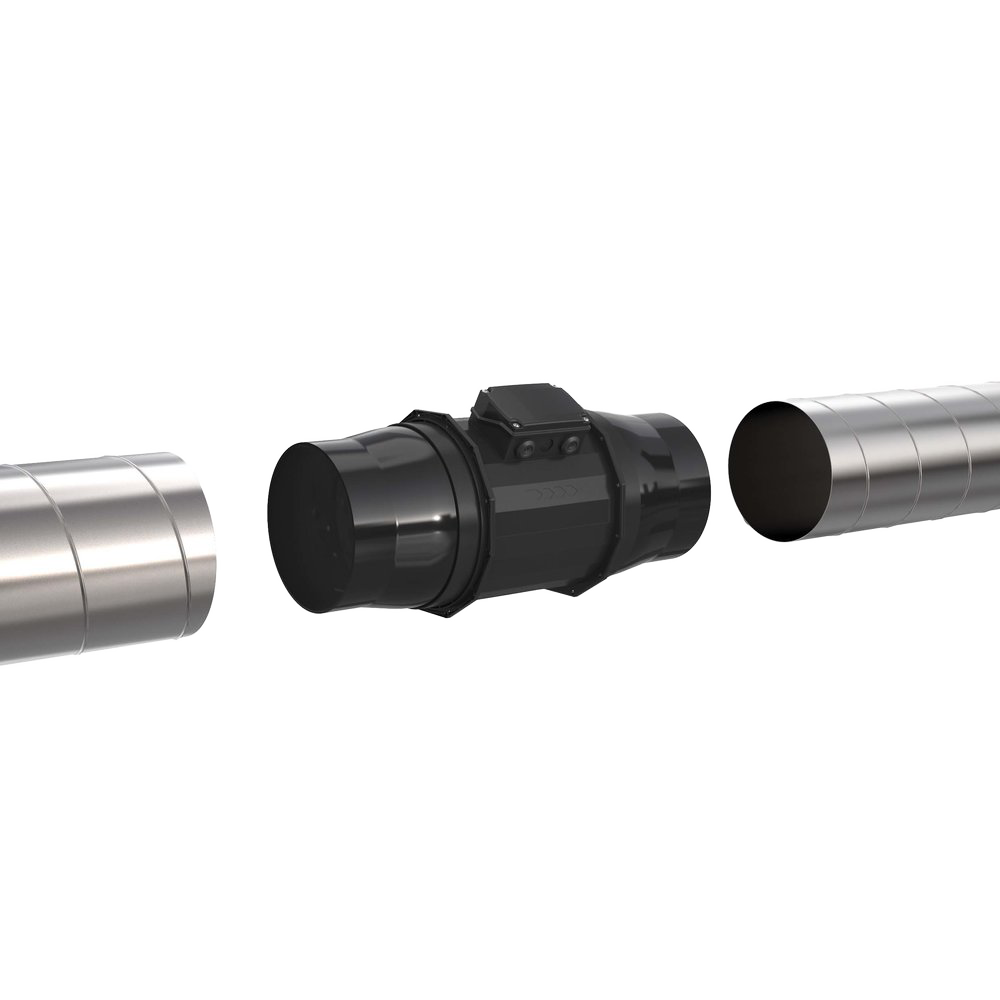

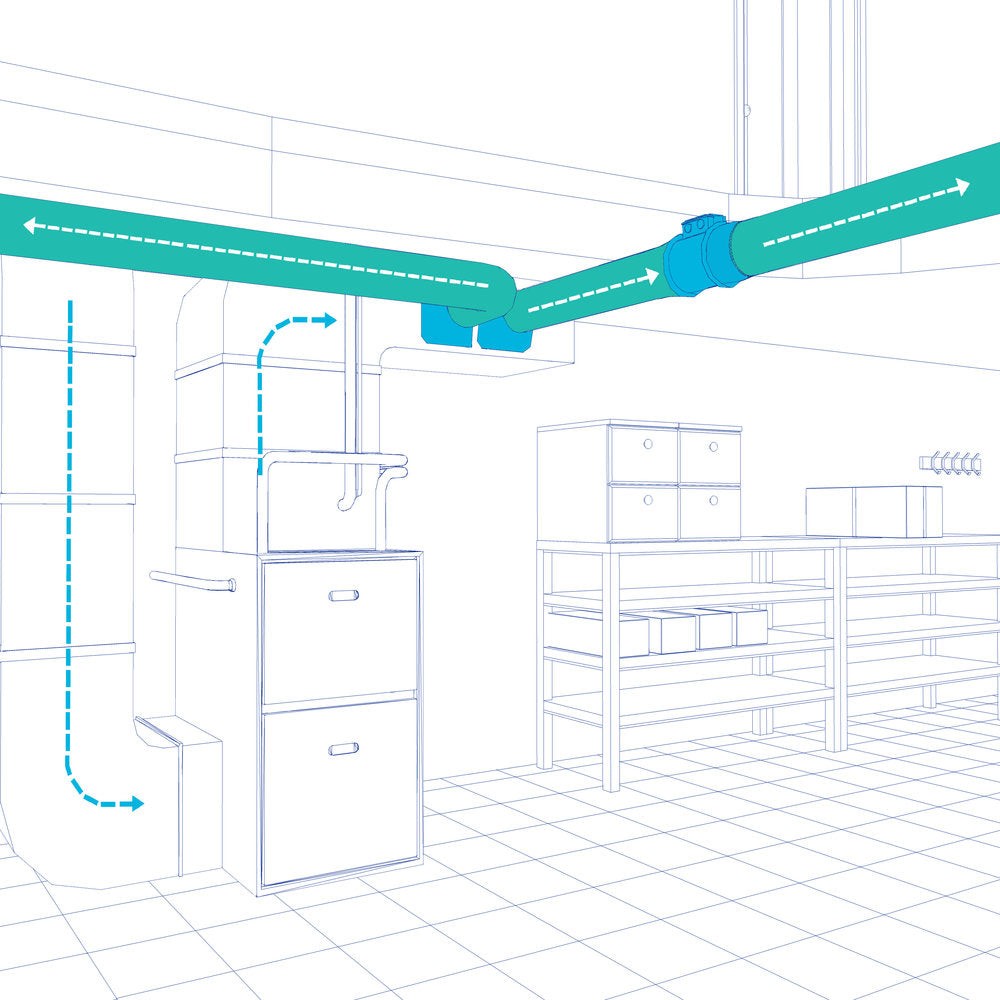

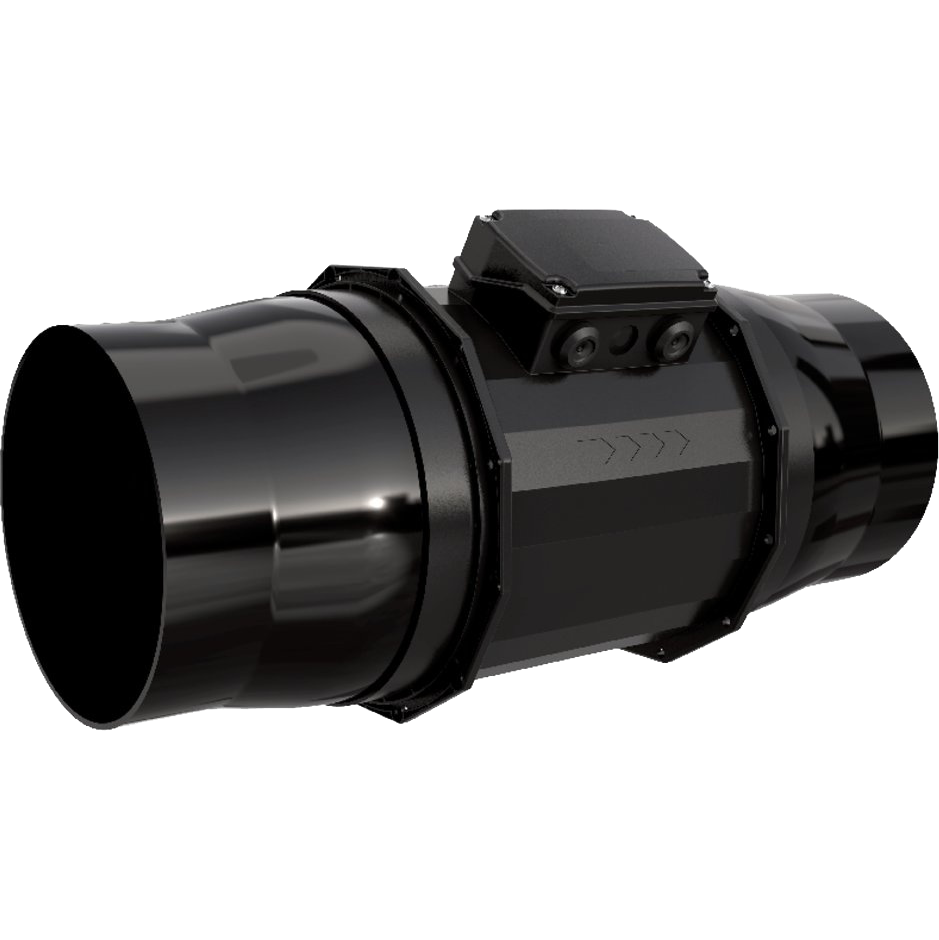

The Fantech prioAir 6 EC is a multi-purpose high-efficiency inline duct fan that can move enormous volumes of air with low energy input. Fantech prioAIR with EC motor is ideal for long ventilation duct in commercial settings as well as residential applications where infinite airflow controllability is required. The fan comes with a built-in 0-10V potentiometer that allows for precise fan speed control.

Available in three fan diameters, select the right model for you.

Choose Your Fan Size

Customize the Fantech prioAir Inline Duct Fan with EC Motor to meet the specific needs of your facility. This unique fan is available in three fan diameters - 6, 8, and 10 inches.

Key Features

Reliable Air Stream: The optimized shape of the aerodynamic optimized impeller provides a pure, exceptional air stream.
Use In Any Temperature: The fan motor can operate in temperatures of air up to 131 degrees Fahrenheit.
Vibration Free: Its motor bearings are permanently sealed, self-lubricated for maintenance-free life.
Reliable Performance: This Fantech Duct Fan has built-in thermal overload protection with automatic reset.
Heat Dissipation: With the motor in the airstream, the fan provides the constant dissipation of heat build-up.
Speed Control: The motor provides a +10V reference that can be used by a remotely-mounted potentiometer.
Smart Building Compatible: The Fantech prioAir EC to be integrated into and play an active role in smart HVAC systems in buildings.

Summary

Able to move enormous volumes of air with low energy input, Fantech prioAIR Inline Duct Fan w/ EC Motor is great for commercial ventilation as well as residential ventilation.

Key Specifications

Number of Speeds

Variable
Sound Level (Sones) (sones)

5.9
Type

Classic Inline Duct Booster Fan

General

Application

Ducting
Certifications

cULus
Color

Black
Controls

Manual
Maximum Air Temperature (degrees F)

131
Maximum Cubic Feet per Minute (CFM) (CFM)

10-in.: 1237.0

8-in.: 790.0

6-in.: 445.0
California Residents

⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Power

Maximum Amperage (Amps)

10-in.: 2.11

8-in.: 1.58

6-in.: 0.888
Power Supply

Electric
Voltage (V)

110-120
Watts (W)

10-in.: 164

8-in.: 123

6-in.: 64
Wiring Style

Hardwired

Dimensions

Depth (in.)

10-in.: 11.6875

8-in.: 11.6875

6-in.: 16.1875
Duct Diameter (in.)

10-in.: 10.0

8-in.: 8.0

6-in.: 6.0
Height (in.)

10-in.: 11.9375

8-in.: 9.75

6-in.: 8.25
Weight (lbs.)

10-in.: 9.4

8-in.: 7.5

6-in.: 3.7
Width (in.)

10-in.: 9.1875

8-in.: 7.875

6-in.: 5.875

Open Box: Fantech prioAIR Inline Duct Fan w/ EC Motor
