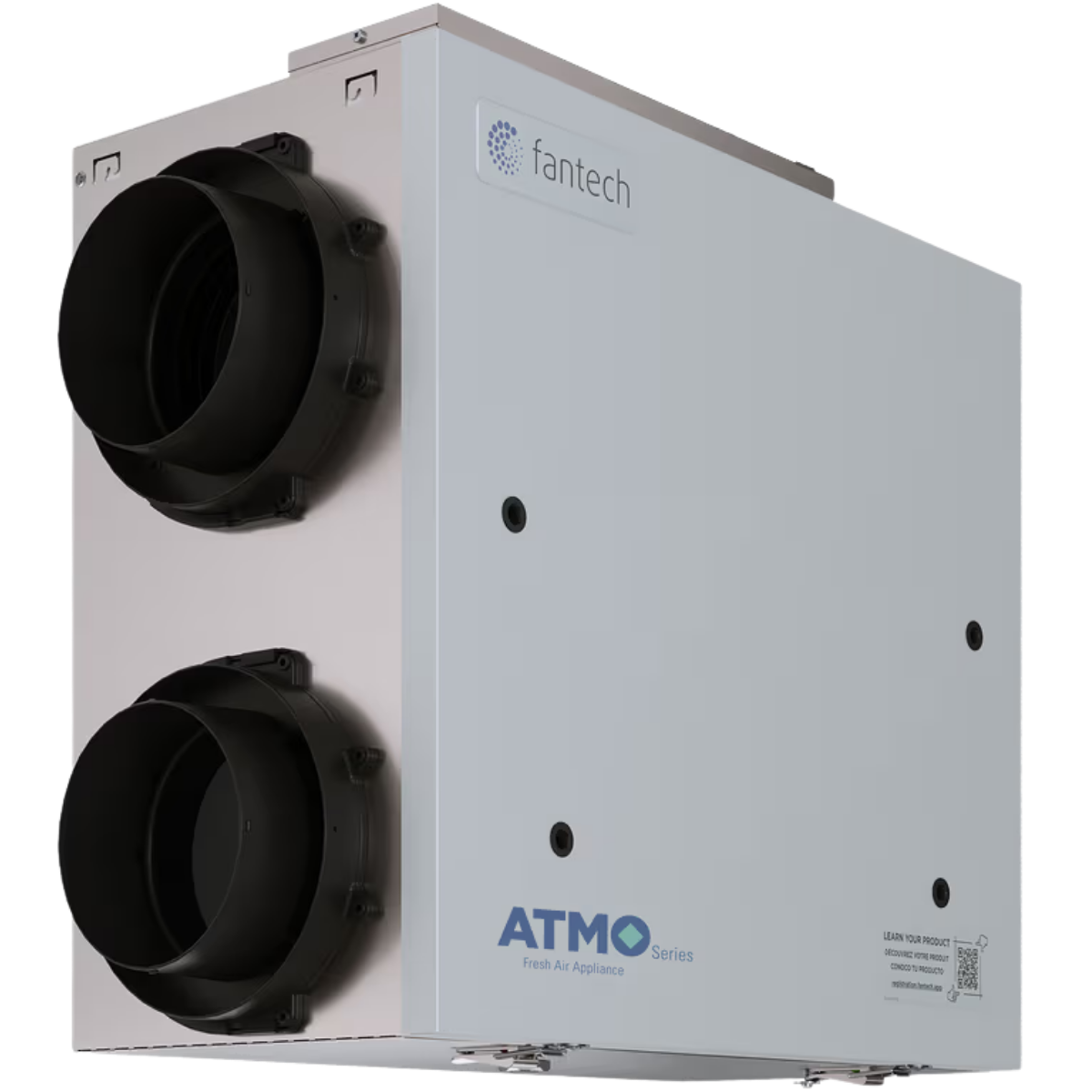

Fantech ATMO 150E 161 CFM Energy Recovery Ventilator
Fantech ATMO 150E 161 CFM Energy Recovery Ventilator is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Fantech ATMO 150E Energy Recovery Ventilator
- Owner's Manual
- Hanging Chain Kit
- Drain Hose
Info & Guides
Info & Guides
Fantech ATMO 150E 161 CFM Energy Recovery Ventilator
Description
Description
Capable of working even when outside temperatures drop to 14 degrees Fahrenheit or lower, the Fantech ATMO 150E Energy Recovery Ventilator is an efficient ventilation solution for high-static residential applications. Energy Star rated, this unit provides up to 161 CFM of fresh, filtered air while removing stale, unhealthy indoor air. It captures as much as 75 percent of the heat in the exhausted air and uses that warmth to temper the incoming air.
Efficient Design
For the ultimate in money-saving ventilation, turn to this ERV from Fantech. It's so efficient that this model has earned the coveted Energy Star certification.
Top Features Of The Fantech ATMO 150E

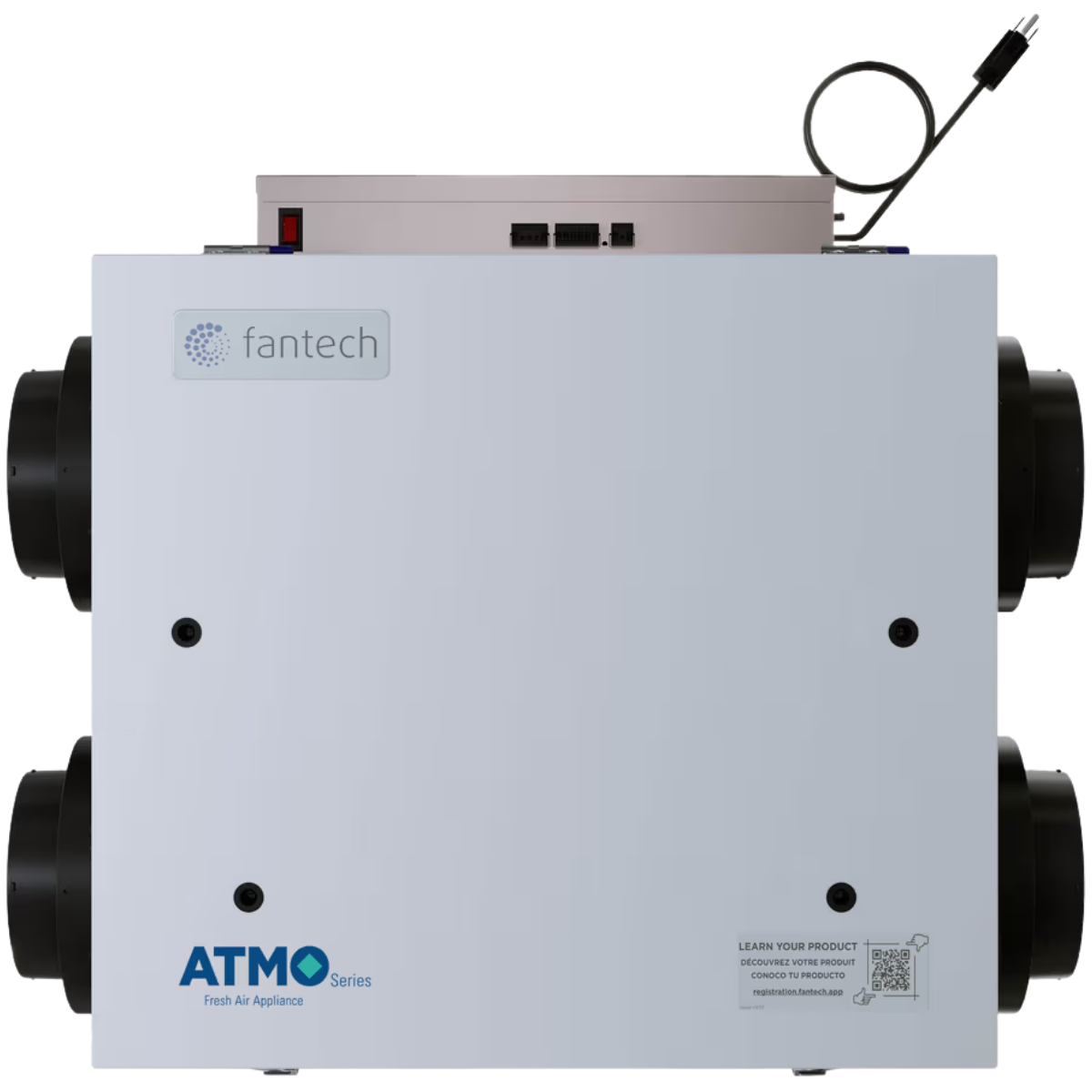

- Duct Connection: Features 6-inch side port duct connections.

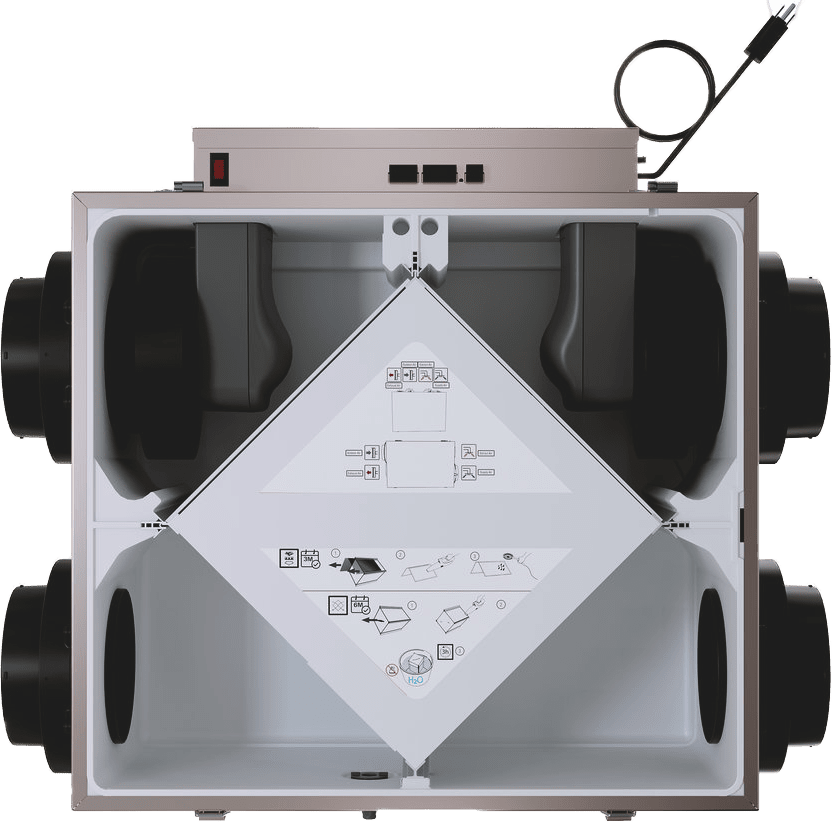

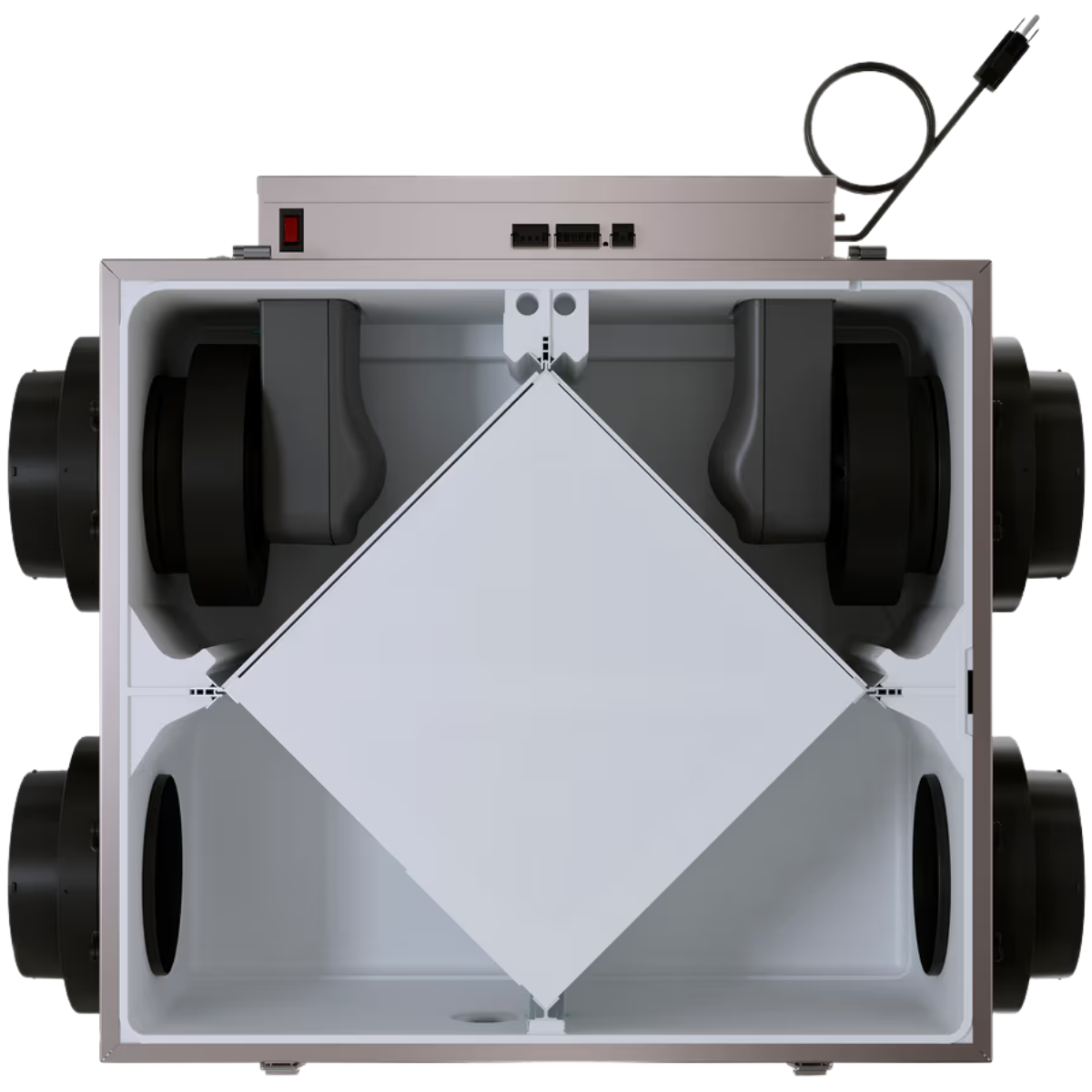

- Crossflow Core: Providing up to 75 percent of energy transfer, the crossflow core uses the warmth to temper the incoming air.
- Powerful Airflow: Provides up to 161 CFM of fresh, filtered air.
- Electrical Box: Designed with an electrical box with external access and easy connectors.
- Integrated MERV-3 Filter: For unobstructed airflow and reducing textile fibers, pollen, and dust mites.
- One-Piece Foam Cabinet: UL-rated with improved aerodynamics, insulation, and soundproofing.
- Easy to Maintain: All parts easily slide out for simple access.

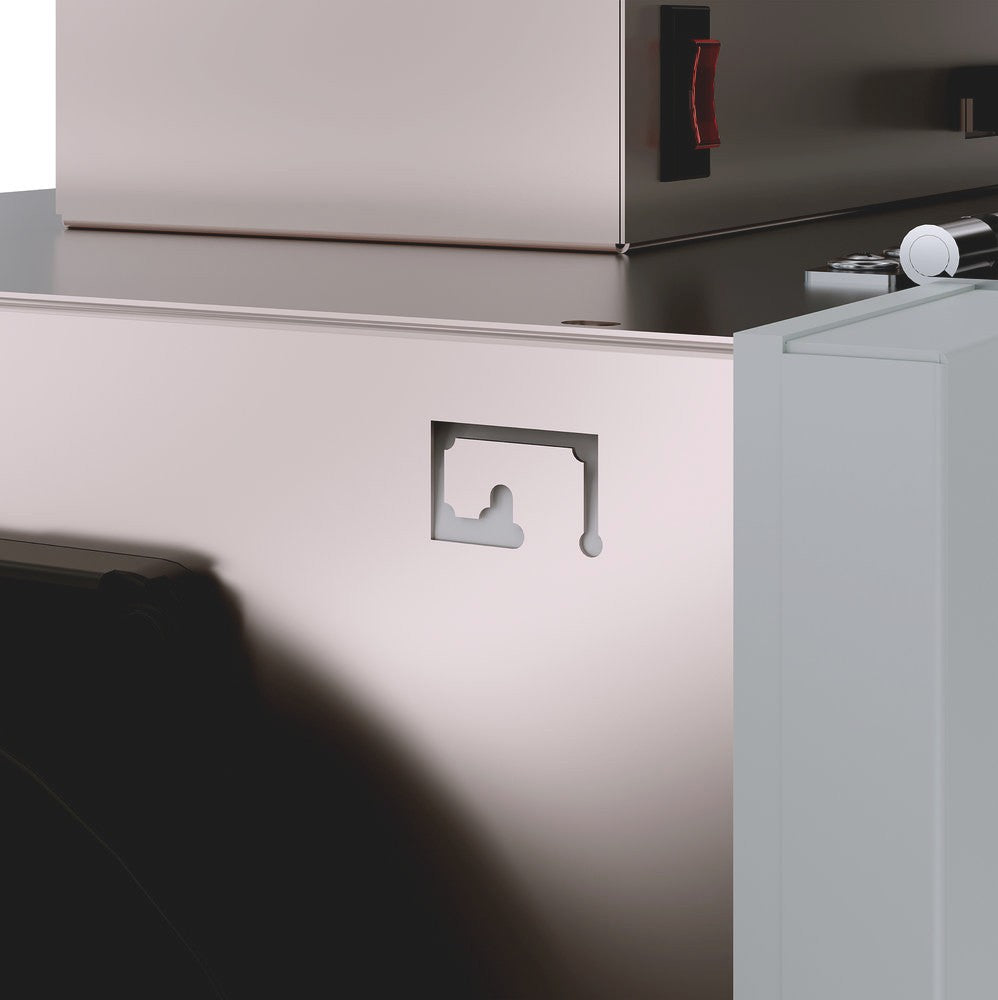

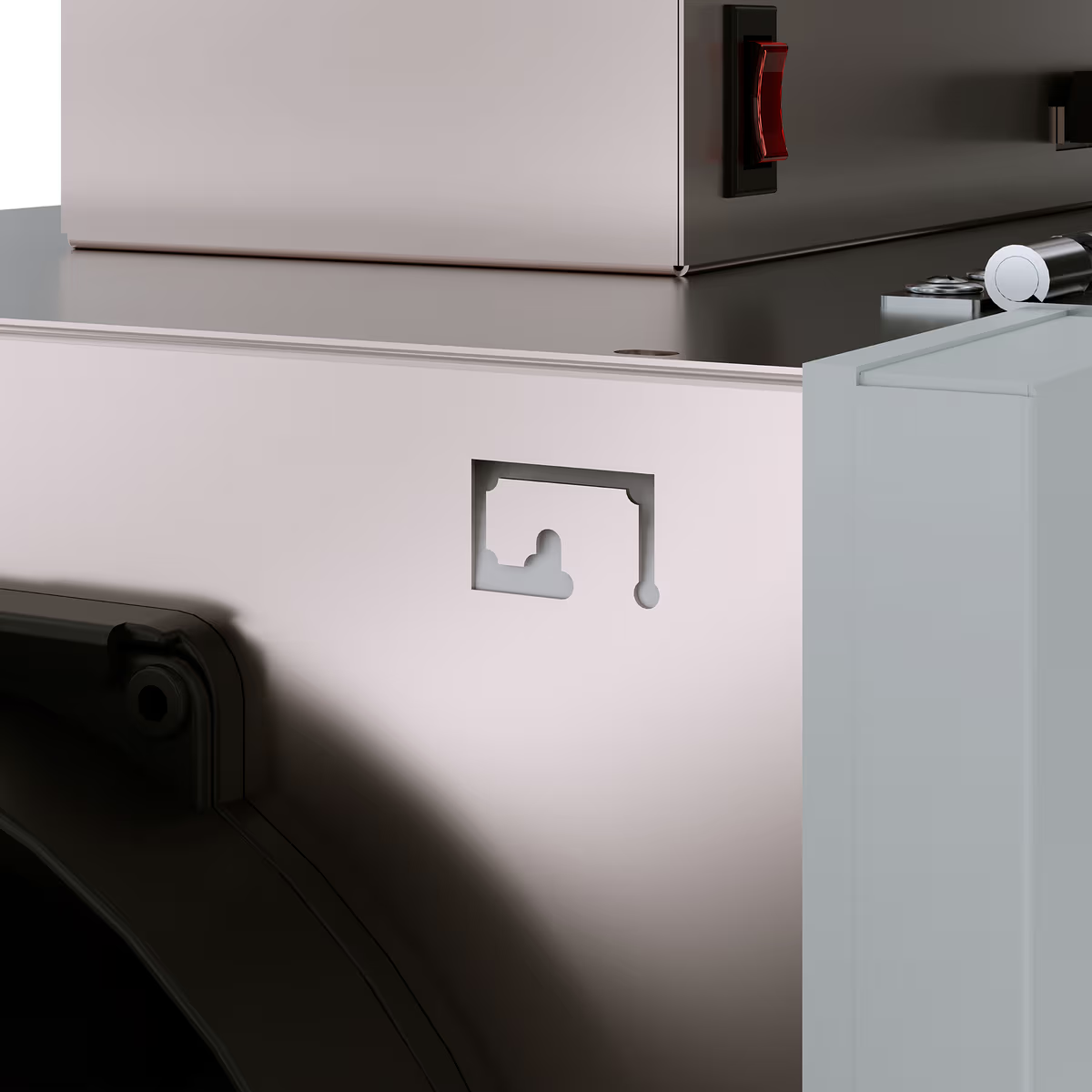

- Chain-Mounted Unit: Comes with an included hanging chain kit, or you can select an optional wall bracket.
- Long Warranty: Offers a limited lifetime warranty on the exchanger.
Sylvane's Expert Take

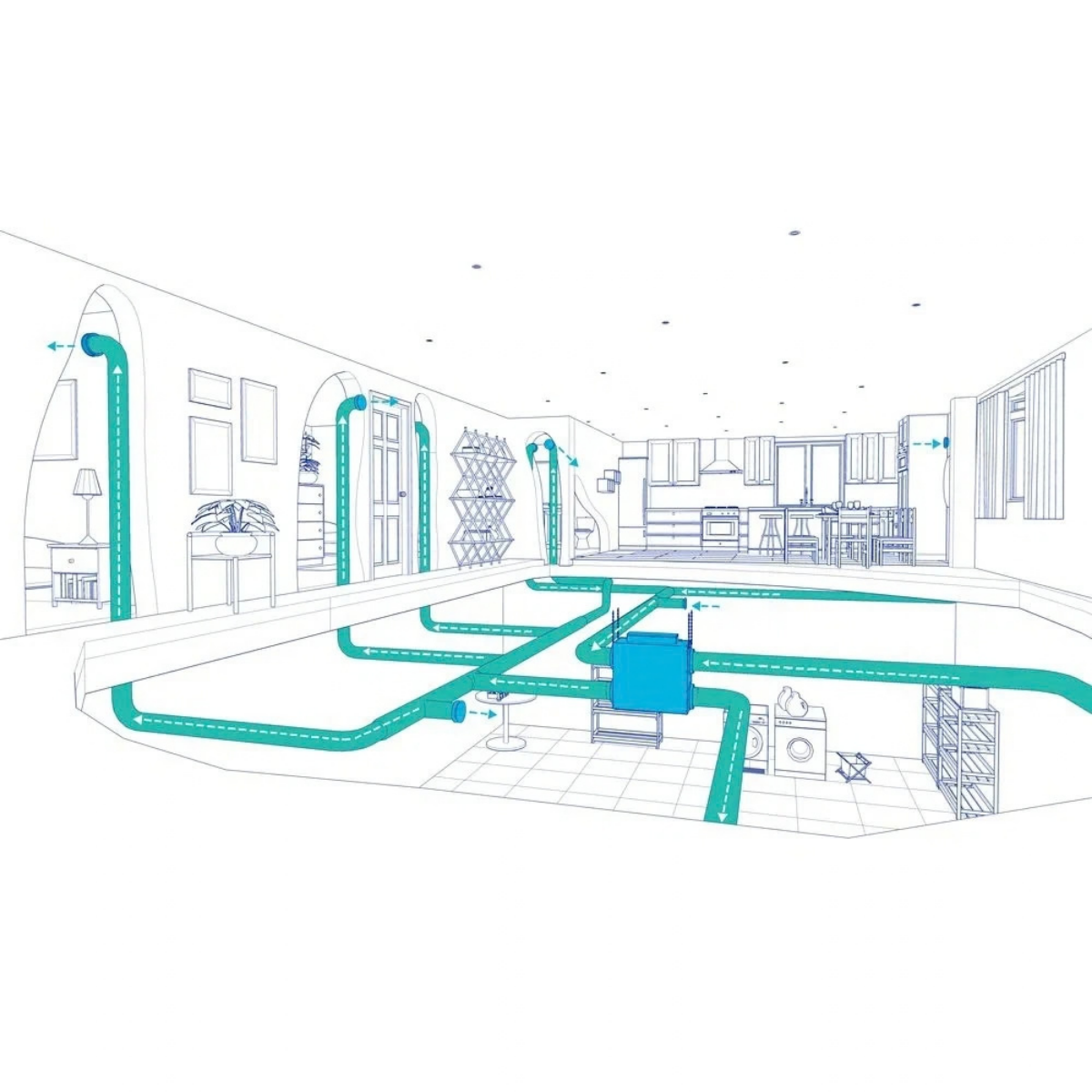

Continuously supply 161 CFM of fresh, filtered air while removing stale air from your home with the Fresh Air Appliance from Fantech.
Specifications
Specifications
-
Minimum Cubic Feet per Minute (CFM) (CFM)35.0
-
Mounting TypeSuspended, Wall
-
Number of SpeedsVariable
-
Port LocationSide
-
TypeERV-Air Supply Fan
-
ApplicationResidential
-
CertificationsCSA, HVI-Certified
-
ColorGray
-
ControlsElectronic
-
Maximum Cubic Feet per Minute (CFM) (CFM)161.0
-
Amperage (Amps)1.4
-
Power SupplyHardwired
-
Voltage (V)110-120
-
Watts (W)168
-
Depth (in.)29.5
-
Depth (with front cover) (in.)29.5
-
Duct Diameter (in.)6.0
-
Height (in.)21.5
-
Height (with front cover) (in.)21.5
-
Weight (lbs.)47.4
-
Width (in.)11.7
-
Width (with front cover) (in.)11.7
-
Additional FeaturesEnergy Star
-
Manufacturer's WarrantyLifetime Limited Exchanger Warranty, 7-Year Limited Motor Warranty, 5-Year Limited Parts Warranty
