Fantech ATMO 200E 201 CFM Energy Recovery Ventilator
Fantech ATMO 200E 201 CFM Energy Recovery Ventilator is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Fantech ATMO 200E Energy Recovery Ventilator
- Owner's Manual
- Hanging Chain Kit
- Drain Hose
Info & Guides
Info & Guides
Fantech ATMO 200E 201 CFM Energy Recovery Ventilator
Description
Description
Combining a user-friendly design that delivers simple maintenance and upkeep with a powerful yet efficient performance, the Fantech ATMO 200E Energy Recovery Ventilator is a must-have for residential ventilation. Particularly effective in high-static pressure applications, this Energy Star-rated unit works in high-static applications when temperatures are as low as 14 degrees Fahrenheit or lower.

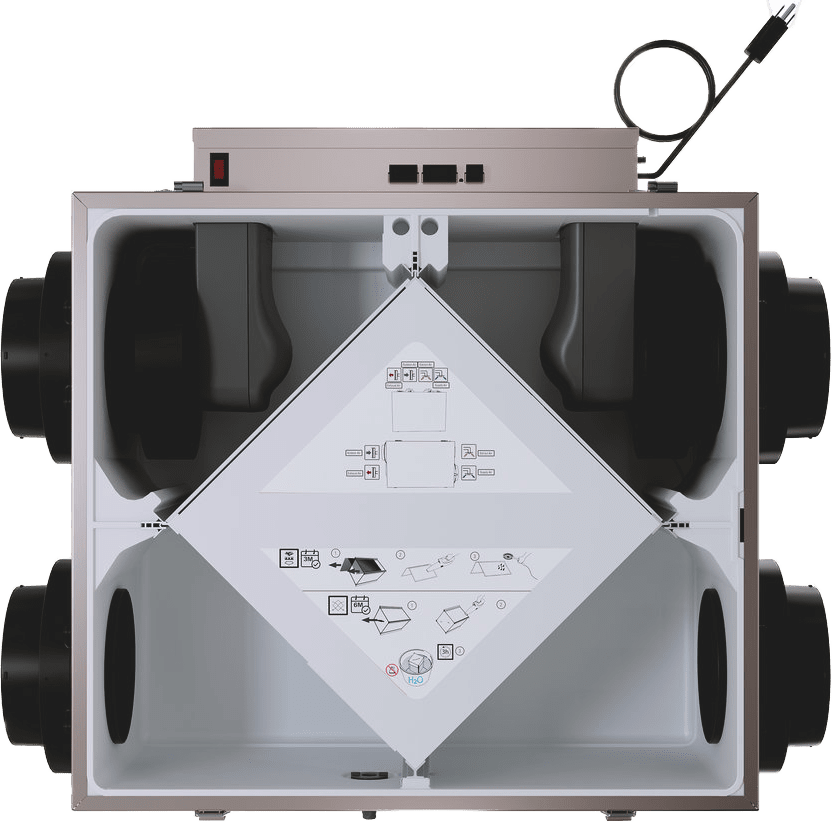

Crossflow Core
At the heart of the Fantech ATMO is its energy recovery crossflow core. Extracting up to 75% of the heat in your exhausted air, this unit uses the warmth to efficiently temper the air entering your home.
Top Features Of The Fantech ATMO 200E
Deliver the cleanest and healthiest indoor to your home and guests with the impressive features of this ERV from Fantech.
- Duct Connection: Features 6-inch side port duct connections.
- Energy Star Rated: It's so efficient that this model has earned the coveted Energy Star certification.
- Powerful Airflow: Provides up to 201 CFM of fresh, filtered air.
- Electrical Box: Designed with an electrical box with external access and easy connectors.
- Integrated MERV-3 Filter: For unobstructed airflow and reducing textile fibers, pollen, and dust mites.
- One-Piece Foam Cabinet: UL900 rated with improved aerodynamics, insulation, and soundproofing.
- Easy to Maintain: All parts easily slide out for simple access.
- Chain Mounted Unit: Comes with an included hanging chain kit or you can select an optional wall bracket.
- Long Warranty: Offers a limited lifetime warranty on the exchanger.
Summary
Using the heat from the exhausted air to temper the air being brought into your home, the Fresh Air Appliance from Fantech is the perfect solution for high-static pressure residential applications.
Specifications
Specifications
-
Minimum Cubic Feet per Minute (CFM) (CFM)35.0
-
Mounting TypeSuspended, Wall
-
Number of SpeedsVariable
-
Port LocationSide
-
TypeERV-Air Supply Fan
-
ApplicationResidential
-
CertificationsCSA, HVI-Certified
-
ColorGray
-
ControlsElectronic
-
Maximum Cubic Feet per Minute (CFM) (CFM)201.0
-
Amperage (Amps)1.4
-
Power SupplyHardwired
-
Voltage (V)110-120
-
Watts (W)168
-
Depth (in.)29.5
-
Depth (with front cover) (in.)29.5
-
Duct Diameter (in.)6.0
-
Height (in.)21.5
-
Height (with front cover) (in.)21.5
-
Weight (lbs.)57.3
-
Width (in.)16.7
-
Width (with front cover) (in.)16.7
-
Additional FeaturesEnergy Star
-
Manufacturer's WarrantyLifetime Limited Exchanger Warranty, 7-Year Limited Motor Warranty, 5-Year Limited Parts Warranty
Key Specifications
General
Power
Dimensions
Additional Features
Warranty
Recommended Accessories
-
-
-
-
-
Fantech
Fantech MERV 13 Filter for ATMO 200H/E and ATMO 300E-EC (2-Pack) (463946)
$39.99Unit price /Unavailable -
Fantech
MERV 3 Filter Kit for ATMO 200H/E and ATMO 300E EC (2-Pack) (463940)
$34.99Unit price /Unavailable -
Fantech
MERV 8 Filter for ATMO 200H/E and ATMO 300E EC (2-Pack) (463945)
$39.99Unit price /Unavailable -
-
- BBillReviewingFantech ATMO 200E 201 CFM Energy Recovery VentilatorRated 3 out of 5 stars4 months agoCircuit Board Issue
Our existing Fantech HRV was over 20 years so we wanted to go with an updated ERV since we could no longer purchase a replacement heat core. We purchased the Atmos 200E which is a little larger unit. Unfortunately, we noticed the speeds on the unit were varying. I contacted Fantech who said they were replacing circuit boards on the unit due to this issue. Fantech customer support was superbe.
