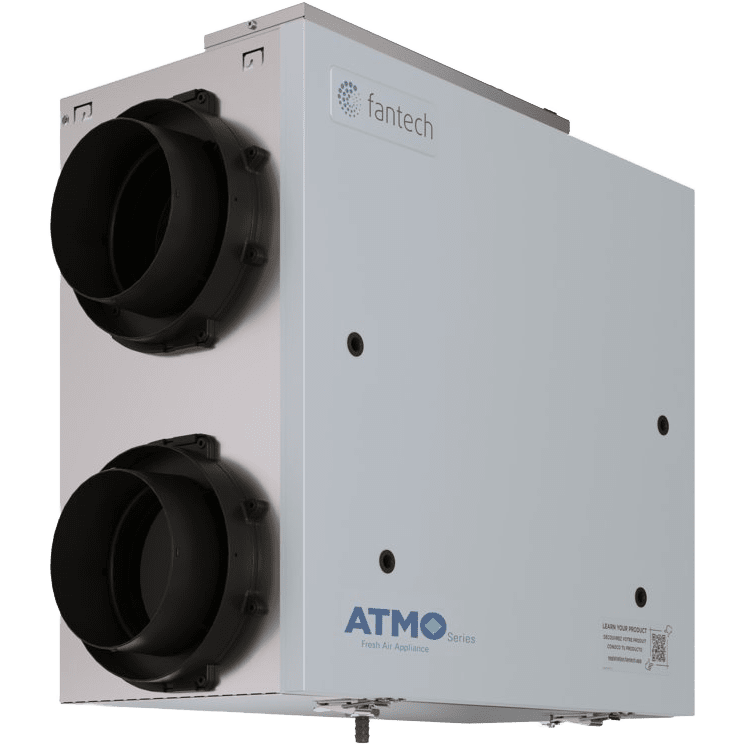

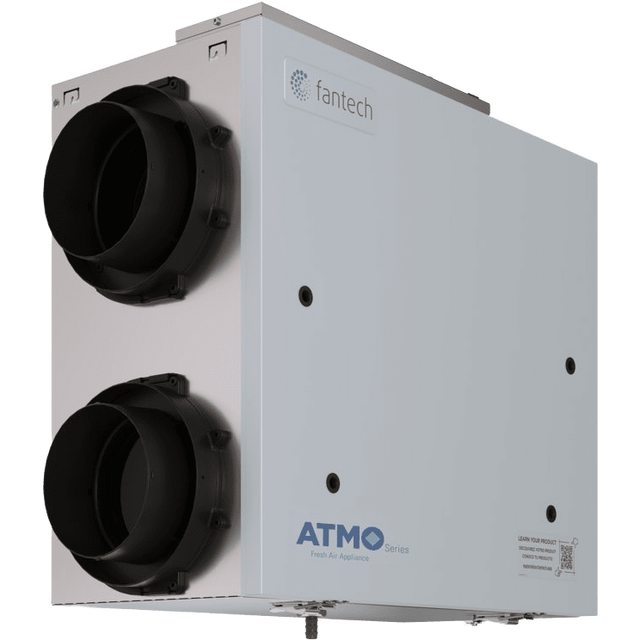

Fantech ATMO 200H 191 CFM Heat Recovery Ventilator
Fantech ATMO 200H 191 CFM Heat Recovery Ventilator is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Fantech ATMO 200H Heat Recovery Ventilator
- Owner's Manual
- Hanging Chain Kit
- Drain Hose
Info & Guides
Info & Guides
Fantech ATMO 200H 191 CFM Heat Recovery Ventilator
Description
Description
Supplying your home with up to 191 CFM of fresh, clean air while exhausting stale air, the Fantech ATMO 200H Heat Recovery Ventilator is the perfect choice for residential indoor air quality control. Effective and efficient, it'll extract up to 75% of the heat in your exhausted air, using the heat to temper the incoming fresh air. This unit is particularly effective in high-static pressure applications.

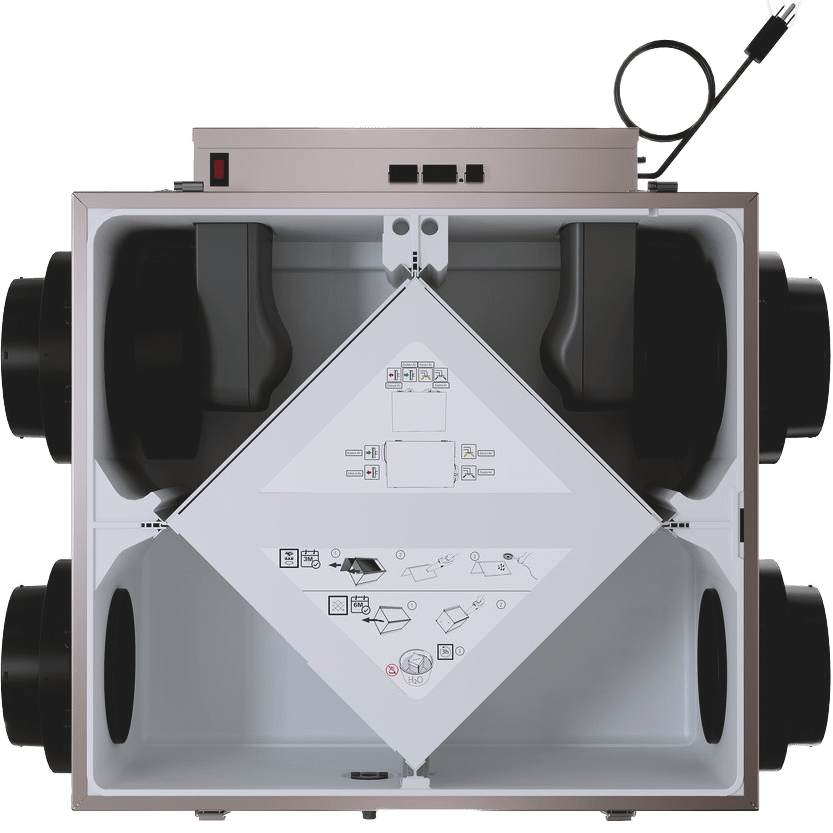

Crossflow Core
Providing up to 75% of energy transfer, the Fantech ATMO and its crossflow core help to efficiently ventilate your home and leave you more comfortable. As it works, this unit extracts the heat found in the air exiting your home and uses that warmth to temper the incoming air from the outside.
Key Features Of The Fantech ATMO 200H
Deliver effective residential ventilation with the impressive features of this heat recovery ventilator from Fantech.
- Designed For High-Static Pressure Applications: Equipped with an automatic defrost mechanism that is automatically activated when the outdoor temperature drops to 23 degrees Fahrenheit or lower.
- Duct Connection: Features 6-inch side port duct connections.
- Powerful Airflow: Provides up to 191 CFM of fresh, filtered air.

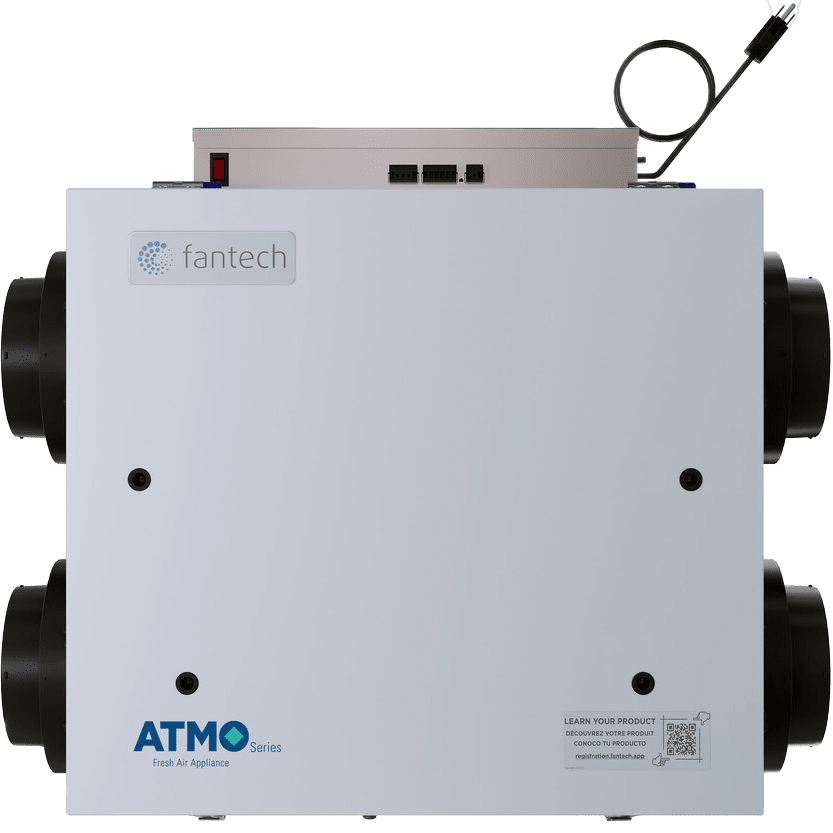

- Electrical Box: Designed with an electrical box with external access and easy connectors.
- Integrated MERV-3 Filter: For unobstructed airflow and reducing textile fibers, pollen, and dust mites.
- One-Piece Foam Cabinet: UL rated with improved aerodynamics, insulation, and soundproofing.
- Easy to Maintain: All parts easily slide out for simple access.

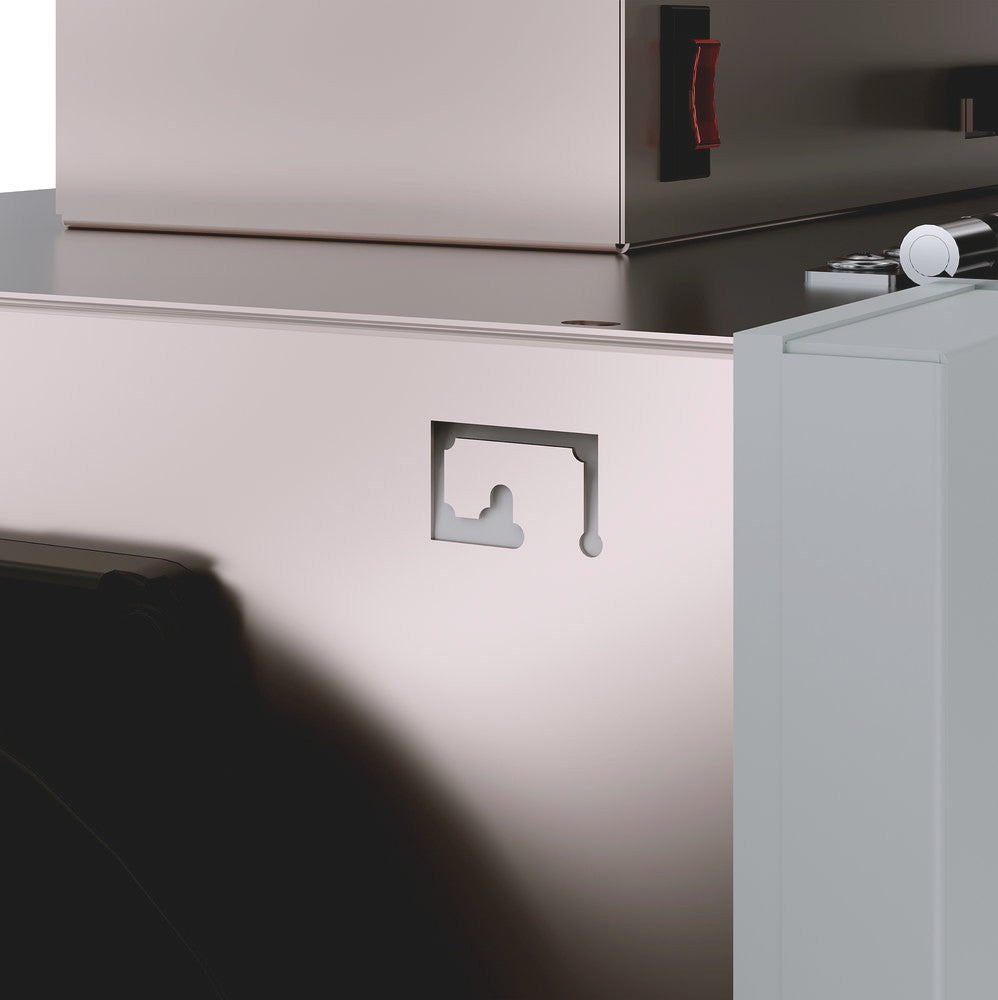

- Chain Mounted Unit: Comes with an included hanging chain kit or you can select an optional wall bracket.
- Long Warranty: Offers a limited lifetime warranty on the exchanger.
Summary

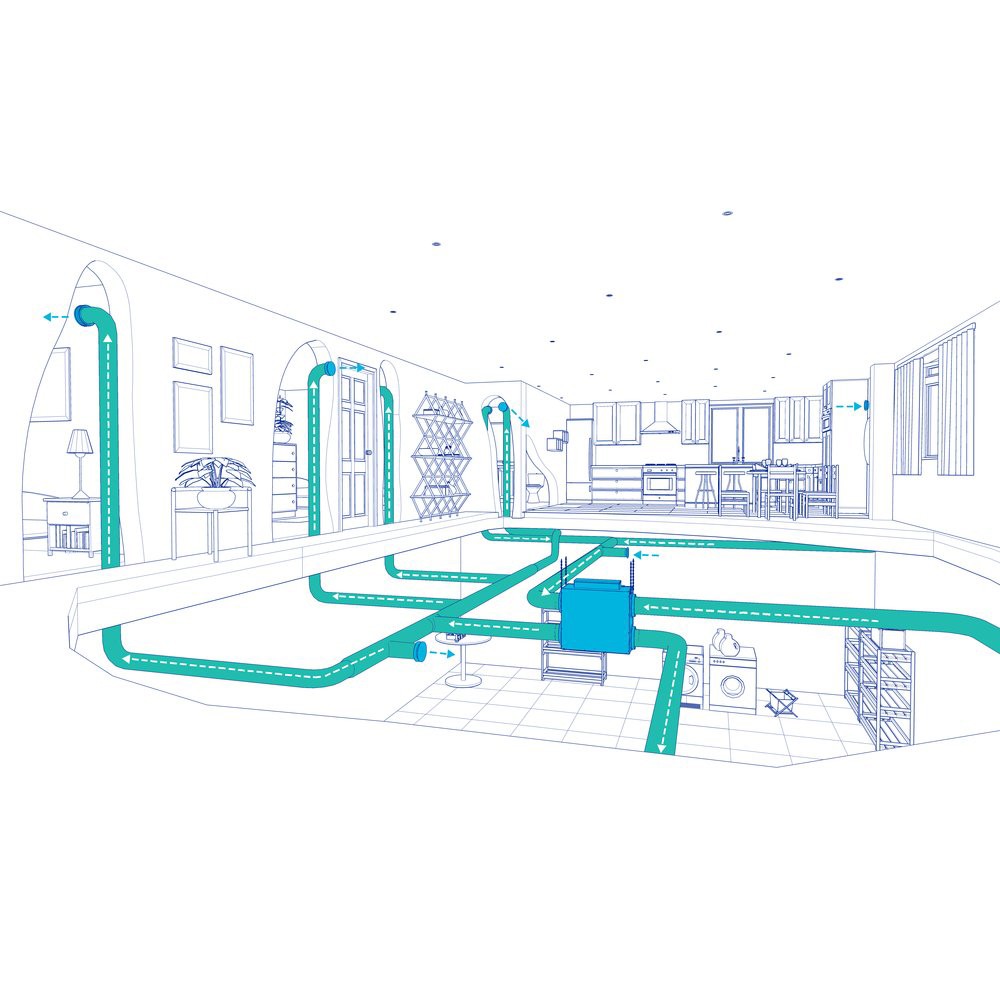

Supply fresh air to your home, while removing stale and unhealthy air, with the ATMO Fresh Air Appliance from Fantech.
Specifications
Specifications
-
Minimum Cubic Feet per Minute (CFM) (CFM)35.0
-
Mounting TypeSuspended, Wall
-
Number of SpeedsVariable
-
Port LocationSide
-
TypeHRV-Air Supply Fan
-
ApplicationResidential
-
CertificationsCSA, HVI-Certified
-
ColorGray
-
ControlsElectronic
-
Maximum Cubic Feet per Minute (CFM) (CFM)191.0
-
Amperage (Amps)1.4
-
Power SupplyHardwired
-
Voltage (V)110-120
-
Watts (W)168
-
Depth (in.)29.5
-
Depth (with front cover) (in.)29.5
-
Duct Diameter (in.)6.0
-
Height (in.)21.5
-
Height (with front cover) (in.)21.5
-
Weight (lbs.)59.5
-
Width (in.)16.7
-
Width (with front cover) (in.)16.7
-
Additional FeaturesEnergy Star
-
Manufacturer's WarrantyLifetime Limited Exchanger Warranty, 7-Year Limited Motor Warranty, 5-Year Limited Parts Warranty
Key Specifications
General
Power
Dimensions
Additional Features
Warranty
Recommended Accessories
-
-
-
-
-
Fantech
Fantech MERV 13 Filter for ATMO 200H/E and ATMO 300E-EC (2-Pack) (463946)
$39.99Unit price /Unavailable -
Fantech
MERV 3 Filter Kit for ATMO 200H/E and ATMO 300E EC (2-Pack) (463940)
$34.99Unit price /Unavailable -
Fantech
MERV 8 Filter for ATMO 200H/E and ATMO 300E EC (2-Pack) (463945)
$39.99Unit price /Unavailable -
-
- FFrederichVerified BuyerReviewingFantech ATMO 200H 191 CFM Heat Recovery VentilatorI recommend this productRated 5 out of 5 stars2 years agoI am very pleased
The ATMO 200H replaced a 30 year old HRV that had failed. The unit is exactly as described and I was able to use the controls used on the unit I replaced.
