Fantech ATMO 300E-EC 300 CFM Energy Recovery Ventilator w/ EC Motor
Fantech ATMO 300E-EC 300 CFM Energy Recovery Ventilator w/ EC Motor is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Fantech ATMO 300E-EC ERV
- MERV 3 Filter (2)
- Hanging Chain
- External Electrical Box
- Duct Ports with Plastic Collar Shrouds
- Owner’s Manual
Info & Guides
Info & Guides
Description
Description
Balance your home's ventilation system with the Fantech ATMO 300E-EC ERV, a heat and energy recovery ventilator designed to remove excess humidity and supply fresh air in single-family homes over 3,200 square feet.
This Energy Star-certified ERV maintains optimal air pressure levels whether you choose a partially or fully dedicated system. It supplies tempered, fresh air to primary living areas while removing steam and odors from bathrooms. This high-efficiency ERV helps improve your home’s HERS (Home Energy Rating System) score, working towards a NetZero status and reduced energy costs.

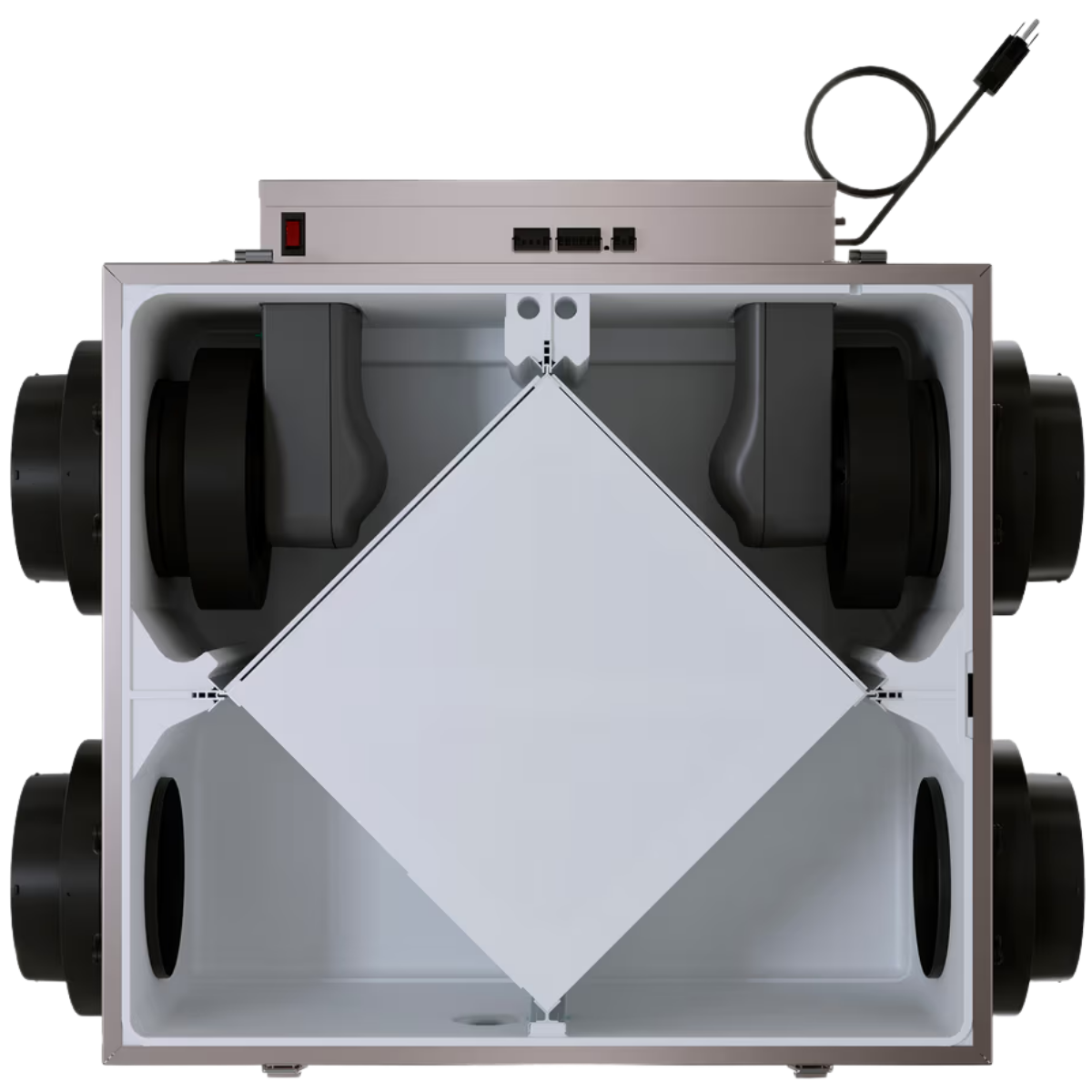

- Energy Efficiency: A cross-flow core within this ERV provides extraordinary performance and recovers up to 75 percent of the energy from extracted air for pre-cooling or pre-heating incoming fresh outside air.
- Airflow: Two efficient EC Motors provide 130 to 300 CFM of airflow into your home.
- Climate Flexibility: The energy recovery core is freeze-tolerant, making this ERV suitable for any climate.
- Accessible Installation and Maintenance: With side-mounted connections, plastic collars, and integrated balancing taps for commissioning, installation is easy and gives you unobstructed access to the front for quick and easy maintenance.
- Controller: You can connect this ERV energy-focused appliance to the Fantech ECO-Touch programmable wall control for convenient access.
Sylvane's Expert Take
This Fantech ERV keeps your home and family comfortable with balanced ventilation of up to 300 CFM airflow while prioritizing energy efficiency.
- Certifications: This Fantech energy recovery ventilator is certified with CSA Mark, HVI, and Energy Star requirements.
- Mounting Bracket: A replacement 24-inch-long wall mounting bracket is sold separately.
- Filtration: Two MERV3 filters are included, but you can upgrade to a MERV8 or MERV13 filter (sold separately).
Specifications
Specifications
-
Minimum Cubic Feet per Minute (CFM) (CFM)130.0
-
Mounting TypeSuspended, Wall
-
Number of SpeedsVariable
-
Port LocationSide
-
TypeERV-Air Supply Fan
-
ApplicationResidential
-
CertificationsCSA, HVI
-
ColorGray
-
ControlsElectronic
-
Maximum Cubic Feet per Minute (CFM) (CFM)300.0
-
Amperage (Amps)6.4
-
Power SupplyHardwired
-
Voltage (V)110-120
-
Watts (W)235
-
Depth (in.)16.94
-
Depth (with front cover) (in.)16.94
-
Duct Diameter (in.)6.0
-
Height (in.)21.44
-
Height (with front cover) (in.)21.44
-
Weight (lbs.)58.9
-
Width (in.)23.89
-
Width (with front cover) (in.)23.89
-
Additional FeaturesEnergy Star
-
Manufacturer's Warranty5-Year Limited Parts Warranty, 7-Year Limited Motor Warranty, Lifetime Limited Crossflow Core Warranty
