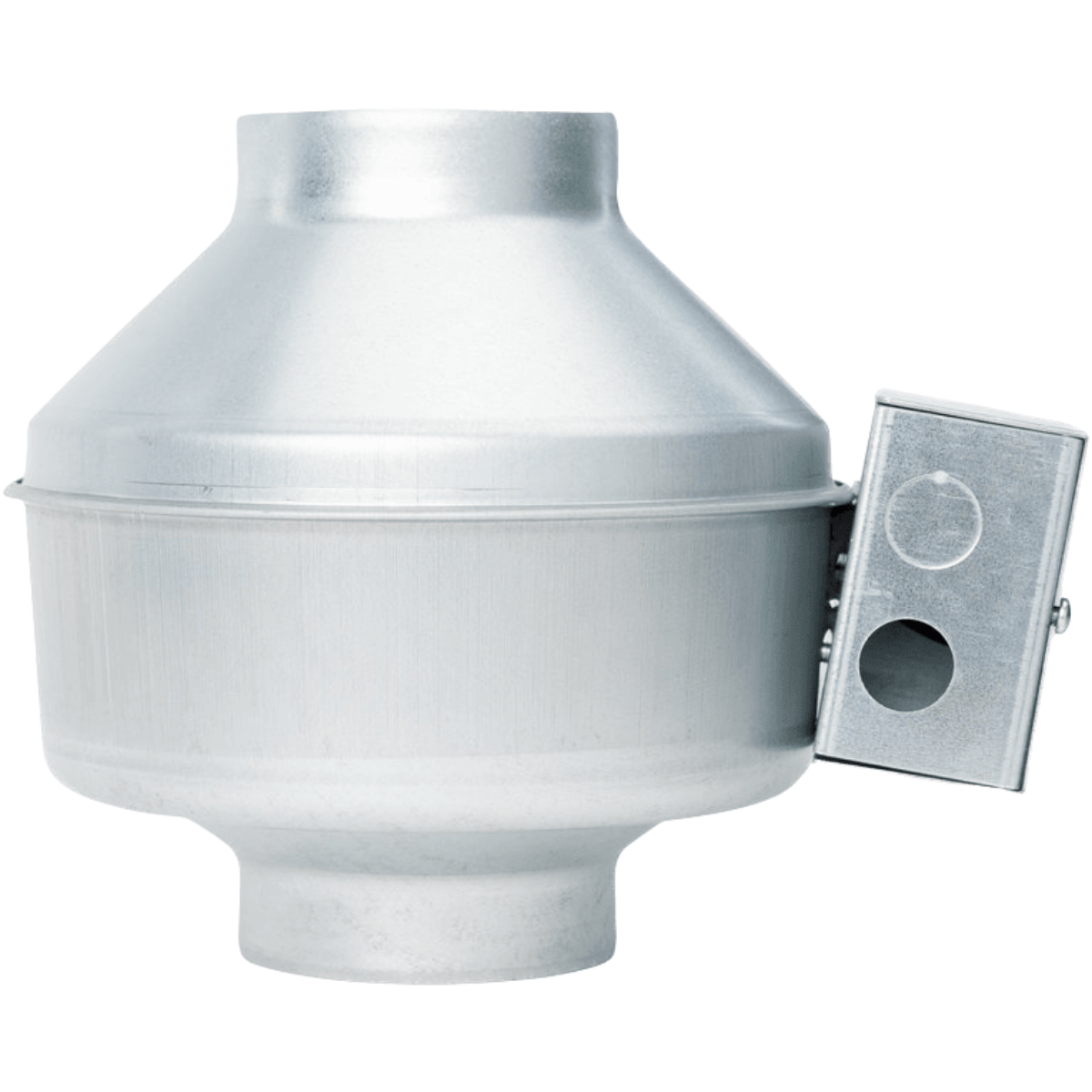

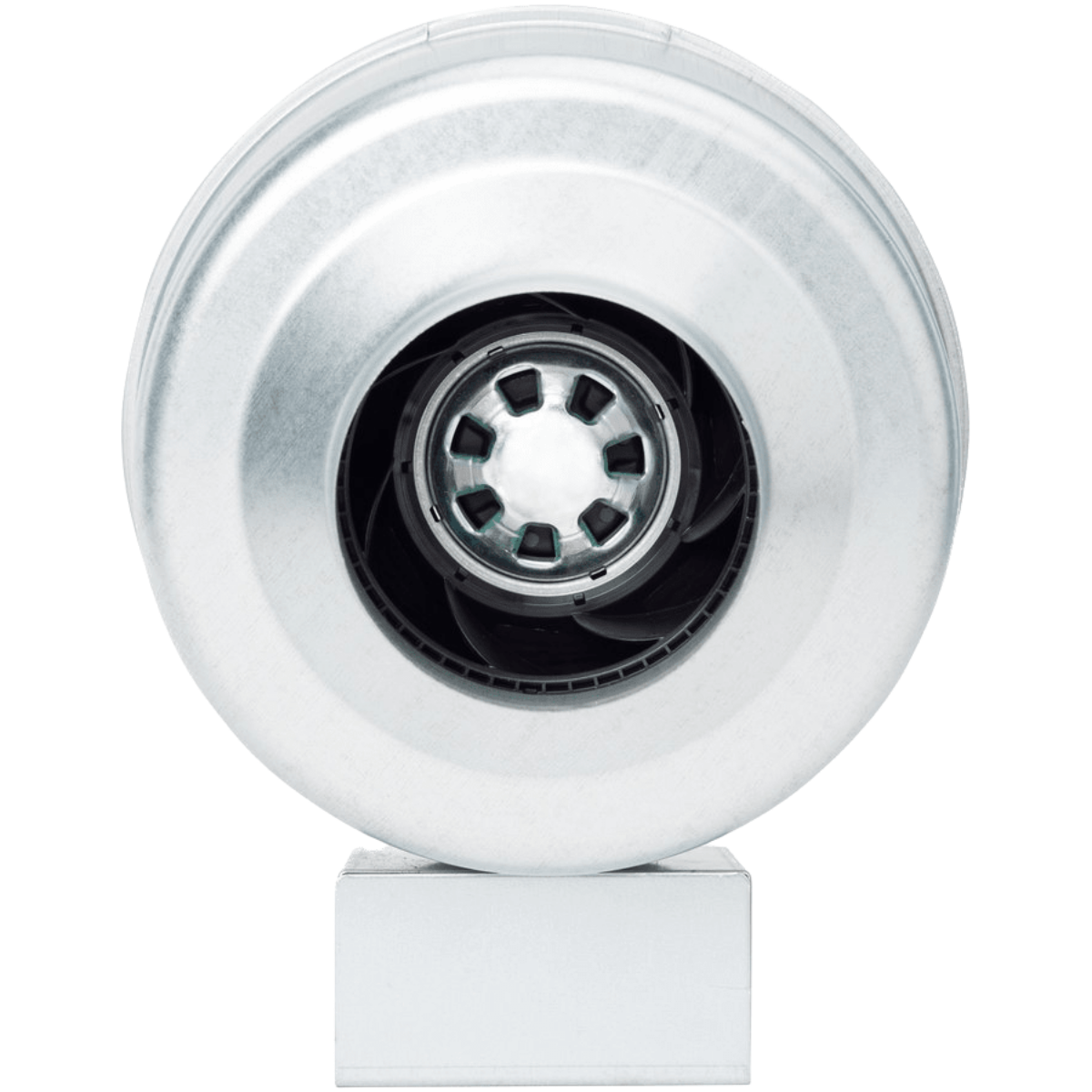

Fantech FG 4XL EC 4in. Inline Centrifugal Duct Fan w/ EC Motor

SKU: fn12447  |  Model: 56015
Regular price $32100

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Email

Manufacturer's Warranty

5-Year Limited Warranty

What's In The Box?

  • Fantech FG 4XL EC 4-Inch Inline Centrifugal Duct Fan w/ EC Motor
  • Owner's Manual

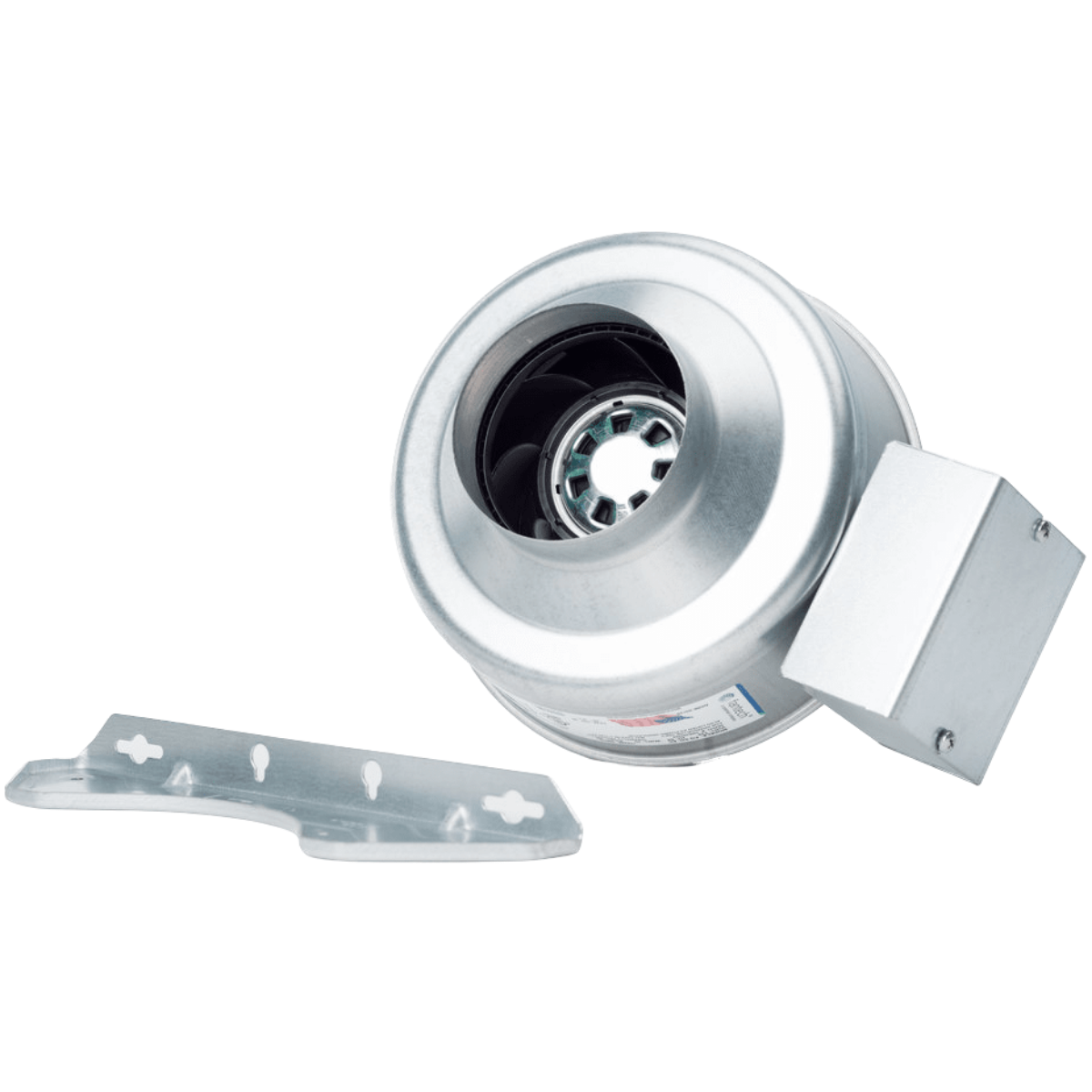

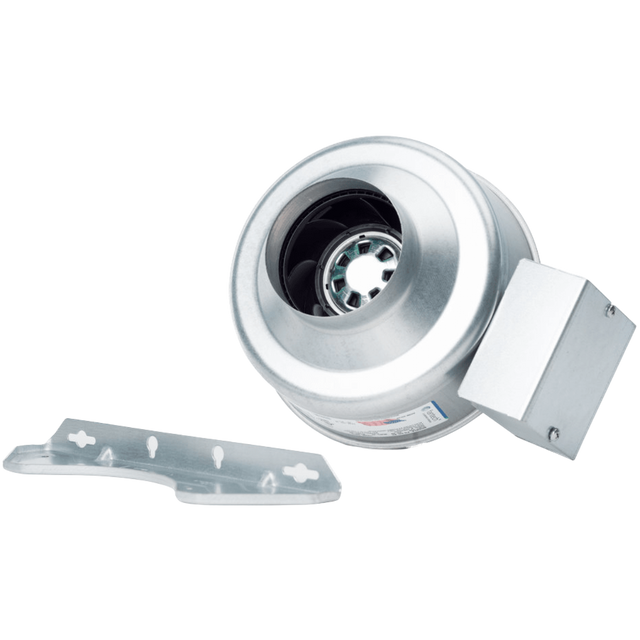

  • Mounting Bracket and Hardware

Info & Guides

Description

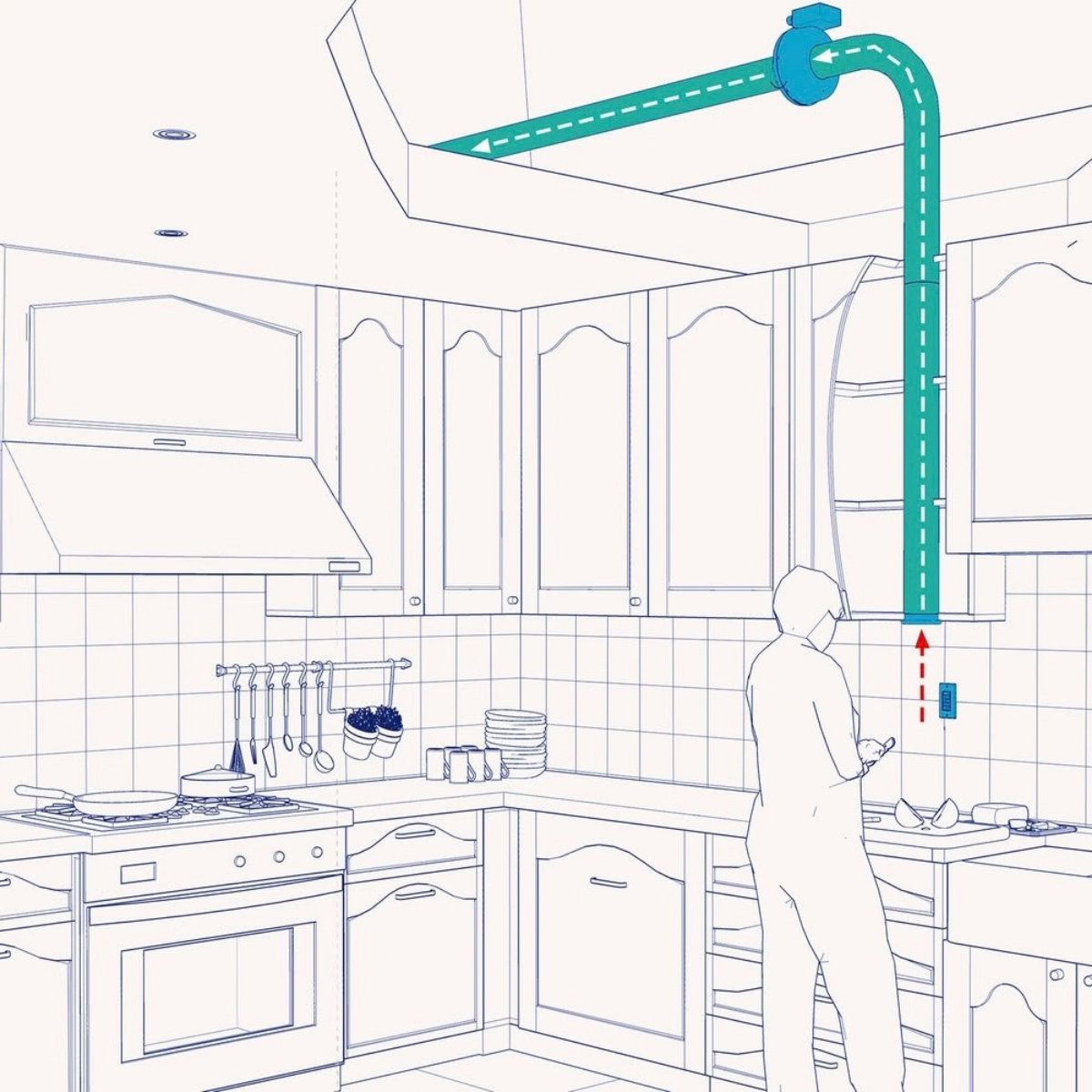

With an energy-efficient EC motor that uses less energy than standard fans, the Fantech FG 4XL EC 4-Inch Inline Centrifugal Duct Fan installs directly in your ductwork for powerful ventilation. Great for commercial and residential use, the 120-volt Energy Star rated fan delivers an airflow of up to 180 CFM. It'll easily mount to a ceiling or wall thanks to the provided installation bracket and is rated for outdoor use.

Key Features

  • Easy To Install: An included mounting bracket and hardware makes installation simple.

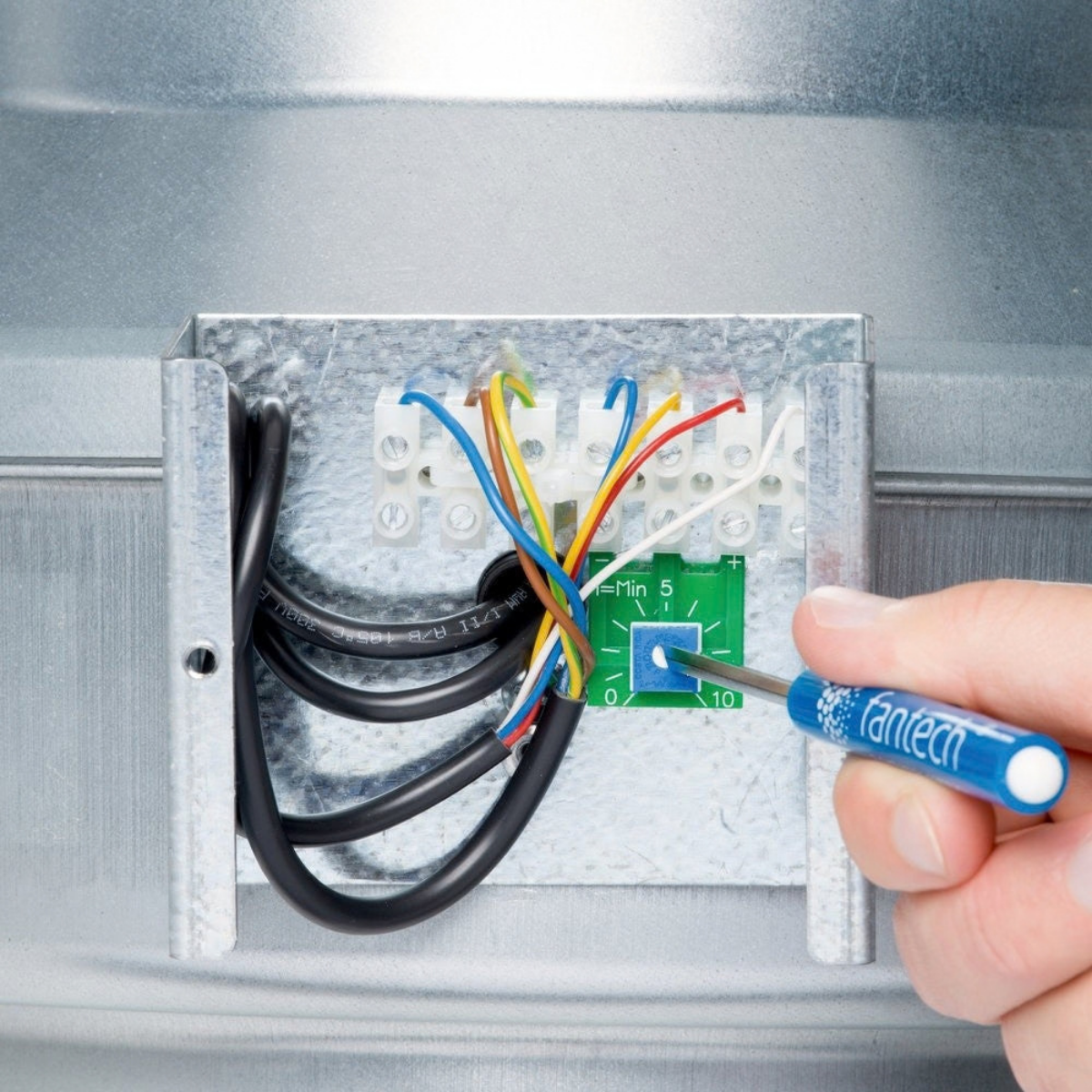

  • Speed Control: The Fantech FG 4XL is 100% speed controllable.
  • Airtight Seal: With its galvanized steel housing, this centrifugal duct fan is virtually airtight.
  • An Energy Saver: The Fantech FG 4XL EC has earned an Energy Star rating.
  • Low Maintenance: Permanently-sealed, self-lubricated motor bearings means this fan is a zero-maintenance ventilation solution.
  • Long Warranty: It's backed by a 5-year limited warranty.

Summary

Ventilate commercial and select residential applications with the efficient Fantech FG 4XL EC 4-Inch Inline Centrifugal Duct Fan.

Specifications

    Key Specifications

    • Number of Speeds
      Variable
    • Sound Level (Sones) (sones)
      0.0
    • Type
      Classic Inline Duct Booster Fan

    General

    • Application
      Ducting
    • Certifications
      UL
    • Color
      Gray
    • Controls
      Manual
    • Maximum Air Temperature (degrees F)
      140
    • Maximum Cubic Feet per Minute (CFM) (CFM)
      180.0
    • California Residents
      ⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov.

    Power

    • Maximum Amperage (Amps)
      0.48
    • Power Supply
      Hardwired
    • Voltage (V)
      110-120
    • Watts (W)
      33

    Dimensions

    • Depth (in.)
      6.5
    • Duct Diameter (in.)
      4.0
    • Height (in.)
      8.5
    • Weight (lbs.)
      4.6
    • Width (in.)
      4.0

    Additional Features

    • Additional Features
      Energy Star, Applicable for Indoor Growing

    Warranty

    • Manufacturer's Warranty
      5-Year Limited Warranty
