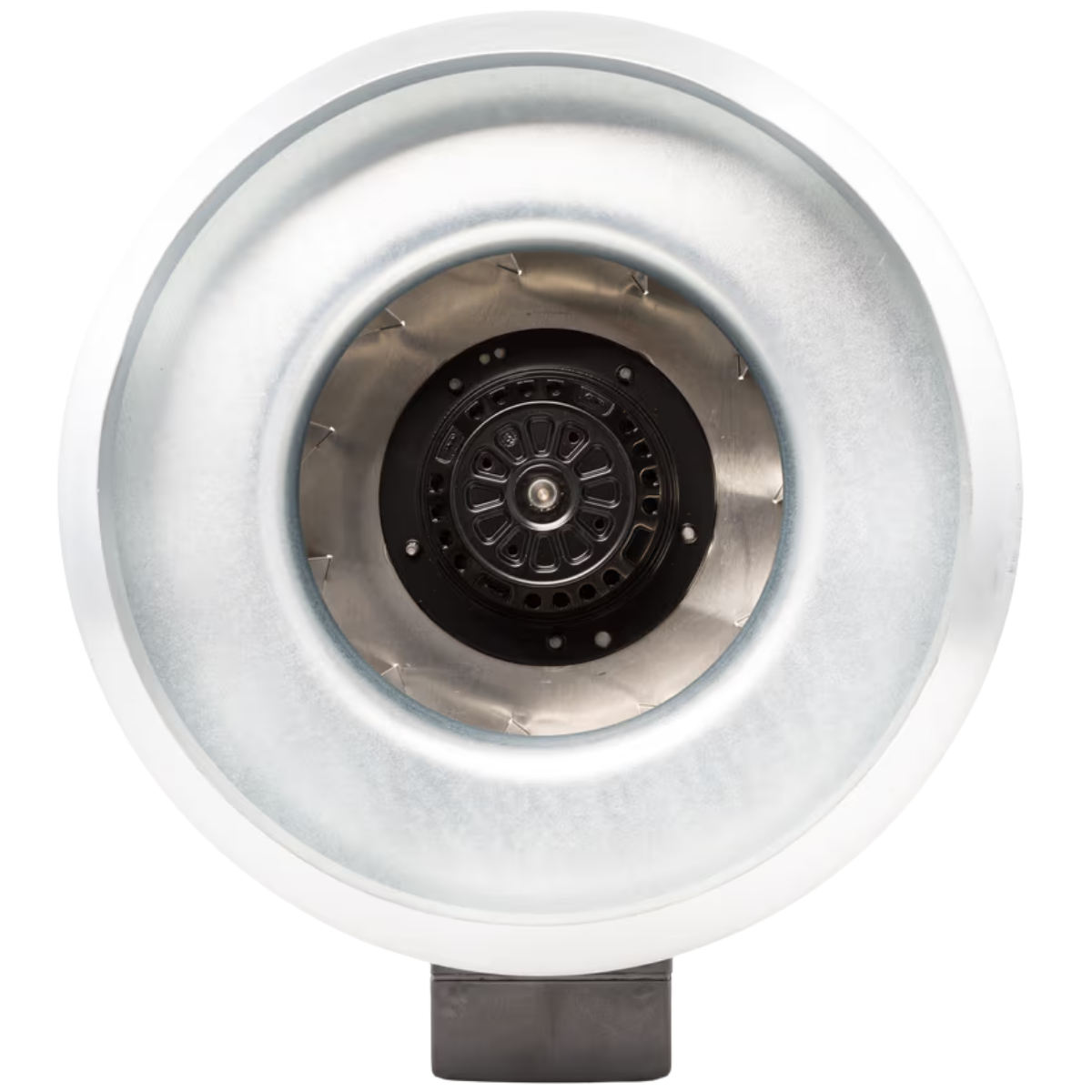

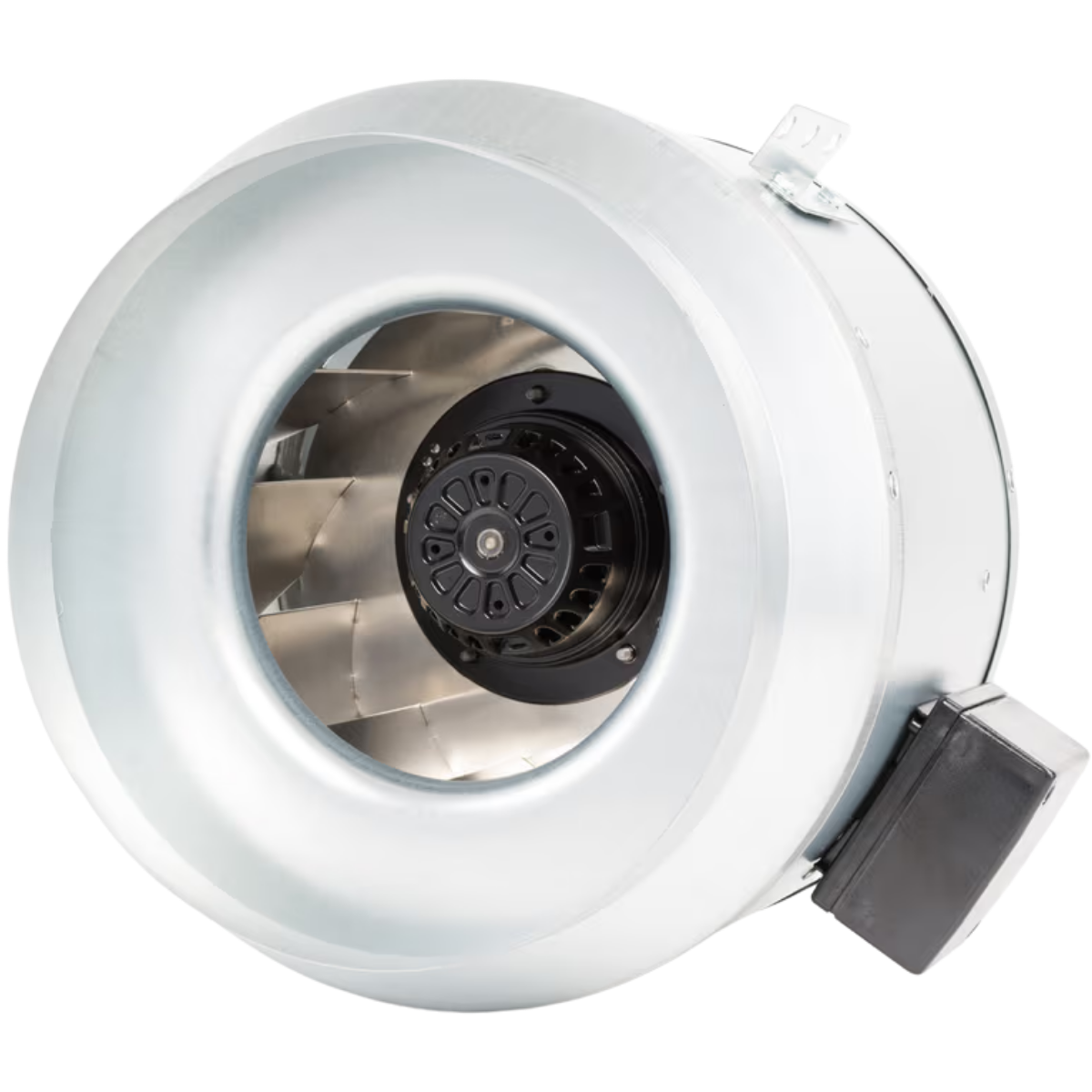

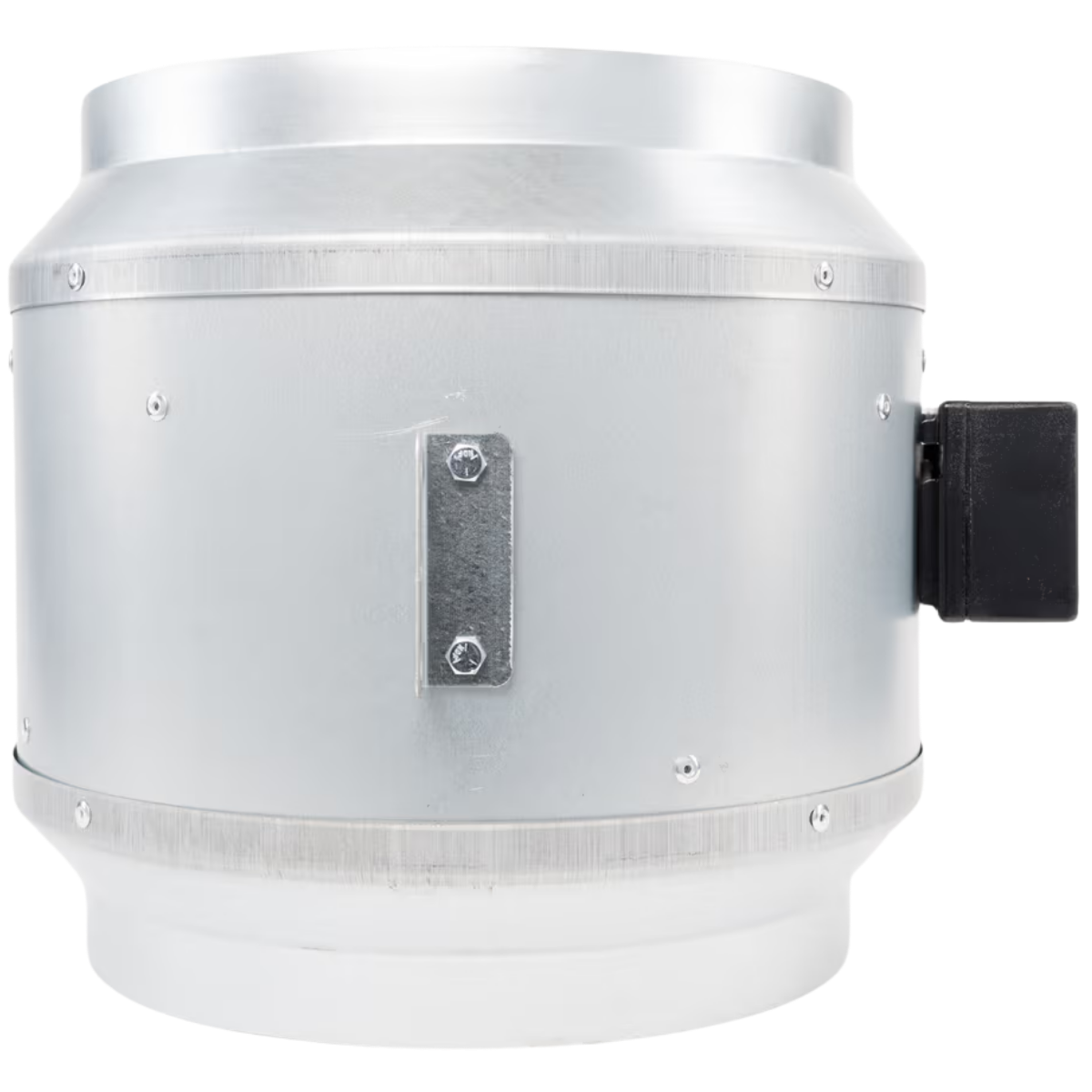

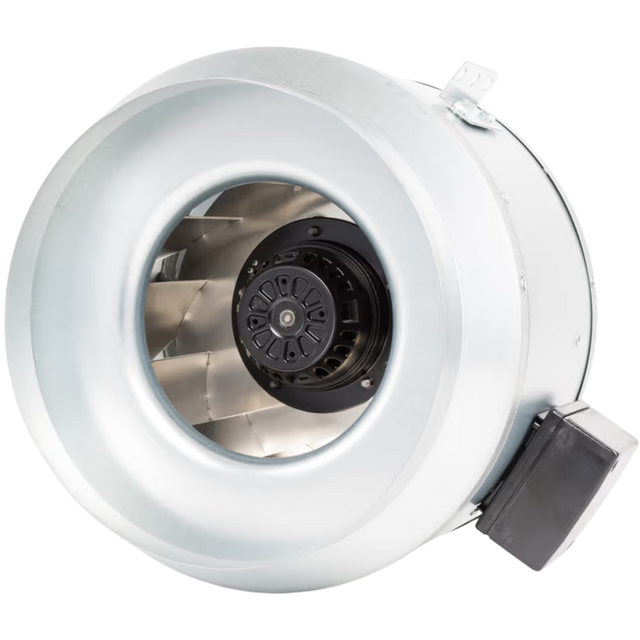

Fantech FKD 12 12in. Mixed Flow Inline Duct Fan

SKU: fn12459  |  Model: 40016
$78900
Option

Save! Shop this product Open-Box & Used

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Email

Info & Guides

Description

Delivering an airflow of up to 2,013 CFM, the Fantech FKD 12 12-Inch Mixed Flow Inline Duct Fan is an effective and efficient ventilation solution for a variety of commercial and residential applications.

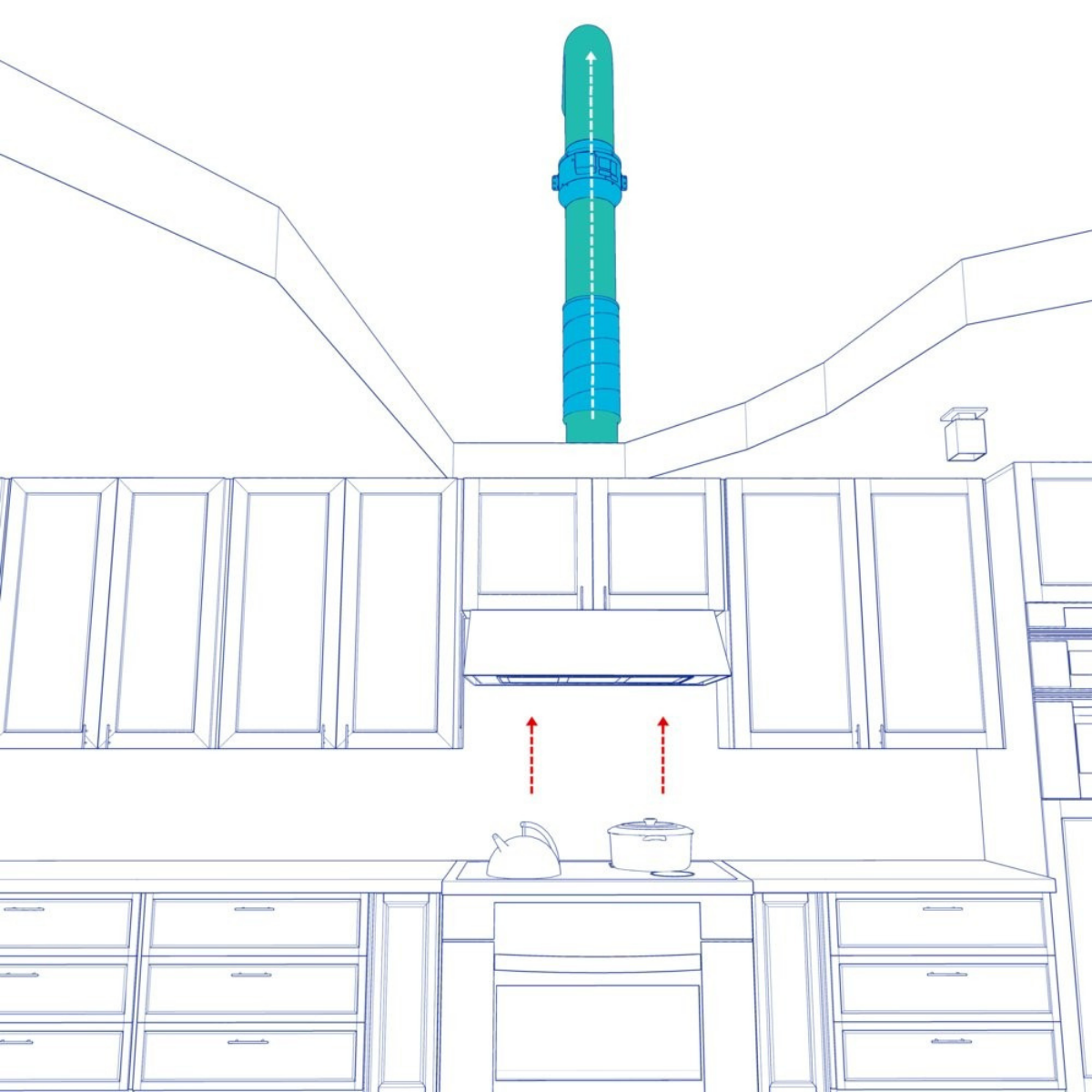

Useful in offices, medical facilities, and salons, it's equally effective in your home kitchen. Combining the performance of axial fans with the overloading protection of backward curved impellers, it's the premier option for achieving the best of both worlds.

Multiple Fans To Choose From

The Fantech FKD 12 Series offers four fan options for any space.

  • Fantech FKD 12 120V: 1,305 CFM Airflow
  • Fantech FKD 12 230V: 1,290 CFM Airflow
  • Fantech FKD 12 XL 120V: 2,013 CFM Airflow
  • Fantech FKD 12 XL 230V: 1,945 CFM Airflow

Key Features and Benefits of the Fantech FKD 12 12in. Mixed Flow Inline Duct Fan

  • For Commercial and Residential Use: With airtight galvanized steel housing, this duct fan is rated for both commercial and residential applications.
  • External Motor: Featuring an external rotor motor with built-in thermal overload protection.
  • Low Maintenance Solution: Permanently lubricated sealed ball bearings deliver a maintenance-free performance.
  • Maximum Heat Dissipation: This fan offers maximum heat dissipation even at low RPM.
  • Speed Controllable: This fan is 100% speed controllable. Prewired: Has a terminal box with a prewired electrical strip.
  • Air Stream Temperatures: The Fantech FKD 12 Series Fan is rated for air stream temperatures up to 140 degrees Fahrenheit.

Sylvane's Expert Take

Delivering an airflow of up to 2,013 CFM, the Fantech FKD 12 12-Inch Mixed Flow Inline Duct Fan is an effective and efficient ventilation solution for a variety of commercial and residential applications.

Specifications

    Key Specifications

    • Number of Speeds
      Variable
    • Sound Level (Sones) (sones)
      FKD 12 - 120V: 23.0
      FKD 12 - 230V: 25.0
      FKD 12XL - 120V: 18.7
      FKD 12XL - 230V: 20.4
    • Type
      Mixed Flow Inline Duct Fan

    General

    • Application
      Ducting
    • Certifications
      UL
    • Color
      Gray
    • Controls
      Manual
    • Maximum Cubic Feet per Minute (CFM) (CFM)
      FKD 12 - 120V: 1305.0
      FKD 12 - 230V: 1290.0
      FKD 12XL - 120V: 2013.0
      FKD 12XL - 230V: 1945.0

    Power

    • Power Supply
      Hardwired
    • Voltage (V)
      FKD 12 - 120V: 110-120
      FKD 12 - 230V: 220-240
      FKD 12XL - 120V: 110-120
      FKD 12XL - 230V: 220-240

    Dimensions

    • Depth (in.)
      FKD 12 - 120V: 14.0
      FKD 12 - 230V: 14.0
      FKD 12XL - 120V: 18.875
      FKD 12XL - 230V: 18.875
    • Duct Diameter (in.)
      12.0
    • Height (in.)
      FKD 12 - 120V: 15.625
      FKD 12 - 230V: 15.625
      FKD 12XL - 120V: 20.375
      FKD 12XL - 230V: 20.375
    • Width (in.)
      12.0

    Additional Features

    • Additional Features
      Applicable for Indoor Growing
