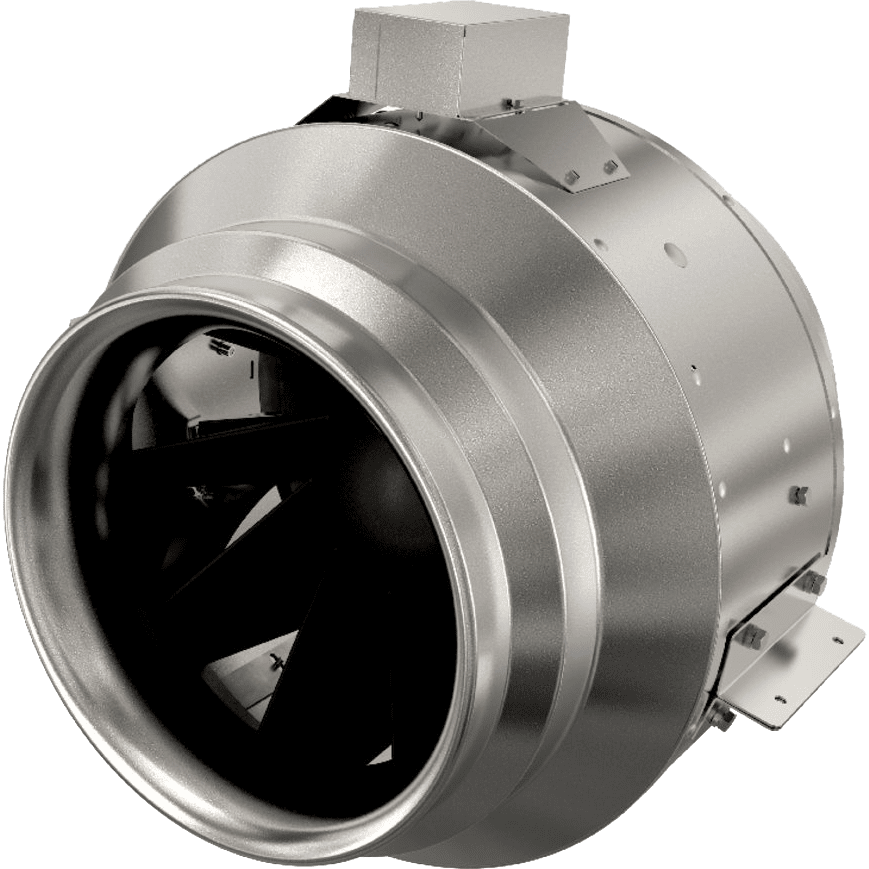

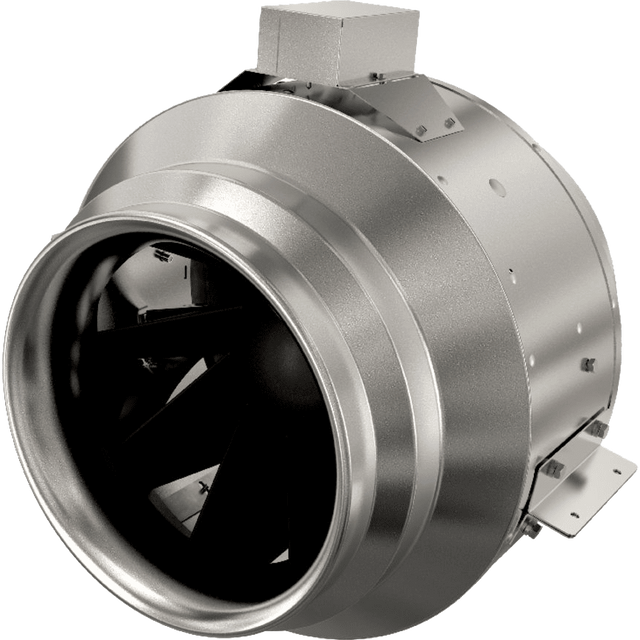

Fantech FKD 18 EC 208-460V 18-in. Mixed Flow Inline Duct Fan w/ EC Motor
Fantech FKD 18 EC 208-460V 18-in. Mixed Flow Inline Duct Fan w/ EC Motor is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Fantech FKD 18 EC 208-460V 18-Inch Mixed Flow Inline Duct Fan w/ EC Motor
- Owner's Manual
- Mounting Bracket and Hardware
Info & Guides
Info & Guides
Fantech FKD 18 EC 208-460V 18-in. Mixed Flow Inline Duct Fan w/ EC ...
Description
Description
For the ultimate in efficient ventilation, choose the Fantech FKD 18 EC 208-460V 18-Inch Mixed Flow Inline Duct Fan with EC Motor. Its mixed airflow design combines the strong airflow of axial fans with the high-pressure design of backward impellers. Installing directly onto ducting, it's a versatile solution for hospitals, salons, veterinary offices, and other essential commercial and residential applications.
Key Features
- Durable Construction: With its galvanized steel construction, this mixed flow duct fan is built for a quiet and reliable performance.
- External EC Motor: Its external EC motor reduces the external dimensions of this fan.
- Speed Control Options: The fan motor's speed is controlled via a 0-10Vdc signal. The motor provides a +10V reference that can be used by a remotely-mounted potentiometer.
- Works In Smart Buildings: The FKD 18 EC from Fantech can be integrated into smart HVAC systems.
- Use In Extreme Environments: The fan works in airstream temperatures up to 140 degrees Fahrenheit
- Easy Set-Up: An included mounting bracket makes installation a breeze.
- Extended Warranty: It's covered by a 5-year limited warranty.
Summary
This fan's mixed airflow design combines the strong airflow of axial fans with the high-pressure design of backward impellers. Installing directly onto ducting, it's a versatile solution for any facility.
Specifications
Specifications
-
Number of SpeedsVariable
-
Sound Level (Sones) (sones)25.0
-
TypeMixed Flow Inline Duct Fan
-
ApplicationDucting
-
California Residents⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. See: www.P65Warnings.ca.gov
-
CertificationsUL
-
ColorGray
-
ControlsManual
-
Maximum Air Temperature (degrees F)140
-
Maximum Cubic Feet per Minute (CFM) (CFM)5992.0
-
Amperage (Amps)3.2
-
Power SupplyHardwired
-
Voltage (V)440-480
-
Watts (W)1965
-
Depth (in.)23.25
-
Depth (with front cover) (in.)23.25
-
Duct Diameter (in.)18.0
-
Height (in.)24.375
-
Height (with front cover) (in.)24.375
-
Weight (lbs.)98
-
Width (in.)18.0
-
Width (with front cover) (in.)18.0
-
Additional FeaturesApplicable for Indoor Growing
-
Manufacturer's Warranty5-Year Limited Warranty
