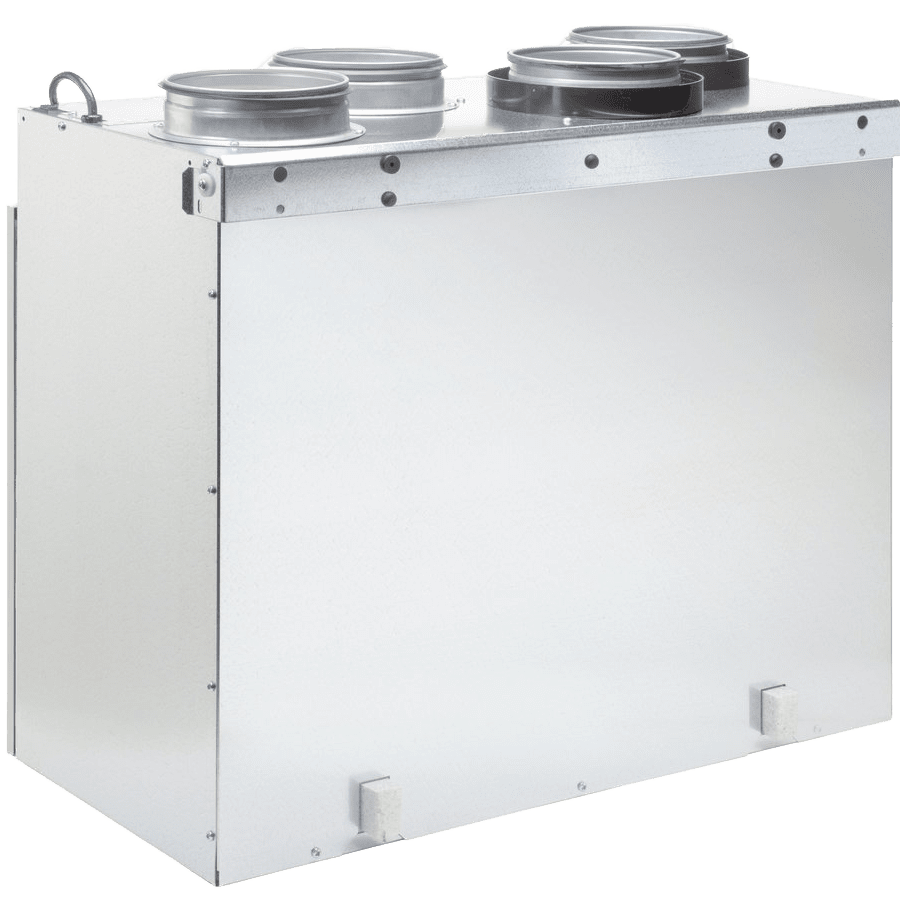

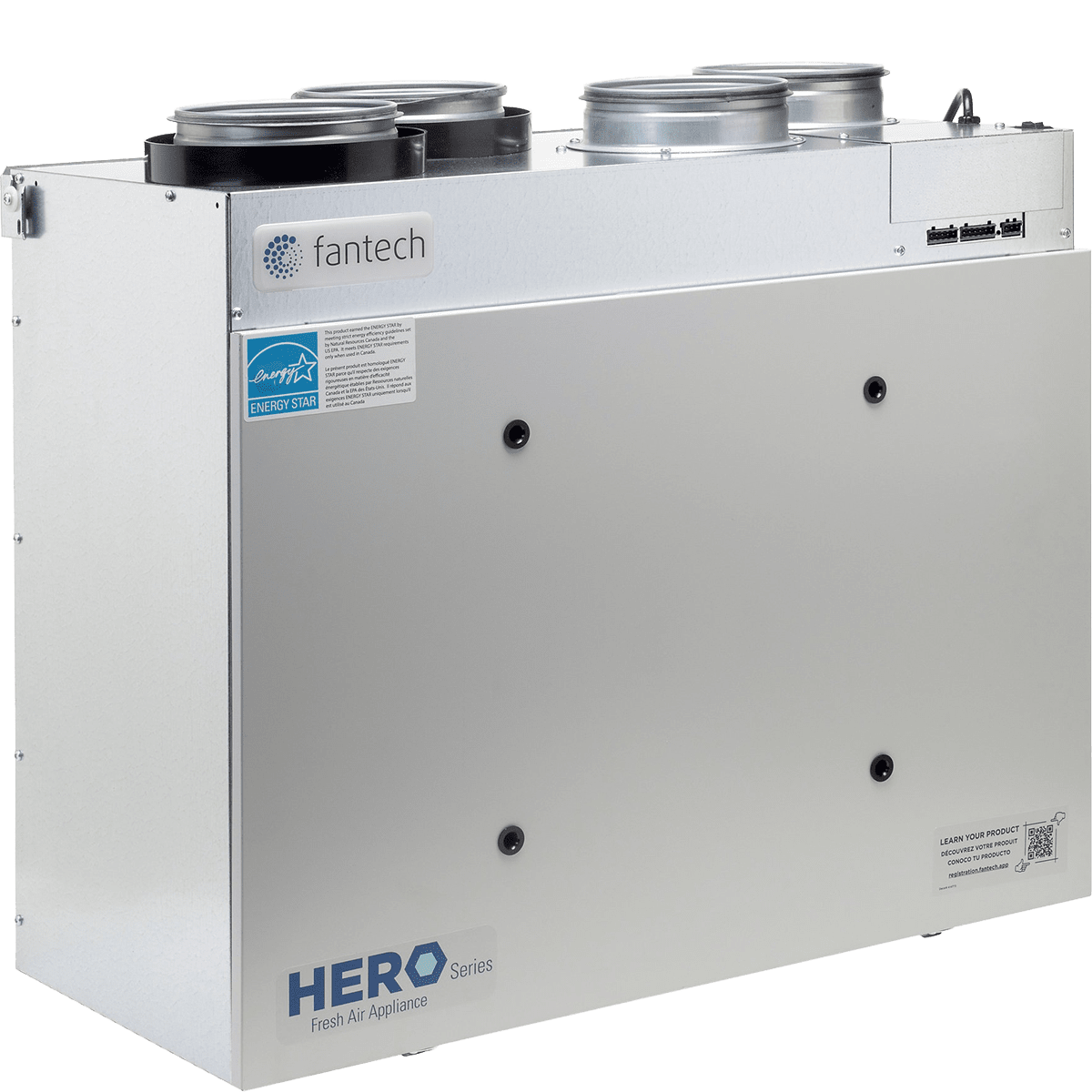

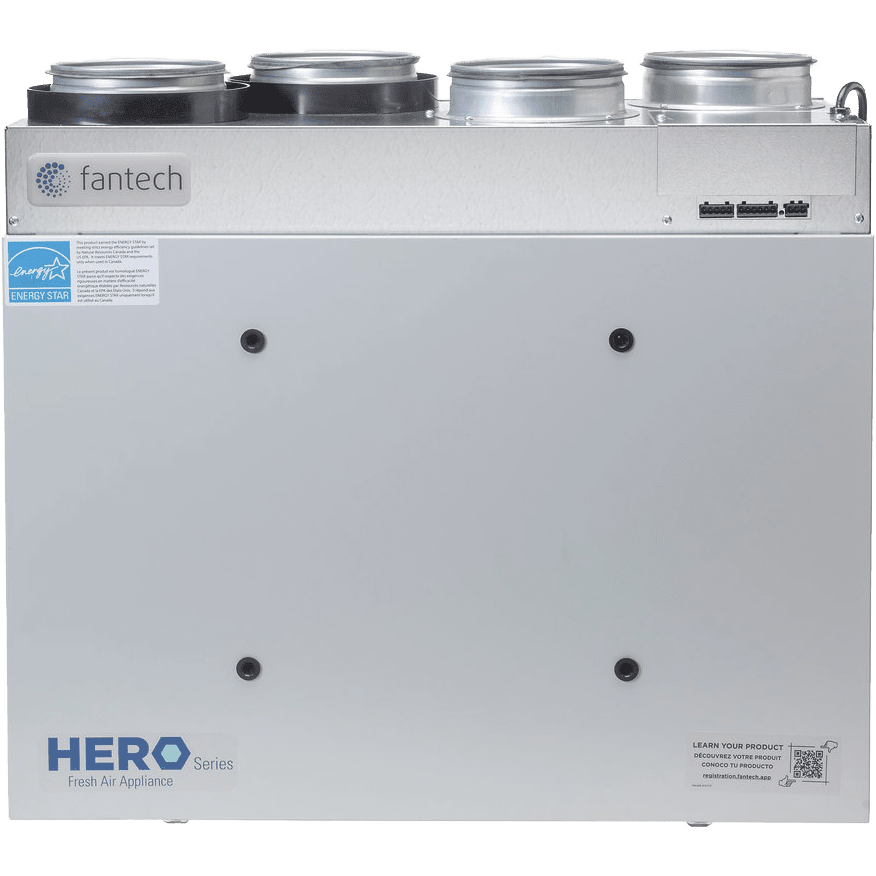

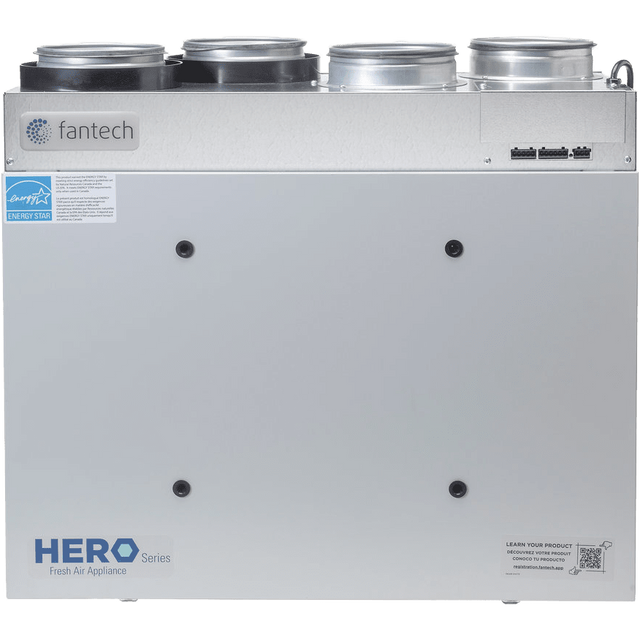

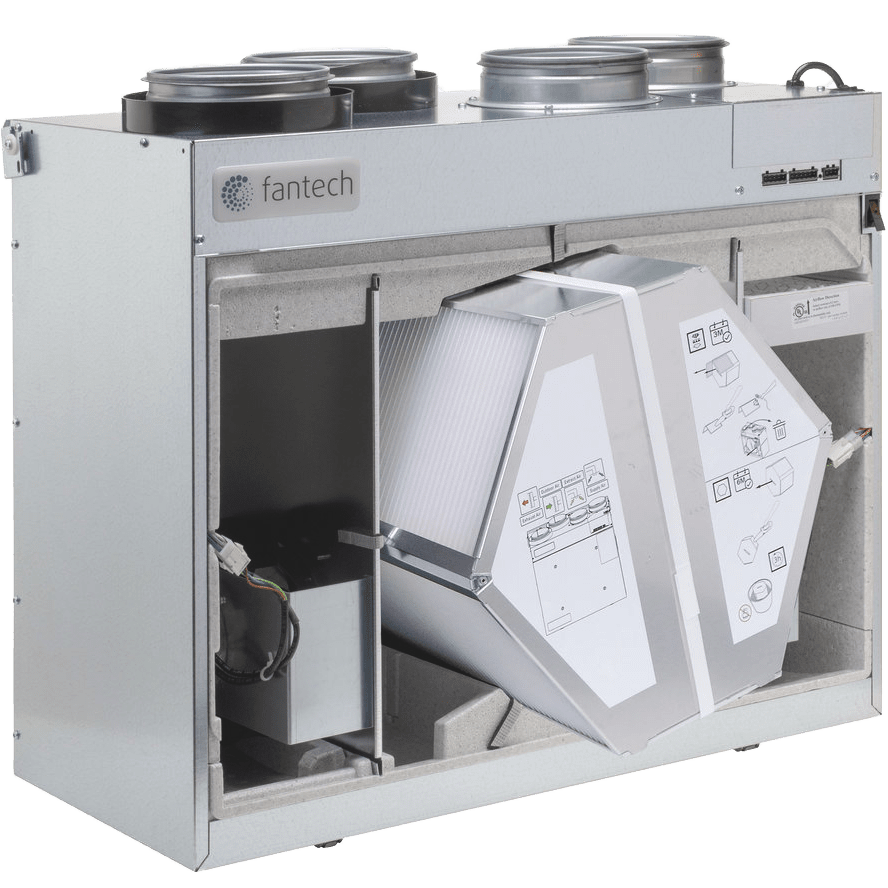

Fantech HERO 150H 161 CFM Heat Recovery Ventilator

SKU: fn13371  |  Model: 99401
$1,013.00

Add extended protection plan. (Select one)

learn more

A 2-year major appliance warranty for products less than $1,500.

learn more

A 4-year major appliance warranty for products less than $1,500.


Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

Limited Lifetime Counterflow Core Warranty, 7-Year Limited Motor Warranty, 5-Year Limited Parts Warranty

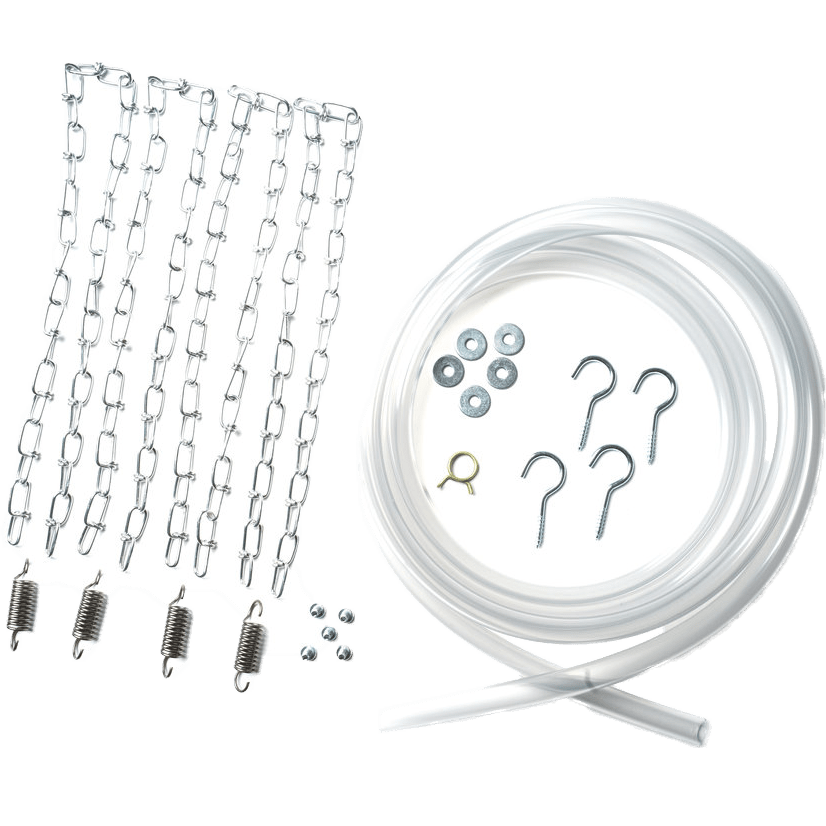

What's In The Box?

  •  Fantech HERO 150H Heat Recovery Ventilator (6-Inch Top Ports)
  • Owner's Manual
  • Wall Mount
  • External Electrical Box With Easy Connect Ports
  • Integrated In-Door Manometer Ports

Info & Guides

Description

Providing up to 160 CFM of fresh air ventilation, the Fantech HERO 150H Heat Recovery Ventilator exhausts contaminated air while ensuring a continuous supply of clean, fresh air. Easy to operate and maintain, this HRV from Fantech recovers up to 80% of heat to temper the incoming fresh air. Efficient too, this model has earned a coveted Energy Star rating.

Top Features Of The HERO 150H

  • Duct Connection: Features 6-inch oval top-mounted connections.
  • Heat Recovery: Recovers up to 80% of heat to temper incoming air.

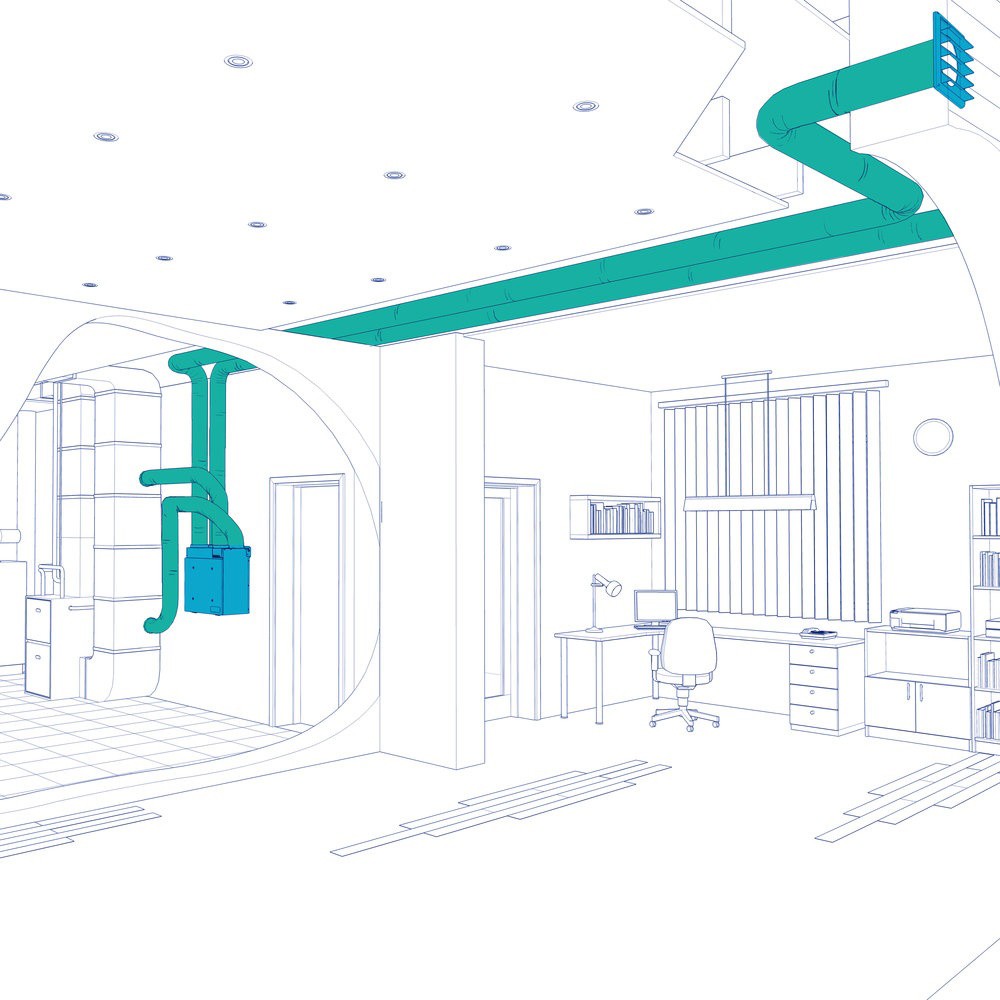

  • Ideal For Multi-Room Homes: With an airflow of up to 160 CFM, the 150H from Fantech is effective in 2 - 5 bedroom homes.
  • Multiple Speeds: Multi-speed operation to provide exact airflow.
  • Easy to Maintain: Unobstructed front access for fast and easy maintenance.
  • Use In High Static Pressure: This ventilator is designed to exhaust contaminated indoor air while replacing it with fresh air.
  • Easy to Install: It features a removable screw terminal for easy connection.

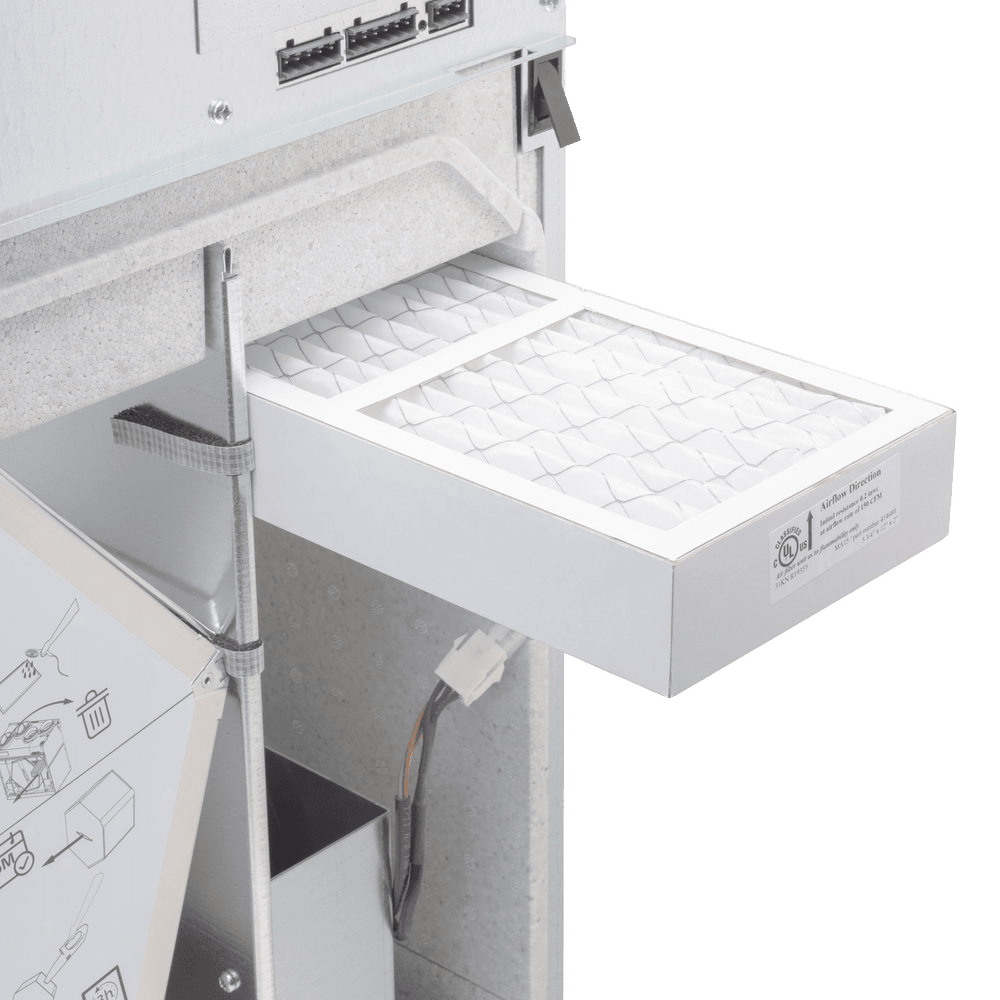

  • MERV-3 Filtration: A MERV-3 filter captures airborne irritants as air passes through the ventilator.

Summary

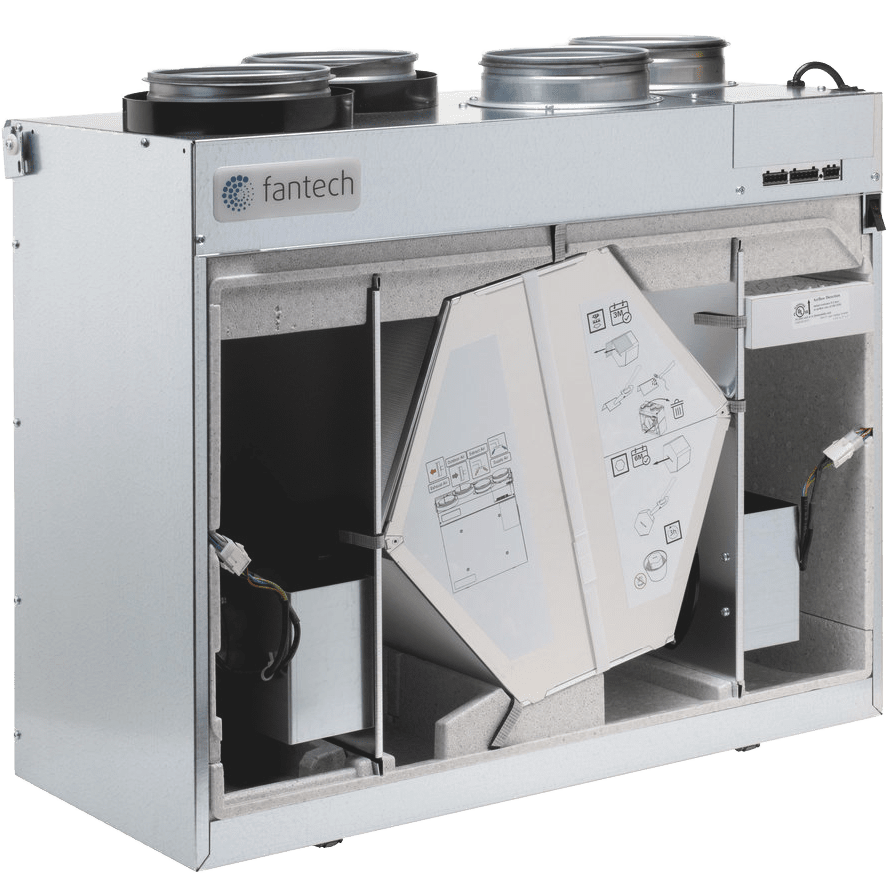

The Fantech HERO 150H HRV recovers up to 80% of the heat from the extract air and uses it to temper the incoming fresh air.

Specifications

    Key Specifications

    • Minimum Cubic Feet per Minute (CFM) (CFM)
      36.0
    • Mounting Type
      Suspended, Wall
    • Number of Speeds
      Variable
    • Port Location
      Top
    • Type
      HRV-Air Supply Fan

    General

    • Application
      Residential
    • Certifications
      CSA, HVI-Certified
    • Color
      Gray
    • Controls
      Electronic
    • Maximum Cubic Feet per Minute (CFM) (CFM)
      161.0

    Power

    • Amperage (Amps)
      1.4
    • Power Supply
      Hardwired
    • Voltage (V)
      110-120
    • Watts (W)
      180

    Dimensions

    • Depth (in.)
      27.9
    • Depth (with front cover) (in.)
      27.9
    • Duct Diameter (in.)
      6.0
    • Height (in.)
      24.9
    • Height (with front cover) (in.)
      24.9
    • Weight (lbs.)
      55.6
    • Width (in.)
      13.4
    • Width (with front cover) (in.)
      13.4

    Additional Features

    • Additional Features
      Energy Star

    Warranty

    • Manufacturer's Warranty
      Limited Lifetime Counterflow Core Warranty, 7-Year Limited Motor Warranty, 5-Year Limited Parts Warranty
