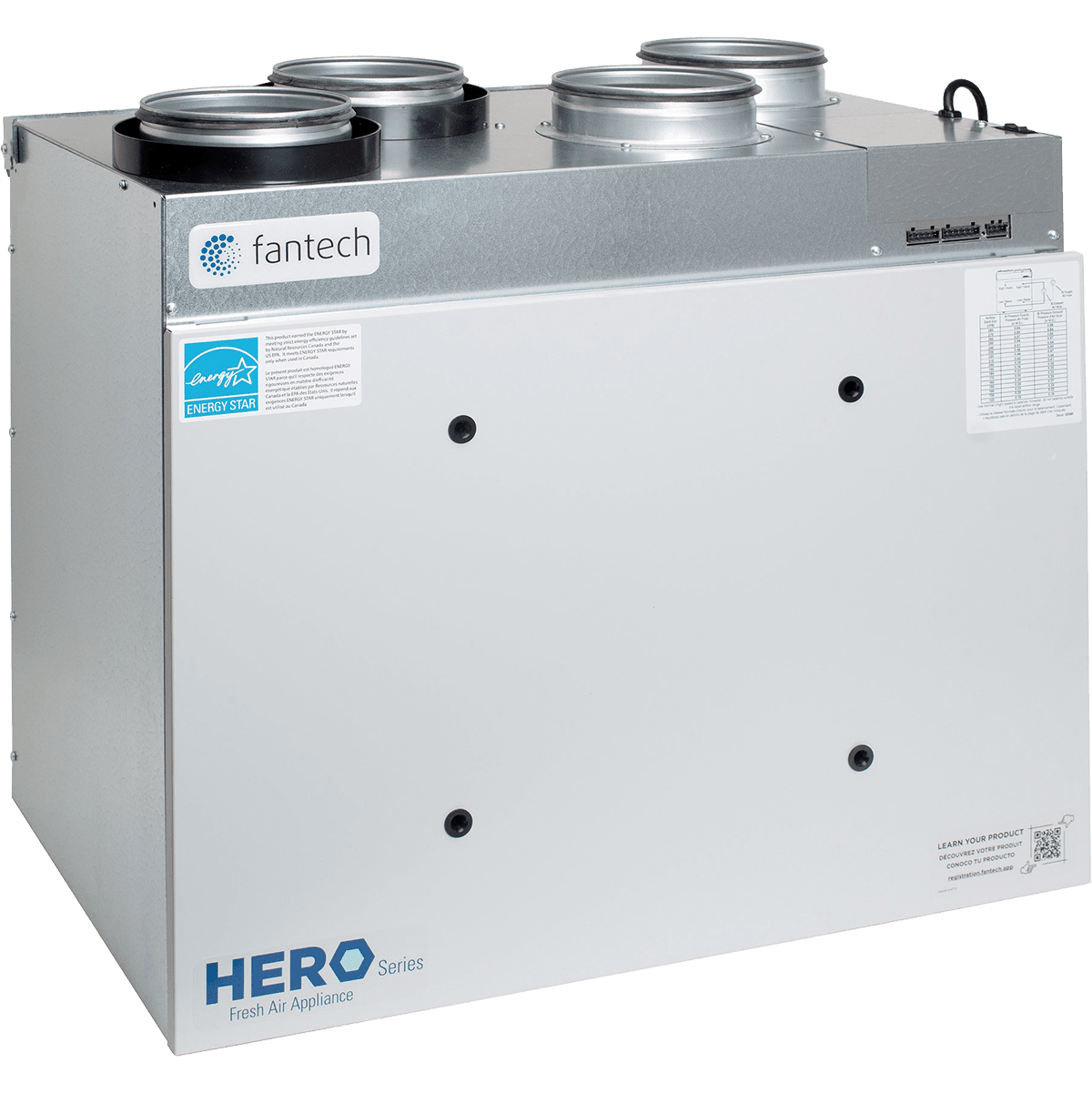

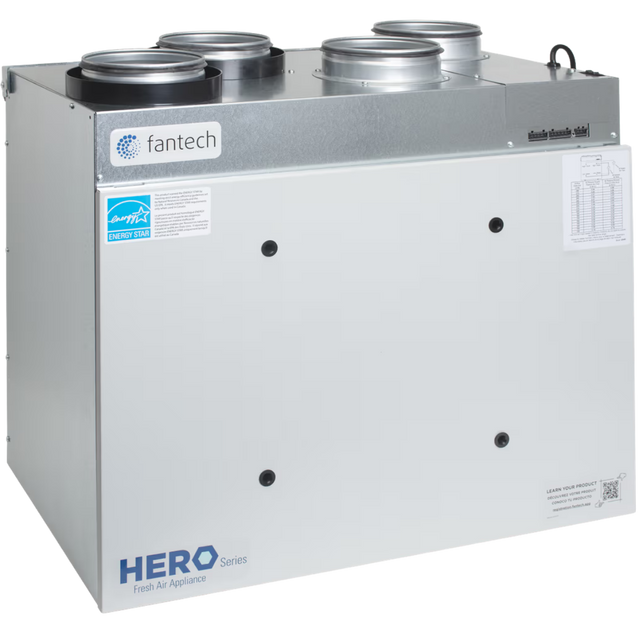

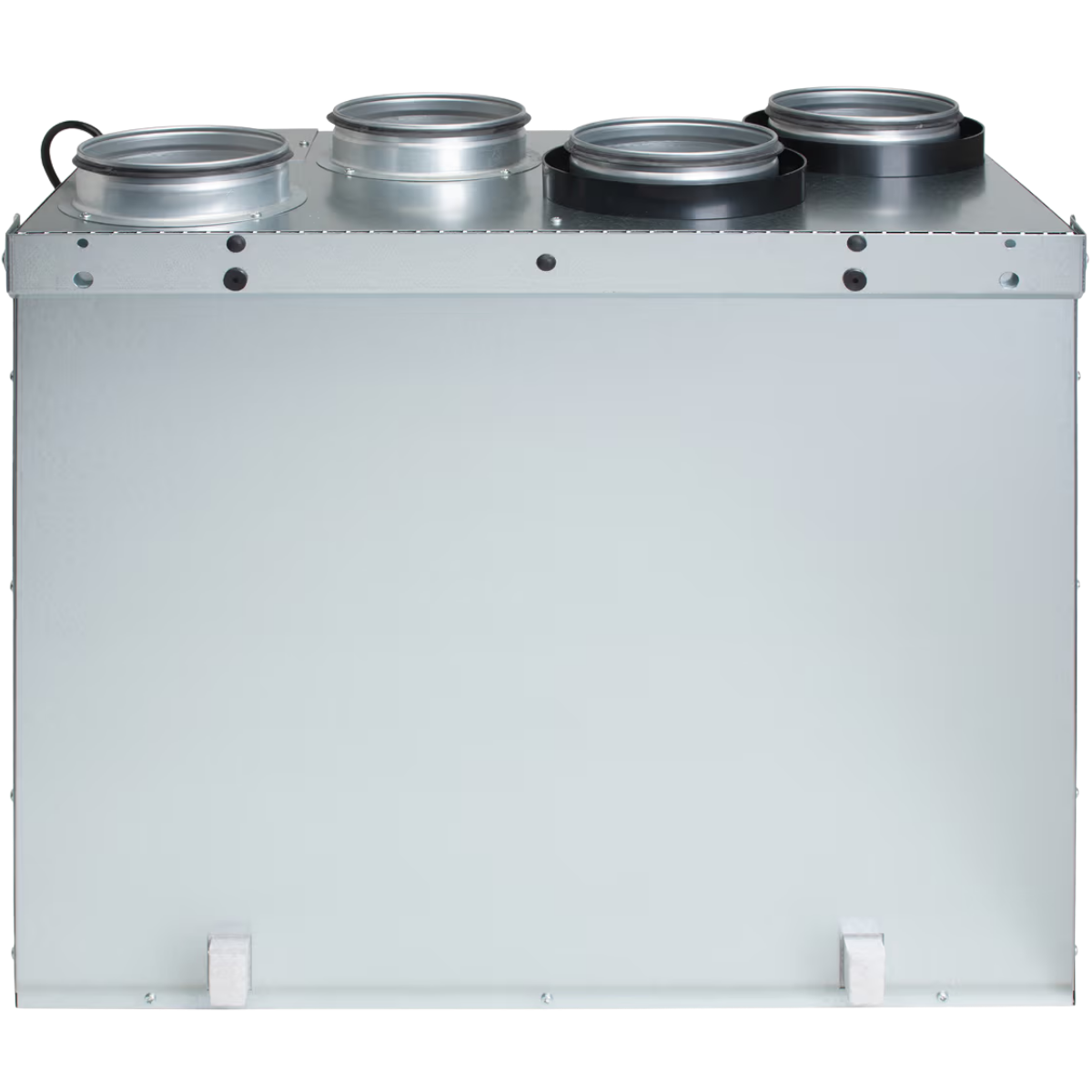

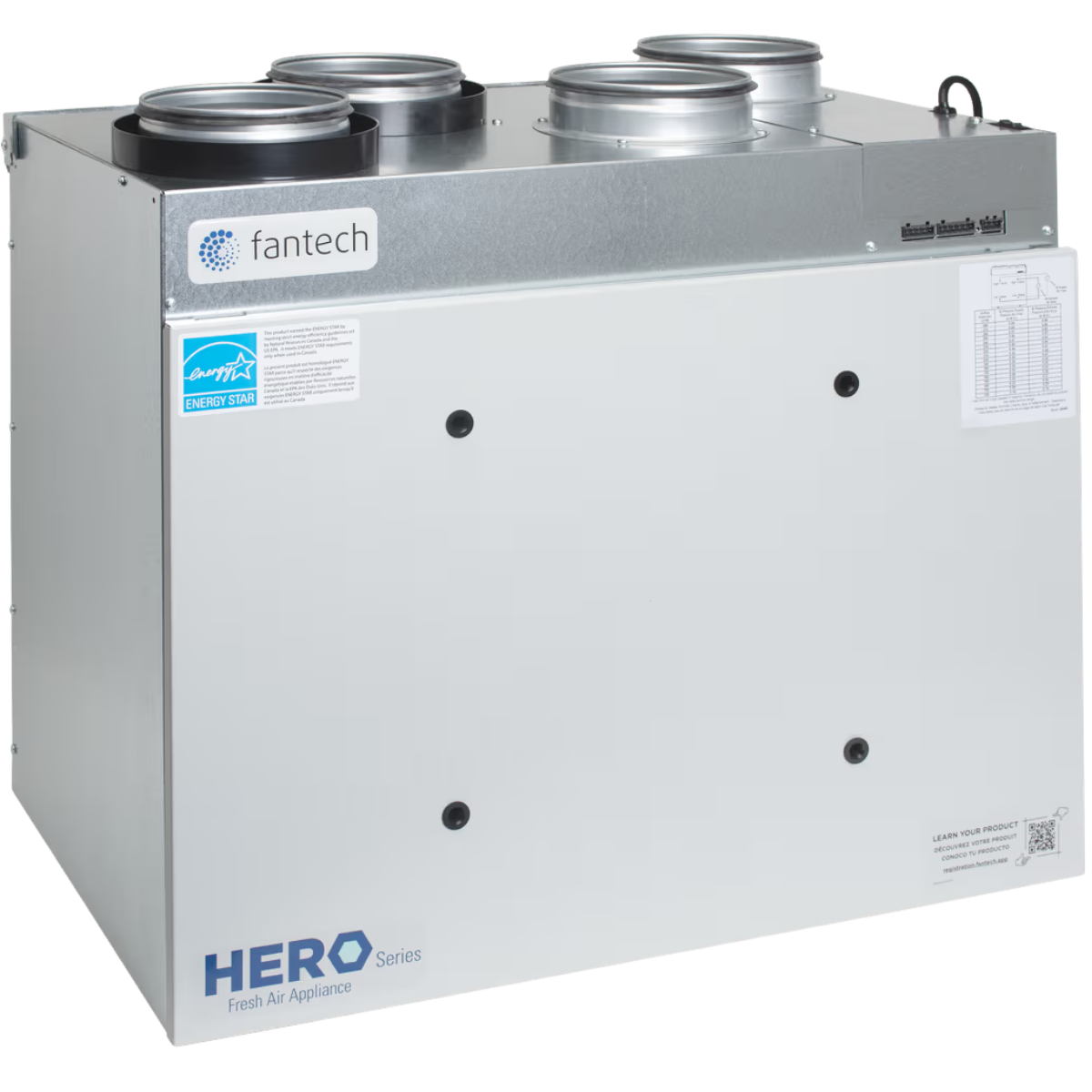

Fantech HERO 250H-EC 263 CFM Heat Recovery Ventilator w/EC Motor

SKU: fn13374  |  Model: 463254
$1,784.00

FREE shipping on orders over $45!

In Stock Ships within 1-2 business days.


Add extended protection plan. (Select one)

learn more

A 2-year major appliance warranty for products less than $2,500.

learn more

A 4-year major appliance warranty for products less than $2,500.


Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

Limited Lifetime Counterflow Core Warranty, 7-Year Limited Motor Warranty, 5-Year Limited Parts Warranty

What's In The Box?

  •  Fantech HERO 250H-EC Heat Recovery Ventilator (EC Motor and 6-Inch Top Ports)
  • Owner's Manual
  • Wall Mount
  • External Electrical Box With Easy Connect Ports
  • Integrated In-Door Manometer Ports

Info & Guides

Description

Using an EC motor, the Energy Star-rated Fantech HERO 250H-EC Heat Recovery Ventilator provides up to 263 CFM of filtered fresh air to your home. Designed for 80% heat recovery, which it uses to temper incoming air, it delivers efficient ventilation to any space. Easy to operate and maintain, it's a must-have for residential ventilation.

Integrated EC Motor

More efficient than other options, this unit's EC motor is designed to deliver energy savings and has even helped the Fantech HERO 250H-EC earn an Energy Star certification.

Key Features of The Fantech HERO 250H

  • Duct Size: Utilizes 6-inch top duct connections.
  • Heat Recovery: Recovers up to 80% of heat to temper incoming air.
  • Designed For Larger Homes: With its 260 CFM airflow, the Hero 250H HRV is perfect for 3 to 5-bedroom homes.
  • TurboTouch Function: Boosts exhaust capacity for 20, 40, or 60 minutes.
  • Multiple Speeds: Multi-speed operation to provide exact airflow.

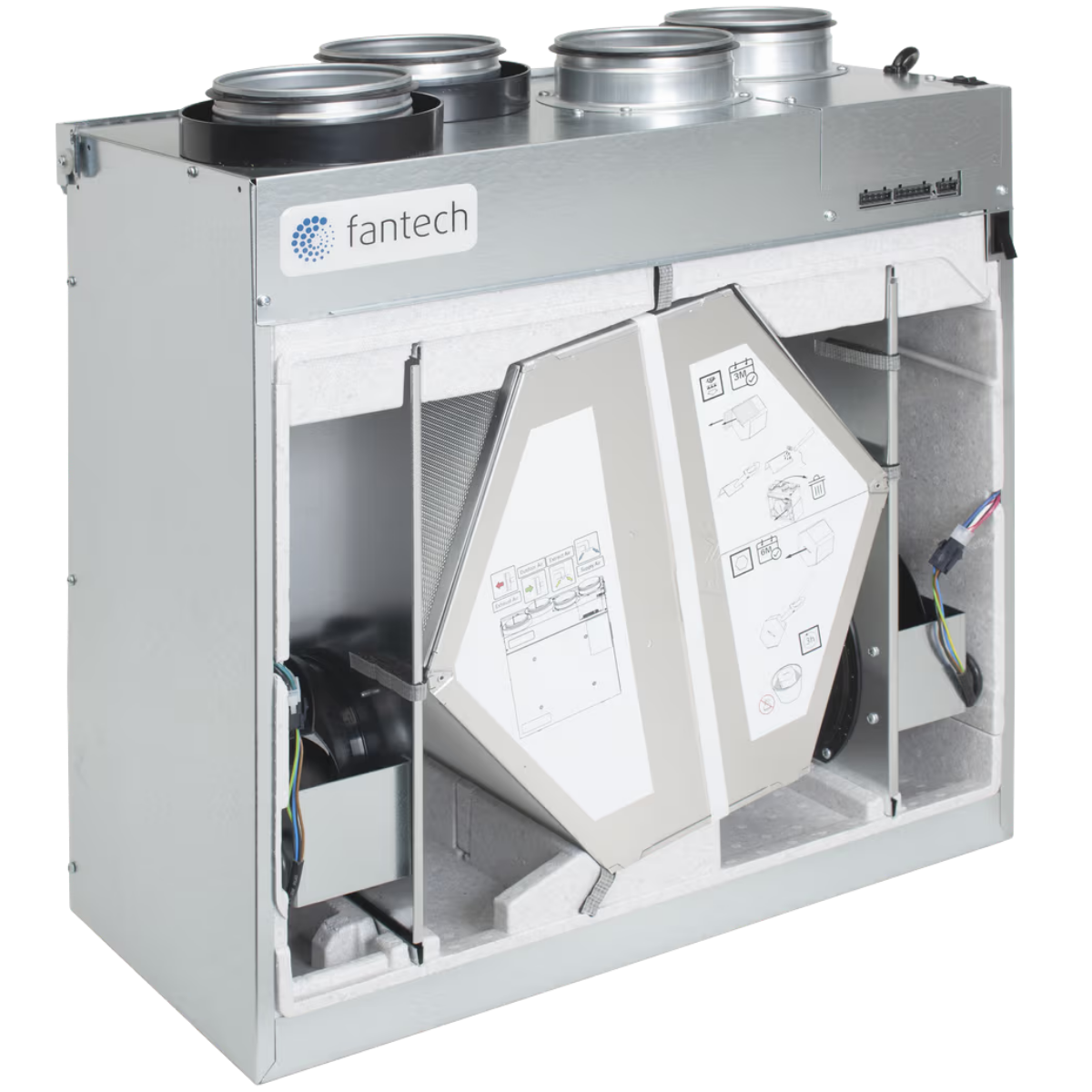

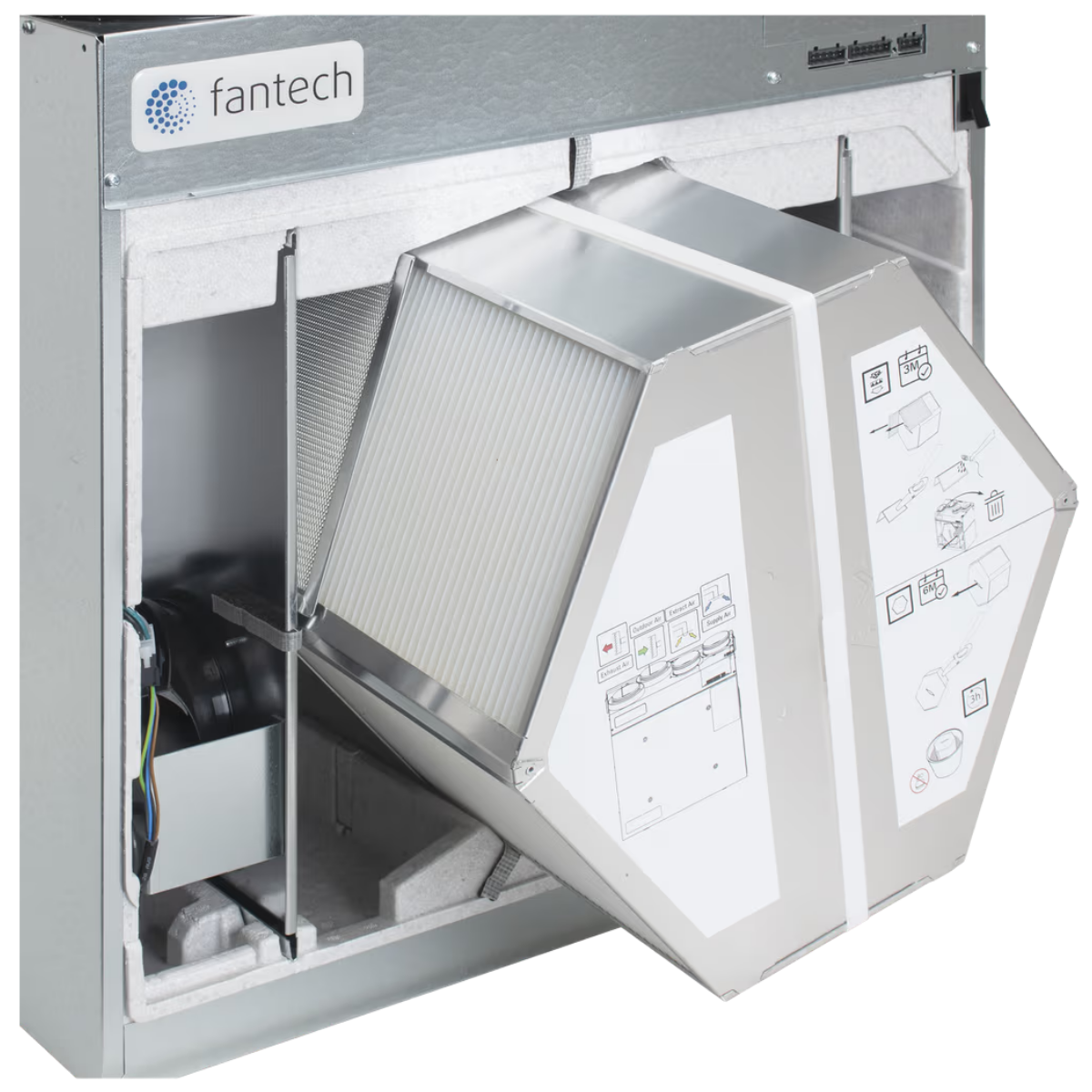

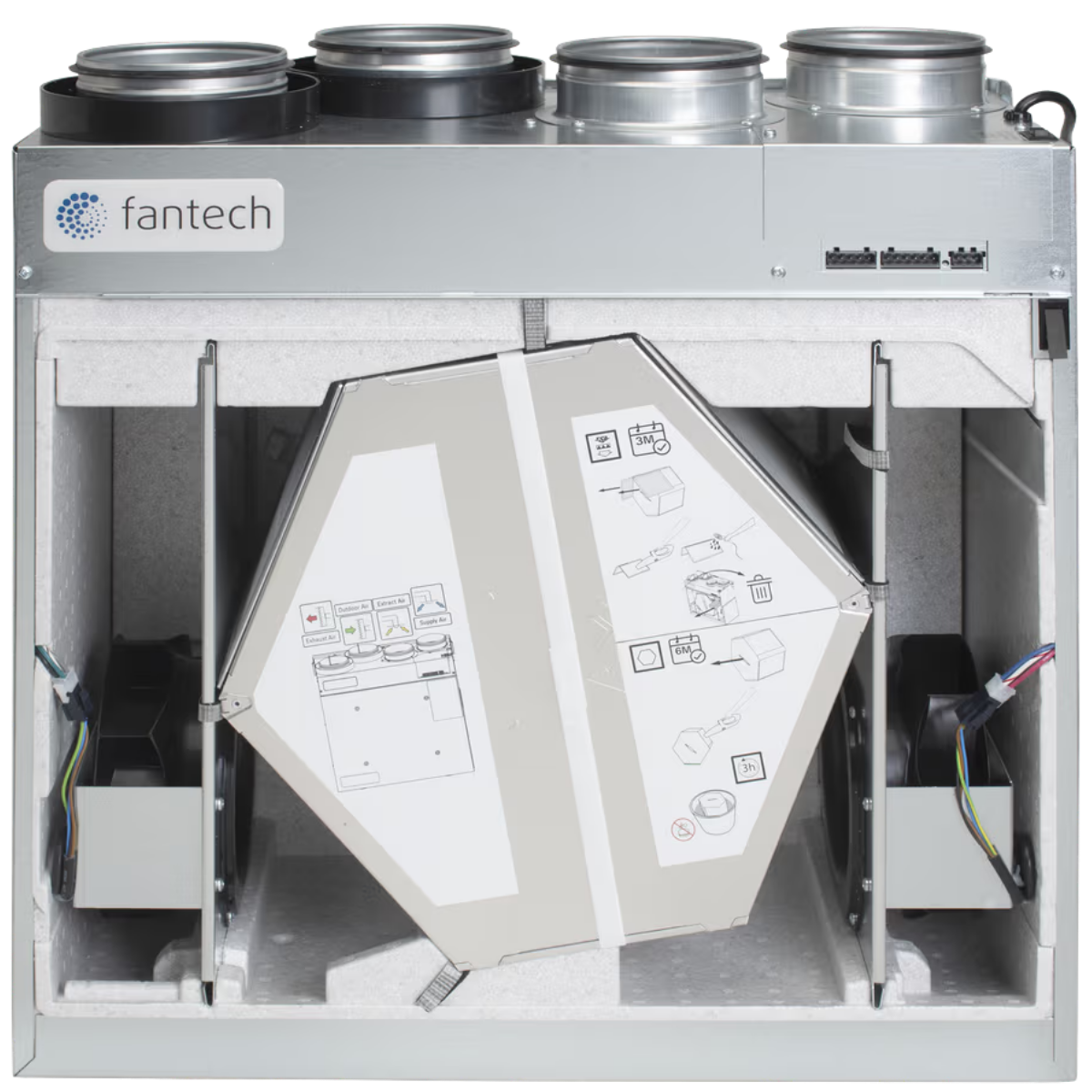

  • Easy to Maintain: Unobstructed front access for fast and easy maintenance.
  • Use In High Static Pressure: This ventilator is designed to exhaust contaminated indoor air while replacing it with fresh air.
  • Easy Connection: This ventilator is equipped with a removable screw terminal for easy connection.

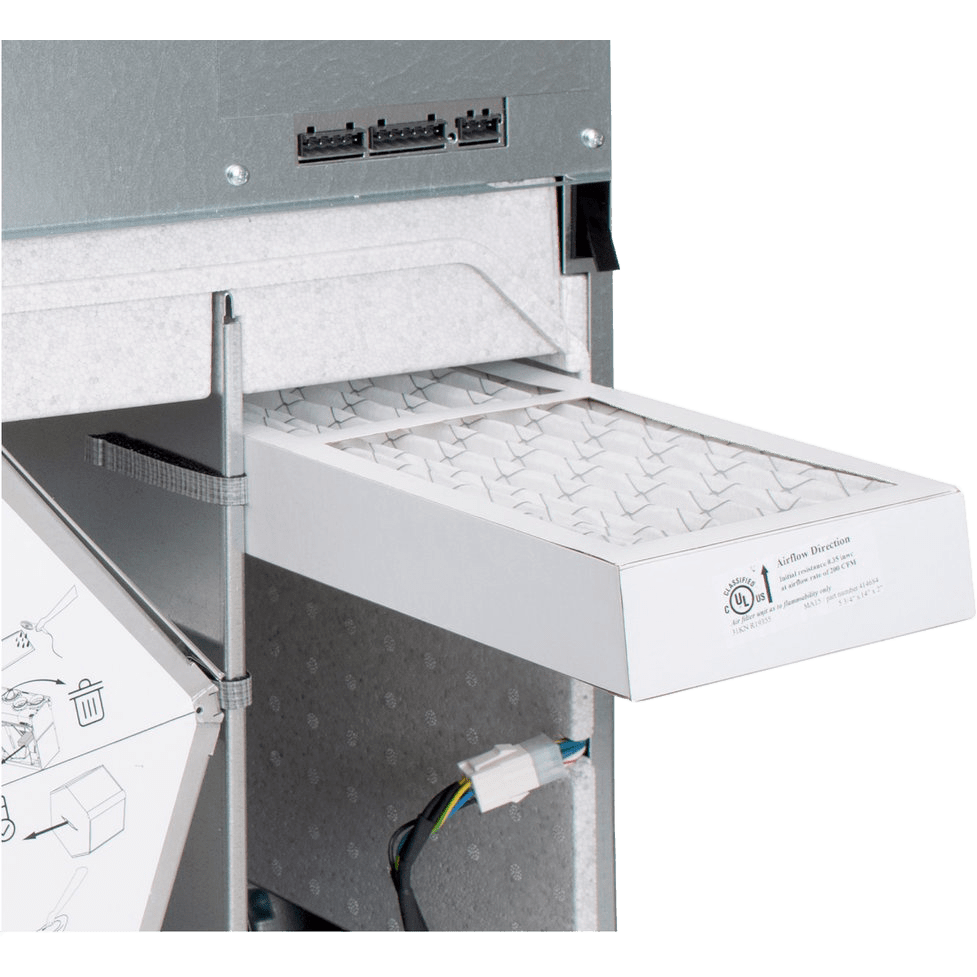

  • Cleaner Air: Equipped with integrated MERV3 filters to trap airborne particles and irritants as air passes through the unit.

Summary

Keep your home full of fresh, clean air, without sacrificing warmth when you select this workhorse heat recovery ventilator from Fantech.

Specifications

    Key Specifications

    • Minimum Cubic Feet per Minute (CFM) (CFM)
      31.0
    • Mounting Type
      Suspended, Wall
    • Number of Speeds
      Variable
    • Port Location
      Top
    • Type
      HRV-Air Supply Fan

    General

    • Application
      Residential
    • Certifications
      CSA, HVI-Certified
    • Color
      Gray
    • Controls
      Electronic
    • Maximum Cubic Feet per Minute (CFM) (CFM)
      263.0

    Power

    • Amperage (Amps)
      6.4
    • Power Supply
      Hardwired
    • Voltage (V)
      110-120
    • Watts (W)
      230

    Dimensions

    • Depth (in.)
      27.9
    • Depth (with front cover) (in.)
      27.9
    • Duct Diameter (in.)
      6.0
    • Height (in.)
      24.9
    • Height (with front cover) (in.)
      24.9
    • Weight (lbs.)
      57.5
    • Width (in.)
      15.4
    • Width (with front cover) (in.)
      15.4

    Additional Features

    • Additional Features
      Energy Star

    Warranty

    • Manufacturer's Warranty
      Limited Lifetime Counterflow Core Warranty, 7-Year Limited Motor Warranty, 5-Year Limited Parts Warranty
