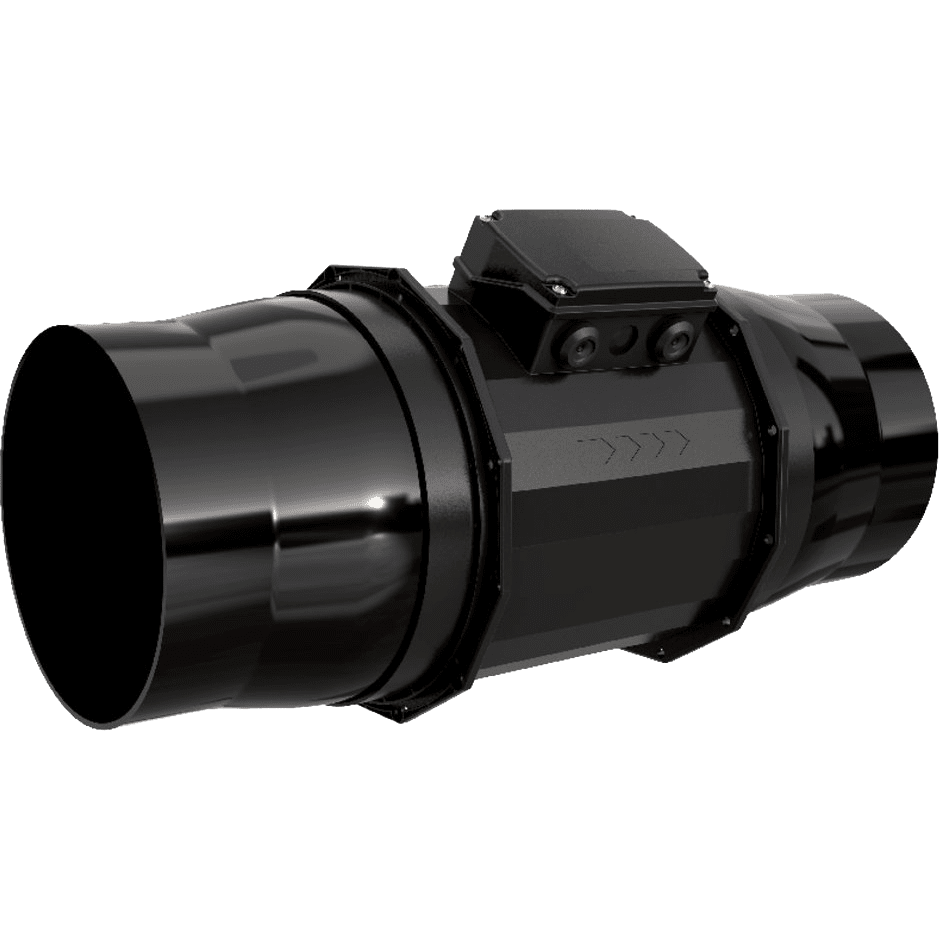

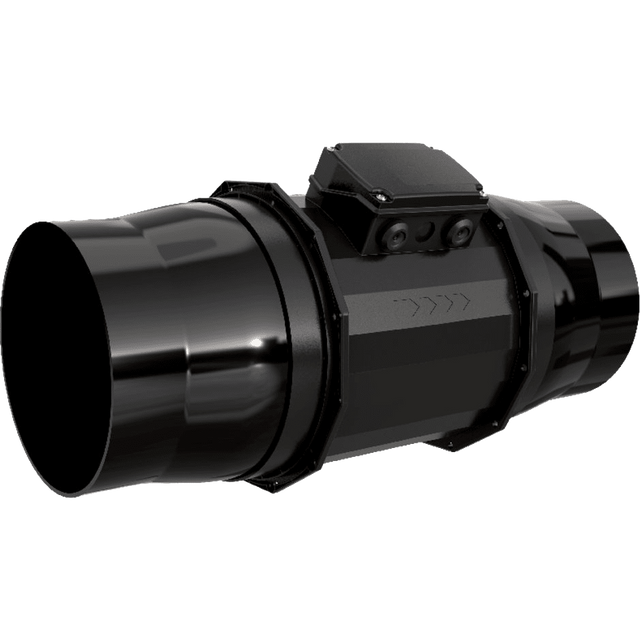

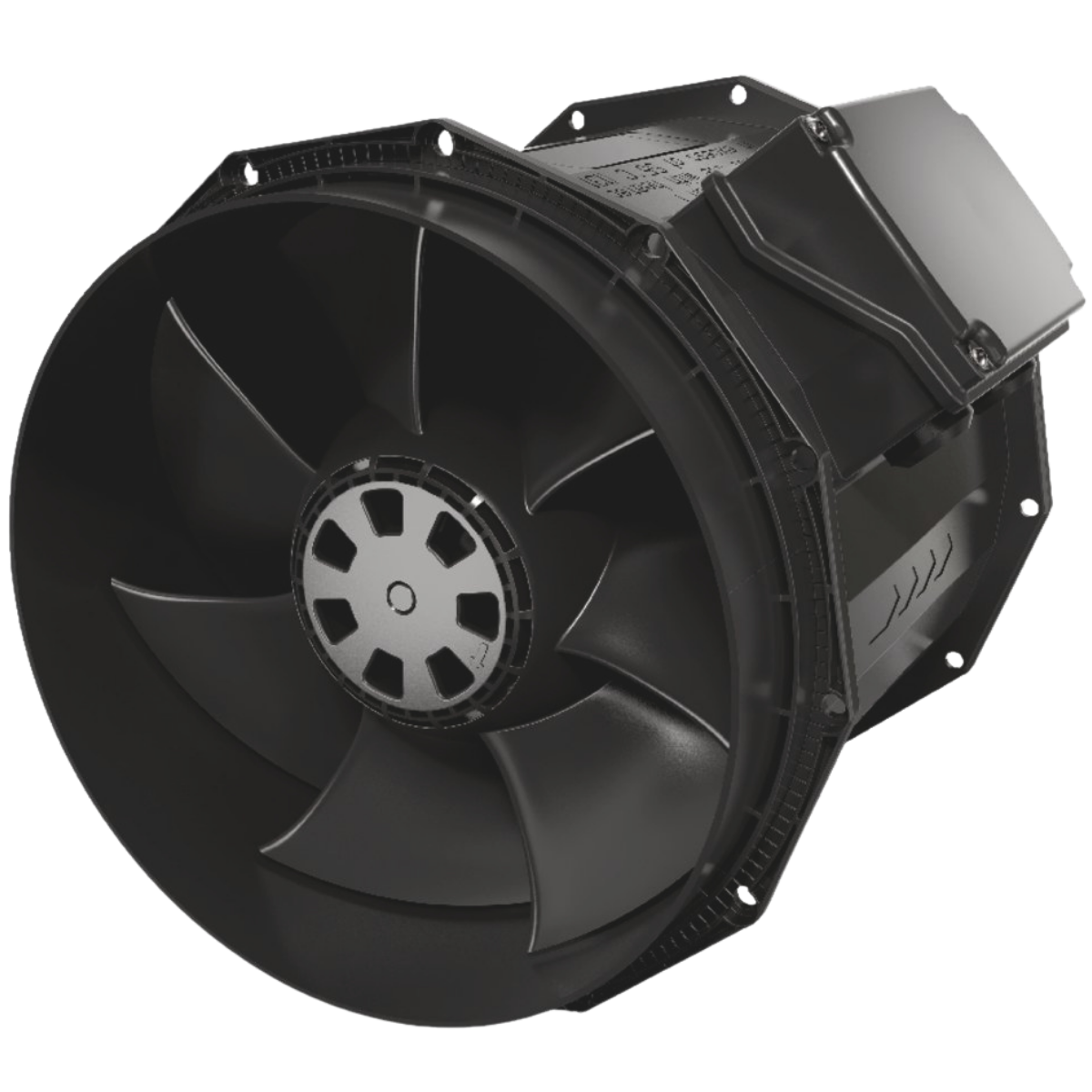

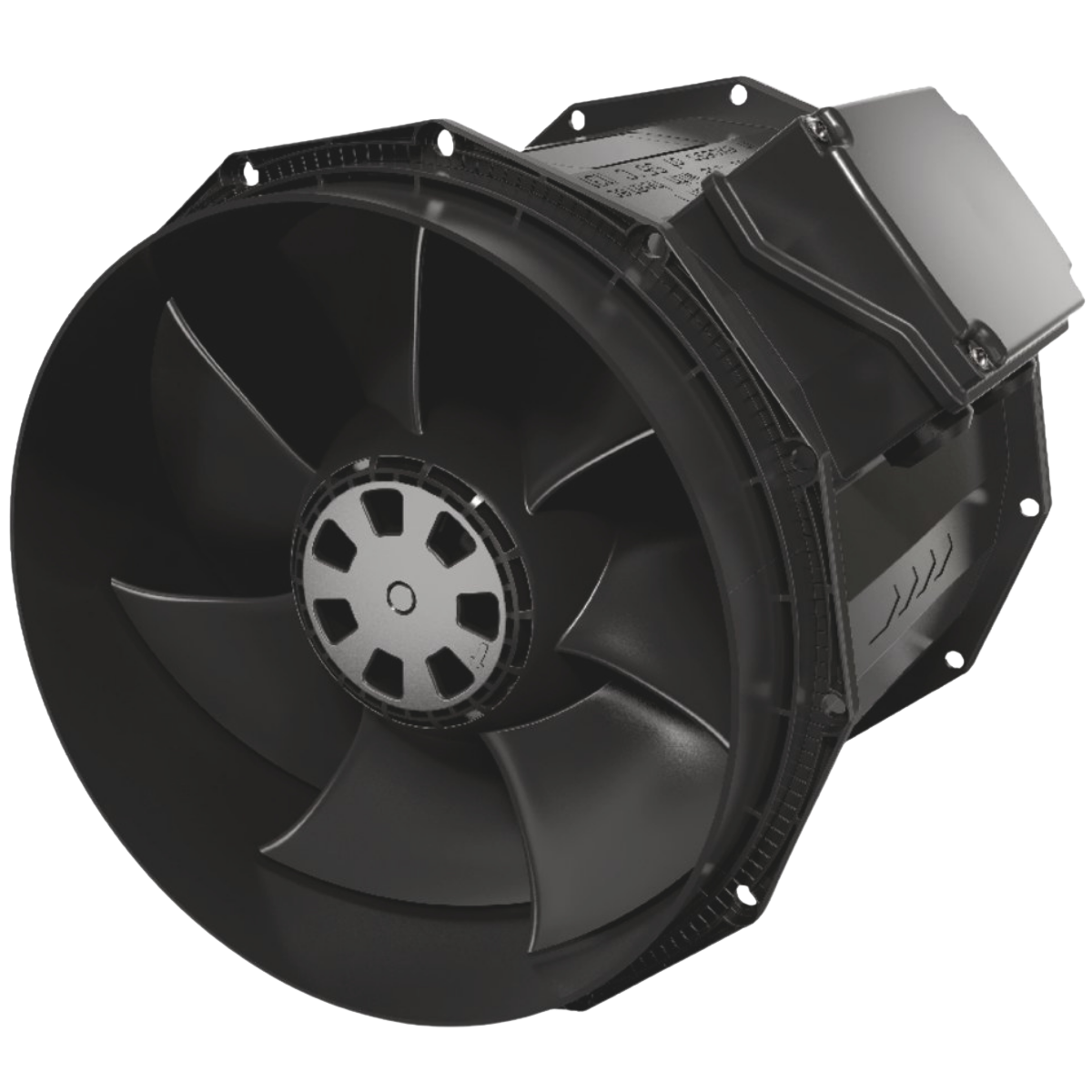

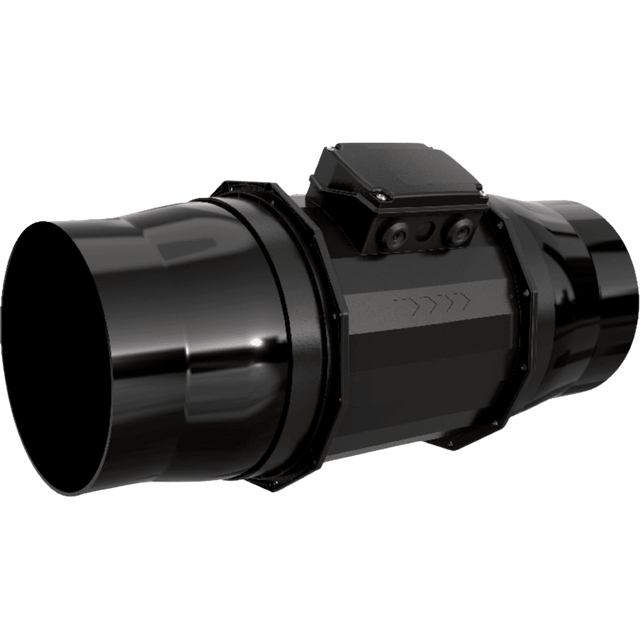

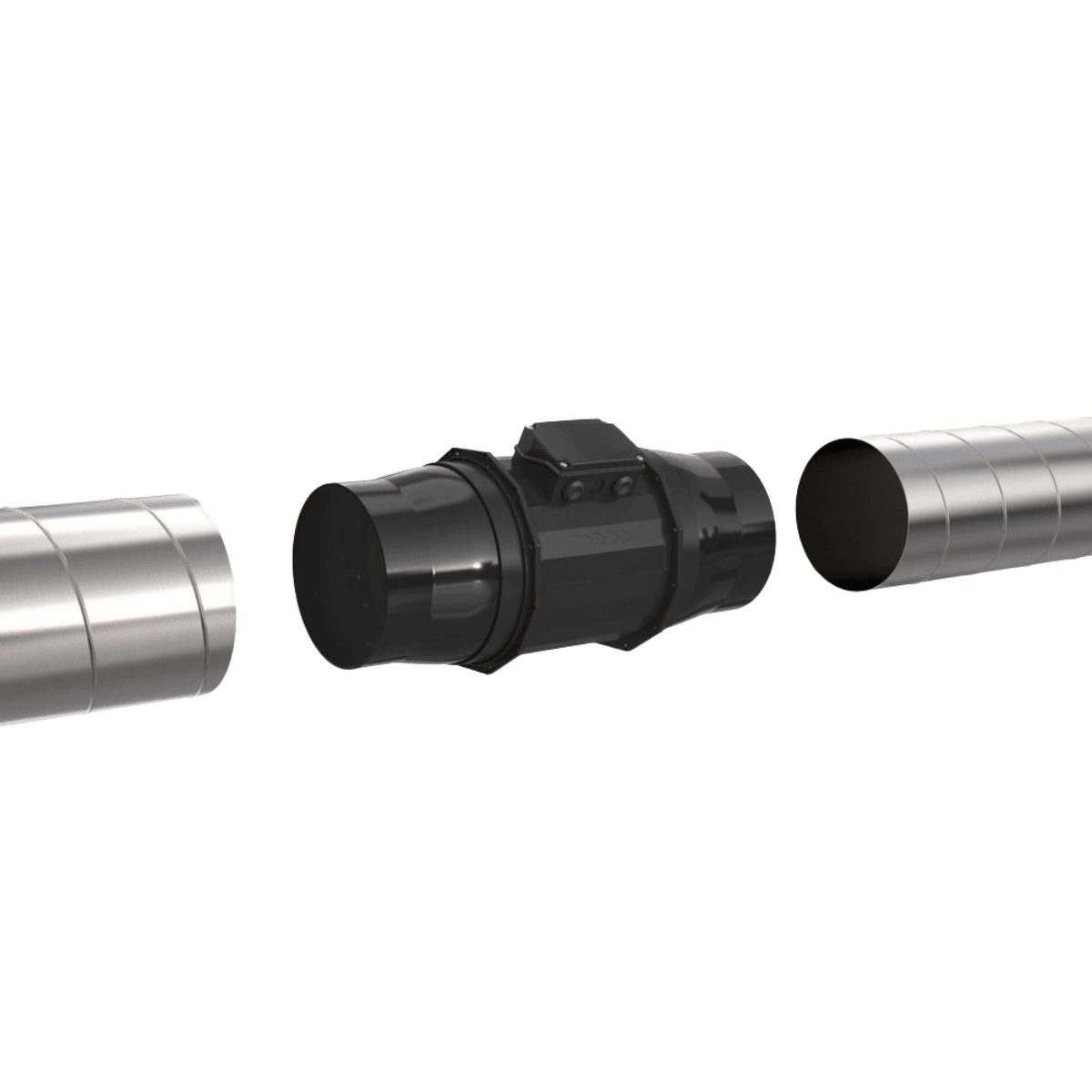

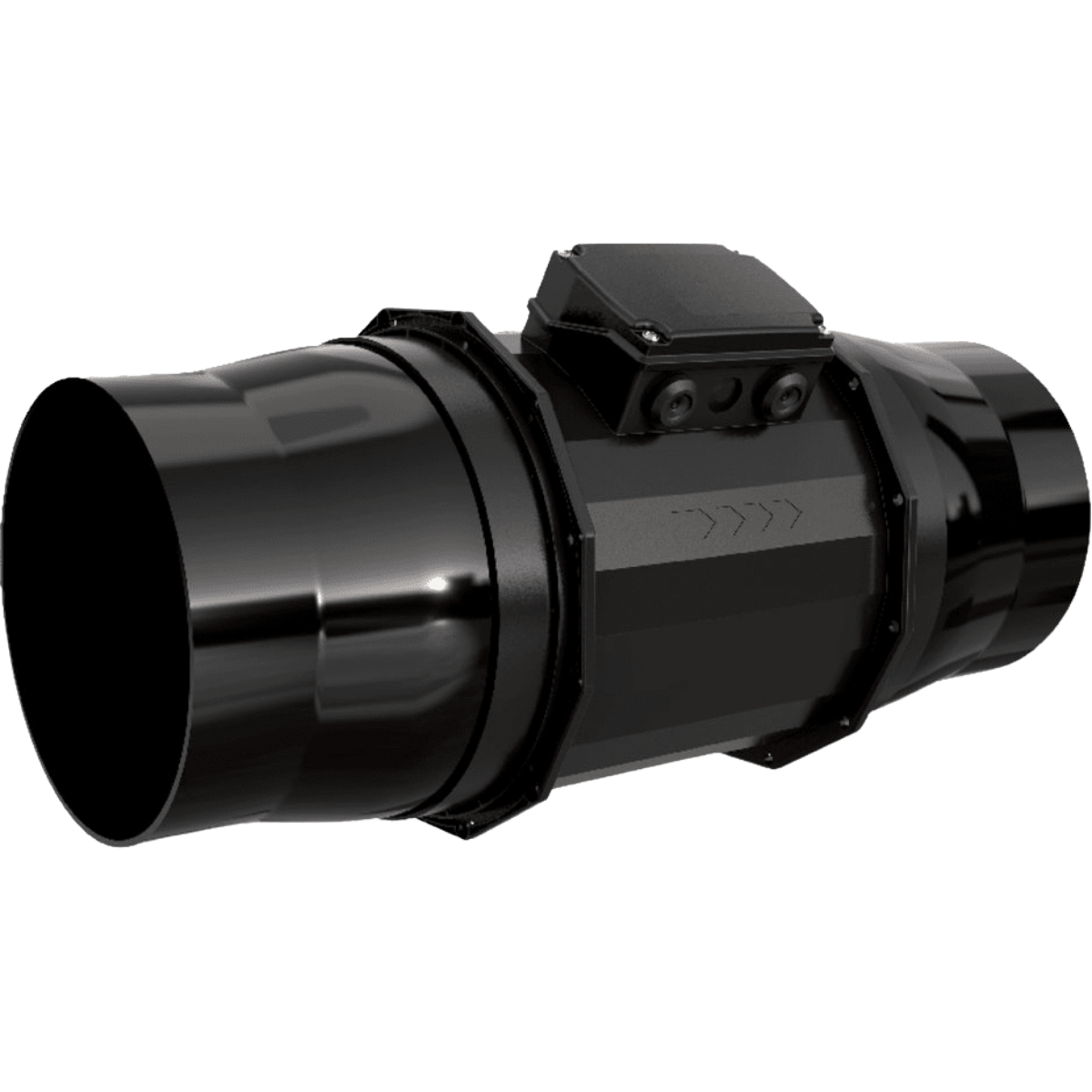

Fantech prioAIR Inline Duct Fan w/ EC Motor

Key Specifications

• Number of Speeds
  Variable
• Sound Level (Sones) (sones)
  5.9
• Type
  Classic Inline Duct Booster Fan

General

• Application
  Ducting
• California Residents
  ⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. See: www.P65Warnings.ca.gov
• Certifications
  cULus
• Color
  Black
• Controls
  Manual
• Maximum Air Temperature (degrees F)
  131
• Maximum Cubic Feet per Minute (CFM) (CFM)
  10-in.: 1237.0

  8-in.: 790.0

  6-in.: 445.0

Power

• Amperage (Amps)
  10-in.: 2.11

  8-in.: 1.58

  6-in.: 0.888
• Power Supply
  Hardwired
• Voltage (V)
  110-120
• Watts (W)
  10-in.: 164

  8-in.: 123

  6-in.: 64

Dimensions

• Depth (in.)
  10-in.: 11.6875

  8-in.: 11.6875

  6-in.: 16.1875
• Depth (with front cover) (in.)
  10-in.: 11.6875

  8-in.: 11.6875

  6-in.: 16.1875
• Duct Diameter (in.)
  10-in.: 10.0

  8-in.: 8.0

  6-in.: 6.0
• Height (in.)
  10-in.: 11.9375

  8-in.: 9.75

  6-in.: 8.25
• Height (with front cover) (in.)
  10-in.: 11.9375

  8-in.: 9.75

  6-in.: 8.25
• Weight (lbs.)
  10-in.: 9.4

  8-in.: 7.5

  6-in.: 3.7
• Width (in.)
  10-in.: 9.1875

  8-in.: 7.875

  6-in.: 5.875
• Width (with front cover) (in.)
  10-in.: 9.1875

  8-in.: 7.875

  6-in.: 5.875

Warranty

• Manufacturer's Warranty
  5-Year Limited Warranty
