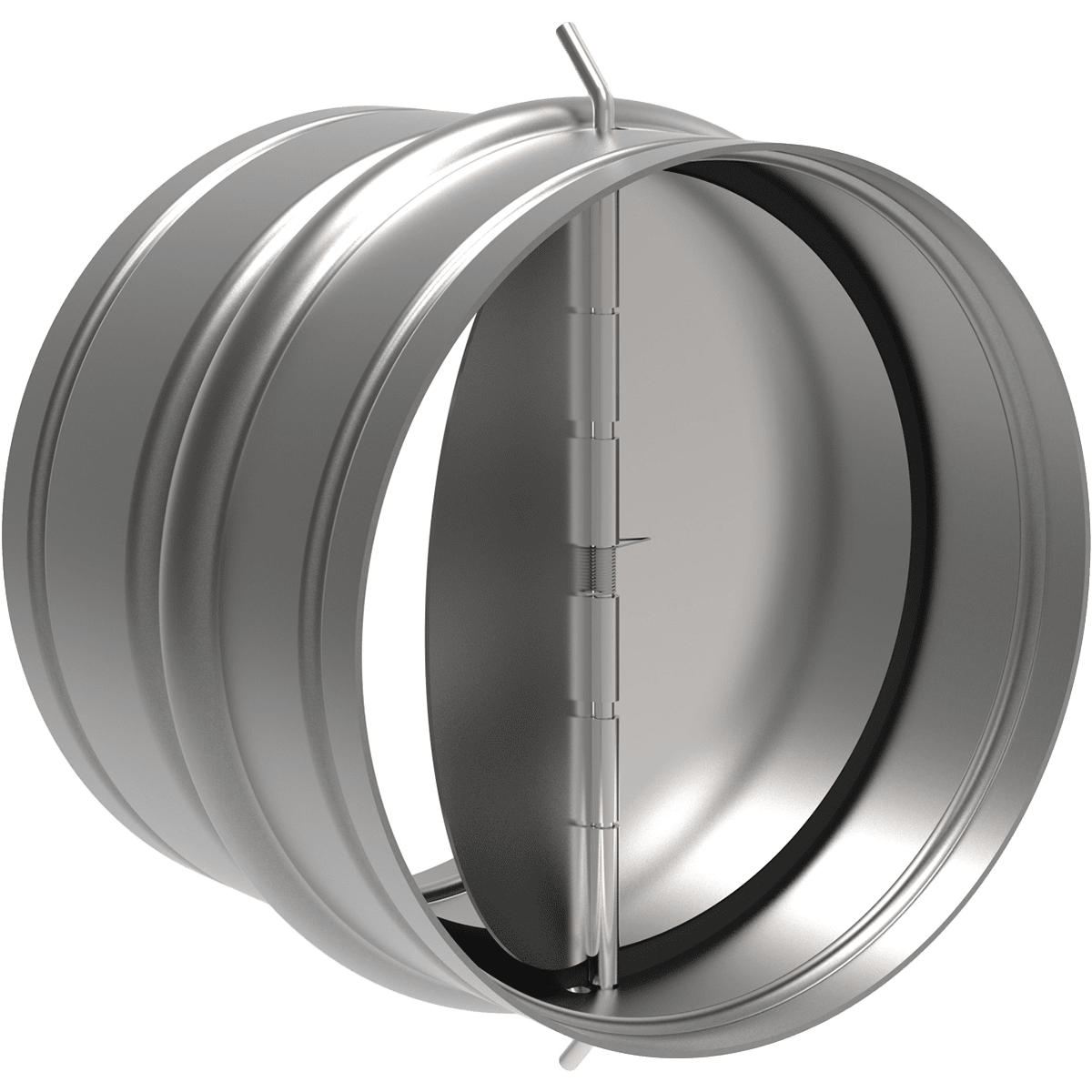

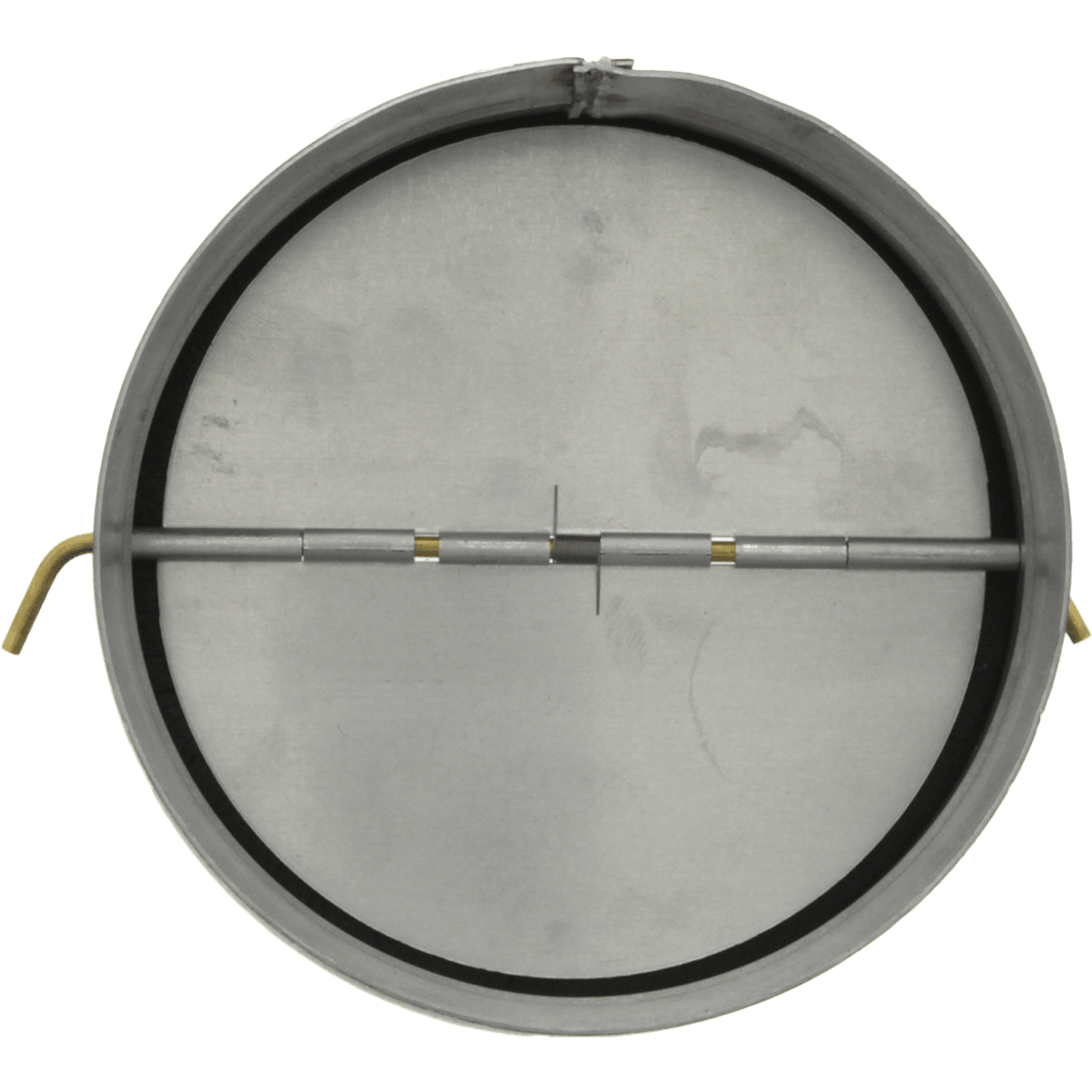

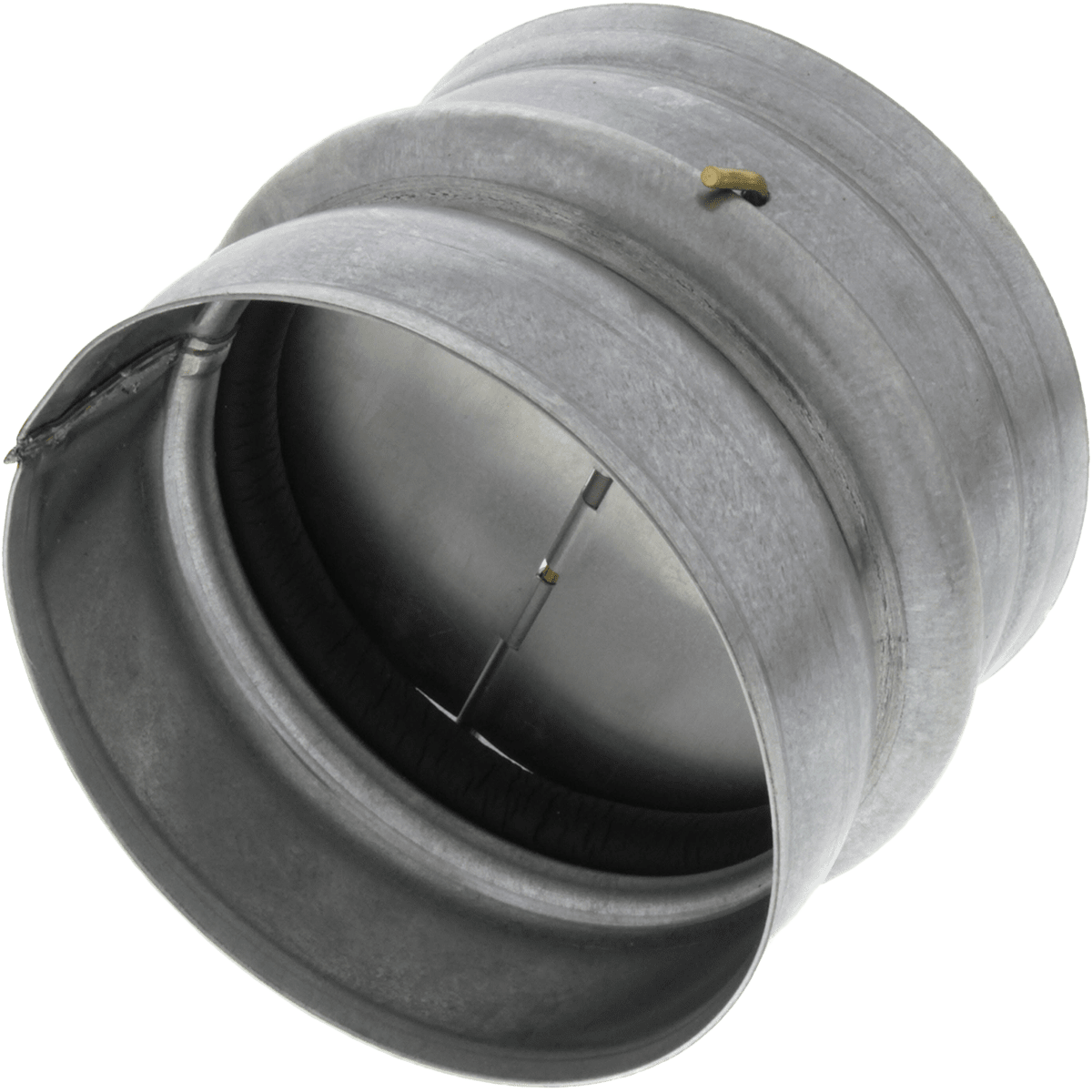

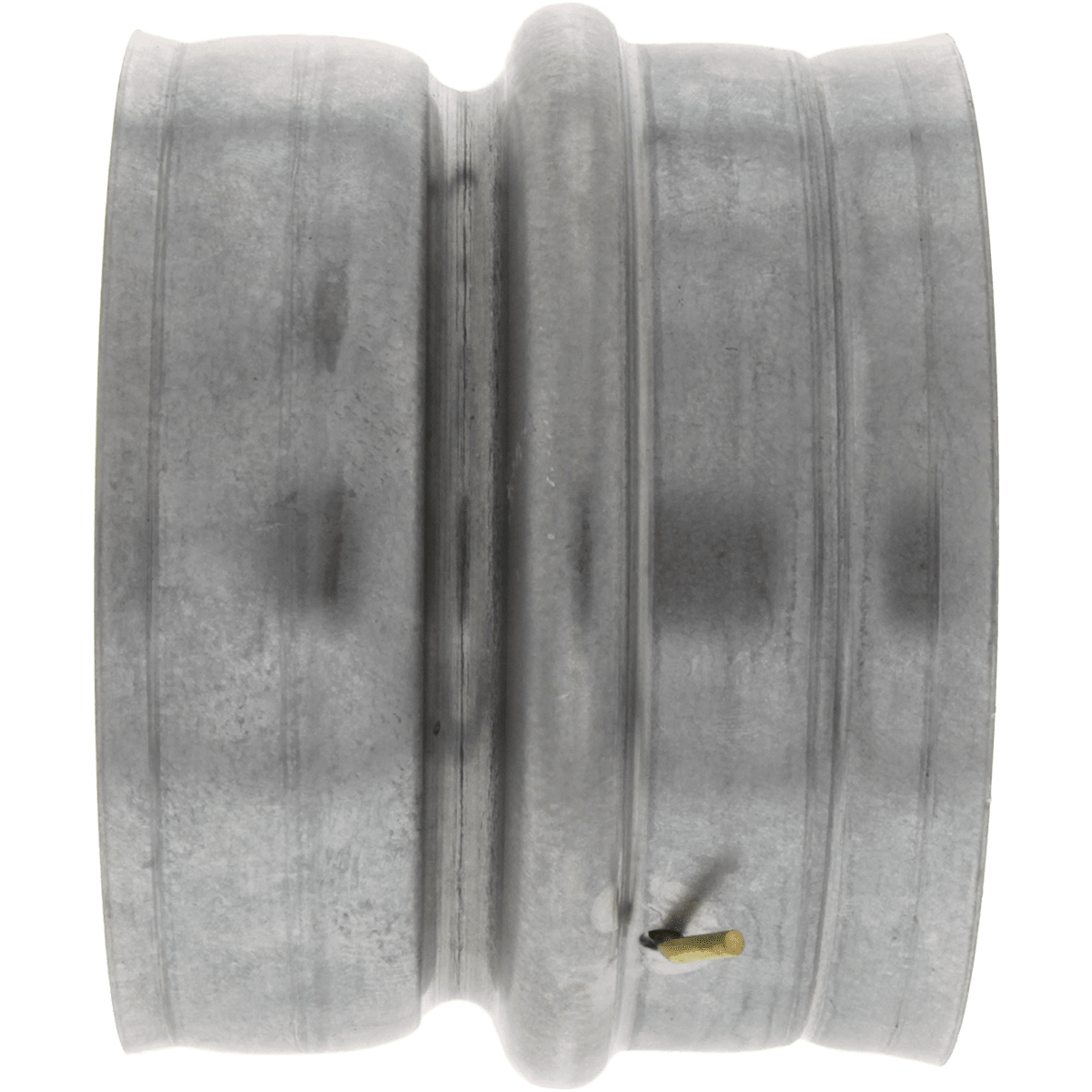

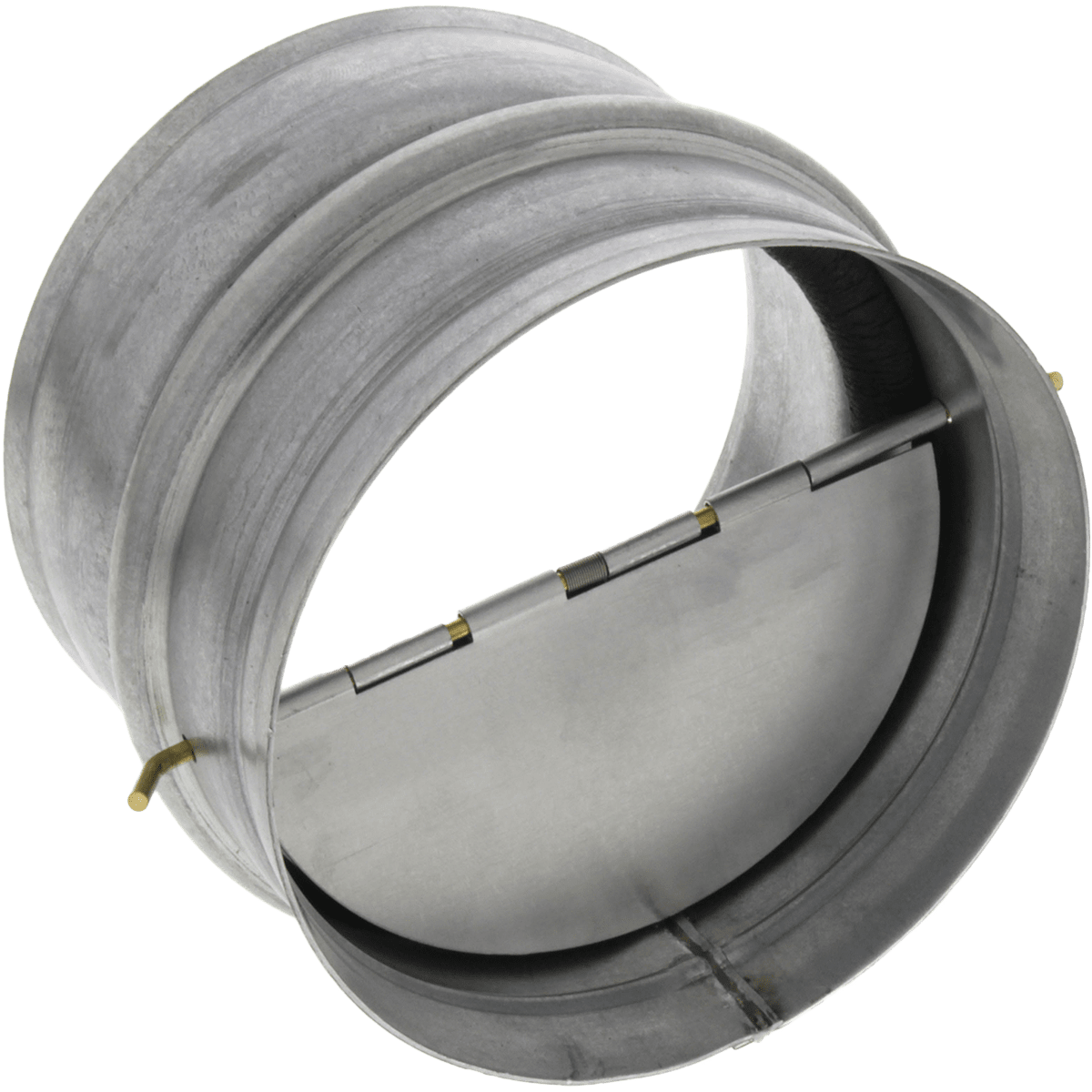

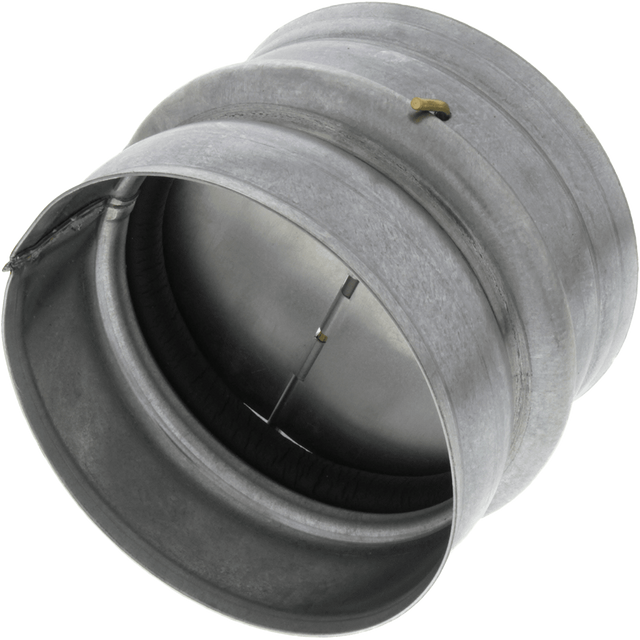

Fantech RSK4 4-Inch Duct Backdraft Damper

Name: Fantech RSK4 4-Inch Duct Backdraft Damper
Brand: Fantech
Price: 402.0 USD
Availability: InStock

SKU: fn12589 | Model: 499125

$402.00

FREE shipping on orders over $45!

In Stock Ships within 1-2 business days.

Option

Product variants

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

5-Year Limited Warranty

What's In The Box?

Fantech RSK4 4-Inch Duct Backdraft Damper
Owner's Manual

Info & Guides

Installation Manual

Description

Backdraft dampers (also called gravity dampers) allow airflow in one direction and prevent reverse airflow for use in exhaust or intake HVAC systems. This Fantech RSK4 4-Inch Duct Backdraft Damper for circular ducts is manufactured from galvanized sheet metal. Every Fantech Backdraft Damper is built with performance in mind.

Available In Single Or Multi-Packs

The Fantech RSK4 4-Inch Duct Backdraft Damper is available in the following quantities:

Single RSK 4 Backdraft Damper

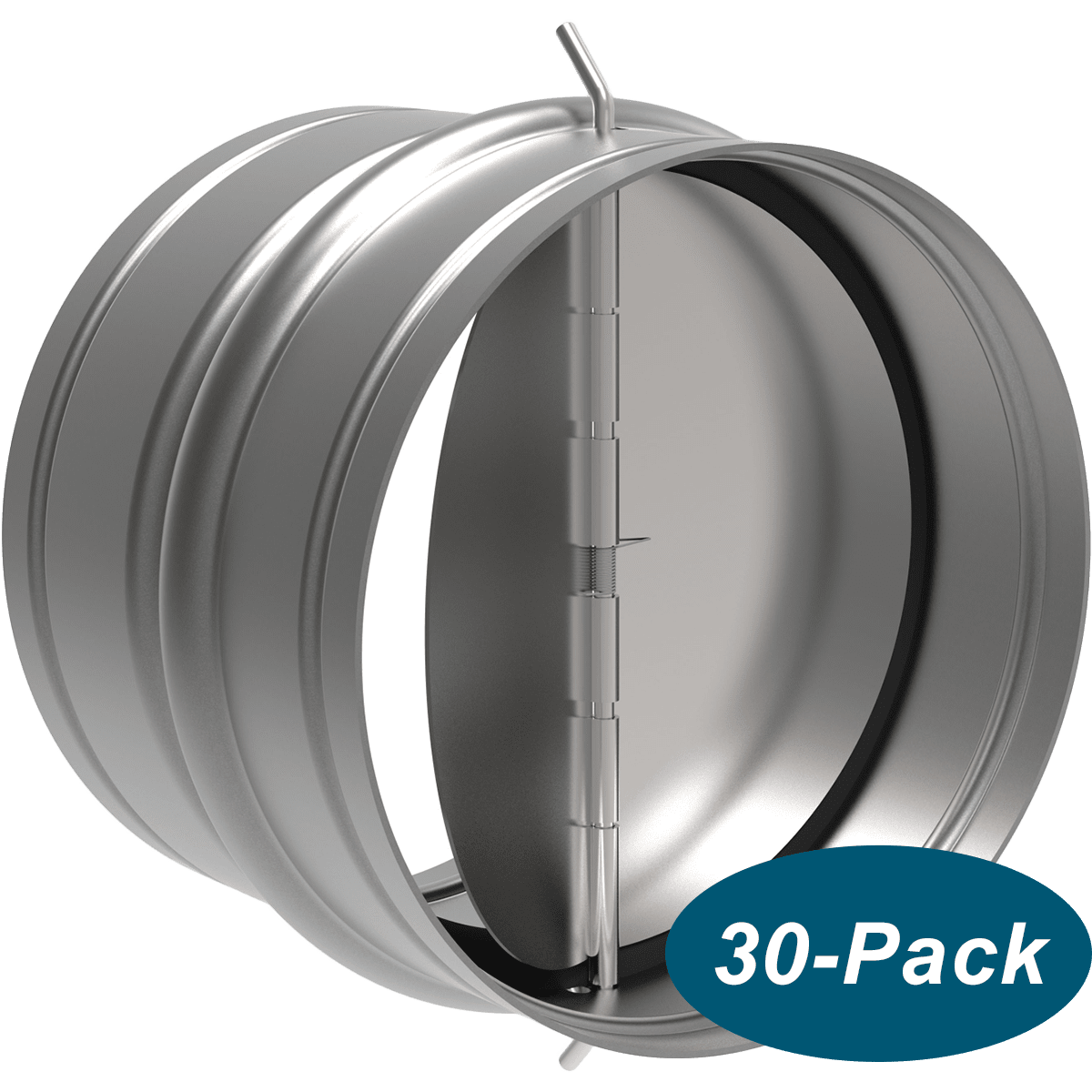

30 Pack Carton

Key Features

Positioning options: The damper can be mounted vertically.
Damper blades formed from aluminum H14: Twenty percent stronger than 1100 series aluminum.
24 GA, G90 galvanized steel casing: Galvanized steel is coated with a thin layer of zinc. The zinc coating protects the steel beneath it from rust.
Spring Loaded Blades: Its two blades are spring-loaded.
Central Rod: Features a 3/32" diameter brass central rod.

Summary

This Fantech 4-Inch Damper allows airflow in one direction and prevent reverse airflow. Built with performance in mind, Fantech RSK4 is manufactured from galvanized sheet metal.

Specifications

Key Specifications

Type

Damper

General

California Residents

⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. See: www.P65Warnings.ca.gov
Color

Gray
Housing Material

Galvanized Steel

Power

Amperage (Amps)

0
Watts (W)

0

Dimensions

Depth (in.)

3.25
Depth (with front cover) (in.)

3.25
Duct Diameter (in.)

4.0
Height (in.)

4.0
Height (with front cover) (in.)

4.0
Weight (lbs.)

30-Pack: 10.2

1-Pack: 0.6
Width (in.)

4.0
Width (with front cover) (in.)

4.0

Warranty

Manufacturer's Warranty

5-Year Limited Warranty
