Fantech RSK5 5-Inch Duct Backdraft Damper

Name: Fantech RSK5 5-Inch Duct Backdraft Damper
Brand: Fantech
Price: 354.0 USD
Availability: InStock

SKU: fn12591 | Model: 499126

$354.00

FREE shipping on orders over $45!

In Stock Ships within 1-2 business days.

Option

Product variants

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

5-Year Limited Warranty

What's In The Box?

Fantech RSK5 5-Inch Duct Backdraft Damper
Owner's Manual

Info & Guides

Owner's Manual

Description

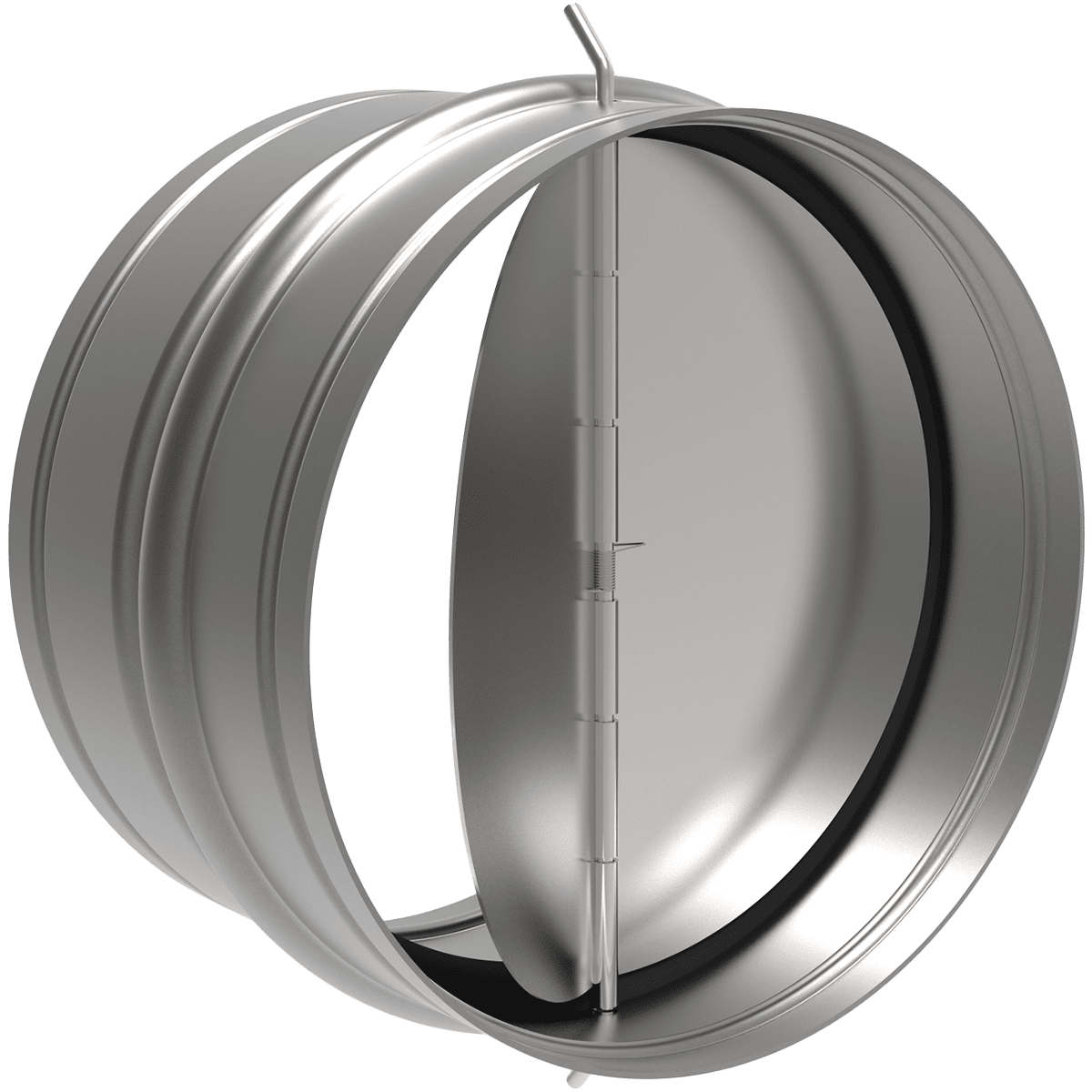

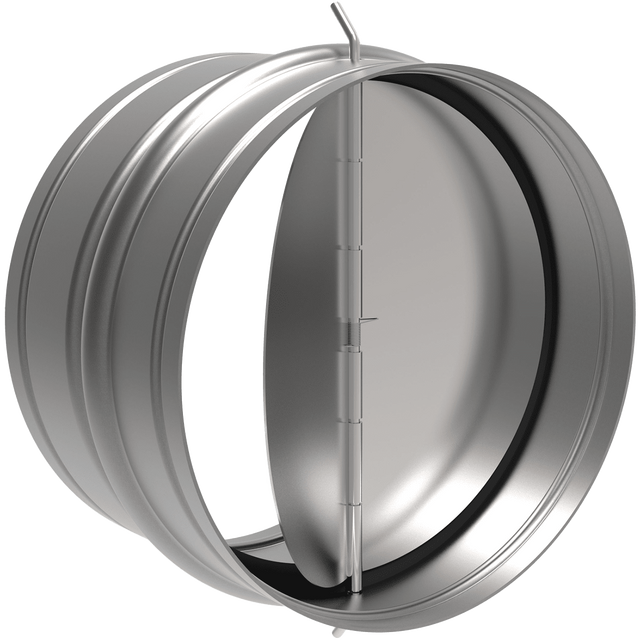

This Fantech RSK5 5-Inch Duct Backdraft Damper for circular ducts is manufactured from galvanized sheet metal. Every Fantech Backdraft Damper is built with performance in mind. Backdraft dampers (also called gravity dampers) allow airflow in one direction and prevent reverse airflow for use in exhaust or intake HVAC systems.

Available In Single or Multi-Packs

Choose the right RSK5 from Fantech for your needs from the available quantities.

RSK 5 Backdraft Damper: Single 5" Back-draft damper for circular duct.

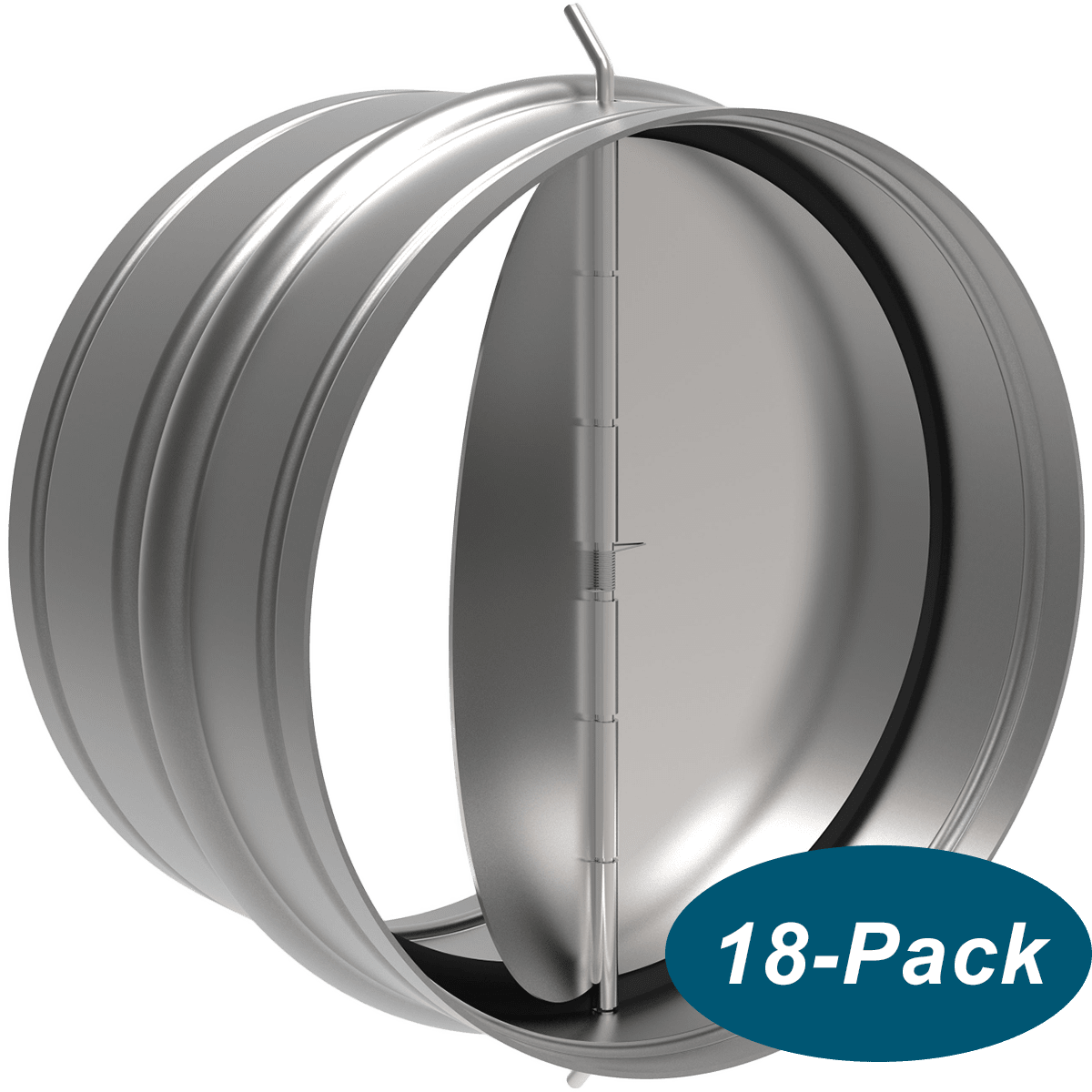

RSK 5 Bulk Pack, 18 pcs/carton: Features an 18-piece carton of 5” Back-draft dampers.

Top Features Of The Fantech RSK5

Positioning options: Horizontal mount or vertical mount—your choice.
24 GA, G90 galvanized steel casing: Galvanized steel is coated with a thin layer of zinc. The zinc coating protects the steel beneath it from rust.
Damper blades formed from aluminum H14: 20% stronger than 1100 series aluminum.
Spring Loaded Blades: The two blades are spring-loaded.
Central Rod: Designed with a 3/32" diameter brass central rod.
Durable Design: Features a stainless steel torsion spring and EPBM synthetic rubber gasket.

Summary

This Fantech 5-Inch Damper allows airflow in one direction and prevent reverse airflow. Built with performance in mind, Fantech RSK5 is manufactured from galvanized sheet metal.

Specifications

Key Specifications

Type

Damper

General

Color

Gray
Housing Material

Galvanized Steel

Power

Amperage (Amps)

0
Watts (W)

0

Dimensions

Depth (in.)

3.125
Depth (with front cover) (in.)

3.125
Duct Diameter (in.)

5.0
Height (in.)

5.0
Height (with front cover) (in.)

5.0
Weight (lbs.)

18-Pack: 7.9

1-Pack: 0.7
Width (in.)

5.0
Width (with front cover) (in.)

5.0

Warranty

Manufacturer's Warranty

5-Year Limited Warranty
