Fantech SHR 450 Light Commercial Heat Recovery Ventilator
Fantech SHR 450 Light Commercial Heat Recovery Ventilator is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Fantech SHR 450 Light Commercial Heat Recovery Ventilator
- Owner's Manual
Info & Guides
Info & Guides

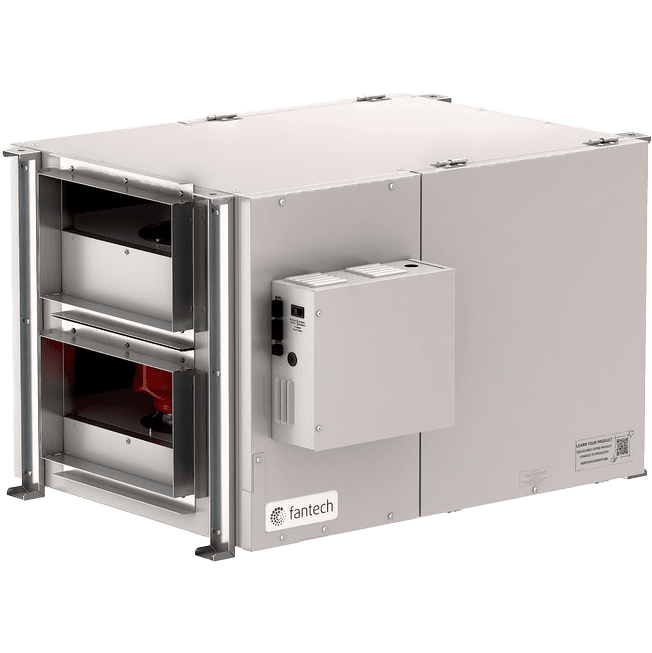

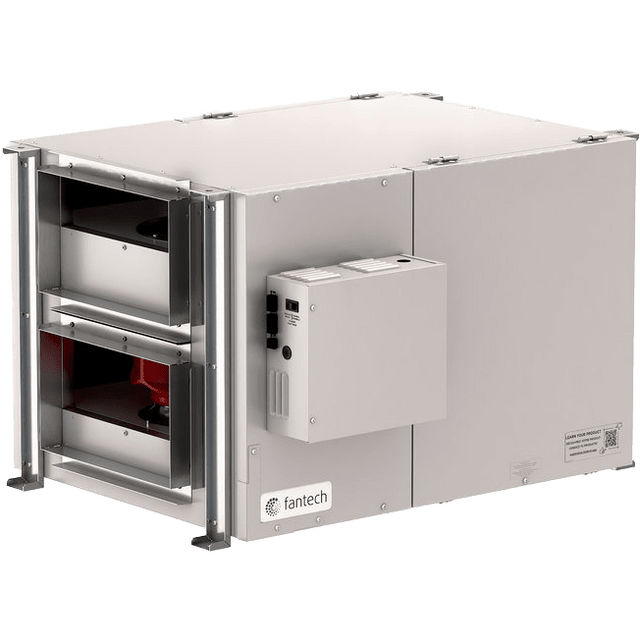

Fantech SHR 450 Light Commercial Heat Recovery Ventilator
Description
Description
The SHR 450 Commercial Heat Recovery Ventilation (HRV) system from Fantech is an efficient solution for managing indoor air quality and conserving energy in today's tightly sealed buildings. This state-of-the-art HRV system provides a balanced flow of fresh air into the building while maintaining optimal exhaust flow to the outside environment. The aluminum heat exchanger core enhances energy efficiency by tempering the supply air and reducing the load on your HVAC system.

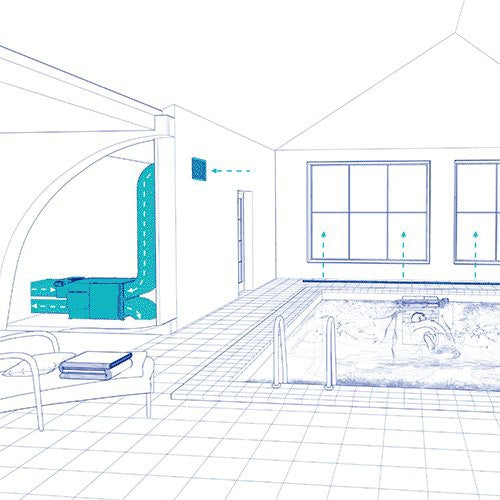

It is an ideal solution for various applications, including indoor swimming pools and light-commercial settings.
How The SHR 450 Works
The Fantech SHR 450 Light Commercial Heat Recovery Ventilator is the ideal solution for businesses looking to optimize indoor air quality while reducing their energy consumption. This model allows users to continuously bring fresh air into the building while simultaneously removing contaminated air, without relying on a traditional HVAC system. The heat exchanger core efficiently distributes sensible energy between air streams, resulting in tempered supply air.
Defrost Cycle
The Fantech SHR 450 utilizes a preset defrost sequence to prevent ice build-up in exterior airways during extreme temperatures. This sequence is activated when the temperature drops to 23°F or lower. When this happens, the supply blower shuts down and the exhaust blower switches to high speed to maximize heat flow from the compressor. Once the defrost is complete, the system resumes its normal operation.
Other Top Features Of The Fantech HRV

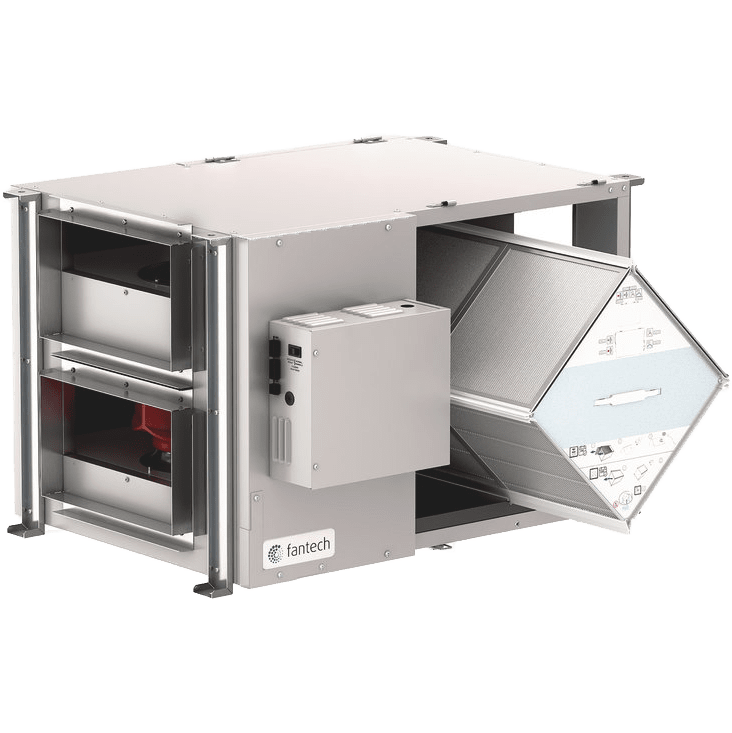

- Heat Recovery Core: The aluminum heat recovery core of the system improves heat transfer capacity and occupies less space compared to traditional cores.
- Duct Connection: Features side port duct connections.
- Powerful Airflow: Provides up to 465 CFM of fresh, filtered air.
- Multiple Speeds: Multi-speed operation to provide exact airflow.
- MERV-1 Filtration: A MERV-1 filter captures airborne irritants as air passes through the ventilator.
- Easy to Maintain: The core, filter, and drain pan can be accessed easily from both sides of the HRV from hinged access panels.
Optional Bypass Damper
The Fantech BPM 08-140 Bypass Module (sold separately) is particularly effective for indoor pools located in colder climates. It is a 3-way bypass damper with an insulated cabinet that can be used for defrost recirculation.
Summary
Designed to complement today's tightly sealed buildings, the Fantech SHR 450 Heat Recovery Ventilator is an effective solution for light-commercial applications and indoor pools.
Specifications
Specifications
-
Minimum Cubic Feet per Minute (CFM) (CFM)200.0
-
Mounting TypeSuspended, Wall
-
Number of Speeds3
-
Port LocationSide
-
TypeHRV-Air Supply Fan
-
ApplicationCommercial/Industrial
-
CertificationsCSA
-
ColorGray
-
Maximum Cubic Feet per Minute (CFM) (CFM)465.0
-
Amperage (Amps)3.92
-
Power SupplyHardwired
-
Voltage (V)110-120
-
Watts (W)470
-
Depth (in.)35.9
-
Depth (with front cover) (in.)35.9
-
Height (in.)22.7
-
Height (with front cover) (in.)22.7
-
Weight (lbs.)145.5
-
Width (in.)29.5
-
Width (with front cover) (in.)29.5
-
Manufacturer's WarrantyLifetime Limited Heat Recovery Core Warranty, 3-Year Limited Parts Warranty
