Friedrich 12,000 BTU Floating Air Pro Mini Split Heat Pump 115V

Name: Friedrich 12,000 BTU Floating Air Pro Mini Split Heat Pump 115V
Brand: Friedrich
Price: 1749.0 USD
Availability: InStock

SKU: fr9768k | Model: FPHW121C

$1,749.00 $1,899.00

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

7-Year Limited Compressor Warranty, 5-Year Limited Parts and Labor Warranty

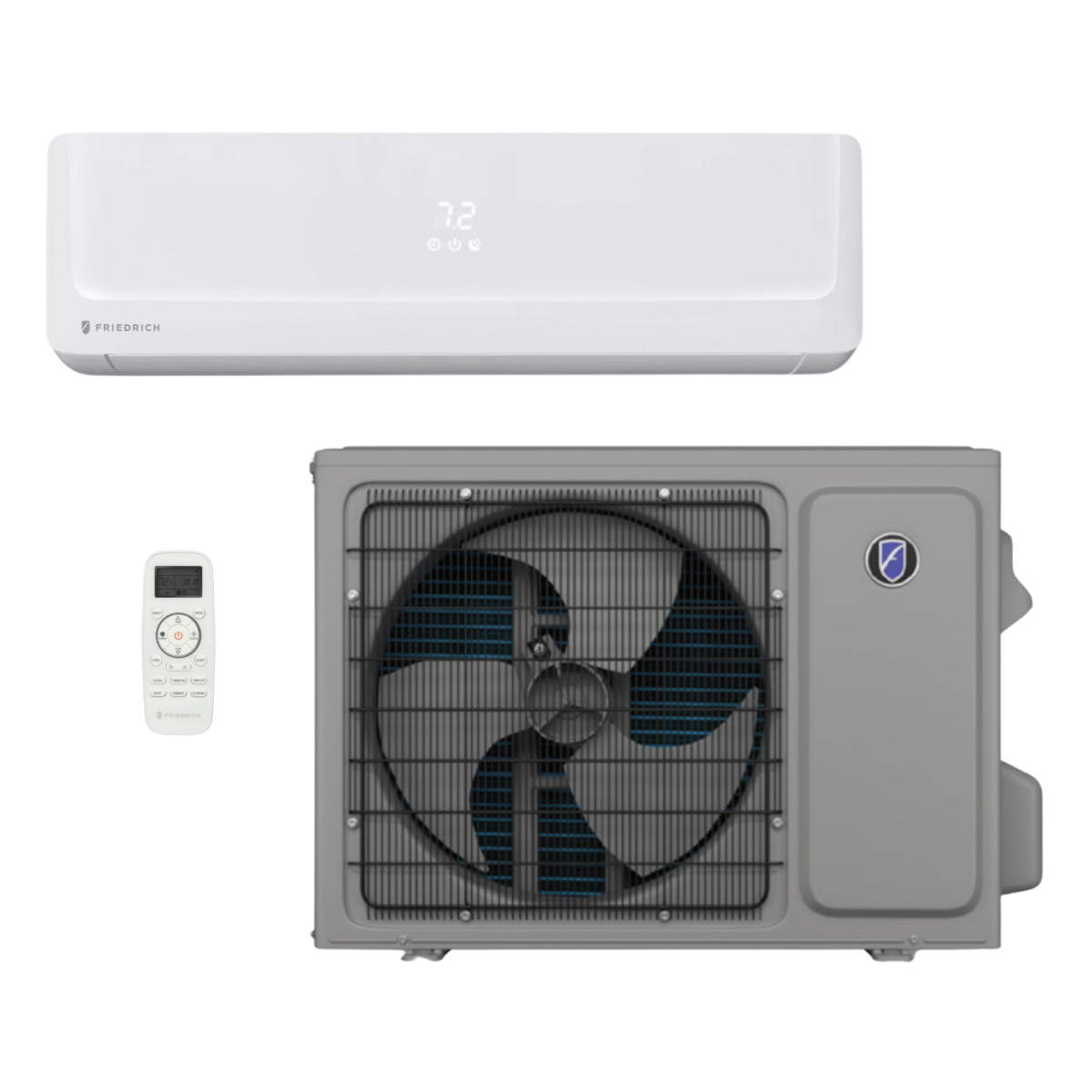

What's In The Box?

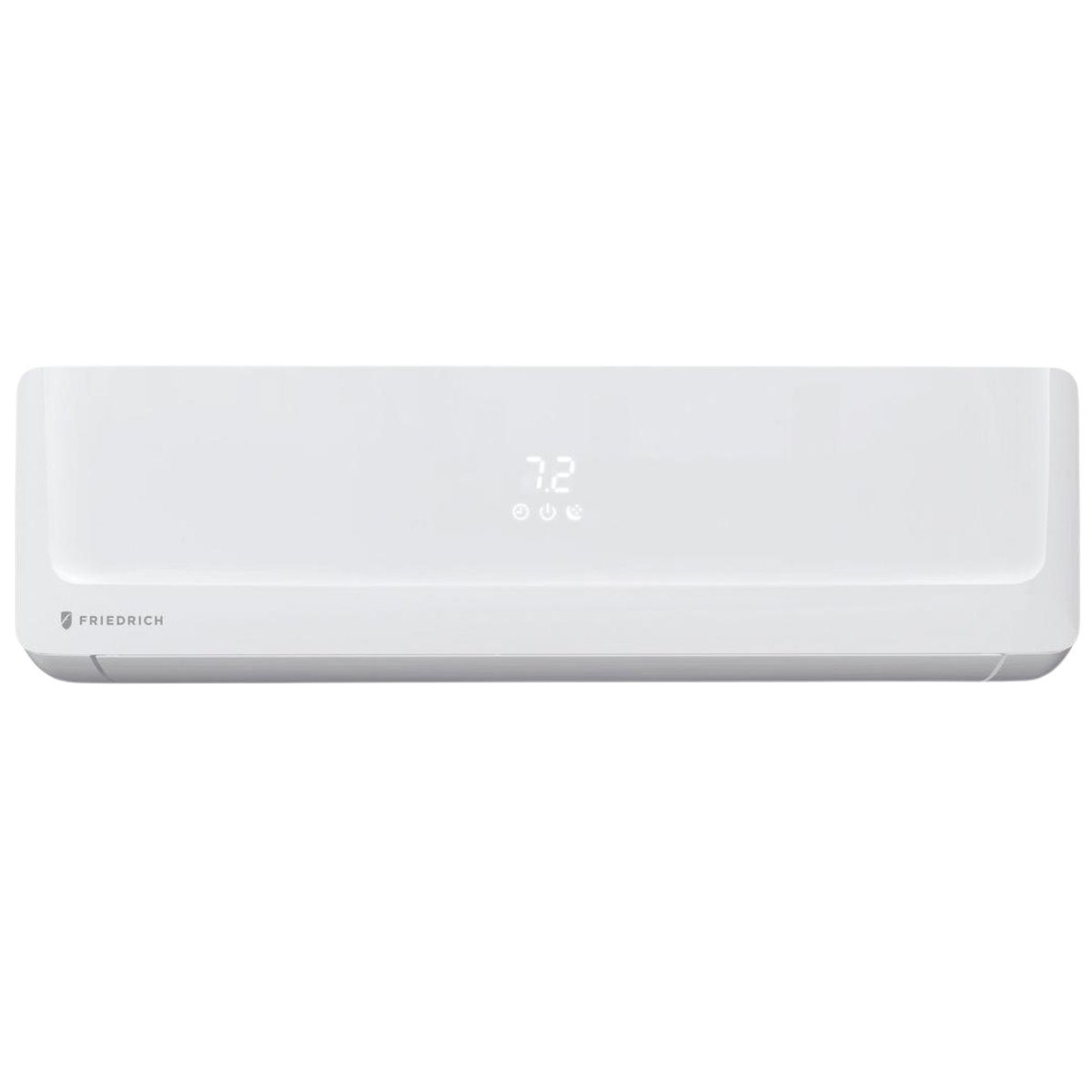

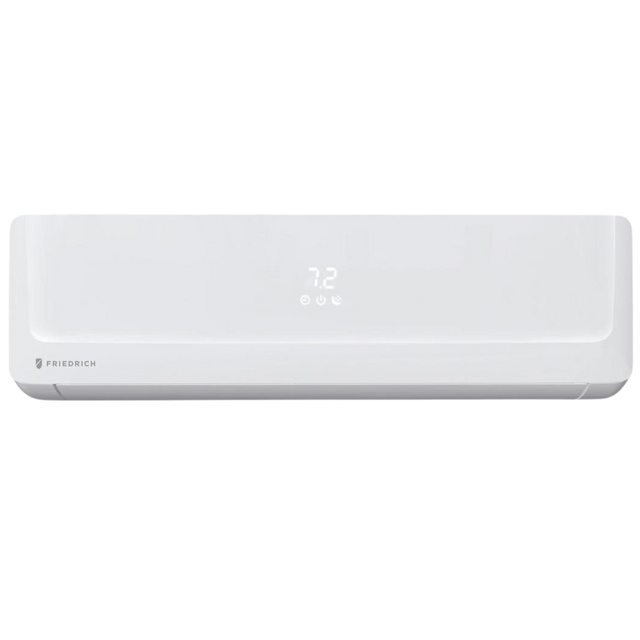

Friedrich FPHSW12A1B Indoor Air Handler (115-Volt Configuration)

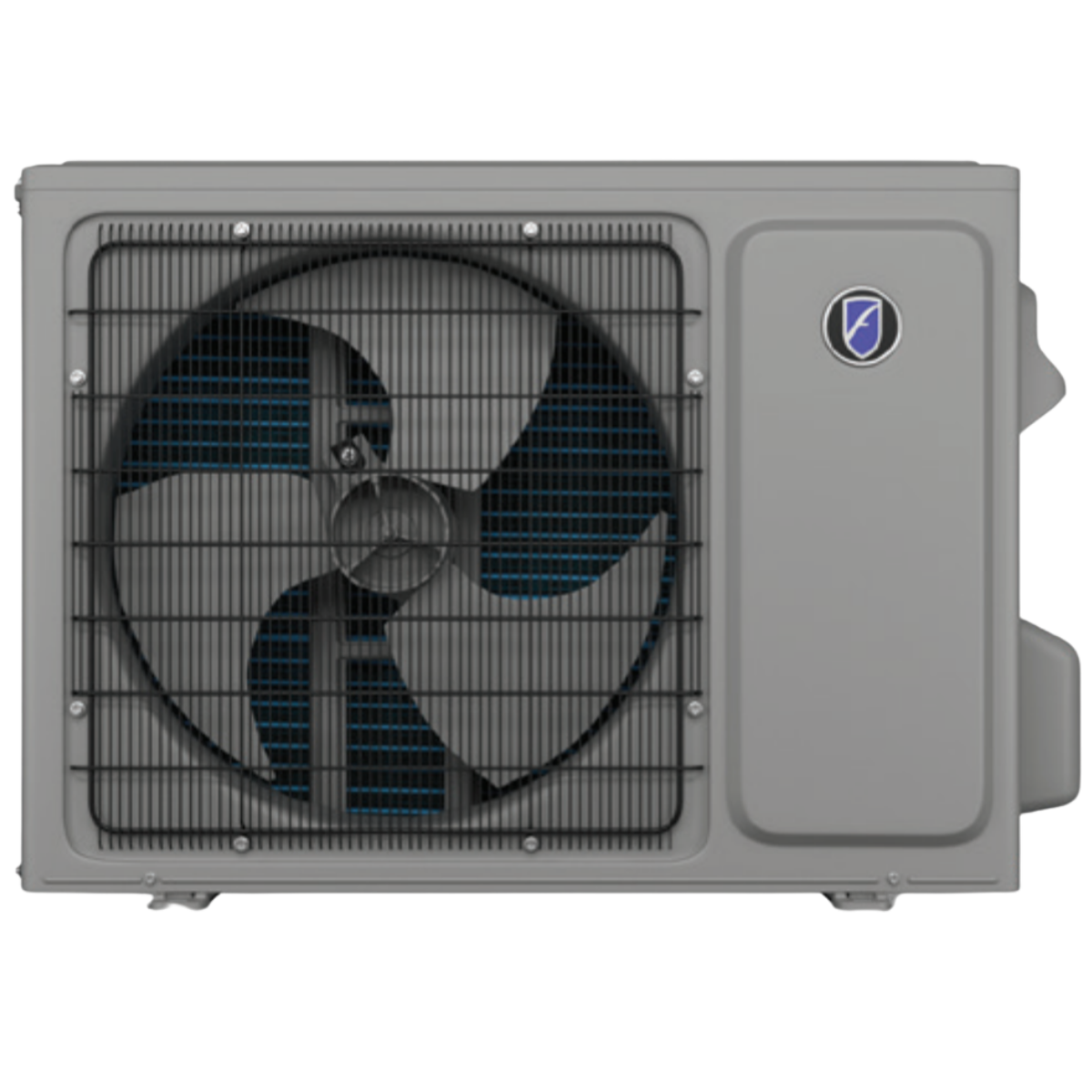

Friedrich FPHSR12A1A Outdoor Condenser (115-Volt Configuration)
Owner's Manual
Installation Instructions

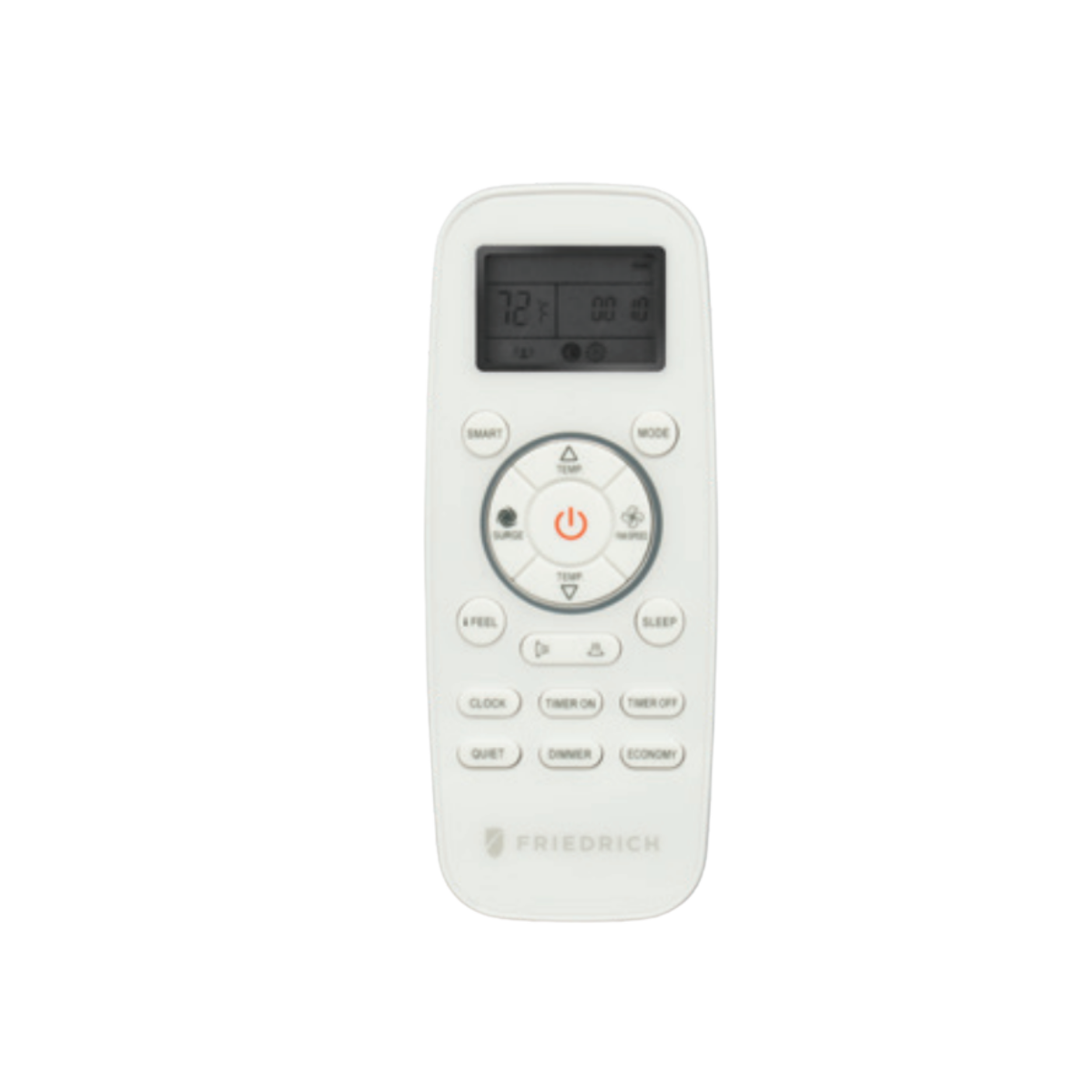

Remote Control

Info & Guides

With the Friedrich 12,000 BTU Floating Air Pro Mini Split, you can cool, heat, and more in bedrooms, home offices, and other single residential rooms up to 550 square feet.

The contractor’s choice for fast, efficient installation and service, this sleekly designed mini-split is also Wi-Fi-enabled, so you can view and update settings from your Smartphone using the FriedrichG App.

The Friedrich Floating Air Pro must be installed by a licensed contractor and is available in 115-volt configuration.

Easy To Use Design

The Friedrich Floating Air Pro possesses many upgraded features that make it easy to install and control and super-efficient to use.

FastPro Design: This system installs 40 percent faster than similar systems and features easy access to the blower, motor, piping, and wire terminal blocks for swift cleaning, maintenance, and repairs.
Drill Holes Accurately: Friedrich’s wall bracket has alignment arrows to help installers mark and drill mounting holes confidently.
Included Kickstand: Tilts the unit away from the wall, providing ample space for your hands to work.

Multiple Operating Modes for Year-Round Comfort

With its multiple operating modes and features, this Friedrich 12,000 BTU Mini Split keeps you comfortable all year long. It includes a remote control, and you can also use a wall controller.

Cool Mode: Its 12,000 BTUs of cooling power keeps you cool indoors all summer long.
Heat Mode: With 12,000 BTUs of heat as well, you'll stay warm and toasty in the winter.
Dry Mode: Removes 3 pints of excess moisture from your room every hour.
Fan Only: Provides for gentle circulation of air throughout your space.
Sleep Mode: Perfect for nighttime, this mode runs at a lower speed for quieter operation and gradually increases the temperature to save energy.

With extended operating temperatures, this ductless system can keep right on cooling and dehumidifying in temperatures down to 5 degrees F and continue heating your home in temperatures as low as -4 degrees F.

Inverter System

Precision inverter technology varies the compressor and indoor and outdoor fan speeds, eliminating constant compressor start-ups and shut-downs. This variable capacity means that the set temperature is quickly achieved and maintained efficiently, providing only the amount of cooling needed at a given time. With a SEER rating of 23, you’ll enjoy low energy costs and optimal comfort.

Additional Features

Built-in Wi-Fi: Control the Floating Air Pro directly from your Smartphone using the FriedrichGo App. It is compatible with Alexa and Google Assistant.
Washable Air Filter: Simple to access—simply rinse with warm water and allow to dry.
Auto Clean: Cleans the indoor coil.
Automatic Restart: It will resume operation in its previous settings if a power outage occurs.
Programmable Timer: Set the unit to automatically turn on or off up to 24 hours in advance.
Auto Changeover: Switches operating modes automatically to maintain your set temperature.
On-Board Error Codes: Helps to ensure trouble-free operation.

Summary

This model, featuring the FastPro Design, is quick and easy to install. It features extended operating temperatures, Wi-Fi controls with voice control, high-efficiency operation, and multiple modes for keeping your home cool, warm, and dry.

Required Accessories

The following accessories are necessary for installation and are not included with the unit.

Line Set Kit: Requires a 1/4" (liquid line) x 3/8" (suction line) kit.

Key Specifications

AHRI Estimated Annual Cooling Cost

72
AHRI Estimated Annual Heating Cost

262
Energy Efficiency Ratio 2 (EER2)

12.25
Mounting Type

Wall
Number of Speeds

4
Seasonal Energy Efficiency Ratio 2 (SEER2)

22
Total Cooling Capacity (BTUs)

12000
Total Heating Capacity (BTUs)

12000

General

California Residents

⚠ WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer and reproductive harm. For more information go to www.p65warnings.ca.gov.
Certifications

AHRI, cETLus
Color

White
Compressor Type

Inverter
Heat Mode

Yes
Installation Type

Professional Installation
Line Length Option

No Line Set
Maximum Cubic Feet per Minute (CFM) (CFM)

1471.0
Maximum Indoor Noise Level (dB)

42
Maximum Operating Temperature - Cooling (degrees F)

118
Maximum Operating Temperature - Heating (degrees F)

75
Minimum Operating Temperature - Cooling (degrees F)

5
Minimum Operating Temperature - Heating (degrees F)

-13
Number of Zones

1
Recommended Coverage Area (sq. ft.)

550
Refrigerant Type

R-454B
Zone Cooling Capacity (BTUs)

12000
Zone Heating Capacity (BTUs)

12000
