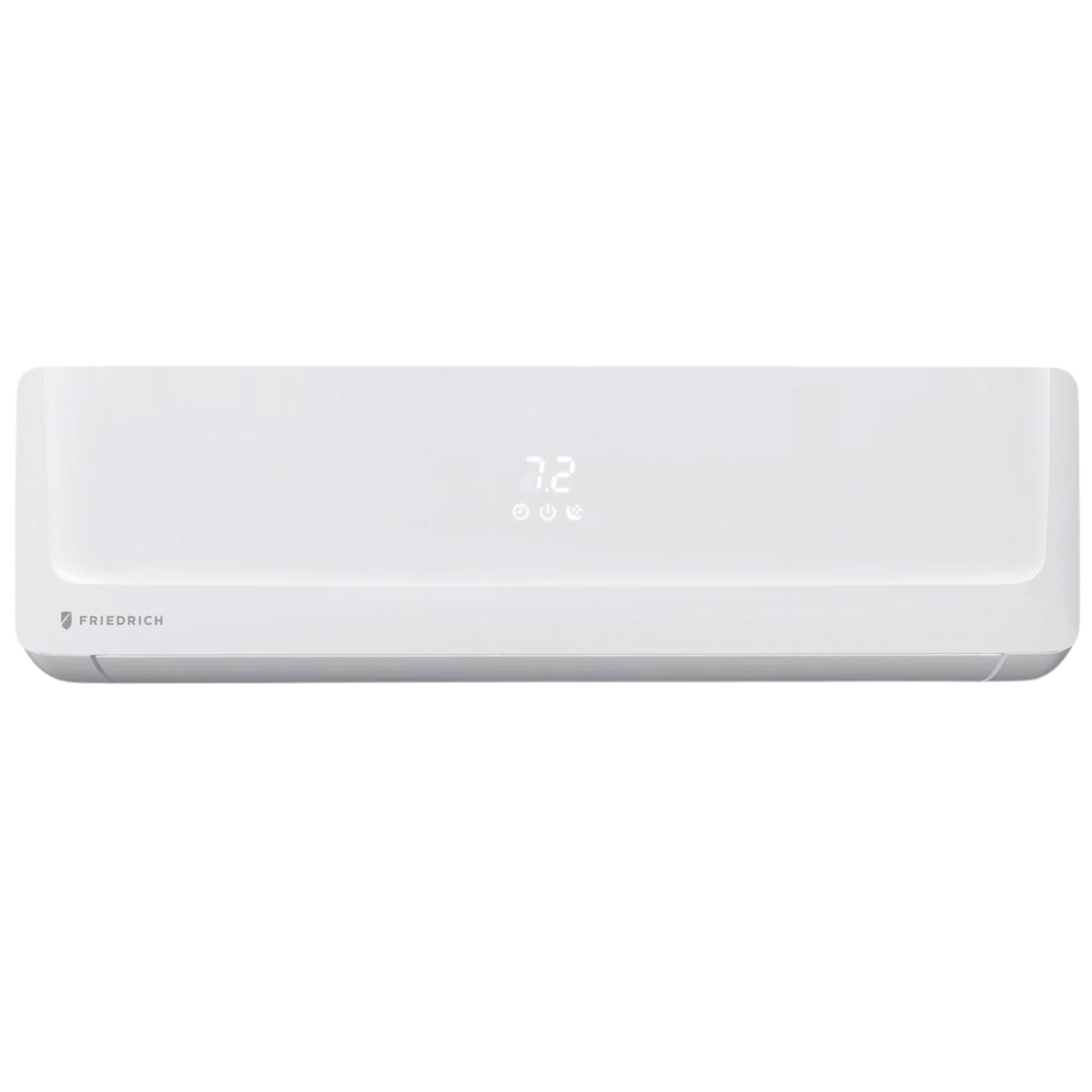

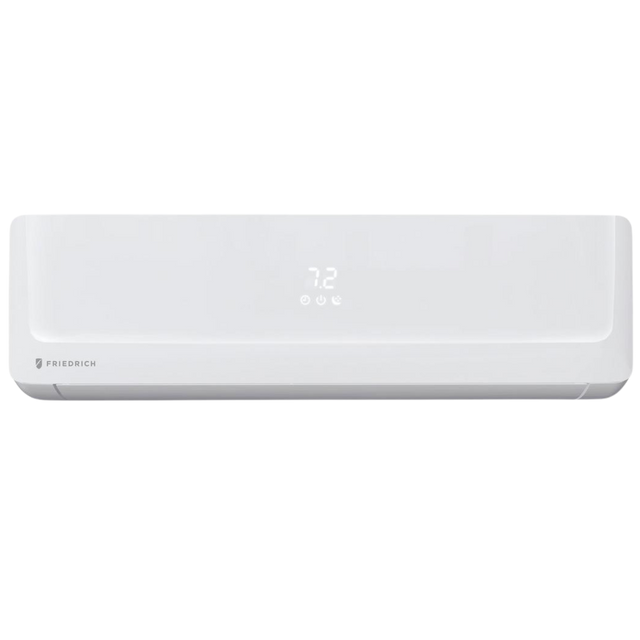

- Friedrich Air Pro 23,500 BTU Indoor Air Handler FAHFW24A3D

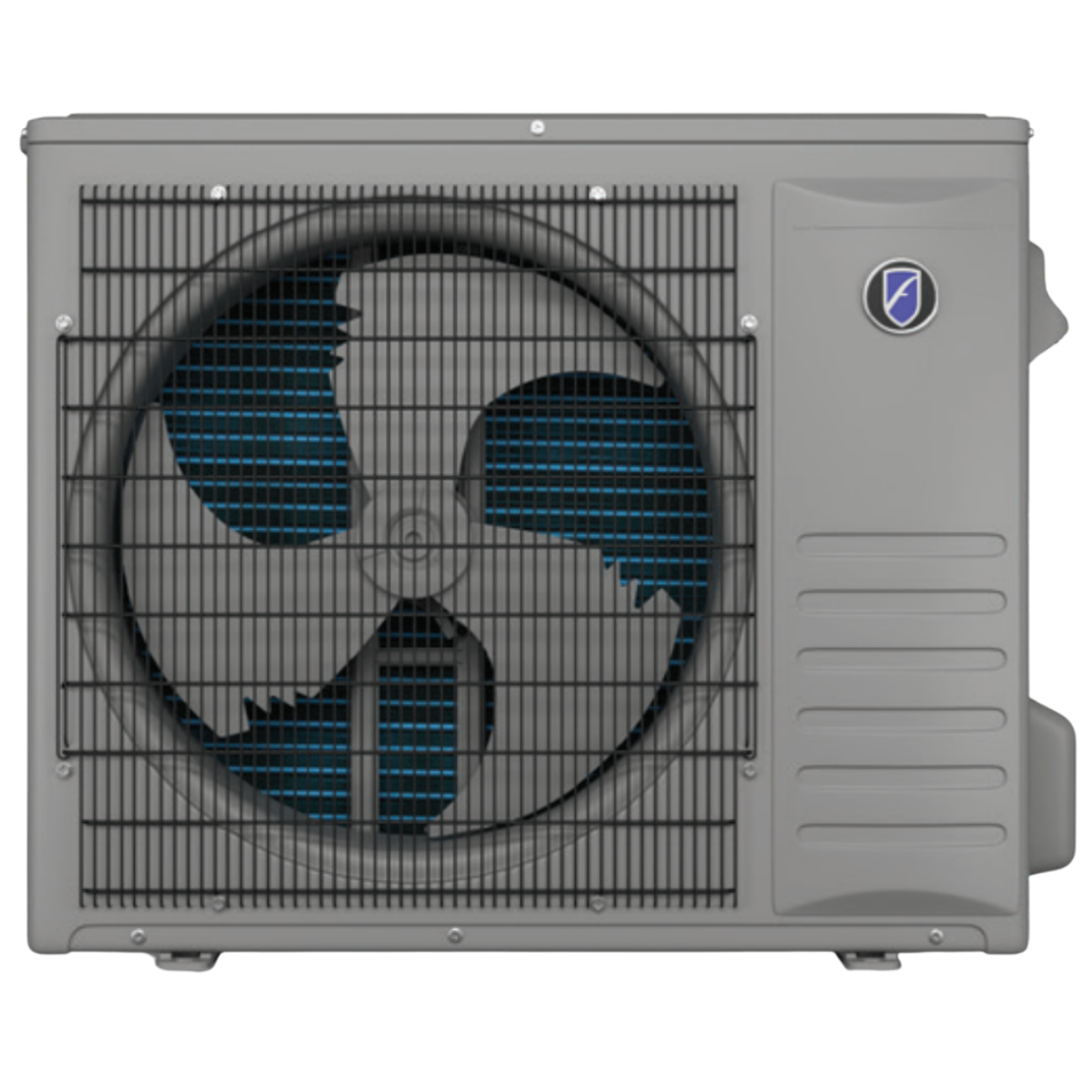

- Friedrich Air Pro 23,500 BTU Outdoor Condenser FPHSR24A3D

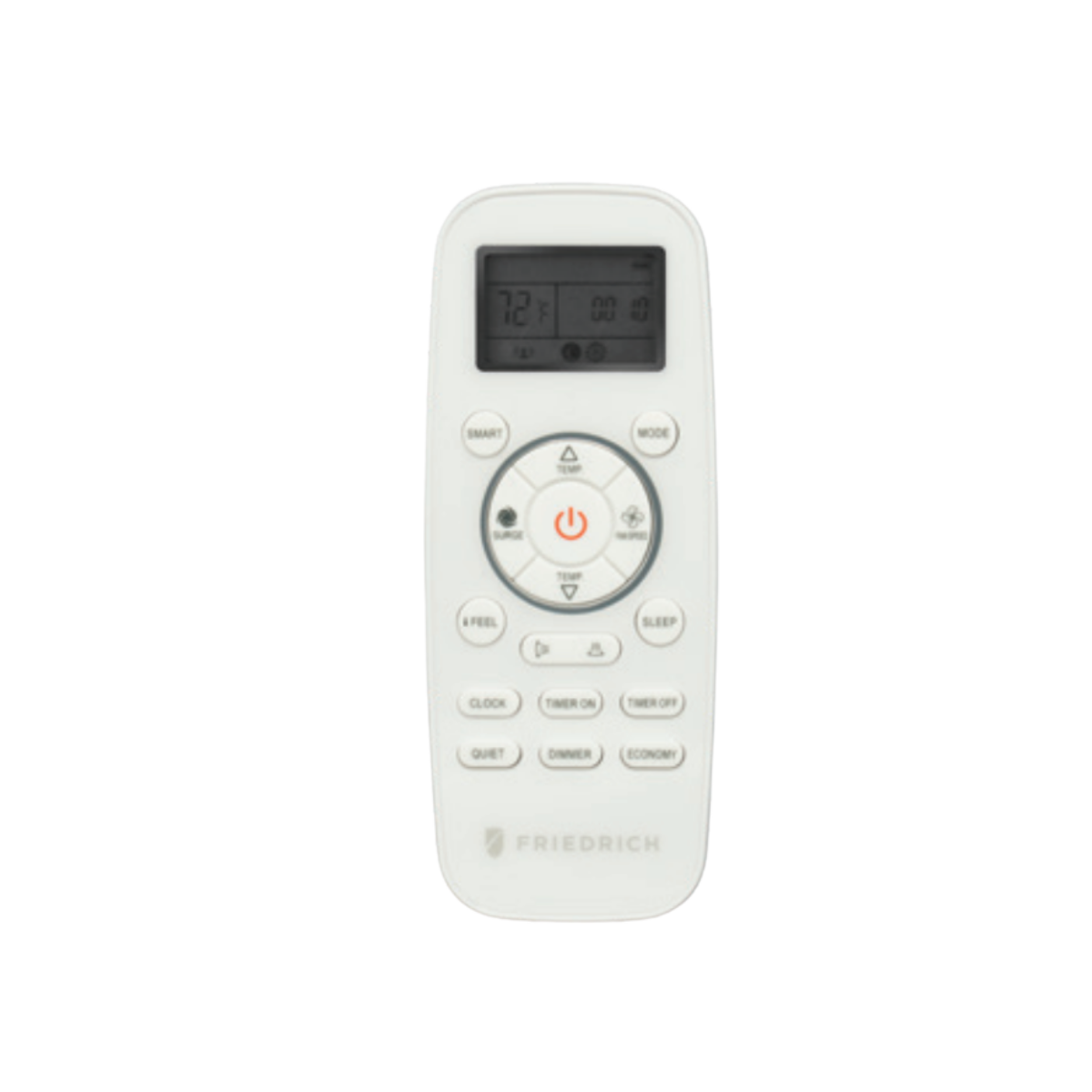

- Remote Control
- Installation Hardware
- Owner's Manual, Guides, and Other Documents
Info & Guides
Info & Guides

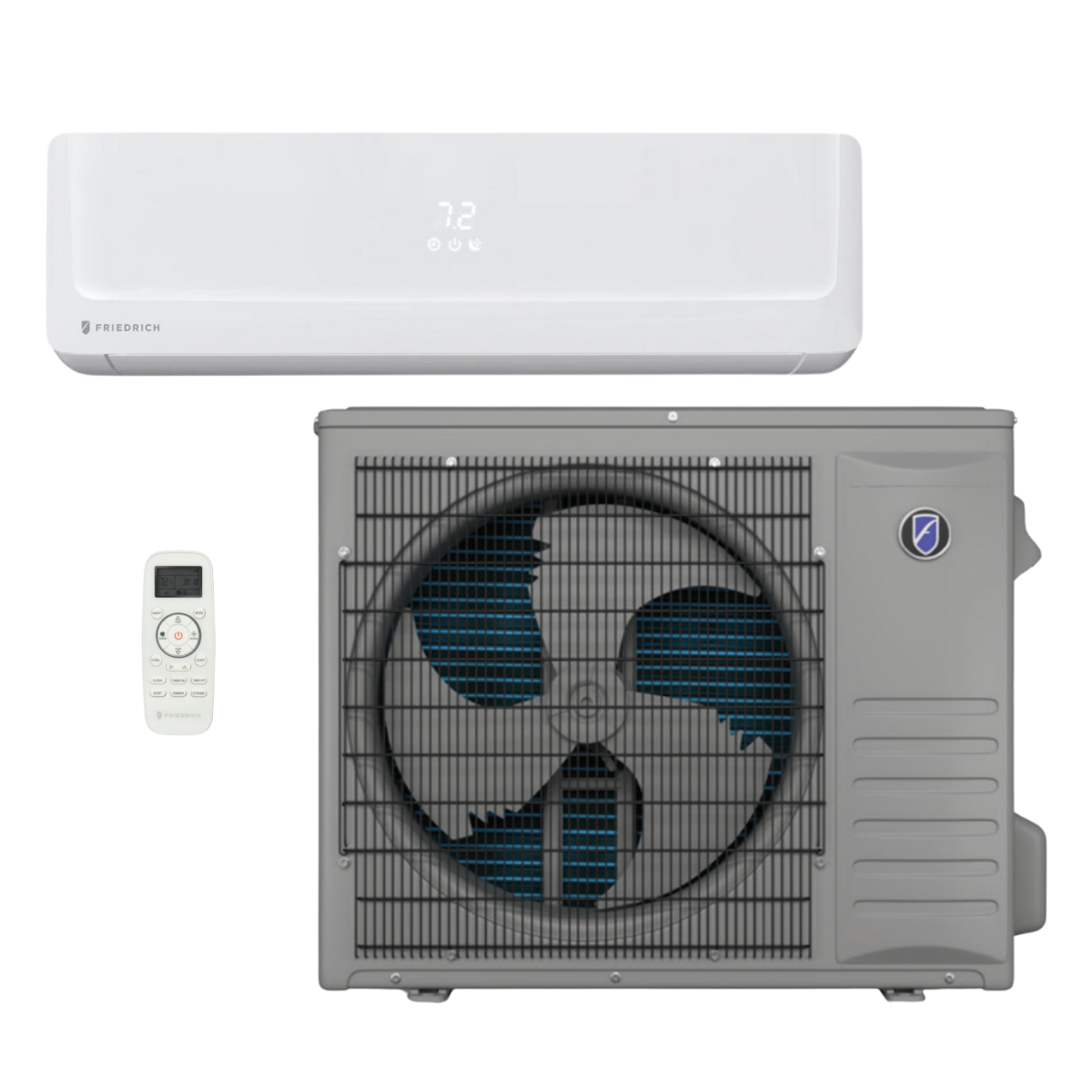

Friedrich 23,500 BTU Floating Air Pro Mini Split Heat Pump
Friedrich 23,500 BTU Floating Air Pro Mini Split Heat Pump is backordered and will ship as soon as it is back in stock.
With 23,500 BTUs of cooling power and 26,000 BTUs of heating, the Friedrich Floating Air Pro Mini Split delivers the ultimate in year-round comfort.
Built to work in spaces as large as 1,500 square feet, this mini-split features Friedrich's FastPro design for swift and easy installation, service, and maintenance. It's ideal for basements, workshops, offices, and other large areas.
The Friedrich Floating Air Pro is 230V, and it must be installed by a licensed contractor.
User-Friendly Design
The Friedrich Floating Air Pro possesses many upgraded features that make it easy to install and control and super-efficient to use.
- FastPro Design: This system installs 40% faster than similar systems and features easy access to the blower, motor, piping, & wire terminal blocks for swift cleaning, maintenance, and repairs.
- Drill Holes Accurately: Friedrich’s wall bracket has alignment arrows to help installers mark and drill mounting holes confidently.
- Included Kickstand: Tilts the unit away from the wall, providing ample space for your hands to work.
Inverter System for High Efficiency
Precision inverter technology varies the compressor and indoor and outdoor fan speeds, eliminating constant compressor start-ups and shut-downs. This variable capacity means that the set temperature is quickly achieved and maintained efficiently, providing only the amount of cooling needed at a given time. With a SEER rating of 21, you’ll enjoy low energy costs and optimal comfort.
Year-Round Comfort
With its multiple operating modes and features, this Friedrich 24,000 BTU Mini Split keeps you comfortable all year long. It includes a remote control, and you can also use a wall controller.
- Cool Mode: Its 23,400 BTUs of cooling power keeps you cool indoors all summer long.
- Heat Mode: 26,000 BTUs of heat will keep basements and media rooms warm in cold months.
- Dry Mode: Removes up to 5.1 pints of excess moisture from your room every hour.
- Fan Only: Provides for gentle circulation of air throughout your space.
- Sleep Mode: Perfect for nighttime, this mode runs at a lower speed for quieter operation and gradually increases the temperature to save energy.
With extended operating temperatures, this ductless system can keep right on cooling and dehumidifying in temperatures down to 5 degrees F and up to 115 degrees F and keeps spaces warm in temperatures as low as -4 degrees F.
Additional Features
- Built-in Wi-Fi: Control the Floating Air Pro directly from your Smartphone using the FriedrichGo App. It is compatible with Alexa and Google Assistant.
- Washable Air Filter: Simple to access—simply rinse with warm water and allow to dry.
- Auto Clean: Cleans the indoor coil.
- Automatic Restart: It will resume operation in its previous settings if a power outage occurs.
- Programmable Timer: Set the unit to automatically turn on or off up to 24 hours in advance.
- Auto Changeover: Switches operating modes automatically to maintain your set temperature.
- On-Board Error Codes: Helps to ensure trouble-free operation.
Summary
Featuring the FastPro Design, the Friedrich Floating Air Pro 24,000 BTU mini-split is quick and easy to install. Features extended operating temperatures, Wi-Fi ready with voice control, high-efficiency operation, and multiple modes for keeping your home cool, warm, and dry.
Required Accessories
The following accessories are necessary for installation and are not included with the unit.

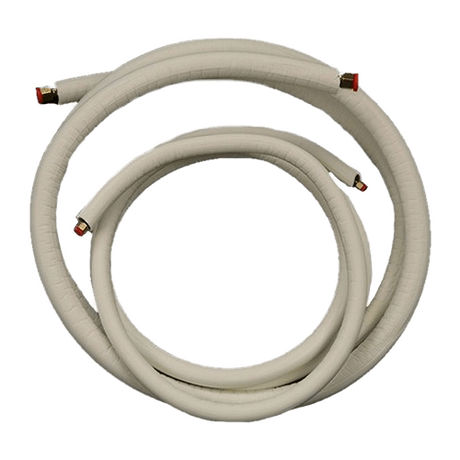

- Line Set Kit: Requires a 3/8" (liquid line) x 5/8" (suction line) kit.
-
AHRI Estimated Annual Cooling Cost147
-
AHRI Estimated Annual Heating Cost523
-
Energy Efficiency Ratio 2 (EER2)12.25
-
Mounting TypeWall
-
Number of Speeds4
-
Seasonal Energy Efficiency Ratio 2 (SEER2)22.50
-
Total Cooling Capacity (BTUs)24000
-
Total Heating Capacity (BTUs)24000
-
California Residents⚠ WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer and reproductive harm. For more information go to www.p65warnings.ca.gov.
-
CertificationsAHRI, cETLus
-
ColorWhite
-
Compressor TypeInverter
-
Heat ModeYes
-
Installation TypeProfessional Installation
-
Maximum Cubic Feet per Minute (CFM) (CFM)2531.0
-
Maximum Indoor Noise Level (dB)50
-
Maximum Operating Temperature - Cooling (degrees F)118
-
Maximum Operating Temperature - Heating (degrees F)75
-
Minimum Operating Temperature - Cooling (degrees F)5
-
Minimum Operating Temperature - Heating (degrees F)-13
-
Number of Zones1
-
Recommended Coverage Area (sq. ft.)1500
-
Refrigerant TypeR-454B
-
Zone Cooling Capacity (BTUs)24000
-
Zone Heating Capacity (BTUs)24000
-
Maximum Cooling Amperage (Amps)8.7
-
Maximum Cooling Wattage (W)1959
-
Maximum Heating Amperage (Amps)9.3
-
Maximum Heating Wattage (W)1954
-
Voltage (V)208-230
-
Indoor Unit Depth (in.)10.13
-
Indoor Unit Height (in.)13.25
-
Indoor Unit Weight (lbs.)34.2
-
Indoor Unit Width (in.)45.25
-
Maximum Line Length (ft.)98.4
-
Outdoor Unit Depth (in.)13.38
-
Outdoor Unit Height (in.)329.5
-
Outdoor Unit Weight (lbs.)112.5
-
Outdoor Unit Width (in.)35.38
-
Additional FeaturesRemote Control, Energy Star, Wi-Fi Capable, Applicable for Indoor Growing, Pre-charged Refrigerant
-
Manufacturer's Warranty7-Year Limited Compressor Warranty, 5-Year Limited Parts and Labor Warranty
