Friedrich Floating Air Select 24,000 BTU Mini Split Heat Pump

SKU: fr9789k  |  Model: FSHW243D
$2,07800 $2,20800

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Email

Manufacturer's Warranty

7-Year Limited Compressor Warranty, 5-Year Limited Parts and Labor Warranty

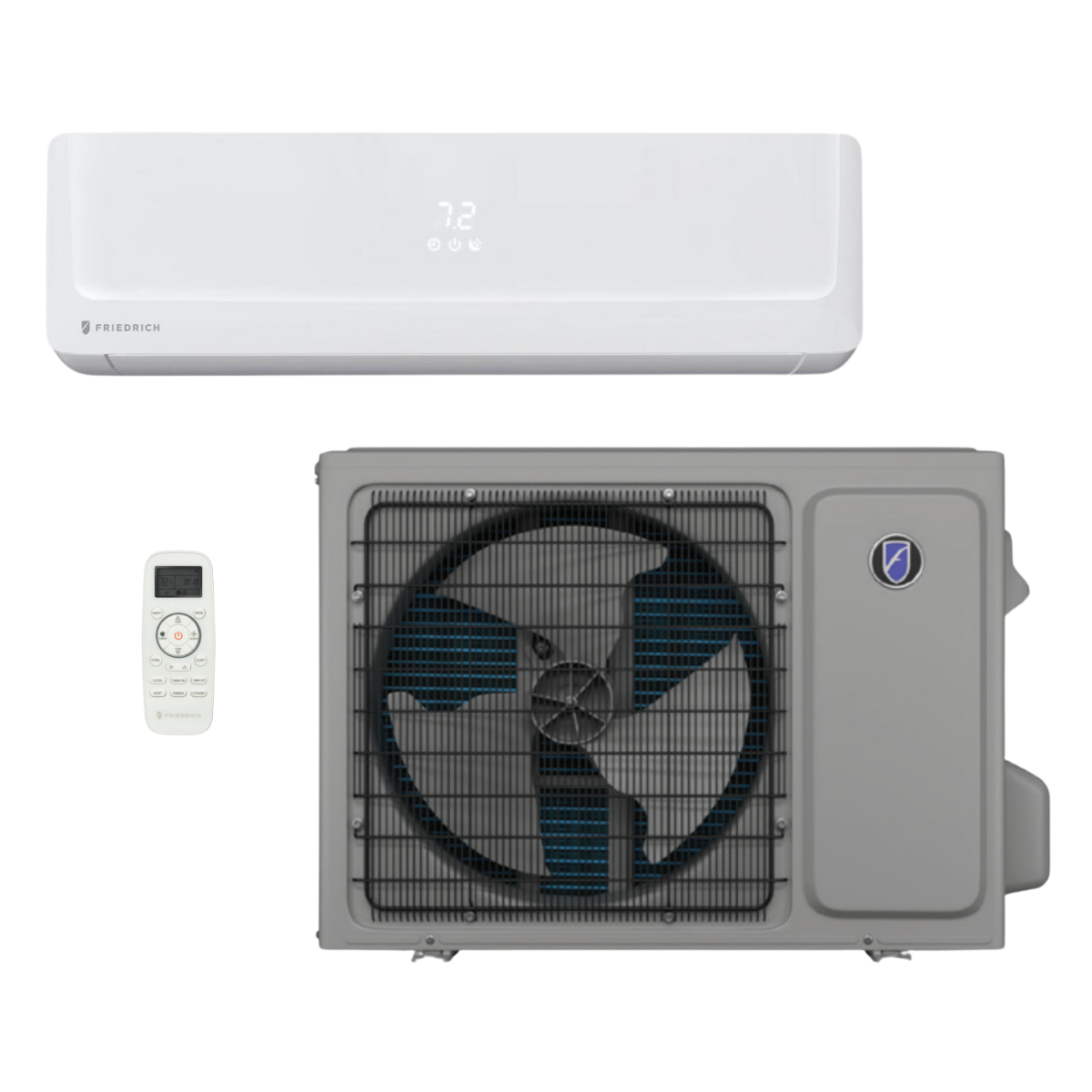

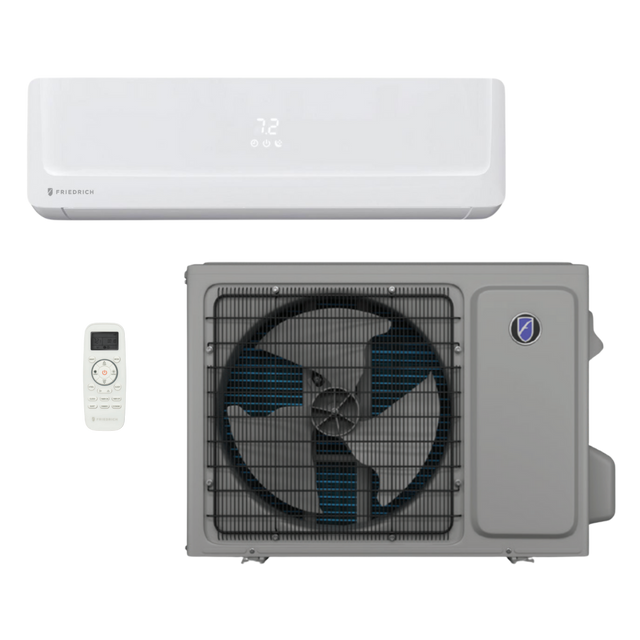

What's In The Box?

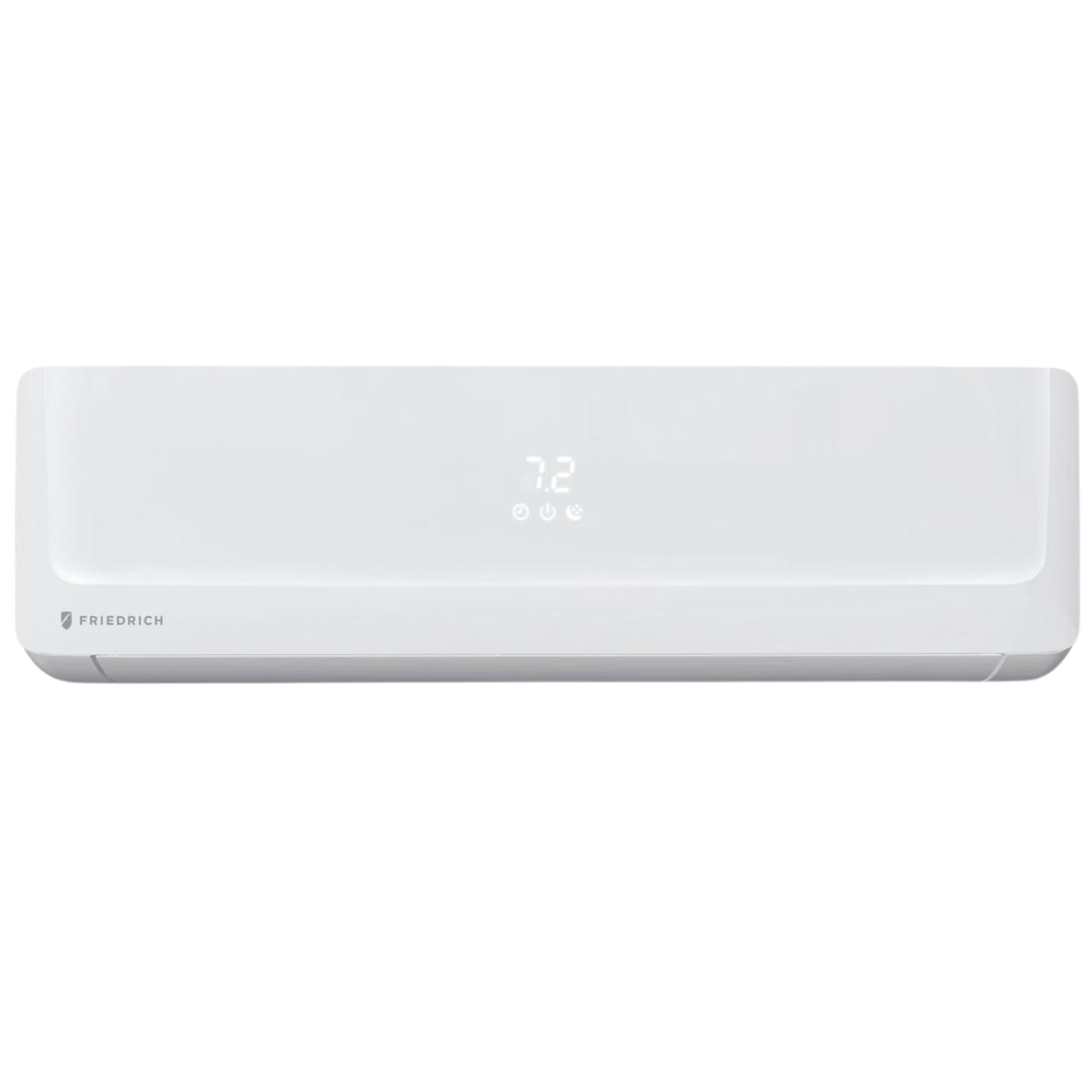

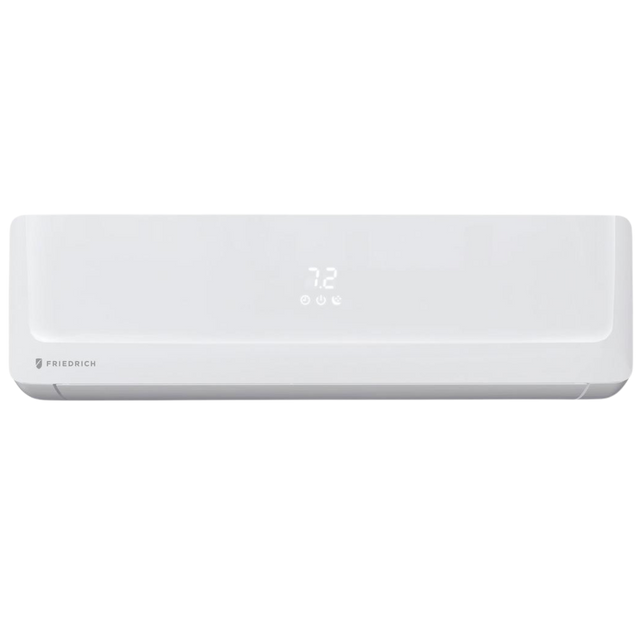

  • Friedrich Air Select 24,000 BTU Air Handle FAHFW24A3D

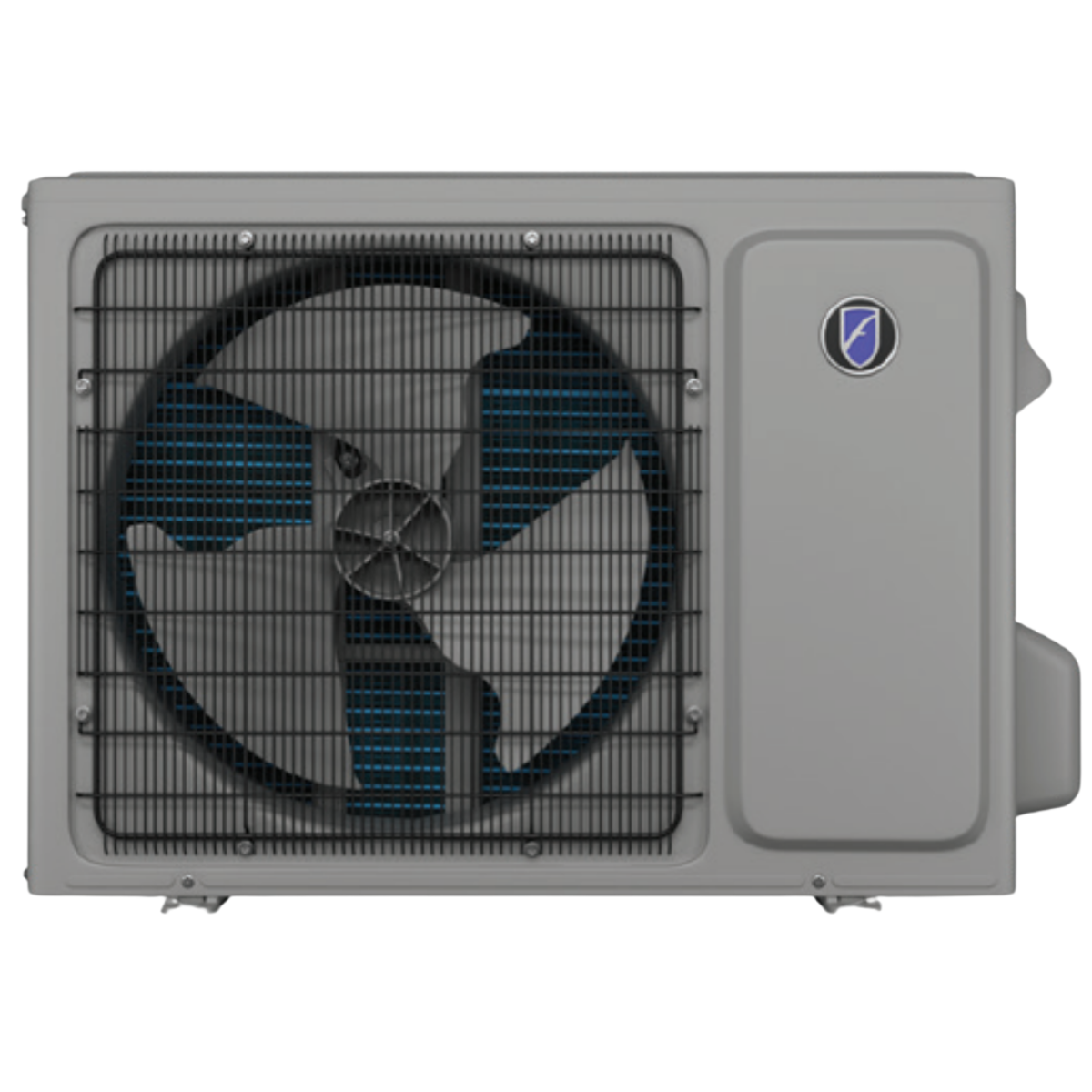

  • Friedrich Air Select 24,000 BTU Outdoor Condenser FSHSR24B3D

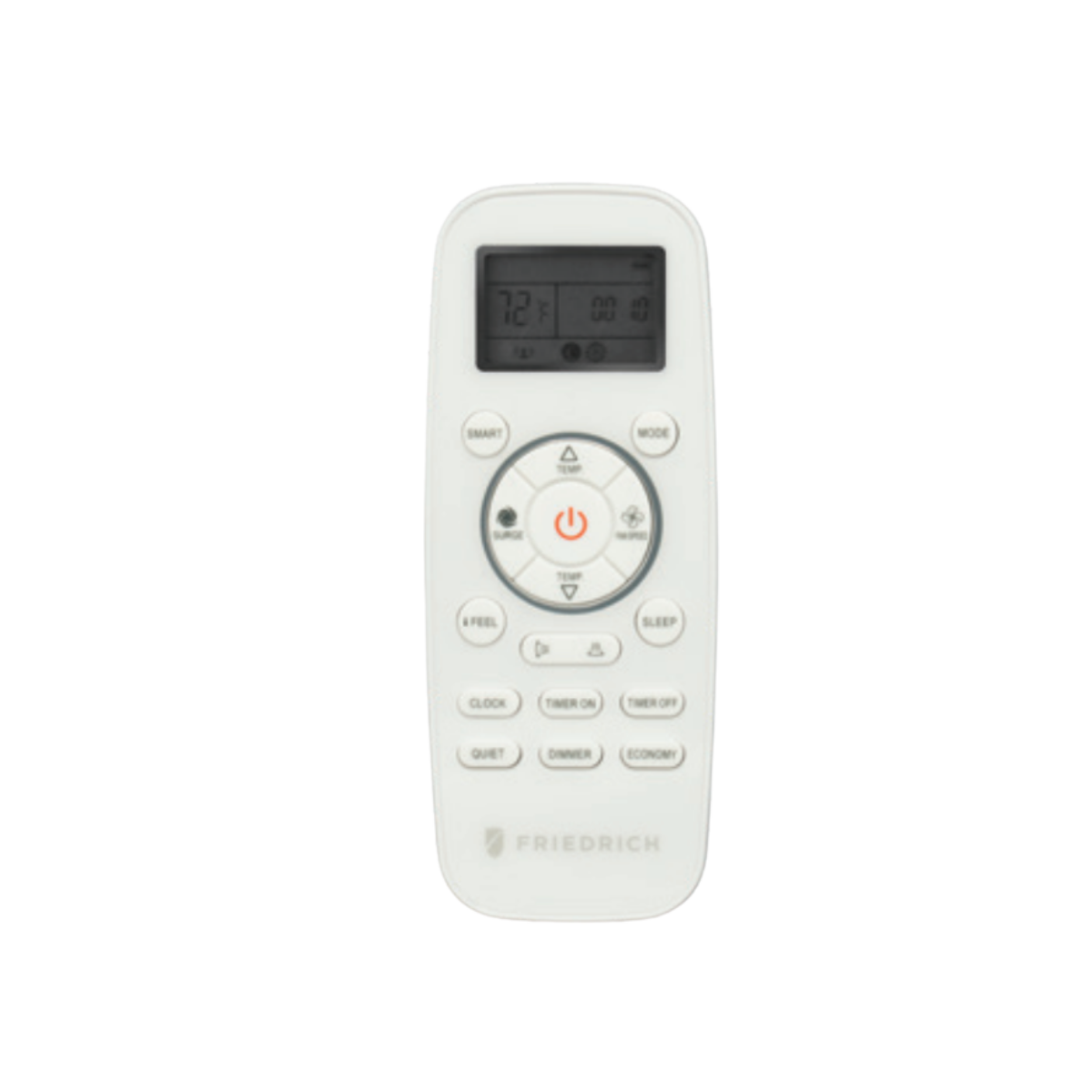

  • Remote Control
  • Antimicrobial Filter
  • Installation Hardware
  • Owner's Manual, Guides, and Other Documents

Info & Guides

Description

With its impressive cooling and heating performance, the Friedrich 24,000 BTU Floating Air Select Mini Split is the large-area comfort solution you've been looking for. Not only powerful but also efficient, this ductless system is great for spaces up to 1,500 square feet.



Install it in basements, workshops and other large spaces for the ultimate in comfort without needing to install expensive ductwork.

Comfort All Year Long

No matter the season, this Friedrich mini split will keep you comfortable. In addition to its 24,000 BTU cooling and electric heating performance, it features additional operating modes for individualized comfort.

  • Auto Mode: Simply set your desired temperature and let the system choose the best settings to achieve it.
  • Dry Mode: Eliminate muggy indoor air by removing up to 4.23 pints of excess moisture every hour.
  • Fan-Only Mode: When you just want to keep fresh air moving throughout your space, this is the setting for you.

Energy Savings

Premier comfort doesn't have to break the bank, and with the Friedrich Floating Air Select Mini Split, its inverter compressor is designed to be more efficient than other options. With an 11.0 Energy Efficiency Ratio (EER) and 10.0 Heating Seasonal Performance Factor (HSPF), it is.

Additional Features

  • Up and Down Airflow: Continuously sweeping air up and down, it evenly distributes comfortable air throughout your room.
  • Quick Cooling and Heating: Turn to its turbo setting to quickly bring your room to your desired temperature.
  • Four Fan Speeds: Choose from high, medium, low, and quiet fan speeds.
  • LCD Remote Control: Make changes to your temperature, operating mode, and more with ease.
  • Set-It-And-Forget-It: Use the 24-hour programmable timer to automatically turn the system on or off at set times.
  • Automatic Restart: In the event of a power outage, the system will resume operation in its previous settings.
  • Cleaner Indoor Air: Washable anti-microbial filters help to remove allergens and impurities from your indoor air.

Sylvane's Expert Take

Easy to use, easy to maintain, and powerful, the Friedrich Floating Air Select Mini Split is perfect for cooling, heating, and more.

Required Accessories

The following accessories are necessary for installation and are not included with the unit.

Specifications

    Key Specifications

    • AHRI Estimated Annual Cooling Cost
      161
    • AHRI Estimated Annual Heating Cost
      507
    • Energy Efficiency Ratio 2 (EER2)
      10.6
    • Mounting Type
      Wall
    • Number of Speeds
      4
    • Seasonal Energy Efficiency Ratio 2 (SEER2)
      19.5
    • Total Cooling Capacity (BTUs)
      24000
    • Total Heating Capacity (BTUs)
      24000

    General

    • Certifications
      AHRI, cETLus
    • Color
      White
    • Compressor Type
      Inverter
    • Heat Mode
      Yes
    • Installation Type
      Professional Installation
    • Maximum Cubic Feet per Minute (CFM) (CFM)
      1942.0
    • Maximum Indoor Noise Level (dB)
      50
    • Maximum Operating Temperature - Cooling (degrees F)
      118
    • Maximum Operating Temperature - Heating (degrees F)
      75
    • Minimum Operating Temperature - Cooling (degrees F)
      5
    • Minimum Operating Temperature - Heating (degrees F)
      -5
    • Number of Zones
      1
    • Recommended Coverage Area (sq. ft.)
      1500
    • Refrigerant Type
      R-32
    • Zone Cooling Capacity (BTUs)
      24000
    • Zone Heating Capacity (BTUs)
      24000
    • California Residents
      ⚠ WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer and reproductive harm. For more information go to www.p65warnings.ca.gov.

    Power

    • Maximum Cooling Amperage (Amps)
      10
    • Maximum Cooling Wattage (W)
      2264
    • Maximum Heating Amperage (Amps)
      9.5
    • Maximum Heating Wattage (W)
      2123
    • Voltage (V)
      208-230

    Dimensions

    • Indoor Unit Depth (in.)
      10.13
    • Indoor Unit Height (in.)
      13.25
    • Indoor Unit Weight (lbs.)
      34.2
    • Indoor Unit Width (in.)
      45.25
    • Maximum Line Length (ft.)
      98.4
    • Outdoor Unit Depth (in.)
      12.25
    • Outdoor Unit Height (in.)
      25.63
    • Outdoor Unit Weight (lbs.)
      101.4
    • Outdoor Unit Width (in.)
      33.88

    Additional Features

    • Additional Features
      Remote Control, Wi-Fi Capable, Applicable for Indoor Growing, Pre-charged Refrigerant

    Warranty

    • Manufacturer's Warranty
      7-Year Limited Compressor Warranty, 5-Year Limited Parts and Labor Warranty
