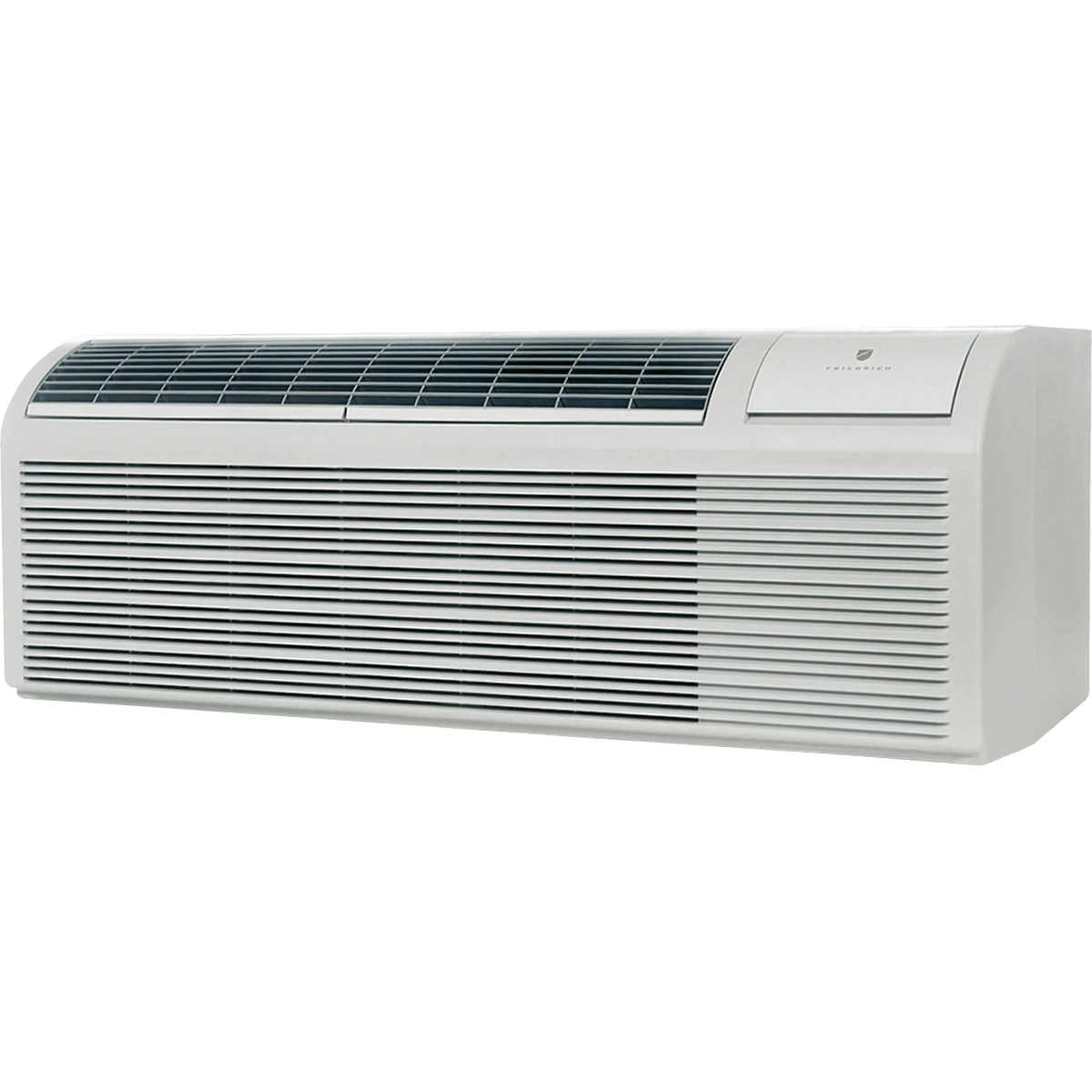

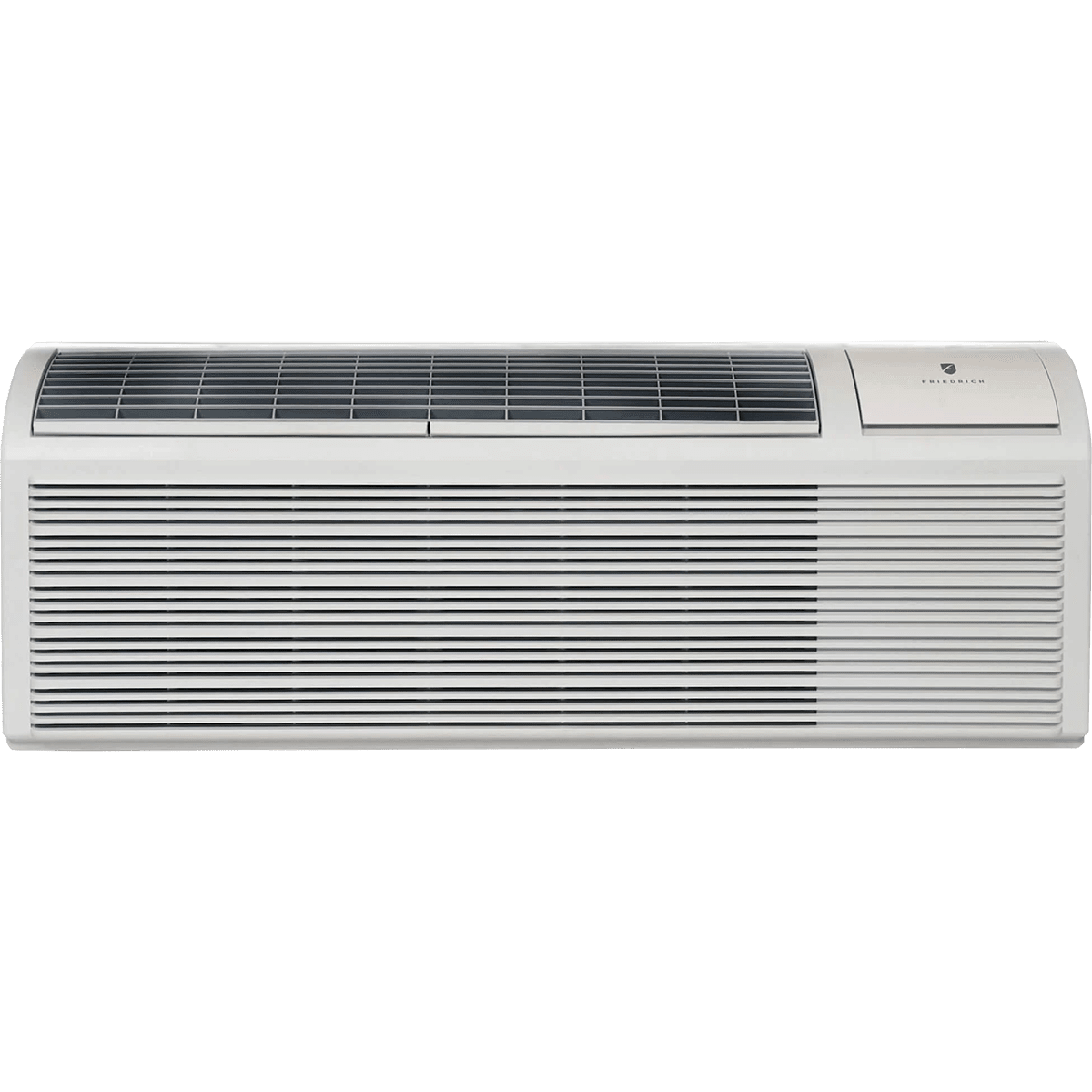

Friedrich 265V Premier Packaged Terminal Air Conditioner w/ Heat Pump

SKU: fr11187  |  Model: PDH15R5SGR3
$1,459.00

FREE shipping on orders over $45!

In Stock Usually ships in 5 business days.

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

5-Year Limited Warranty

What's In The Box?

  • Friedrich 265V Premier Packaged Terminal Air Conditioner with Heat Pump
  • Owner's Manual
  • Washable Air Filter

Info & Guides

Description

With its efficient heat pump, Friedrich’s line of ZoneAire® Premier Packaged Terminal Air Conditioners is designed to make individual cooling and heating easy and cost-effective. Easy to use and designed for quiet operation property owners will wonder how they ever survived without it. Perfect for hotels, offices, and more, this line features models capable of cooling and heating single rooms up to 650 square feet.

Note: This unit requires a 265-volt electrical outlet.

Multiple Cooling and Heat Pump Options

With four models to choose from, the ZoneAire® Premier Packaged Terminal Air Conditioner makes it easy to find the right one for your building. Its heat pump design makes it a more efficient option than electric heat.

  • For Spaces Up to 300 Square Feet: Choose the Friedrich PDH07R3SG and 7,200 BTUs of cooling power plus 6,000 BTUs of heating power. It has an Energy Efficiency Ratio (EER) of 13.0.
  • For Spaces Up to 400 Square Feet: Using 9,400 BTUs of cooling and 8,300 BTUs of heating power, the Friedrich PDH09R3SG features an EER of 12.1.
  • For Spaces Up to 550 Square Feet: The Friedrich PDH12R3SG has 11,800 BTUs (cooling) and 10,600 BTUs (heating) of power plus an EER of 11.6.
  • For Spaces Up to 650 Square Feet: In the larges of rooms, turn to the Friedrich PDH15R5SG. With an EER of 10.4, it has a cooling performance of 14,500 BTUs and heating performance of 13,300 BTUs.

Designed For Energy Conservation

Energy costs are a key factor for any facility or building owner or manager. Thanks to its thoughtful engineering, the Friedrich ZoneAire® Premier is designed to conserve energy without sacrificing performance.

  • Designed For Efficiency: This Friedrich PTAC has received impressive energy efficiency ratings thanks to an efficient refrigeration design.
  • Temperature Limits: Building owners can set limits on how high or low guests can adjust the temperature.

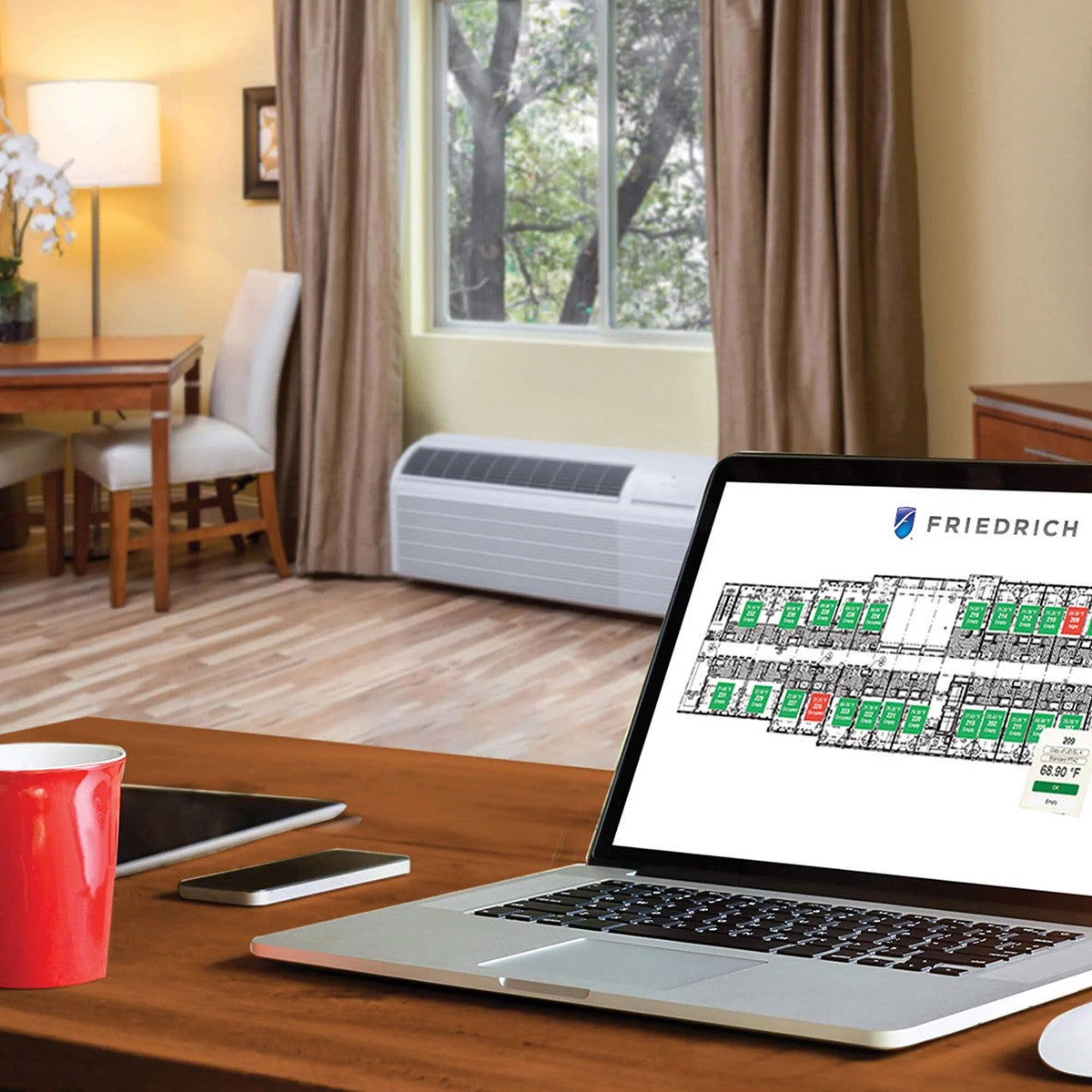

  • Central Control: The PTAC can be operated and controlled from a central desk location.

Modular Design for Easier Installation

With its modular design, installing the Friedrich ZoneAire® Premier PTAC allows for easy access to key components including filters and this unit can even be installed flush with the floor.

Additional Features

  • Built-In Dehumidification: In cool mode, this air conditioner will remove up to 3.1 pints of excess moisture from your air every hour depending on the specific model.
  • Anti-Microbial Filters: Help to improve indoor air quality and are easily accessed for routine cleaning.
  • Room Temperature Sampling: This unit samples the room temperature every nine minutes to ensure the proper settings are maintained.
  • Air Louvers: Reversible indoor air louvers let you easily change the direction of airflow as needed.
  • Quiet Operation: Featuring permanently lubricated fan motors, a rotary compressor, and more, this is a quiet-operating comfort solution.

Summary

Designed for hotels, offices, and more, with an efficient heat pump the Friedrich ZoneAire® Premier keeps spaces comfortably cooled and heated.

What Customers Love

  • Year-Round Comfort: Capable of cooling, heating, and more, this unit will keep guests comfortable all year long.
  • Built-In Heat Pump: More efficient than electric heat, its built-in heat pump will keep guests comfortable all winter long.

Specifications

    Key Specifications

    • Energy Efficiency Ratio (EER)
      15,000 BTU: 10.4
      12,000 BTU: 11.6
      9,000 BTU: 12.1
      7,200 BTU: 13
    • Number of Speeds
      2

    General

    • California Residents
      ⚠ WARNING: Cancer and Reproductive Harm www.p65warnings.ca.gov.
    • Certifications
      15,000 BTU: ETL
      12,000 BTU: ETL
      9,000 BTU: ETL
      7,200 BTU: UL
    • Color
      White
    • Controls
      Electronic
    • Heater Type
      Electric Coil
    • Heating BTUs (BTUs)
      15,000 BTU: 13300
      12,000 BTU: 10600
      9,000 BTU: 8300
      7,200 BTU: 6000
    • Maximum Cubic Feet per Minute (CFM) (CFM)
      15,000 BTU: 400.0
      12,000 BTU: 400.0
      9,000 BTU: 355.0
      7,200 BTU: 345.0
    • Maximum Operating Temperature (degrees F)
      115
    • Minimum Operating Temperature (degrees F)
      0
    • Moisture Removal per Hour (pints)
      15,000 BTU: 3.1
      12,000 BTU: 2.7
      9,000 BTU: 2.1
      7,200 BTU: 1.7
    • Recommended Coverage Area (sq. ft.)
      15,000 BTU: 650
      12,000 BTU: 550
      9,000 BTU: 400
      7,200 BTU: 300
    • Refrigerant Type
      R-32
    • Sensible Heat Ratio
      15,000 BTU: .67
      12,000 BTU: .75
      9,000 BTU: .85
      7,200 BTU: .86

    Power

    • Branch Circuit Fuse (amps)
      30
    • Maximum Cooling Amperage (Amps)
      15,000 BTU: 5.4
      12,000 BTU: 4.2
      9,000 BTU: 3.3
      7,200 BTU: 2.4
    • Maximum Cooling Wattage (W)
      15,000 BTU: 1255
      12,000 BTU: 910
      9,000 BTU: 695
      7,200 BTU: 485
    • Maximum Heating Amperage (Amps)
      15,000 BTU: 5
      12,000 BTU: 3.7
      9,000 BTU: 3.1
      7,200 BTU: 2.2
    • Maximum Heating Wattage (W)
      15,000 BTU: 1255
      12,000 BTU: 910
      9,000 BTU: 695
      7,200 BTU: 485
    • Plug Face Type
      15,000 BTU: 7-20P
      12,000 BTU: 7-20P
      9,000 BTU: 7-20P
      7,200 BTU: 7-15P
    • Voltage (V)
      260-280

    Dimensions

    • Cut Out Dimensions (H x W) (in.)
      16.25 x 42.25
    • Depth (in.)
      21.5
    • Depth (with front cover) (in.)
      21.5
    • Height (in.)
      16.0
    • Height (with front cover) (in.)
      16.0
    • Weight (lbs.)
      15,000 BTU: 122
      12,000 BTU: 118
      9,000 BTU: 119
      7,200 BTU: 112
    • Width (in.)
      42.0
    • Width (with front cover) (in.)
      42.0

    Additional Features

    • Additional Features
      Programmable Thermostat, Adjustable Louvers, Fan-Only Mode

    Warranty

    • Manufacturer's Warranty
      5-Year Limited Warranty
