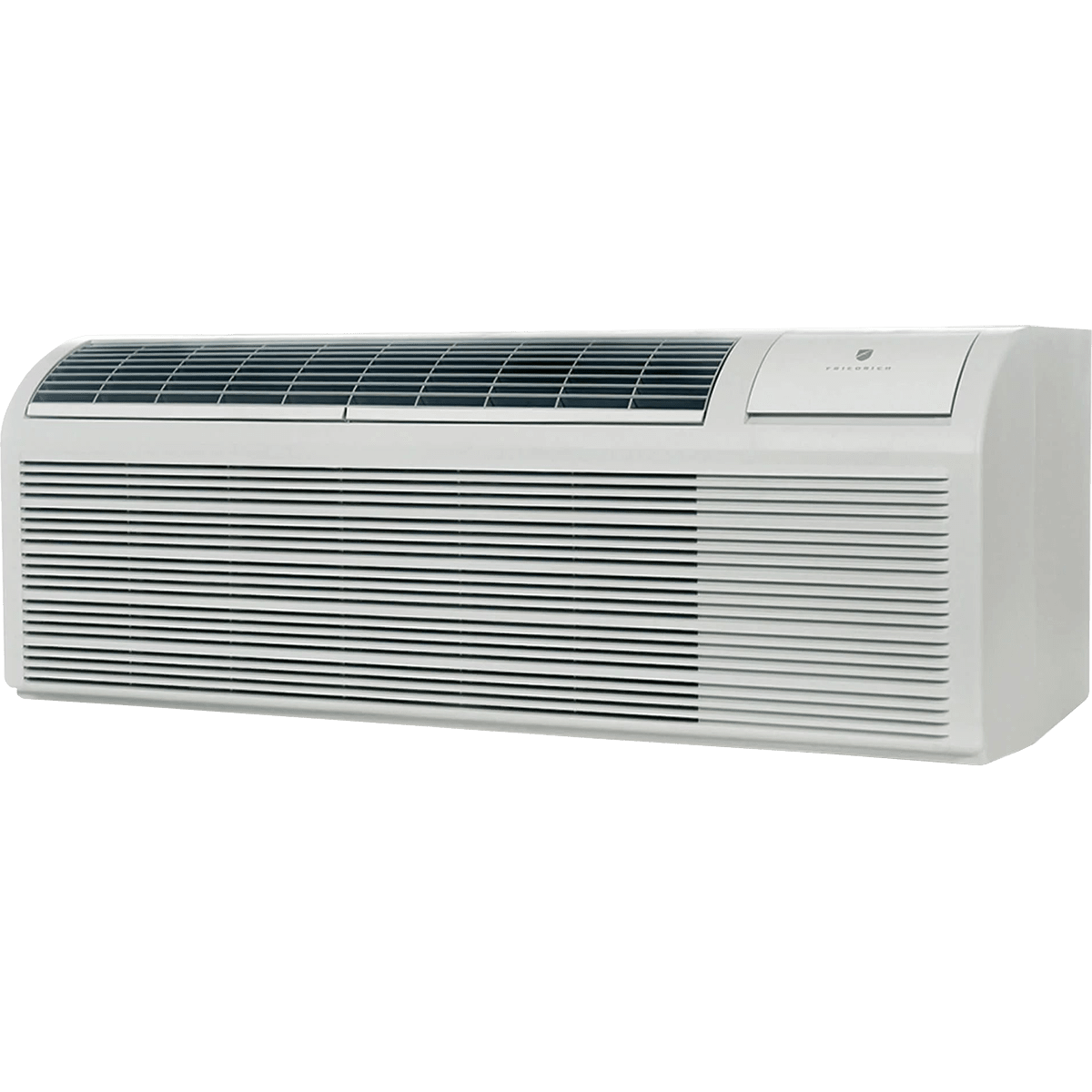

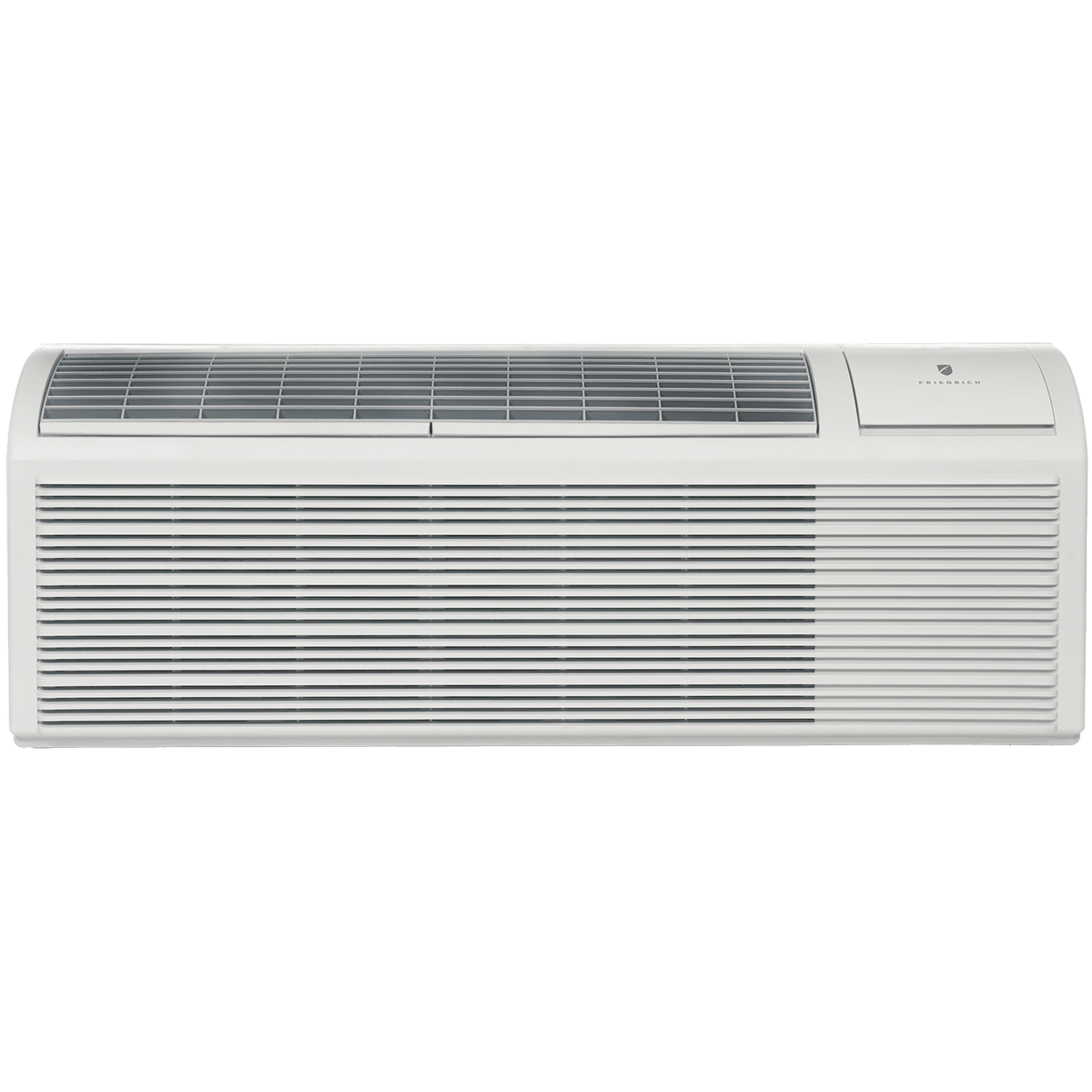

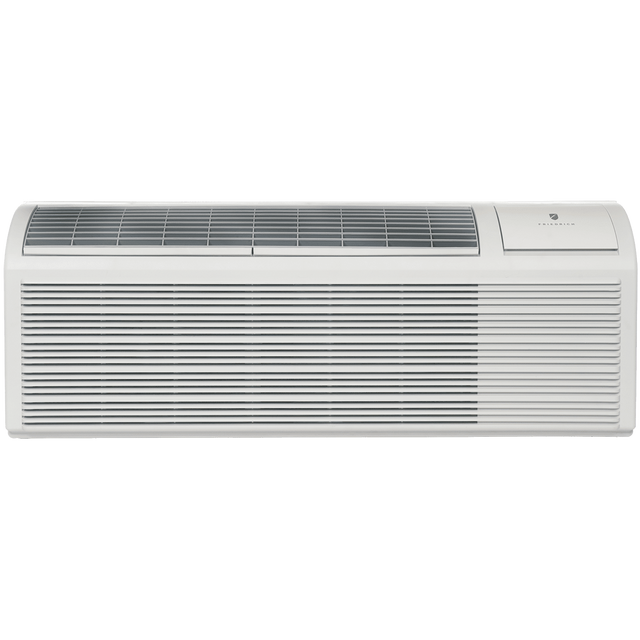

Friedrich 9,600 BTU ZoneAire Select PTAC w/ Electric Heat

SKU: fr9707  |  Model: PZE09K3SC
$1,169.00 $1,199.00

FREE shipping on orders over $45!

In Stock Usually ships in 5 business days.

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

5-Year Limited Warranty, 2-Year Limited Parts and Labor Warranty

What's In The Box?

  • Friedrich 9,600 BTU PTAC ZoneAire Select with Electric Heat
  • Owner's Manual

Info & Guides

Description

The Friedrich 9,600 BTU ZoneAire Select PTAC with Electric Heat reliably circulates 350 CFM of cooled or heated air and dehumidifies up to 1.7 pints of moisture per hour in rooms up to 300 square feet. This easy-to-install and operate PTAC features an energy-efficient design, earning it an 11.6 Energy Efficient Ratio(EER), thermostat compatibility, and ultra-quiet operation for hotel rooms or other multi-unit facilities.

  • Standard Sizing: This PTAC measures an industry-standard 42-inch width, making it simple to replace old PTACs.
  • Internal Diagnostic Program: This self-diagnosing program runs factory tests to reduce problems by alerting maintenance of component or operating problems.
  • Simple Controls: Adjust the temperature, mode (heat, cool, and constant fan), and fan speed (high, low, and auto) easily with the easy-to-use button controls

Multiple Models

  • 230-208V: Get up to 9,300 BTUs of cool air and remove up to 1.7 pints of moisture per hour with this 11.6 EER PTAC model. (PZE09K3SC)
  • 265V: This 11.5 EER PTAC can output up to 9,000 BTUs of cool air-conditioned air and remove up to 1.1 pints of moisture in one hour. (PZE09R3SC)

Powerful and Efficient Heating

The 3.6 kW electric heater contains coils to provide more heated surface area to output quiet and powerful heat in minutes.

  • Temperature Monitoring: This PTAC will test the room temperature every nine minutes to maintain the desired temperature.
  • Temperature Limiting: Set a high and low-temperature limit range to reduce energy usage.

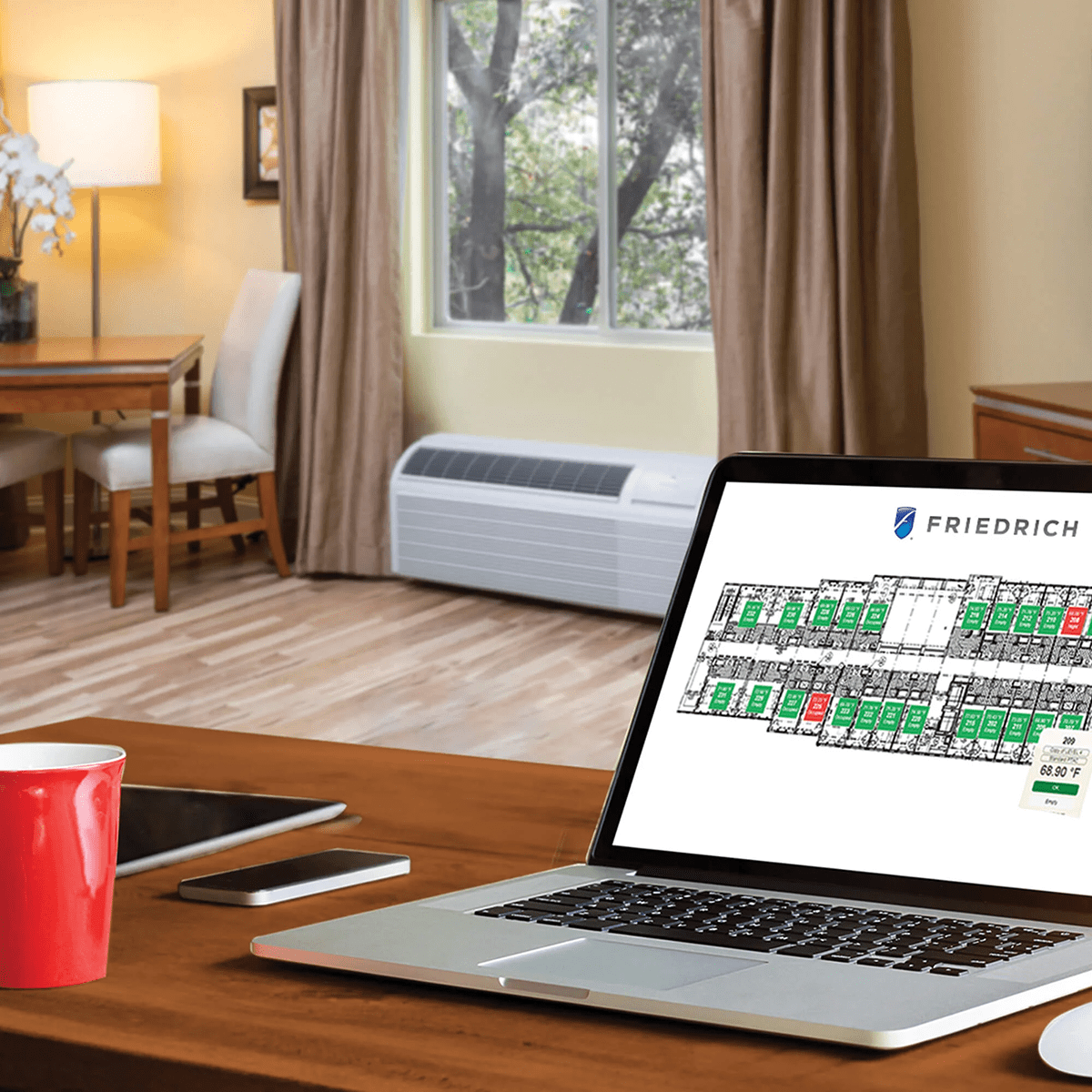

  • Energy Management: Connect with an Exceptional Energy Management Thermostat to integrate multiple PTACs into a central control system.
  • Thermostat Capable: Its pop-out wiring module makes connecting it to a universal thermostat quick and easy.
  • Freeze Protection: The electric heater will automatically start when set to auto heating if an unoccupied room temperature reaches below 50 degrees Fahrenheit.
  • Friedrich PTAC Universal Heater Cord: To increase the power of the electric heater for colder environments, upgrade to a 5 kW electric heater with the Friedrich 5 kW Heater Cord.

Ultra-Quiet and Durable Design

Friedrich PTACs utilize superior materials and an ultra-efficient design to reduce sound levels and increase durability for all-season temperature control.

  • Vibration Isolators: The rotary compressor is mounted with vibration isolators to ensure quiet and smooth operation of the compressor.
  • High-Efficiency Rotary Compressor: This rotary compressor maximizes the durability and efficiency of the Friedrich 9,600 BTU PTAC as the heat is running.
  • Quick Start and Stop: The two permanently lubricated fans are delayed to prevent starting or stopping at the same time as the compressor, ensuring quiet operation.
  • Dual Motors: Features two permanently lubricated fan motors, one inside and one outside, so the indoor motor can run slower. This reduces sound levels without lowering performance.
  • Durable Construction: The galvanized zinc-coated steel wall sleeve and steel base pan are powder-coated with a polyester finish for durability and sound reduction.
  • Corrosion Protection: The indoor and outdoor coils are coated in Diamonblue Advanced corrosion protection, and the outdoor coils are encased in aluminum endplates to withstand harsh outdoor environments.
  • Even Air Distribution: The tangential blower wheel provides a wide airflow path, quietly and evenly distributing it throughout the room.

Additional Features

  • LED Display: Easily view the set point or actual room temperature, mode, and fan speed with the digital control display.
  • Maintenance-Friendly: The modular design ensures easy access to the internal parts for quick maintenance, repairs, and cleaning.
  • Air filters: The washable filters prevent airborne particles from reaching the internal components and extend the machine's life expectancy.
  • R-32 Refrigerant: This PTAC uses a refrigerant with a low global warming potential.
  • Dehumidification: Remove up to 1.7 pints of moisture in an hour to reduce humidity.
  • Fresh Air Damper: Open this damper to bring in fresh and filtered outdoor air.
  • Reversible Air Louvers: Adjust the indoor louvers to control the airflow direction.

Note: For new installations, a standard Friedrich grille and standard Friedrich PTAC sleeves should be purchased separately.

Sylvane's Expert Take

The Friedrich 9,600 BTU ZoneAire Select PTAC with Electric Heat is ideal for multi-unit facilities like hotel rooms and dorms up to 300 square feet. Its energy-conscious design allows remote thermostats and management systems to be connected to maintain temperature control from a centralized location.

  • Modular Design: Ensure easy access to the internal components, making filter cleaning, repairs, and servicing simple.
  • Warranty: Friedrich provides a five-year limited warranty to ensure powerful heating and cooling for many years.
  • Required Voltage: Ensure your property is wired to handle this 230/208-volt (PZE09K3SC) or 265-volt (PZE09R3SC) air conditioner. It uses a NEMA 6-20P plug face.

Specifications

    Key Specifications

    • ASHRAE Cooling Power (BTUs)
      [9000]
    • Energy Efficiency Ratio (EER)
      208-230V: 11.6
      265V: 11.5
    • Number of Speeds
      2

    General

    • California Residents
      ⚠ WARNING: Cancer and Reproductive Harm www.p65warnings.ca.gov.
    • Certifications
      cETLus
    • Color
      White
    • Controls
      Electronic
    • Electric Heat BTU's (BTUs)
      12000
    • Heater Type
      Electric Coil
    • Maximum Cubic Feet per Minute (CFM) (CFM)
      390.0
    • Maximum Noise Level (dB)
      52
    • Maximum Operating Temperature (degrees F)
      114
    • Minimum Operating Temperature (degrees F)
      53
    • Moisture Removal per Hour (pints)
      208-230V: 1.7
      265V: 1.1
    • Recommended Coverage Area (sq. ft.)
      208-230V: 450
      265V: 400
    • Refrigerant Type
      R-32
    • Sensible Heat Ratio
      208-230V: 0.86
      265V: .84

    Power

    • Branch Circuit Fuse (amps)
      20
    • Electric Heat Max Amps (Amps)
      208-230V: 15.9
      265V: 13.8
    • Electric Heat Max Wattage (W)
      3650
    • Maximum Cooling Amperage (Amps)
      208-230V: 3.7
      265V: 4.2
    • Maximum Cooling Wattage (W)
      208-230V: 800
      265V: 780
    • Plug Face Type
      208-230V: 6-20P
      265V: 7-20P
    • Power Cord Length (ft.)
      6
    • Voltage (V)
      208-230V: 208-230
      265V: 260-280

    Dimensions

    • Cut Out Dimensions (H x W) (in.)
      16.25 x 42.25
    • Depth (in.)
      21.5
    • Depth (with front cover) (in.)
      21.5
    • Height (in.)
      16.0
    • Height (with front cover) (in.)
      16.0
    • Weight (lbs.)
      94
    • Width (in.)
      42.0
    • Width (with front cover) (in.)
      42.0

    Additional Features

    • Additional Features
      Adjustable Louvers, Fan-Only Mode

    Warranty

    • Manufacturer's Warranty
      5-Year Limited Warranty, 2-Year Limited Parts and Labor Warranty
