Friedrich Breeze 3 Ton Breeze Select Central Ducted Heat Pump Split System with Surge Protector

Name: Friedrich Breeze 3 Ton Breeze Select Central Ducted Heat Pump Split System with Surge Protector
Brand: Friedrich
Price: 4499.99 USD
Availability: InStock

SKU: fr18959 | Model: BREEZE36BUNDLE

Includes a Free Trade Pro Surge Protector, $300 value!

$4,499⁹⁹

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Email

Manufacturer's Warranty

10-Year Compressor Limited Warranty, 7-Year Parts Limited Warranty (10-Year Parts Limited Warranty with Registration)

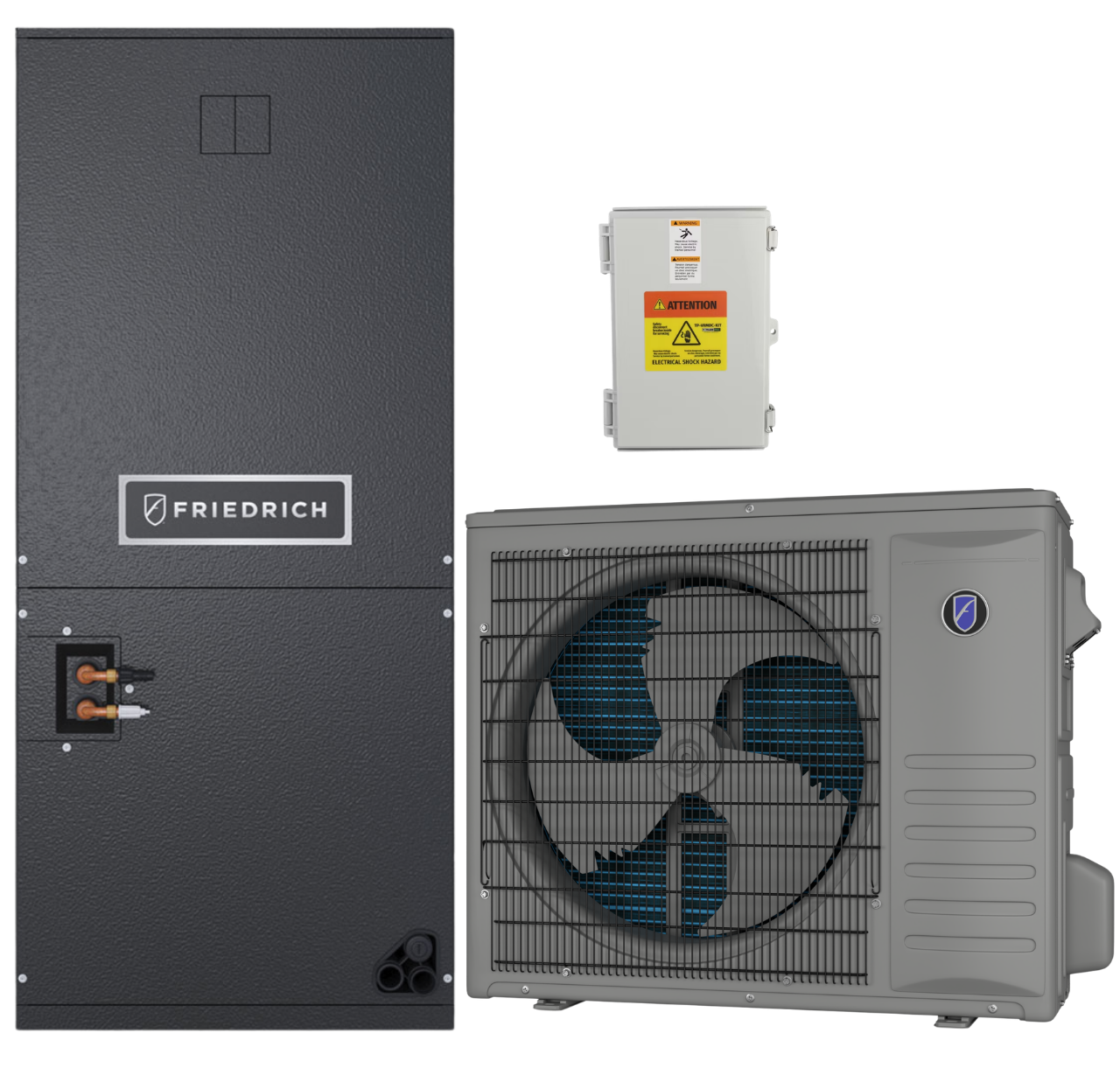

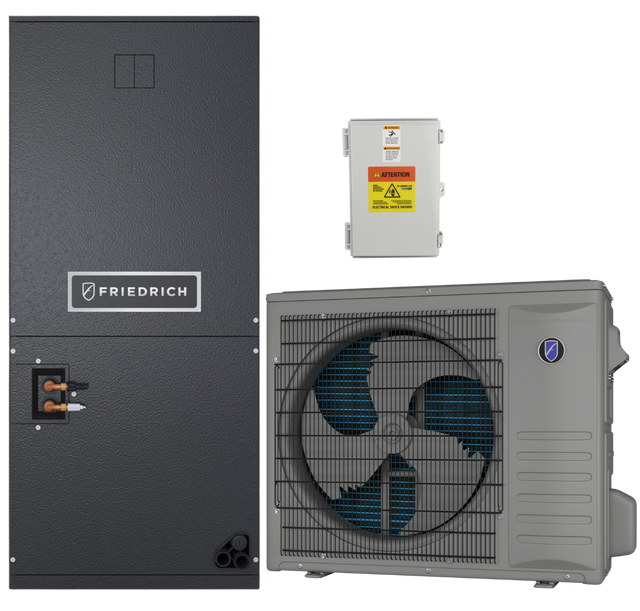

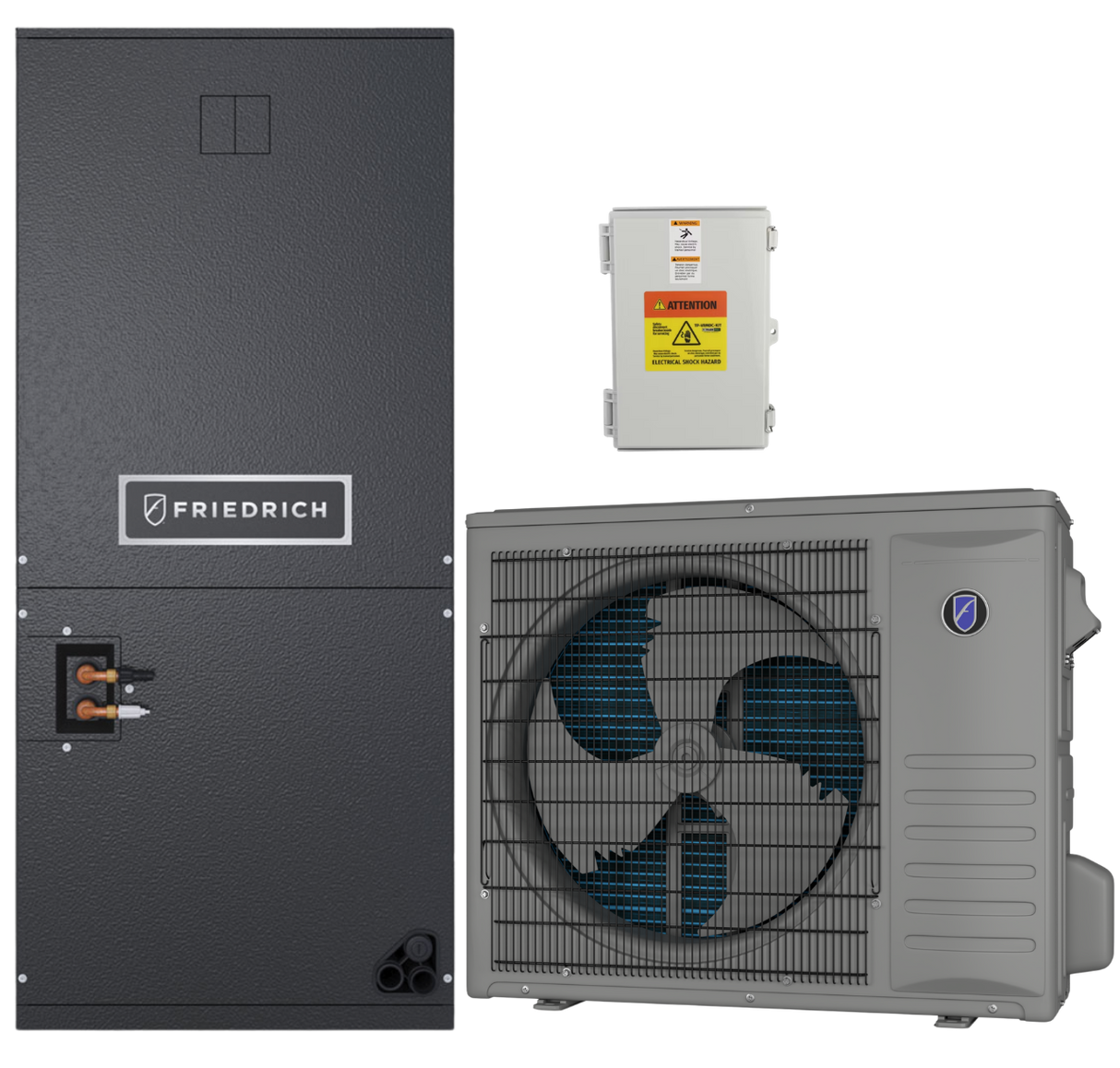

What's In The Box?

Friedrich Breeze 3 Ton Breeze Indoor Air Handler WFPU17Y363D

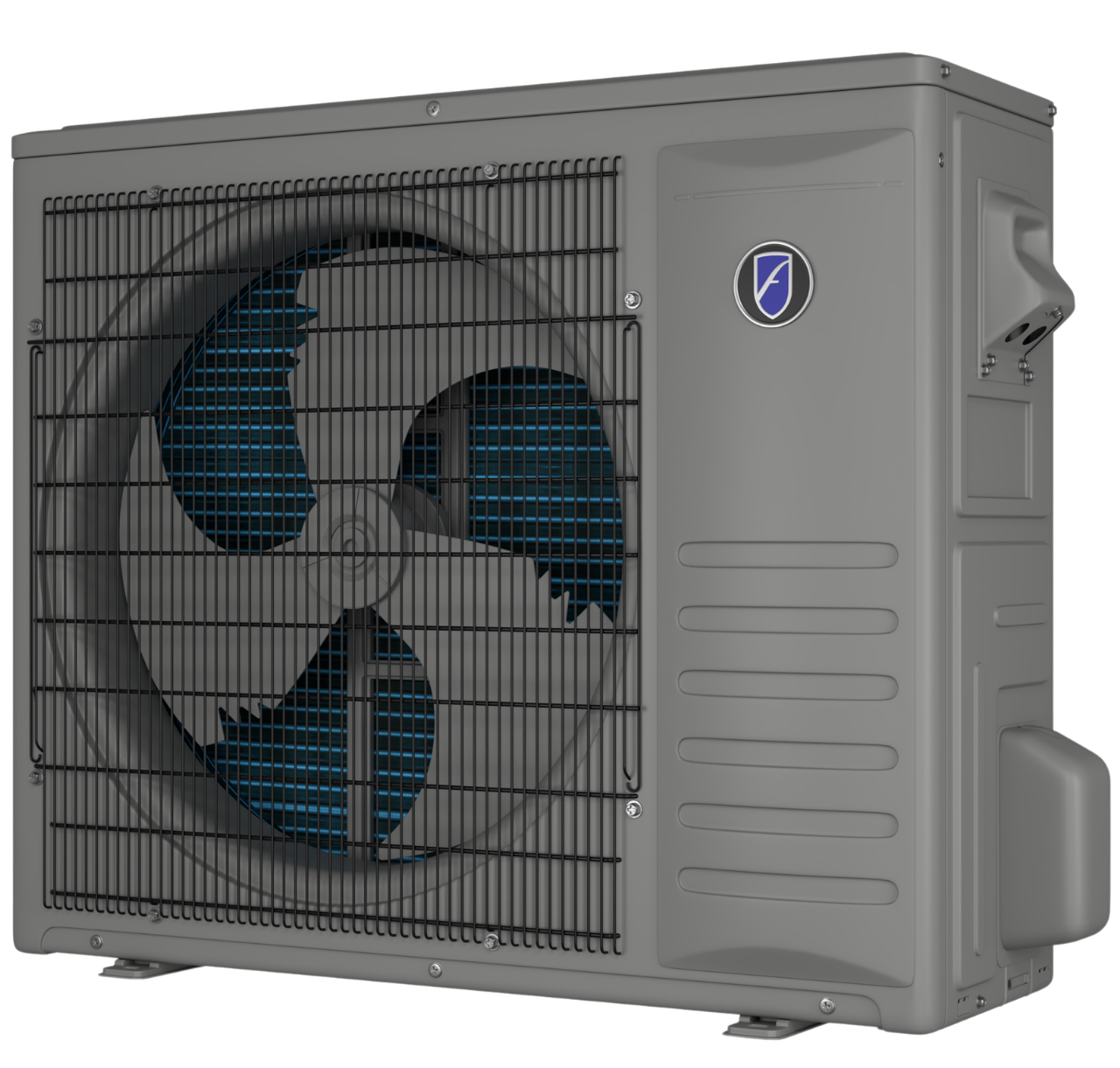

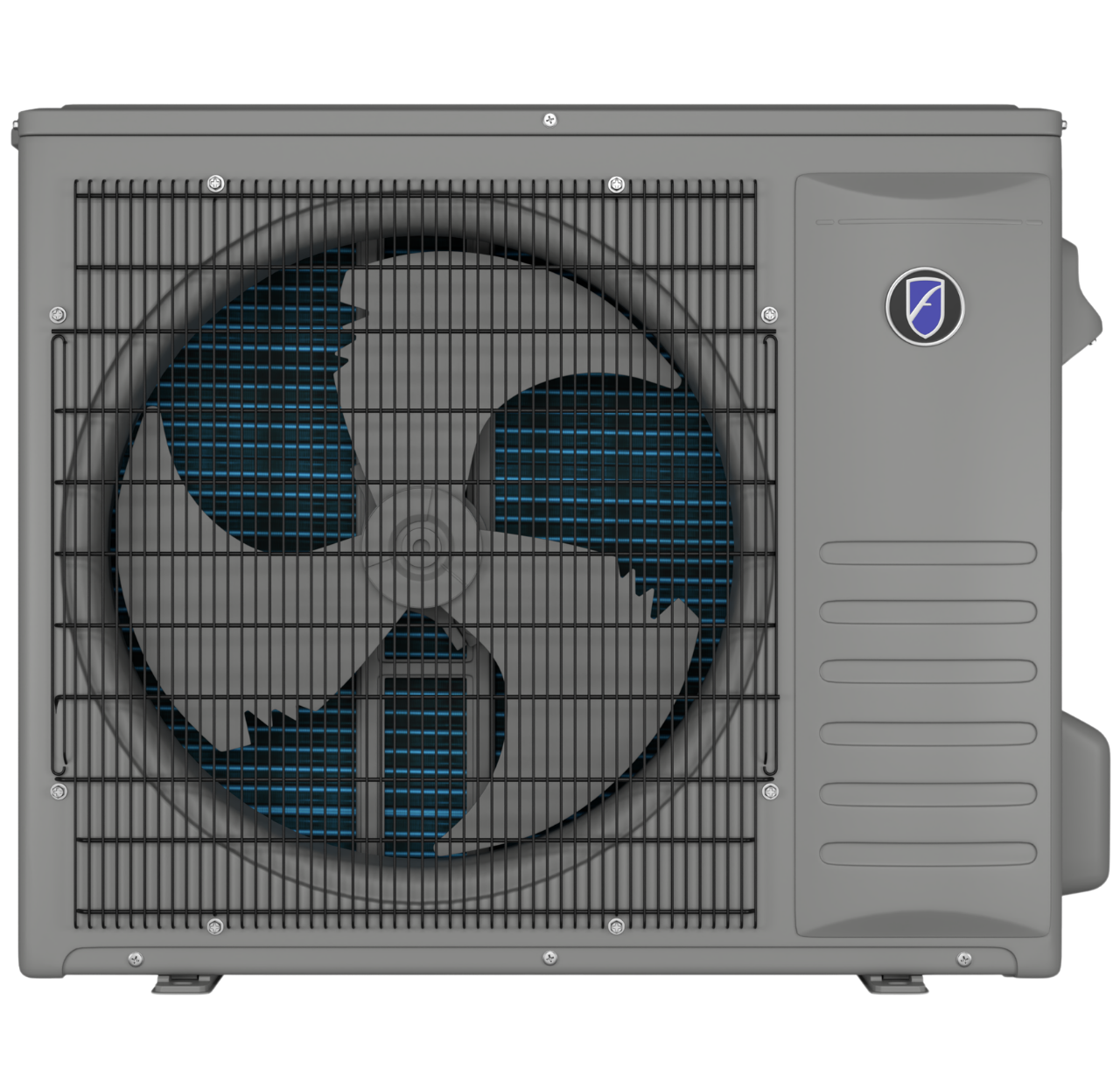

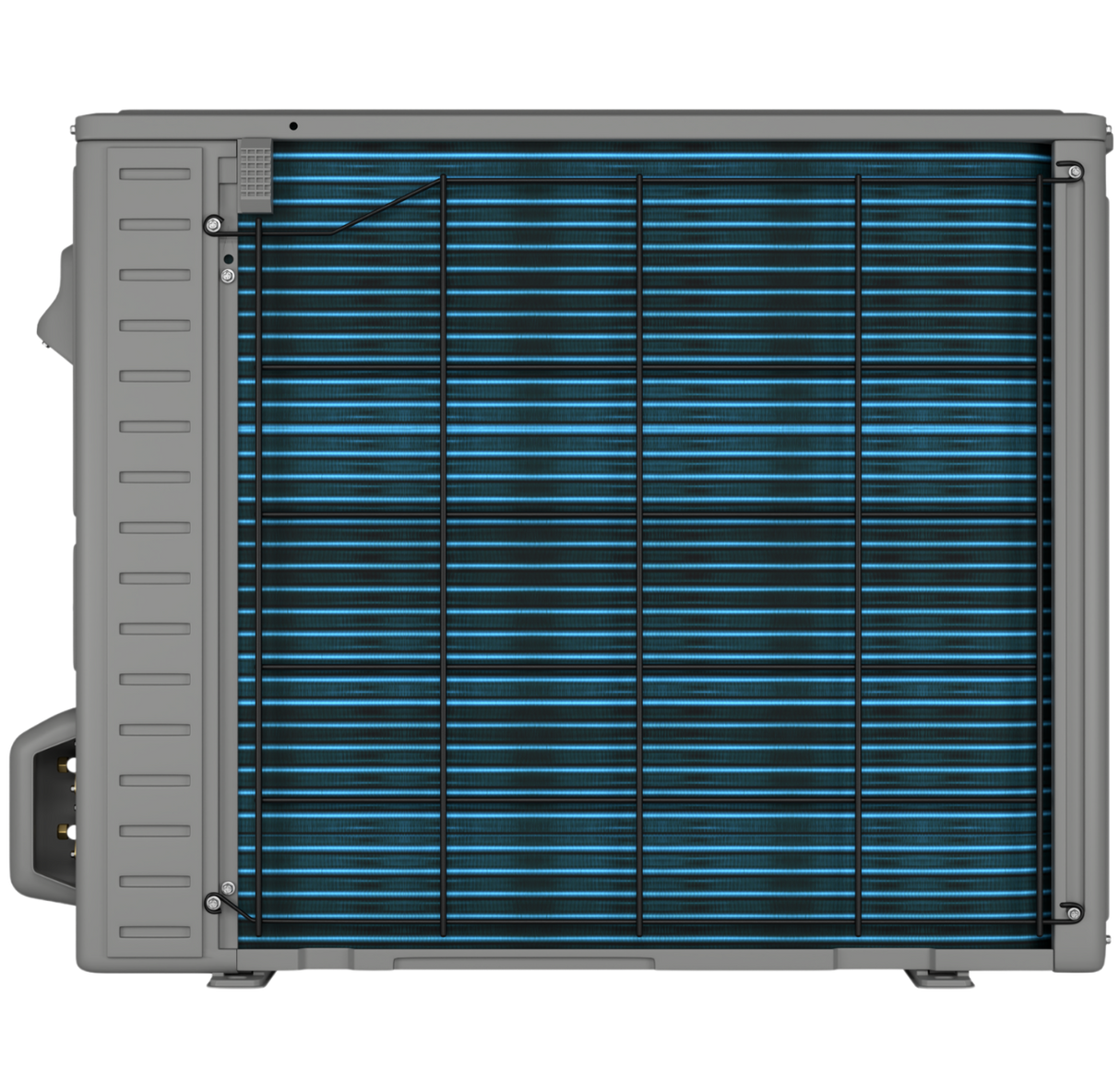

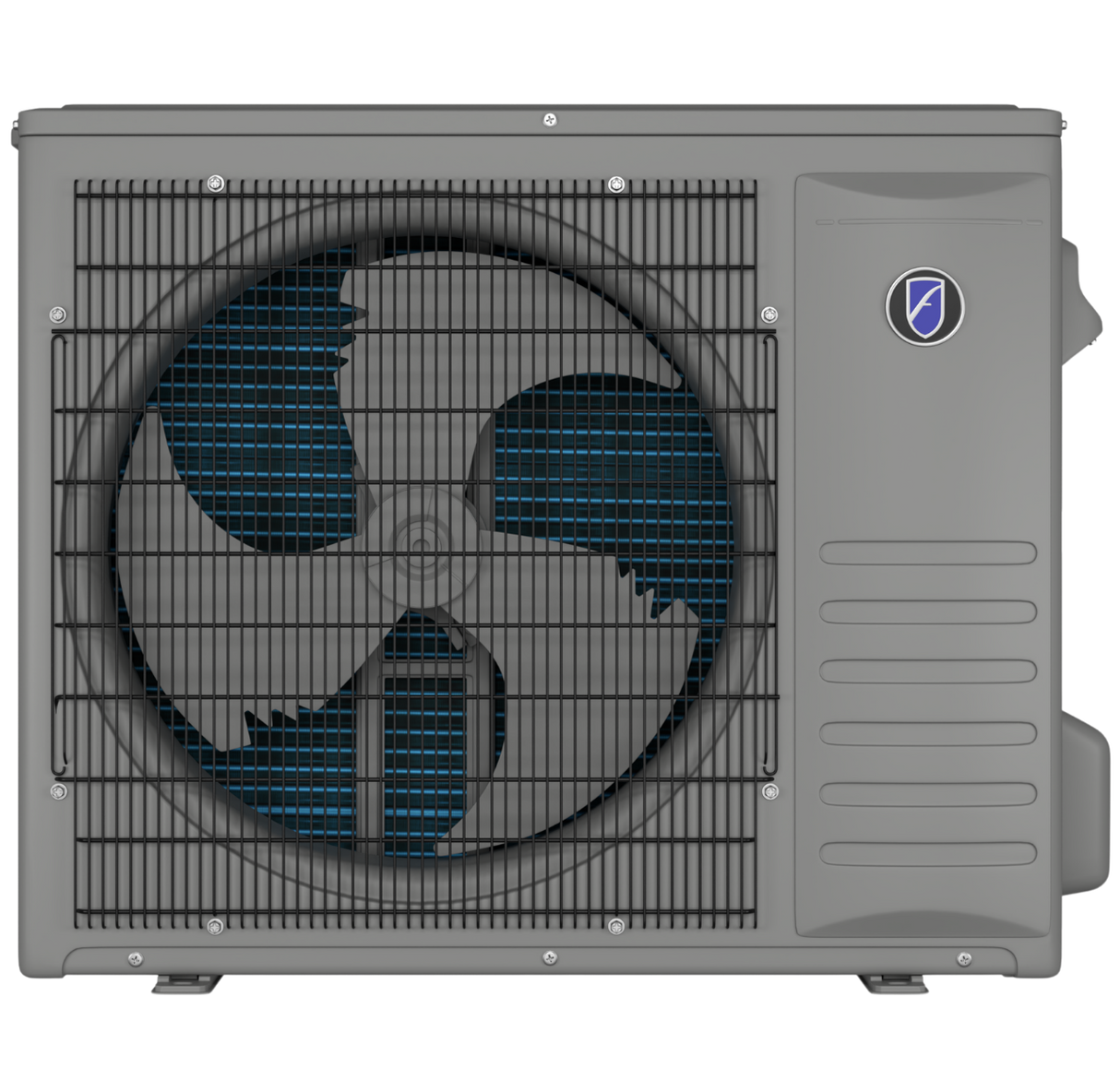

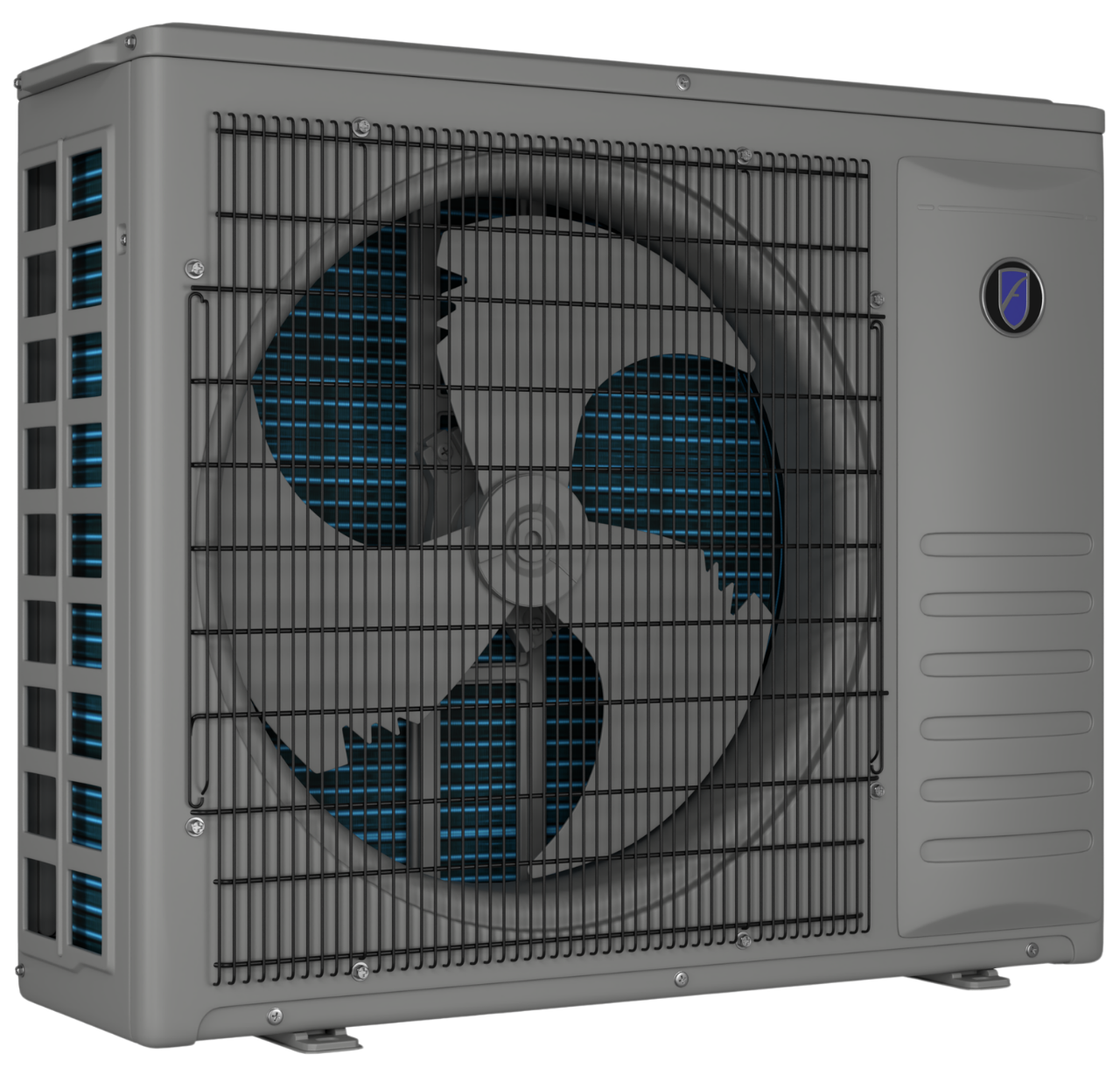

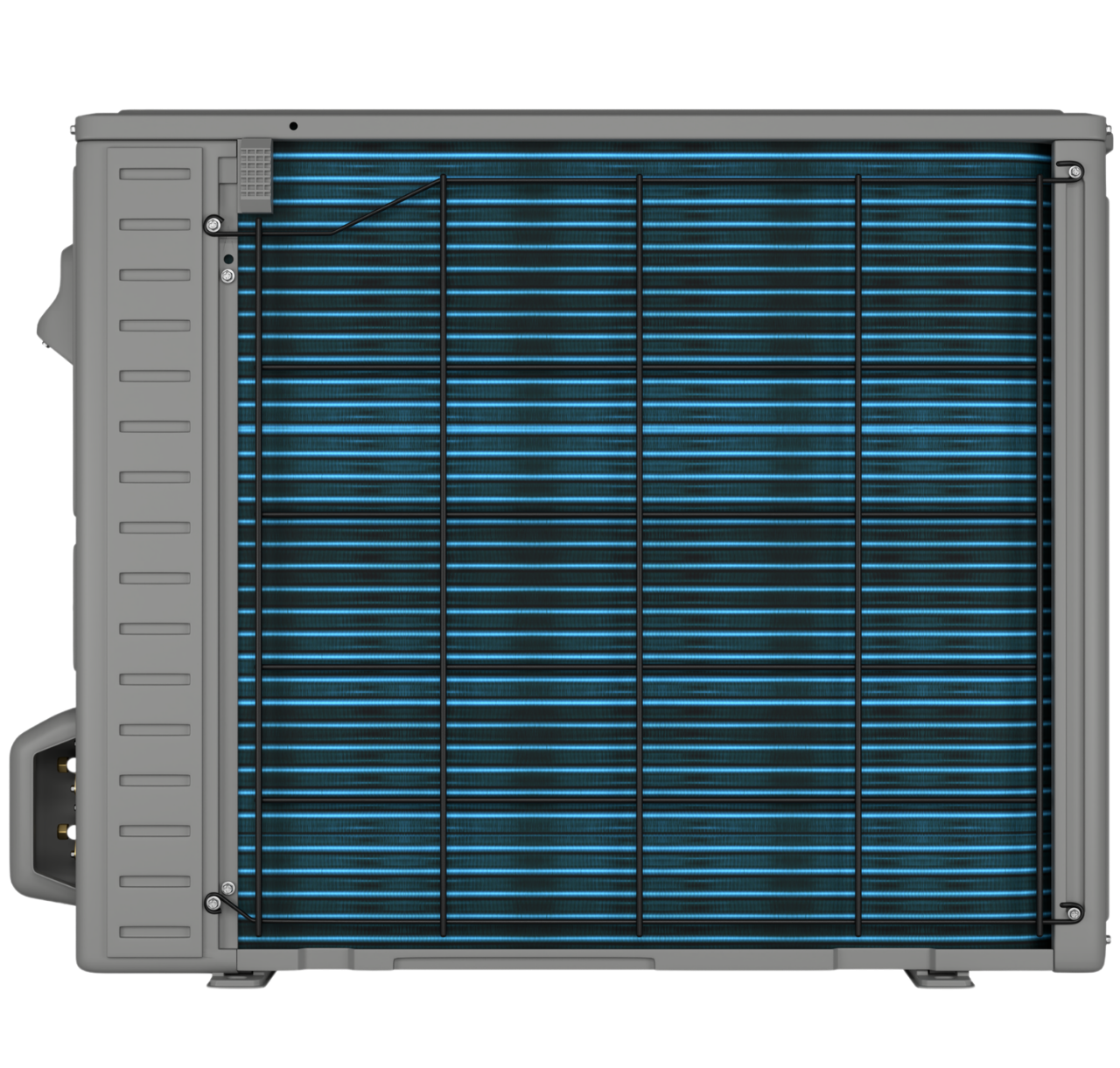

Friedrich Breeze 3 Ton Breeze Outdoor Condenser WFH36Y193D
Surge Protector TP-VRMDC-KIT
Owner's Manual, Guides, and Other Documents

Info & Guides

A heat pump that cools in triple-digit heat and heats well below freezing gives you one less system to worry about. The Friedrich Breeze 3 Ton Central Ducted Heat Pump Split System does exactly that, using a Precision Inverter compressor with variable-speed operation to maintain your set temperature across extreme conditions.

Note: This model requires professional installation and does not include a 3/8 x 5/8-inch line set.

Key Features and Benefits of the Friedrich Breeze 3 Ton Central Ducted Heat Pump Split System with Surge Protector

Precision Inverter Compressor: Features an inverter rotary compressor with Soft-Start technology, delivering 35,000 BTU of cooling and 36,000 BTU of heating while ramping up smoothly to your set temperature.
Inverter Efficiency: Achieves a 17.5 SEER2 and 9.8 EER2 rating, translating to lower monthly energy bills compared to fixed-speed systems.
Variable-Speed Operation: Adjusts compressor speed continuously to match your home's thermal load, maintaining steady indoor temperatures without constant on-off cycling.
Wide Operating Range: Functions in ambient temperatures from -4 degrees F to 75 degrees F for heating and 5 degrees F to 115 degrees F for cooling, covering you through extreme weather.
High Airflow: Moves up to 3,800 CFM through your ductwork, distributing conditioned air evenly and reducing hot and cold spots throughout your home.
Eco-Friendly Refrigerant: Uses low Global Warming Potential R-454B refrigerant, reducing your system's environmental impact while meeting current industry transition standards.
Indoor Noise Level: Reaches a maximum of 57 dB indoors, comparable to a normal conversation, so your system won't overpower your living space.
Dual Certified: Carries both AHRI and cETLus certifications, confirming the system meets rigorous industry performance and safety standards.
Surge Protection: The bundled TP-VRMDC-KIT surge protector shields the system's electronics against power spikes, helping you avoid unexpected repair costs from voltage irregularities. The kit includes the TP-VRM-60A, TP-SPD-50, and 60A disconnect breaker in a NEMA 3R enclosure.

Planning Your Installation Layout

Professional installation is required, and the system runs on 208 to 230 volt power, a standard range for residential HVAC. The outdoor condenser measures 35.38 x 29.5 x 13.38 inches (W x H x D) and weighs 116.8 pounds, making it compact enough for most side yards or patio pads, while the indoor air handler stands 19.62 x 46.12 x 21.62 inches (W x H x D) at 135.1 pounds. With support for line set runs up to 115 feet and height differentials up to 80 feet, your contractor has flexibility in positioning both components. This bundle includes a surge protector but does not include a line set, so plan accordingly with your installer.

Sylvane's Expert Take

If you're a contractor or installer specifying a whole-home heat pump for a residential replacement or new construction project, the Friedrich Breeze 3-ton simplifies your job while delivering year-round capability that conventional single-stage systems can't match. Its 17.5 SEER2 rating and heating performance down to -4 degrees F let you put in a single system that covers most climates without requiring a separate furnace. The Soft-Start technology makes a real difference for occupant comfort because the compressor ramps up gradually instead of engaging at full power, producing a smooth startup rather than a jarring noise every time the system cycles on.

Key Specifications

Energy Efficiency Ratio 2 (EER2)

9.8
Mounting Type

Floor
Number of Speeds

Variable
Seasonal Energy Efficiency Ratio 2 (SEER2)

17.5
Total Cooling Capacity (BTUs)

35000
Total Heating Capacity (BTUs)

36000
Type

Central Split

General

Auxiliary Heat

None
Certifications

AHRI, cETLus
Color

Black, Gray
Compressor Type

Inverter Rotary
Heat Mode

Yes
Installation Type

Professional Installation
Line Length Option

No Line Set
Maximum Cubic Feet per Minute (CFM) (CFM)

3800.0
Maximum Indoor Noise Level (dB)

57.0
Maximum Operating Temperature - Cooling (degrees F)

115.0
Maximum Operating Temperature - Heating (degrees F)

75.0
Minimum Operating Temperature - Cooling (degrees F)

5
Minimum Operating Temperature - Heating (degrees F)

-4.0
Number of Tons

3.0
Refrigerant Type

R-454B
