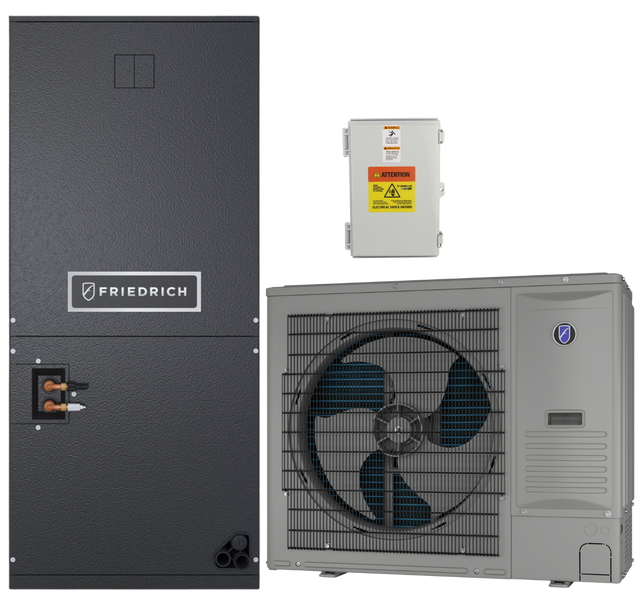

Friedrich Breeze Select 5 Ton Breeze Central Ducted Heat Pump Split System with Surge Protector

SKU: fr18962  |  Model: BREEZE60BUNDLE

Includes a free Trade Pro Surge Protector, $300 value!

$5,79999

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Email

Manufacturer's Warranty

10-Year Compressor Limited Warranty, 7-Year Parts Limited Warranty (10-Year Parts Limited Warranty with Registration)

What's In The Box?

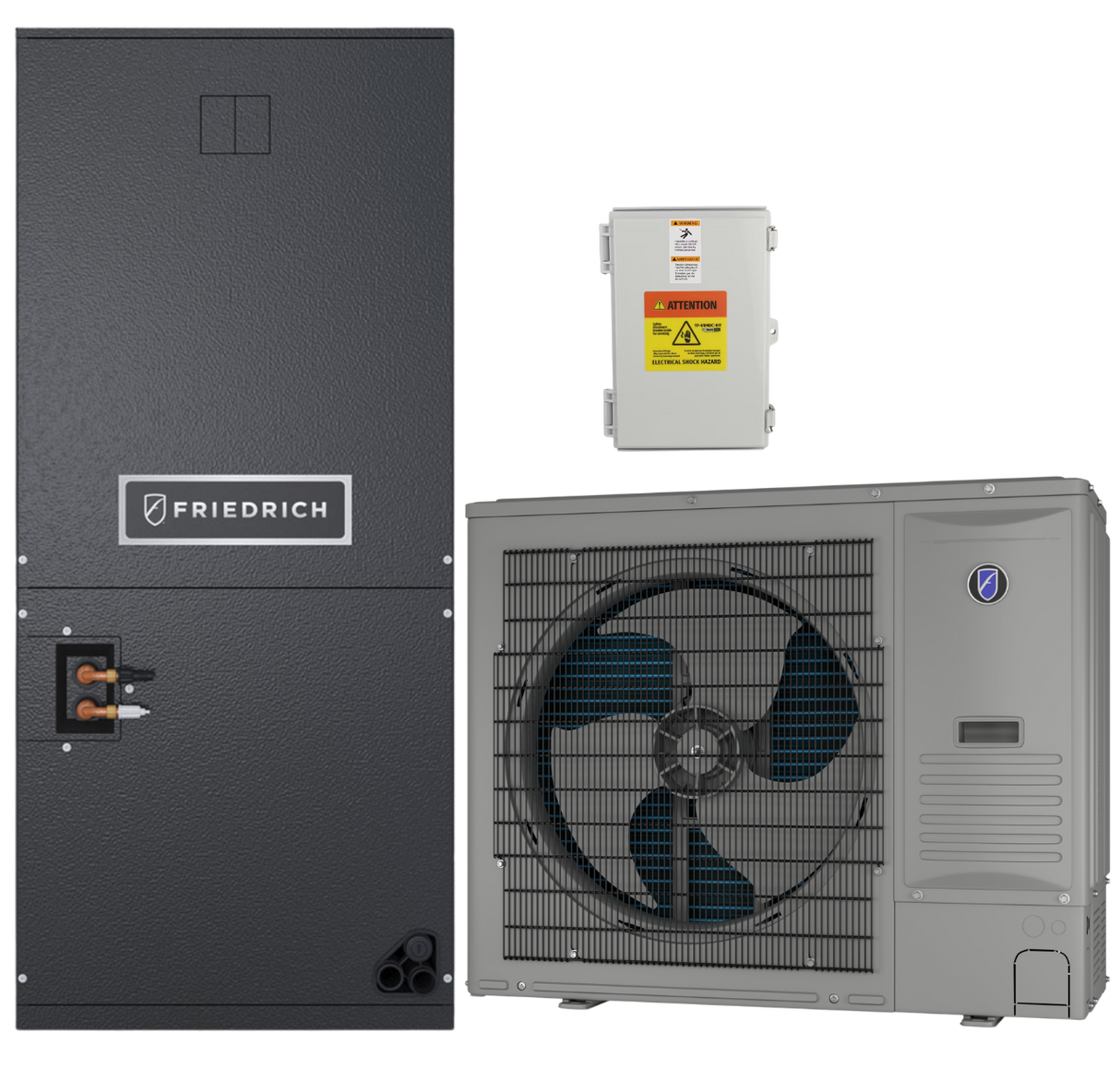

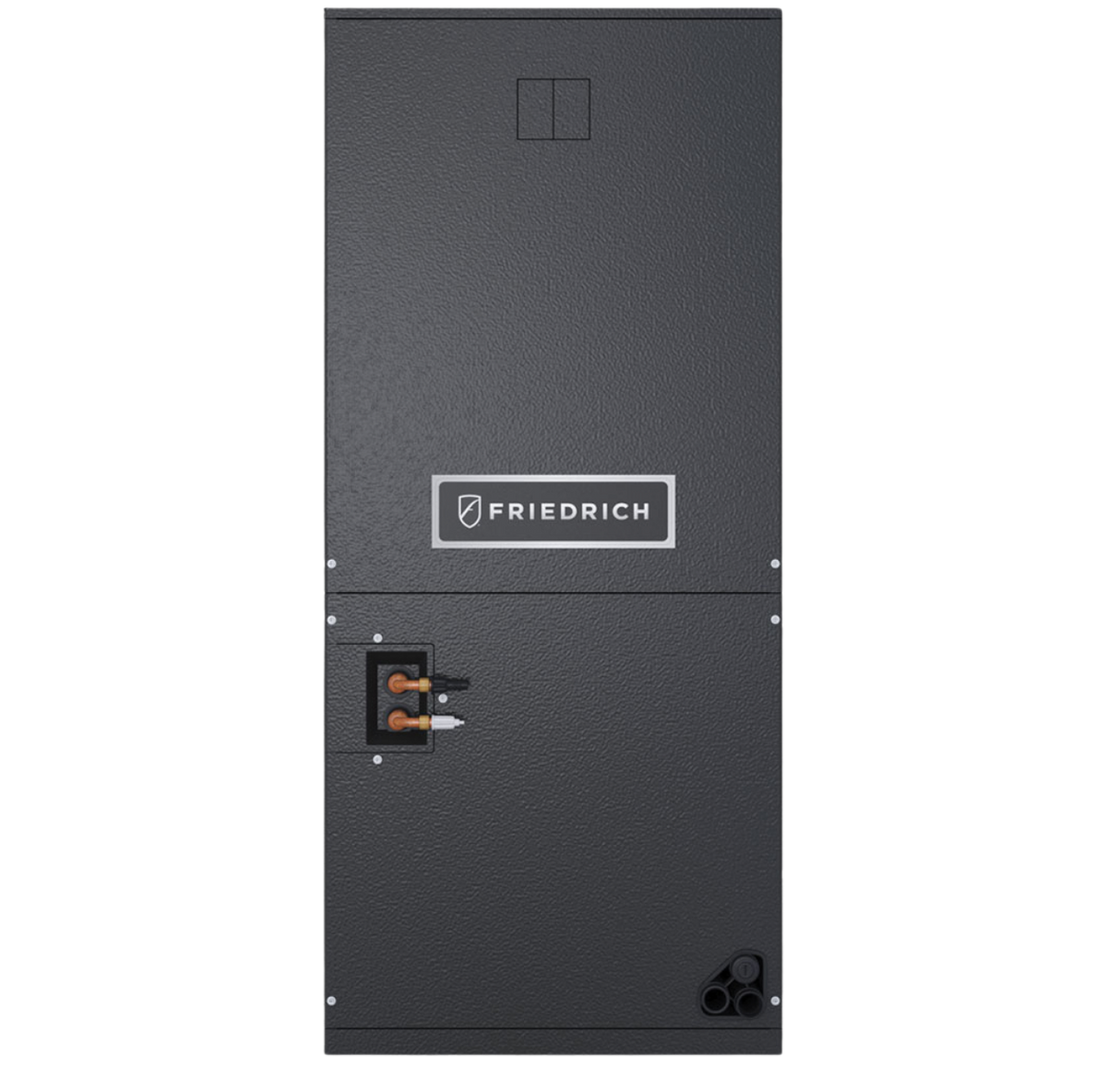

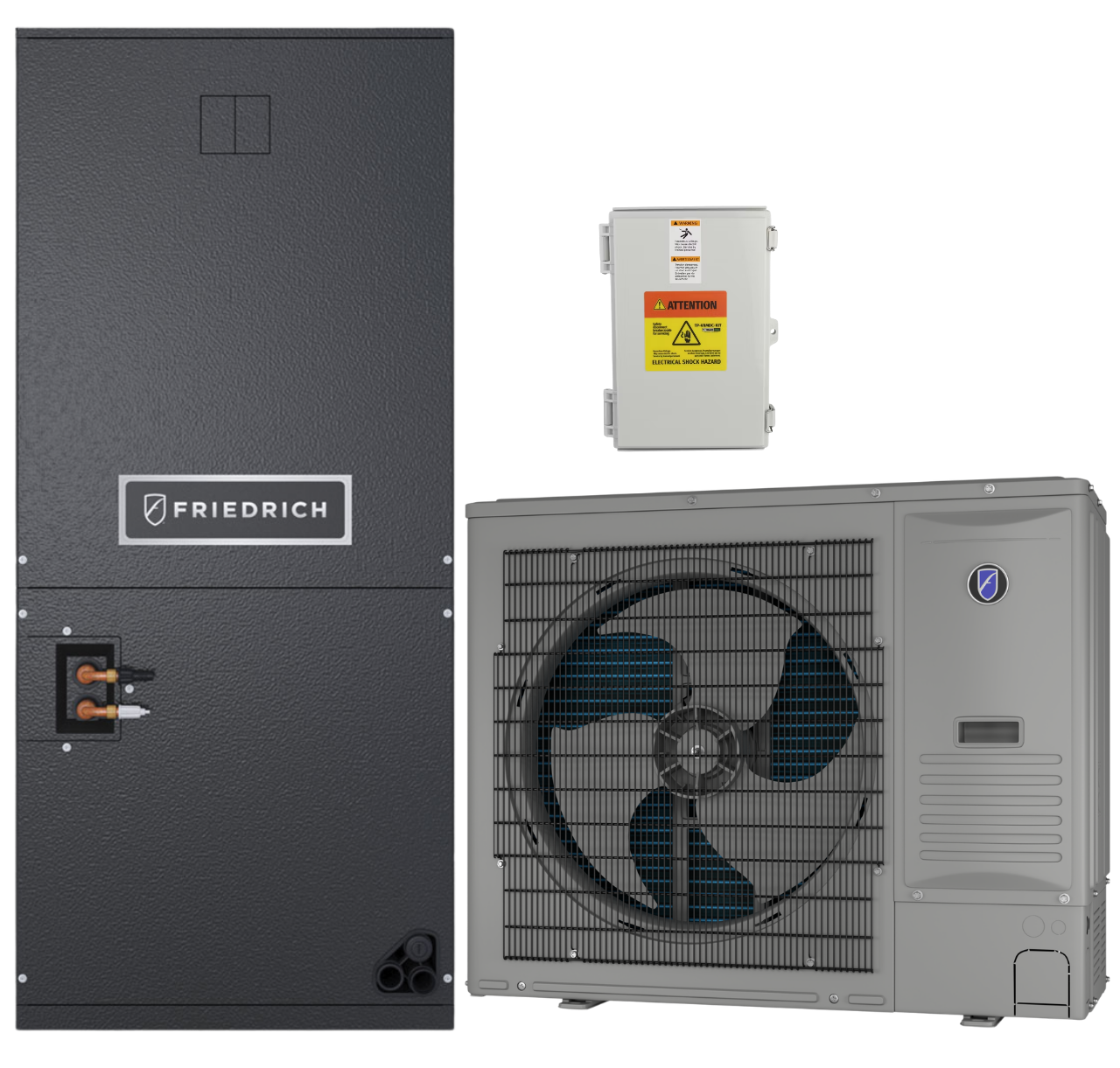

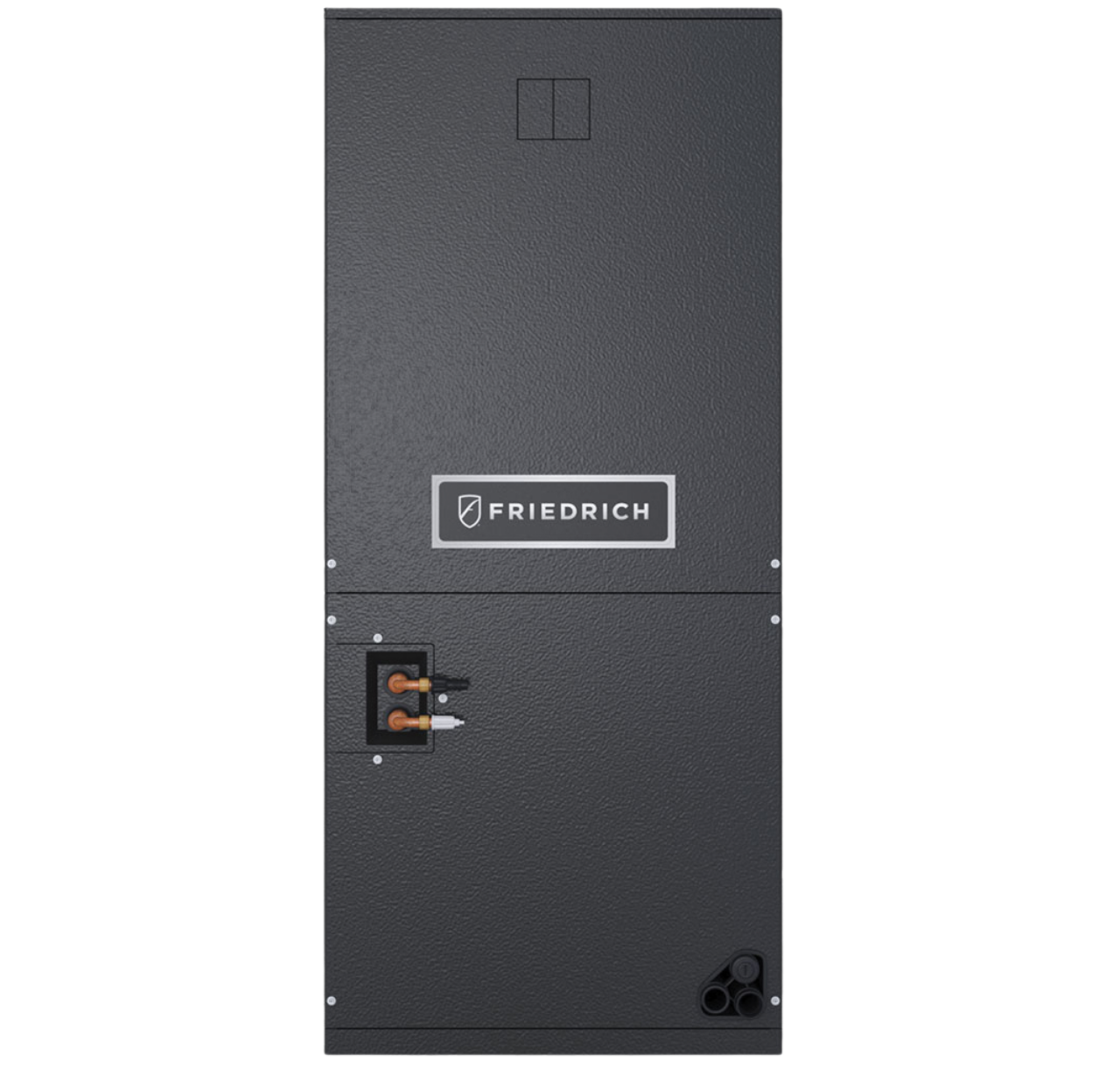

  • Friedrich Breeze 5 Ton Breeze Indoor Air Handler WFPU17Y603D

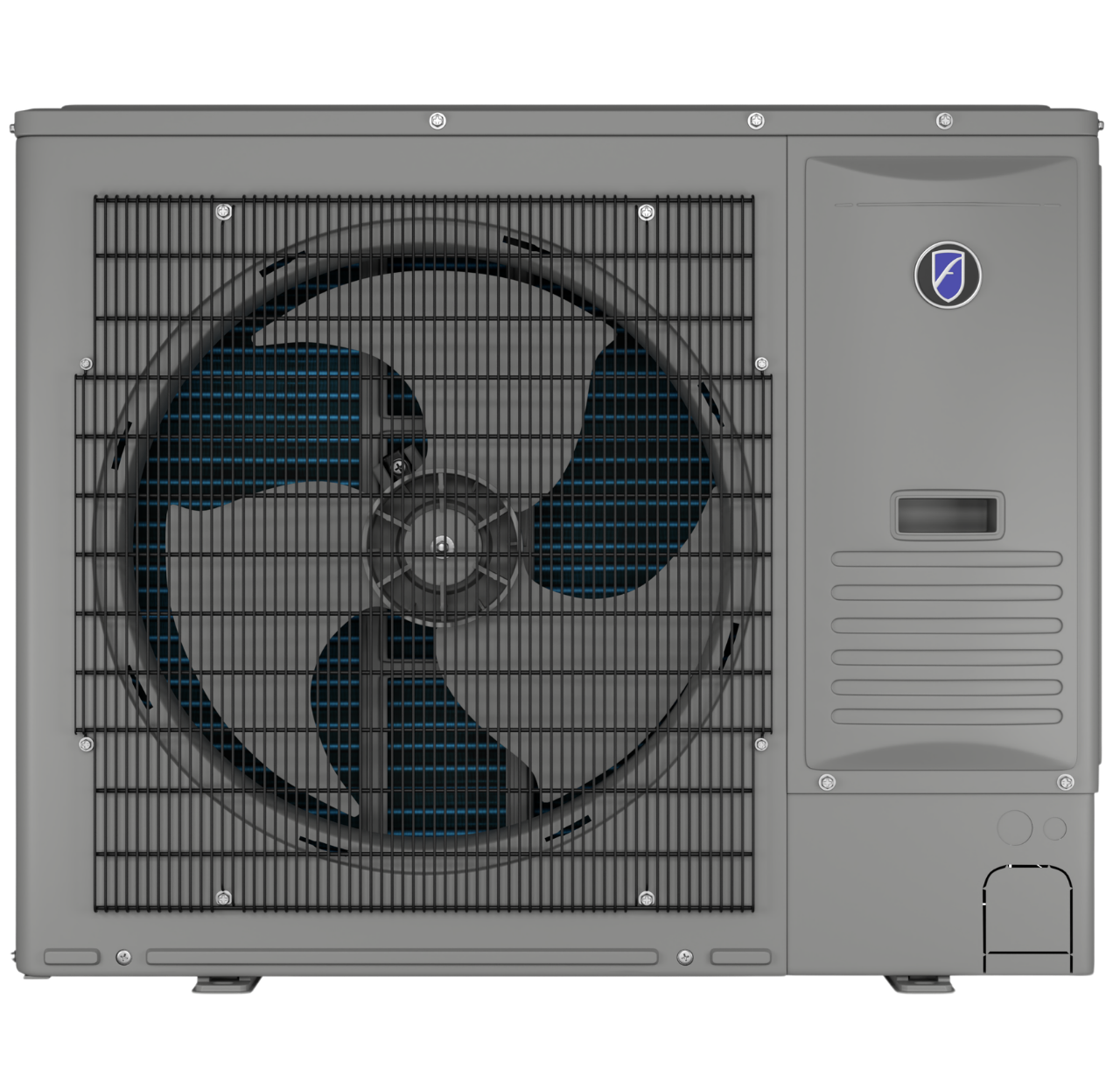

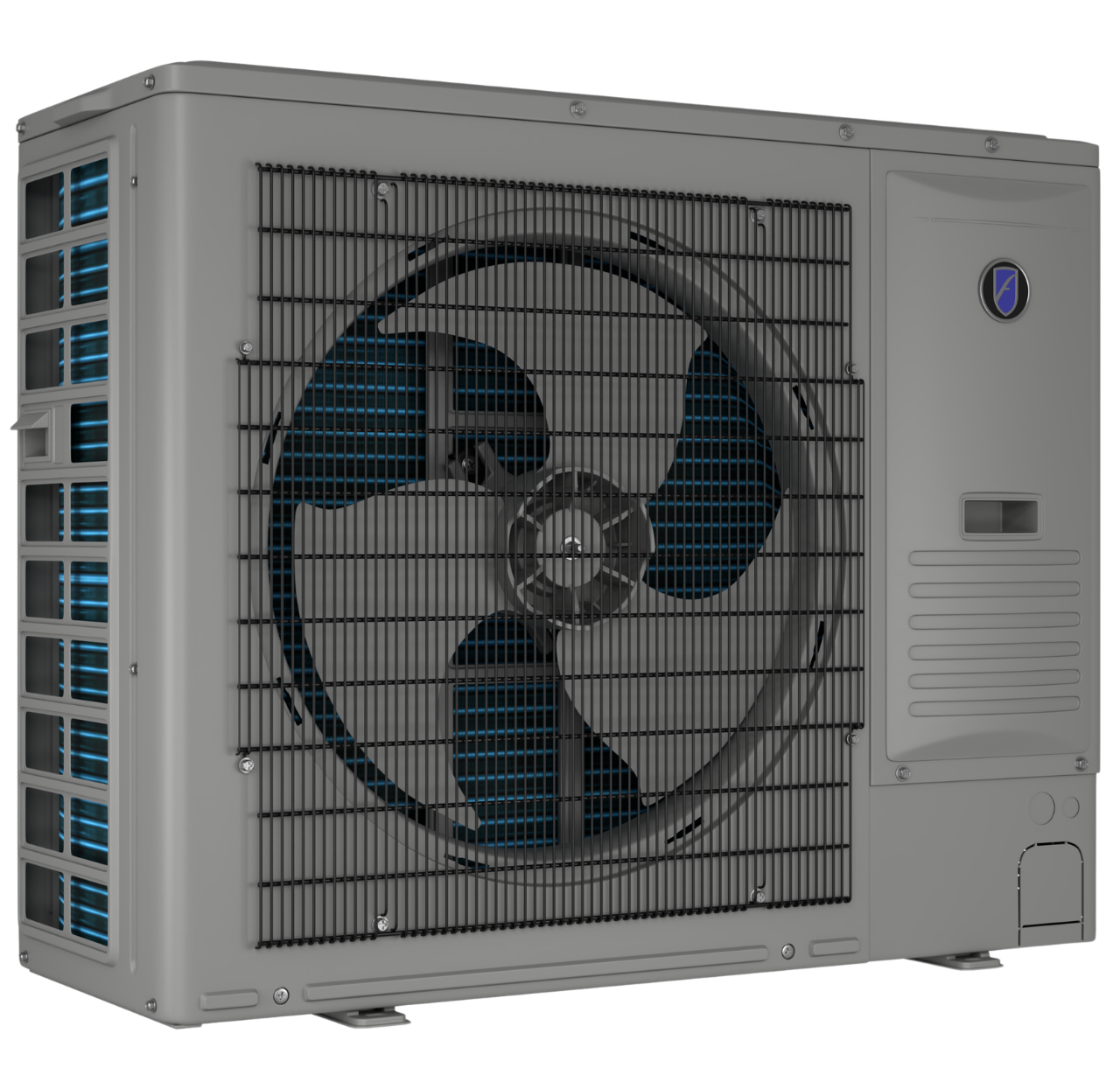

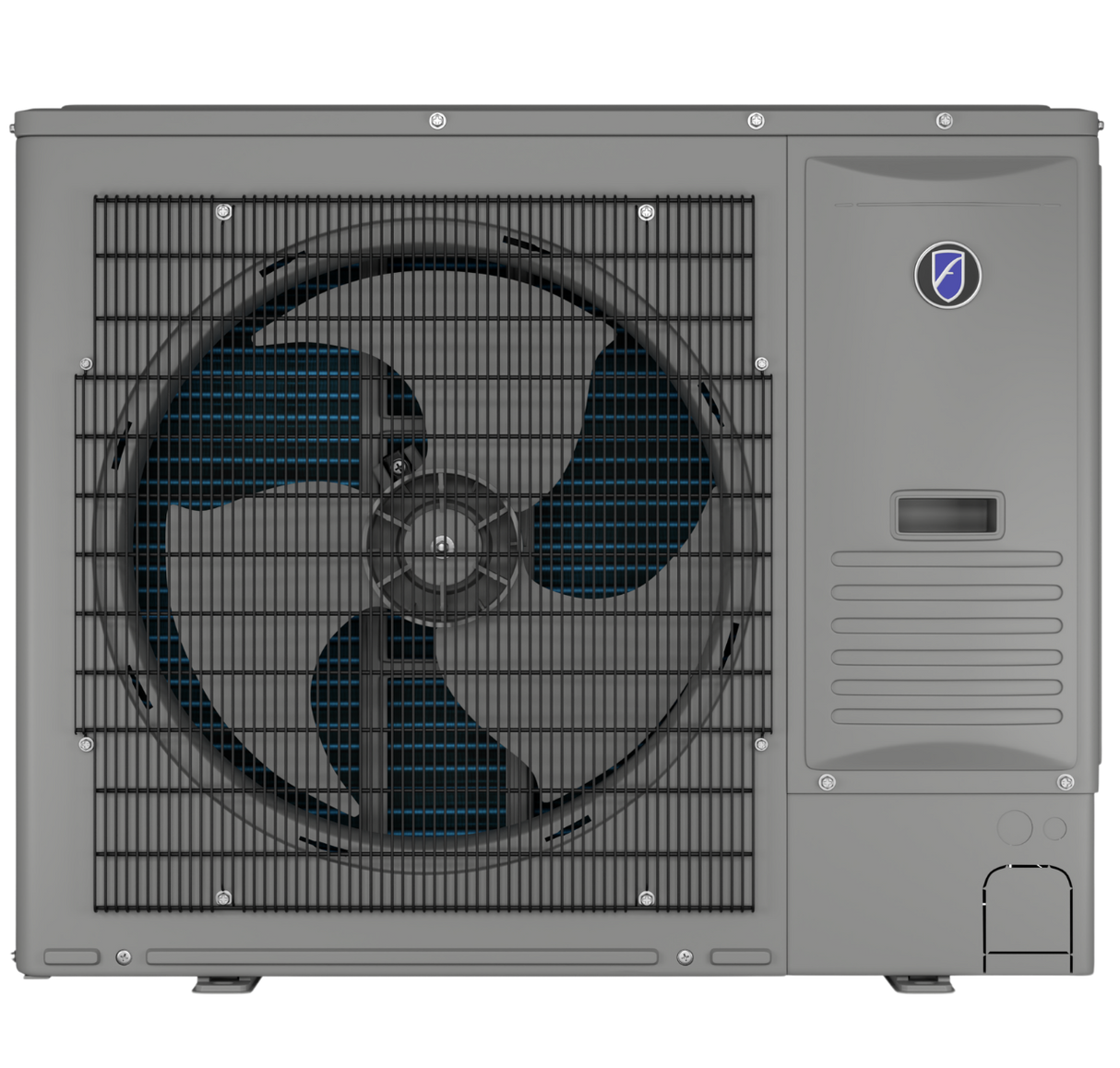

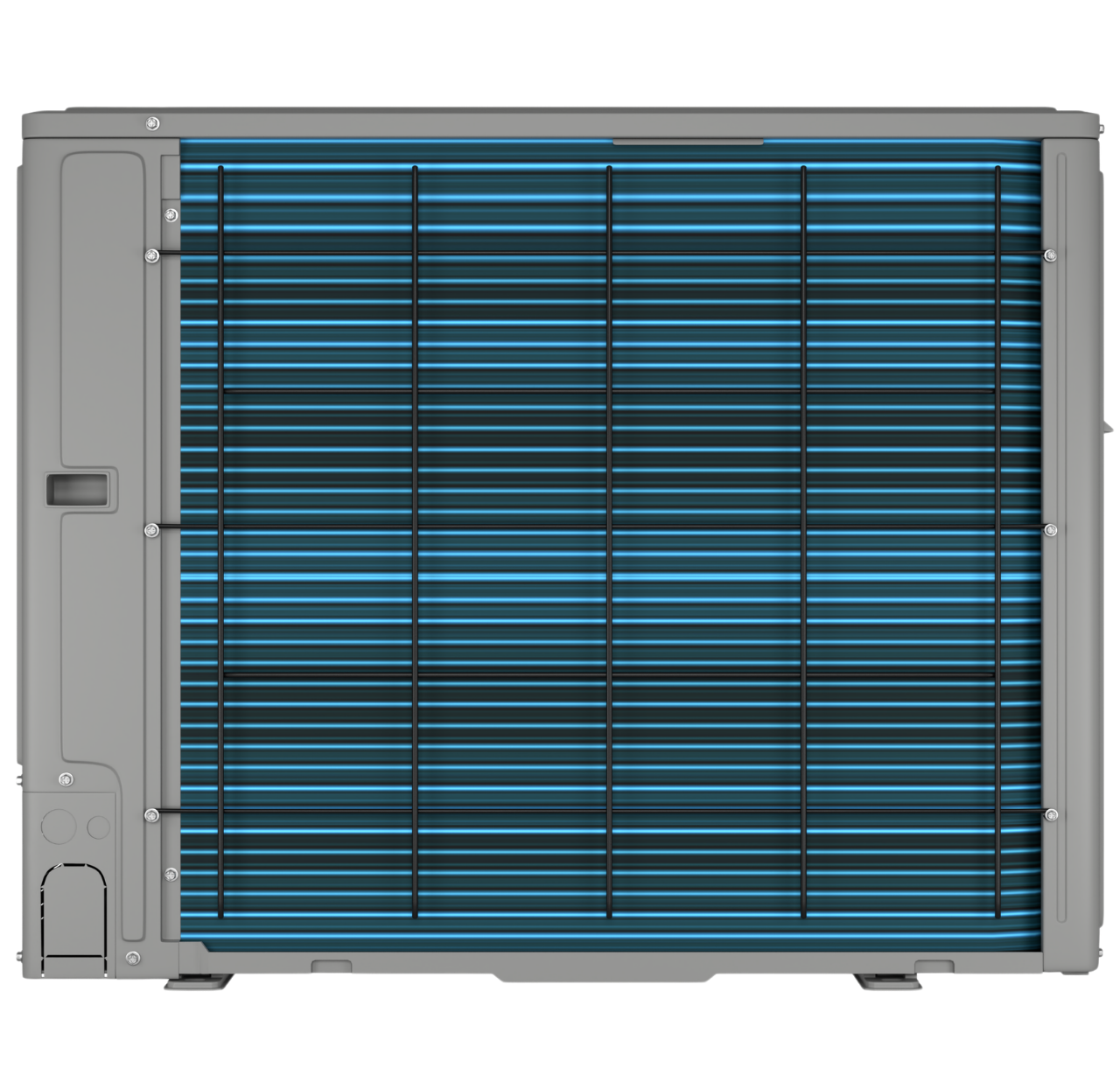

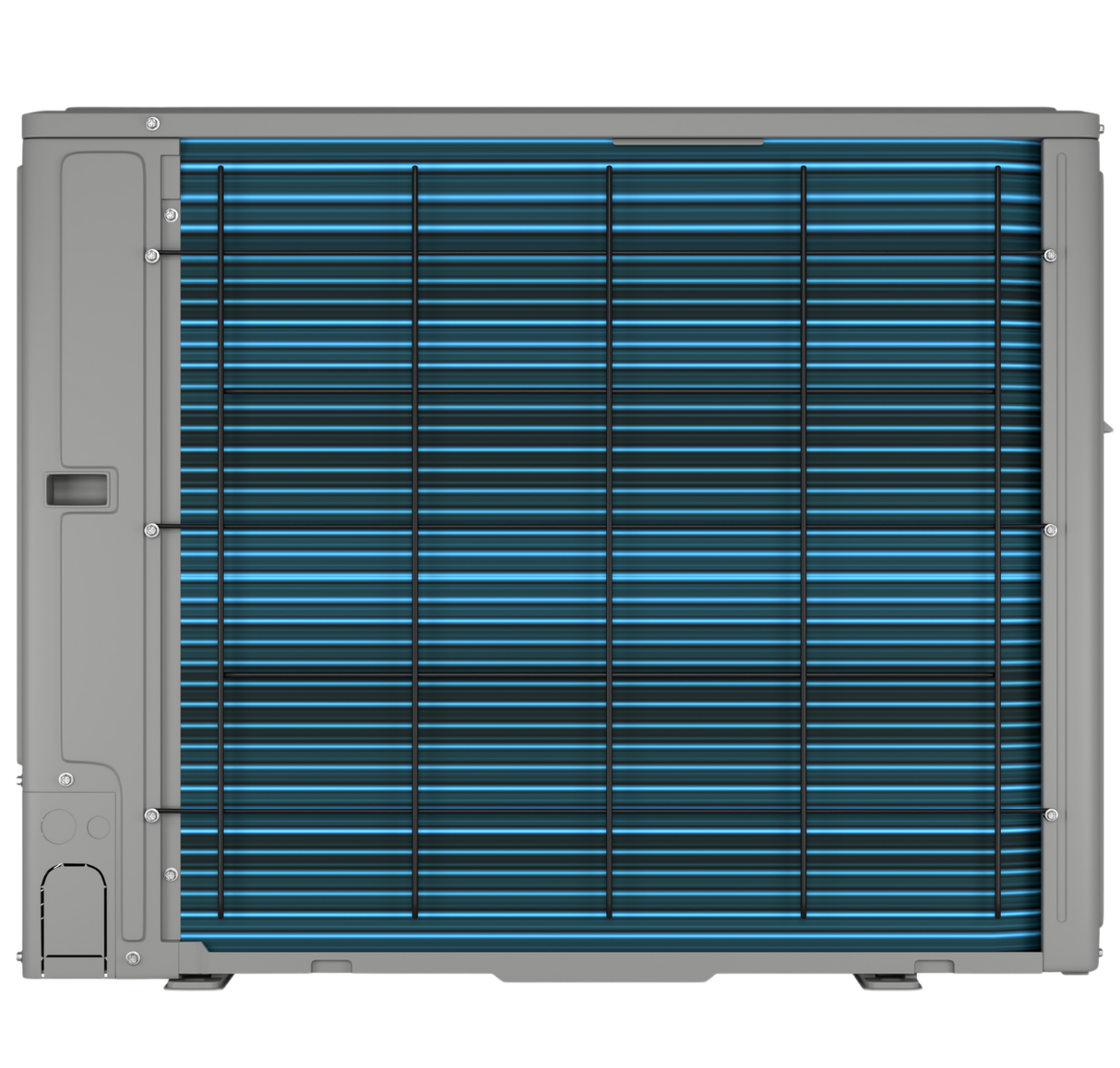

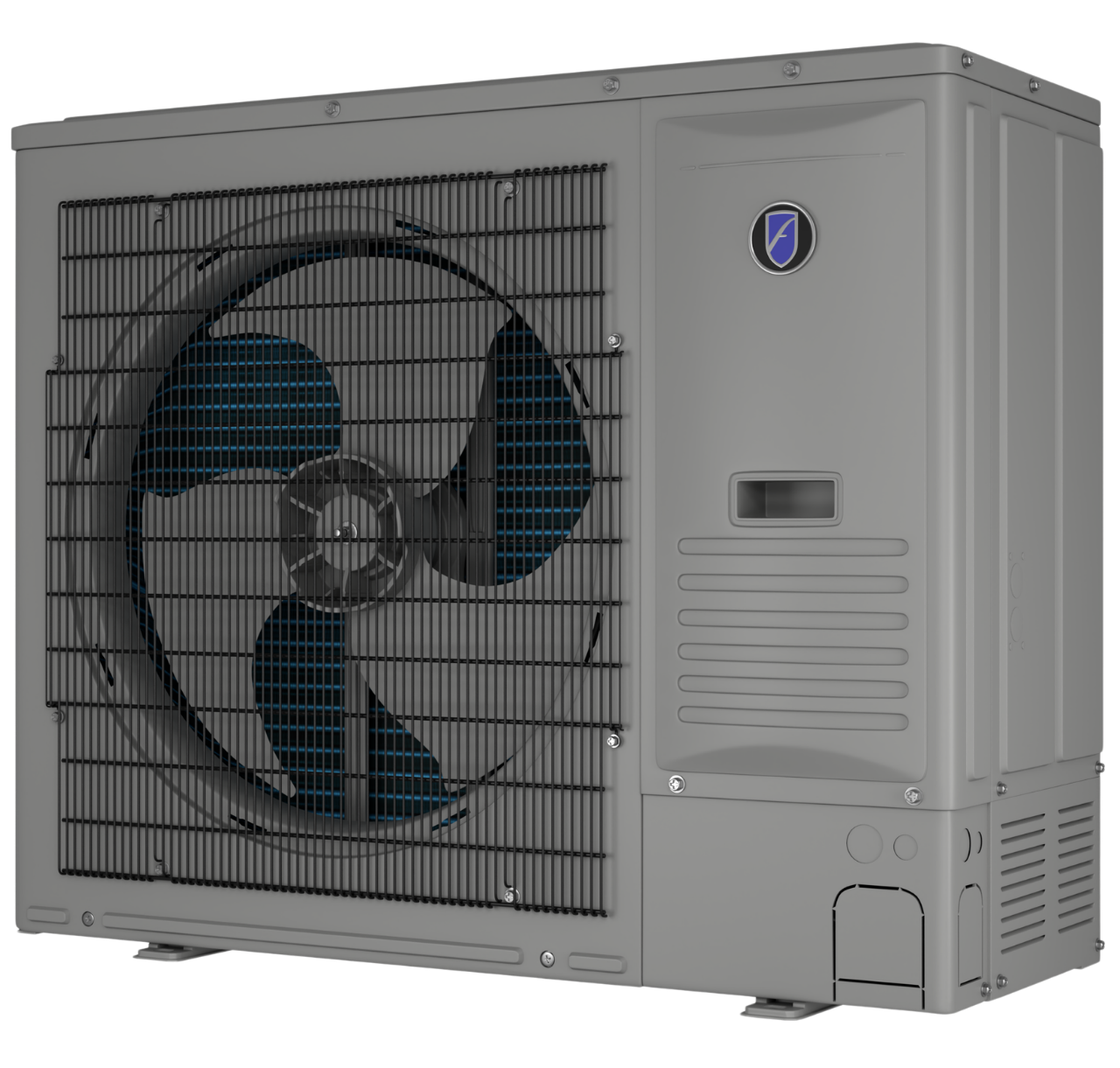

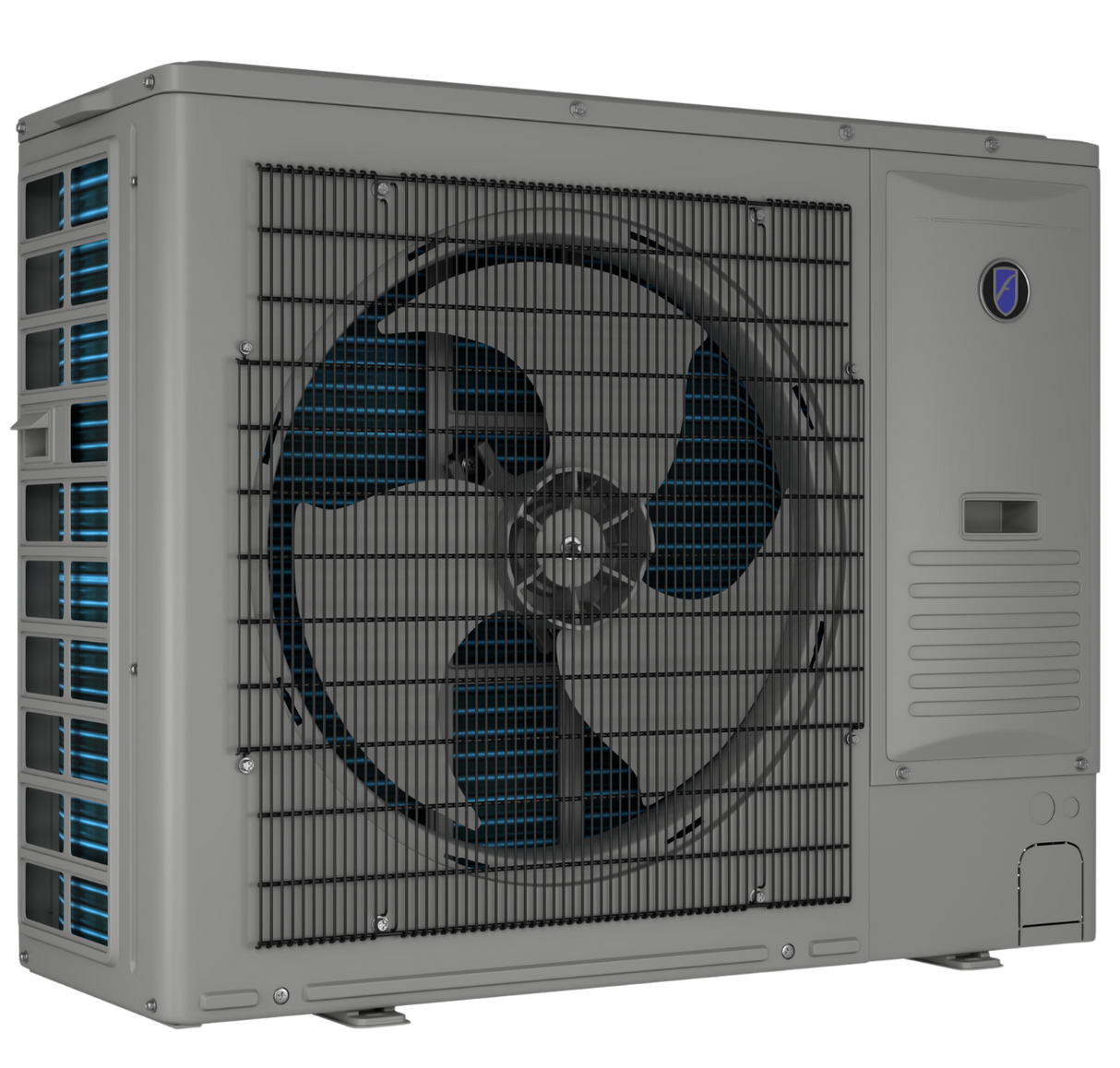

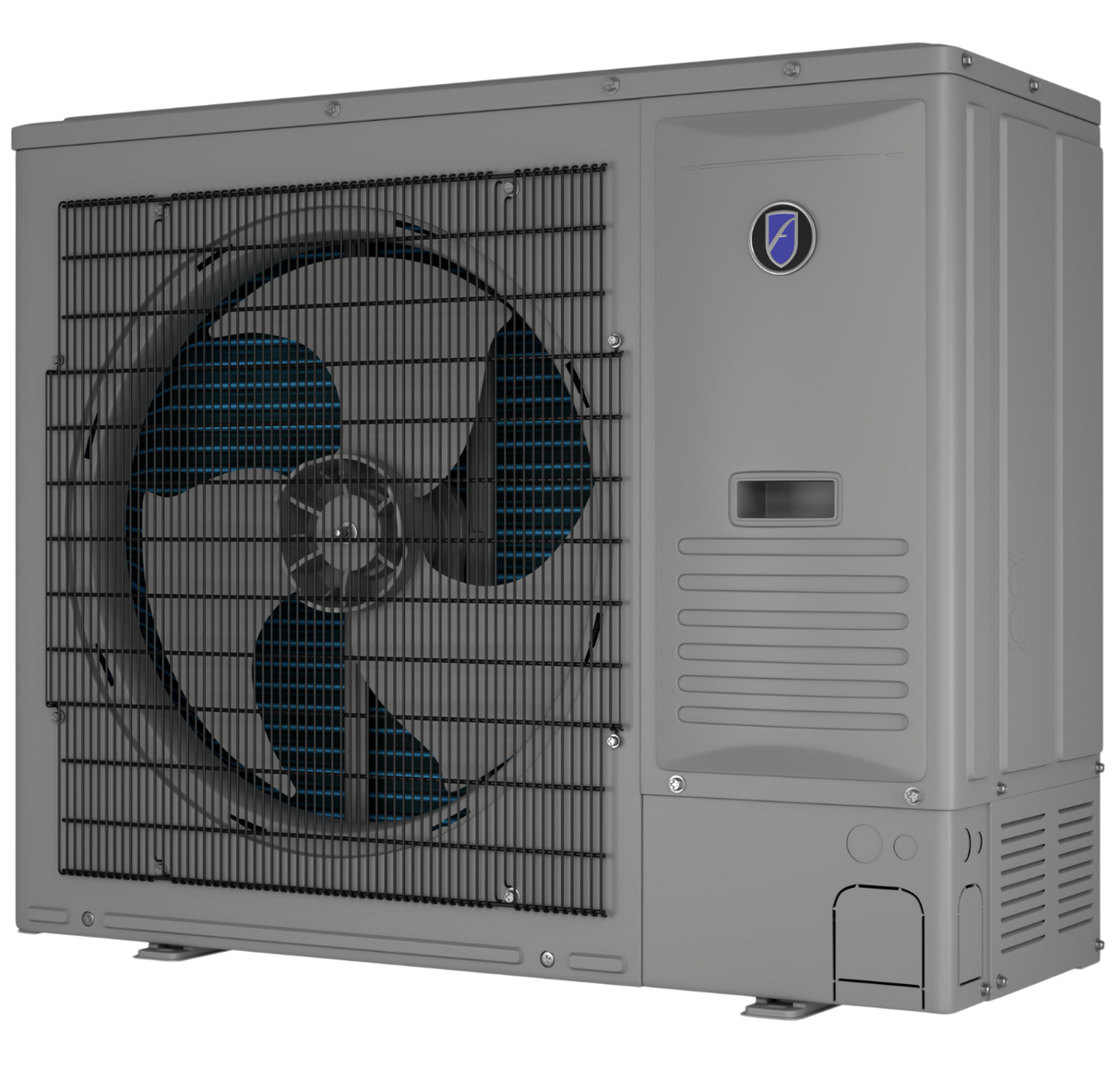

  • Friedrich Breeze 5 Ton Breeze Outdoor Condenser WFH60Y223D
  • Surge Protector TP-VRMDC-KIT
  • Owner's Manual, Guides, and Other Documents

Info & Guides

The Friedrich Breeze 5 Ton Central Ducted Heat Pump Split System features a rotary inverter compressor that delivers 55,000 BTU of both cooling and heating capacity, keeping your home comfortable year-round while reducing energy waste.

Built to handle wide temperature swings, this heat pump operates from -4 to 115 degrees F and uses low-global warming potential R-454B refrigerant, keeping your home efficient and eco-friendly while delivering consistent performance across that range.

Note: This model requires professional installation and does not include a 3/8 x 3/4-inch line set.

Key Features and Benefits of the Friedrich Breeze 5 Ton Central Ducted Heat Pump Split System with Surge Protector

  • Inverter Compressor: The Precision Inverter rotary compressor with Soft-Start technology adjusts output continuously to hold your set temperature, eliminating the hot-and-cold swings of fixed-speed systems.
  • Energy Efficiency: Rated at 17.0 SEER2 and 8.8 EER2 on 208-230V power, helping you manage monthly energy costs compared to lower-efficiency systems of similar capacity.
  • Heating Performance: Delivers 55,000 BTU of heating across an operating range of -4 to 75 degrees F, keeping your home warm even in harsh winter weather.
  • Cooling Performance: Provides 54,000 BTU of cooling and operates in outdoor temperatures from 5 to 115 degrees F, so your system handles peak summer heat without shutting down.
  • Variable Airflow: Variable-speed operation delivers up to 5,700 CFM, matching airflow to your real-time demand for more consistent temperatures at partial loads.
  • R-454B Refrigerant: Runs on low Global Warming Potential R-454B refrigerant, aligning with current environmental regulations while providing reliable heat exchange across the full operating range.
  • Flexible Line Runs: Accommodates line set lengths up to 130 feet and height differentials up to 98 feet, giving your installer more options for positioning the outdoor condenser on your property.

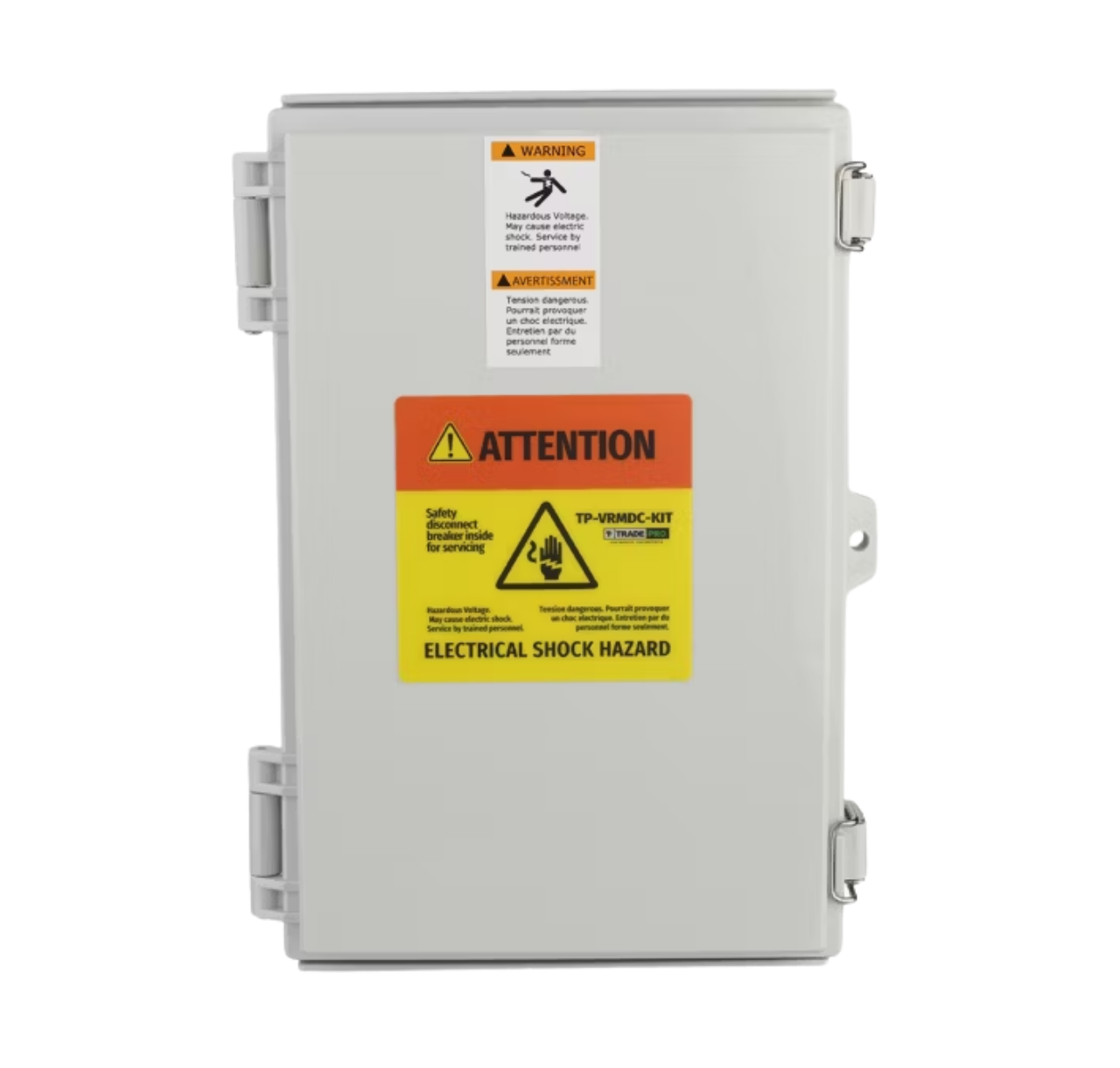

  • Surge Protection: The bundled TP-VRMDC-KIT surge protector shields the system's electronics against power spikes, helping you avoid unexpected repair costs from voltage irregularities. The kit includes the TP-VRM-60A, TP-SPD-50, and 60A disconnect breaker in a NEMA 3R enclosure.
  • Indoor Sound: Reaches a maximum indoor noise level of 57 dB, roughly as loud as a normal conversation, so the air handler does not disrupt your daily routine.
  • Certified Performance: Carries AHRI certification and cETLus listing, confirming that efficiency ratings have been independently verified and the system meets North American electrical safety standards.

Plan Your Installation for the 5-Ton Friedrich Breeze

At 5 tons of total capacity, this system is sized for larger homes where multiple zones or open floor plans demand sustained airflow from a single outdoor condenser. The condenser measures 43.25 x 34.5 x 17.75 inches (W x H x D) and weighs 186.7 pounds, so verify that your concrete pad or mounting location can support both the footprint and the weight. The indoor air handler measures 22.0 x 53.88 x 24.0 inches (W x H x D) at 180.6 pounds, so coordinate with your installer on the best interior location. Professional installation is required, and the bundle includes a surge protector to help guard the system's inverter electronics against voltage spikes.

Sylvane's Expert Take

If you're a homeowner with a larger floor plan and you want to upgrade your central heating and cooling system, the Friedrich Breeze 5-Ton Central Ducted Heat Pump is an excellent choice. The Precision Inverter compressor is the standout feature here, because instead of running at full blast and cycling off repeatedly, it modulates output to hold your set temperature within a tight range, which translates to steadier comfort and lower energy bills month after month.
