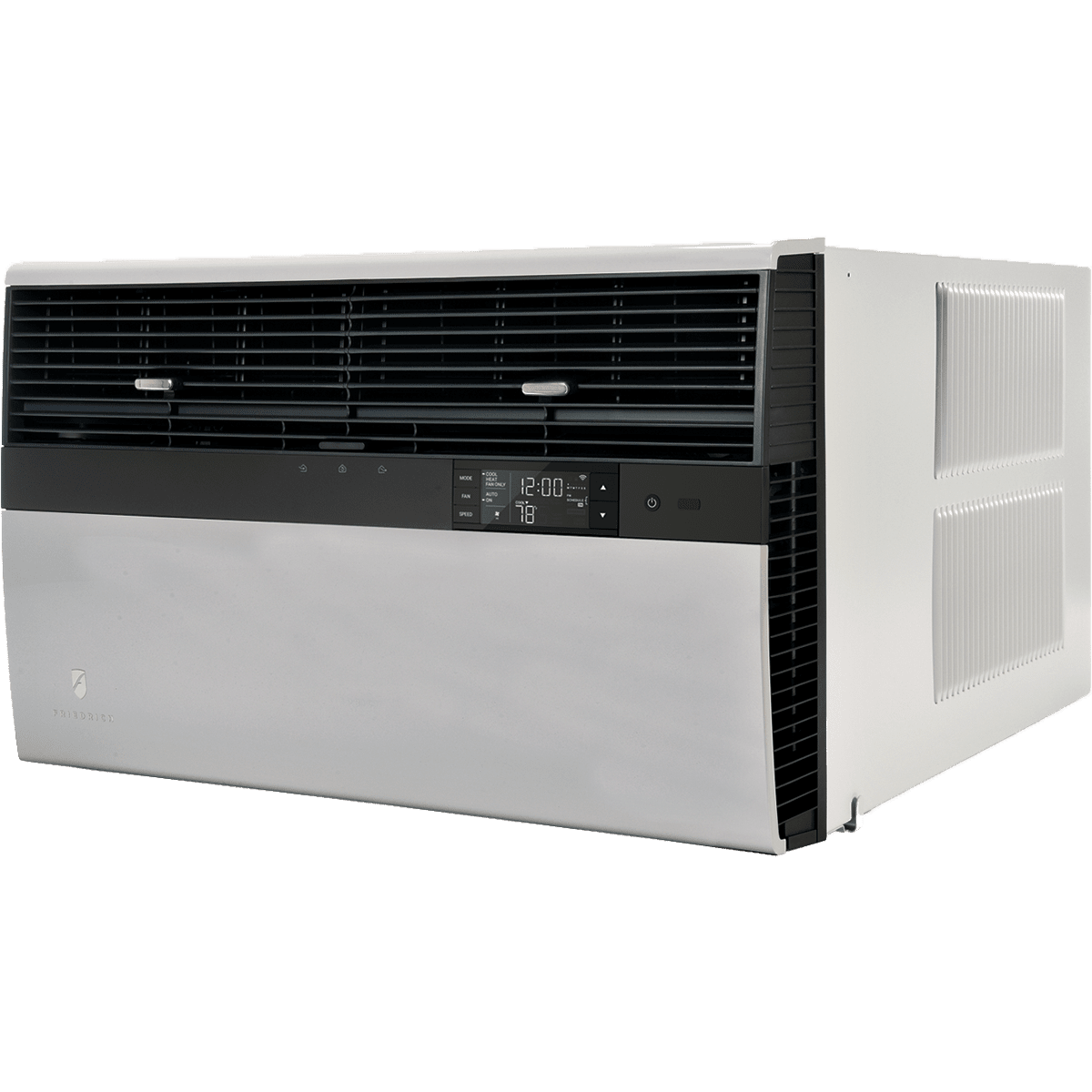

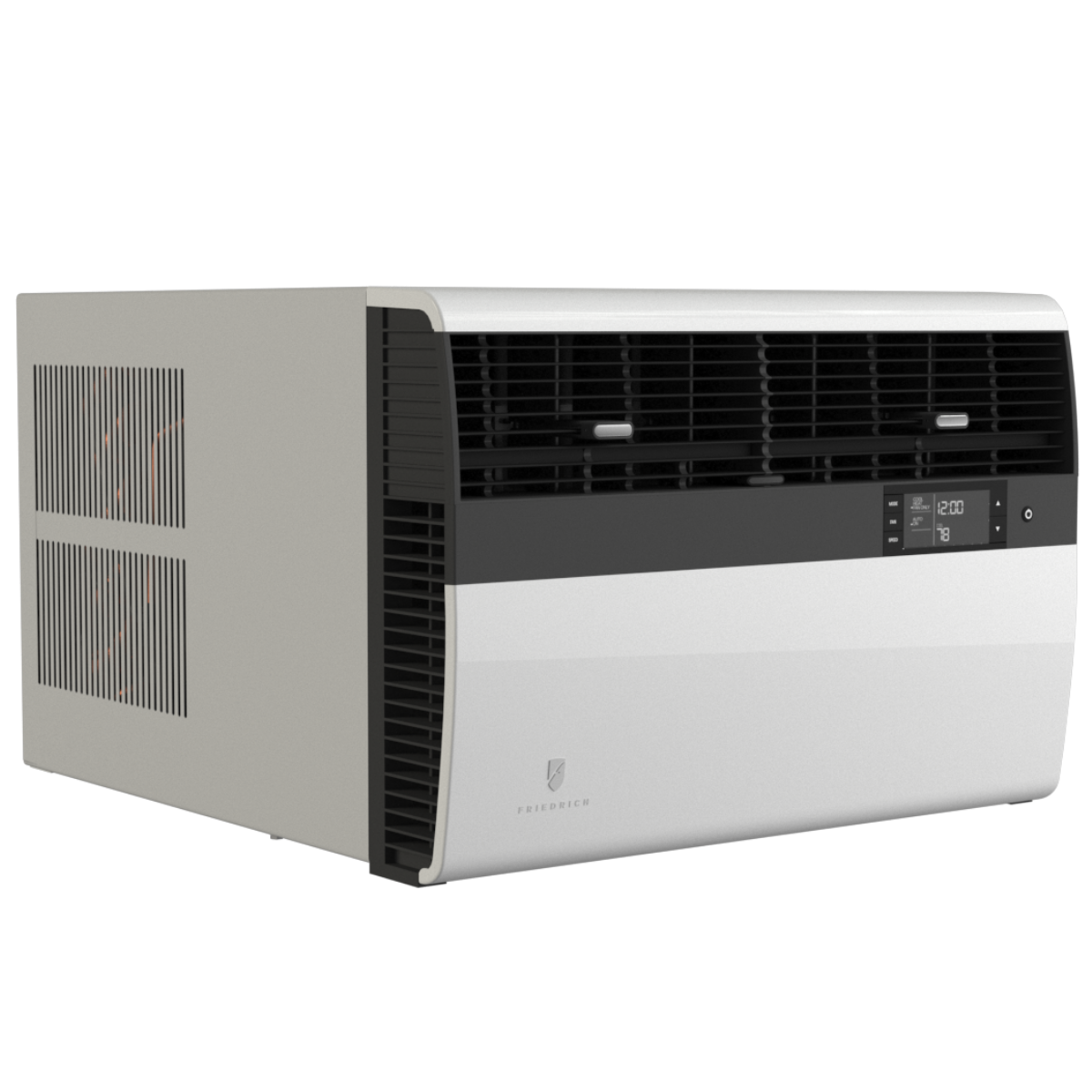

Friedrich 22,500 BTU Kuhl Window Air Conditioner with Heat Pump
Friedrich 22,500 BTU Kuhl Window Air Conditioner with Heat Pump is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Friedrich Kuhl 22,500 BTU Window Air Conditioner with Heat Pump
- Filters
- Owner's Manual
Info & Guides
Info & Guides
Description
Description

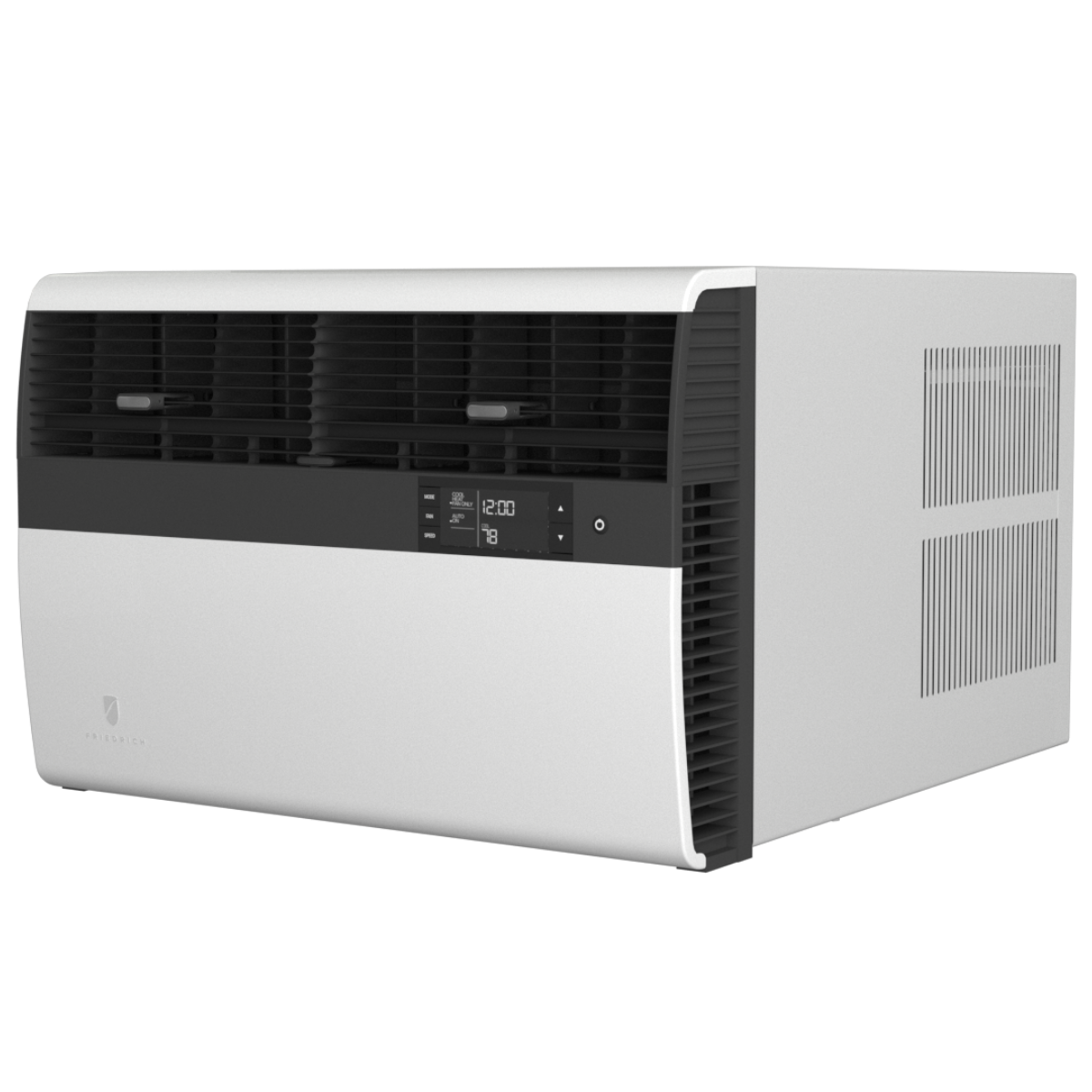

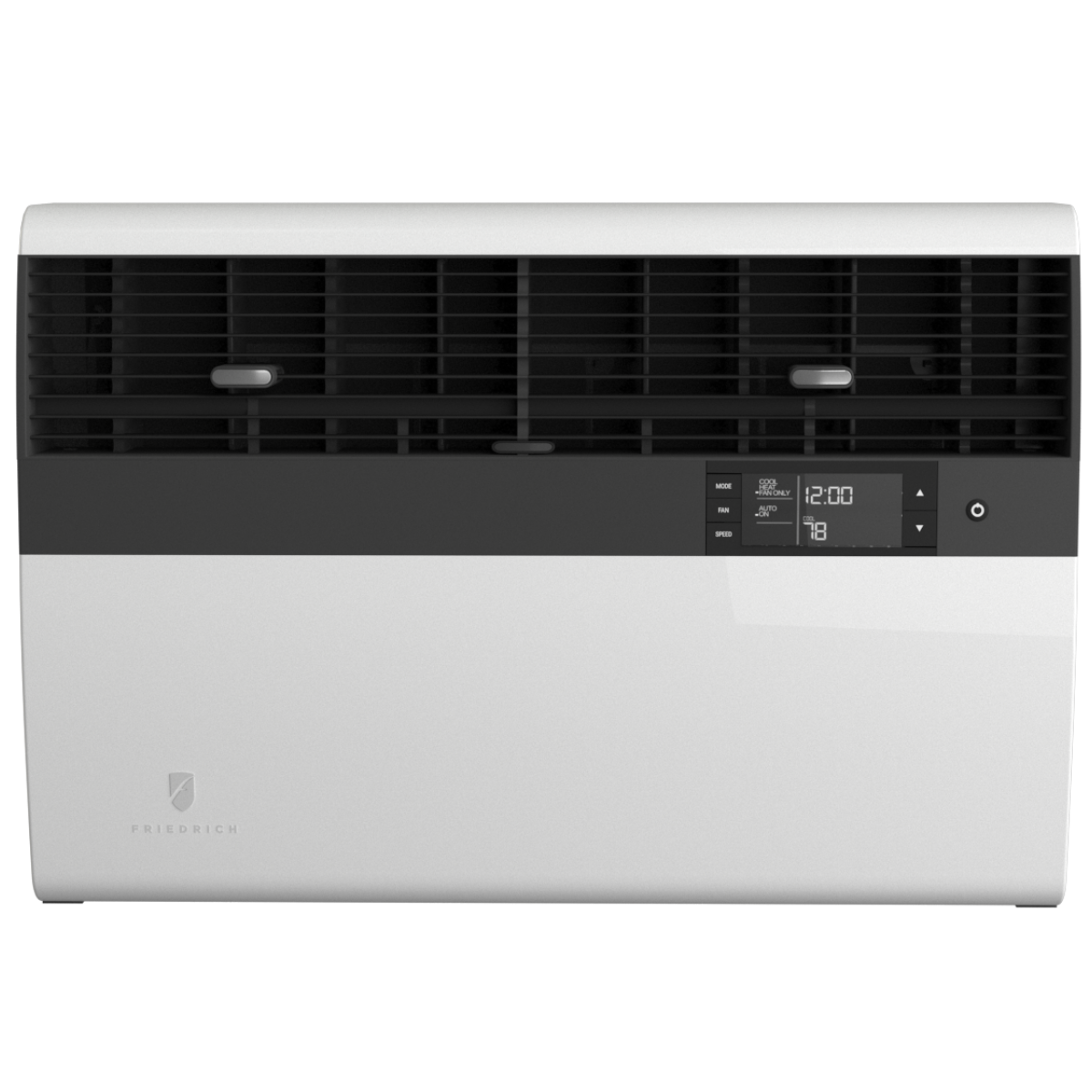

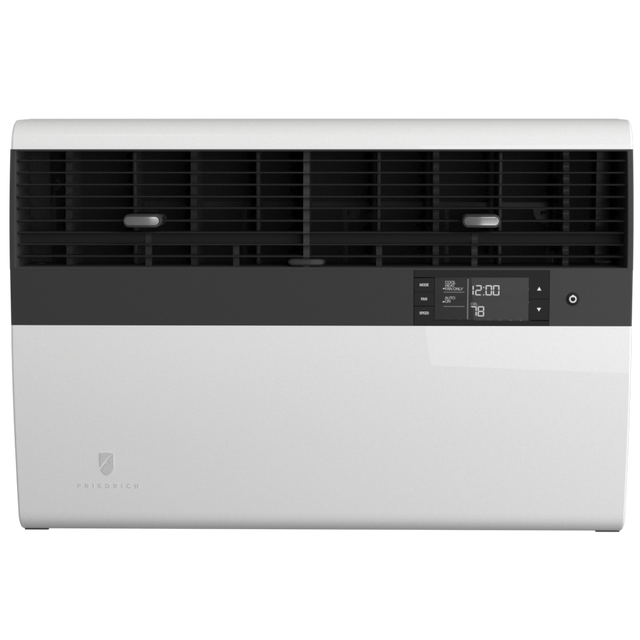

Sleek in design, the 17.94-inch Friedrich Kuhl 22,500 BTU Window Air Conditioner with Heat Pump easily cools or heats up to 850 square feet. Offering 15,200 BTUs of cooling and 17,500 BTUs of heating, it circulates 450 CFM of airflow with four fan speeds. Operate from anywhere with the free Friedrich Connect app, switching between cooling and heating, temperature adjustments, auto modes, and more.
This air conditioner also features quiet operation with QuietMaster technology for improved performance. Other features include dual filtration, auto restart, slide out chassis, grip handles, multiple airflow options, and more.
**This air conditioner uses a NEMA 6 - 30P plug type. It uses a 250-volt/30-amp, 3 prong plug face that looks like this:
Friedrich Connect App
Operable with the free Friedrich Connect App, this Wi-Fi feature integrates touchscreen controls with a computer, phone, or tablet without an adapter. Program temperature settings when you’re home, at work, or at night. Adjust the temperature, fan speeds, auto settings, or power the air conditioner off and on for energy-efficiency. Connect to one or multiple units with the option to invite additional users.
Quiet, Durable Design
Durable design and construction ensure less reverberation when the air condition is in use. Designed to be 45% quieter, the QuietMaster technology features:
- Insulated Cabinet: The 20-gauge steel inner walls prevent outside air and noise intrusion.

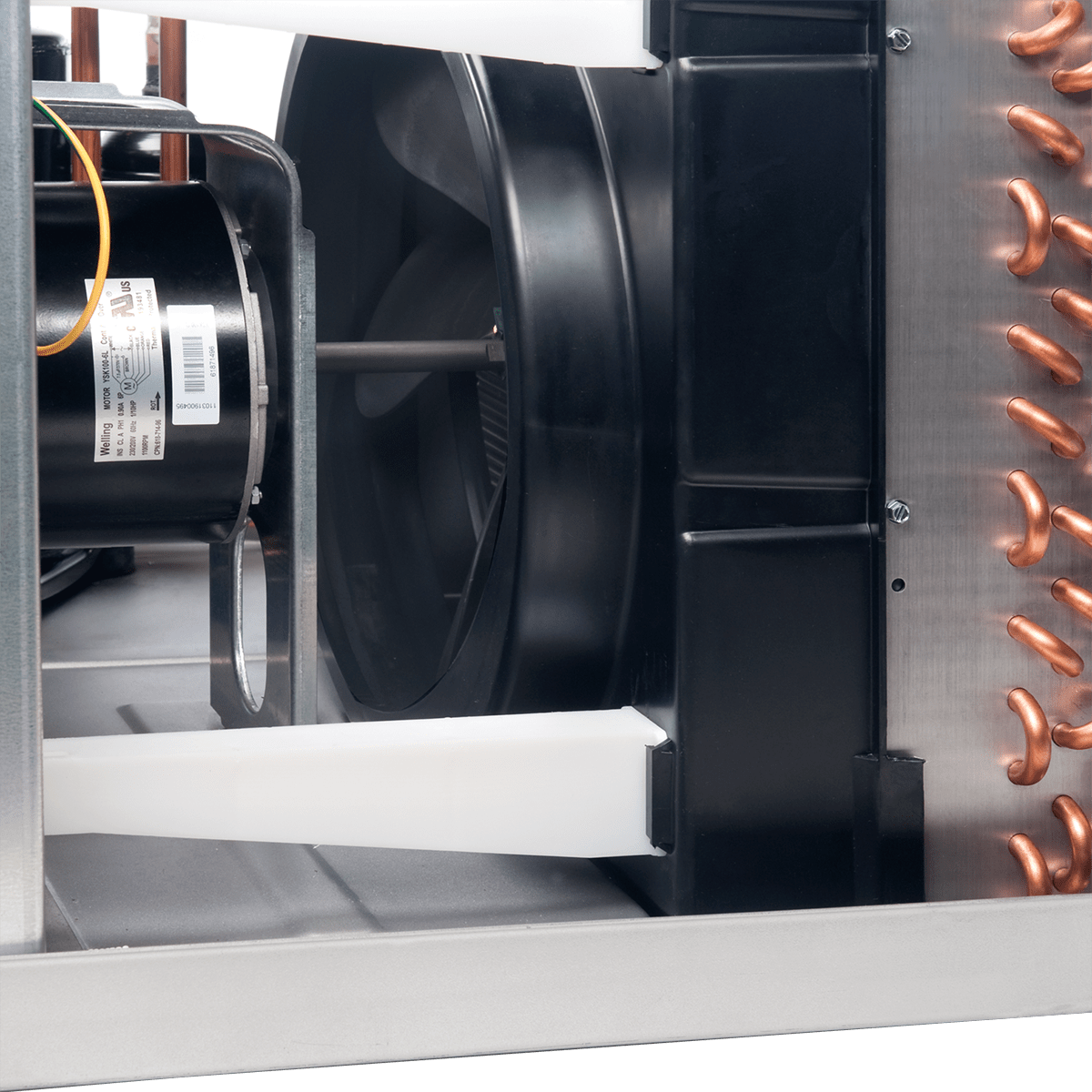

- Enclosed Fan: A fully enclosed rotary fan reduces sound while protecting the motor and fan from dust.
- Noise Reducing Components: A secure motor mount and rubber grommets protect against vibration and metal to metal contact.
Heating + Cooling Options

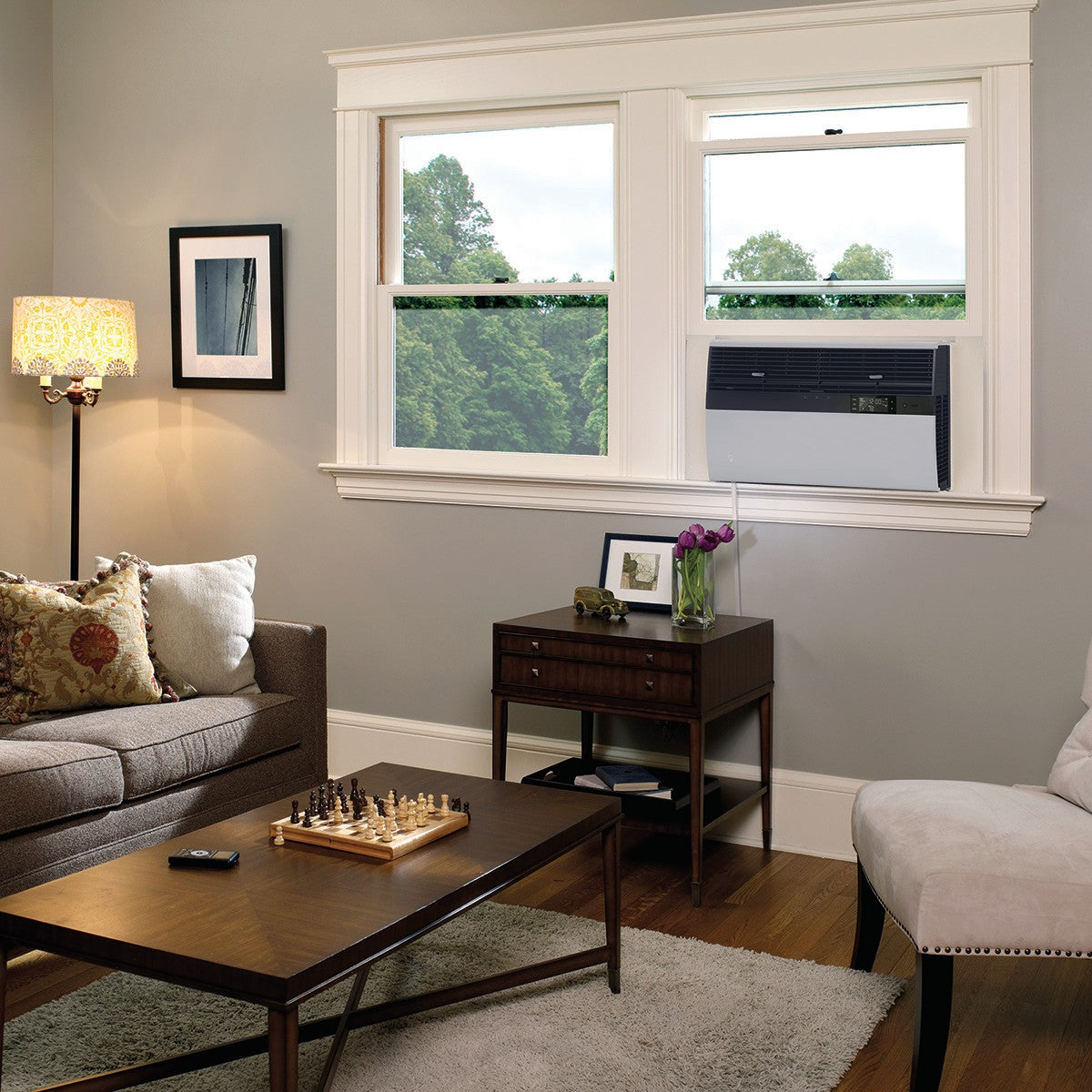

Great for homes, offices, or single rooms, this air conditioner with heat pump easily cools and heats areas up to 850 square feet. Enjoy 15,200 BTUs of cooling, and use the heat option to deter the cold with 17,500 BTUs. Use the digital control pad or Wi-Fi app to adjust the temperature between 60 – 115 degrees F for maximum comfort.

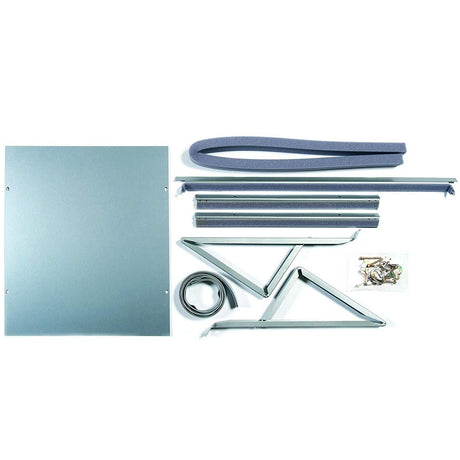

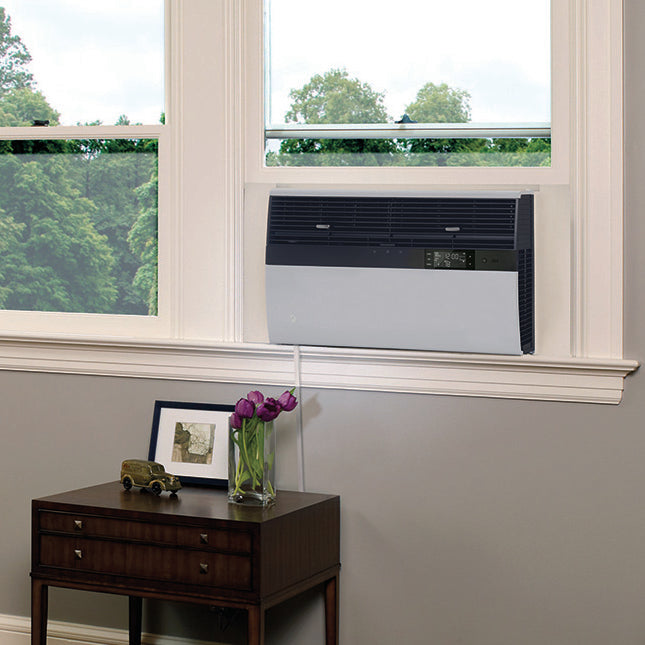

Note: A window kit is required for installation for this model.
Additional Features
- Auto Restart: Even after a power outage, the air conditioner will auto restart to last presets.

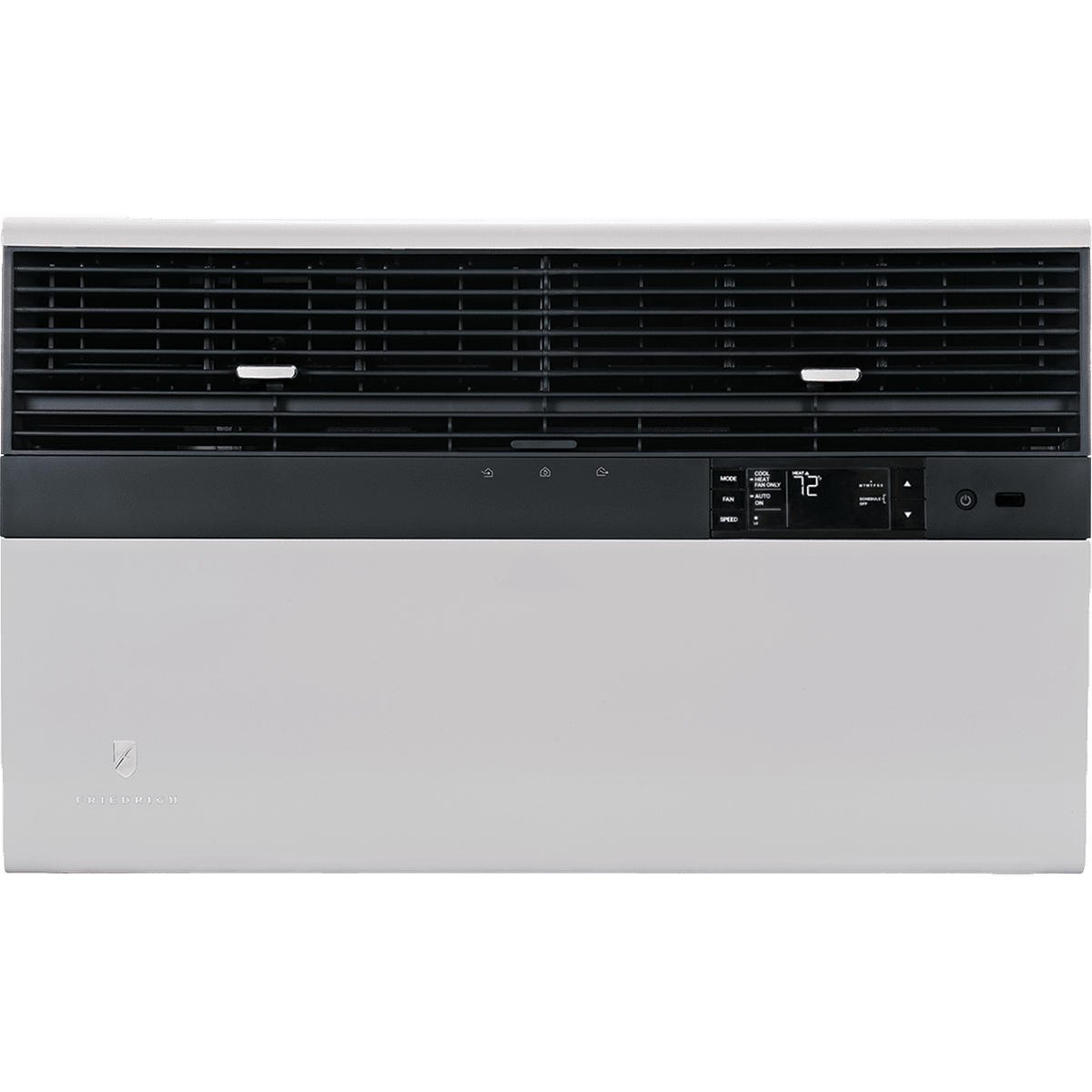

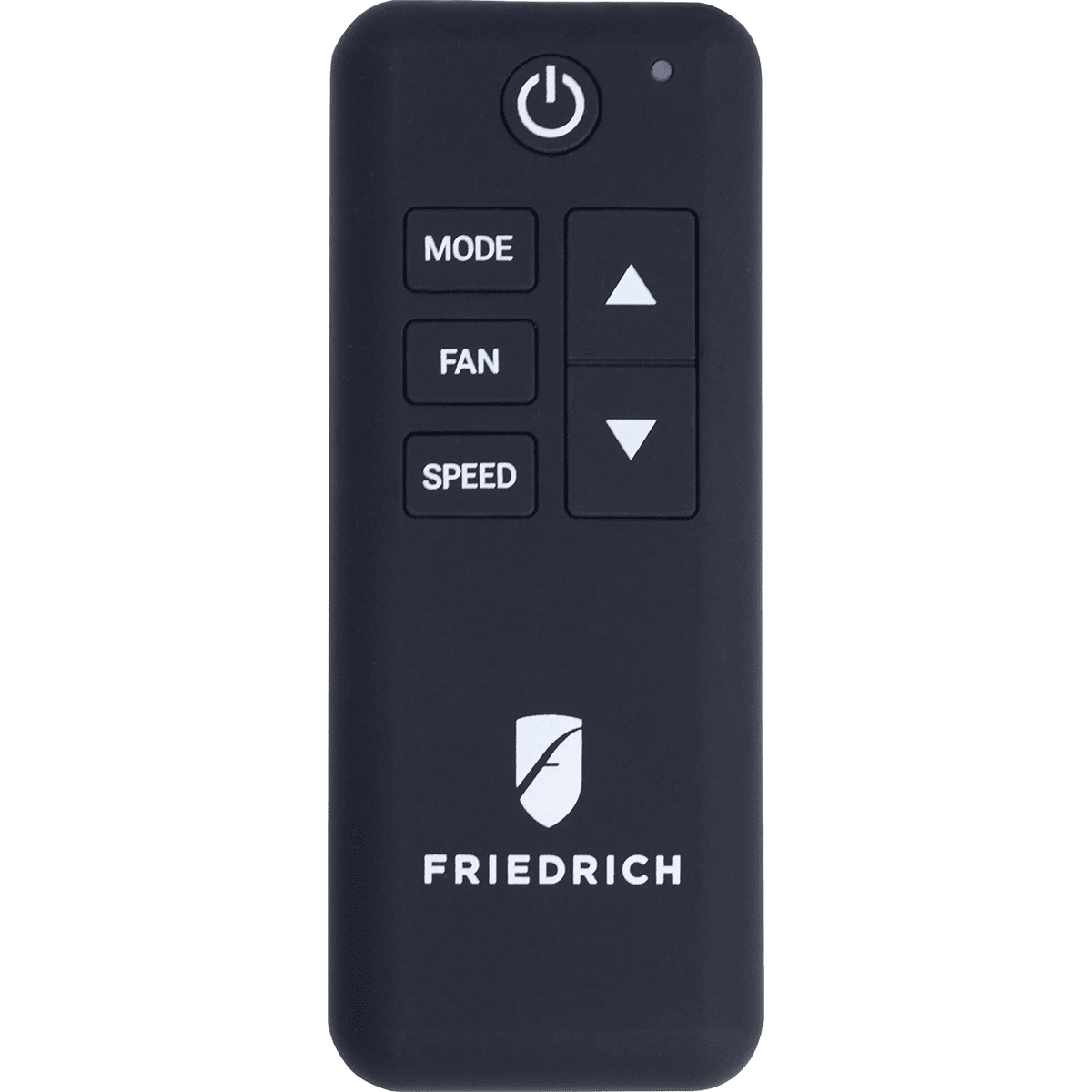

- Digital Control Pad: Operate settings with the onboard digital control pad.
- Control Pad Lockout: Keypad lockout prevents unwanted changes to your settings.
- Improved Airflow: Customize your airflow with four fan speeds and multiple airflow options with top air discharge.

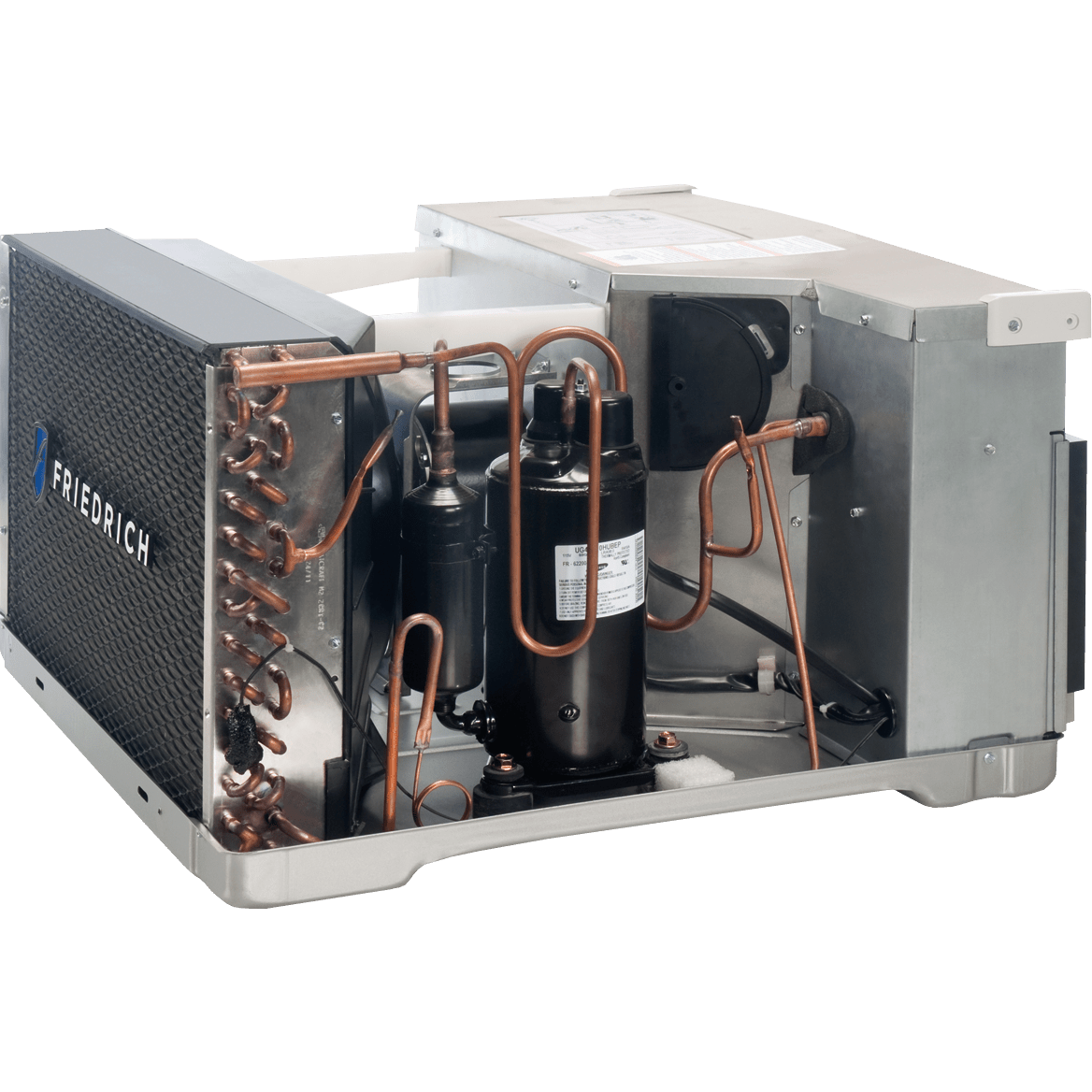

- Easy Installation: A slide out chassis and easy grip handles make installation and maintenance easy.
- Dual Filtration: A washable antimicrobial filter and carbon filter helps eliminate allergens and odors for improved air quality.

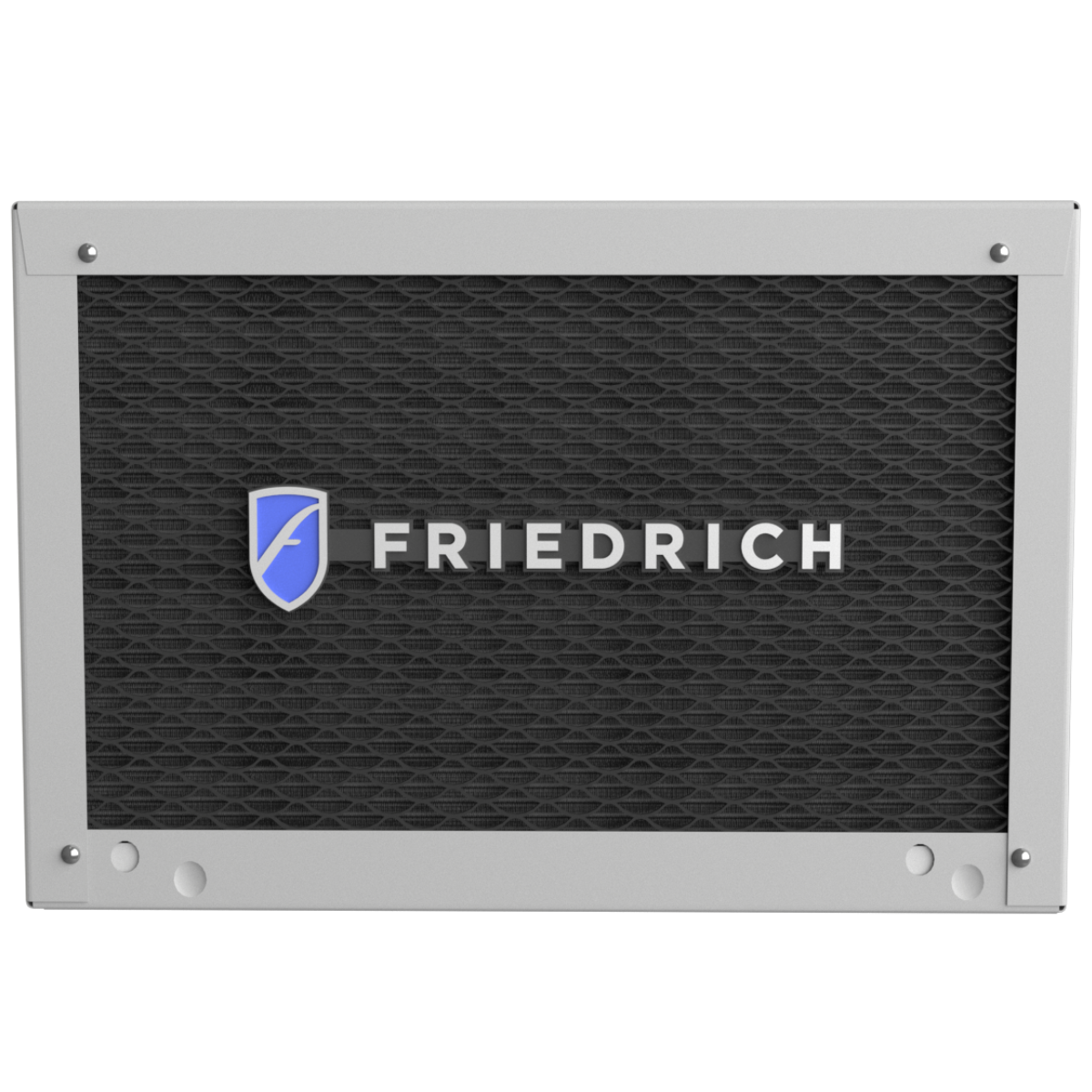

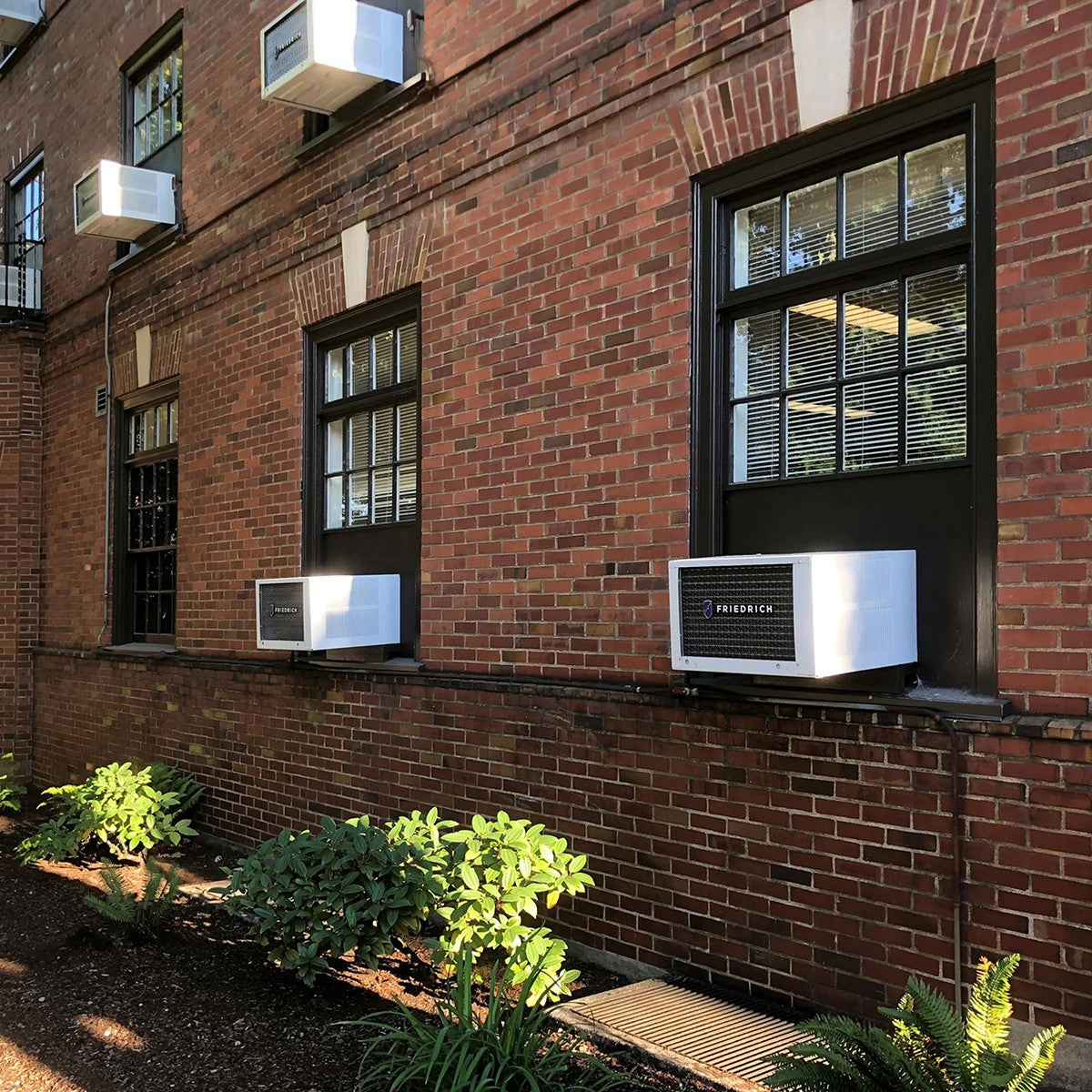

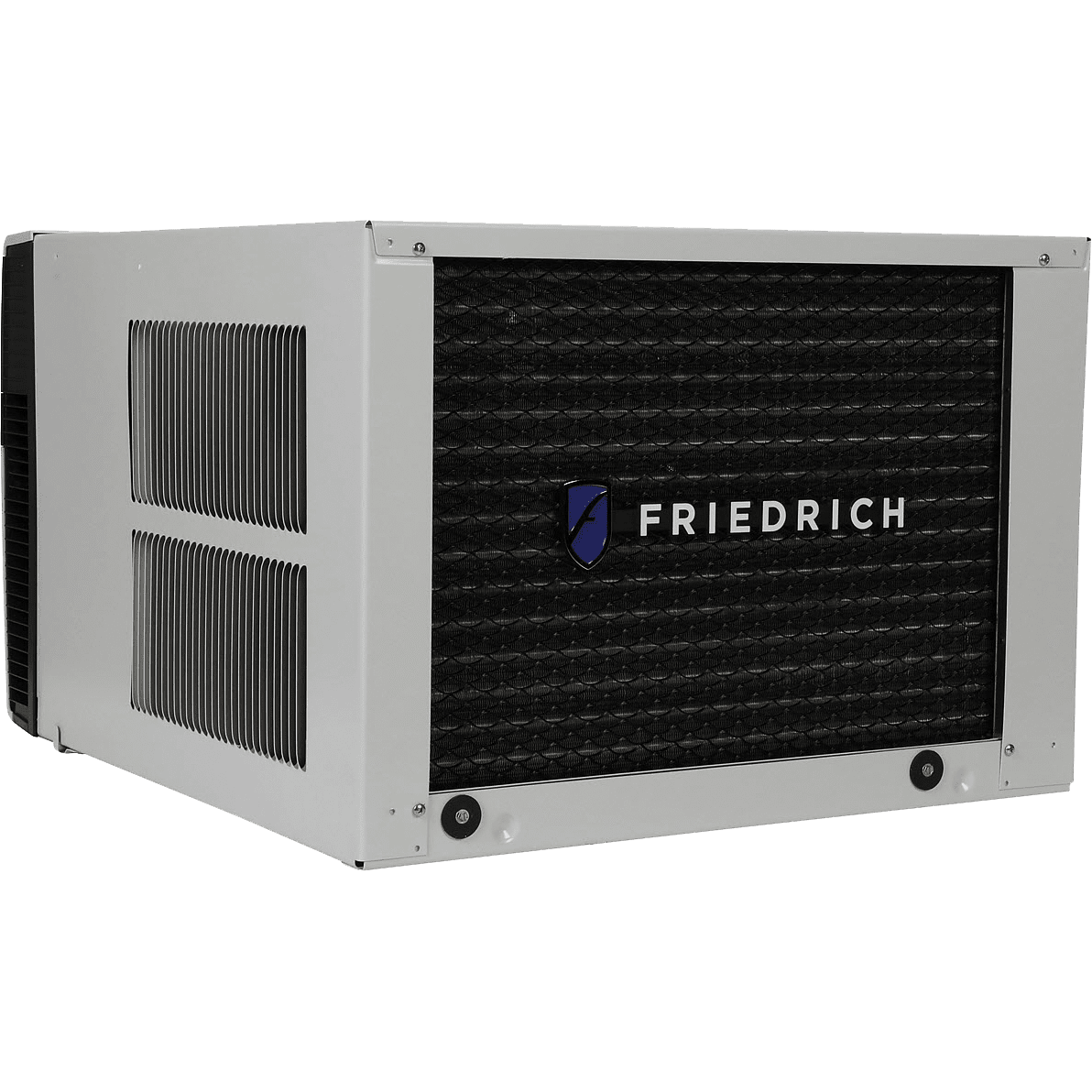

- Anti-Intrusion Protections: The chassis secures to the sleeve to deter kick-ins, while the aluminum outside grille protects coil from debris.
- Check Filter Indicator: Indicator light reminds you to check the filter through a hinged door for easy access.
Summary
Get brisk cooling or even heating with the Friedrich Kuhl 18,000 BTU Window Air Conditioner with Heat Pump and Wi-Fi connectivity.
What Customers Love
- No Adaptor Needed: This Friedrich air conditioner uses an integrated Wi-Fi connection without the use of an external adaptor.
Things to Consider
- Coverage Area: This air conditioner adequately heats and cools up to 850 square feet. For less coverage area, consider the Friedrich Kuhl KSC10A10A for area coverage up to 400 square feet.
Specifications
Specifications
-
ASHRAE Cooling Power (BTUs)[22500]
-
Energy Efficiency Ratio (EER)10.9
-
Number of Speeds4
-
Window Installation TypeSingle/Double Hung
-
California Residents⚠ WARNING: Cancer and Reproductive Harm. For more information go to www.P65Warnings.ca.gov.www.p65warnings.ca.gov.
-
CertificationsUL
-
Chassis TypeSlide-Out
-
Circuit Breaker Rating250V-30A
-
ColorWhite
-
ControlsElectronic
-
Estimated Yearly Operating Cost157
-
Heat ModeYes
-
Heater TypeHeat Pump
-
Heating BTUs (BTUs)14900
-
Maximum Cubic Feet per Minute (CFM) (CFM)450.0
-
Maximum Operating Temperature - Cooling (degrees F)115
-
Minimum Operating Temperature - Cooling (degrees F)60
-
Minimum Operating Temperature - Heating (degrees F)40
-
Moisture Removal per Hour (pints)5.6
-
Recommended Coverage Area (sq. ft.)1000
-
Refrigerant TypeR-32
-
Maximum Cooling Amperage (Amps)7.4
-
Maximum Cooling Wattage (W)1606
-
Maximum Heating Amperage (Amps)7.4
-
Maximum Heating Wattage (W)1568
-
Plug Face Type6-30P
-
Power Cord Length (ft.)6
-
Voltage (V)208-230
-
Depth (in.)35.5
-
Depth (with front cover) (in.)35.5
-
Height (in.)17.94
-
Height (with front cover) (in.)17.94
-
Maximum Window Width (in)42.0
-
Minimum Window Width (in)27.375
-
Weight (lbs.)141
-
Width (in.)28.0
-
Width (with front cover) (in.)28.0
-
Additional FeaturesProgrammable Timer, Energy Star, Air Filter, Fan-Only Mode, Dehumidifier Mode, Intrusion Protection, Auto-Restart, Thru-Wall Installation Option, Wi-Fi Capable
-
Manufacturer's Warranty5-Year Warranty
Key Specifications
General
Power
Dimensions
Additional Features
Warranty

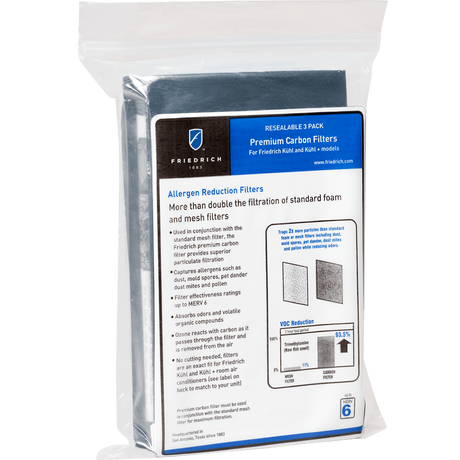

Recommended Accessories
-
Sold out -
-
8% off
- BBruceVerified BuyerReviewingFriedrich 22,500 BTU Kuhl Window Air Conditioner with Heat PumpI recommend this productRated 4 out of 5 stars1 year agoCorrect choice
I had a 18k Lg inverter AC that Iiked but it did not cool enough for my square footage; however this Kuhl is a beast and will cool and heat far better. A little noisy but it will perform for me next Missouri humid summer. I want to be comfortable in the heat and cold not just sort of. Seems quality in materials and performance
